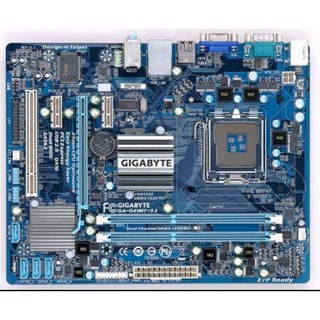

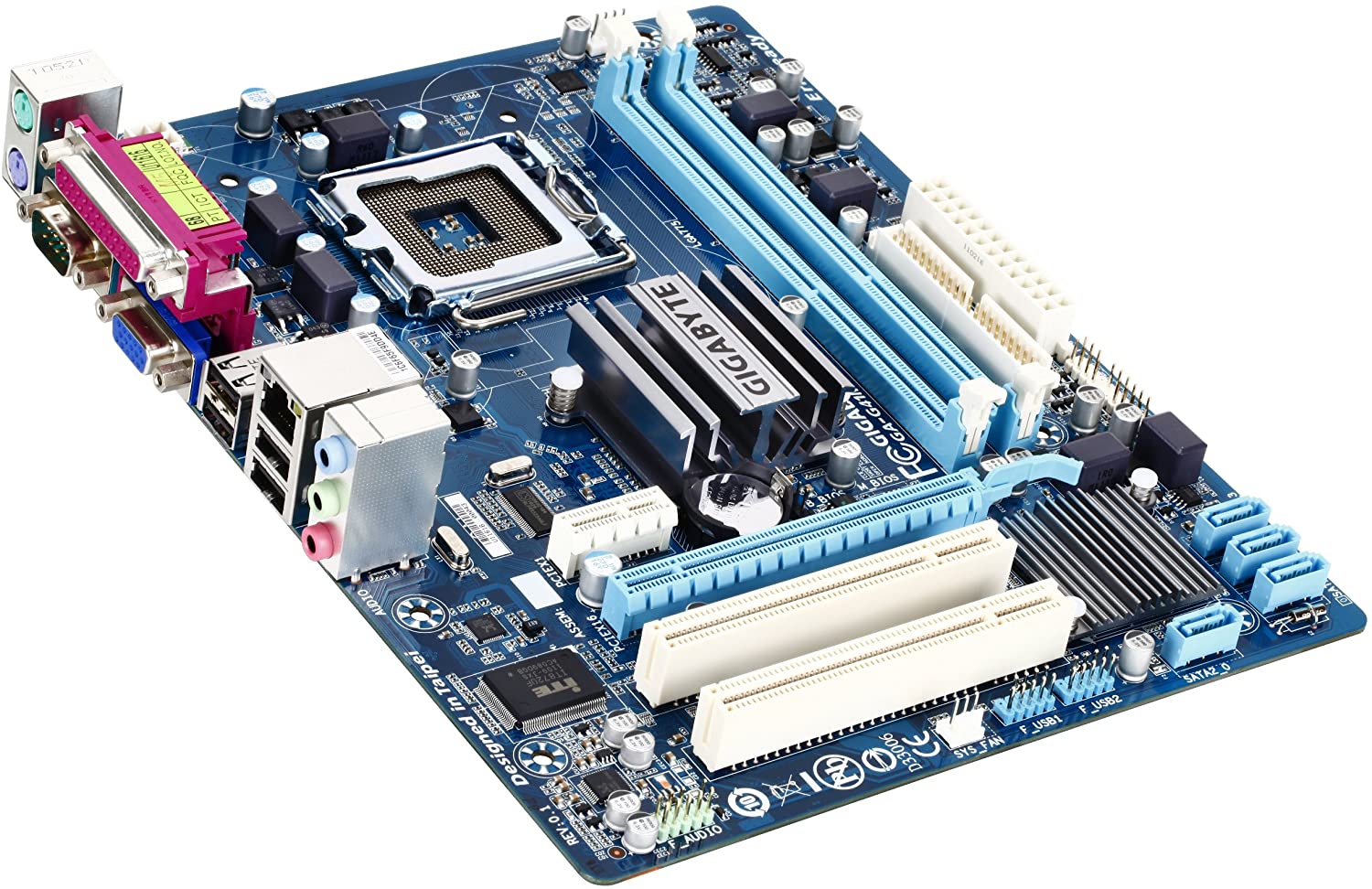

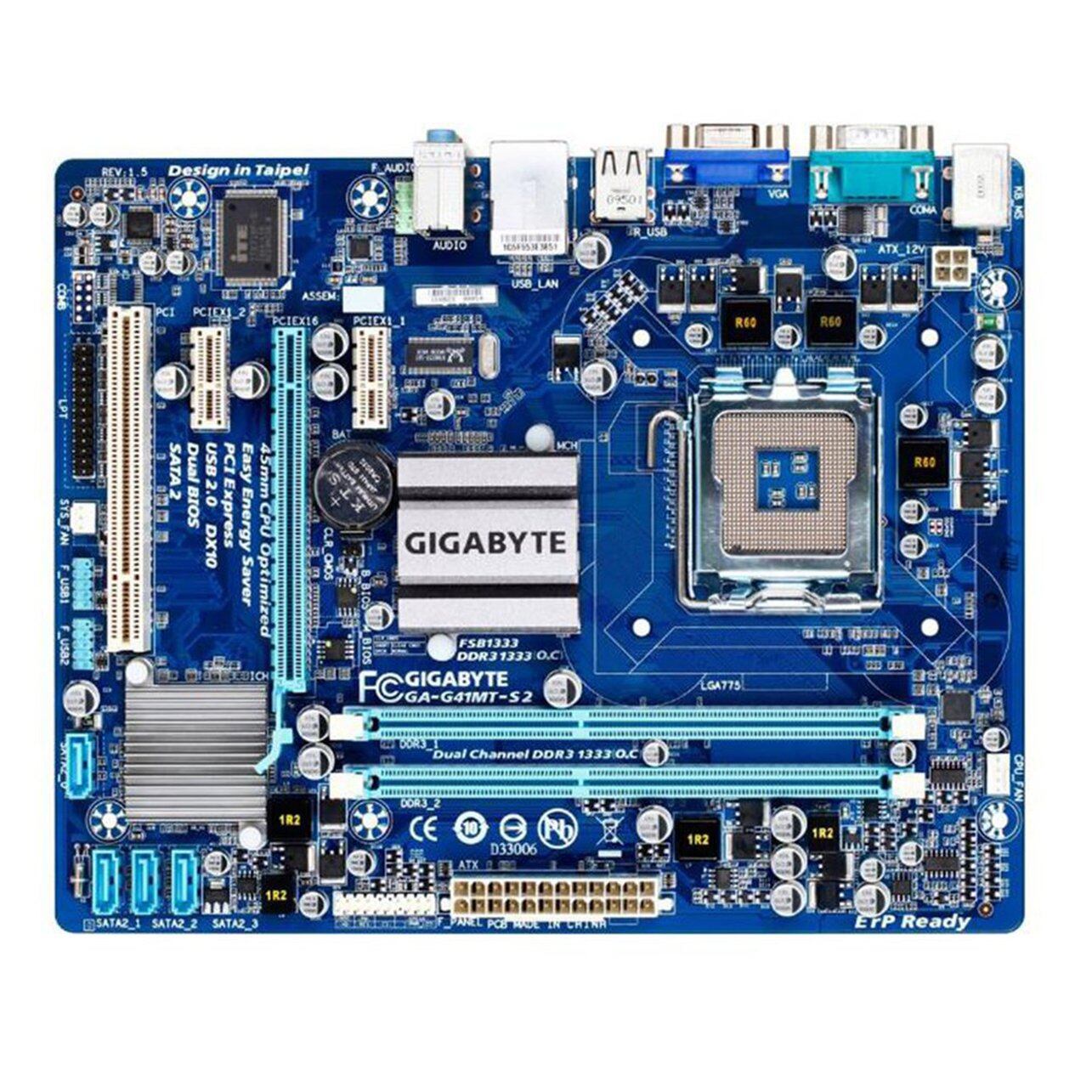

Mainboard Gigabyte G41MT

- Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel®Pentium® processor/Intel® Celeron® processor in the LGA775 package- 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
- 1 x PCI Express x16 slot, running at x16
- 2 x PCI Express x1 slots
- 1 x PCI slot

• CPU
  1. Support for an Intel^® Core™ 2 Extreme processor/Intel^® Core™ 2 Quad processor/Intel^® Core™ 2 Duo processor/ Intel^®Pentium^® processor/Intel^® Celeron^® processor in the LGA775 package
  2. L2 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Bus mặt trước
  1. 1333/1066/800 MHz FSB
• Chipset
  1. North Bridge: Intel^® G41 Express Chipset
  2. South Bridge: Intel^® ICH7
• Bộ nhớ
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
     * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 1333(O.C.)/1066/800 MHz memory modules

  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợp
  North Bridge:

  1. 1 x D-Sub port
• Âm thanh
  1. Realtek ALC887 audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  1. 1 x Atheros AR8151 chip (10/100/1000 Mbit)
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16
  2. 2 x PCI Express x1 slots
  3. 1 x PCI slot
• Giao diện lưu trữ
  South Bridge:

  1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
• USB
  South Bridge:

  1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 4 x SATA 3Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 2 x USB 2.0/1.1 headers
  9. 1 x parallel port
  10. 1 x Clear CMOS jumper

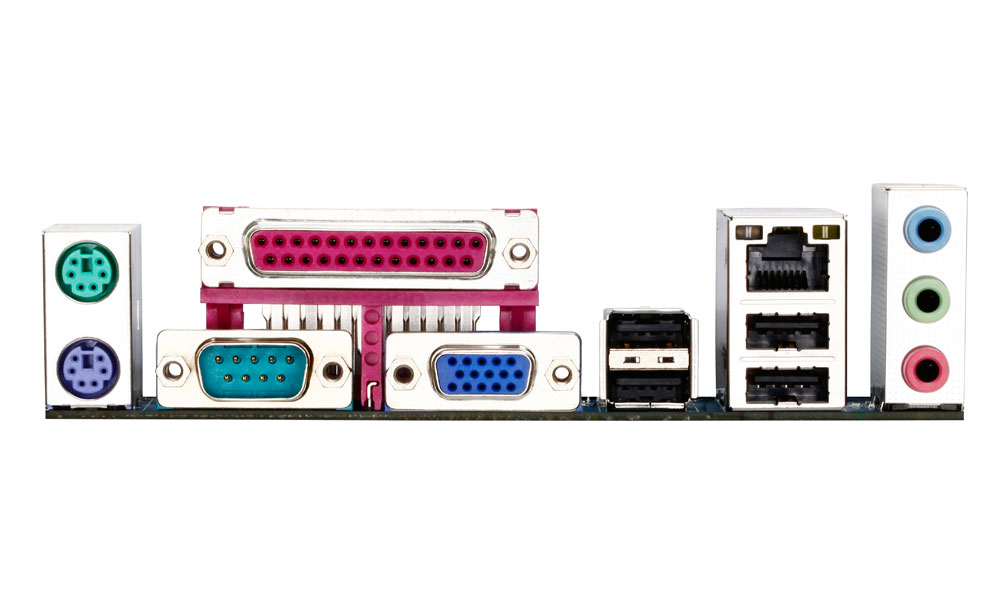

• Kết nối bảng phía sau
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x serial port
  4. 1 x D-Sub port
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks (Line In/Line Out/Microphone)
• Điều khiển I/O
  1. iTE IT8720/8718
• Theo dõi phần cứng
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU fan speed control
     * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
• BIOS
  1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
• Tính năng duy nhất
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune
     * Available functions in EasyTune may differ by motherboard model.
  8. Support for Easy Energy Saver
     * Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/Core™ 2 Quad/ Core™ 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron 400 Series CPU to enable support for Easy Energy Saver.
  9. Support for Time Repair
  10. Support for 3TB+ Unlock
  11. Support for ON/OFF Charge
  12. Support for Q-Share
• Gói phần mềm
  1. Norton Internet Security (OEM version)
• Hệ điều hành
  1. Support for Microsoft^® Windows 7/Vista/XP
• Hệ số khuôn
  1. Micro ATX Form Factor; 24.4cm x 19.4cm
