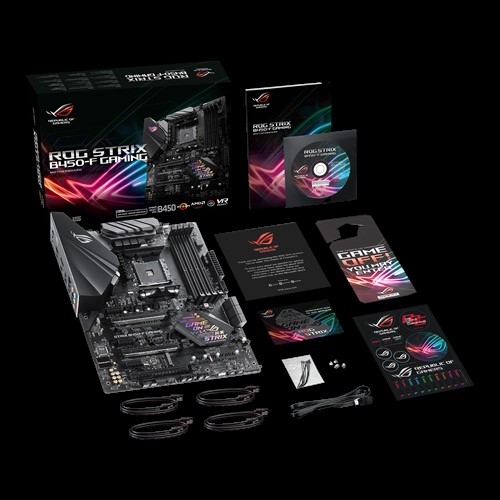

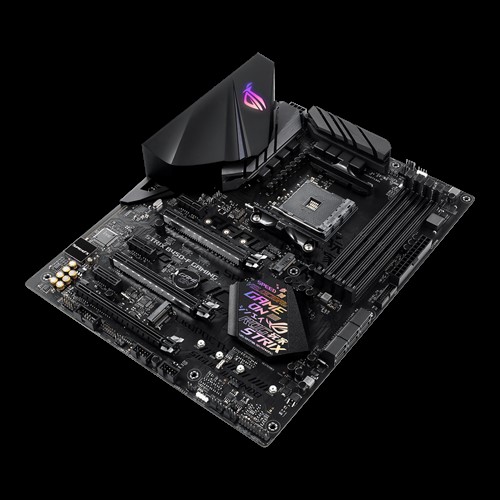

Mainboard Asus ROG STRIX B450-F GAMING

- Socket: AM4 AMD hỗ trợ CPU Ryzen™ thế hệ thứ 2/Ryzen™
- Kích thước: ATX - Khe cắm RAM: 4 khe Tối đa 64GB
- Khe cắm mở rộng: 2 x PCIe 3.0 / 2.0 x16 (x16 hoặc x8 / x4), 1 x PCIe 3.0 / 2.0 x16 (chế độ x8), 1 x PCIe 2.0 x16 (tối đa ở chế độ x4), 3 x PCIe 2.0 x1

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	ROG STRIX B450-F GAMING
CPU hỗ trợ	AMD
Chipset	B450
RAM hỗ trợ	4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz
Khe cắm mở rộng	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)  AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode)  AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1
Ổ cứng hỗ trợ	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : *2 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 2 x SATA 6Gb/s port(s) AMD Ryzen™ with Radeon™ Vega Graphics Processor : *2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 2 x SATA 6Gb/s port(s) AMD B450 chipset :  4 x SATA 6Gb/s port(s),  Support Raid 0, 1, 10
Cổng kết nối (Phía trong)	2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s)  1 x CPU OPT Fan connector(s)  3 x Chassis Fan connector(s)  1 x AIO_PUMP connector  1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s)  1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)

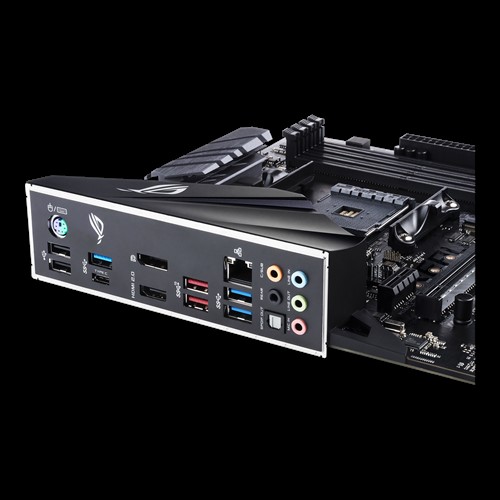

Cổng kết nối (Phía sau)	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A,  4 x USB 3.1 Gen 1 (blue) ,  2 x USB 2.0  1 x Optical S/PDIF out 5 x Audio jack(s)
LAN / Wireless	Intel® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology
Kích cỡ	ATX Form Factor  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Giá Mainboard Asus ROG STRIX B450-F GAMING mới nhất

1. Mainboard Asus ROG STRIX B450-F GAMING bán tại Lazada giá 2.970.000₫
2. Mainboard ASUS ROG STRIX B450-F GAMING bán tại Phong Vũ giá 3.430.000₫
