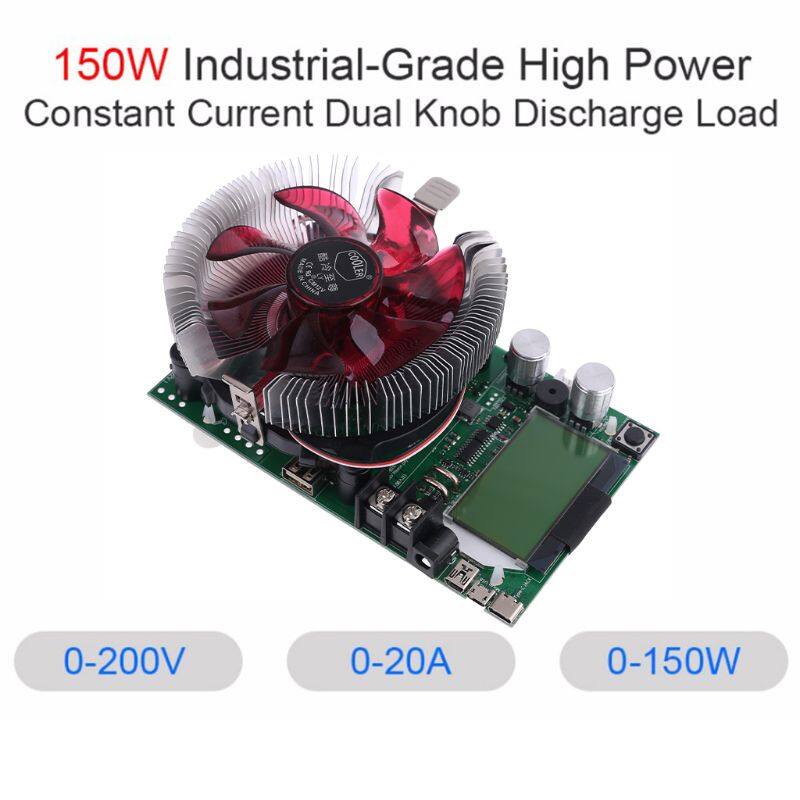

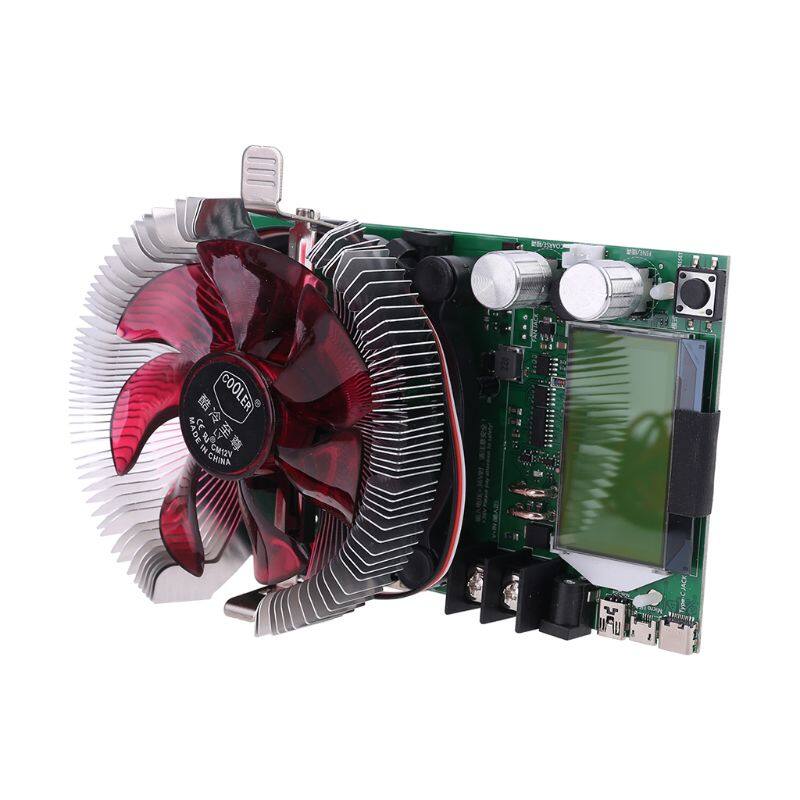

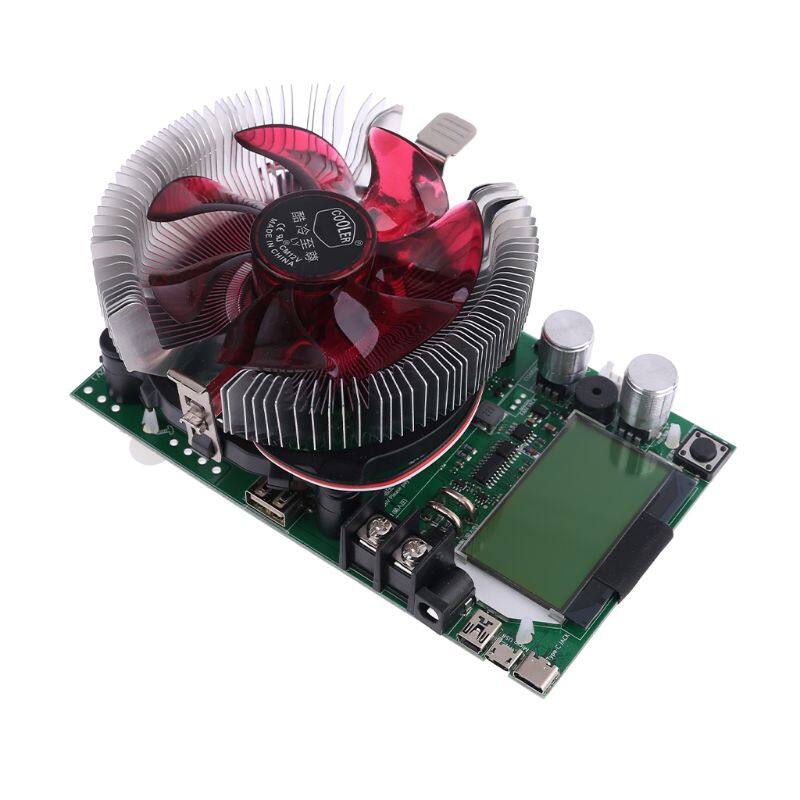

Electronic Load Tester 150W 200V 20A USB Adjustable Current Battery Capacity Testing Module Intelligent Power Meter

100% brand new and high quality
Features:
Made of high quality material, solid, durable and practical, good performance and long lasting.

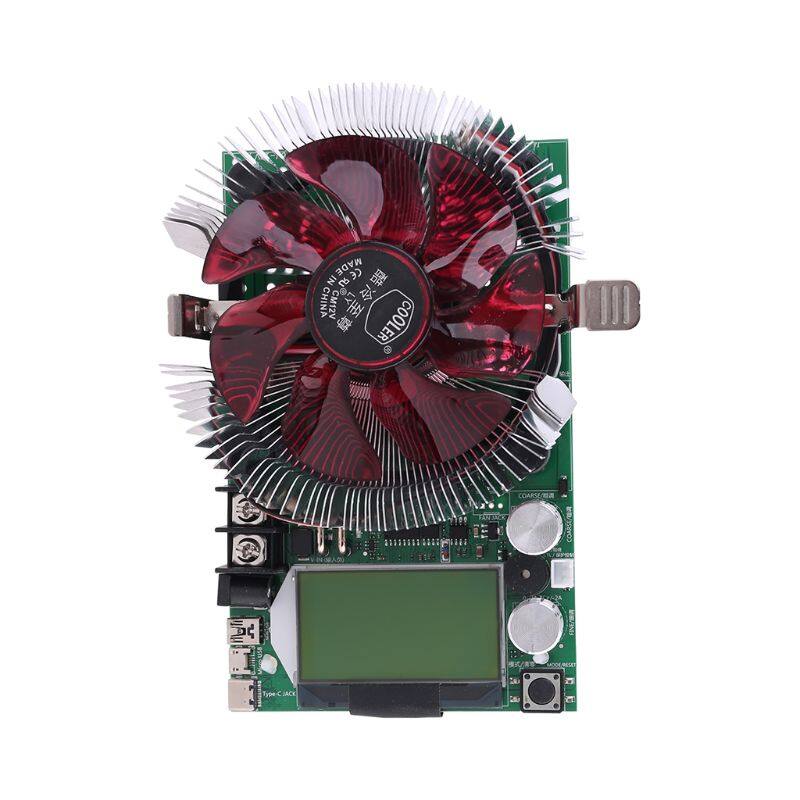

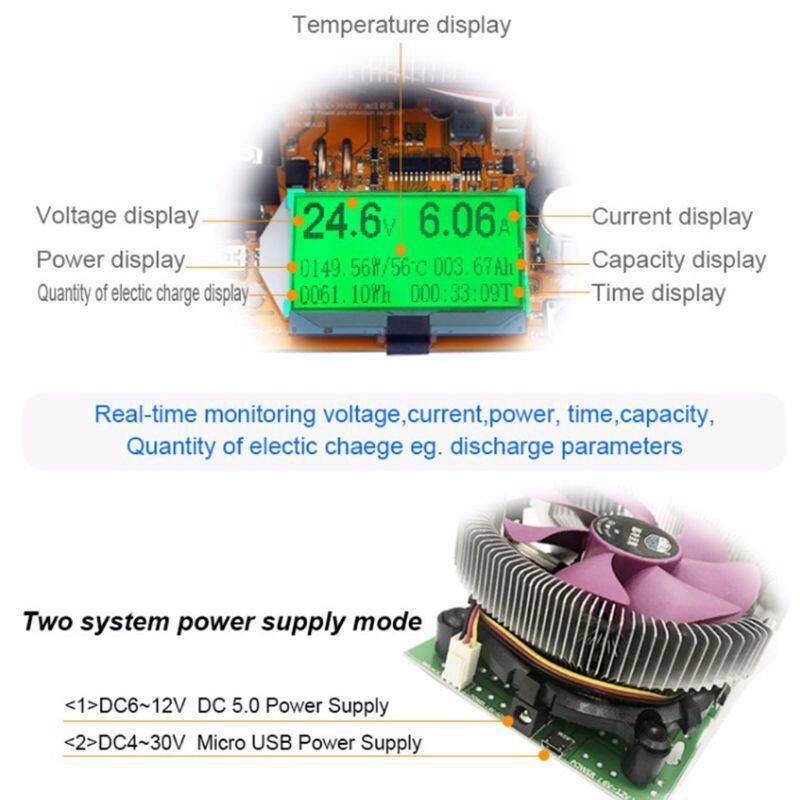

LCD screen, display information comprehensively and clearly.

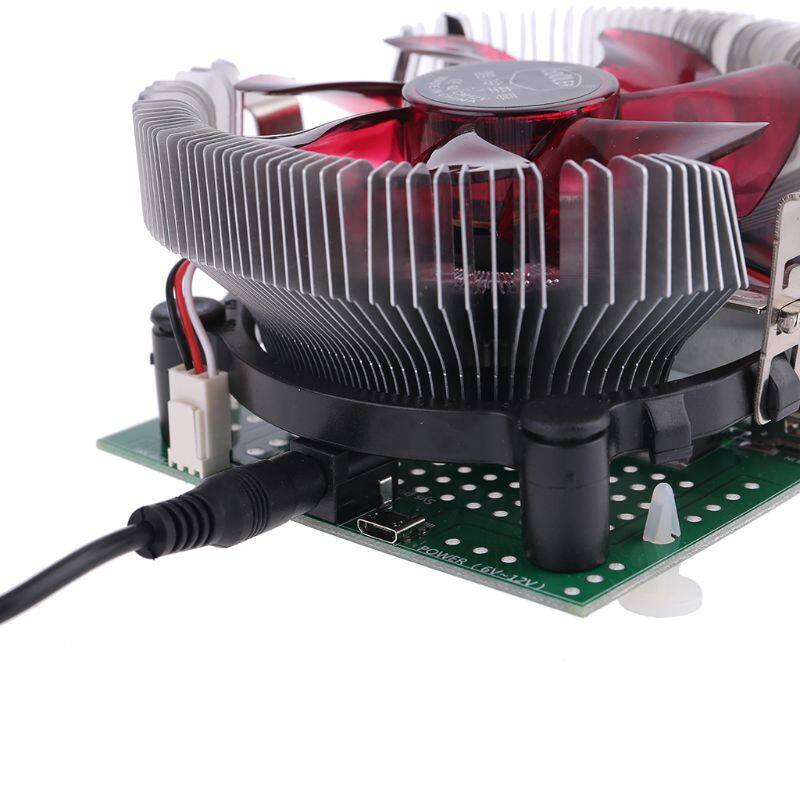

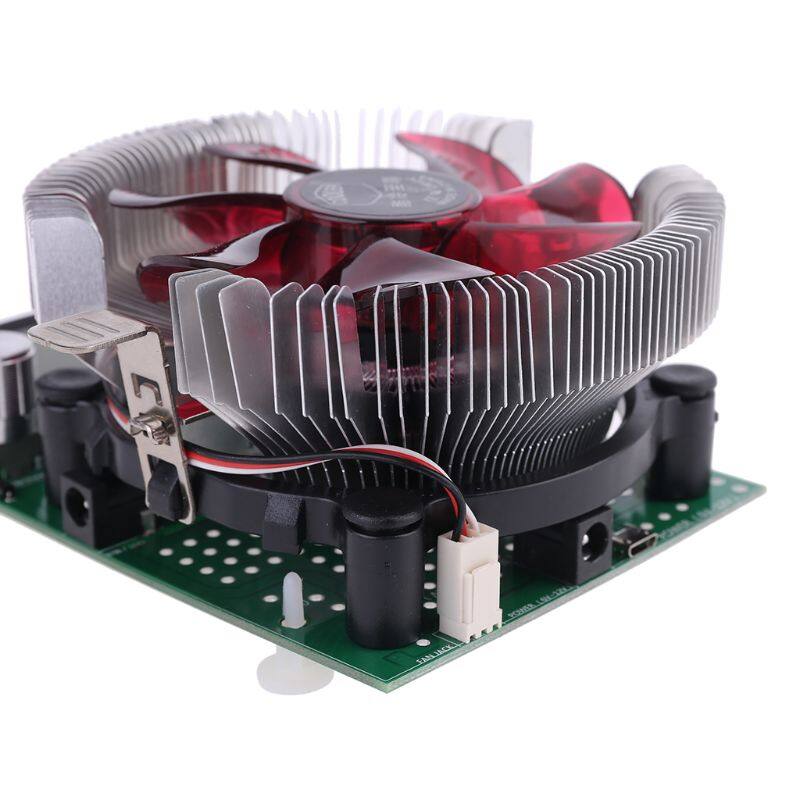

Configuration of intelligent fan can dissipate the heat effectively and quietly.
Load maximum power 150W, max voltage 200V, max current 20A.
Over voltage, over current, and over pressure alarm can protect the module from damage effectively.
Widely used for testing various batteries, DC power supply, and charging data lines.

Specification:
Material: Fiber Glass Board, Electric Components

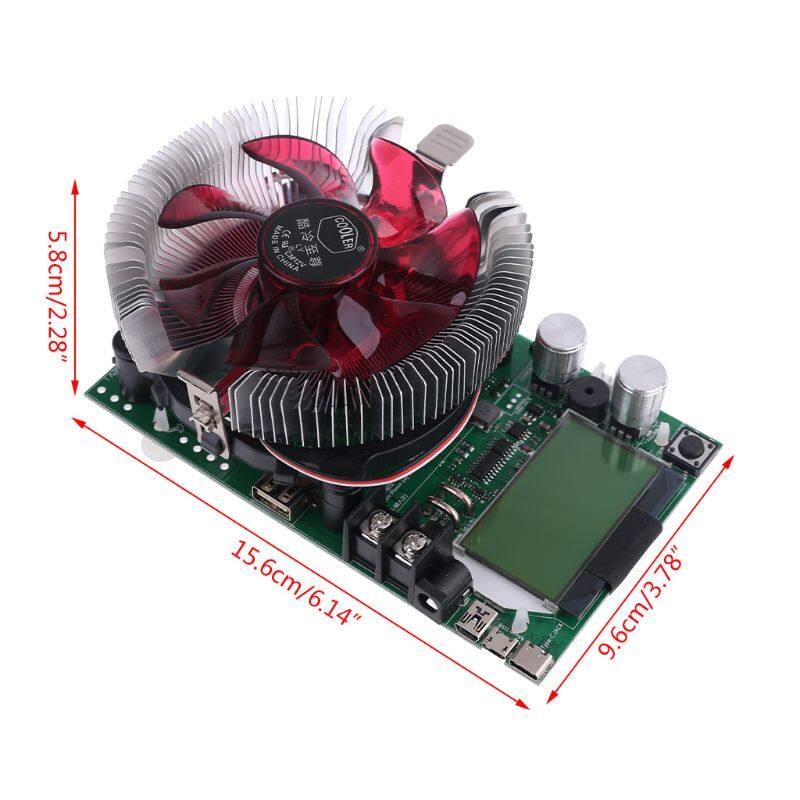

Size: app.15.6 x 9.6 x 5.8cm/6.14 x 3.78 x 2.28in
Color: Yellow and Purple and Grey
Quantity: 1 Set

Product Parameter:
Input/Output Interface: 100A high current bite screw column
Voltage Measurement Range: 0.00V-200VResolution accuracy: 0.01V
Current Measurement Range: 0.00A-20AResolution accuracy: 0.01A
Capacity Accumulation Range: 0-999.999AhResolution accuracy: 0.01Ah
Power Accumulation Range: 0-9999.9WhResolution accuracy: 0.01Wh
Power Measurement Range: 0000.00-150 WResolution accuracy: 0.01W
Impedance Measurement Range: 1-999.9 ohmsResolution accuracy: 0.01 ohms
Temperature Measurement Range: 0-99℃/32-210.2℉Resolution accuracy: 1 ℃
Timing Maximum Time: 999 hours 59 minutes 59 seconds Resolution accuracy: 1 second
Timing Measurement Reminder Setting: countdown 24-hour arbitrary setting
Small Current Standby Remind Parameter and Timing: Less than 2W/0.5 hours; Over 0.5W to start timing, DC 4-30V supplies power to the measurement system
Refresh Time: Over 500mS/time
Measurement Rate: About 0.5 times/sec
Overvoltage and Overcurrent Setting Alarm Mode: Display warning interface to remind users
Overvoltage Reminder Setting Range: 1-200V
Low pressure Reminder Setting Range: 0-190V
Overcurrent Reminder Setting Range: 0.2-100A
Display Type: Micro-power LCD module LCM black font green backlight Chinese and English display
Working Temperature: -10 - +60℃/14 - 140℉
Working Humidity: 10 - 80 (No glazed frost)
Working Pressure: 80 - 106kPa

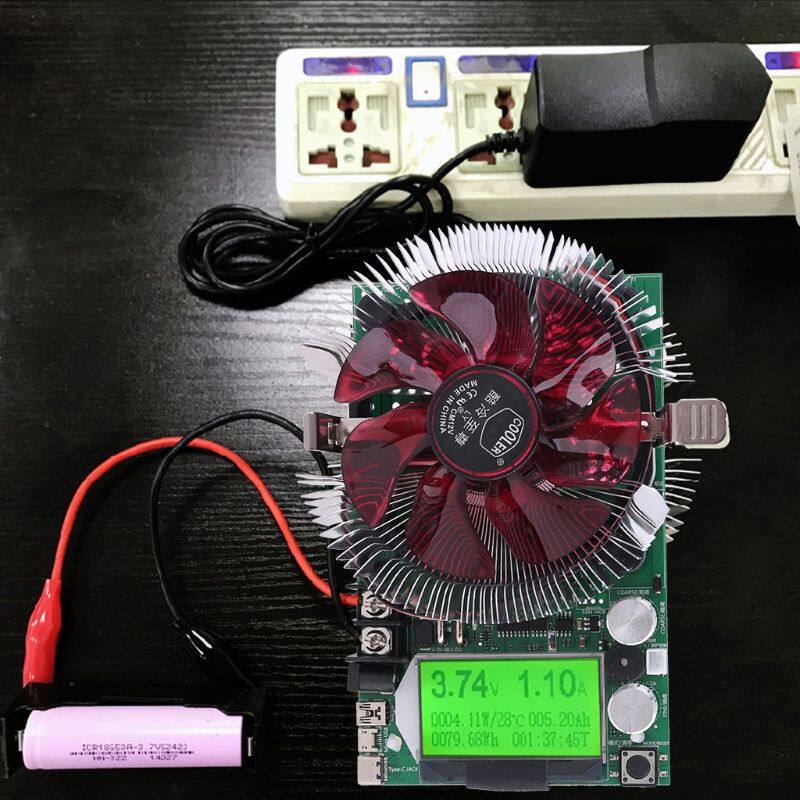

Instruction for Connection and Operation :

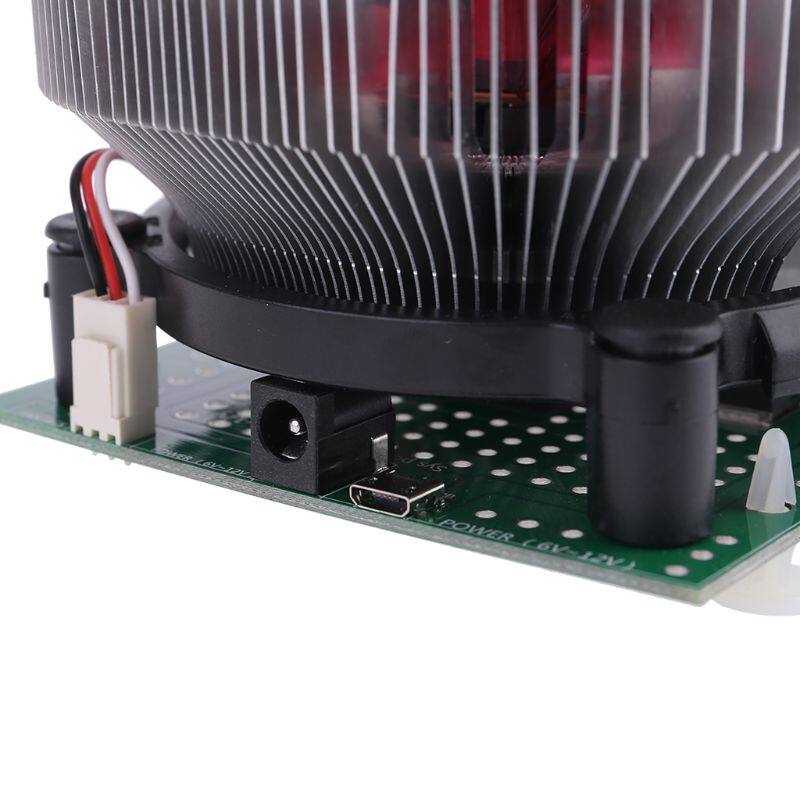

1. Open the package, insert the power adapter into the end of the product and supply the power.
2. Anti-clockwise rotate the two current knobs to the lower limit.

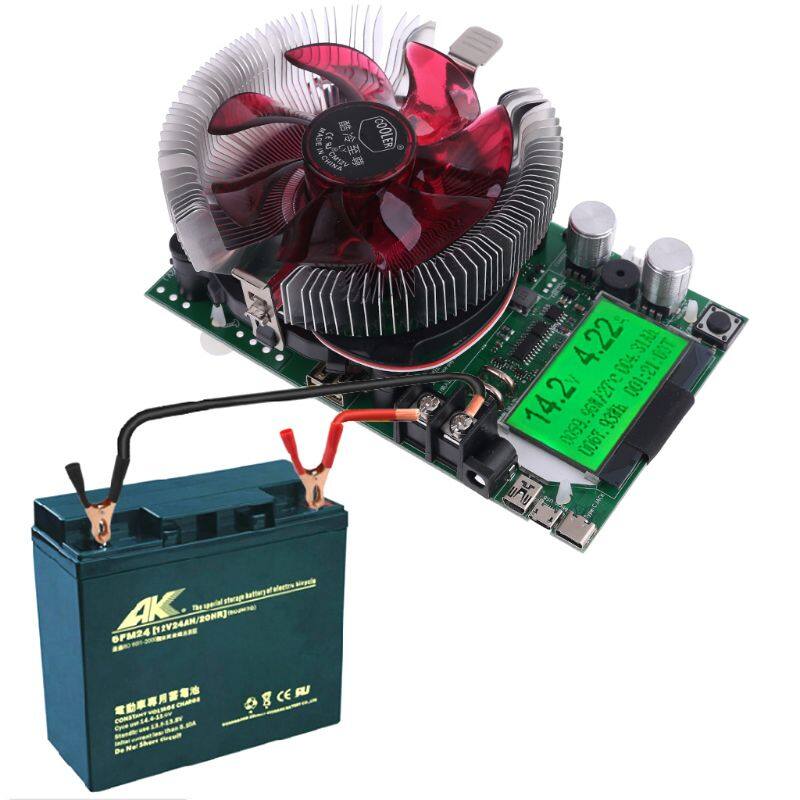

3. Connecting the Power Supply under test to the product according to the diagram above, and the current input voltage value will be read out. Keep pressing the key to reset all data to zero;

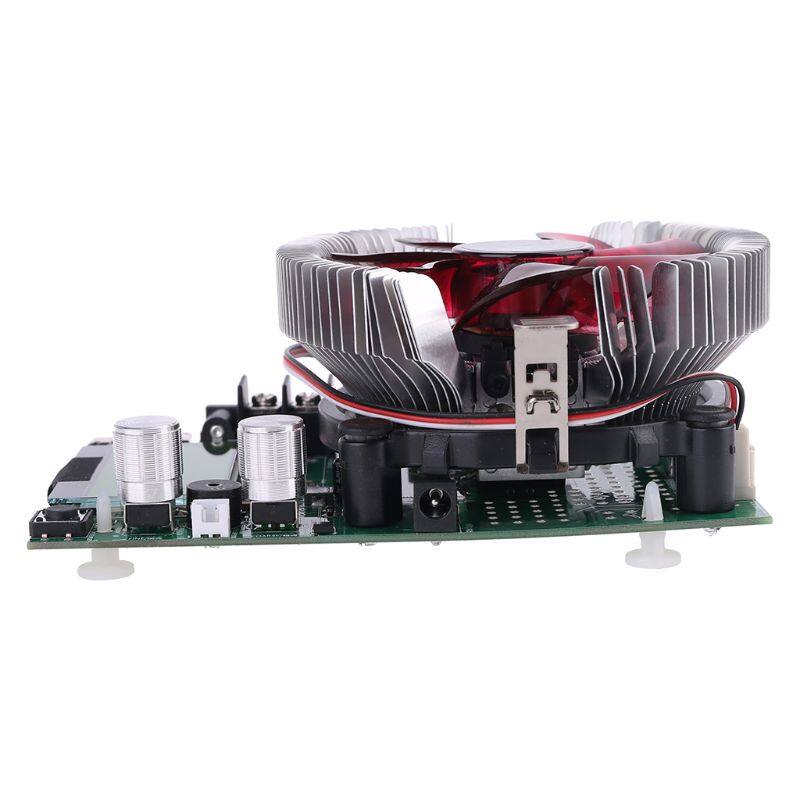

4. Slowly clockwise rotate the two current knobs (coarse&fine) to adjust the current to the rating value of the Power Supply(The current should be slowly adjusted, using the fine knob priority, the coarse knob could be only used under large current condition.)
5. When testing the battery, Low voltage discharge limit should be set up, to avoid the possible damage caused by over discharging while discharge capacity test of the battery.

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

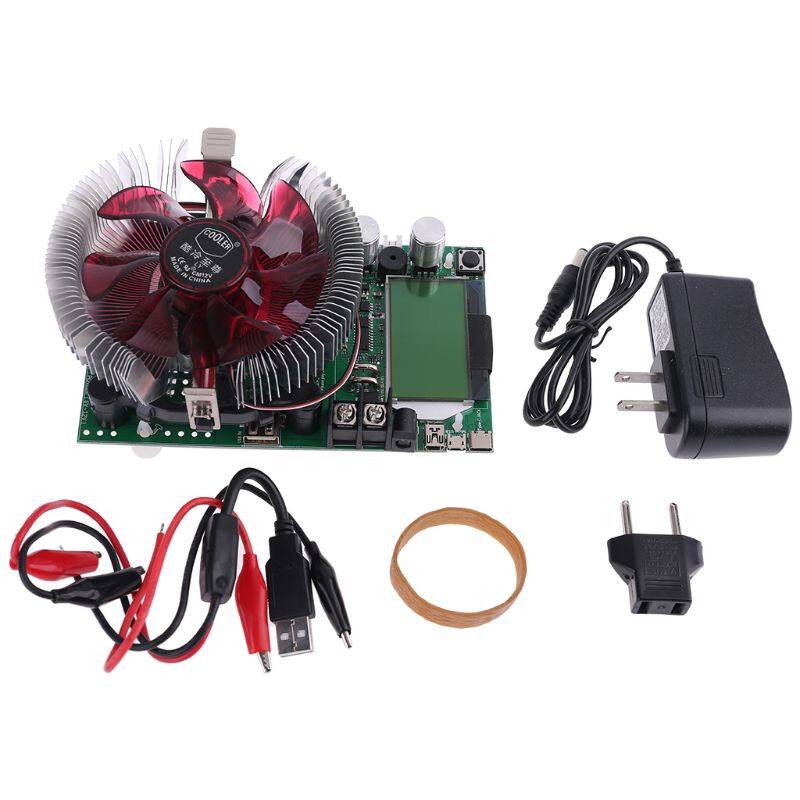

Package includes:
1 x Electronic Load Tester
