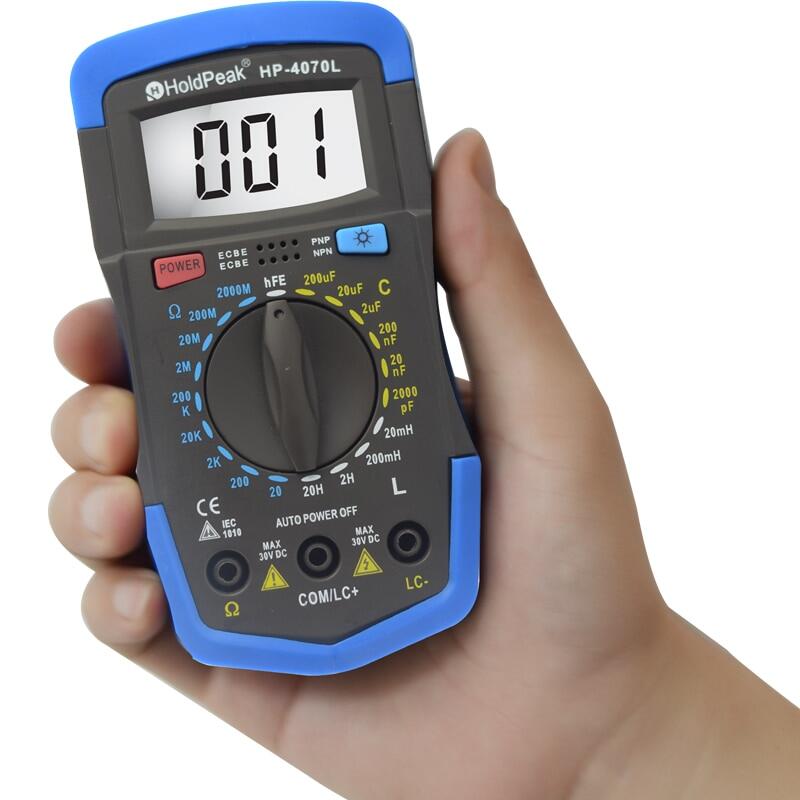

HP-4070L Digital LCR Meter Resistance Capacitance Inductance Meter Tester

• Dimensions:143*75*32mm
• Operating Temperature:-20-+60degree
• uracy Class:+/-0.5-+/-4.0
• Testing :9V
• Measu Range:Resistance Meter
• Model Number:HP-4070L
• Display Type:Digital Only
• DIY Supplies:ELECTRICAL
• Origin:Mainland
• Certification:CE
• Range6:200uF, +/-7%
• 6 Capacitance Measu Ranges:1pF to 200uF
• Max Display:"1999", 3 1/2 Digits, Backlight control

HP-4070L Digital LCR Meter Resistance Capacitance Inductance Meter Tester

Performance

2.1 General Performance

Display : 3 1/ 2 large-screen liquid crystal display (LCD), maximum reading of 1999 .

Polarity : Auto shows " - " polarity.

Zero : Automatic .

Range Indicator : Displays "1" or "-1 ."

Low Battery Tip : When the battery drops below the operating , the display "prefix = v ns =" urn: schemas-microsoft-com: vml "" " logo.

Sampling rate: about 2.5 times / sec .

Power supply : 9V laminated battery one (6F22 type or equivalent ) .

Safety Standard : This instrument issued through the International Electrotechnical Commission IEC1010 double insulation , pollution degree 2 degrees , over category 2 class safety standards.

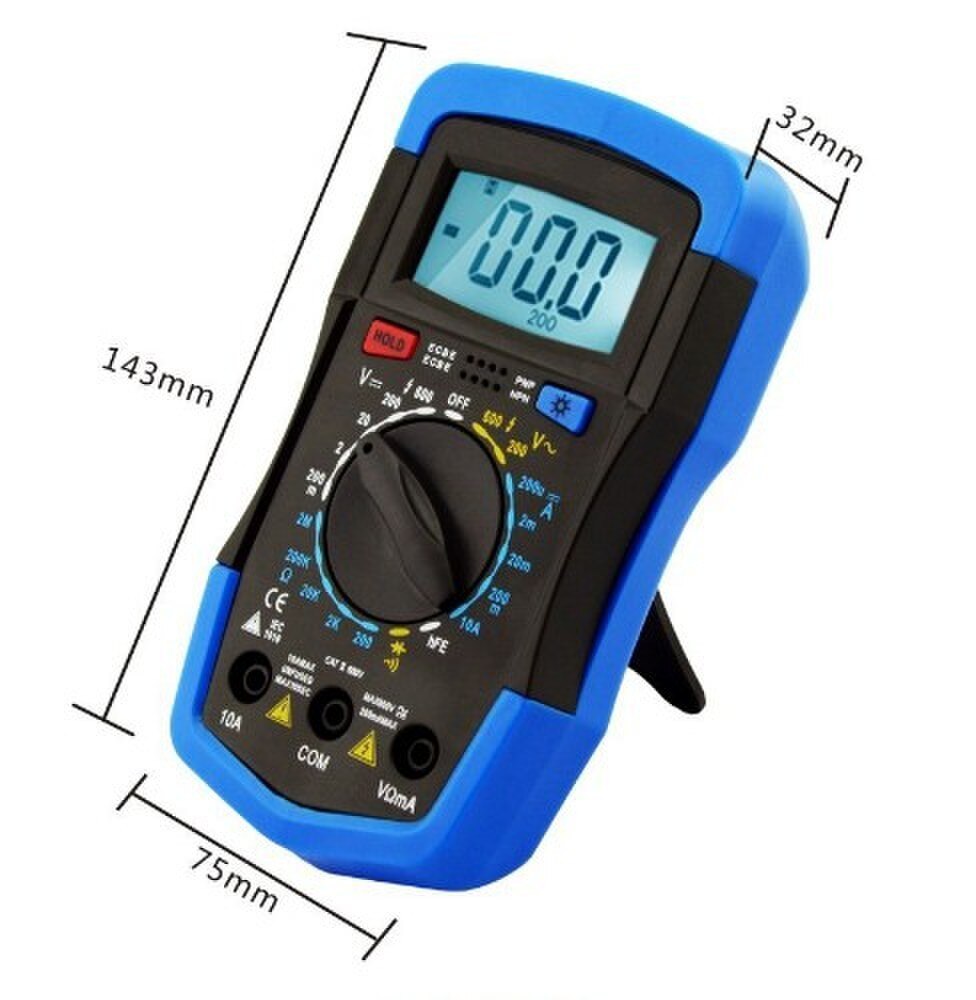

Dimensions : 143x75x32mm ( including protective sleeve )

Weight: Approximately 200 g ( including 9V battery ) .

Working environment: Temperature 0C ~ +40C,

Electrotechnical Commission IE1010 safety standards , the use of safe and reliable.

Humidity 75% RH.

Storage environment: Temperature -20C~ +60C,

Humidity 80% RH.

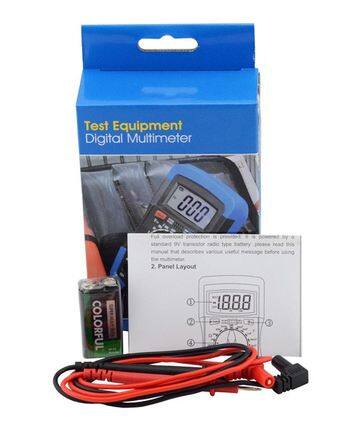

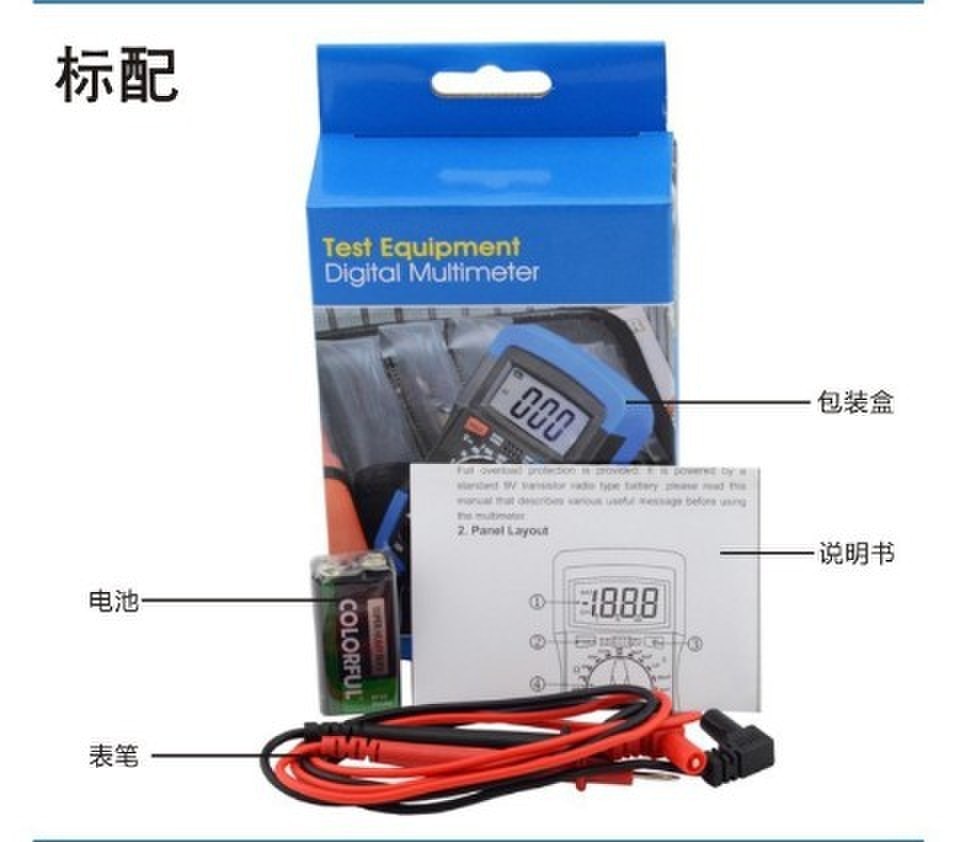

essories: manual one , a pair of test leads , 9V battery one , jacket one , box one .

2.2 Electrical performance indicators

uracy is ± ( % of reading + b digits ) , guarantee period of one year ;

Ensure the uracy of environmental conditions: temperature 23 ± 5C, humidity 75% RH

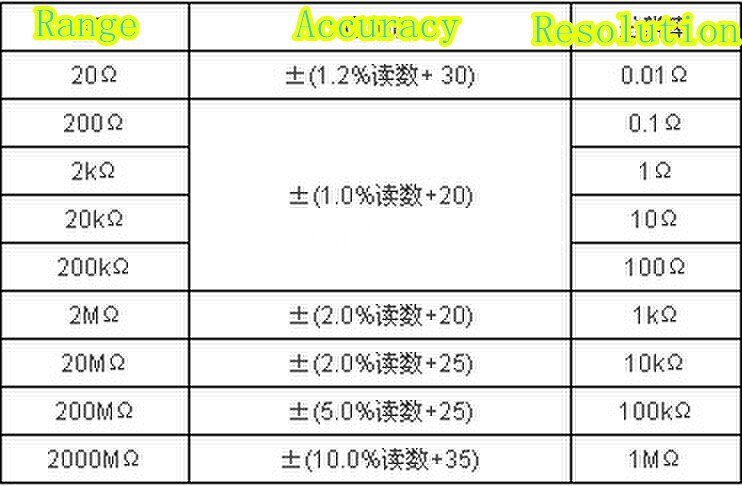

prefix = st1 ns = "urn: schemas-microsoft-com: office: smarttags" 2.2.1 Resistance

Overload protection: 250V DC or AC rms

Open circuit : less than 300mV;

Need to subtract the lead resistance 20 measu plant.

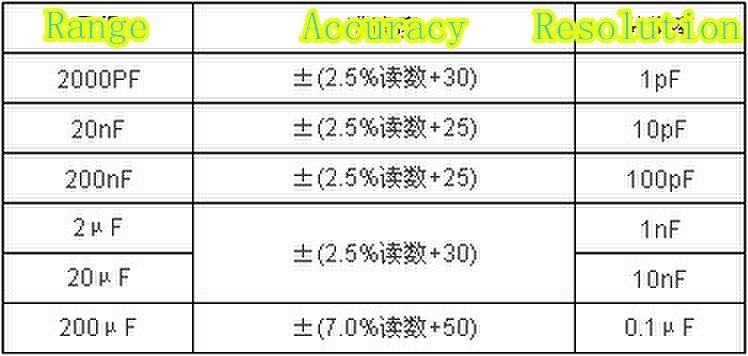

2.2.2 Capacitor

2.2.5 Backlight

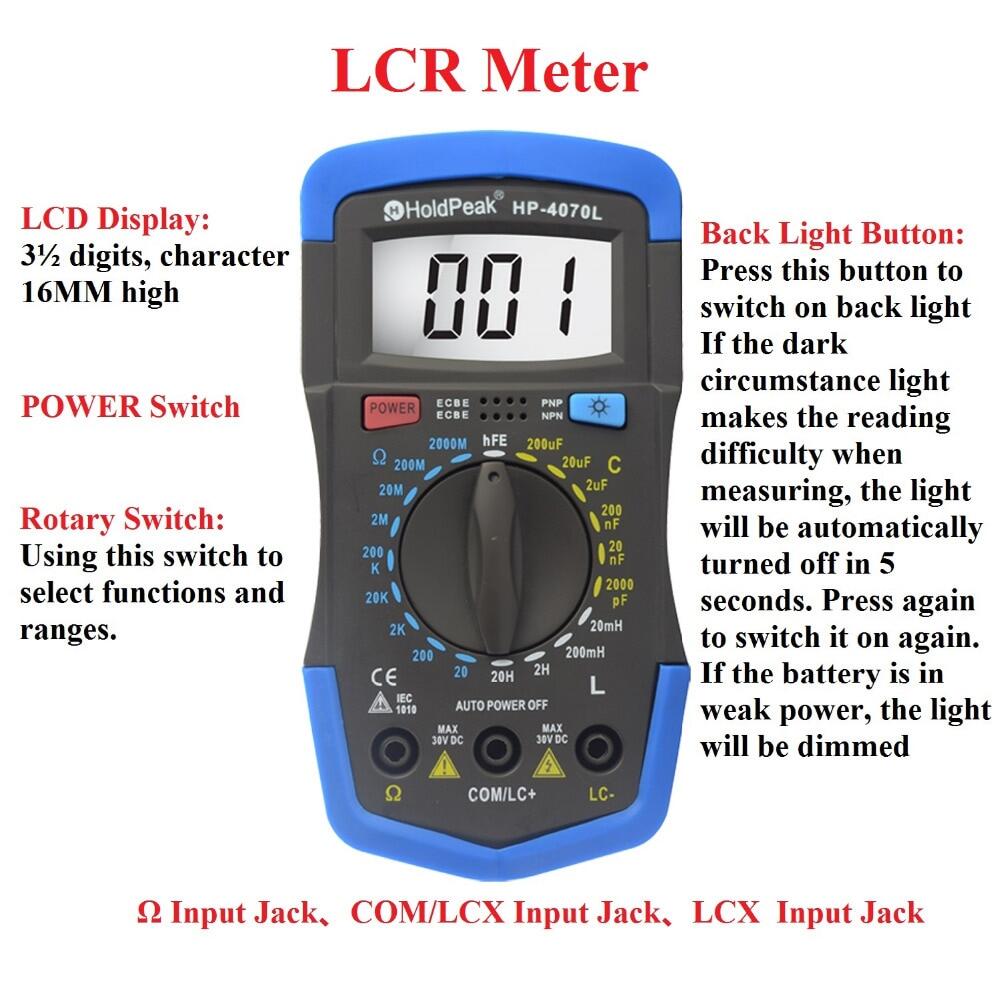

Press "" key , the backlight is lit.

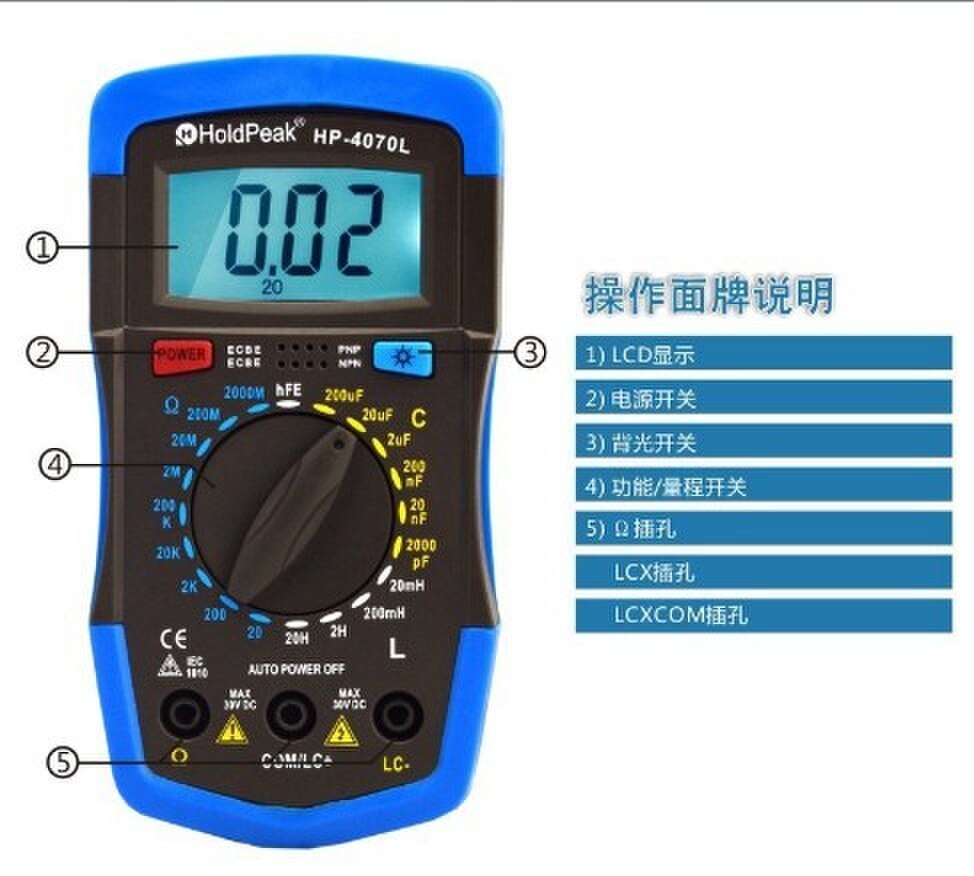

3 Using the Operator

Precaution :

( 1 ) turn on the power , check the 9V battery, if the battery is low , " " symbol will appear on the display , then should refer to "Maintenance" a replacement battery ; if the " " symbol does not appear , you can measure operations.

( 2 ) Prior to testing, the ftion switch should be placed in your desired range .

3.1 Resistance Measurement

Before making line resistance measurement should be disconnected power to the circuit , and the circuitIn

Capacitor discharge .

( A ) the red lead into "" jack and the black test lead into the "COM" jack ;

( 2 ) Set the ftion / range switch to "OHM", if the measured resistance is unknown, you should first select the maximum range, and then gradually decreases until a satisfactory reading ;

( 3 ) the test leads and reliable contact with the measured component or loop ends , the display will show the measured component or circuit resistance value ;

( 4 ) does not allow the power circuit for online measurement, the measurement should be preceded by the loop power , and make the loop capacitor ( especially large -capacity capacitor ) discharges.

(5) 20 small resistance measurement should subtract the lead resistance .

3.2 Capacitance Measurement

( 1 ) Set the ftion / range switch to "C", if the measured capacitance is unknown, you should first select the maximum range, and then gradually decreases until a satisfactory reading ;

( 2 ) the measured capacitance circuit discharge ;

( 3 ) the measured capacitance pin insert Capacitance Test Jack "LC-" and "LC +", and to ensure ess to reliable, the display will show the measured capacitance values.

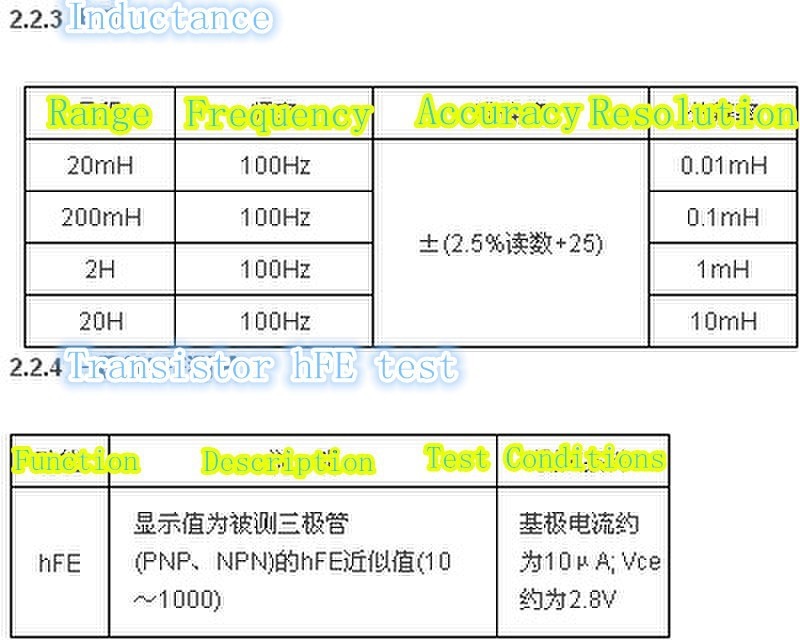

3.3 Inductance Measurement

( 1 ) Set the ftion / range switch to "L", if the measured inductance unknown size , you should first select the maximum range, and then gradually decreases until a satisfactory reading ;

( 2 ) the measured inductance pin insertion inductance test jacks "LC-" and "LC +", and to ensure ess to reliable, the display will show the measured inductance value.

3.4 Transistor hFE parameter measurement

( 1 ) Set the ftion / range switch to the "hFE";

( 2 ) determine the test transistor is a PNP or NPN type , the base electrode right (B), the emitter (E), collector (C) into the appropriate test corresponding to the jack and ensure reliable contact , the display will show the measured transistor hFE values.

4 Maintenance

4.1 The digital multimeter is a precision instrument , do not arbitrarily change the line and mobilize machine potentiometer, and note the following:

A. Do not connect a signal ;

B. Only the test leads from the meter removed and the power is off before replacing the battery .

4.2 9V battery more

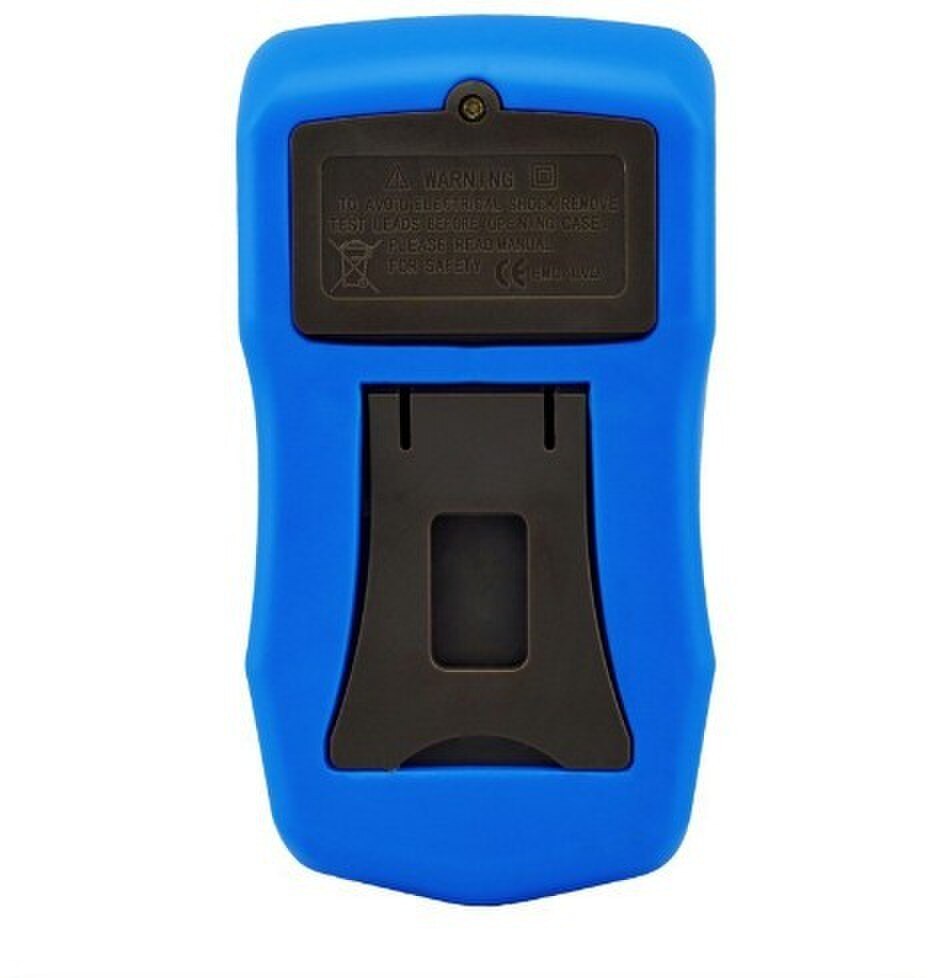

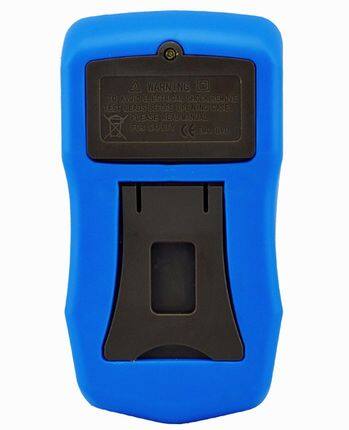

Note 9V battery usage , if you need to replace the battery , unscrew the battery cover screw , take off the battery cover , with the same type of new batteries to replace the old batteries.

4.3 To turn off the power when not in use , long-term use , you should remove the battery.

4.4 The meter shall be stored to avoid moisture , high temperatures and strong magnetic fields .

4.5 If a long time without the instrument , you should remove the battery.
