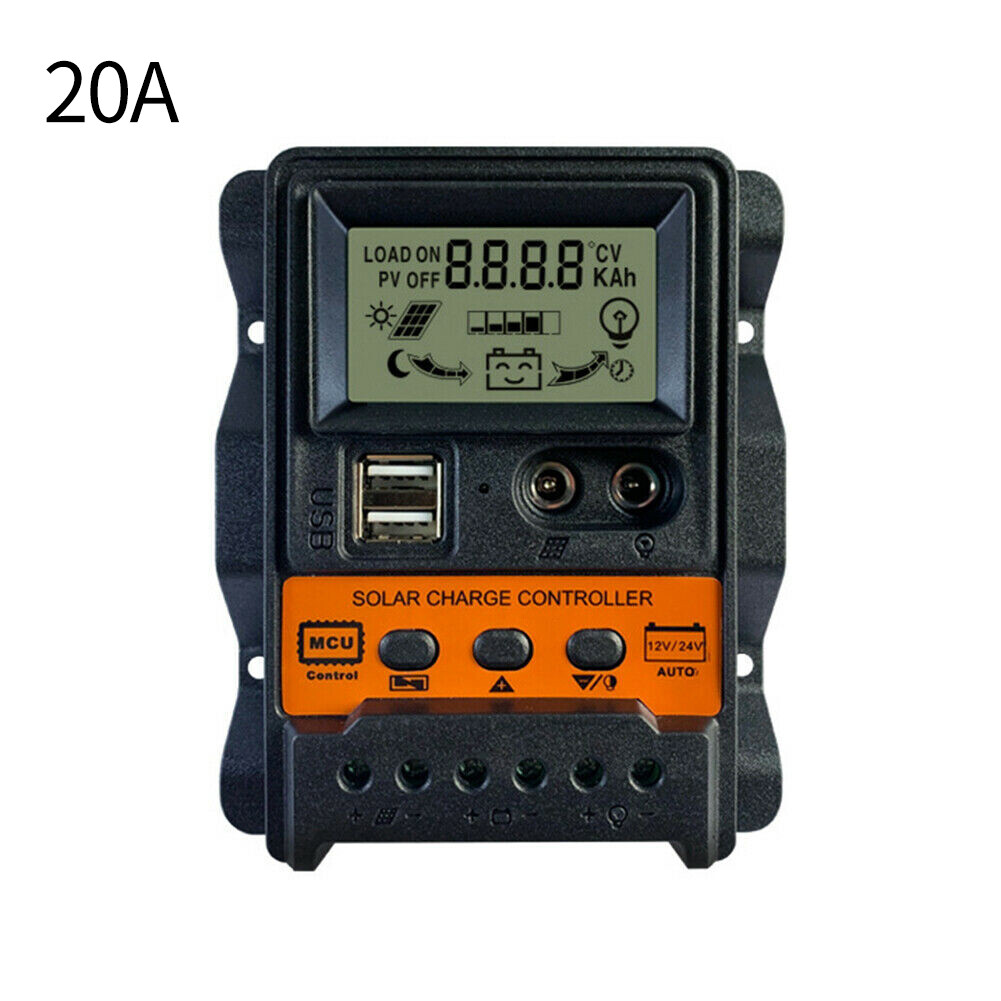

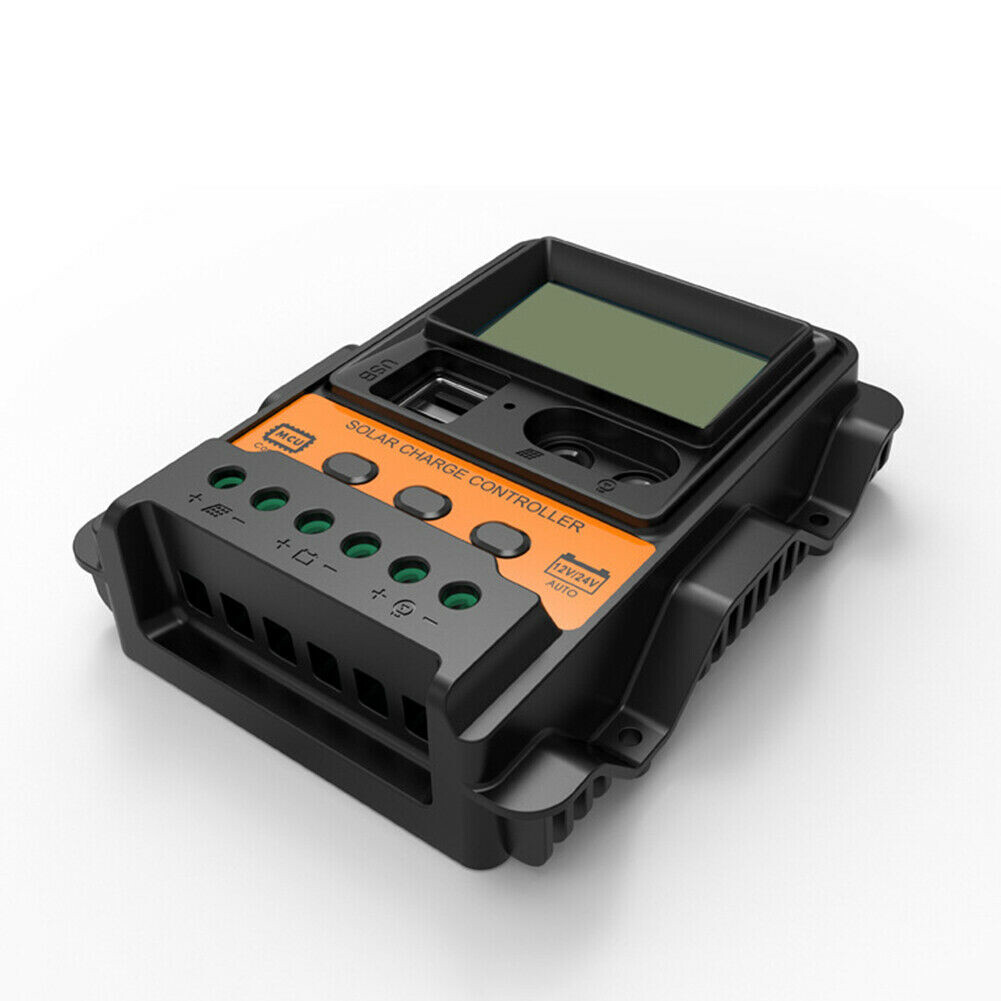

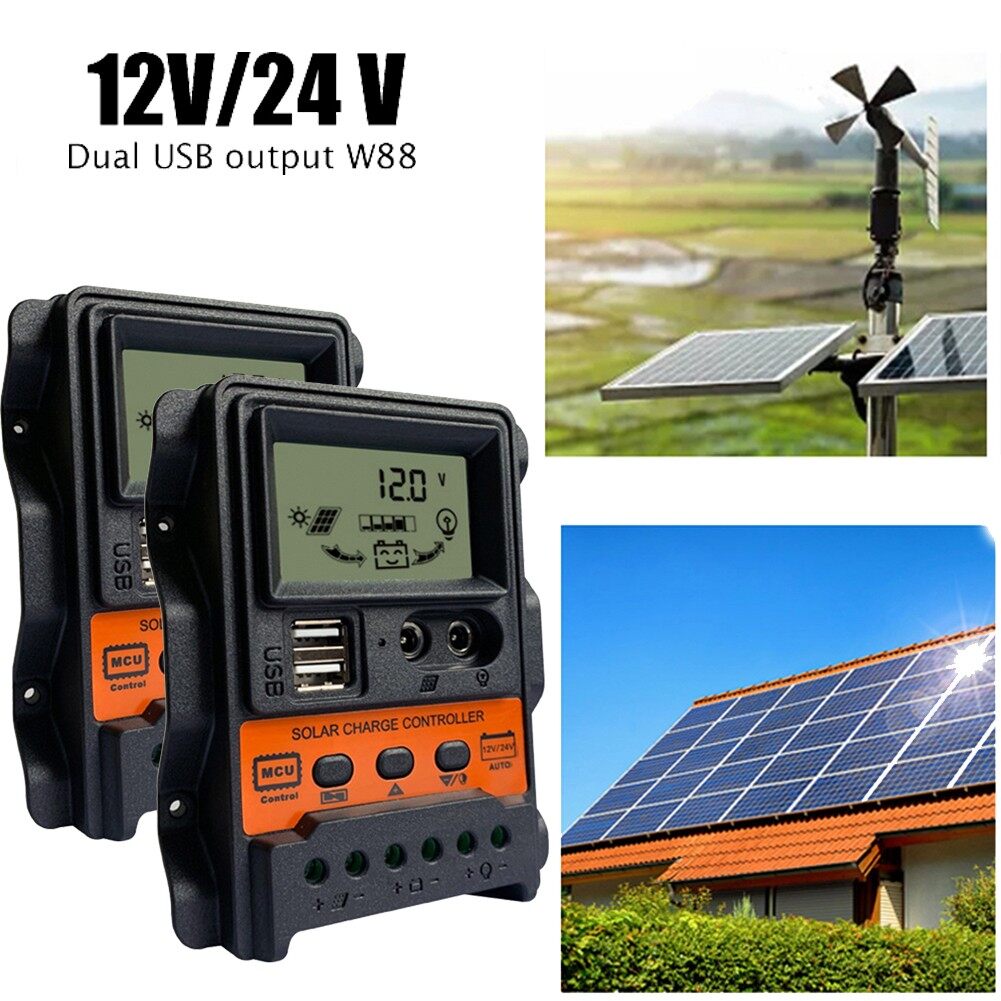

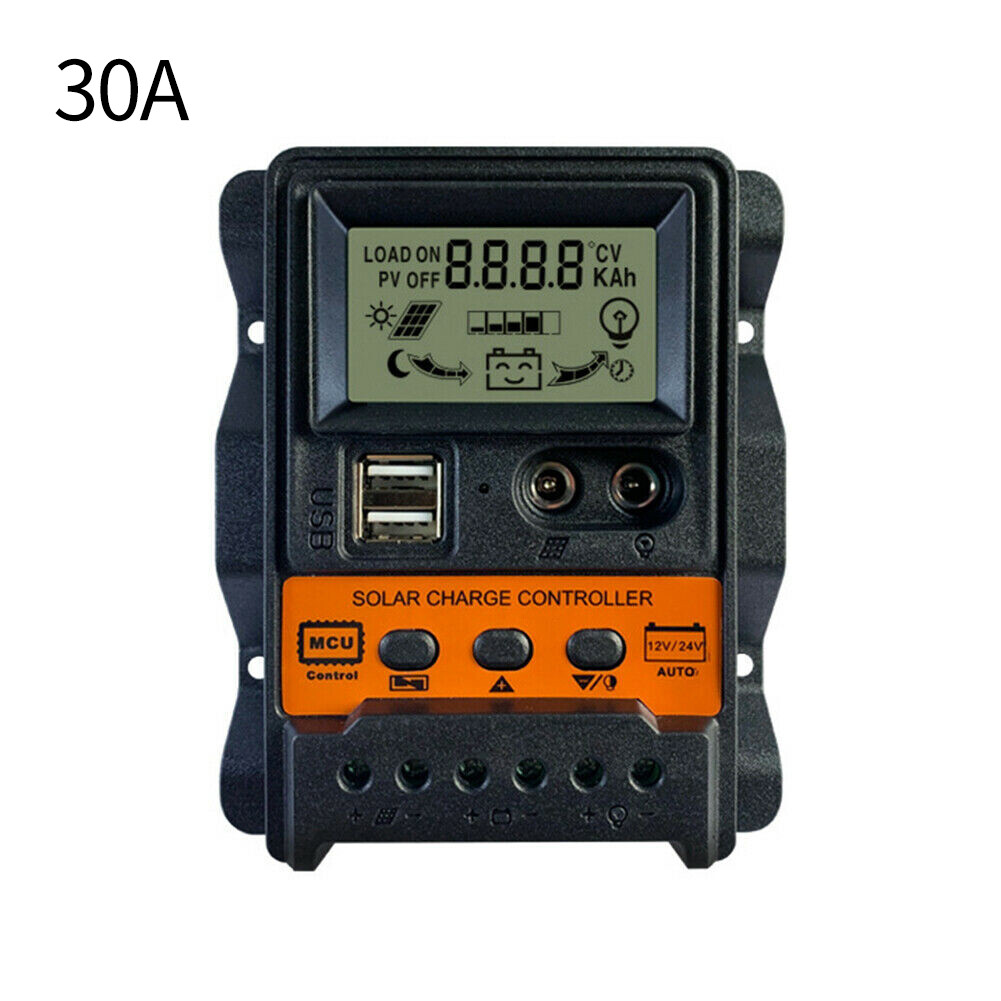

E Life Smart Store 30A 20A 10A Solar PV Battery Charge Controller 12V 24V Solar Panel Voltage Regulator LCD Display Dual USB with Load

Description:

-Industrial-grade master chip, sampling accuracy, temperature, charging current, Discharge current accurate real-time display, power generation at a glance.

- Automatic focusing ，tracking charging, high charging efficiency, non-stop detection

During charging, bidirectional focusing tracking.

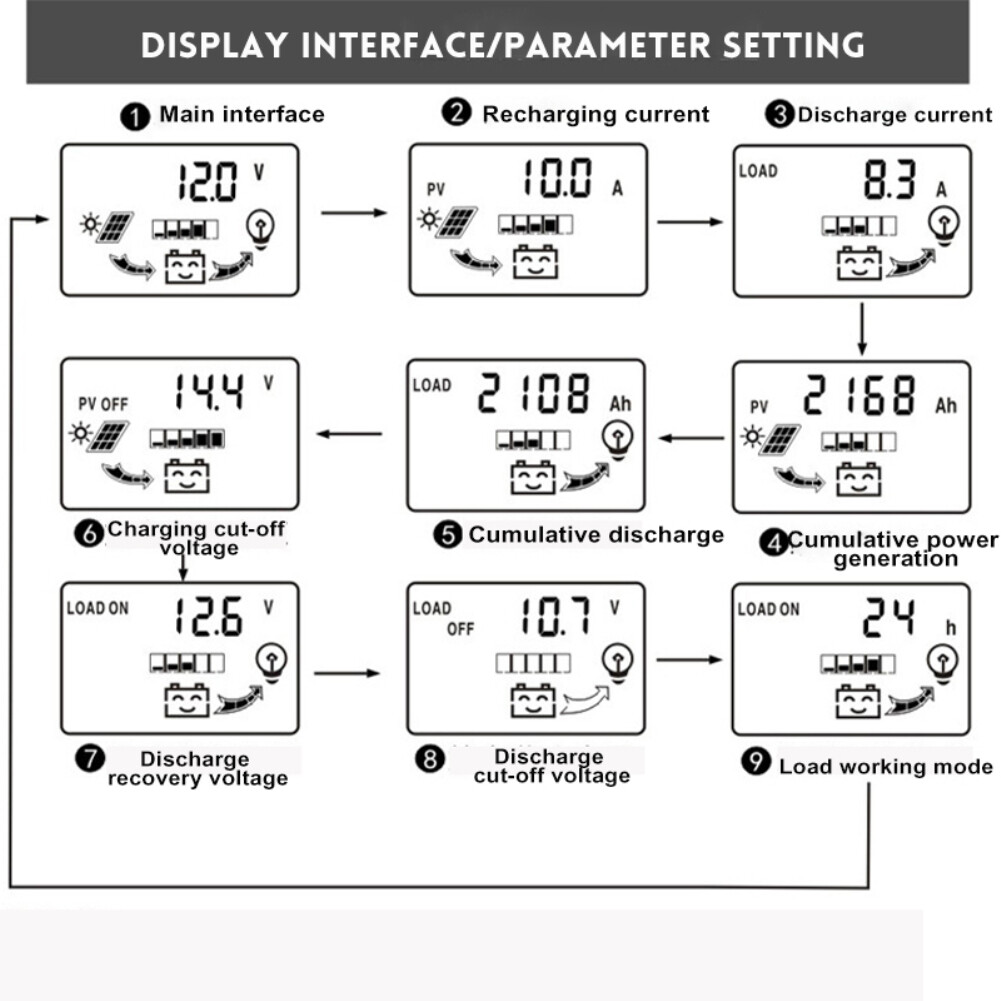

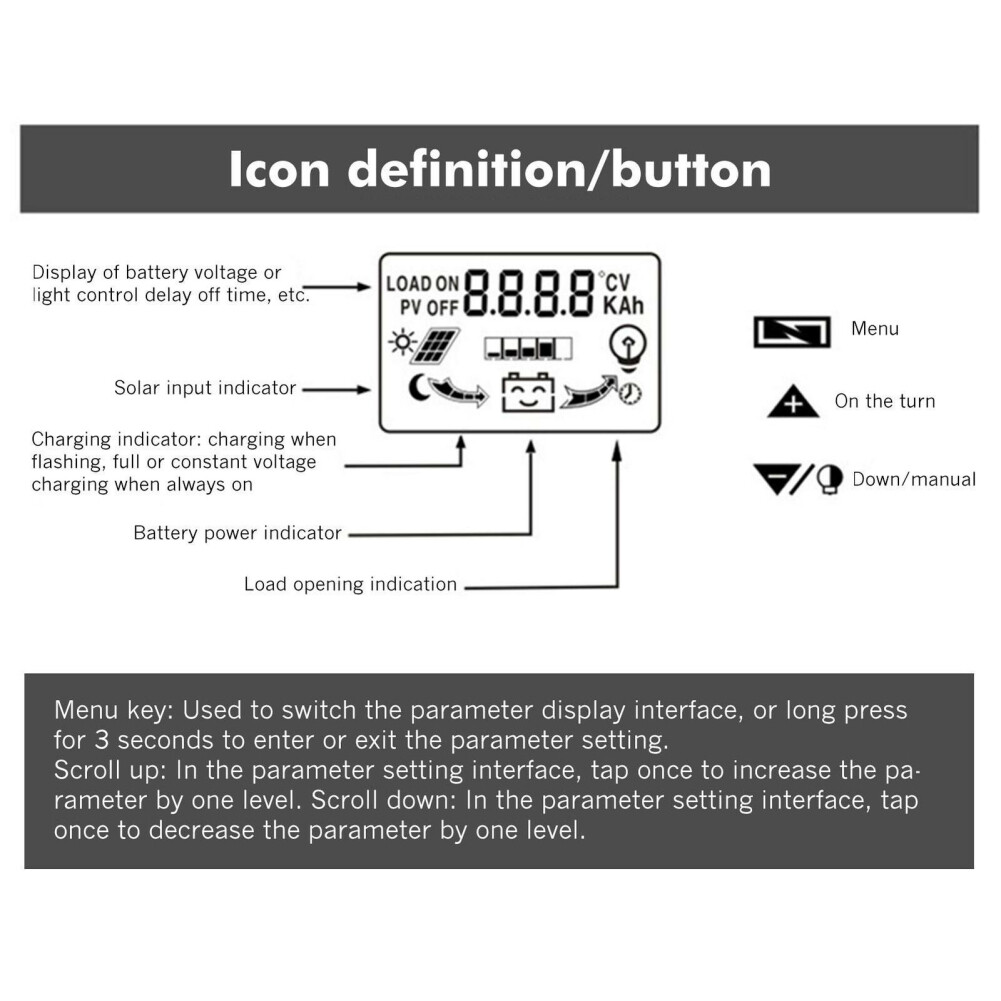

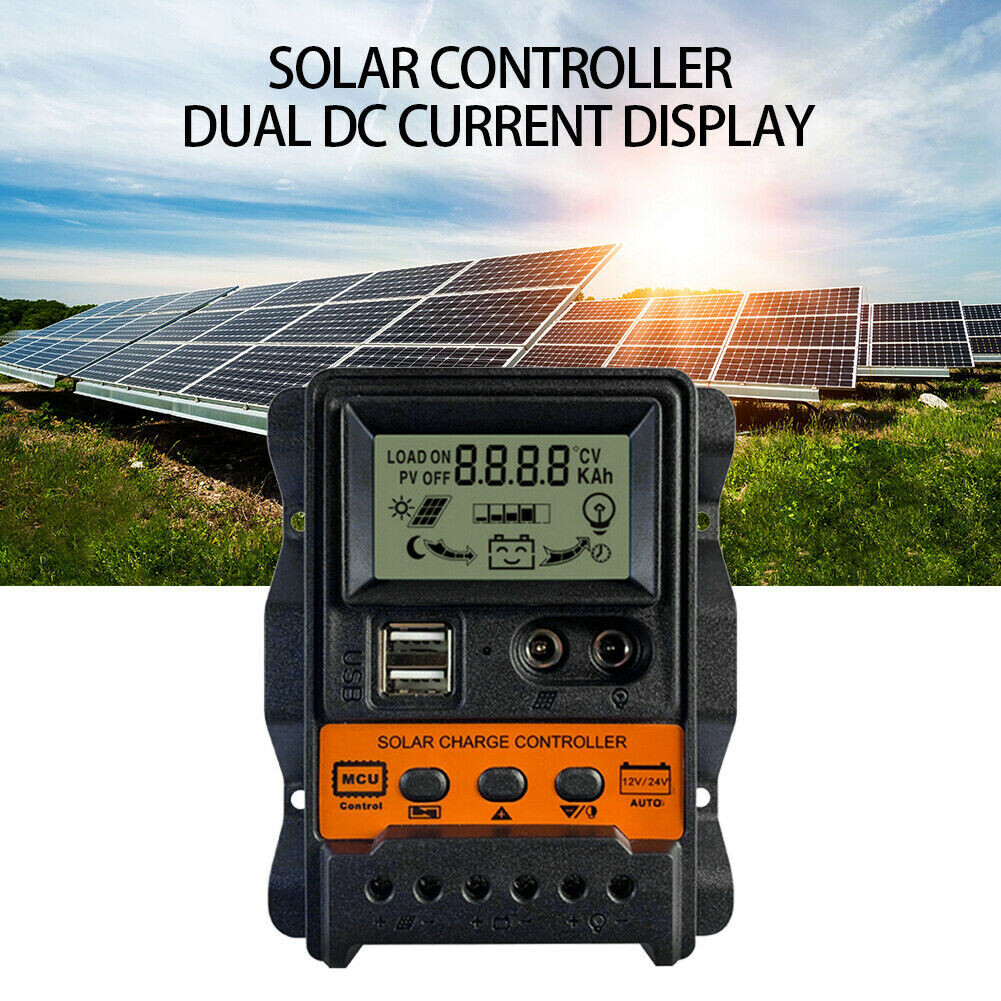

-Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time.Can be adjusted, which is more convenient.

-Acomplete three-phase charge management, effectively protect the battery, the battery is more Durable.

-Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection.Protection,when the fault is eliminated, the controller automatically recovers, does not damage.

Specifications:

Size:4.9x3.9x1.1in（12.5x10x3cm）

USB output: 5V/2.5A

Standby current: <10mA

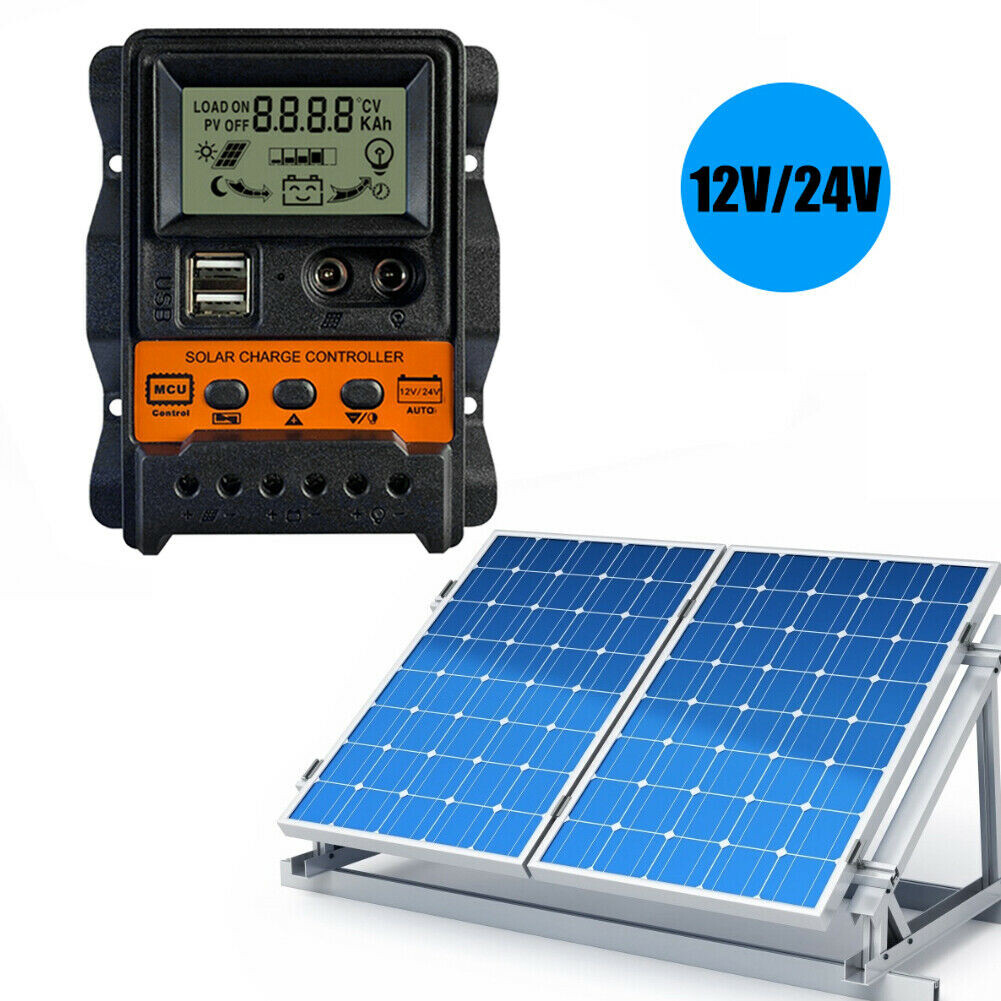

Rated Voltage:12V/24V

Rated Current:20A

Max.PV Voltage:50V

Max.PV Input Power:260W(12V)520W(24V)

Rated charging current: 10A/20A/30A

Rated discharge current: 10A/20A/30A

Working temperature: -35 to +60 degrees

Ncrease charging voltage: 14.4V (sealed type)

Floating charge voltage: 13.7V (default, adjustable)

Discharge cut-off voltage: 10.7V (default, adjustable)

Discharge recovery voltage: 12.6V (default, adjustable)

Package Included:

1 x Solar Panel Battery Regulator Charge Controller

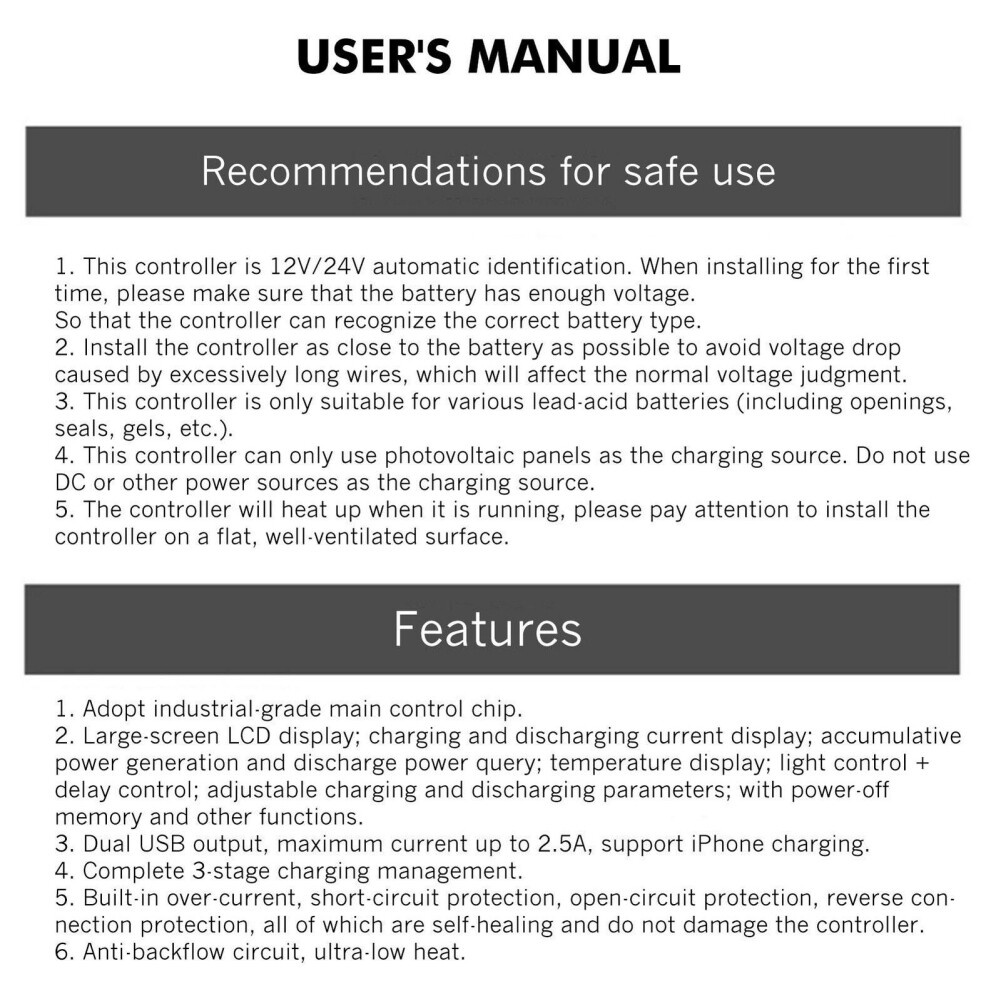

1 X User Manual

Notes:

Note:

1. Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.

2. The colors may have different as the difference display, please understand.
