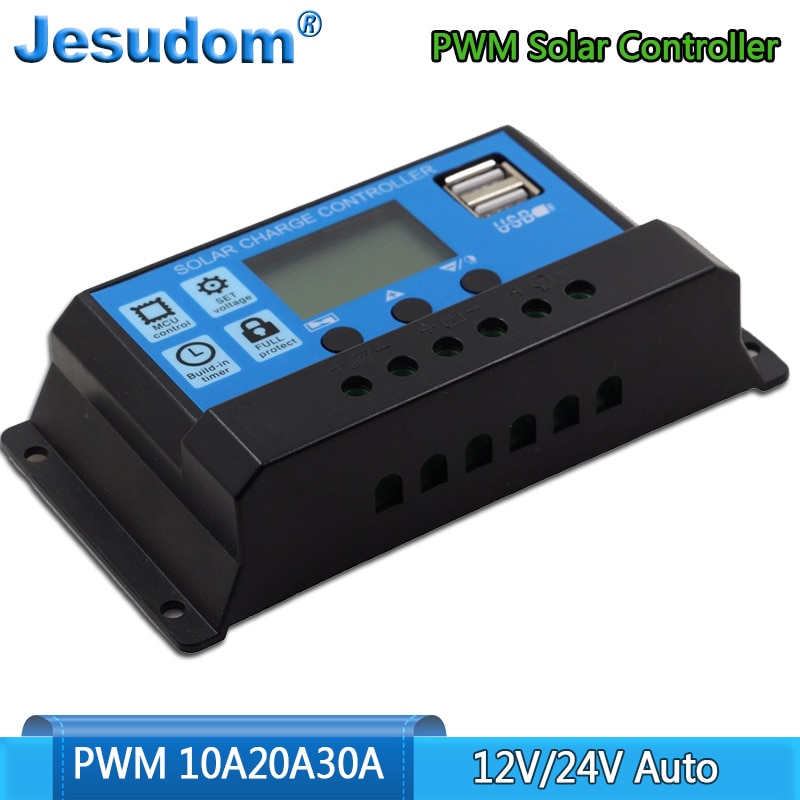

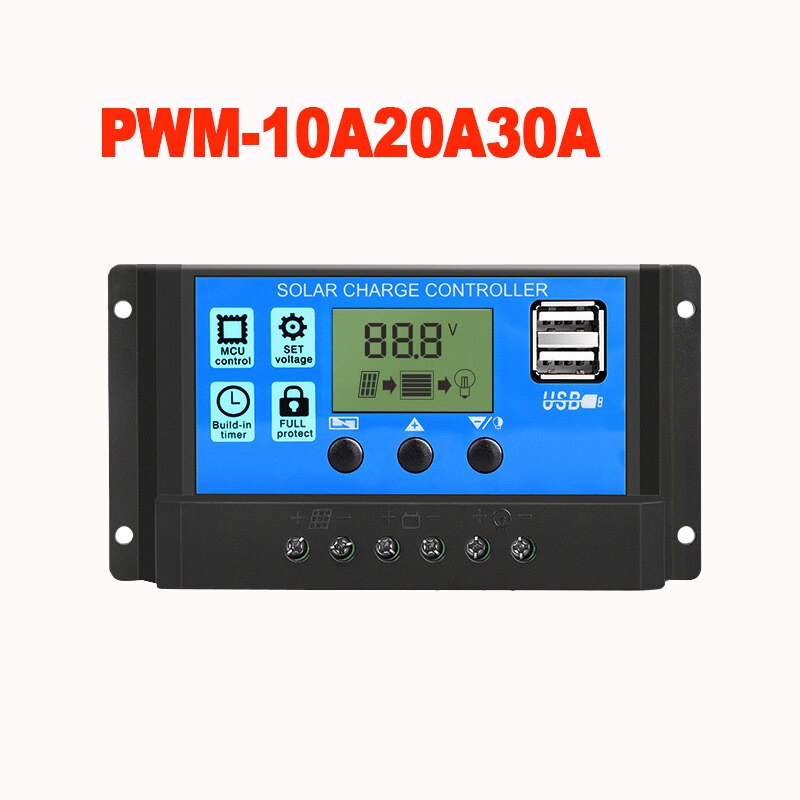

Bộ Điều Khiển Năng Lượng Mặt Trời PWM LCD 30A 20A 10A 12V/24V Đèn Điều Chỉnh Bộ Sạc Tấm Pin PV 100W 200W 300W 400W 500W

• Origin:CN(Origin)
• Certification:CE
• Certification:RoHS
• Model Number:1210/1220/1230
• Is Smart Device:No
• Application:Charger Controller
• Application:Solar Controller
• Application:Collector Controller
• Application:Solar Working Station
• Maximum :10A/20A/30A
• is_customized:Yes

60A 50A 40A 30A 20A 10A 12V/24V LCD PWM Solar Controller Battery PV Cell Panel Charger Regulator Lamp 100W 200W 300W 400W 500W

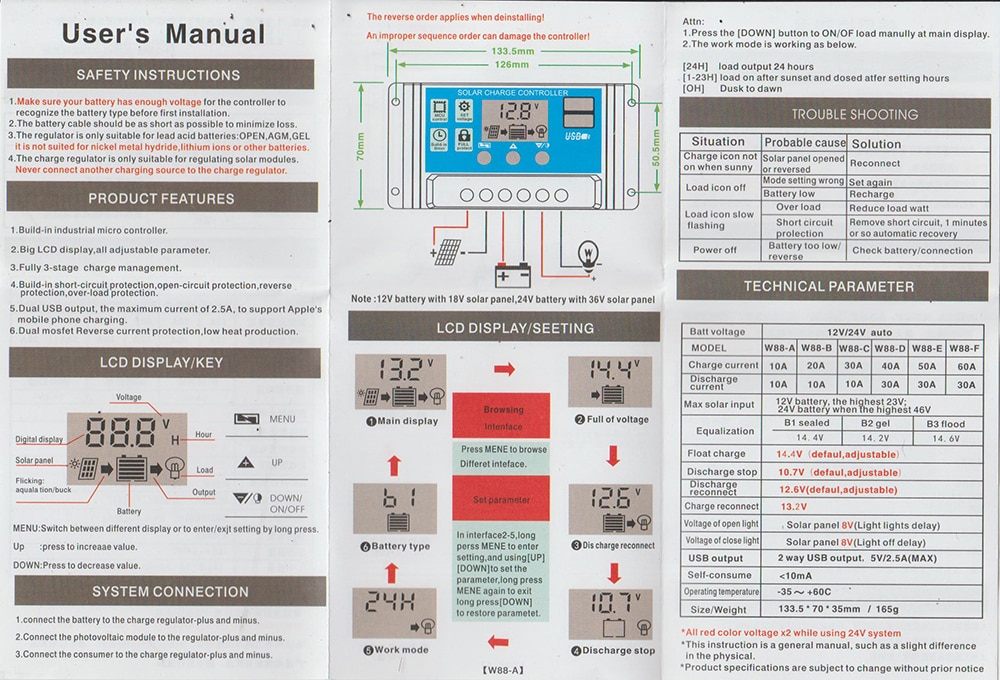

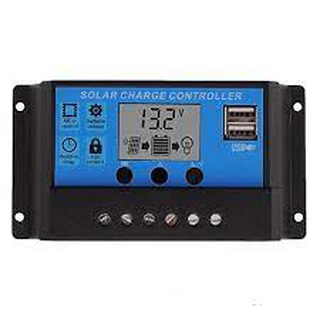

This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly inter is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

This is NEW Solar Controller ,It can fully meet your home Photovoltaic (including home lighting )requirements.It can recognize 12V and 24V Lead acid ,Gel battery automatically.

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V120W

if your battery is 24V ,the max solar panel input is 50V240W

20A:

if your battery is 12V, the max solar panel input is 25V240W

if your battery is 24V, the max solar panel input is 50V480W

30A

if your battery is 12V ,the max solar panel input is 25V360W

if your battery is 24V ,the max solar panel input is 50V720W

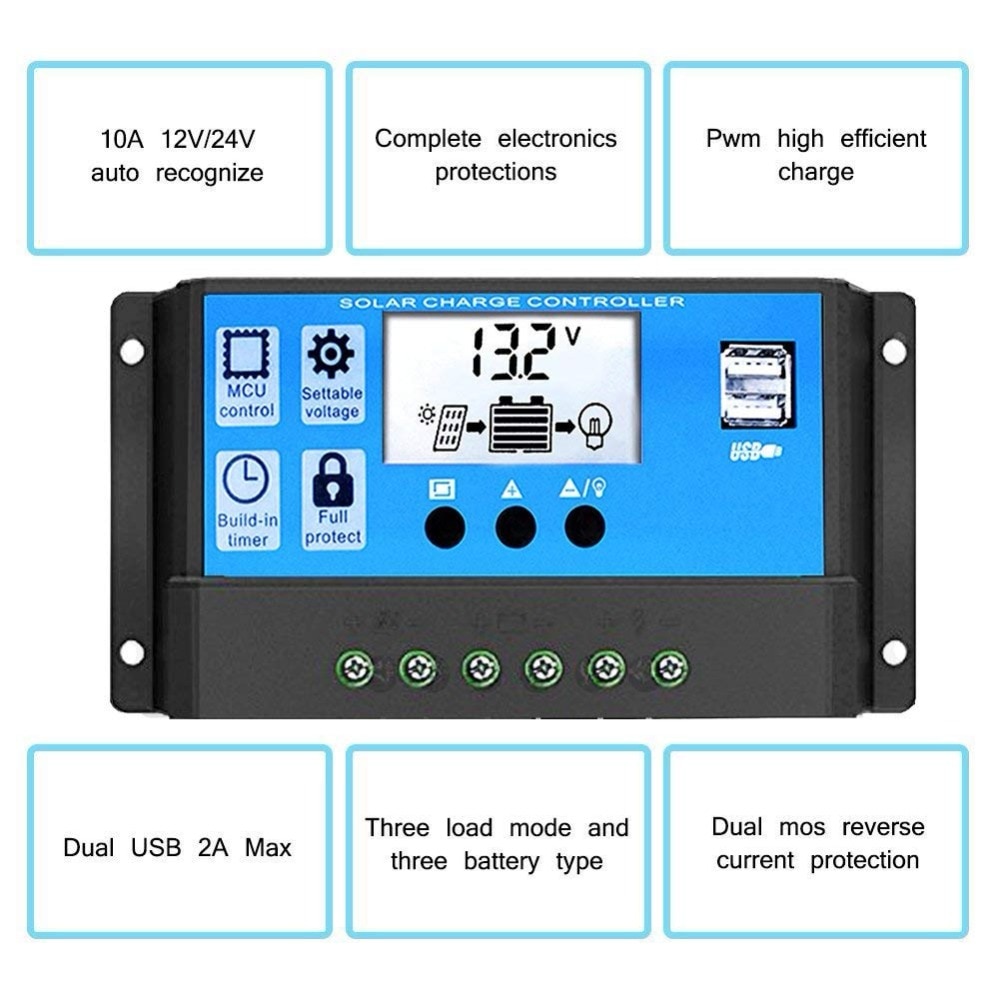

Features:

1.Build-in industrial micro controller.

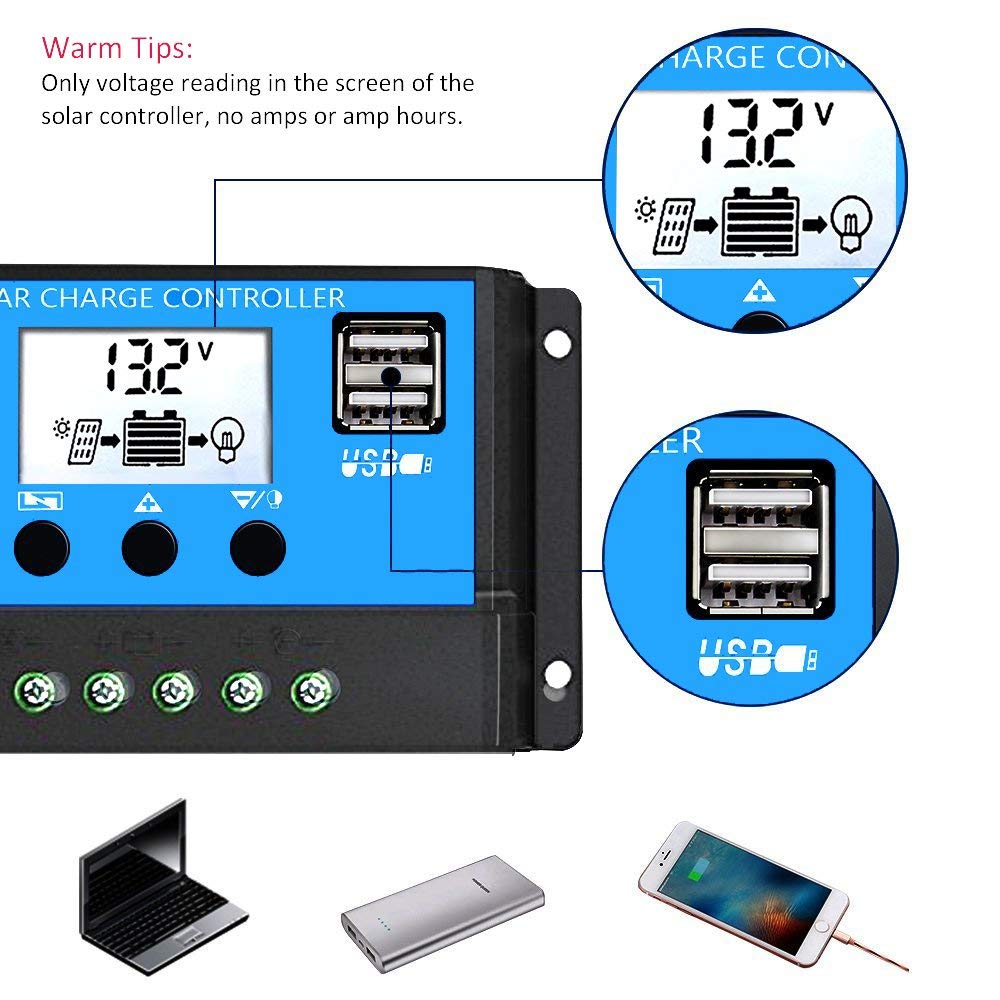

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse protection ,low heat production.

Parameter:

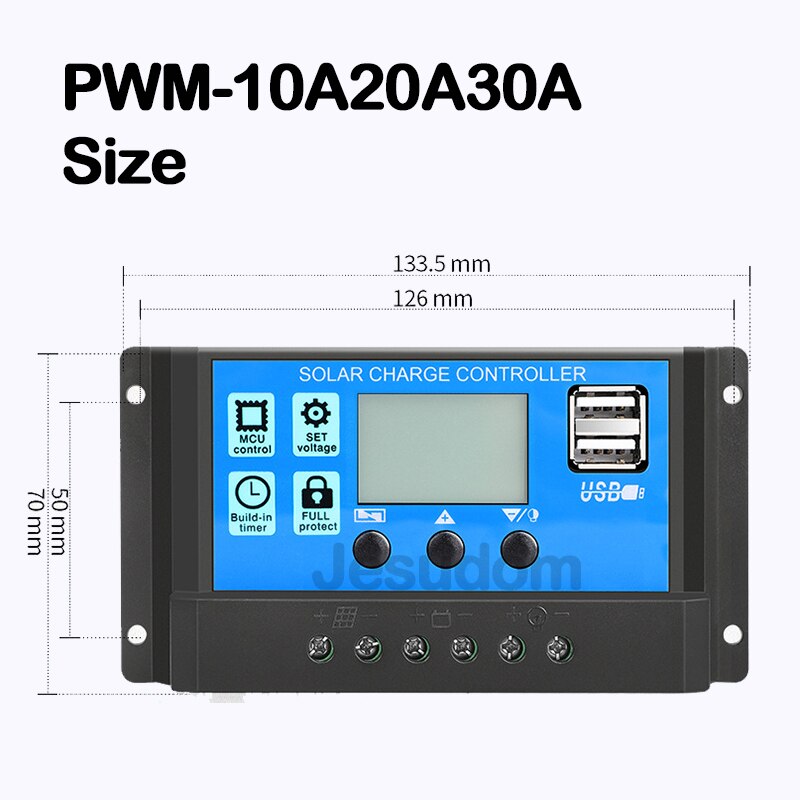

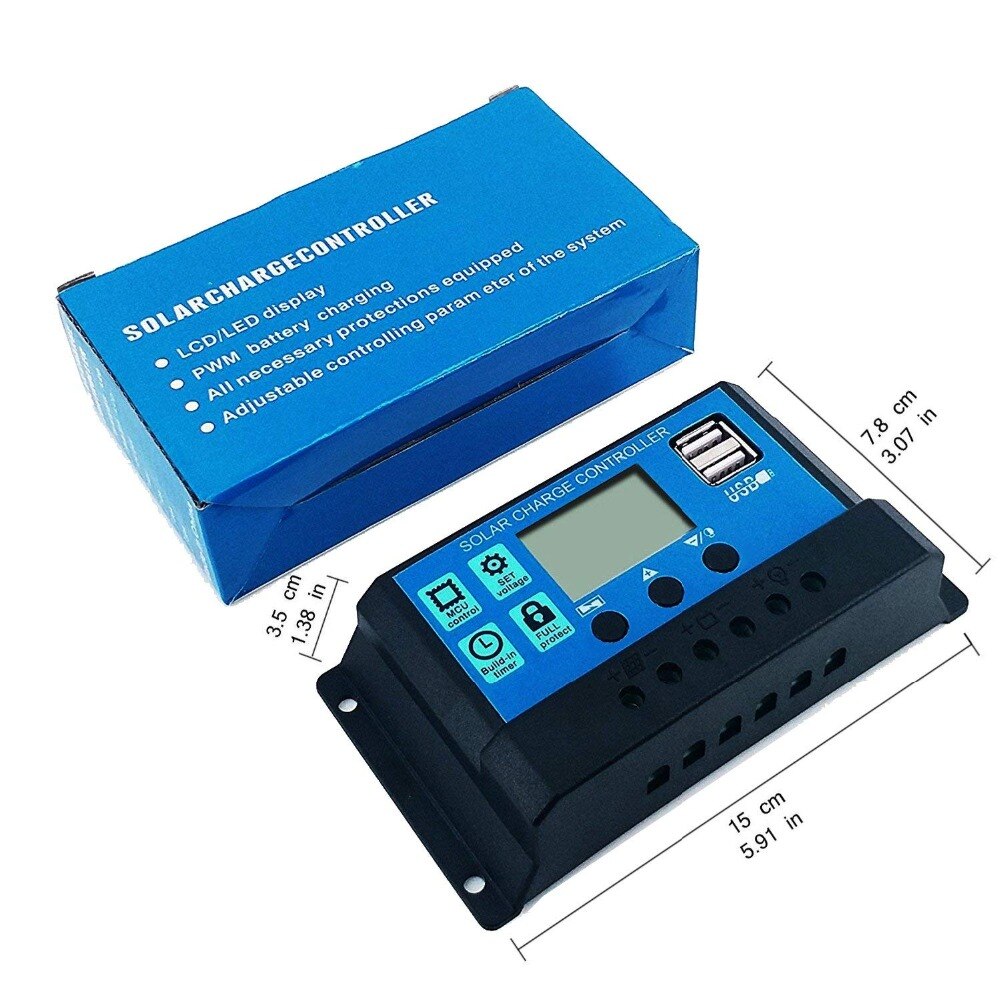

MODEL PWM 10A PWM 20A PWM 30A PWM 40A PWM 50A PWM 60A Battery 12V 24V Auto Charging 10A 20A 30A 40A 50A 60A Discharging 10A 10A 10A 20A 30A 30A Max Solar input 50V(for 24V battery) 25V(for 12V battery) Equalization 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) Float charge 13.7V(defaul,adjustable) Discharge stop 10.7V(defaul,adjustable) Discharge reconnect 12.6V(defaul,adjustable) Charge reconnect 13V of open light Solar Panel 8V(Light lights delay) of close light Solar Panel 8V(Light off delay) USB output 5V/3A Self-consume <10mA Operating temperature -35°C~+60°C Size 133.5*70*35mm 188*90*47mm *all red color X2 ,while using 24V .

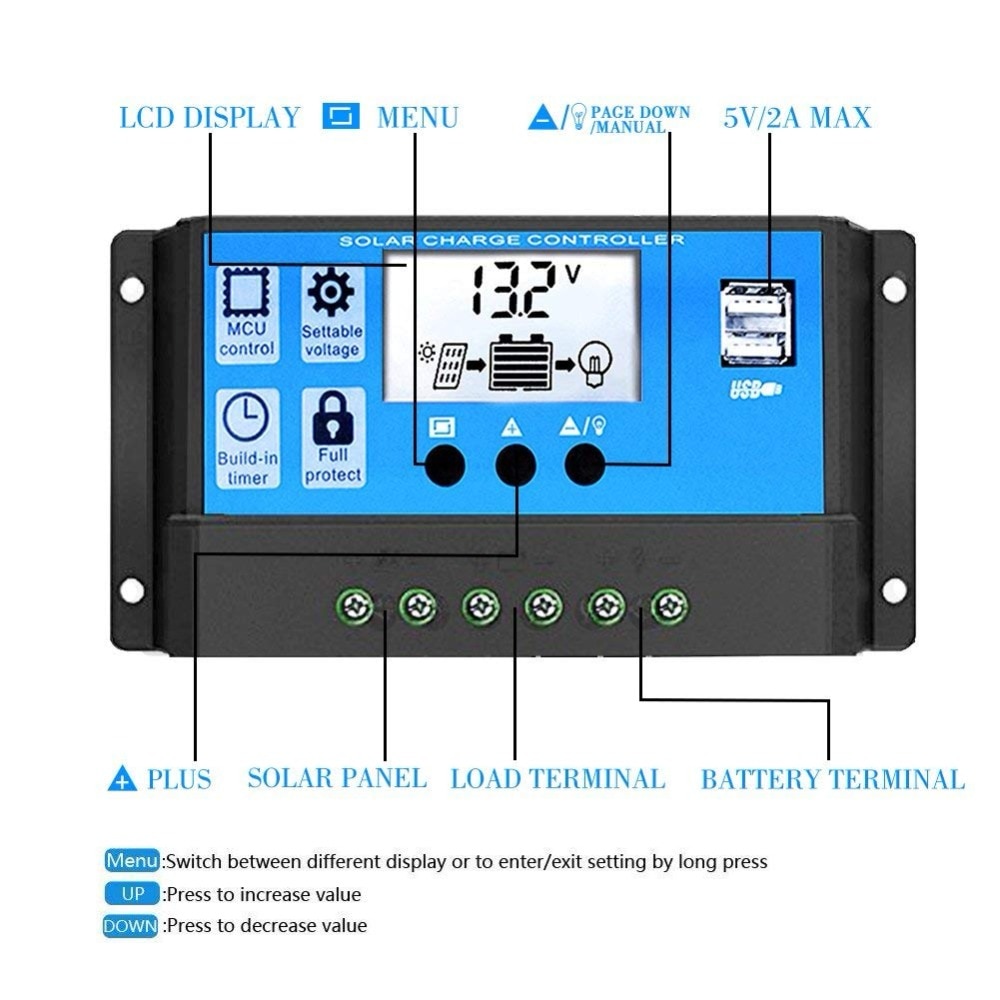

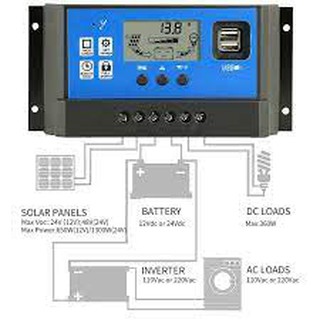

Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!
