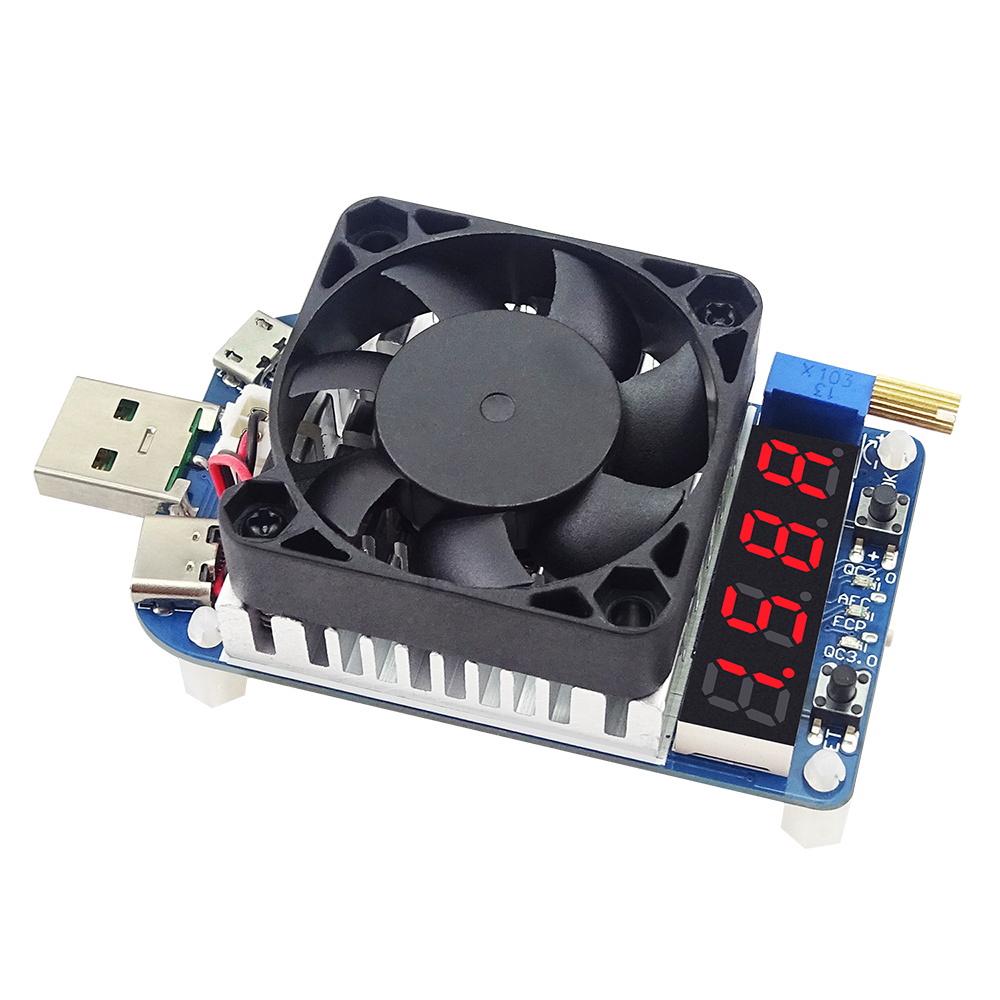

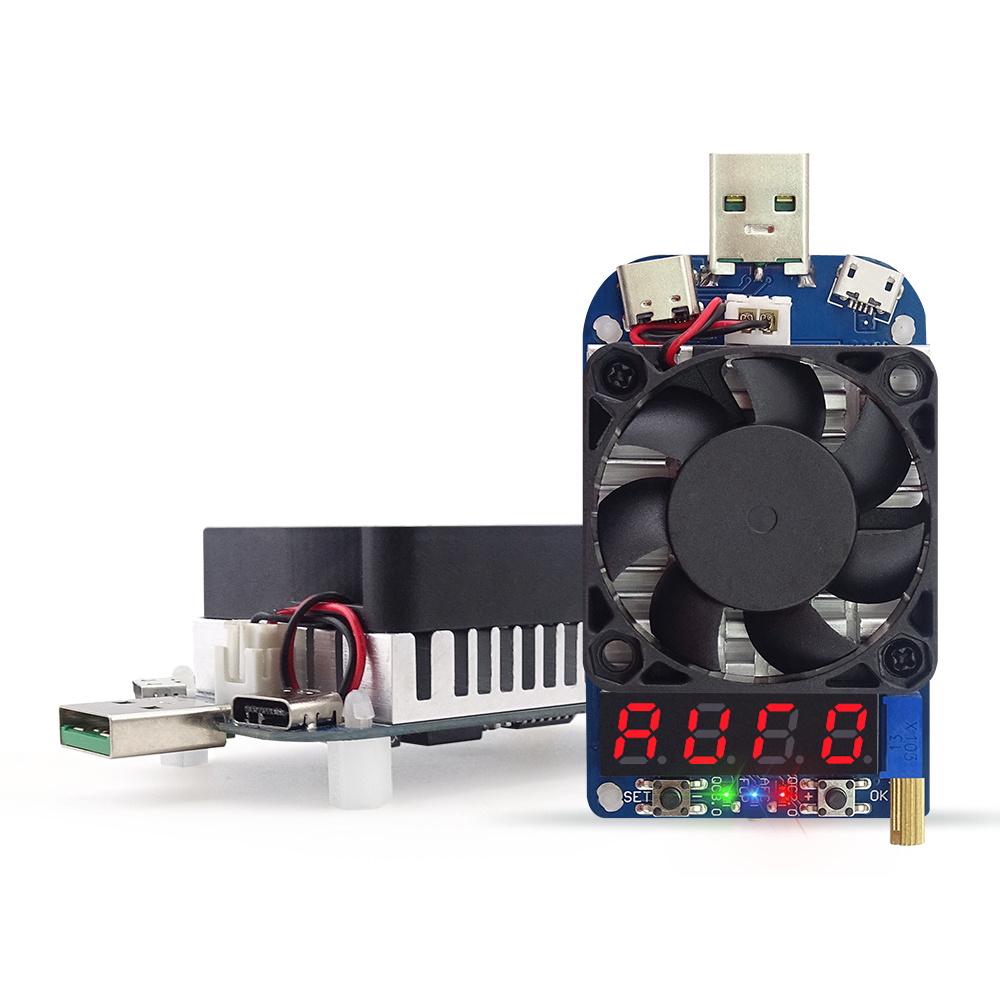

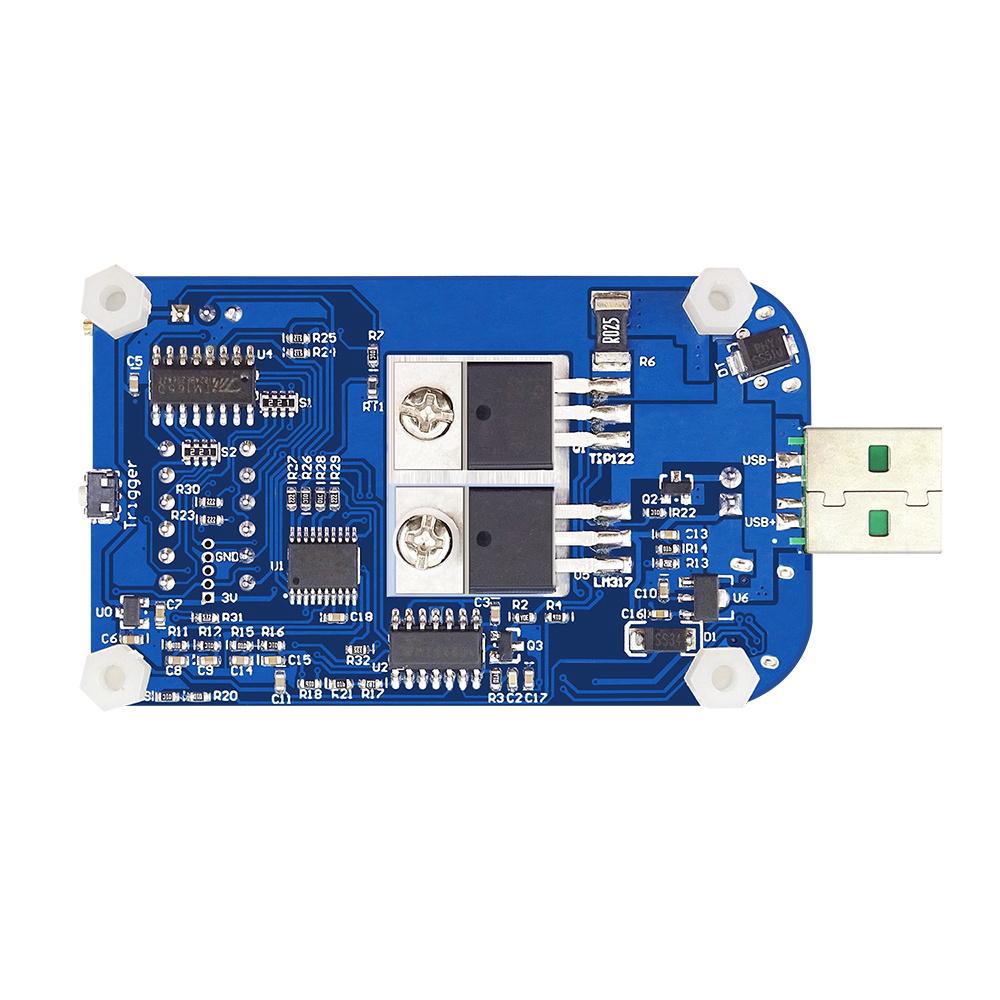

USB Electronic Load Digital Display Voltage Current Meter Battery Aging Detector

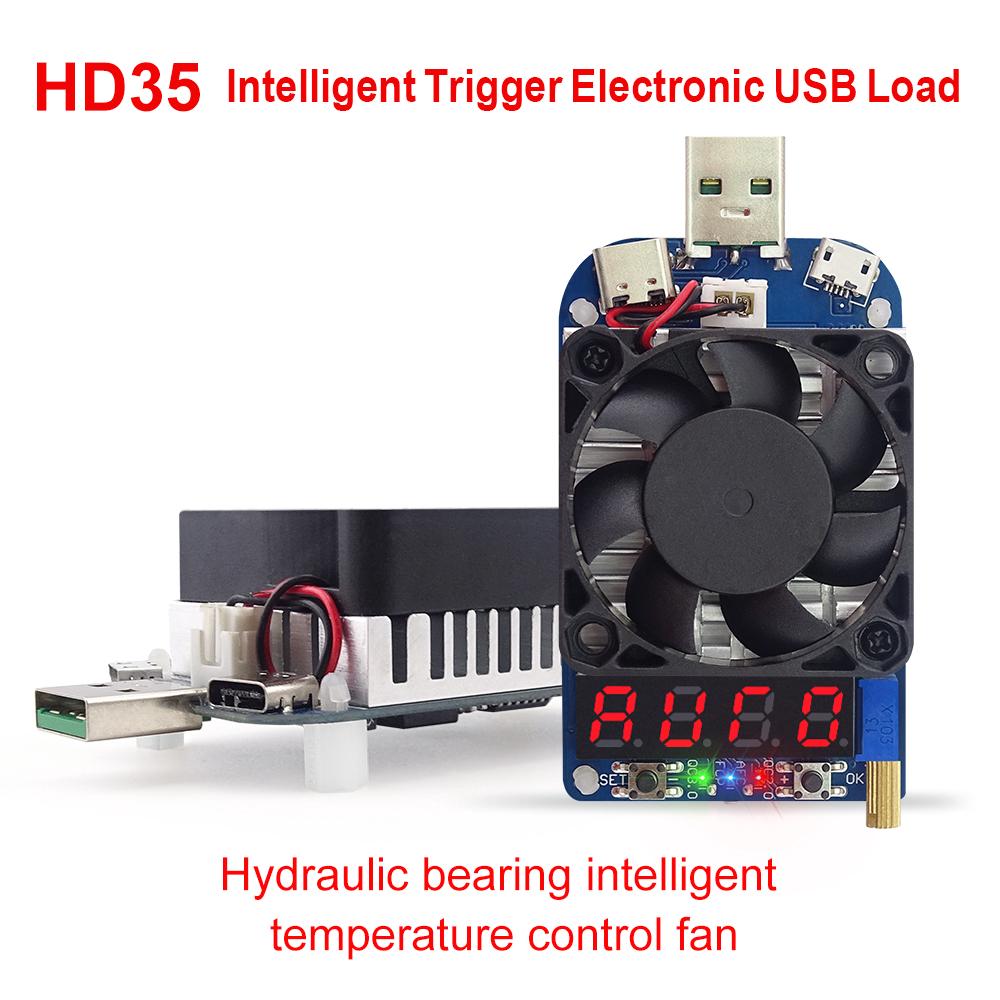

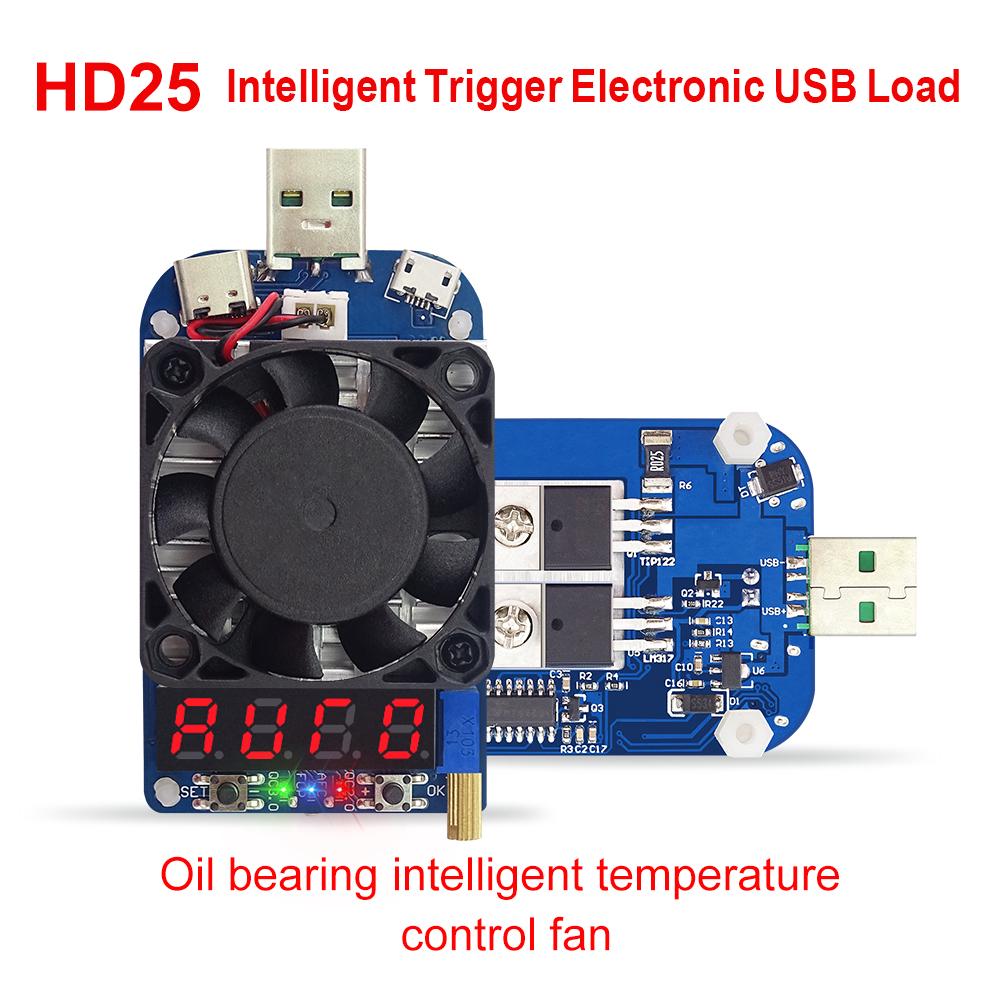

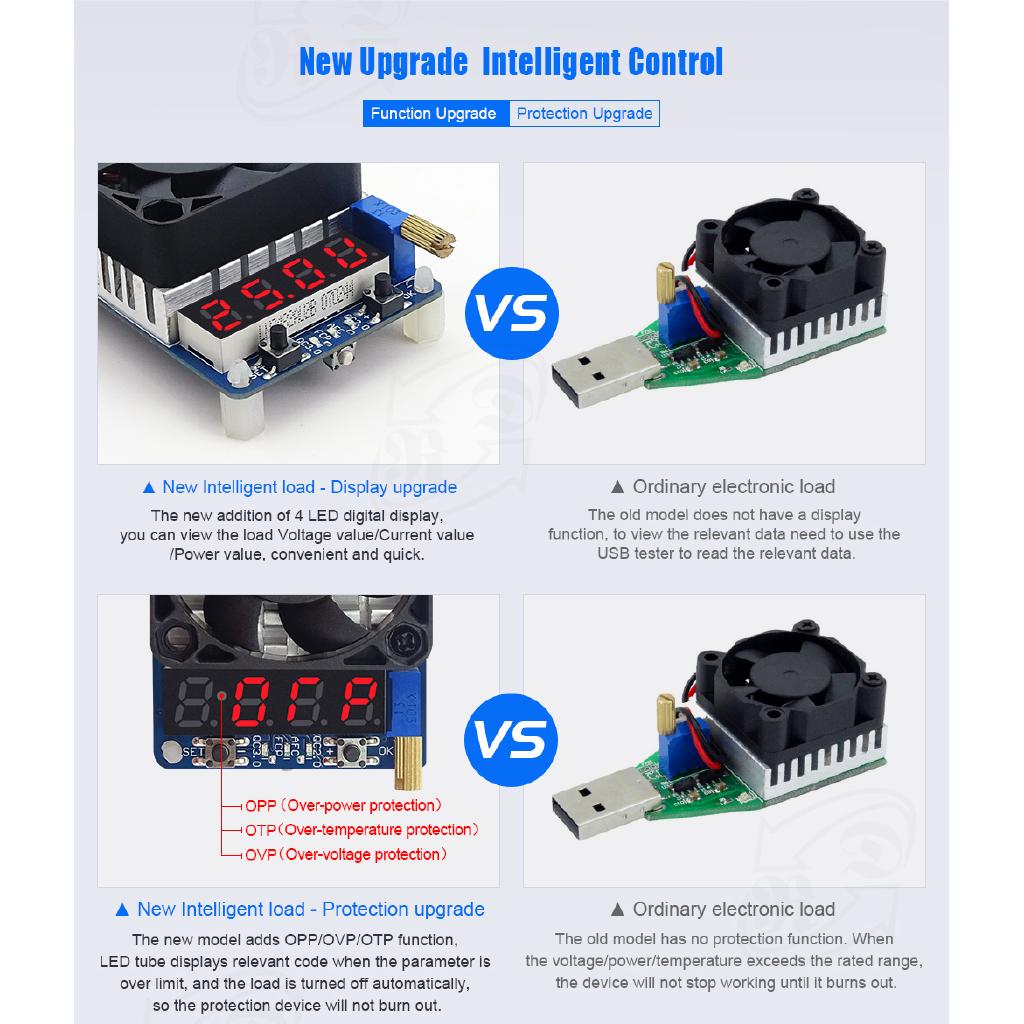

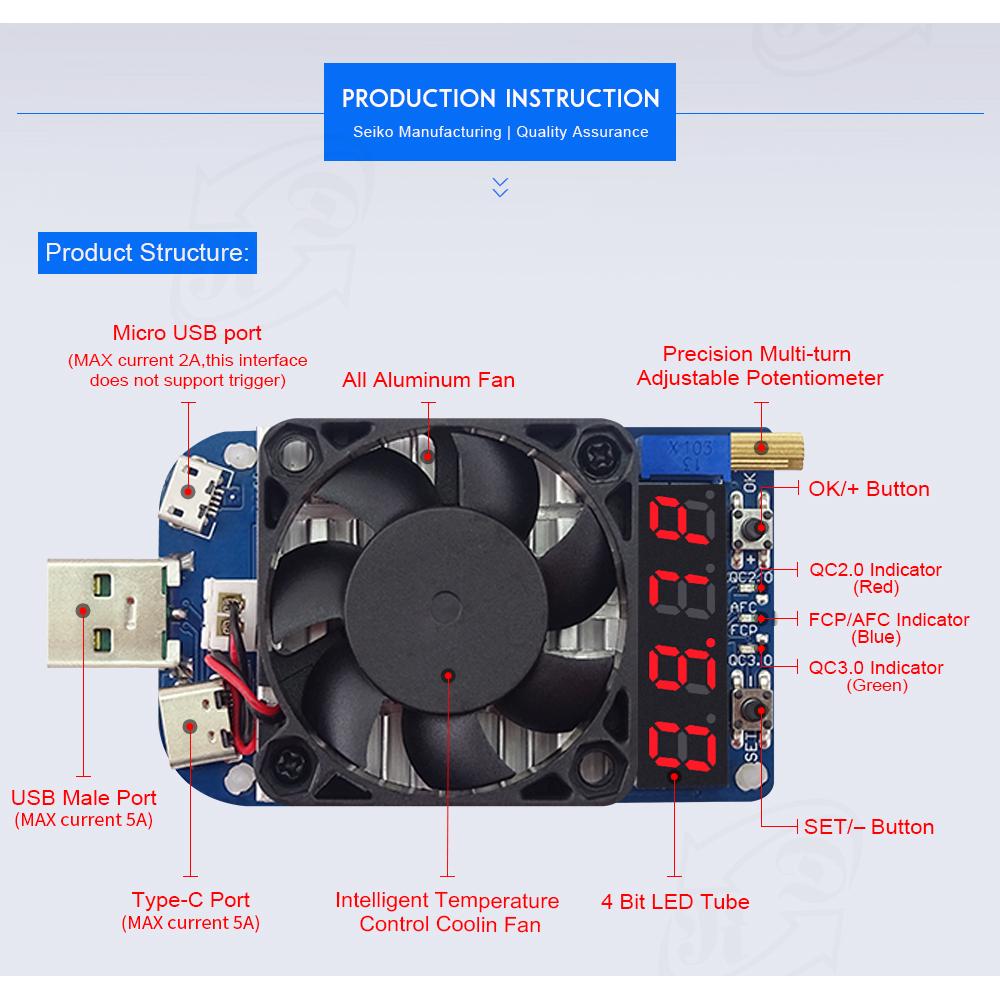

Technical Parameters: Load function: A. Protection function OVP overvoltage protection (25V-30V overvoltage protection, permanent damage after 30V; after overvoltage protection, digital tube displays OVP) OTP over temperature protection (If load temperature is greater than 80 °C, the output will automatically cut off, and the digital tube displays OTP) OPP over power protection (If power is greater than 35W, the output is automatically cut off, and the digital tube displays OPP) B. Set the load to resume normal operation manually or automatically after the protection condition is released. C. View load voltage value, current value, power value D. Intelligent temperature control fan, when the power is greater than 10W or the load temperature is greater than 40 °C, the fan starts automatically. E. Precision adjustable potentiometer, which can accurately adjust the current to 0.01A, and will not damage the power supply due to excessive current error caused by hand error. F. Freely set the load on state, the default is on or off. Trigger/cheat function: 1. Trigger function: The charger can be used for QC2.0, QC3.0, Huawei FCP, Samsung AFC 9V, and multiple fast charging modes for deception triggering. 2. Fast charge support detection function: Use the AUTO mode to detect the charger's support for fast charge mode. 3. Power-on automatic trigger function: Power-on automatically triggers fast charging and automatically turns on the load, which is suitable for batch testing of aging chargers. Q&A: Q: My charger has the largest nominal support QC2.0 12V2A How do I test if the charger supports it? Q: Is my PD2.0 supported? A: The load can age the PD charger, but it cannot be PD spoofed. The dual-head Type-C line connects the PD charger to the load, and the PD charger defaults to 5V. If the PD charger supports QC2.0 at the same time, high voltage aging can be achieved by tricking QC2.0. Q: How do I want to release the fast charge fast charge? A: In the trigger mode, short press the trigger button to switch the mode to release; in the load mode, long press the trigger button to enter the trigger mode will be automatically released. Application scenario: Auxiliary measurement Micro USB charging cable good or bad test auxiliary measurement Type-C The test of the charging line is good or bad. Charger factory batch aging test use Package includes: 1 x Battery Aging Detector
