DC12V 433MHz peach wood 4-key ABCD remote control switch learning type DC four-way intelligent wireless control module relay receiver built-in battery

Features:

1. Jog function:
Press the code pairing button on the control board once, and the LED indicator flashes once. After the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.

2. Self-locking function:
Press the code pairing button on the control panel twice in a row, the LED indicator flashes 2 times, and when the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.


Product parameters:

1. Input voltage: DC 12V

2. Receiving frequency: 433MHz, 315MHz

3. Receiving sensitivity: -108dbm

4. Quiescent current: 5mA

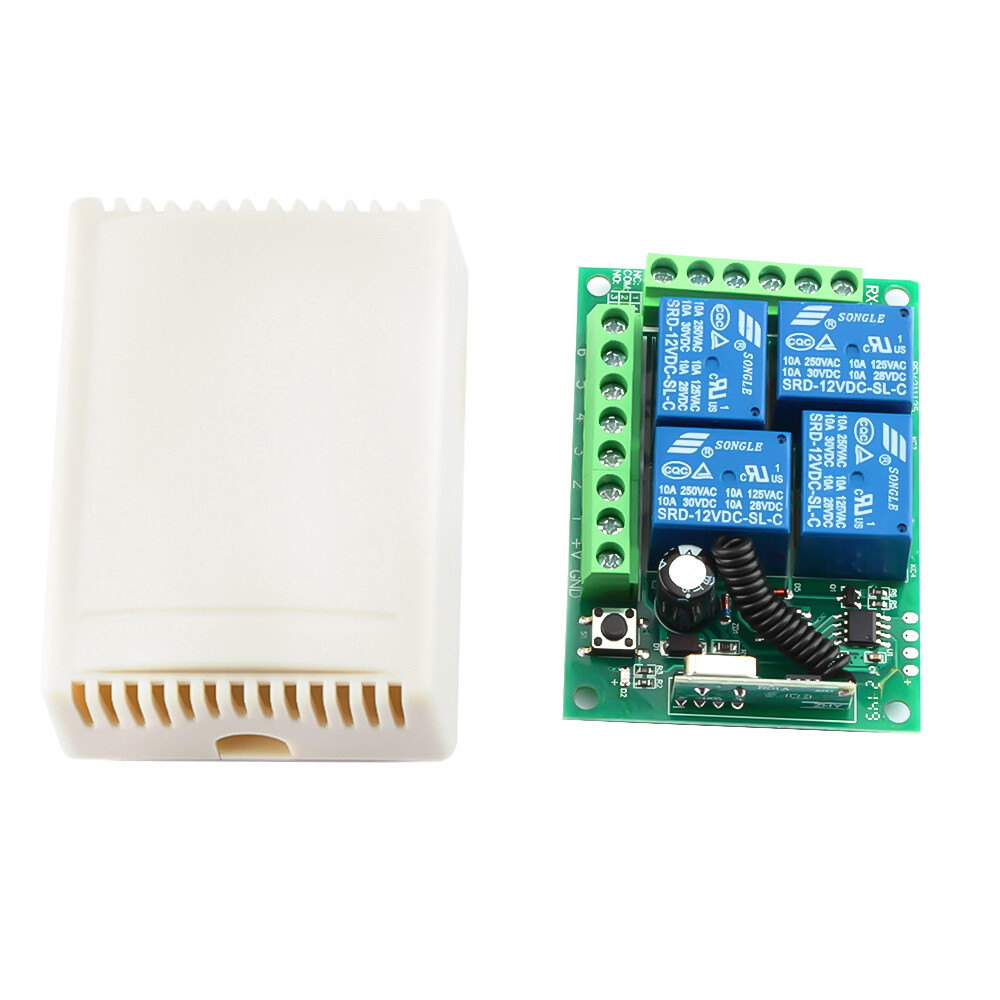

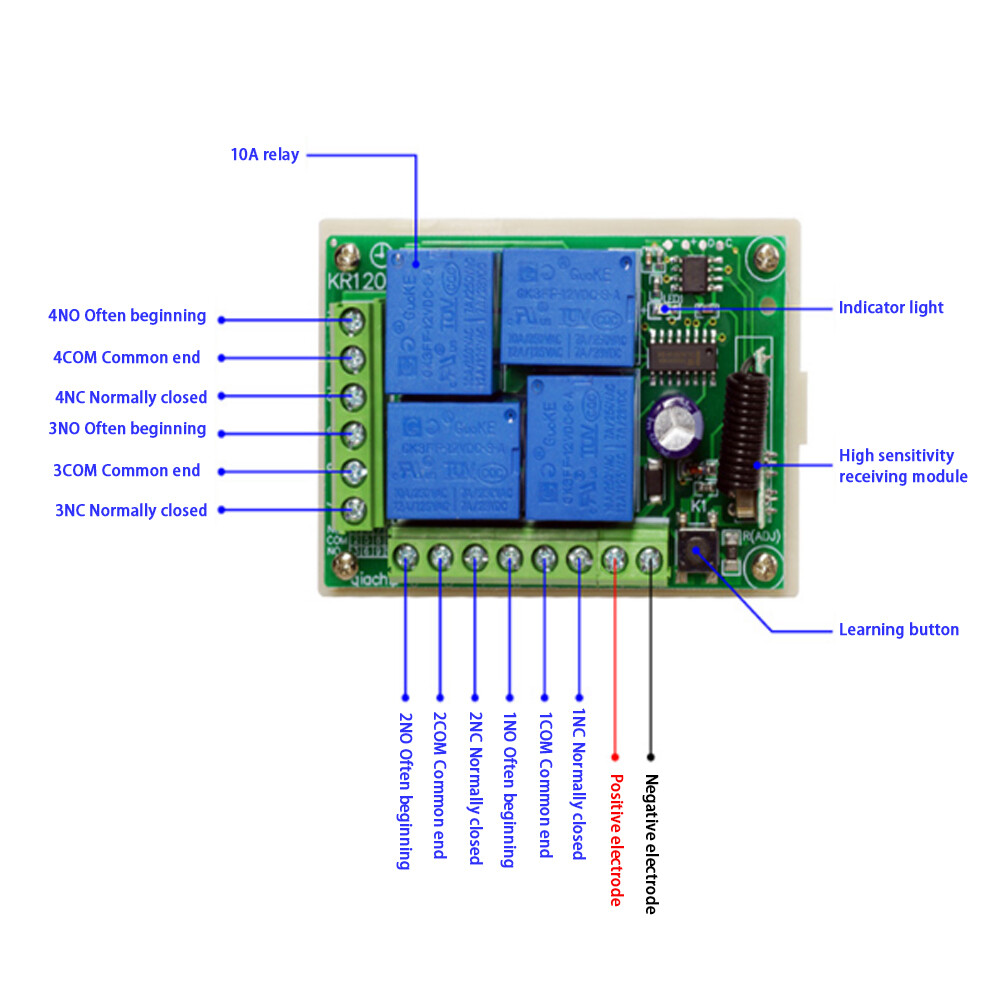

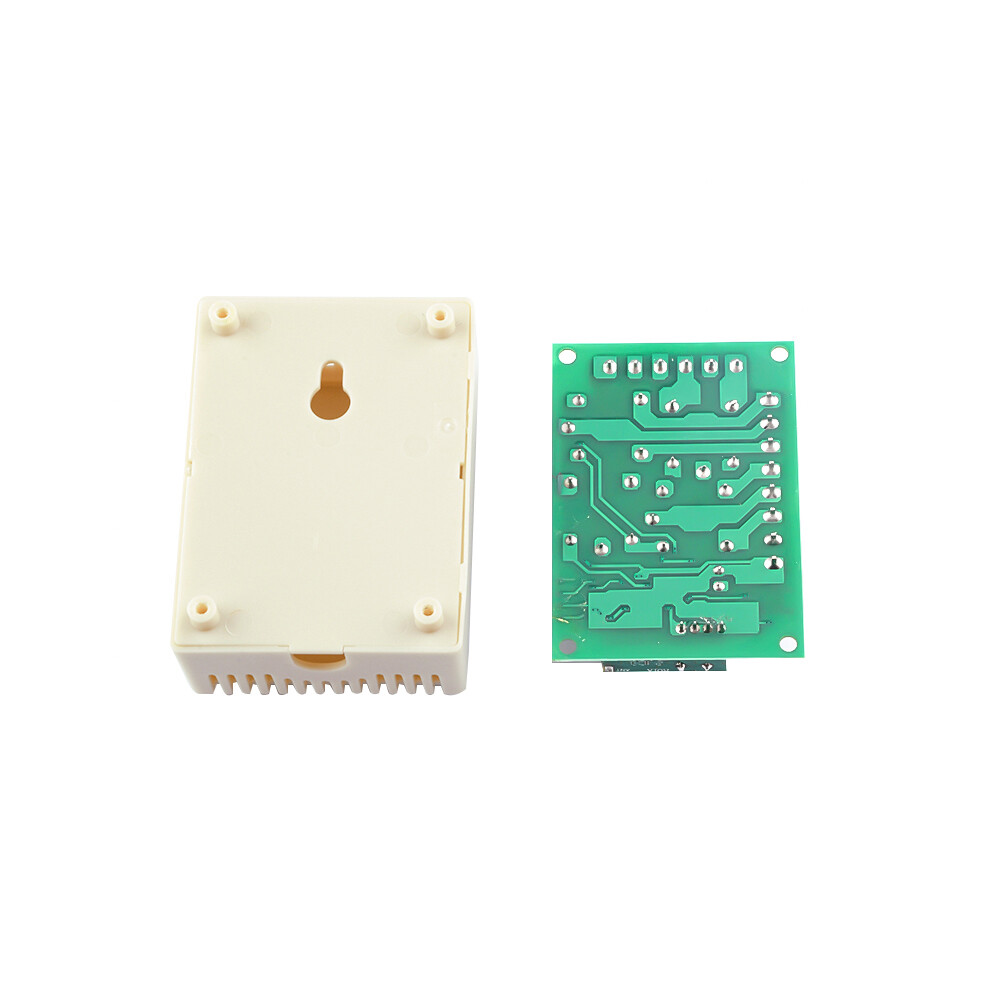

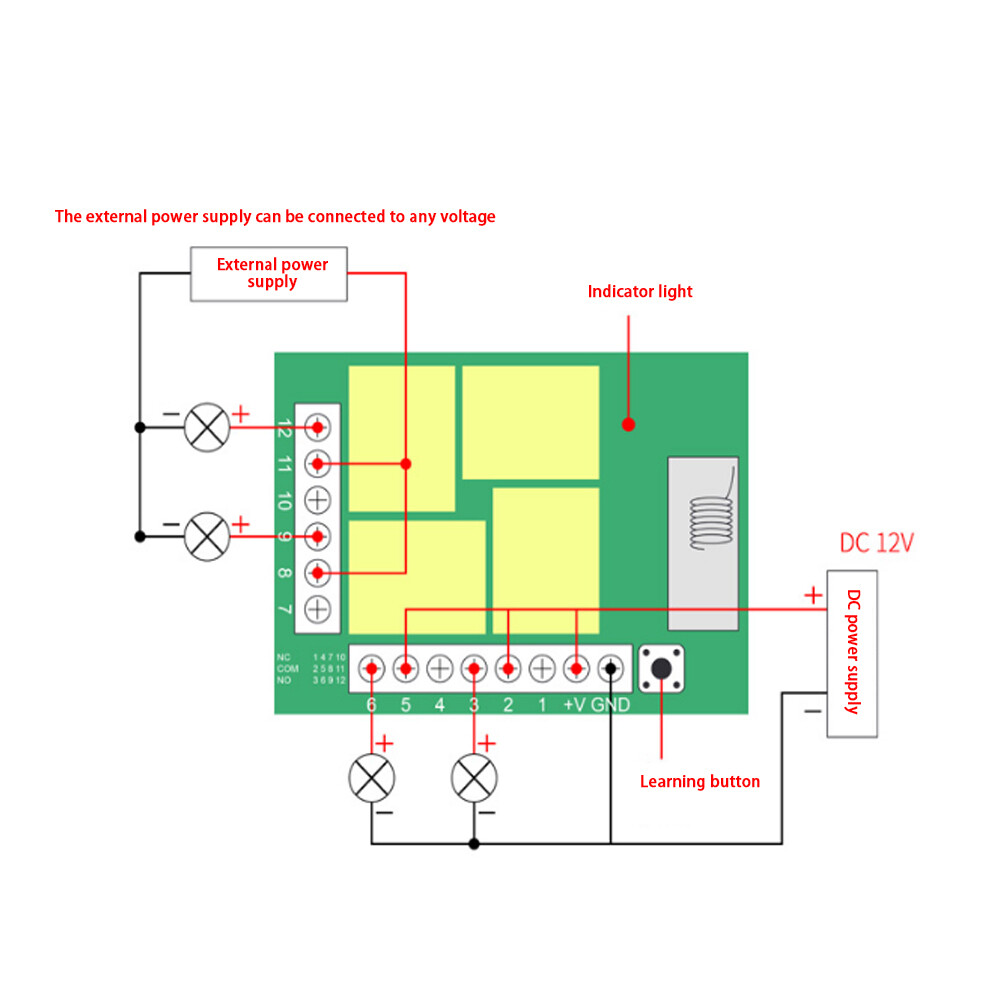

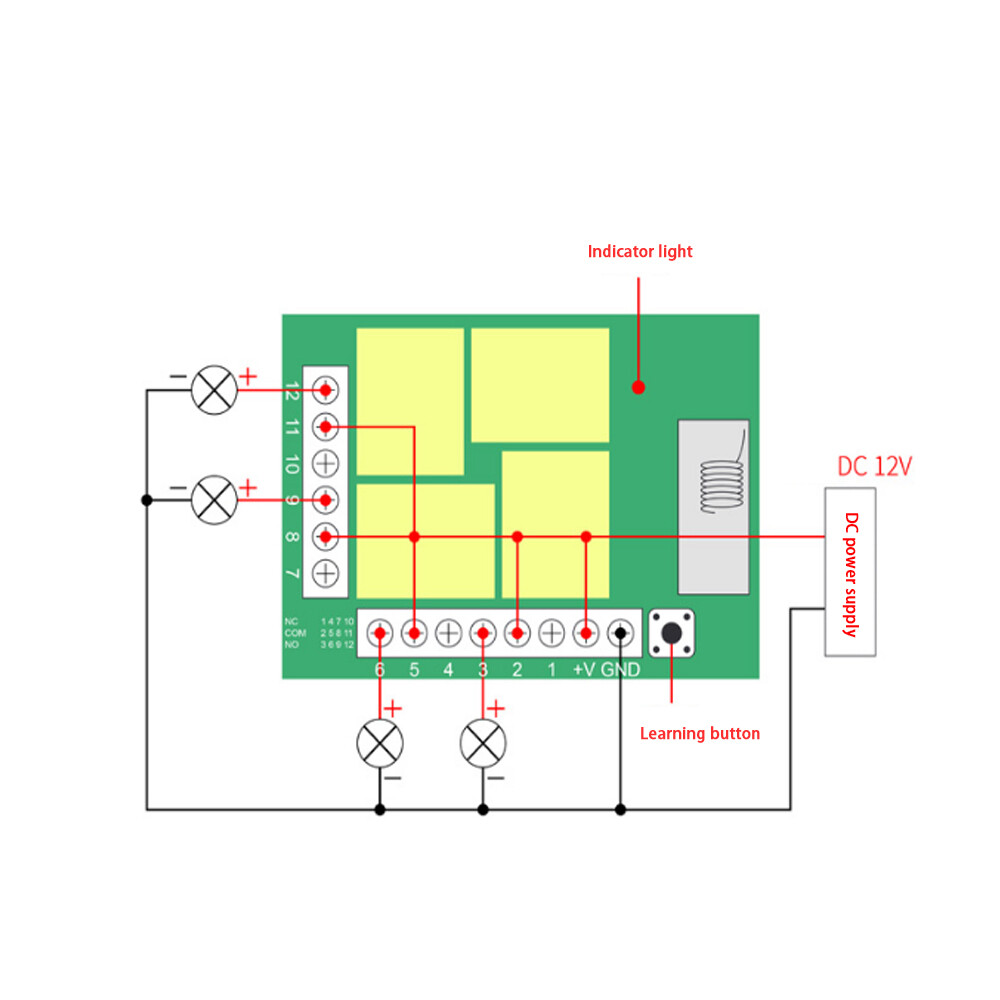

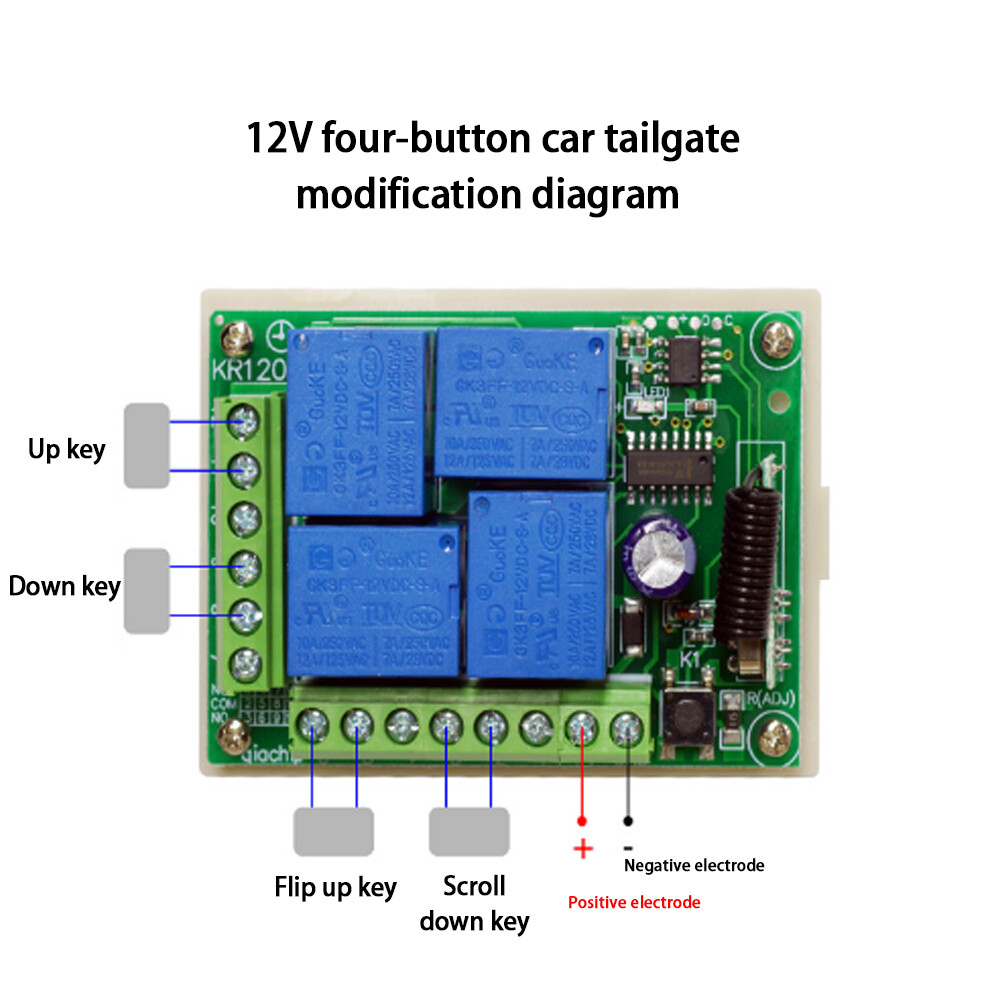

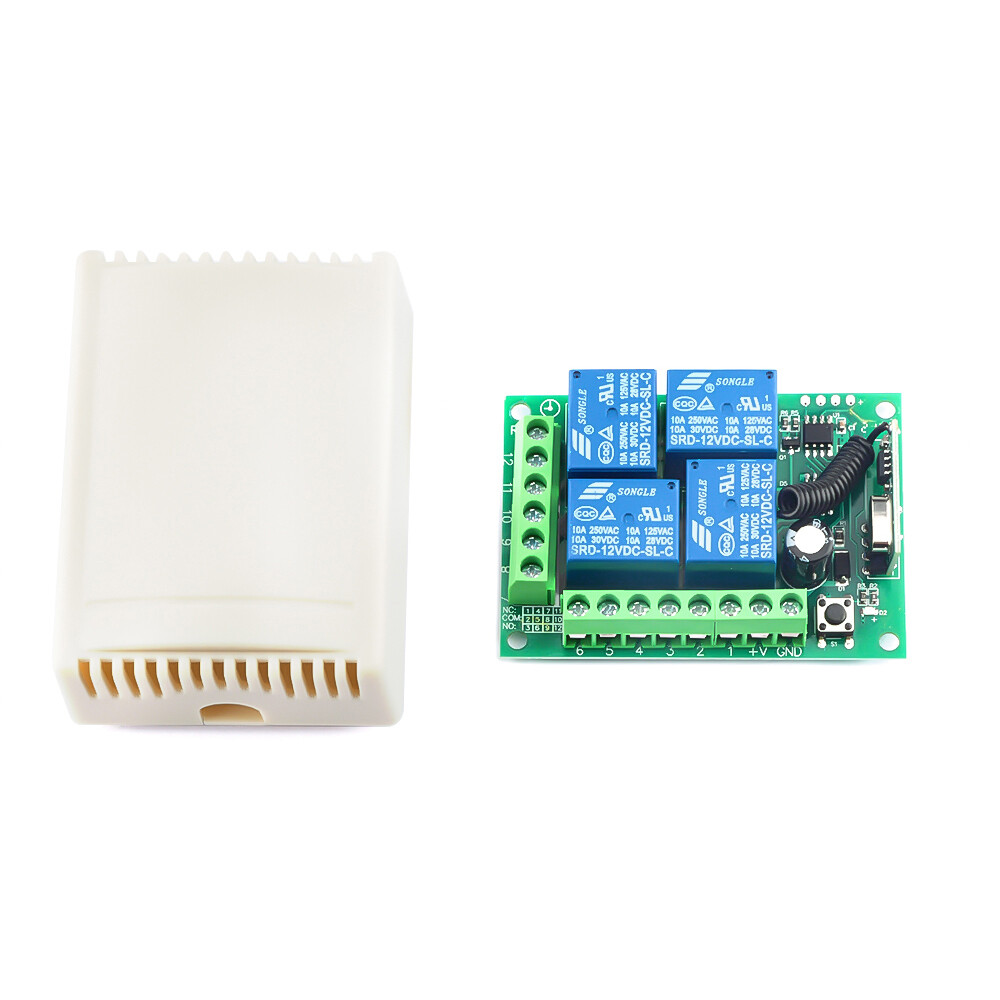

Description of receiving terminal:

+V—Power "positive" input

GND—power supply "negative" input

1—KC1 relay "normally closed" terminal

2—KC1 relay "common" terminal

3—KC1 relay "normally open" terminal

4—KC3 relay "normally closed" terminal

5—KC3 relay "common" terminal

6—KC3 relay "normally open" terminal

7—KC2 relay "normally closed" terminal

8—KC2 relay "common" terminal

9—KC2 relay "normally open" terminal

10—KC4 relay "normally closed" terminal

11—KC4 relay "common" terminal

12—KC4 relay "normally open" terminal


Package includes:

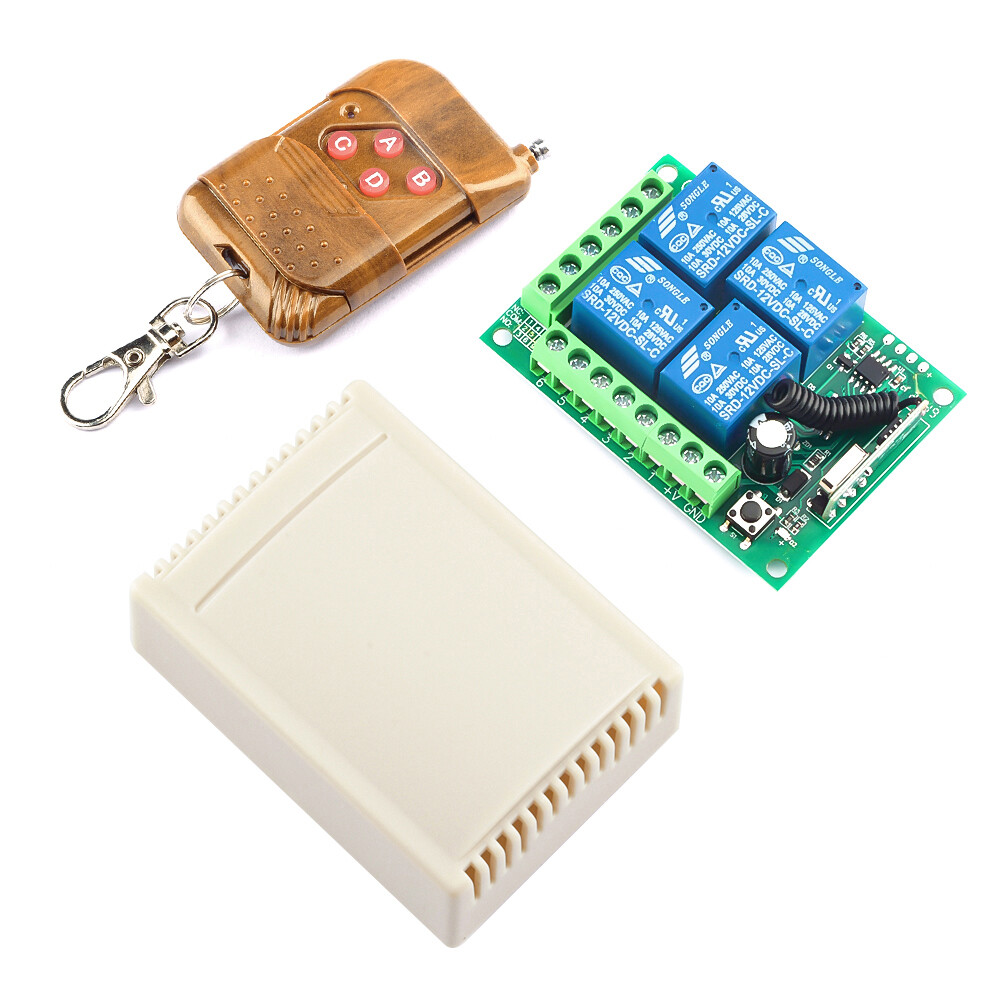

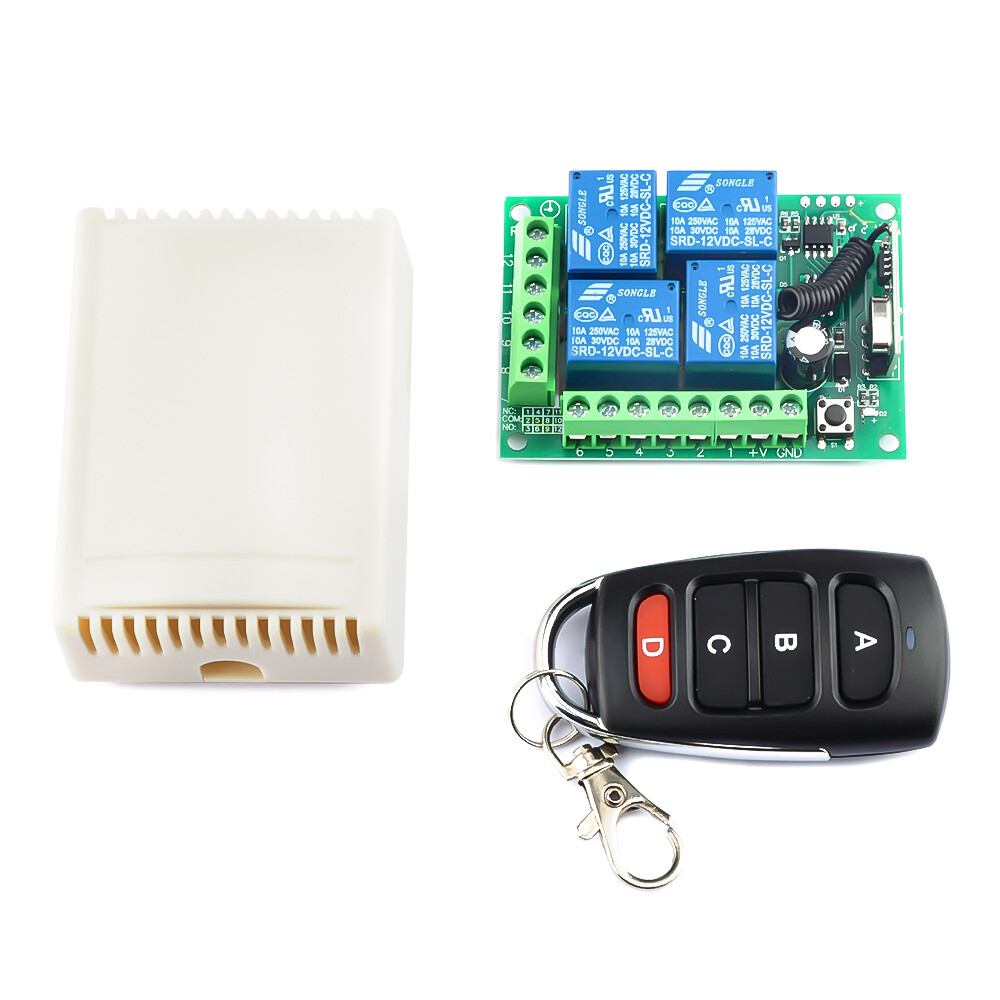

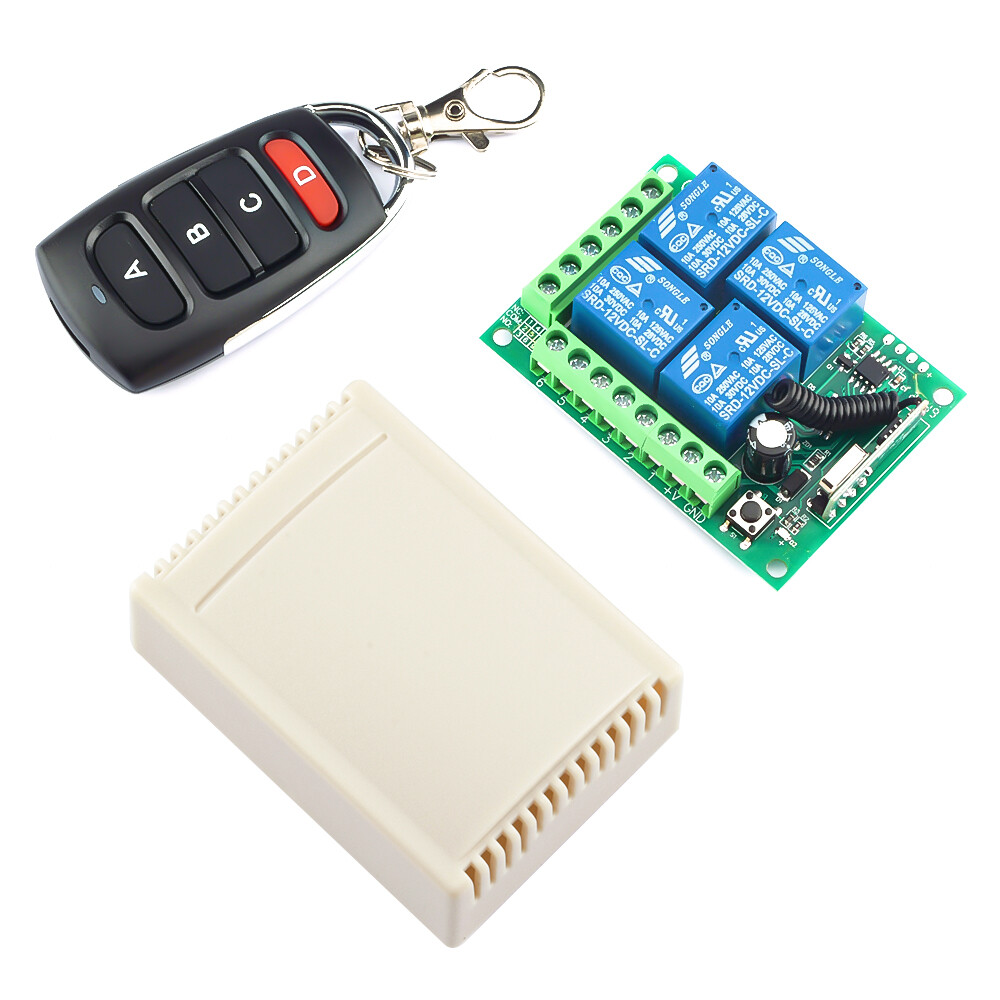

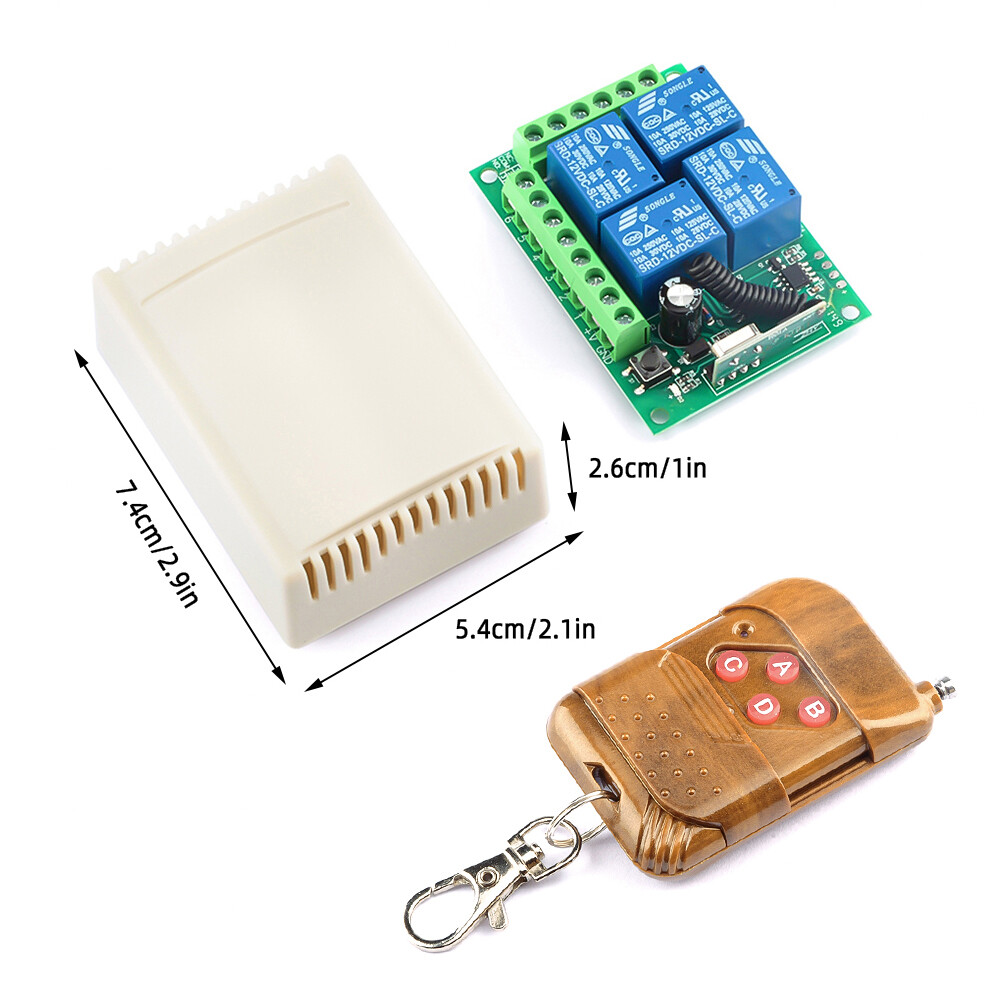

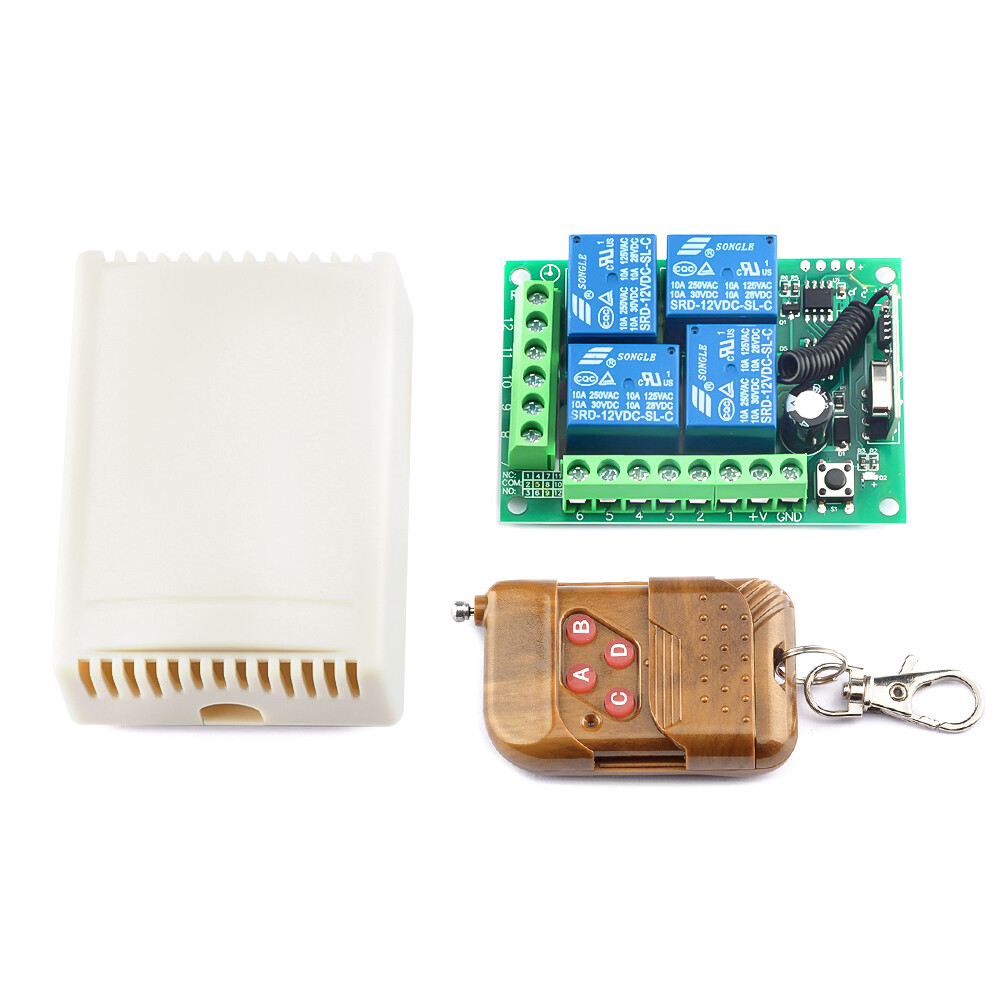

Type A: 12V 433MHz 4-way with shell*1+mahogany 4-key ABCD*1*1

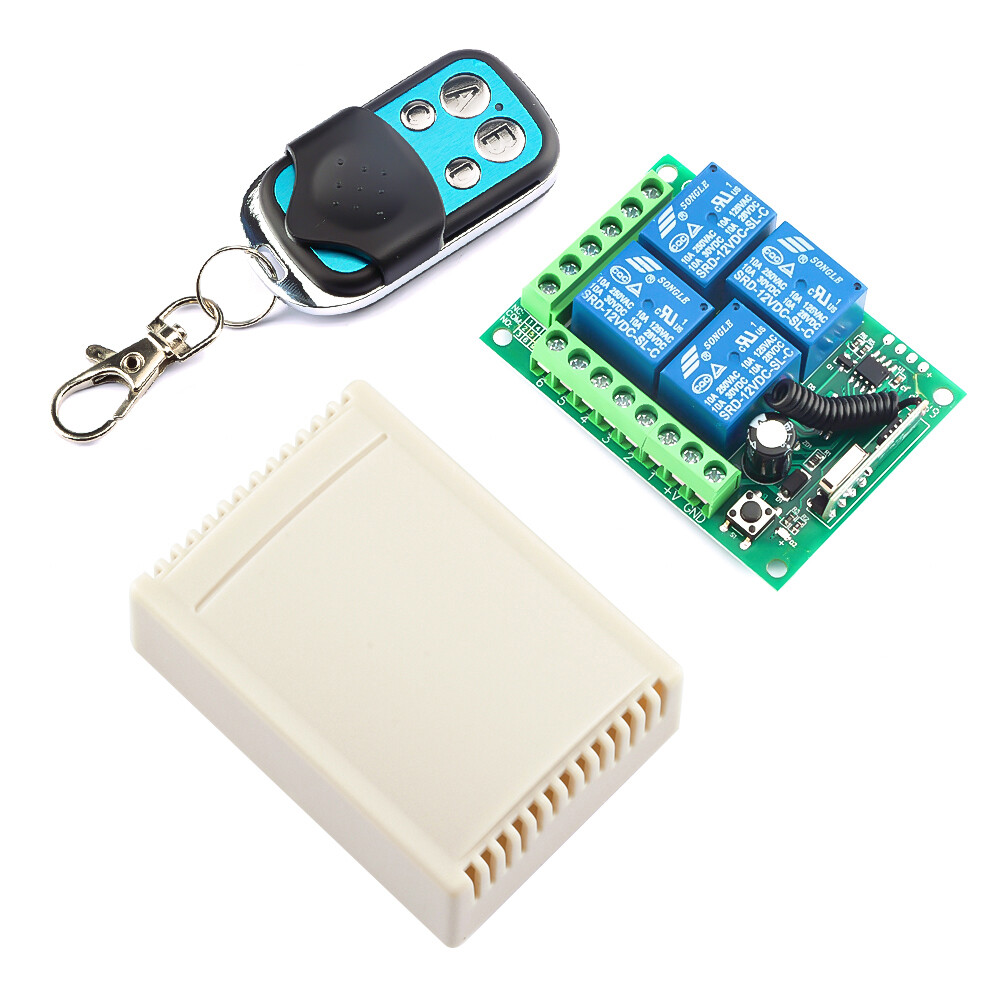

Type B: 12V 433MHz 4-way with shell*1+red d4 key ABCD*1*1

Type C: 12V 433MHz 4-way with shell*1+metal 4-key ABCD*1*1

Type D: 12V 315MHz 4-way with shell*1+mahogany 4-key ABCD*1*1

Type E: 12V 315MHz 4-way with shell*1+red d4 key ABCD*1*1

Type F: 12V 315MHz 4-way with shell*1+metal 4-key ABCD*1*1

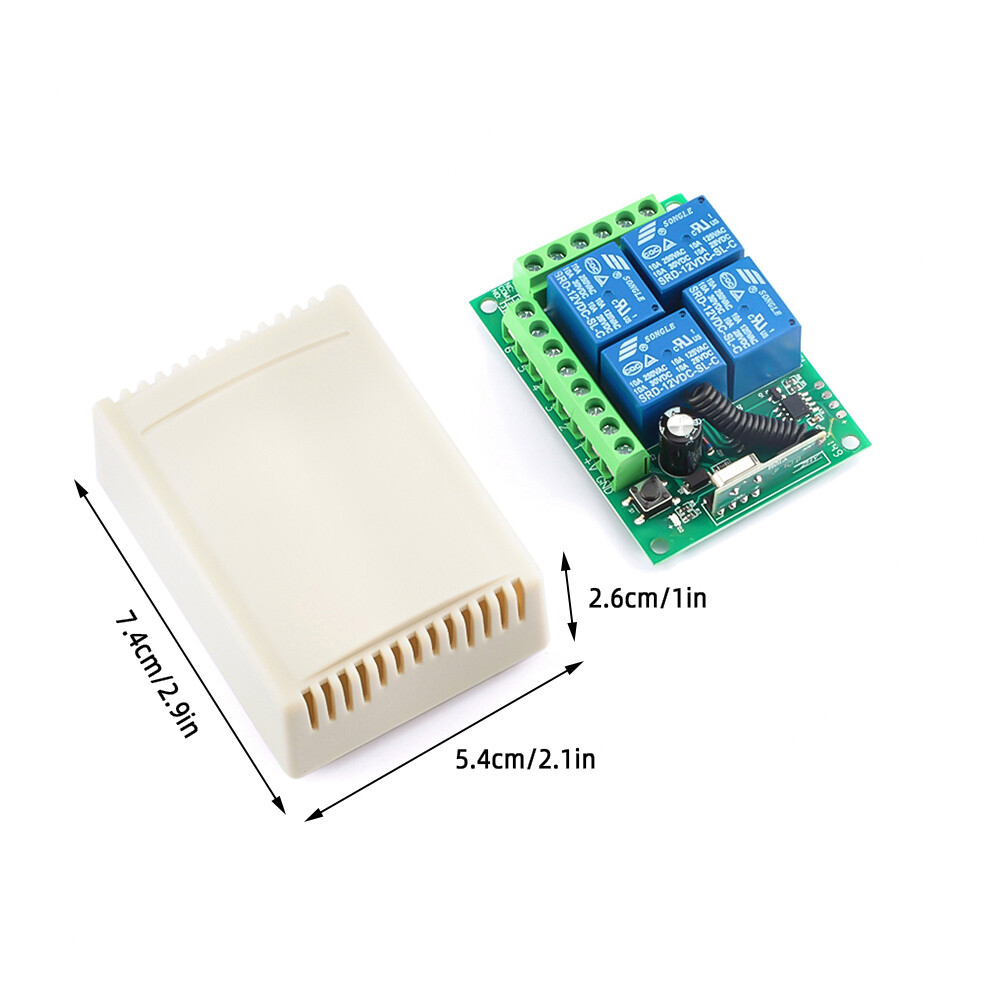

Type G: 12V 315MHz 4-way 4-way intelligent wireless control module relay with shell*1

Type H: 12V 413MHz 4-way 4-way intelligent wireless control module relay with shell*1
