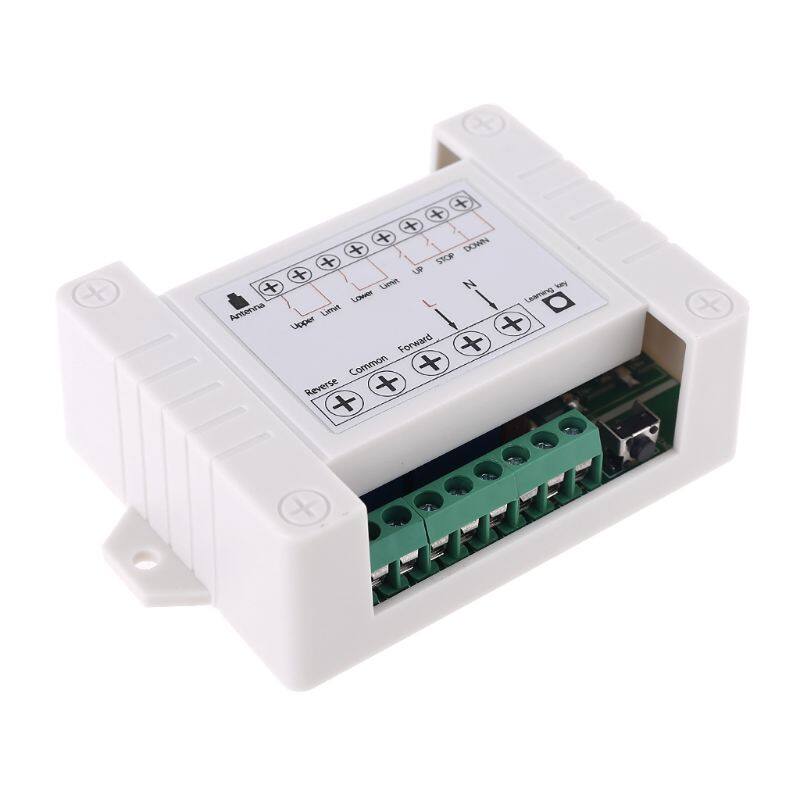

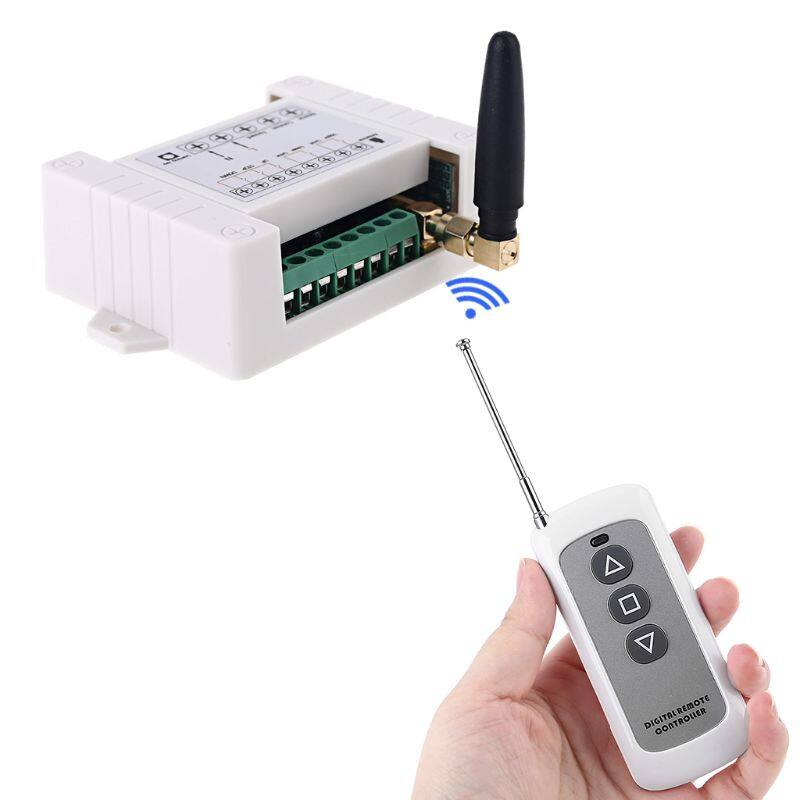

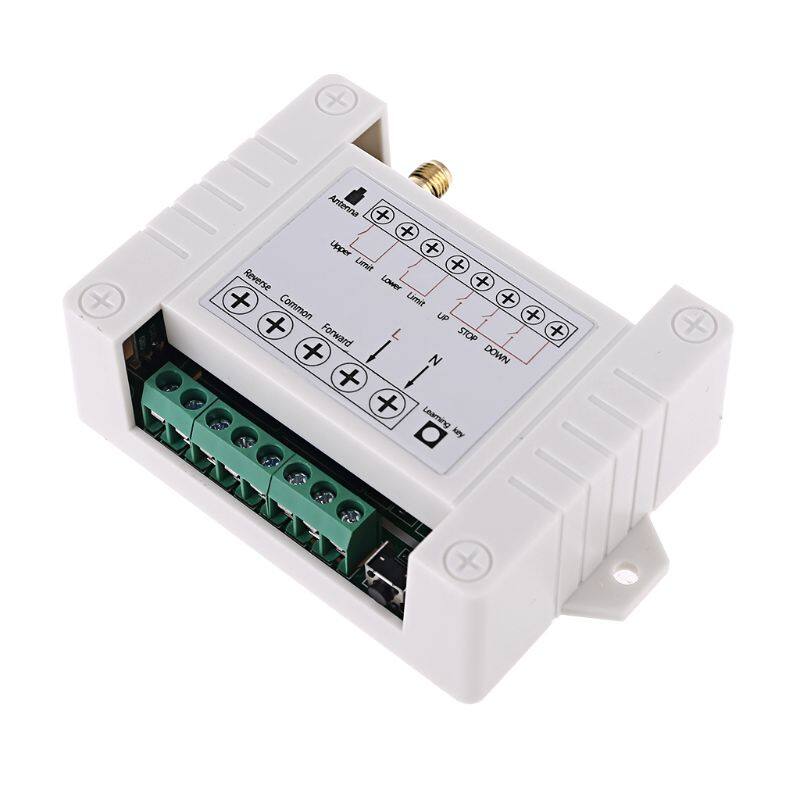

DC12V-48V 3CH Wireless Remote Control Switch RF Relay Receiver Module Controller for Electric Gate Door

Description:
100% brand new and high quality
Feature:
The wide voltage remote control switch can control the on and off of AC and DC equipment, conversion and the requirements of various special control procedures.
Widely used in dc water pump, motor, electric appliances, light lamps, electric lock, curtains, doors, and other wireless control devices.
The remote controller supports the use of forming a complete set of wireless intelligent remote control system .It has a wide range of use.
Learning method: Press the learning key once, the indicator light will flash slowly, then quickly press the A key of the remote control, it will go out after quickly flash 4-5 times, which indicates the successful of the learning of A key. The learning of B key has the same method as the above after being pressed twice.

Working modes:
Jog: Press the remote control relay to pull in, and release the remote control to disconnect it.
Self-lock: Press the remote control relay to pull in, and press it again to disconnect it.
Interlock: Press the A key of the remote control to pull in the relay, press B key to disconnect it.
Clearing mode:
After connect the power, long press the learning key, the learning indicator light will be always on. Then it will go out after 6S, which indicates the successful of the clearing code.
Warm tips: Before switching to any mode, you must clear the codes and then start to learn.

Specifications:
Item Type: Wireless Controller Switch Kits
Material: ABS

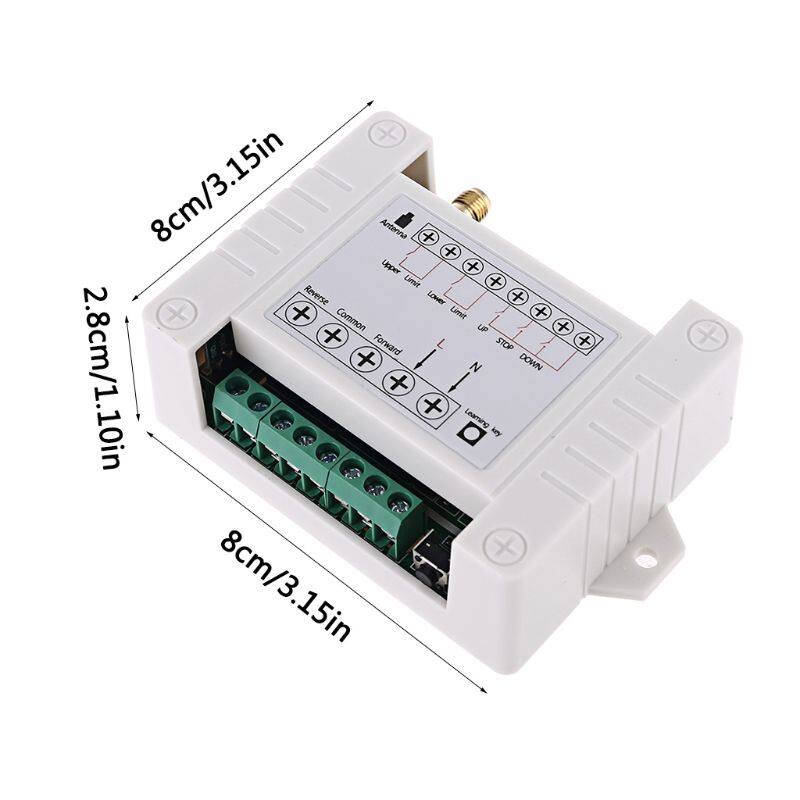

Size: 8x6x2.8cm/3.1x2.3x1.1in
Color: White
Voltage: DC12V-48V
Working frequency: 433mhz
Coding mode: learning code
Load Power: less than and equal to 10A
Working mode: manual key: jog, self-lock, interlock
Quantity: 1 PC

Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

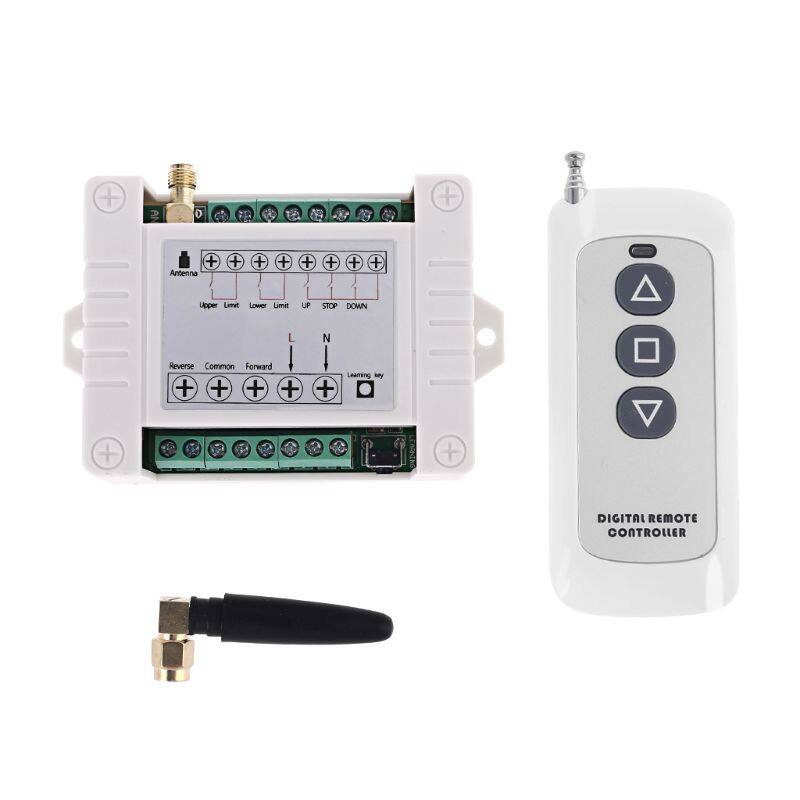

Package Includes:

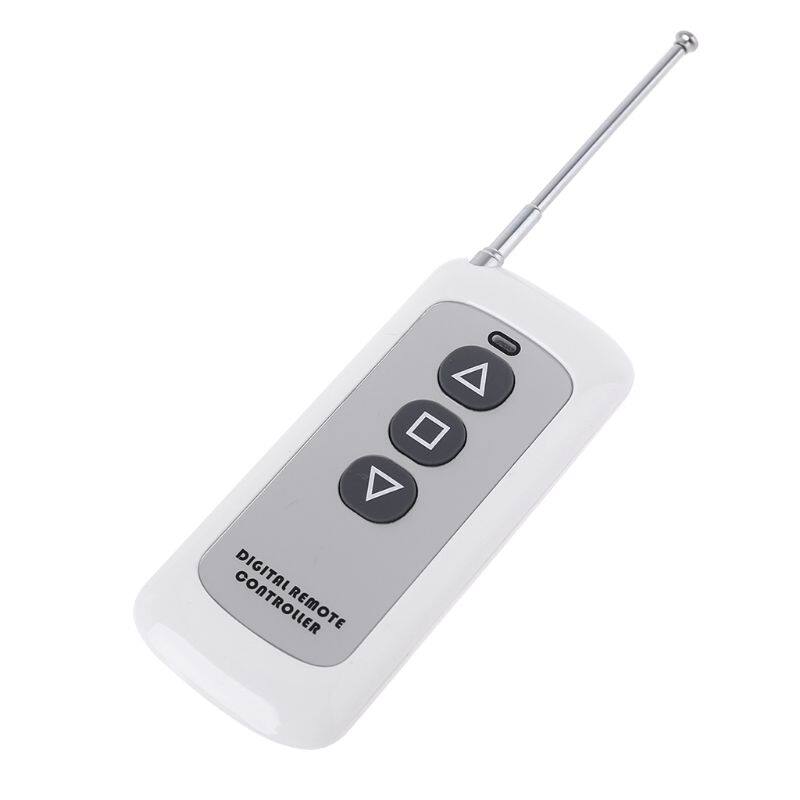

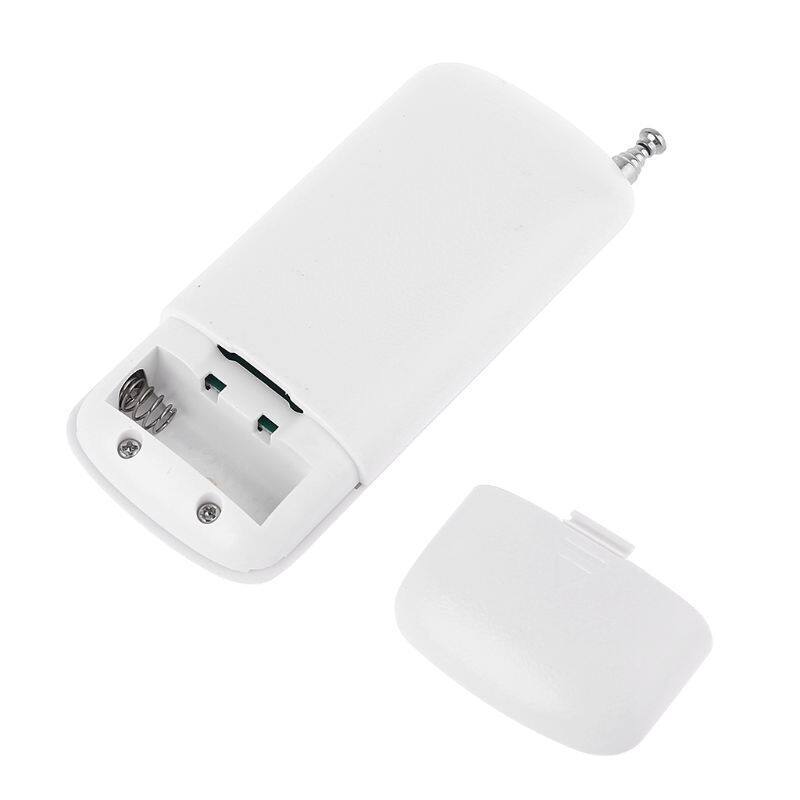

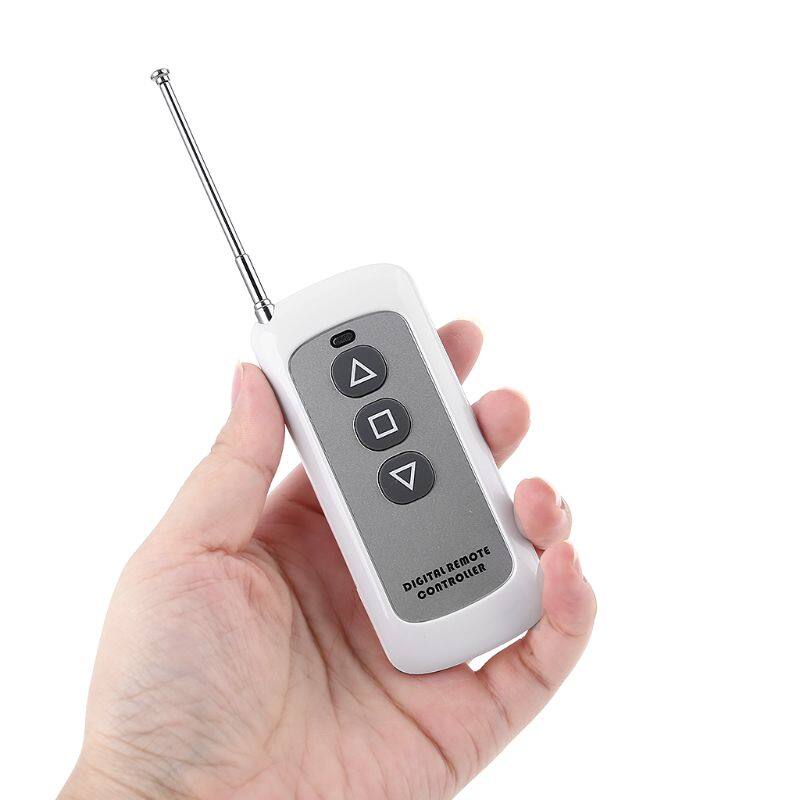

1 x Remote Control

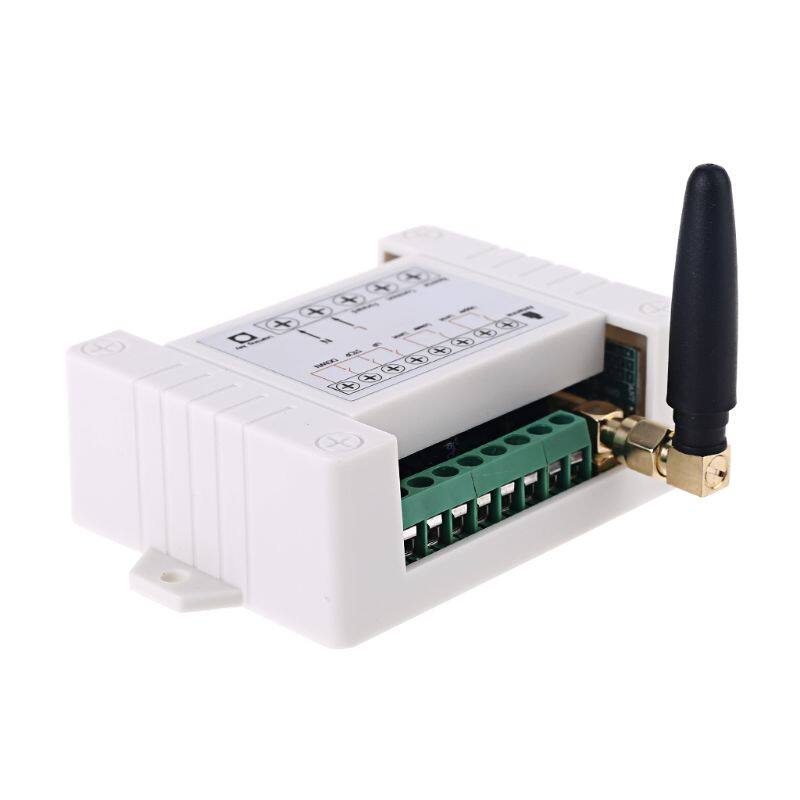

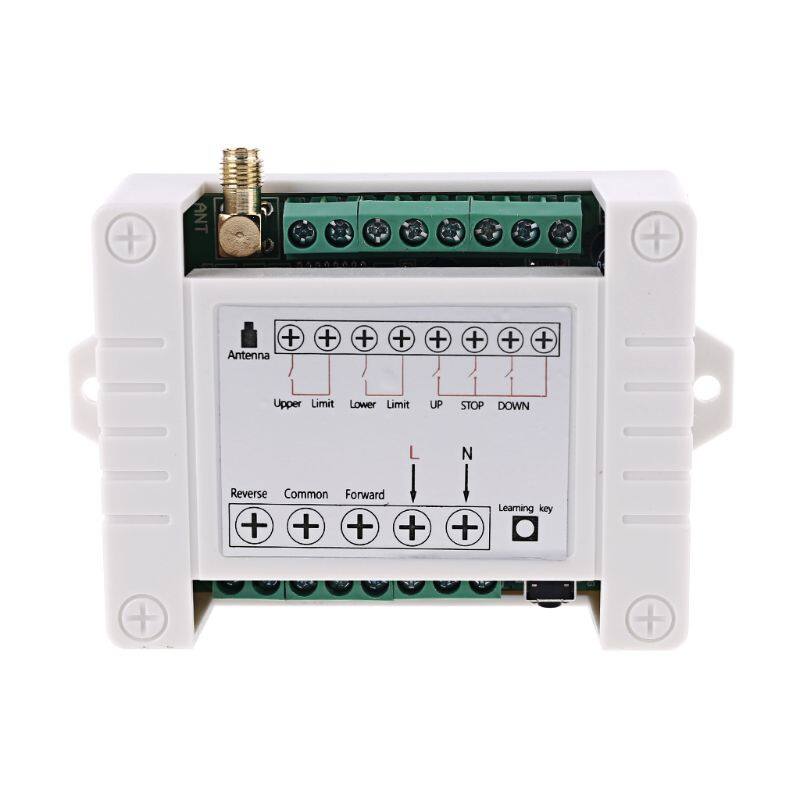

1 x Receiver Module
