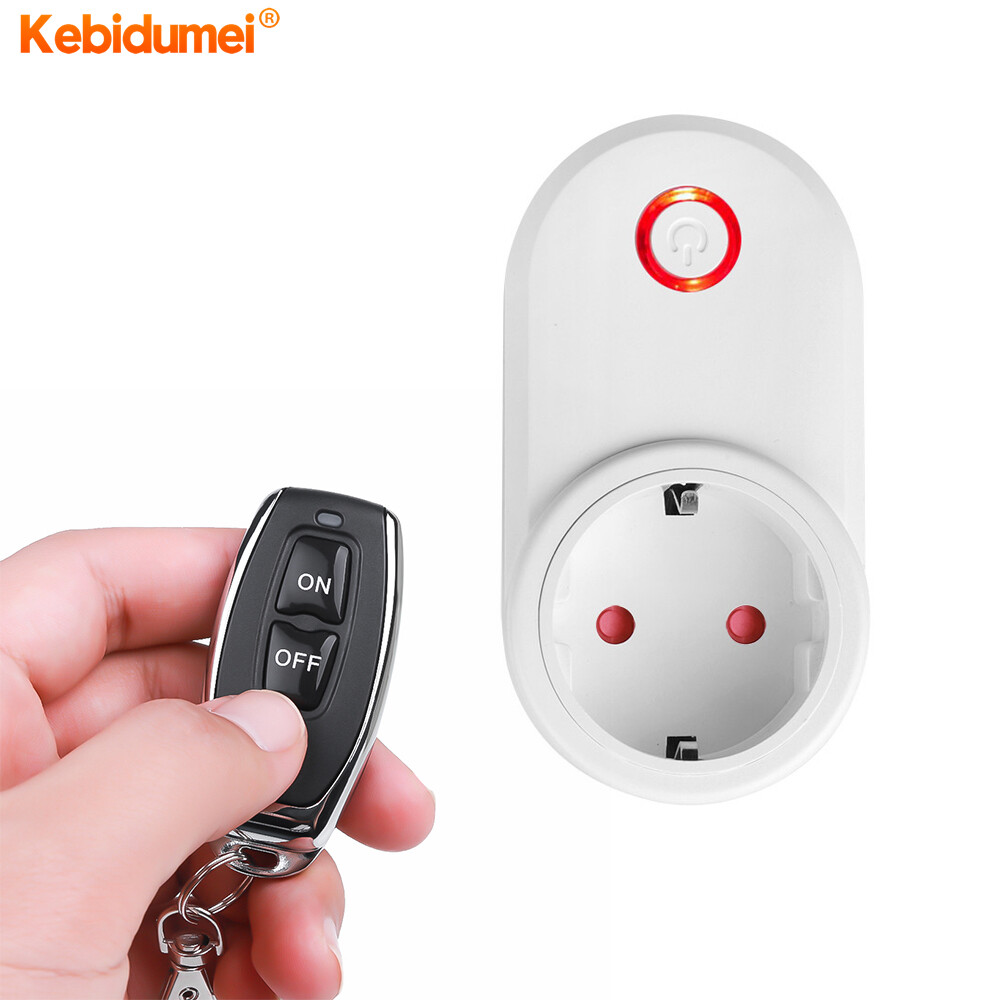

Kebidumei 433Mhz Wireless Remote Control Switch Socket 220V 15A Universal Multi-purpose Smart Outlet Switch Socket

Wireless Remote Control Smart Plug with EU Plug and 433mhz Transmitter, 220V 15A Programmable Electrical Outlet Switch for LED.

Relay Receiver Board Parameter：

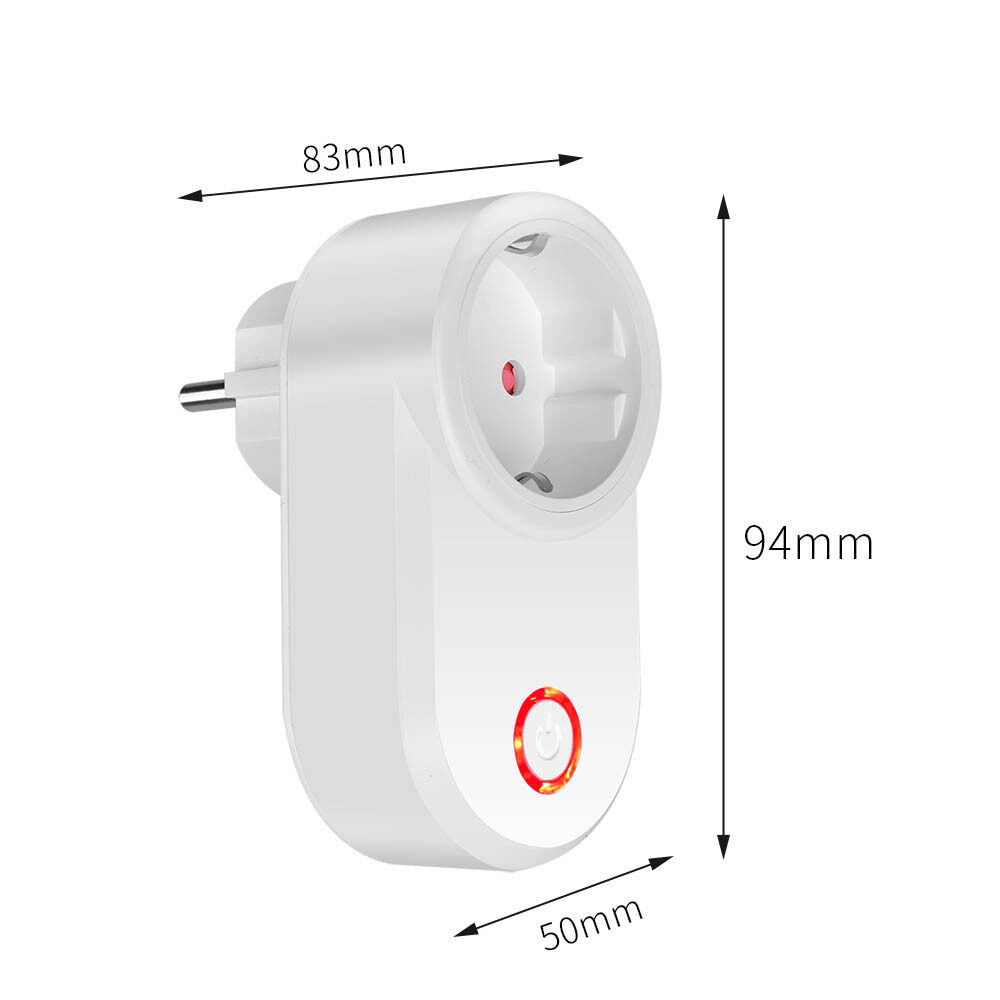

Operating voltage: 85 ~ 265V AC Maximum current: 15a Charging current: 3000W Size: 51 * 99 * 73mm (2.0 * 3.9 * 1.9in) Weight: 105g Remote Control Battery: 2 * CR2016 (included) RF frequency: 433MHz Working temperature: -30 ~ + 80 Celsius Receive sensitivity:> 97dBm Storage remotes quantity: 25pcs Supports encoding: Slant code 1527 / Fixed code 2262 RF operating mode: ASK superheterodyne wireless reception Receiving range: open space is more than 30 meters Remote operating mode: Toggle mode / Close mode

Package Included：

1 *Socket，1Pc Remote Or 1 * Socket

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!

Use: Press * ON * button -> Home appliances or light will turn on; Press * OFF * Button-> Appliances or light will turn off.

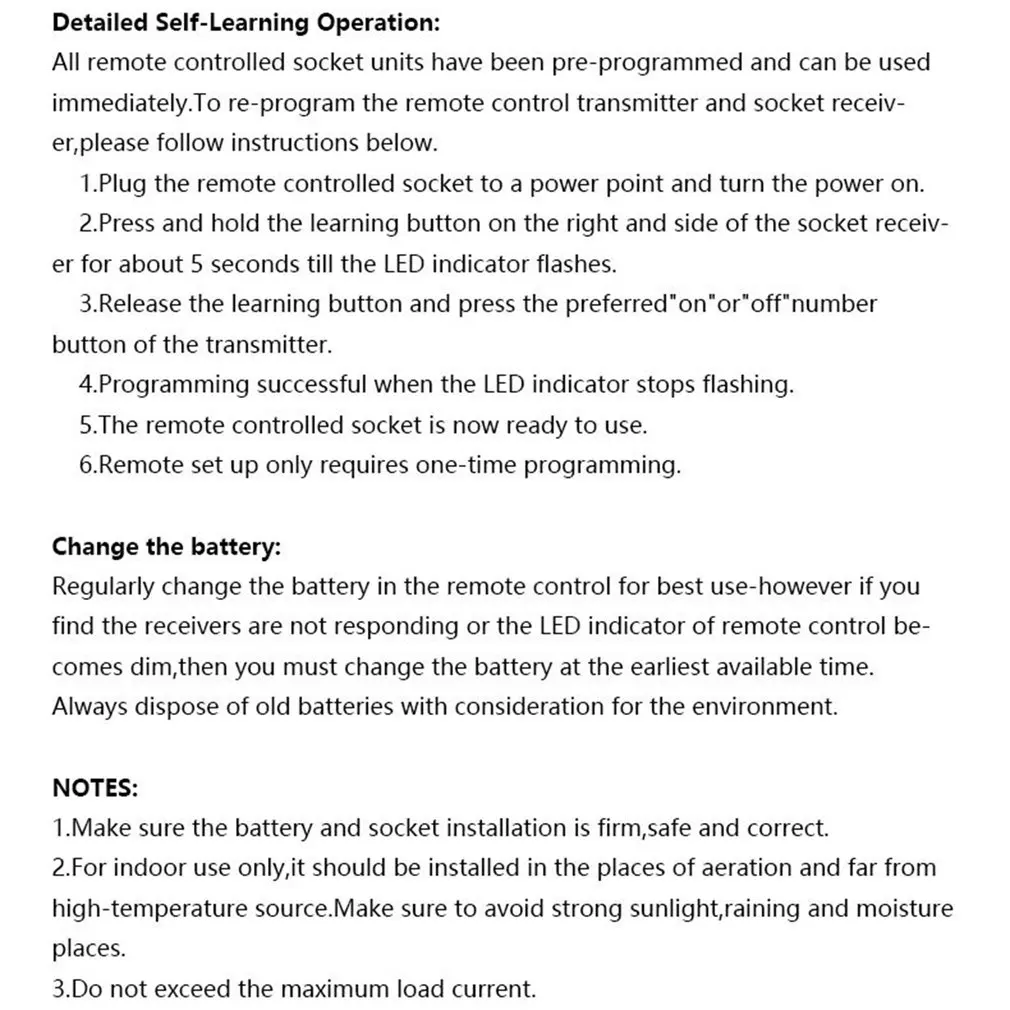

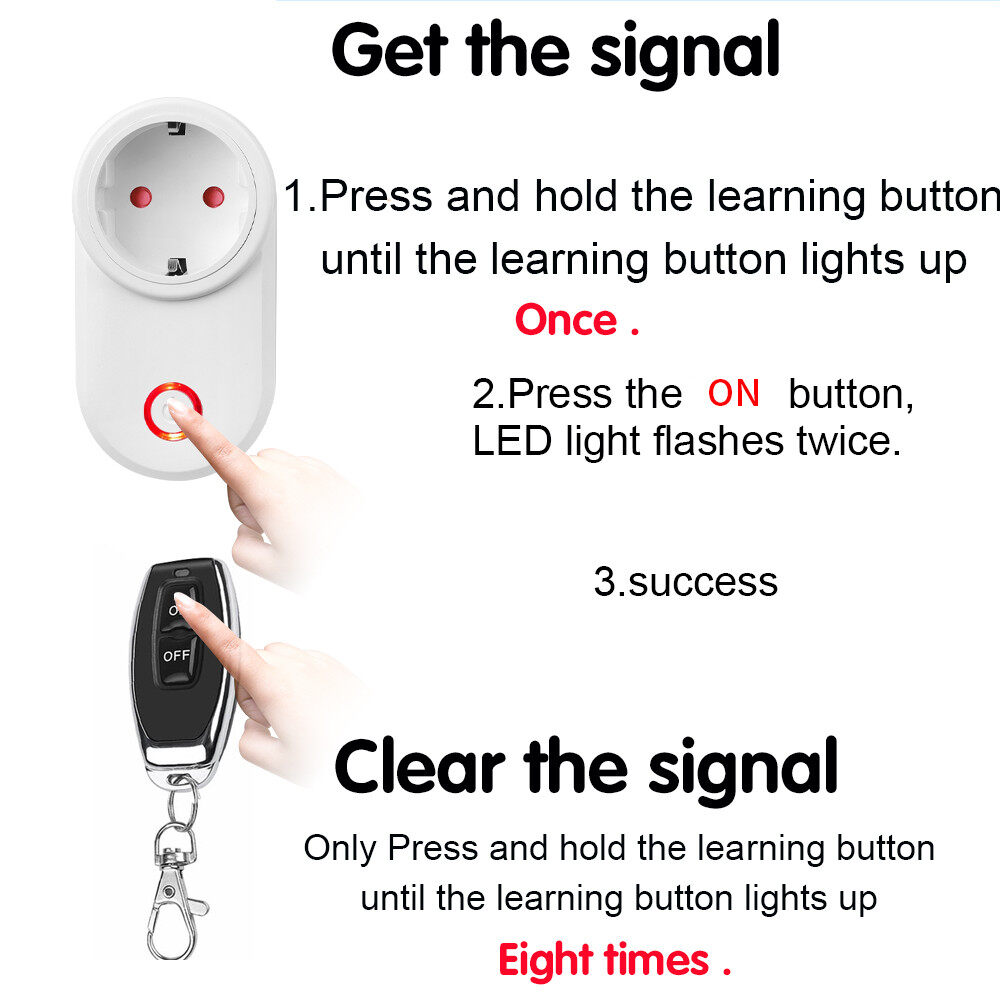

Setting: 1. According to the picture above, press and hold the learning button until the indicator blinks twice. 2. Press the * ON * button, the indicator flashes twice. 3. Press the * OFF * button, the indicator blinks twice. 4. Success

How to erase the signal Just one step: Press and hold the learning button until the indicator blinks 8 times (About 7 seconds).

Wiring Diagram
