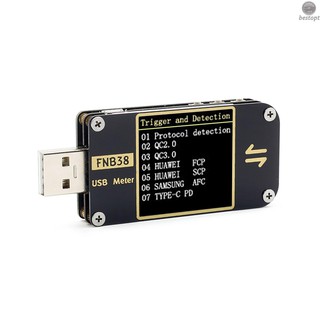

B&O FNB38 Current and Voltage Meter USB Tester QC4+PD3.0 2.0 PPS Fast Charging Protocol Capacity Test

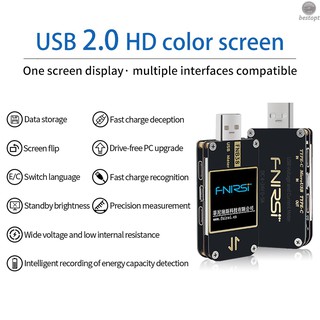

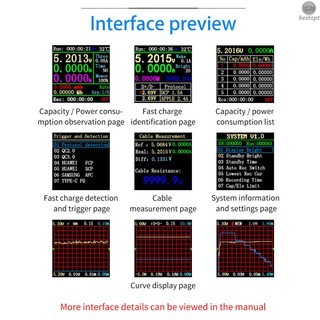

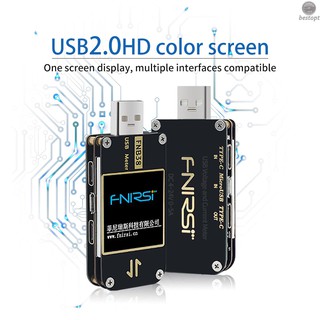

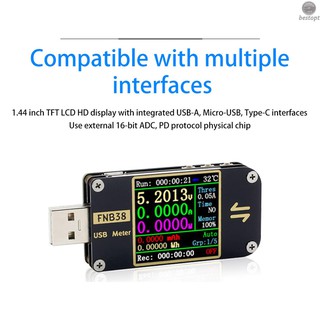

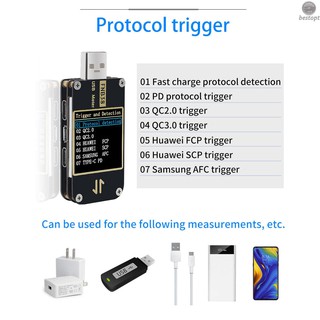

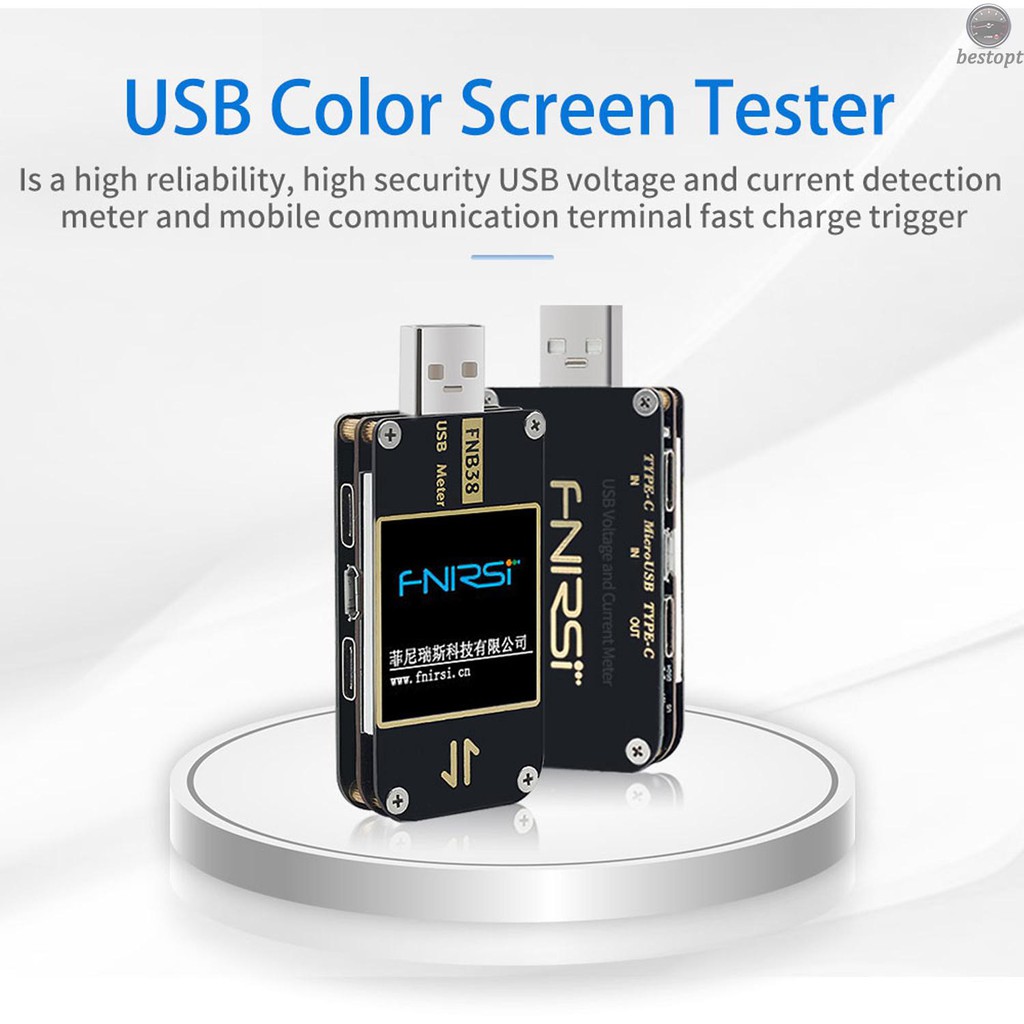

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life. Features: USB color screen tester is a high reliability, high security USB voltage and current detection meter and mobile communication terminal fast charge trigger. Multiple practical functions: drive-free PC upgrade, fast charge deception, Chinese and English interface, standby brightness, fast charge recognition, screen flip, accurate measurement, data storage, intelligent recording of energy capacity detection. USB2.0 interface, 1.44 inch TFT LCD high definition display with integrated USB-A, Micro-USB, Type-C interfaces, use external 16-bit ADC, PD protocol physical chip. One screen display, multiple interfaces compatible. Can be used for the measurement of rechargers, U disks, data cables, power banks, mobile phones, etc. Specifications: Material: ABS Color: black Input voltage: Range: 4~24V Resolution: 0.1mV Accuracy: ±(0.2‰+2) Input current: Range: 0~5A Resolution: 0.1mA Accuracy: ±(0.5‰+2) Input power: Range: 0~120W Resolution: 0.1mW Accuracy: ±(0.5‰+2) Load equivalent internal resistance: Range: 0~9999.9Ω Resolution: 0.1mΩ Accuracy: ±(0.5‰+2) D+/D- voltage: Range: 0~3.3V Resolution: 0.01V Accuracy: ±(1.0%+2) Equipment temperature: Range: ℃, ℉ Resolution: ℃: 1℃ ℉: 1℉ Accuracy: ℃: ±(1.2%+3) ℉: ±(1.2%+4) Capacity: Range: 0~9999.9mAh Resolution: 0.0001mAh Accuracy: for reference Energy used: Range: 0~9999.99Wh Resolution: 0.00001Wh Accuracy: for reference Cable internal resistance: Range: 0~9999.9Ω Resolution: 0.0001Ω Accuracy: for reference Equipment runtime: Range: 999 hours 59 minutes 59 seconds Resolution: 1 second Accuracy: 5 seconds / hour Record time: Range: 999 hours 59 minutes 59 seconds Resolution: 1 second Accuracy: 5 seconds / hour Item size: 69 * 30 * 9.5mm / 2.7 * 1.2 * 0.4in Package size: 91 * 63 * 19mm / 3.6 * 2.5 * 0.7in Package weight: 52g / 1.8ounce Note: do not connect a power supply exceeding 24V to the tester. Packing List: 1 * USB Tester 1 * Storage Box
