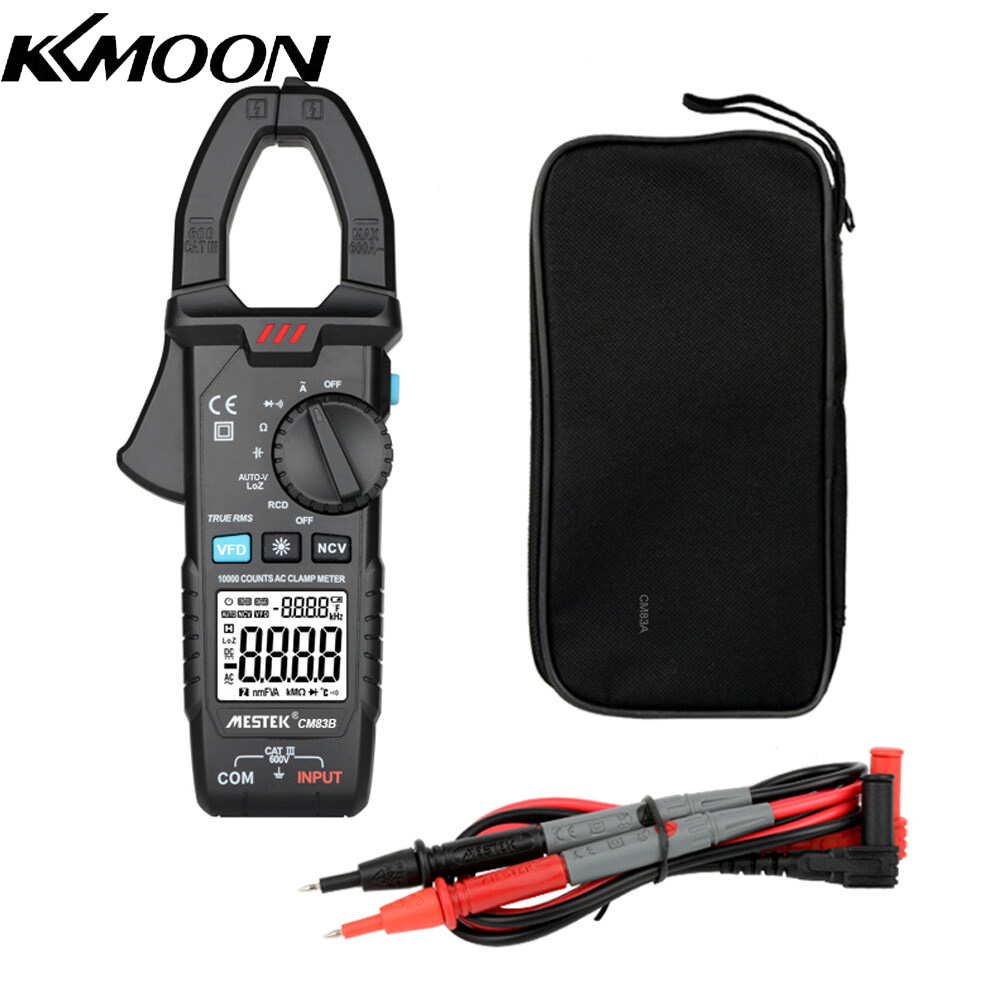

KKmoon Đồng Hồ Kẹp Kỹ Thuật Số Cảm Biến Thông Minh, Đèn Nền Giữ Dữ Liệu Đo Điện Dung Điện Áp AC/DC 600V Dòng Điện Xoay Chiều 600A Máy Kiểm Tra NCV Đồng Hồ Vạn Năng

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

Features:

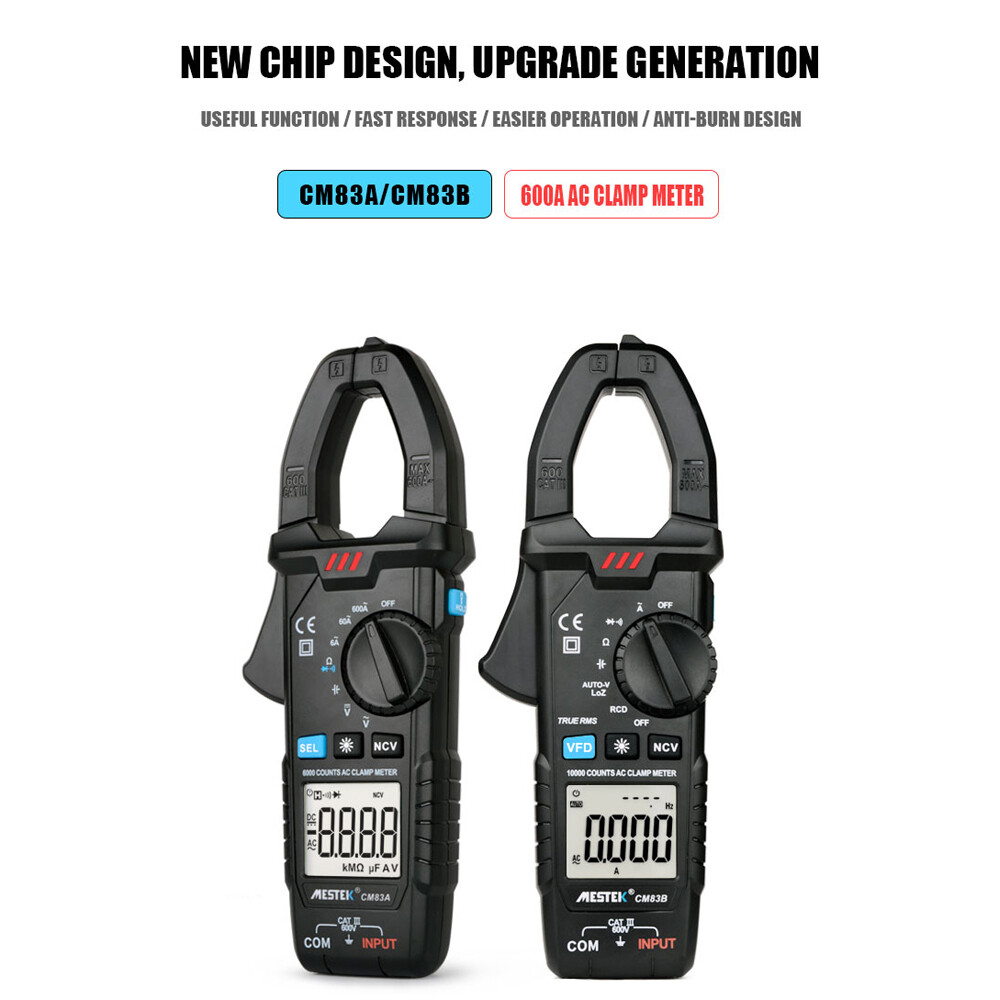

Useful function, fast response, simple operation, anti-burn design.

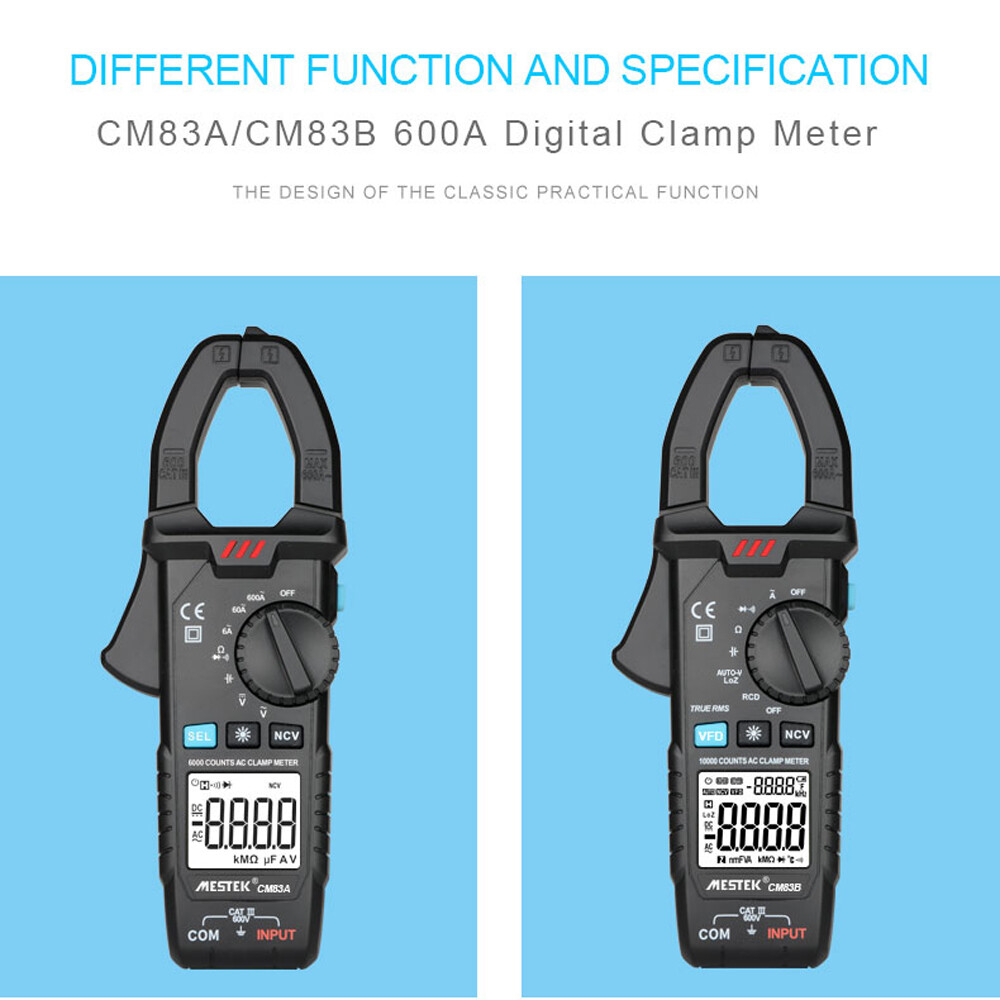

CM83 series digital clamp meter meets different levels of measurement.

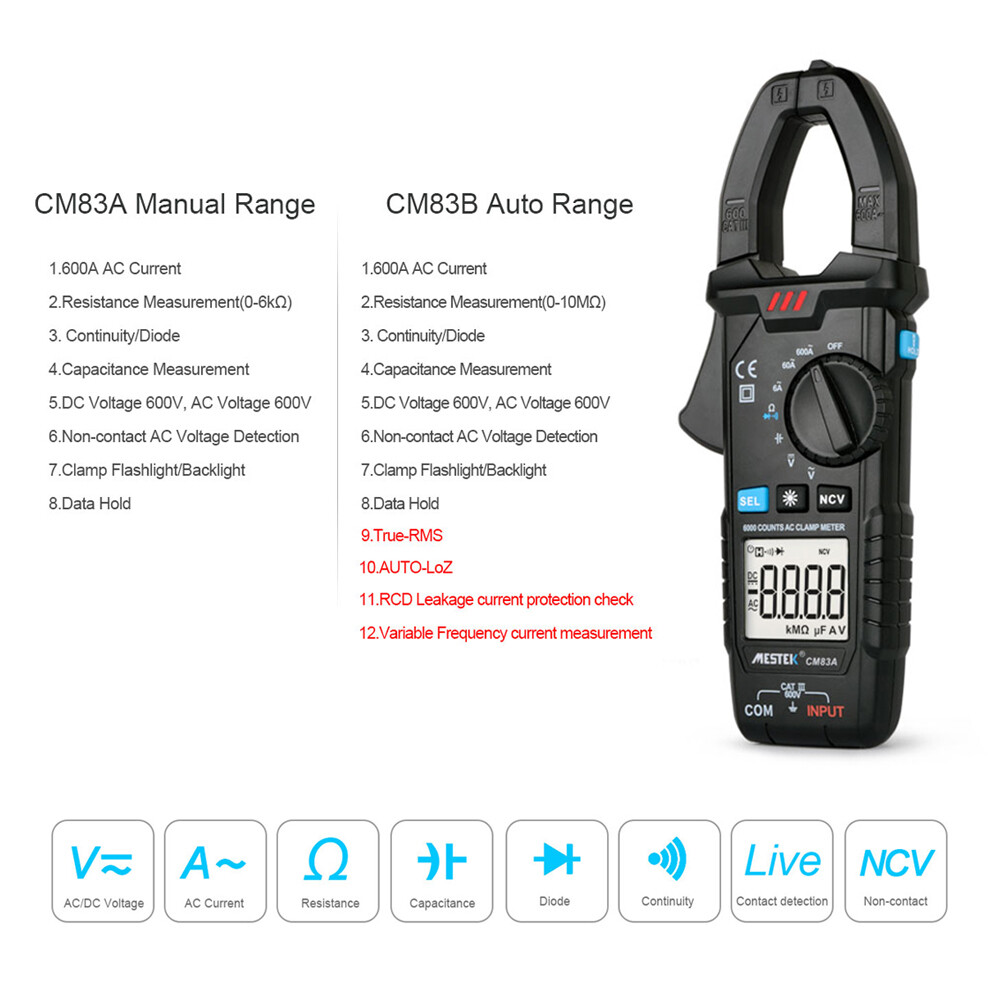

CM83A function: manual range, 600A AC current, resistance measurement (0-6KΩ), continuity/diode, capacitance measurement, DC voltage 600V, AC voltage 600V, NCV non-contact AC voltage detection, clamp flashlight/backlight, data hold.

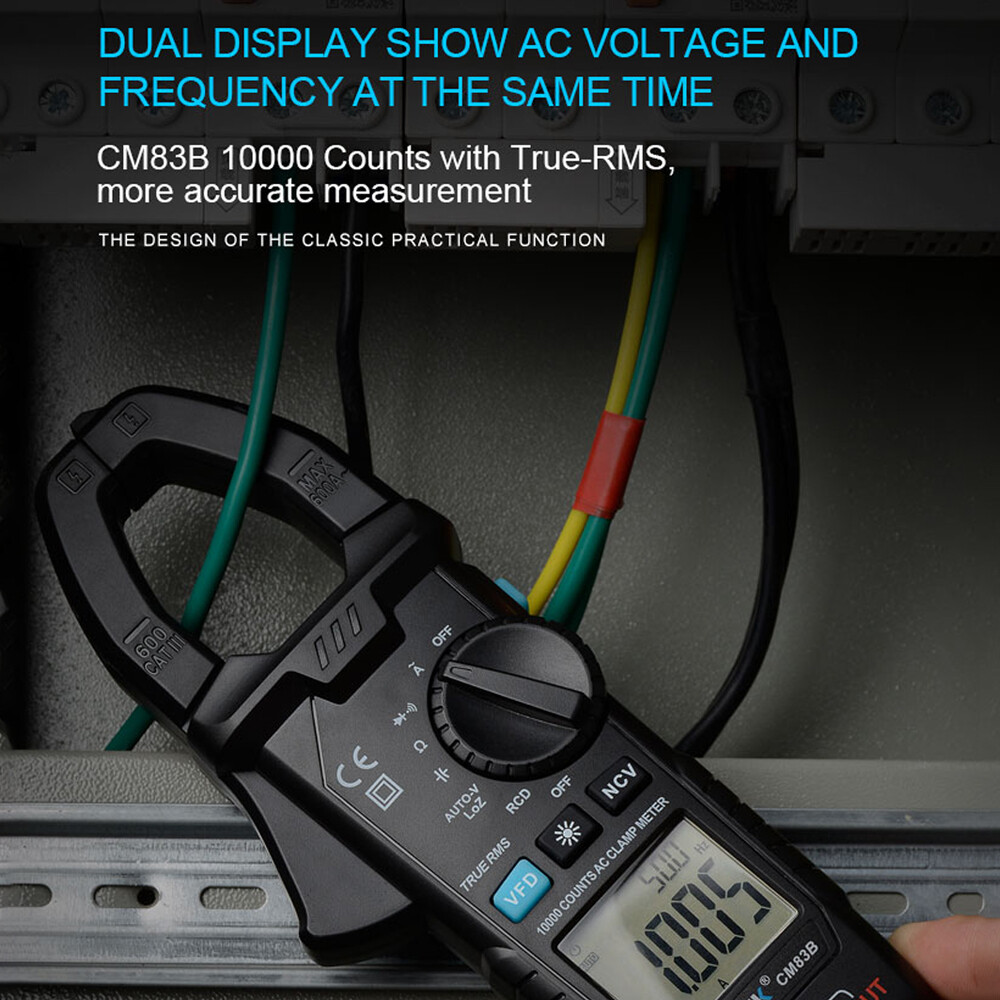

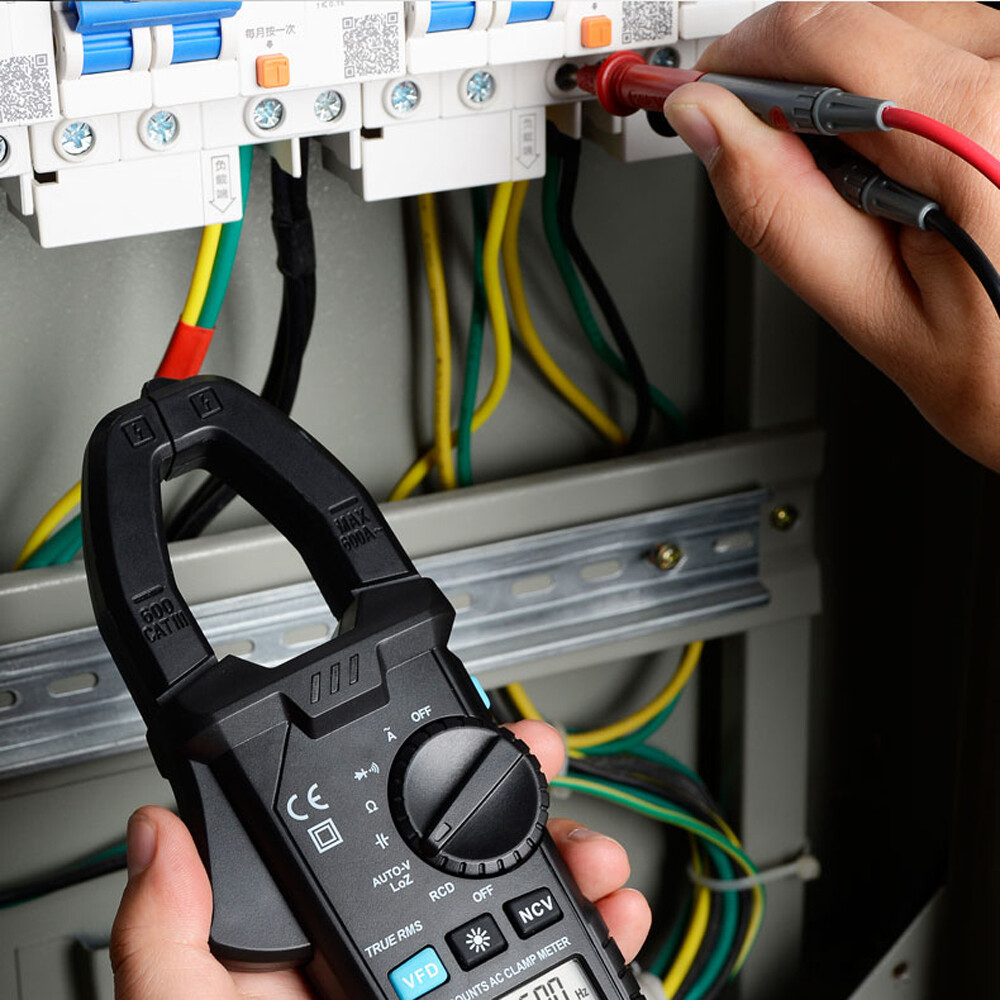

CM83B function: auto range, 600A AC current, resistance measurement (0-10MΩ), continuity/diode, capacitance measurement, DC voltage 600V, AC voltage 600V, NCV non-contact AC voltage detection, clamp flashlight/backlight, data hold, True-RMS, AUTO-LoZ, RCD leakage current protection check, variable frequency current measurement.
Can be used in a variety of test environments: electromechanical maintenance, air conditioning repairing, electrical maintenance, education and training.

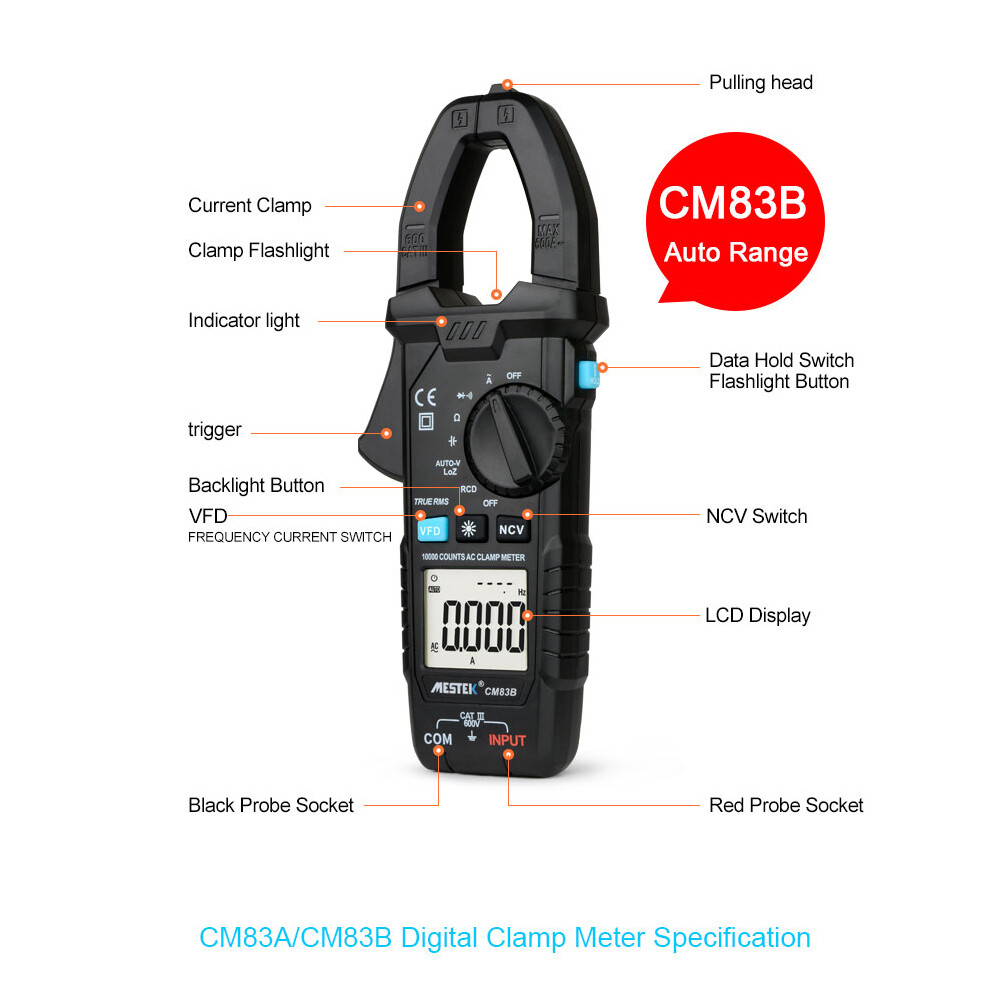

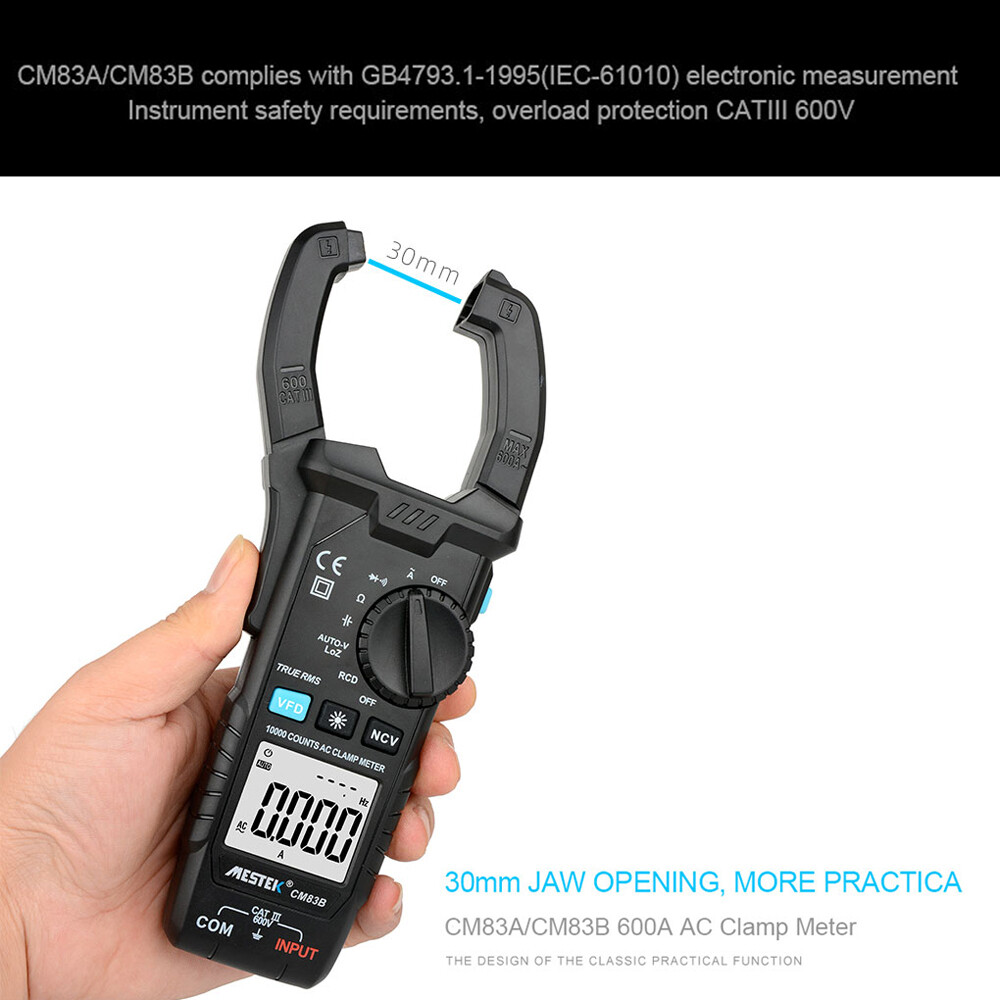

30mm jaw opening, more practical.

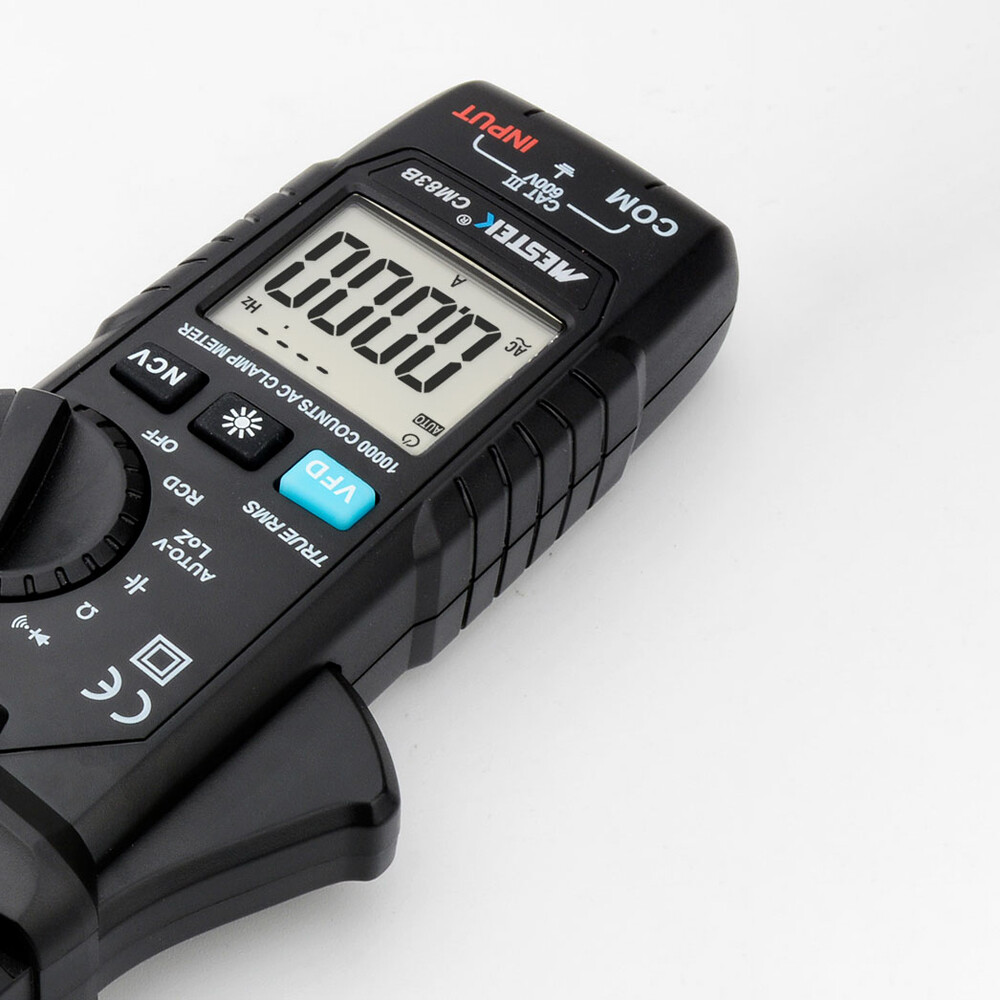

LCD large screen, high-definition digital display, fine quality backlight board with high contrast and full screen backlight design.

Specifications:
Material: ABS
Color: black

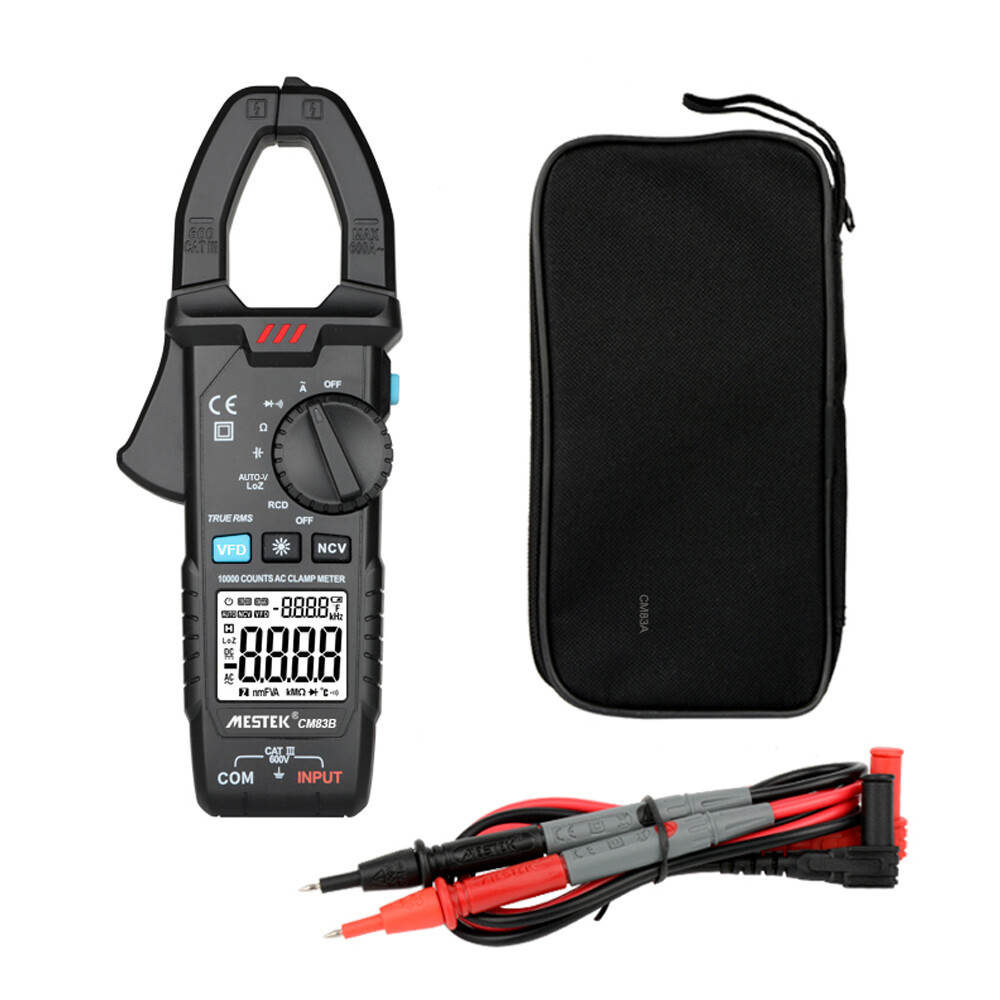

Model: CM83A, CM83B (optional)

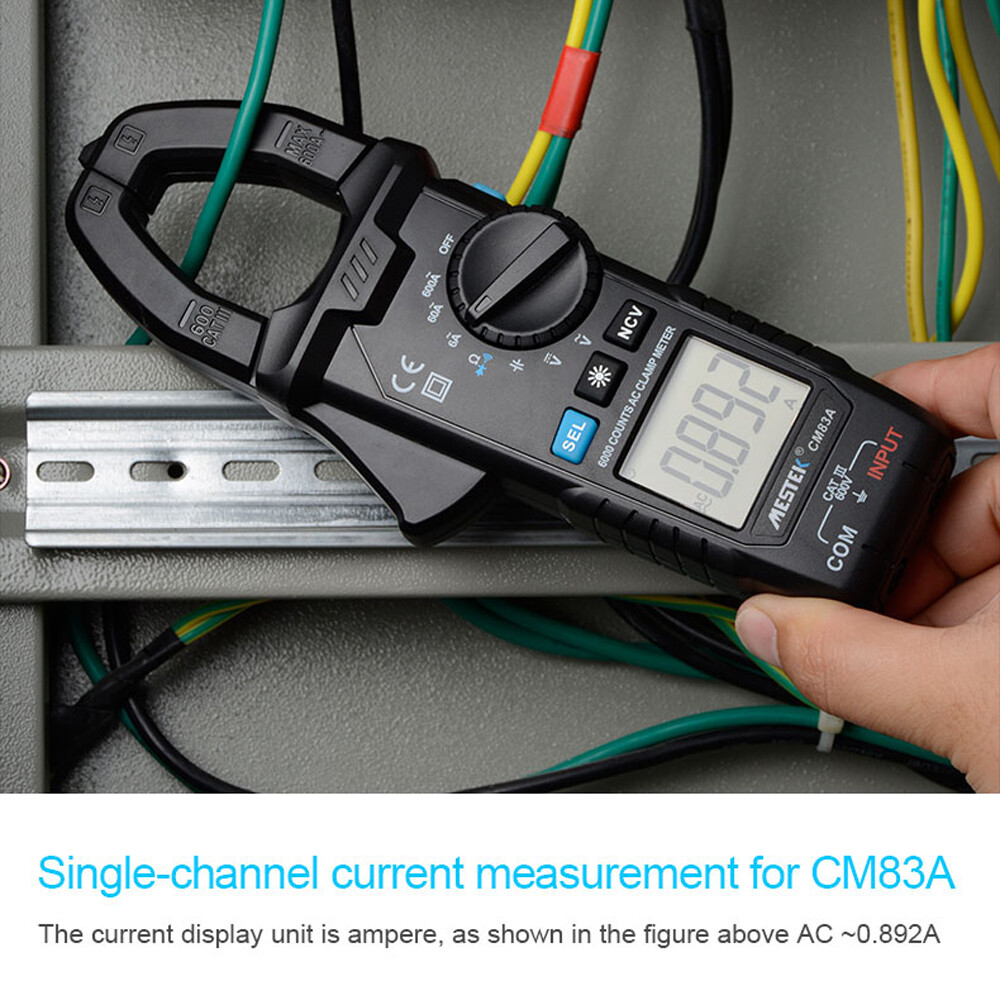

AC current (A):
CM83A: 0~6A/60A/600A
CM83B: 0~1A/10A/100A/600A
Accuracy range: ±3.0%+6digits
AC voltage (V):
CM83A: 0~100V/600V
CM83B: 0~100V/600V
Accuracy range: ±1.0%+3digits
DC voltage (V):
CM83A: 0~100V/600V
CM83B: 0~100V/600V
Accuracy range: ±0.8%+3digits

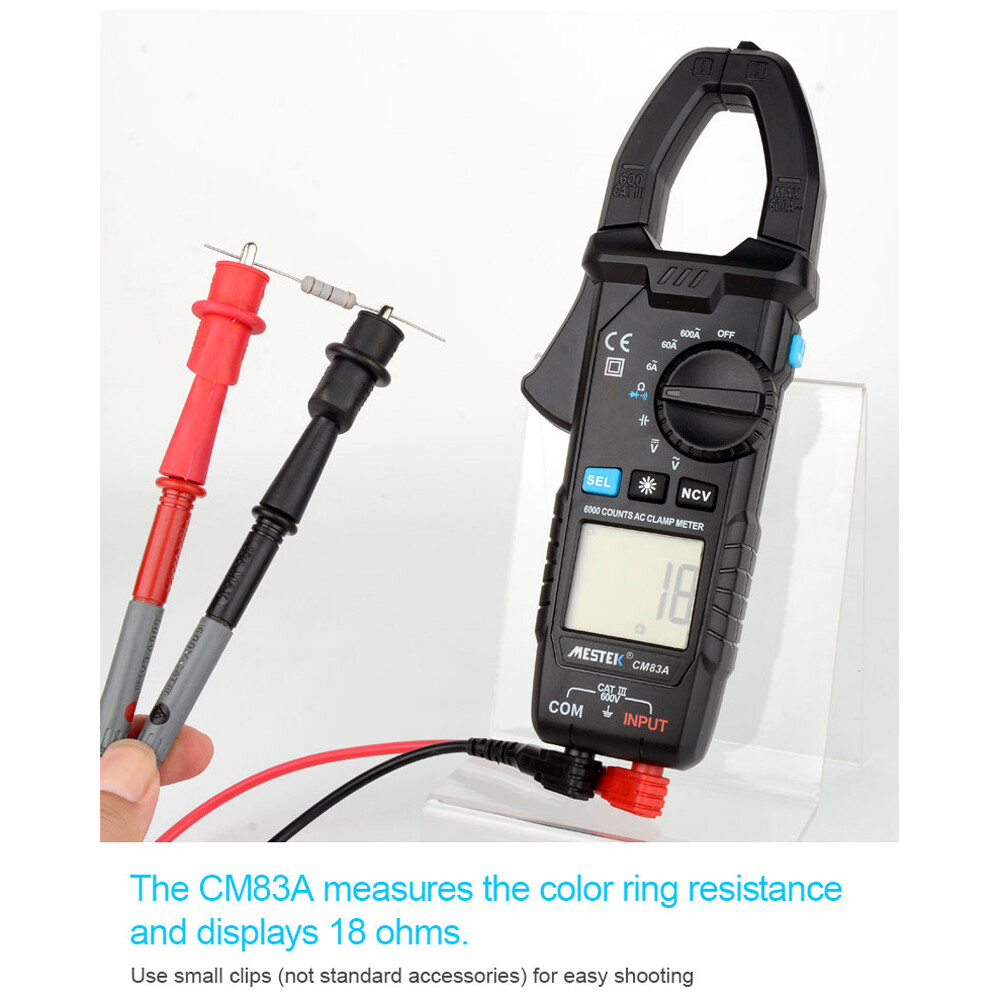

Resistance (Ω):
CM83A: 0~6000Ω
CM83B: 0~1KΩ/10KΩ/100KΩ/10MΩ
Accuracy range: ±1.2%+3digits
Capacitance:
CM83A: 0~600μF/6000μF
CM83B: 0~600μF/6000μF
Accuracy range: ±4.0%+5digits
Display counts:
CM83A: 6000 counts
CM83B: 10000 counts
Manual/auto range:
CM83A: manual range
CM83B: auto range

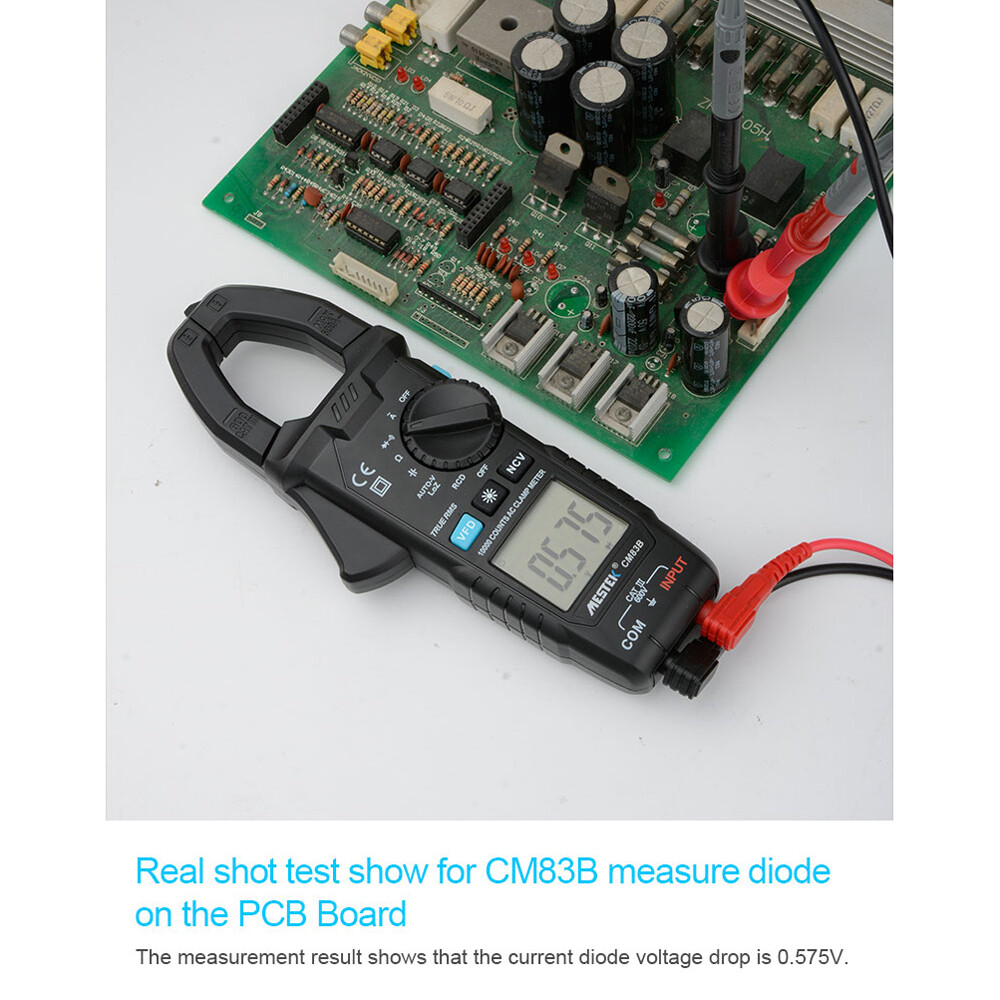

Continuity/diode:
CM83A: auto distinguish
CM83B: auto distinguish
NCV (non-contact):
CM83A: yes
CM83B: yes
Clamp flashlight:
CM83A: yes
CM83B: yes
Backlight:
CM83A: yes
CM83B: yes
Auto power off:
CM83A: yes
CM83B: yes
Data hold:
CM83A: yes
CM83B: yes
True-RMS:
CM83A: no
CM83B: yes
RCD test:
CM83A: no
CM83B: leakage current switch protection test
AUTO-VLoz:
CM83A: no
CM83B: low impedance voltage measurement
VFD:
CM83A: no
CM83B: variable frequency current test
Frequency:
CM83A: no
CM83B: test frequency with AC current range
Working environment: 0~40°C (32~104°F); <80%RH
Storage temperature: -10~50°C (14~122°F); <70%RH
Battery: 2 * AAA battery (not included)
Item weight: 380g / 13.4ounce
Package size: 200 * 75 * 35mm / 7.9 * 3.0 * 1.4in
Package weight: 440g / 1.0lb
