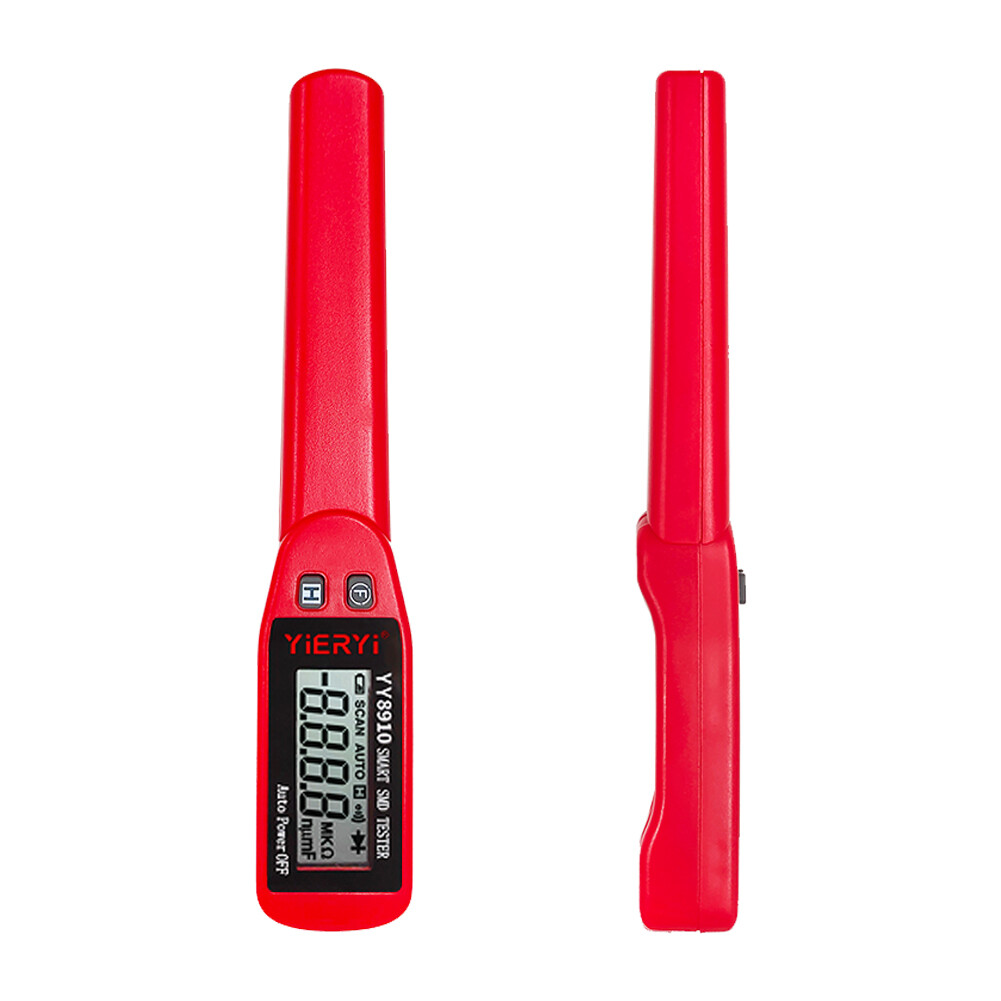

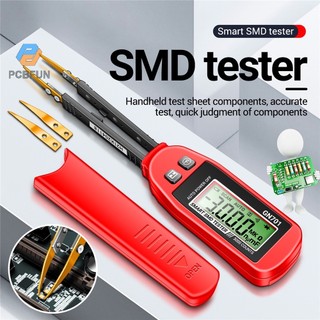

Yieryi Smart SMD Tester Electrical Multimeter Resistance Capacitance Continuity Diode Test Meter SMD Component Tester
Features:

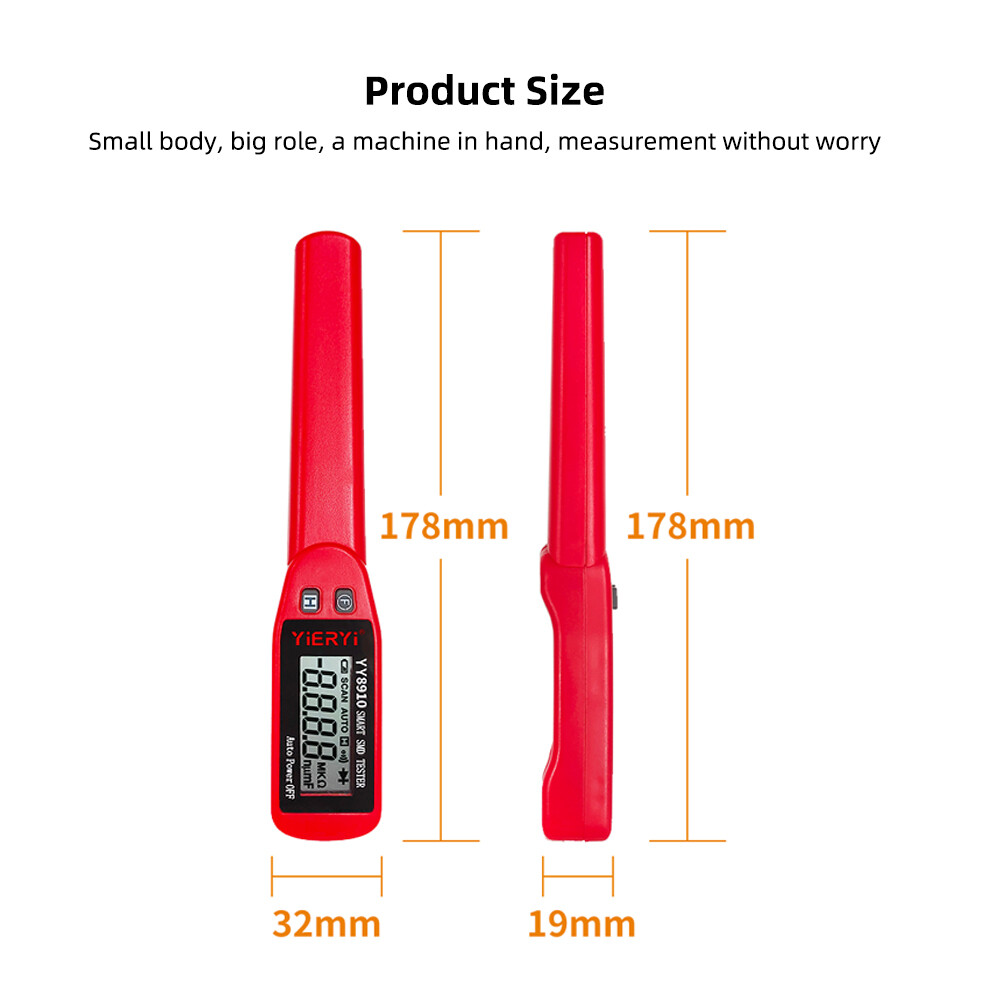

- Small size and light weight, handheld and portable test tool
- Used to measure SMD, such as Chip resistor, Chip capacitor and Chip diode devices
- Auto scanning, it identifies resistor, capacitor and diode automatically

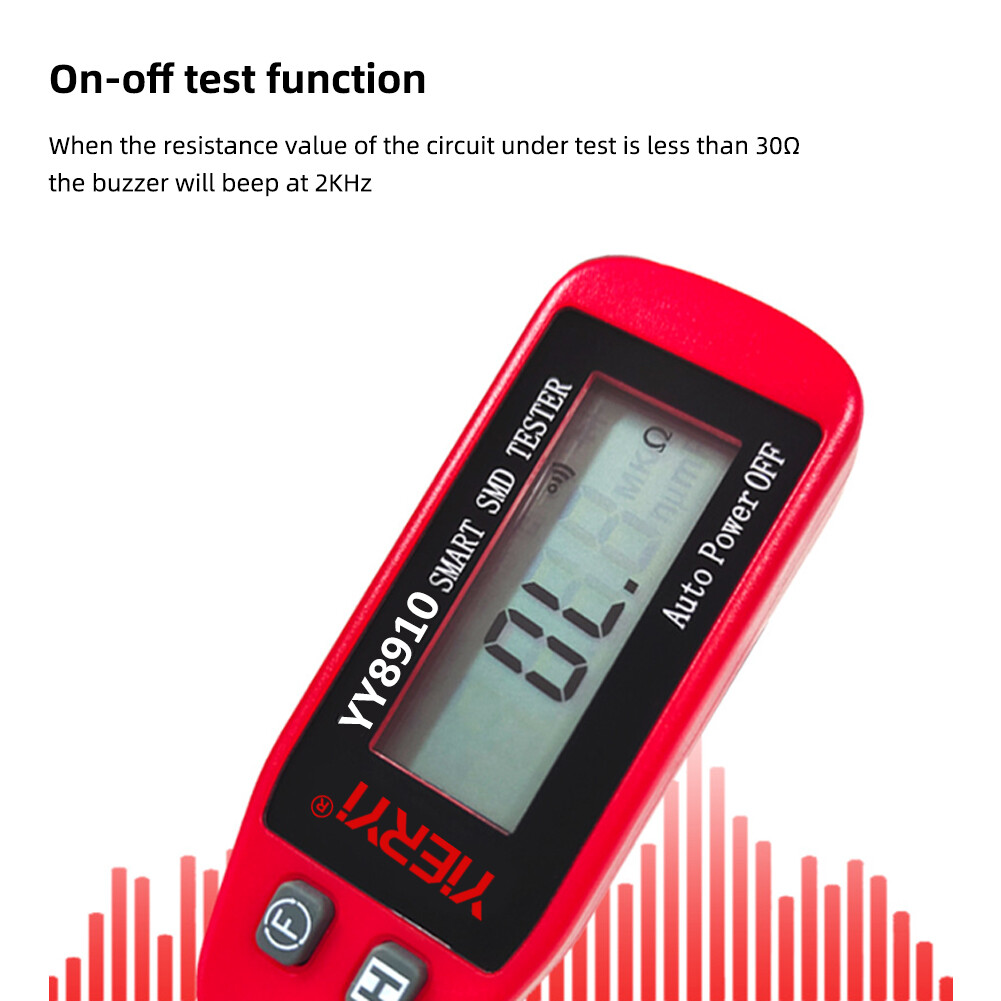

- Continuity testing. When the resistance is less than 30Ω, it will sound

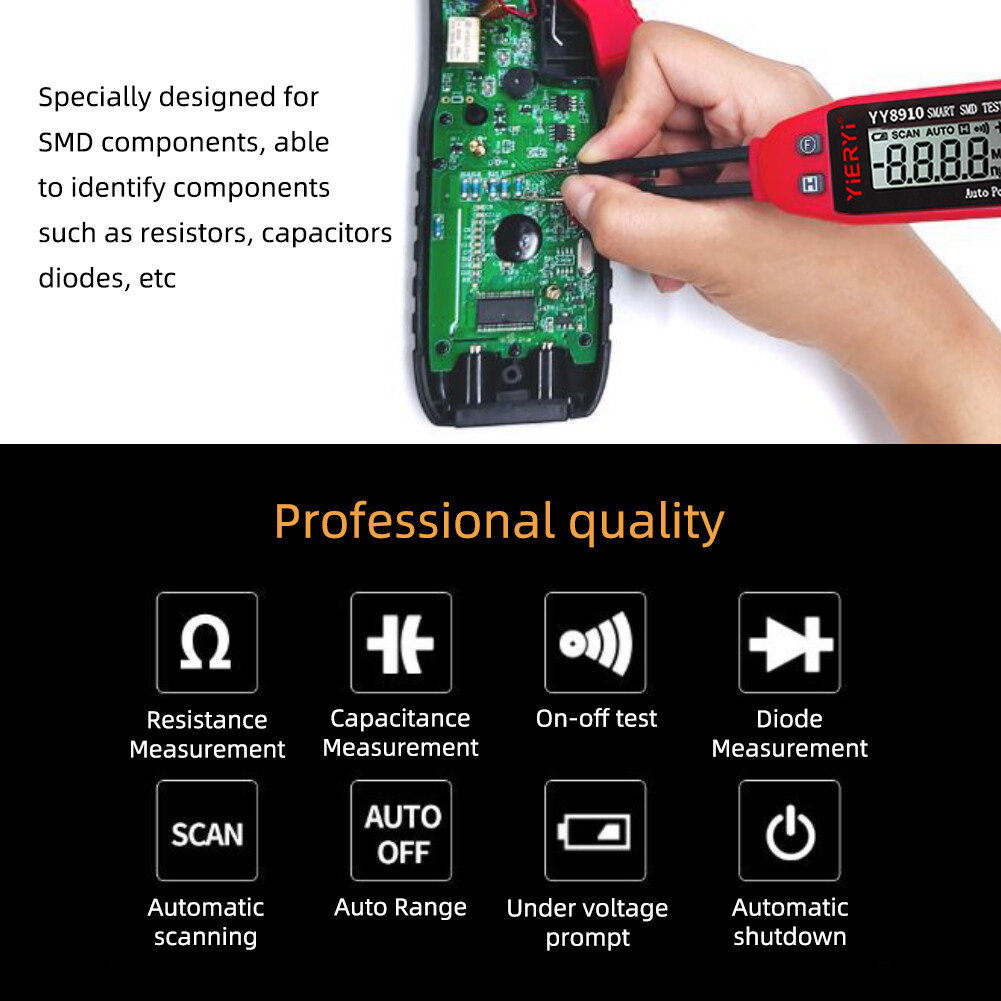

- Specially designed for SMD components, ableto identify componentssuch as resistors, capacitorsdiodes, etc

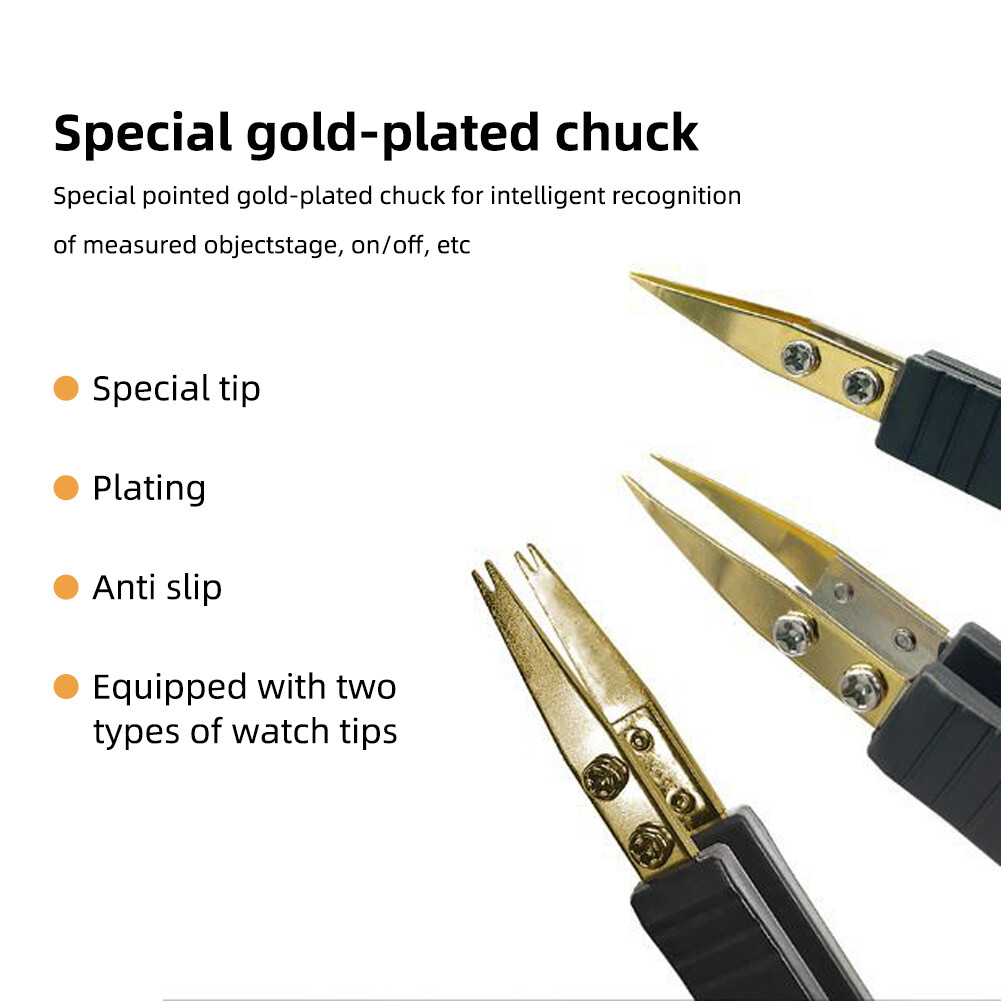

- Special gold-plated chuckSpecial pointed gold-plated chuck for intelligent recognitionof measured objectstage , on/off, etc
- Special tip
- Plating
- Anti slip
- Equipped with twotypes of watch tips

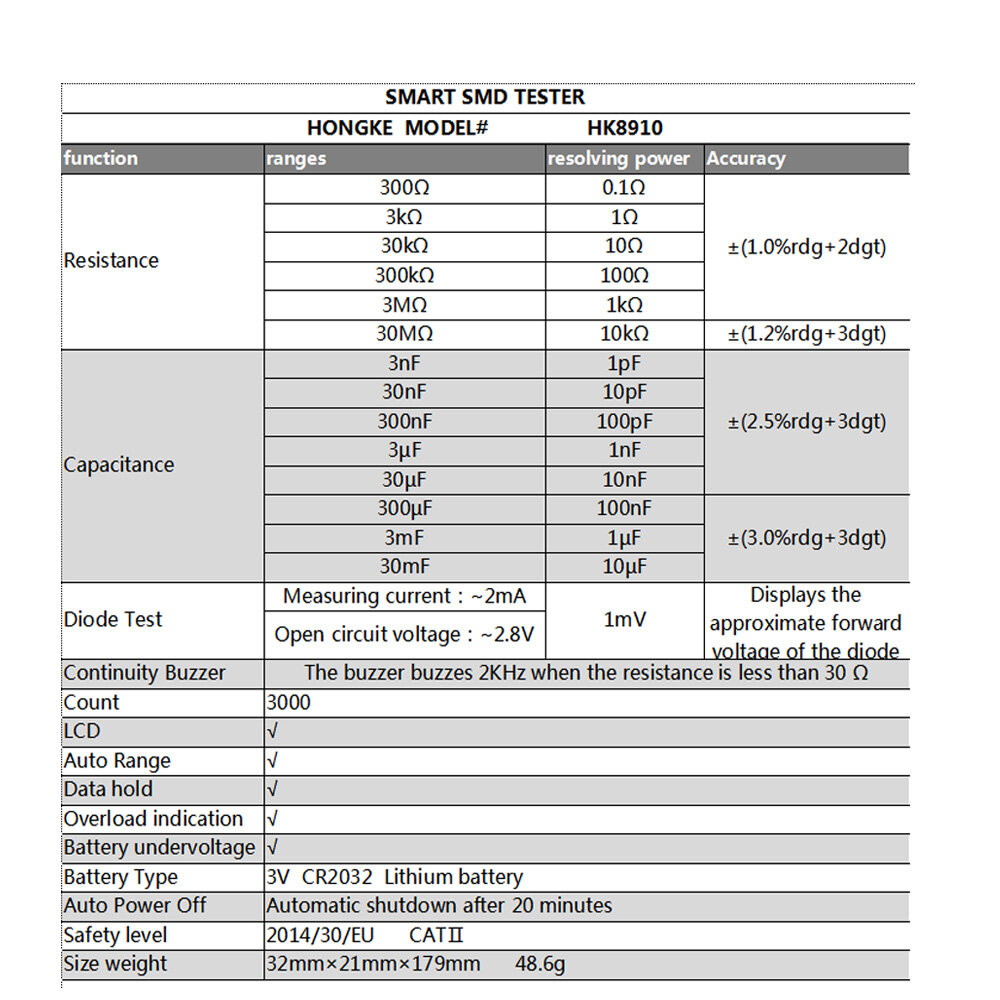

Specifications:

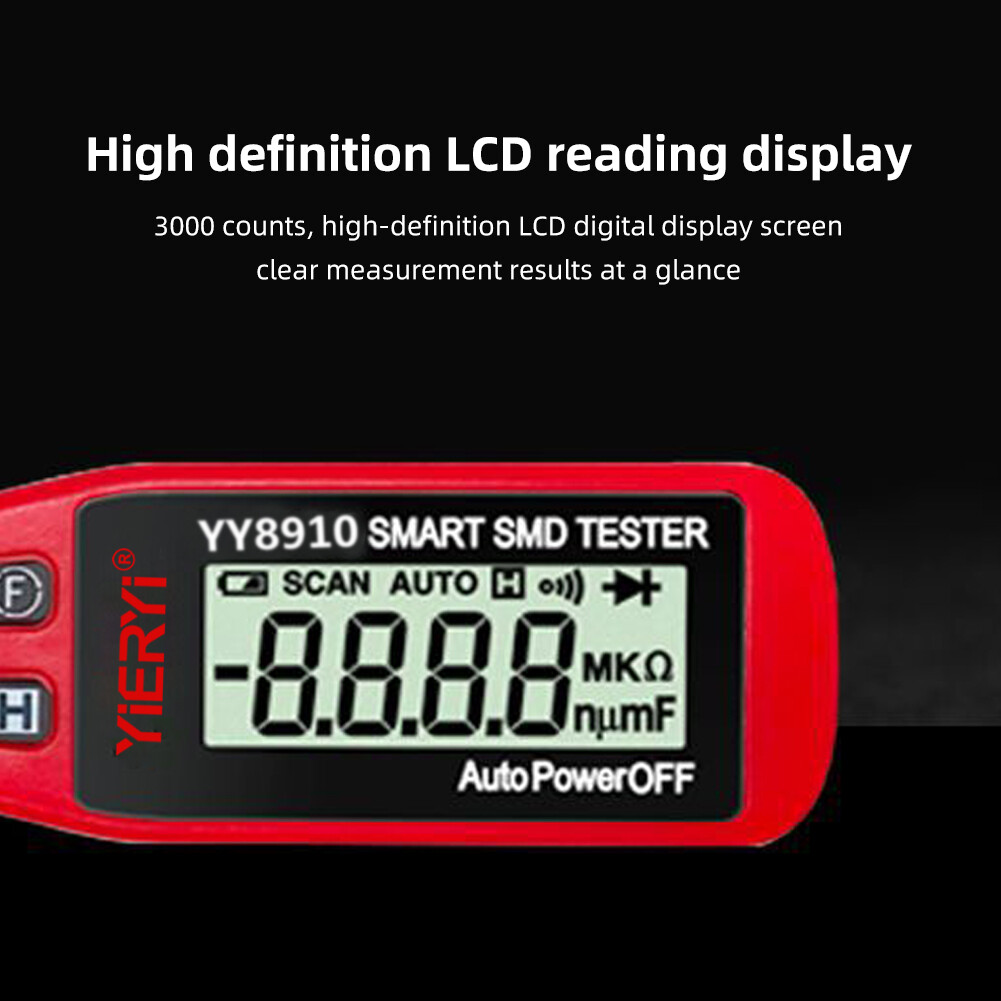

Display: 3000 count LCD display
Power supplied by: 1 * 3V CR2032 battery
Resistance measurement:
Auto scanning range: 300.0Ω to 3.000MΩ
Manual measuring range: 300.0Ω to 30.00MΩ
Capacitance measurement:
Auto scanning range: 3.000nF to 300.0μF
Manual measuring range: 3.000nF to 30.00mF
Package contents:
1 * SMD tester
2 * Backup test pins
1 * User manual
