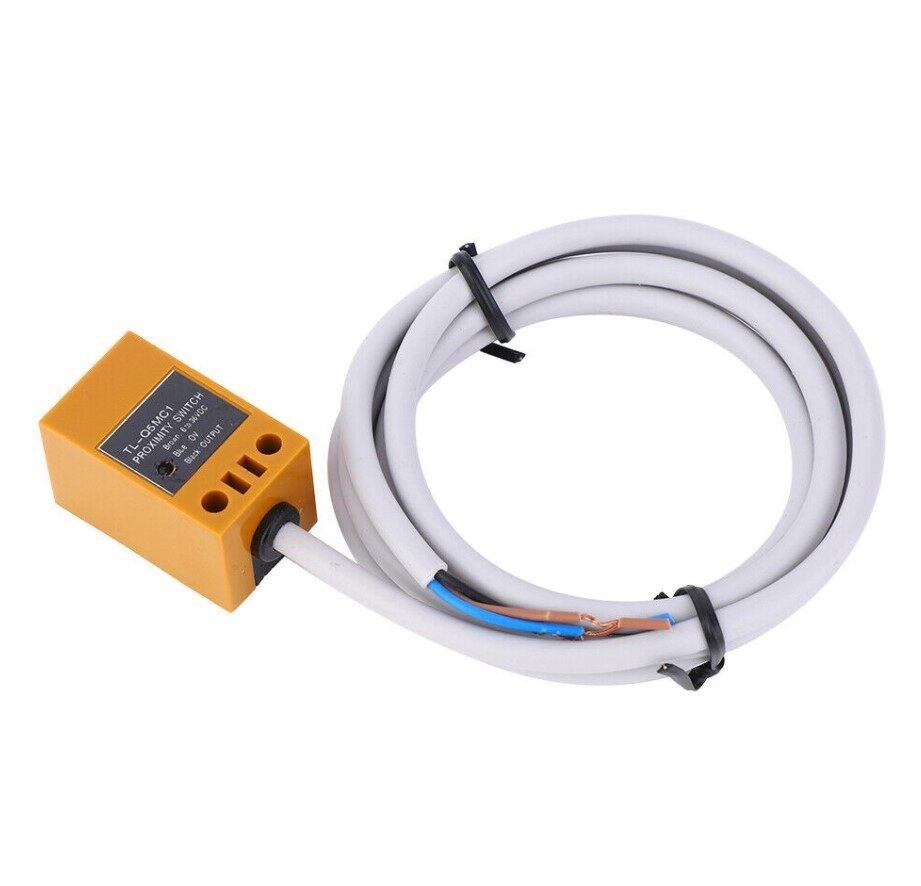

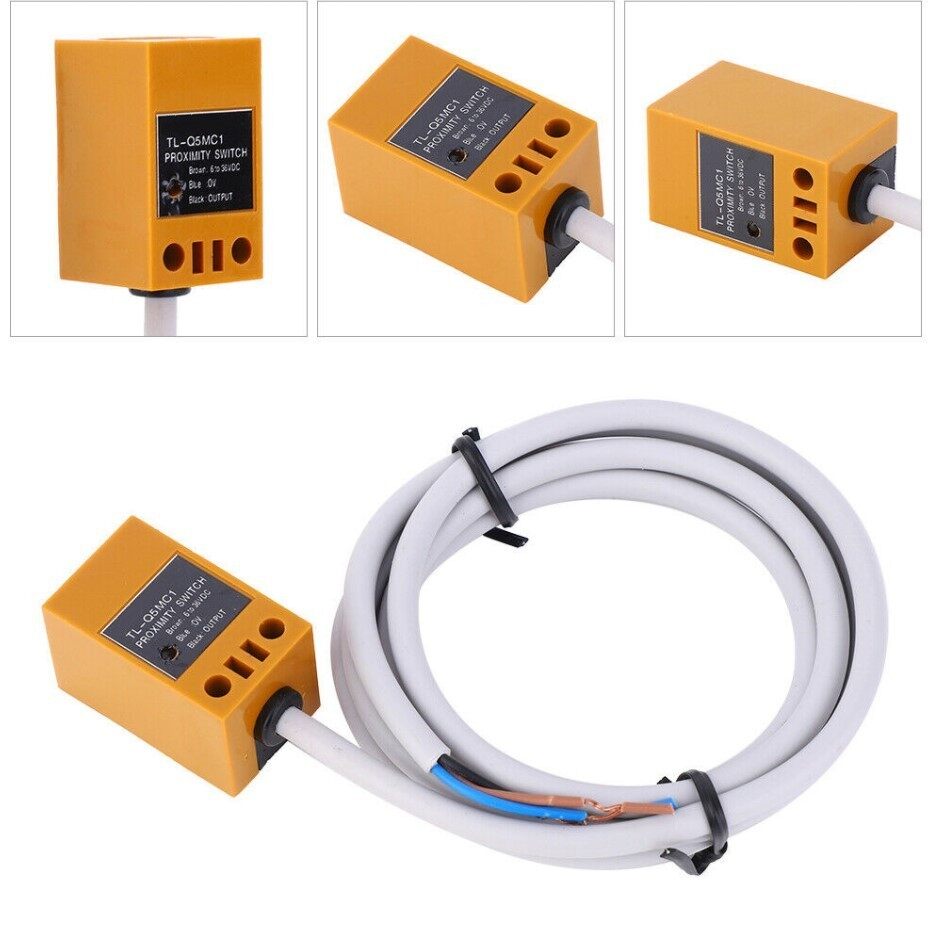

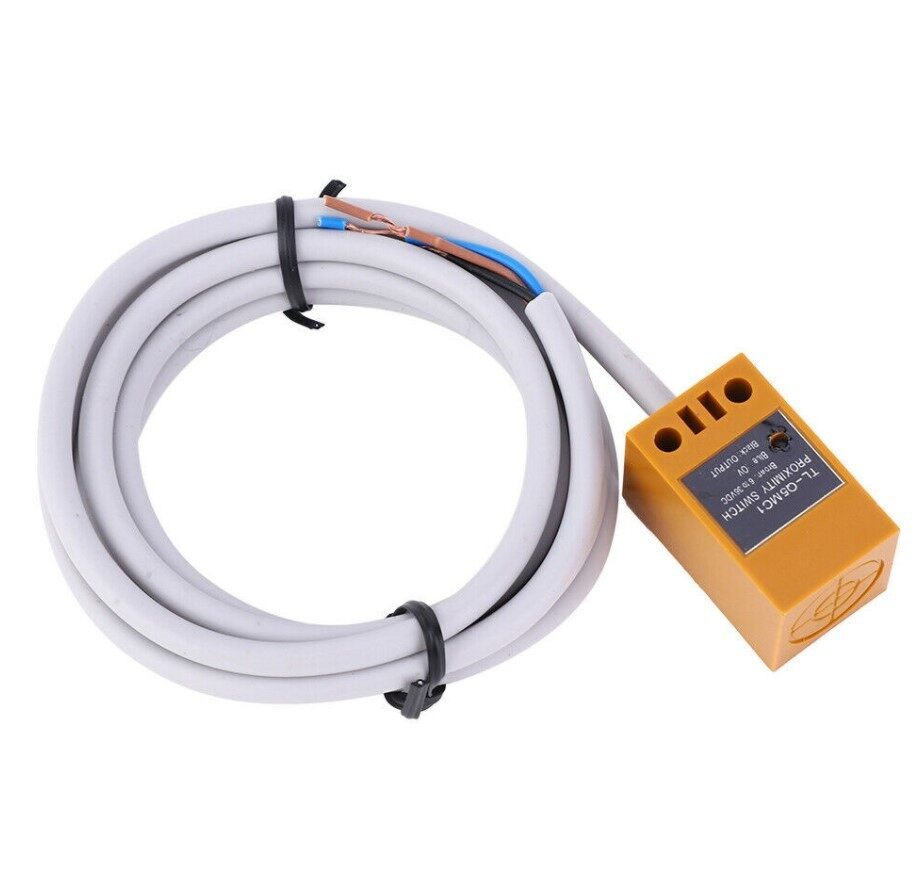

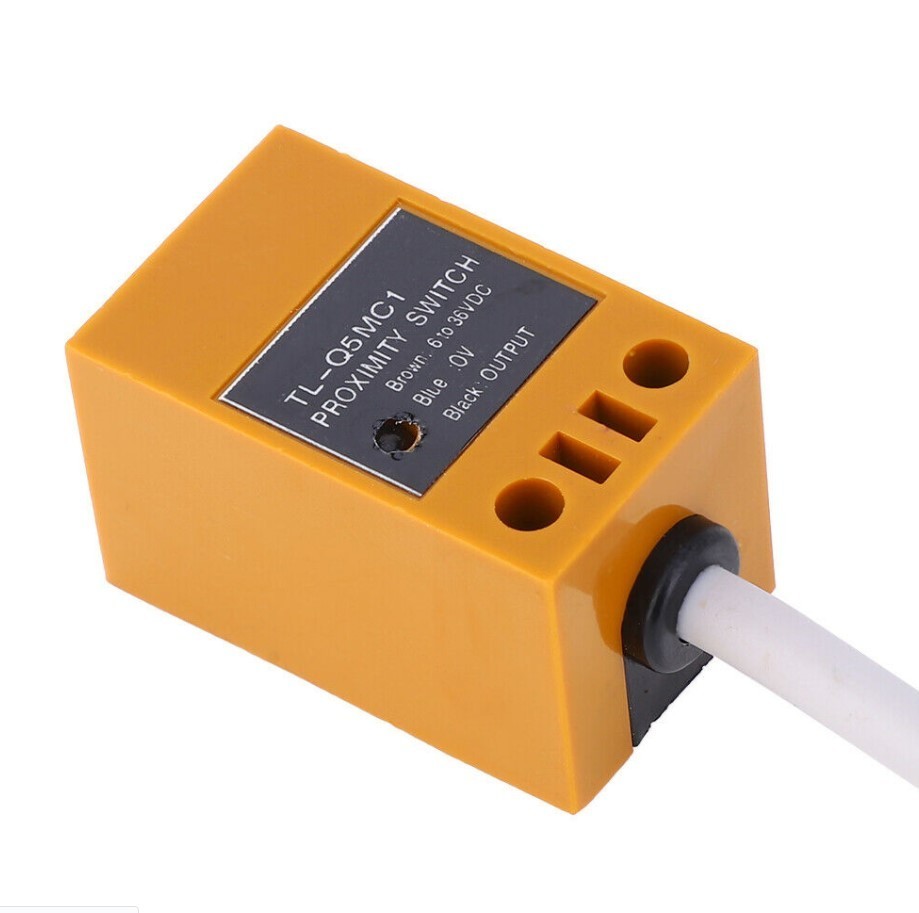

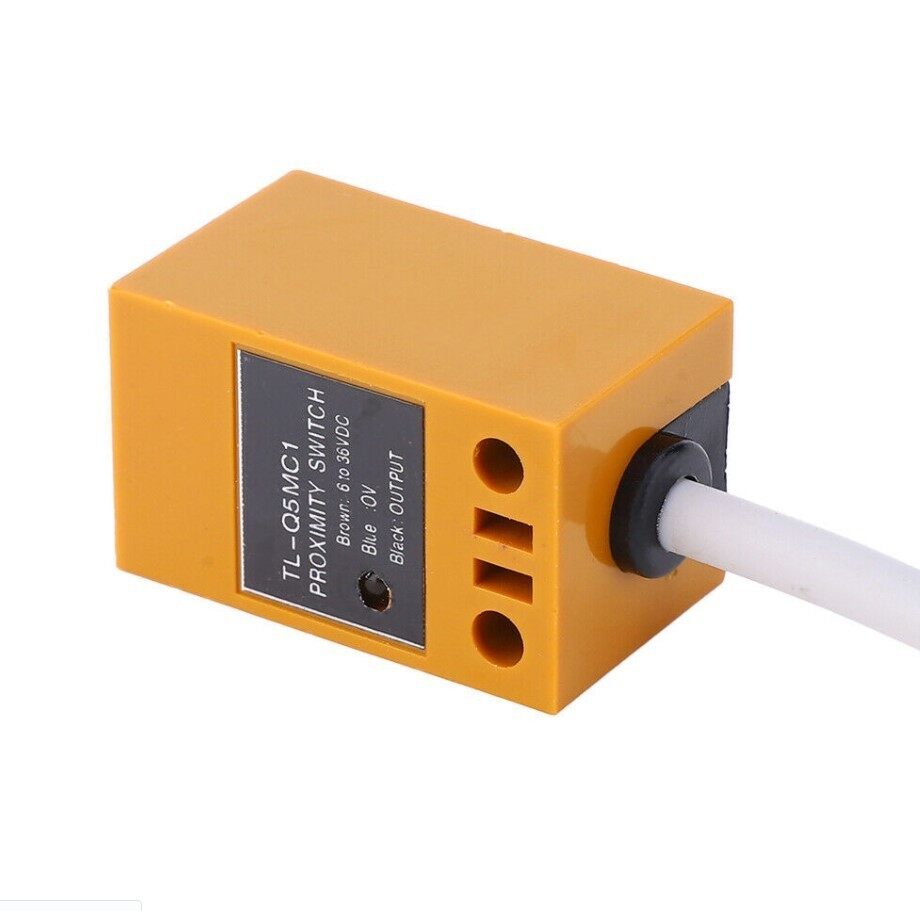

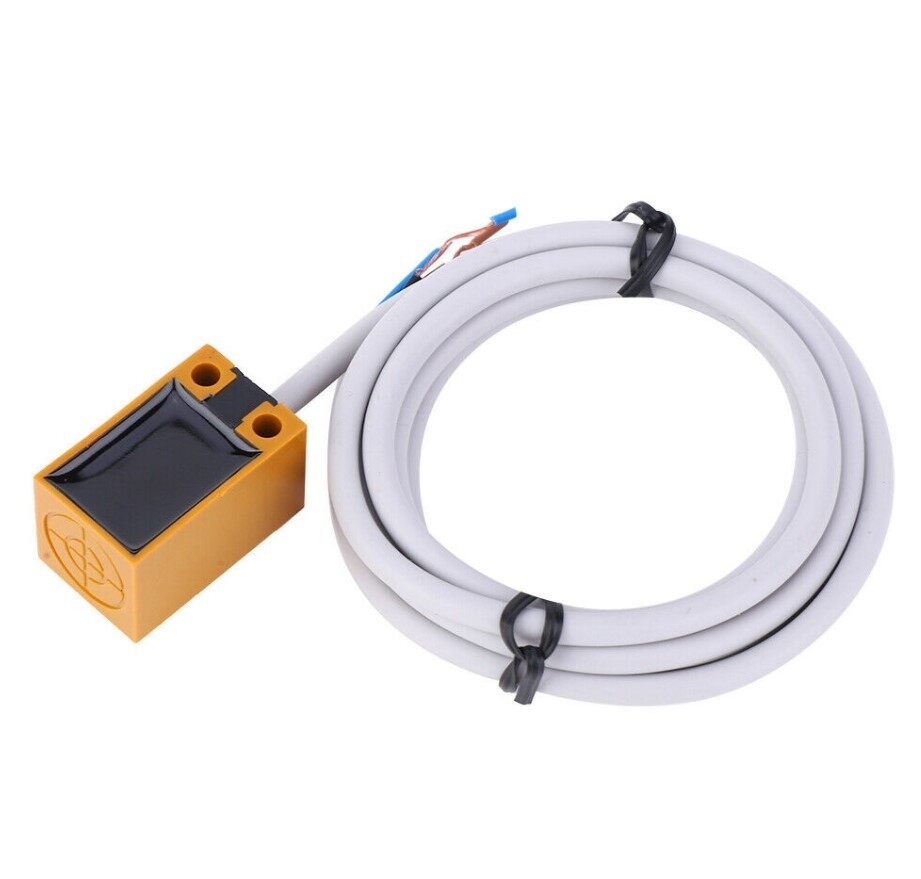

Sensor Inductive Proximity Switch NPN 3-Wire Normally Open NPN.NO TL-Q5MC1

Product description:

1. The proximity switch can be used for limit, counting, positioning control and automatic protection in the automatic control .

2. As far as the function of the proximity switch (also called non-contact travel switch) is concerned, when the sensing of the object approaches the switch to reach the operating distance, the switch can be actuated without mechanical contact and any pressure applied, thereby driving the DC electrical Equipment or computer (plc) equipment to provide control instructions.

3. In addition, this inductive sensor is widely used in machine tool, metallurgy, , textile and printing industries.

4. The support insulation resistance is greater than 50M, and the shell material and detection material are both ABS.

5. PNP sensors are to use in real and are manufactured in accordance with strict quality control standards.

Specification

Type: Inductive proximity switch

Model: TL-Q5MC1

Detection distance: about 5 mm

Detection object: iron/magnetic metal (detection distance decreases when detecting non-magnetic metal)

Power supply voltage: DC6-36V

Output mode: NPN three-wire normally open (NPN.NO)

Maximum output current: maximum 100mA

Cable length: about 1.05m / 3.44 feet

Wire color: light white

Temperature range: -25 to + 60C

Insulation resistance: above 50M

Shell material: ABS

Detection material: ABS

Package list:

1 *Inductive proximity switch

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
