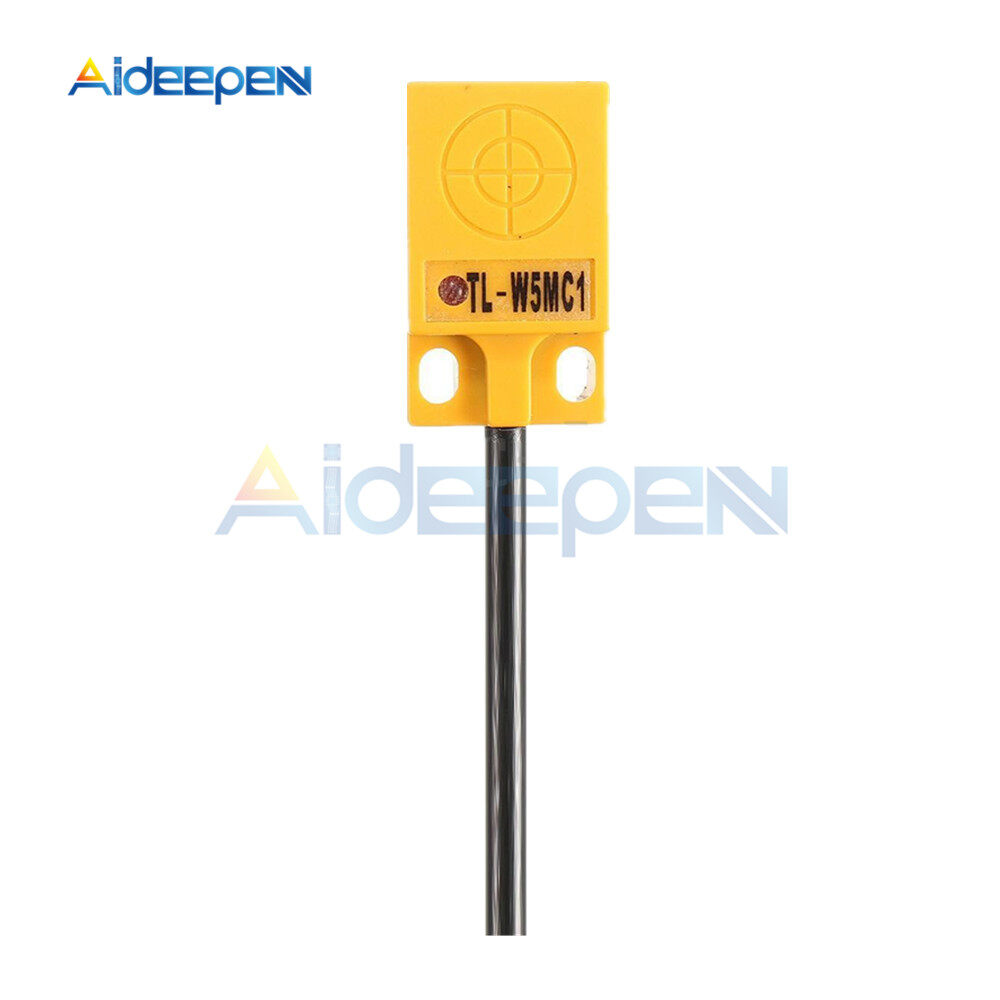

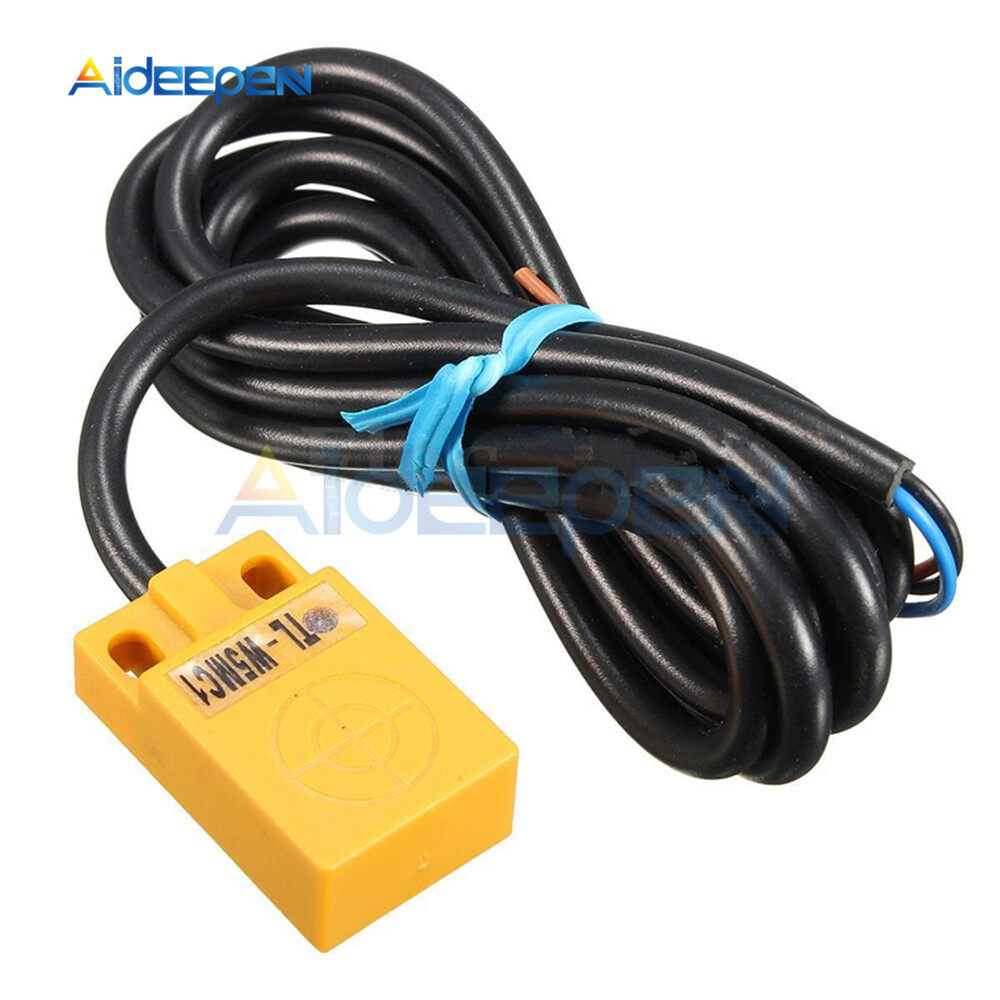

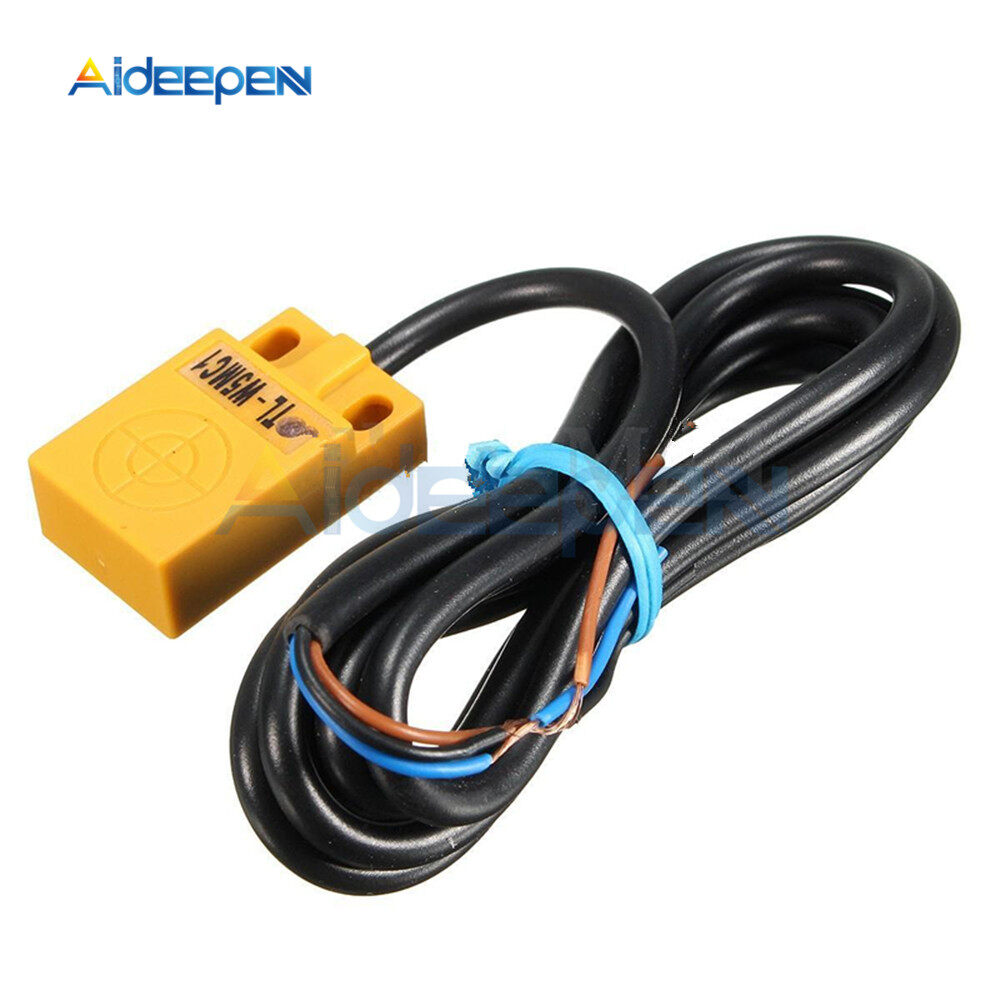

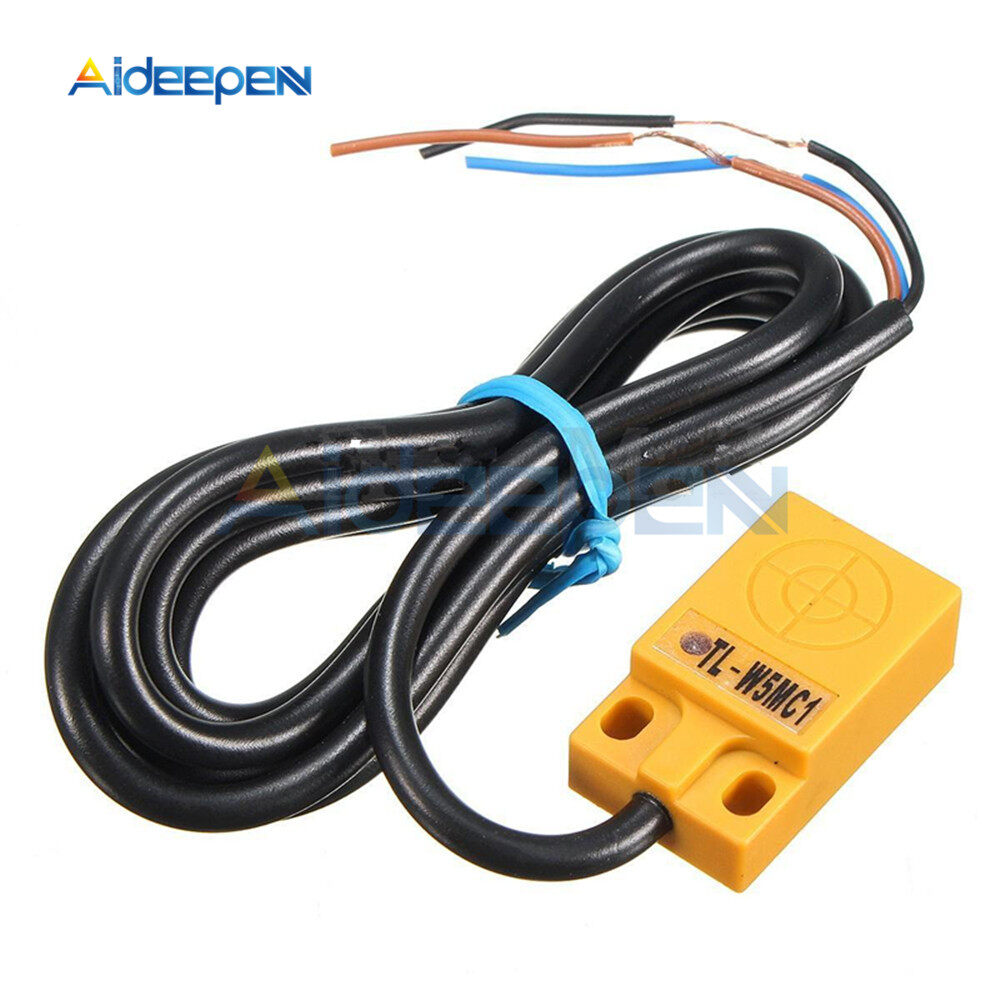

3-Wire 5Mm Inductive Proximity Sensor, 6-36V Dc Switch with Proximity Sensor

Description:

Overcurrent and short circuit protection,
With LED indicator, easily identifiable.
Widely used in the automatic control industry for non-contact detection, control and switching. When the proximity switch is close to some target object, it will send the control signal.
Proximity sensor switch is used for testing parts such as size and speed, it can also be used in frequency counters, frequency pulse generator, liquid level control and processing procedures for automatic convergence.

Specification:

Product name: proximity switch

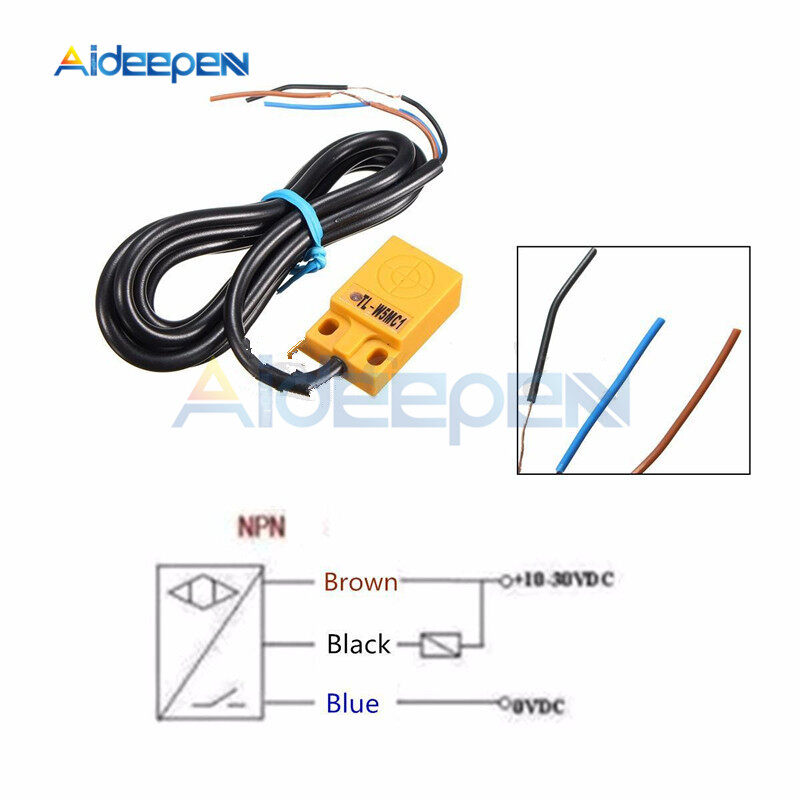

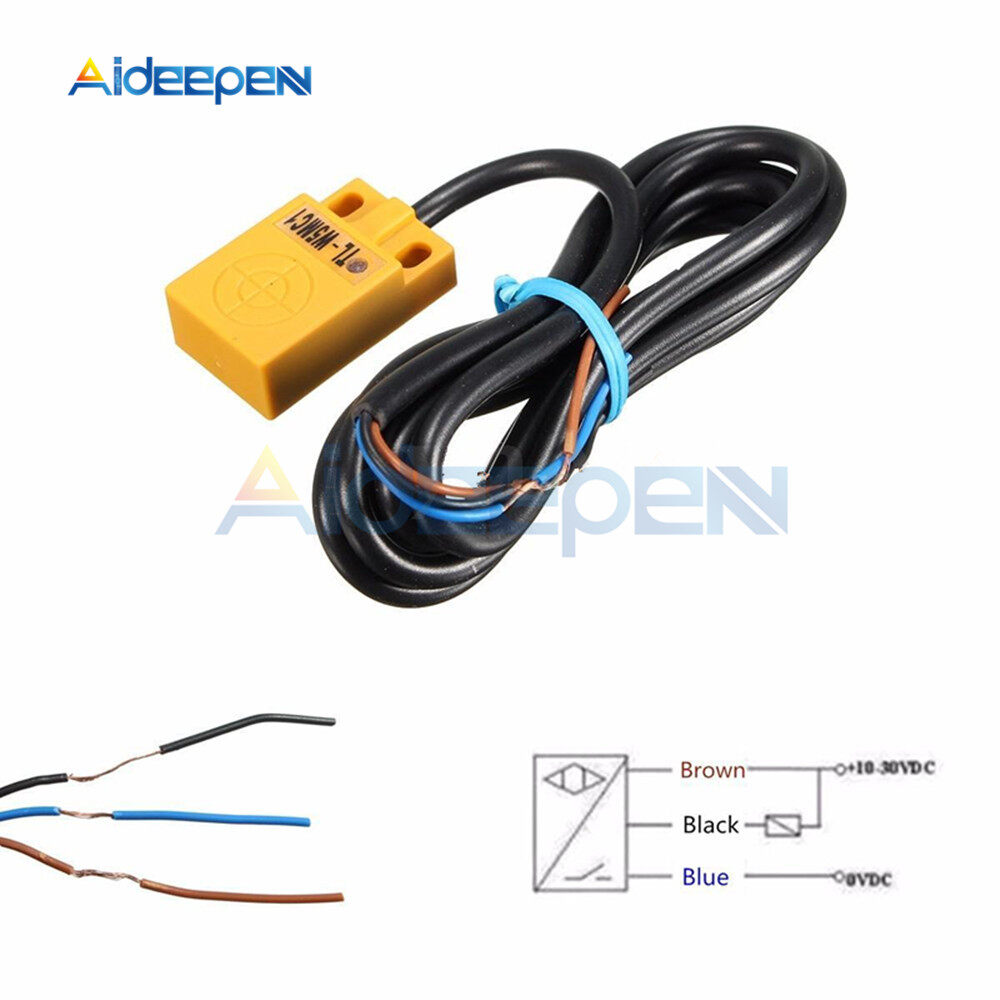

Type: dc 3 wire npn no
Theory: inductance sensor
Output: switching transducer
Sensing distance: 5mm ± 10%
Sensing object: metal Sensing
object: iron number
Rated voltage: dc 6-36v
Rated current: 200a
Sensing distance: 5mm

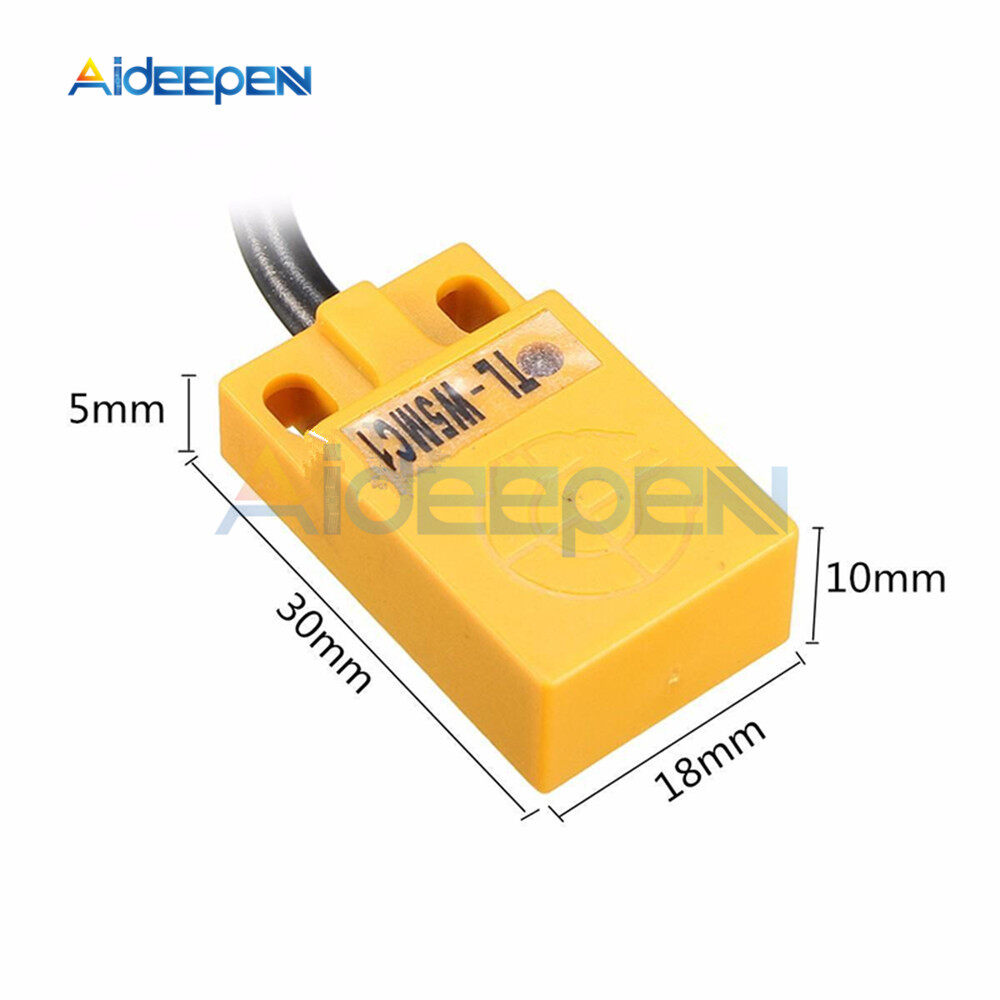

Size: 30x18x10mm/1.2" x 0.7" x 0.4"(c *l*t)

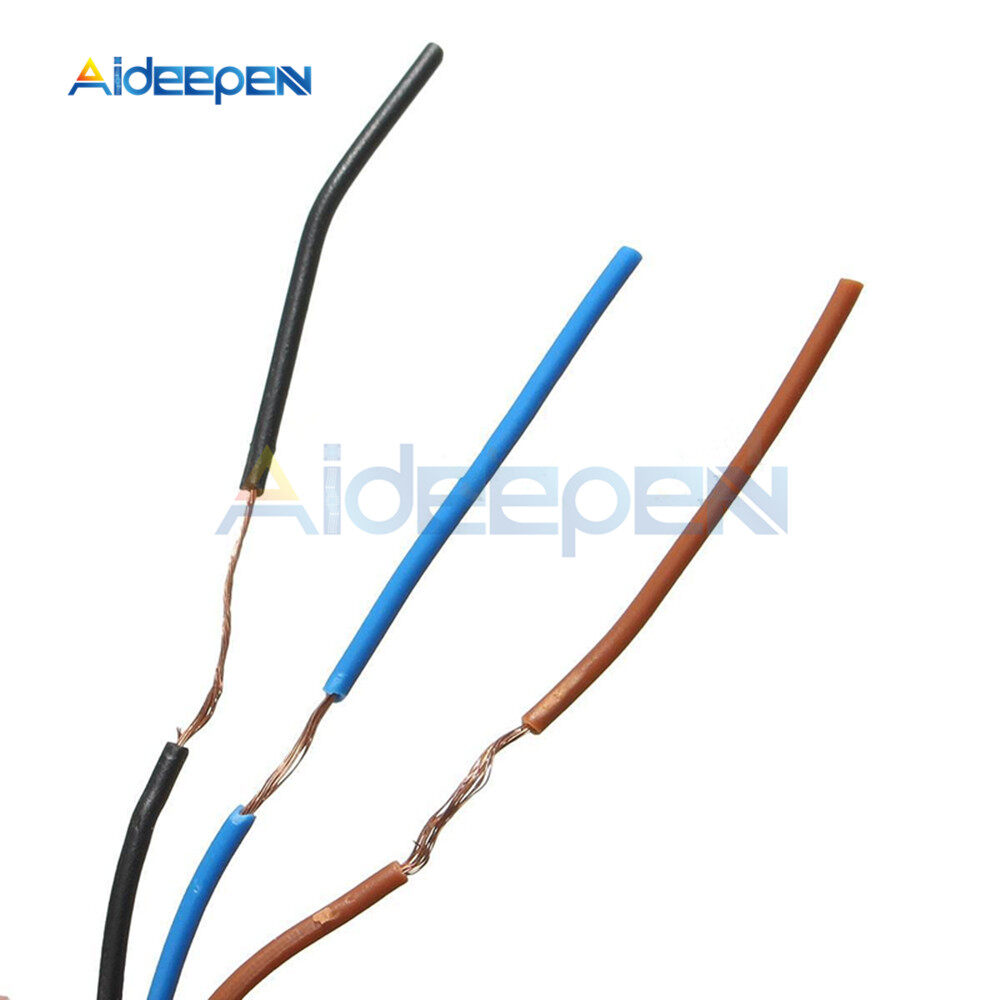

Cable length: 120cm/47"
Extensive material: ABS resin

Package included:

1 x mm 3 wire inductive proximity sensor switch dc 6-36v proximity sensor switch
