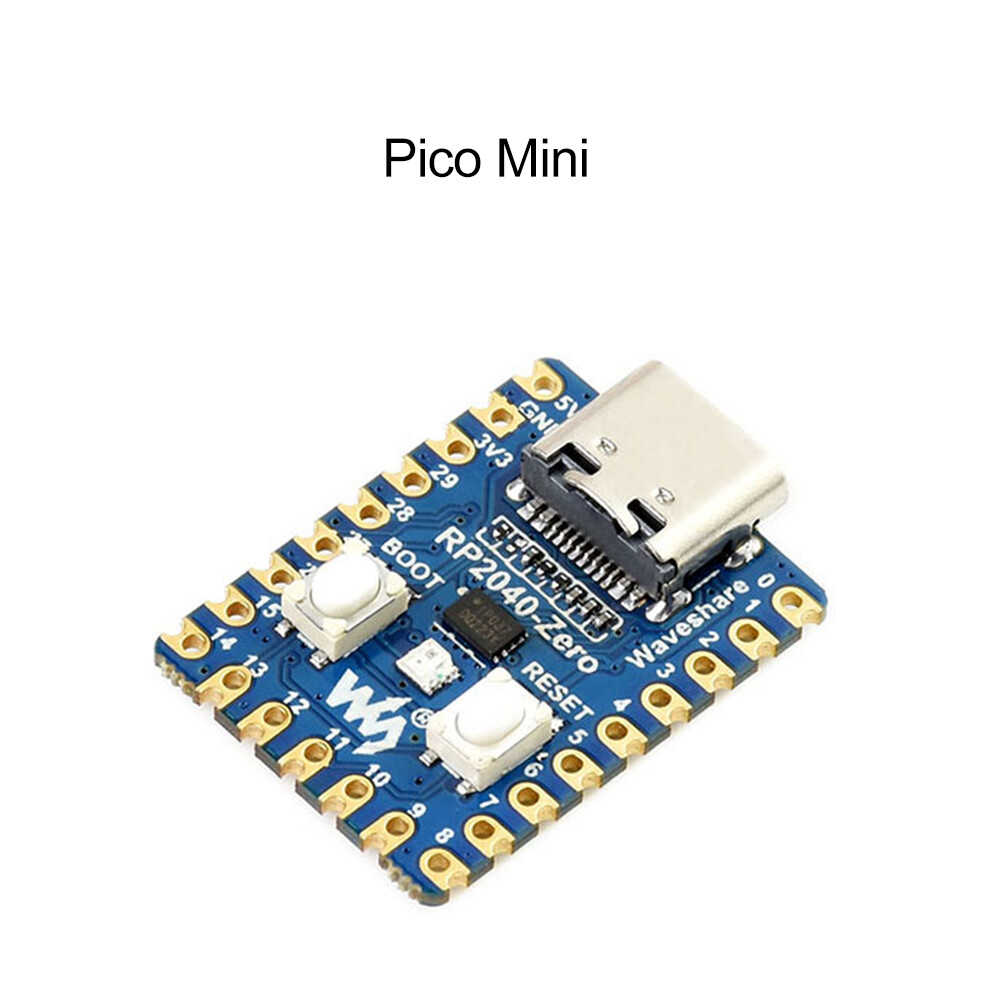

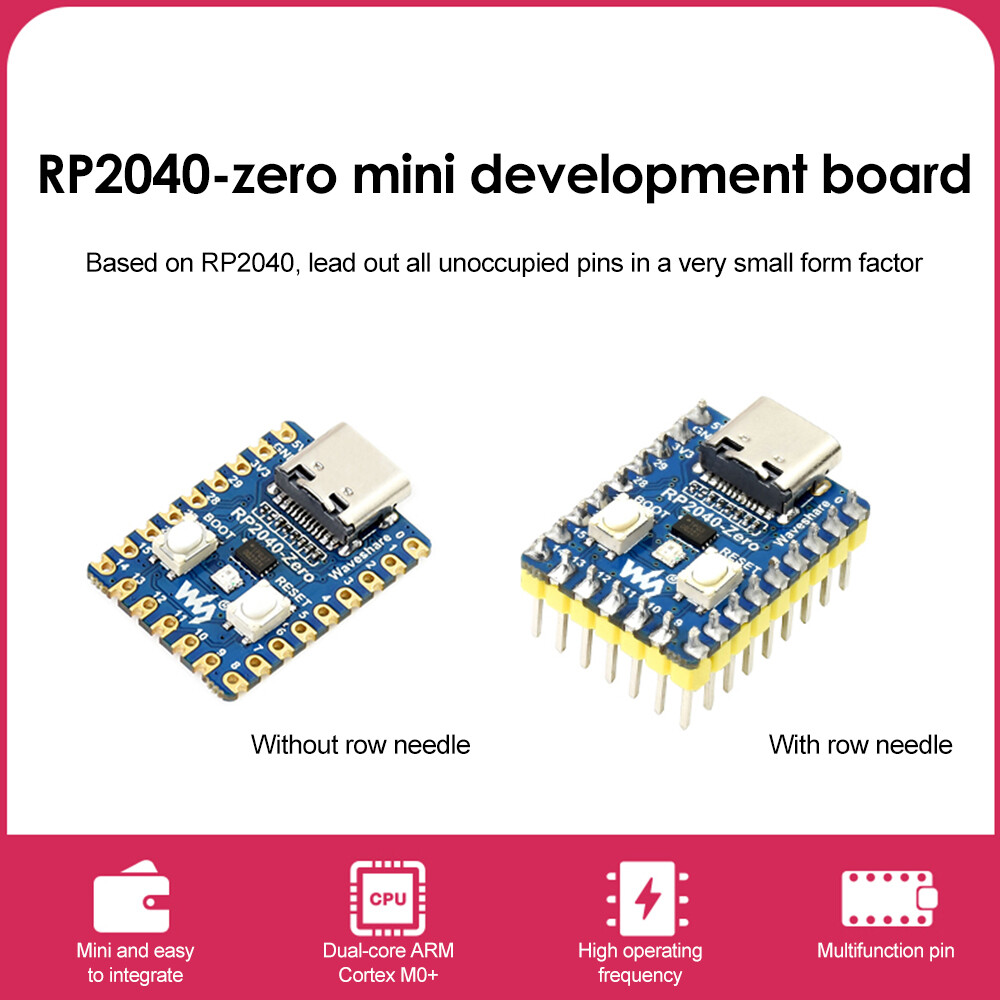

Raspberry Pi RP2040-Zero Microcontroller PICO Development Board without Pin Header

Features:

1: Wide range of applications

2: Dual-core processor

3: Support configuration pin function, which can be developed and integrated easily and flexibly

4: Support low power sleep and hibernate modes

5: High operating frequency



Specification:

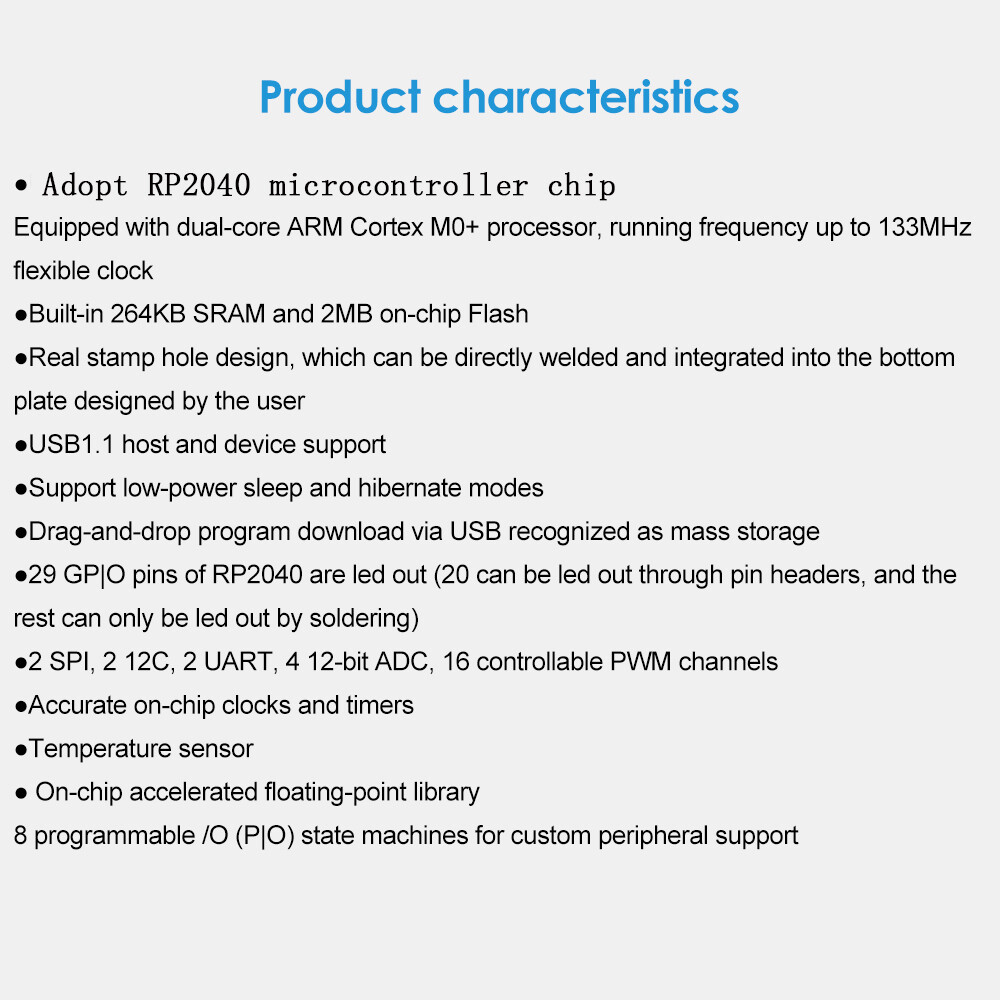

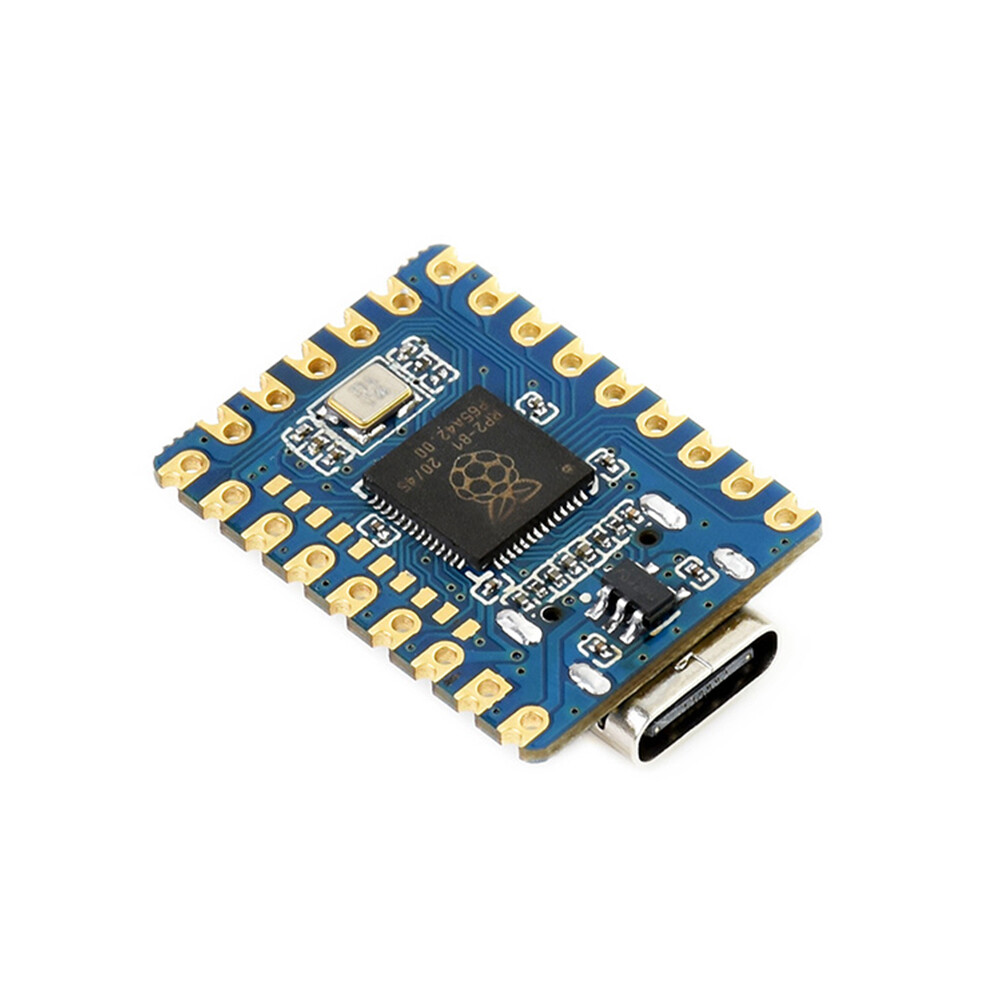

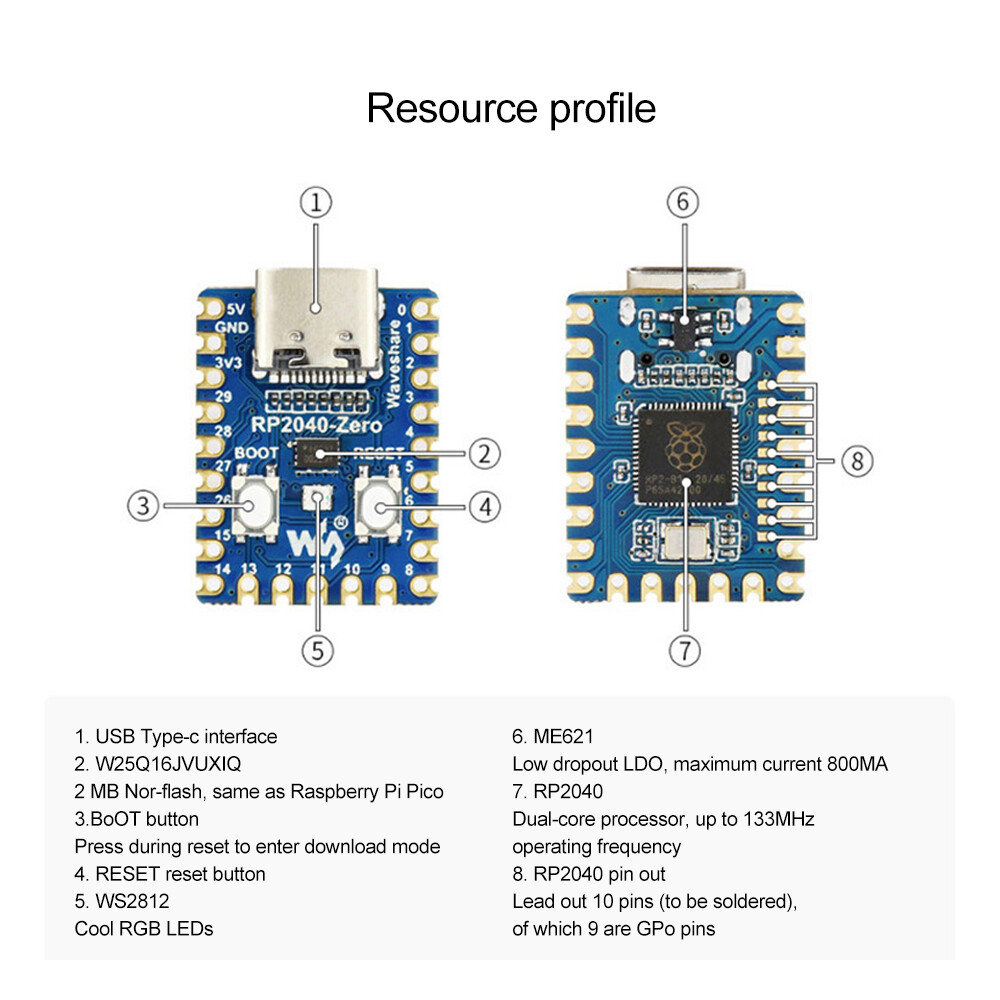

Adopt RP2040 microcontroller chip

Equipped with a dual-core ARM Cortex M0+ processor, the operating frequency is up to 133MHz flexible clock. Built-in 264KB SRAM and 2MB on-chip Flash

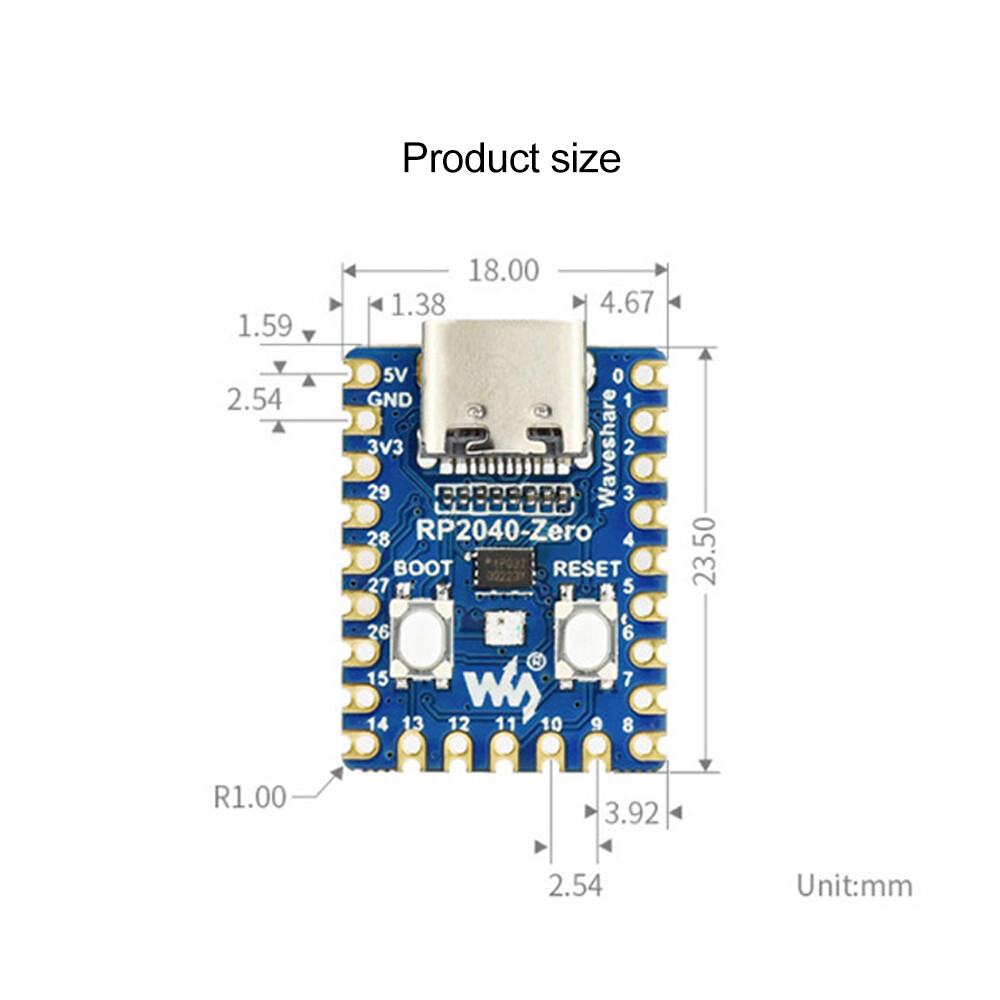

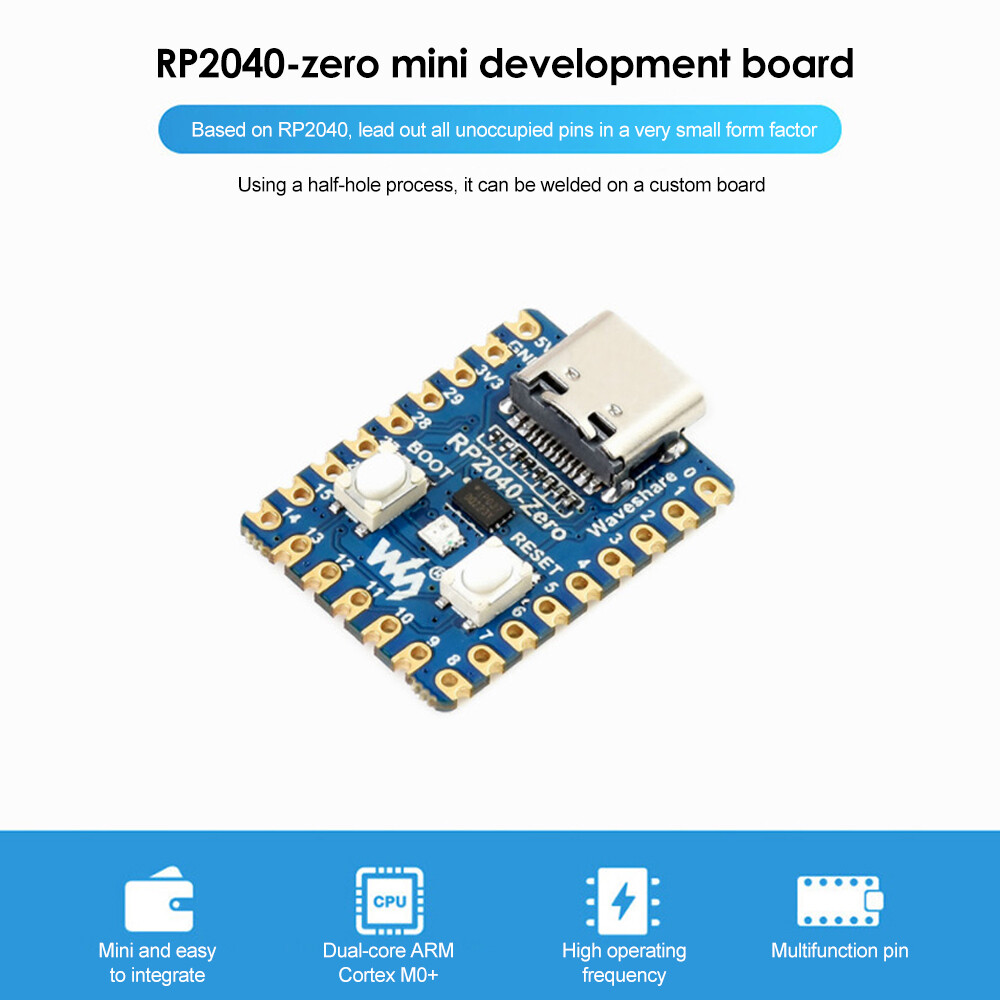

The real stamp hole design can be directly welded and integrated into the bottom plate designed by the user.

USB1.1 host and device support

Supports low power sleep and hibernate modes

Drag-and-drop program download via USB recognition as mass storage

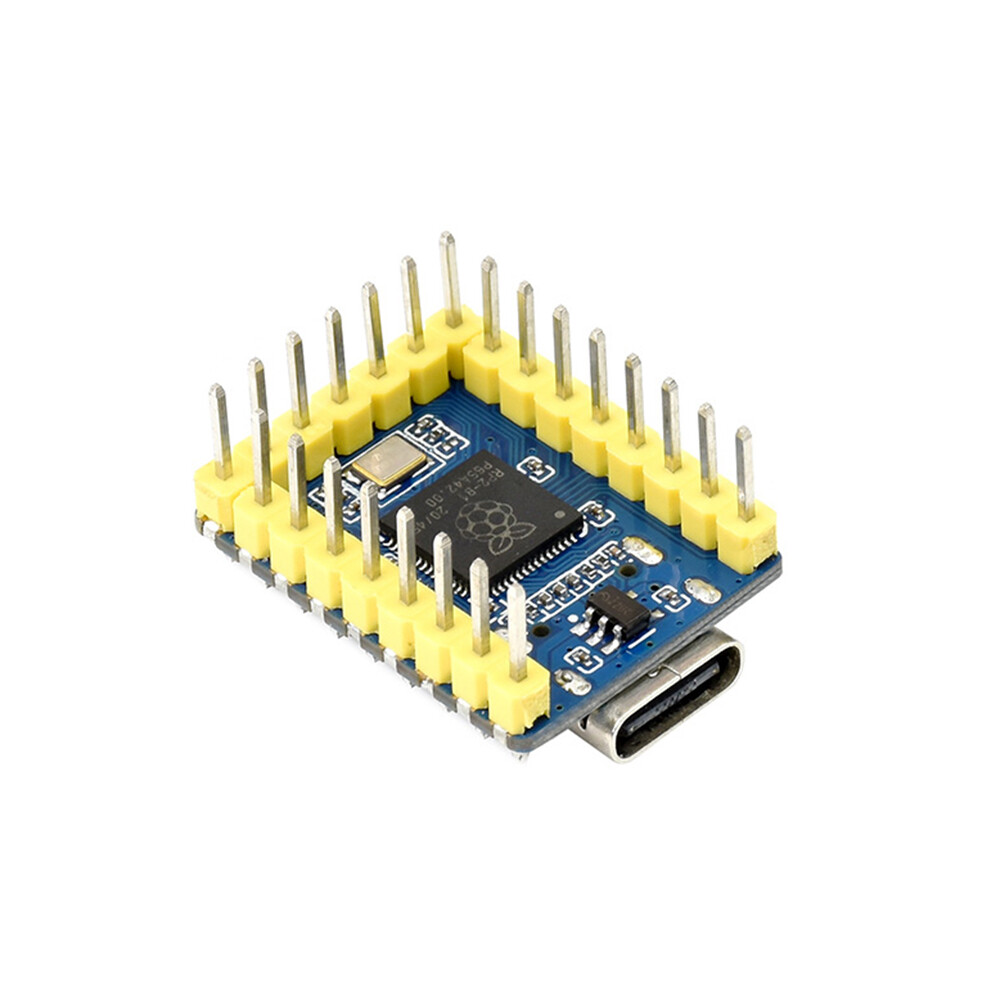

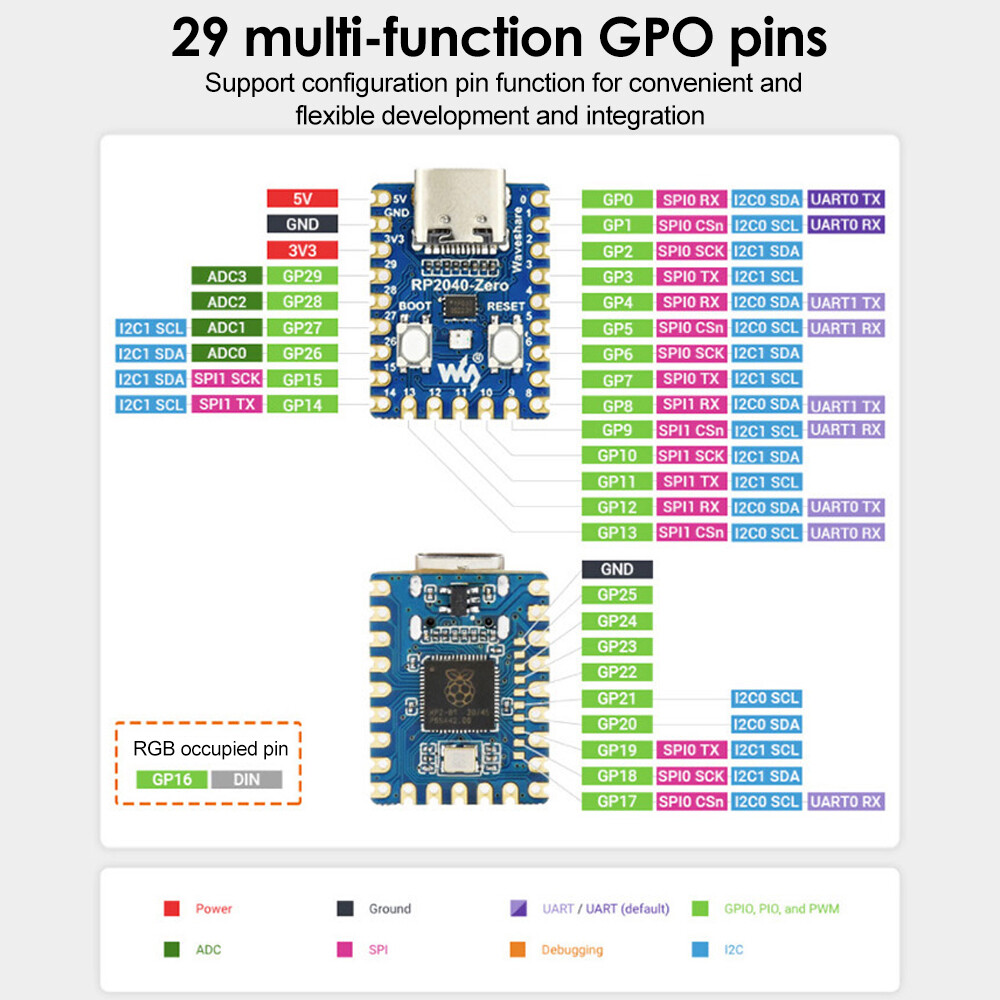

29 GPIO pins of RP2040 are led out (20 can be led out through pin headers, and the rest can only be led out by soldering)

2 SPIs, 2 12Cs, 2 UARTs, 4 12-bit ADCs, 16 controllable PWM channels.

Accurate on-chip clocks and timers

Temperature Sensor

On-chip accelerated floating-point library

8 programmable I/O (PIO) state machines for custom peripheral support



Package Includes:

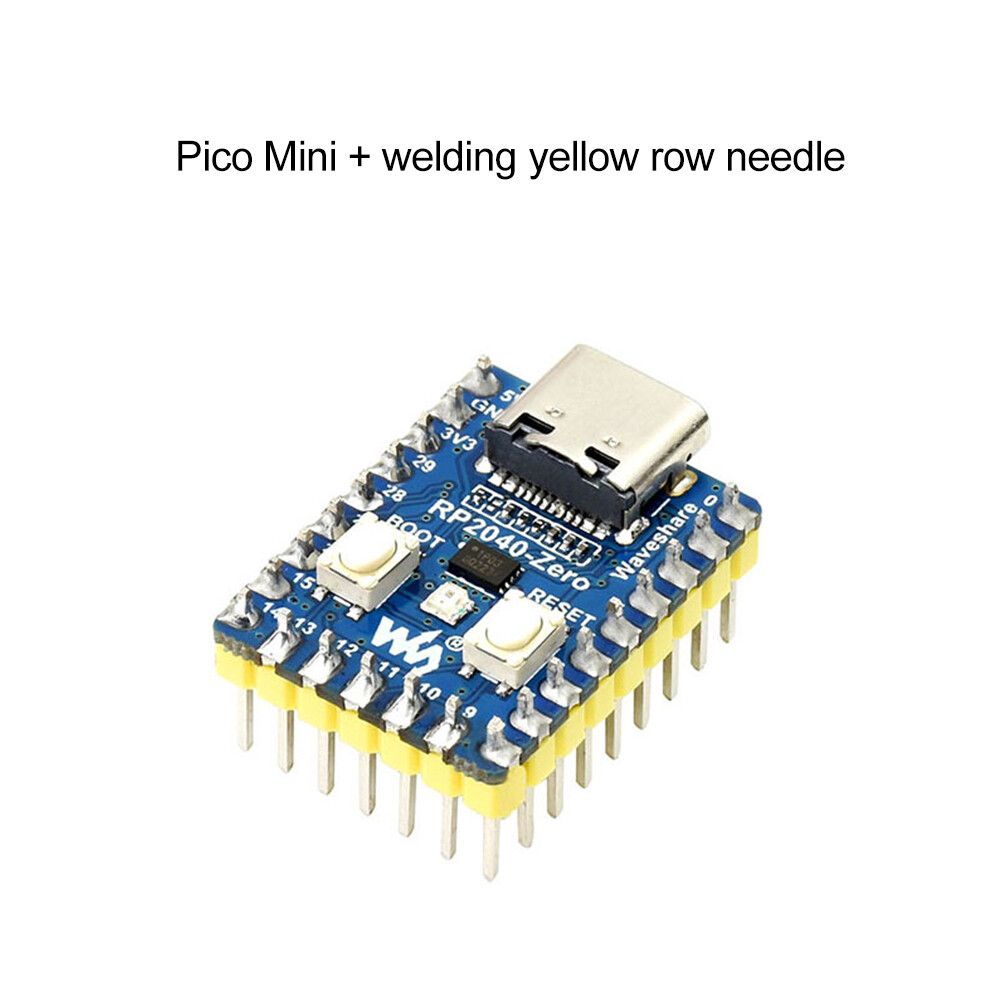

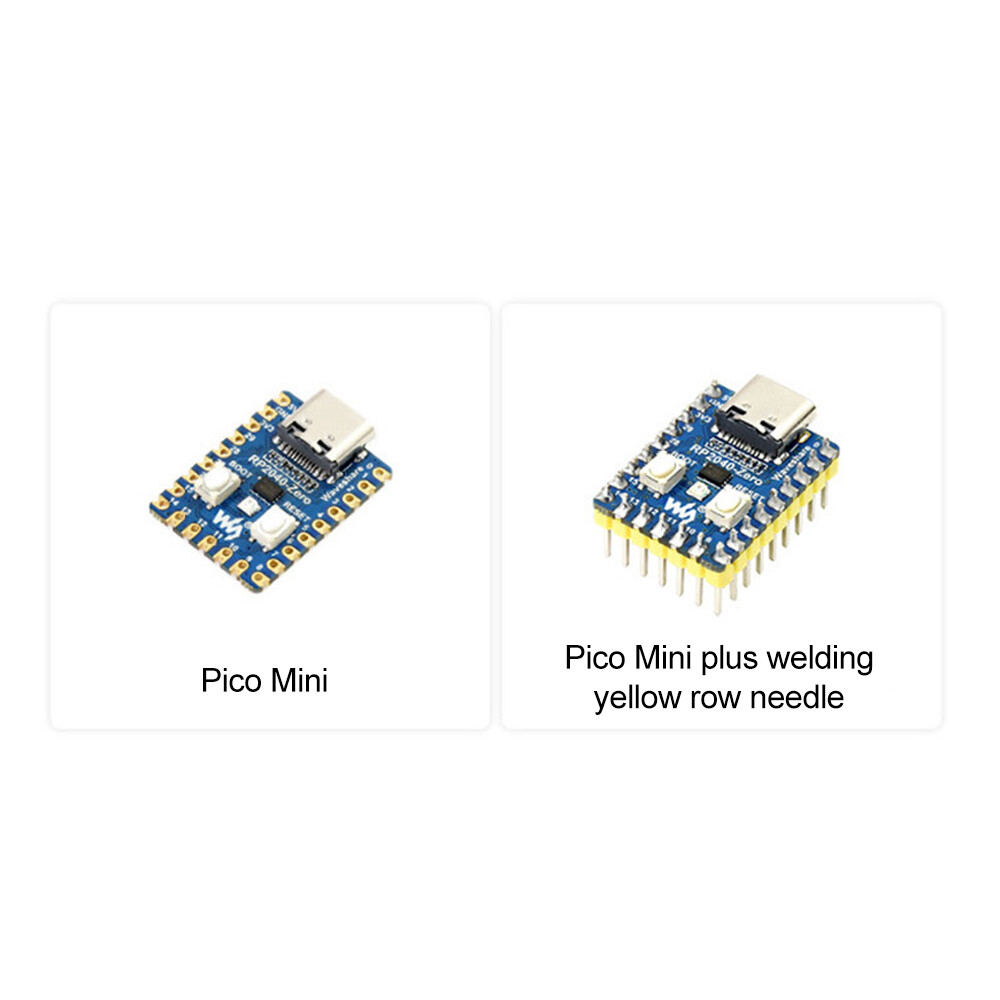

1*Raspberry Pi RP2040-Zero microcontroller PICO development board without pin header/Raspberry Pi RP2040-Zero microcontroller PICO development board with pin header
