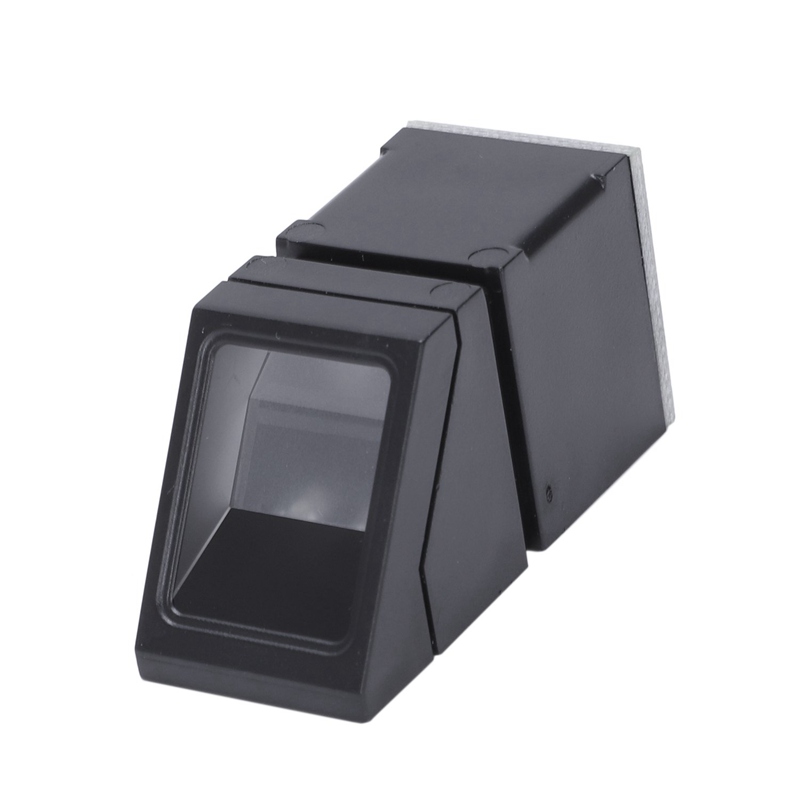

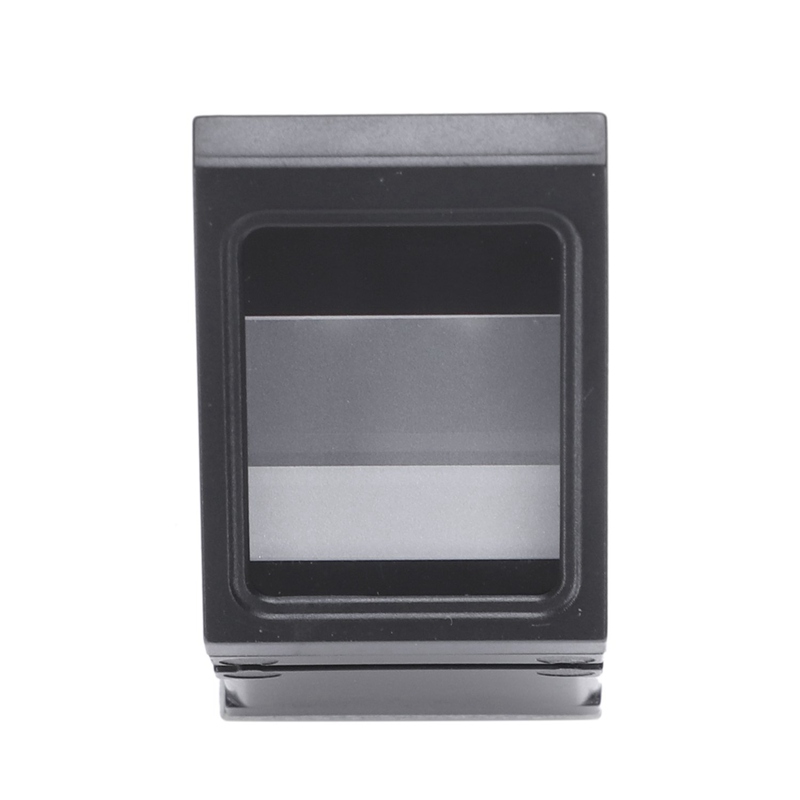

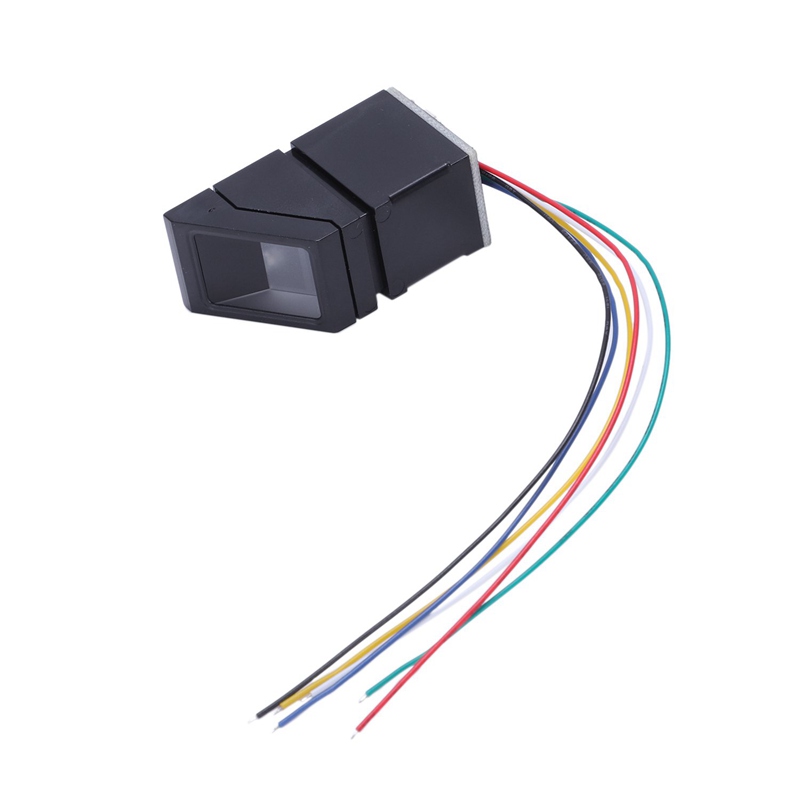

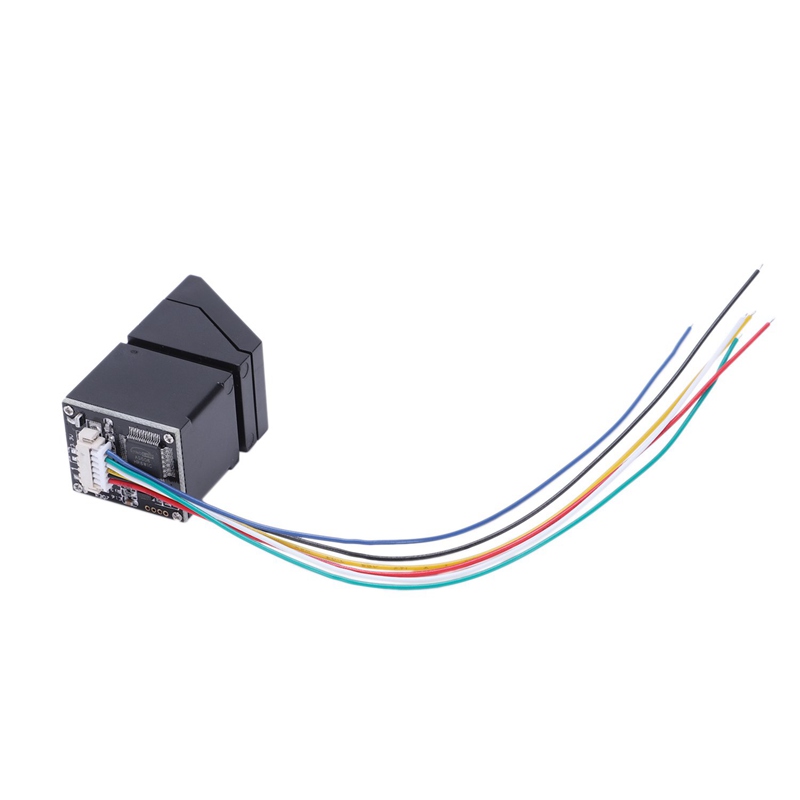

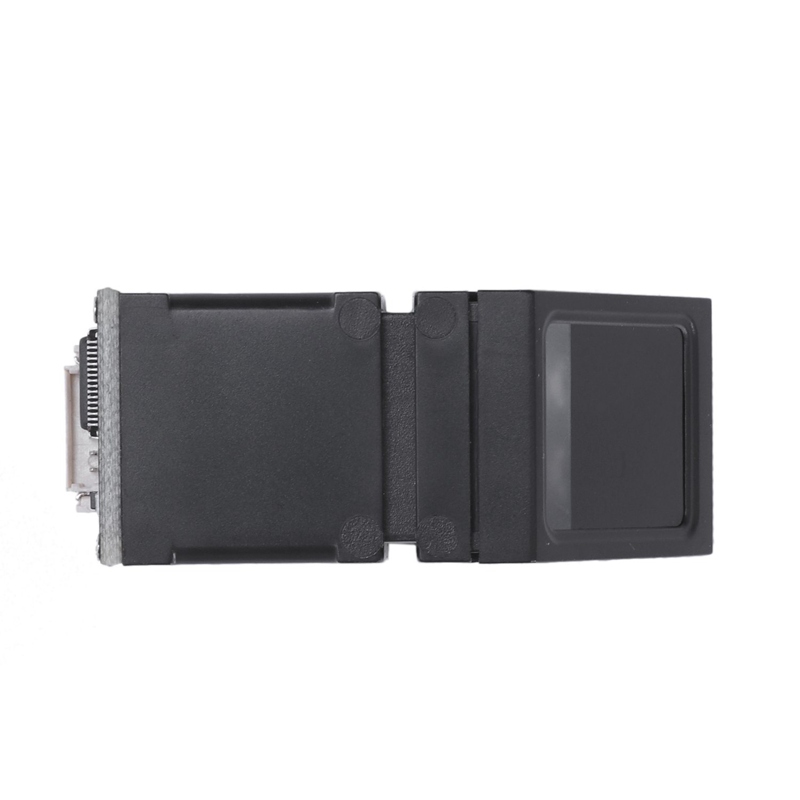

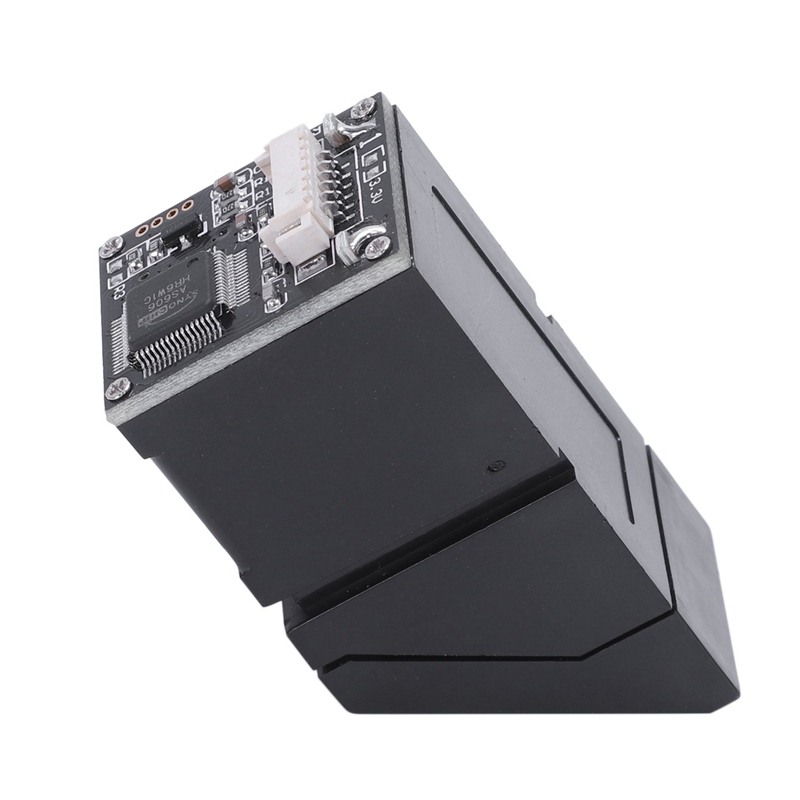

R307 Capacitive Fingerprint Reader/Module/Sensor/Scanner

R307 Capacitive Fingerprint Reader/Module/Sensor/Scanner

Details

Type:Optical
Sensor Life:100 million times
Static indicators:15KV
Fingerprint reader can conduct secondary development,can be embedded into a variety of end products.Users can conduct secondary development,can be embedded into a variety of end products,such as:access control,attendance,safety deposit box,car door locks
Low power consumption,low cost,small size,excellent performance.Professional optical technology,precise module manufacturing technics.Good image processing capabilities,can successfully capture image up to resolution 500 dpi.Finger detection function.
Colour:Black
Material:ABS
Size:14*18 mm
Interface:USB2.0/UART(TTL logical level)
RS232 communication baud rate:9600BPS~115200BPS changeable
Operating Envirement Temperature:-20 to 50 degrees.
Verification Speed:0.2 sec
Scanning Speed:0.3 sec
Character file size:256 bytes
Template size:512 bytes
Storage capacity:1000
Working current:Typical less than equal 75mA
Package Contents:

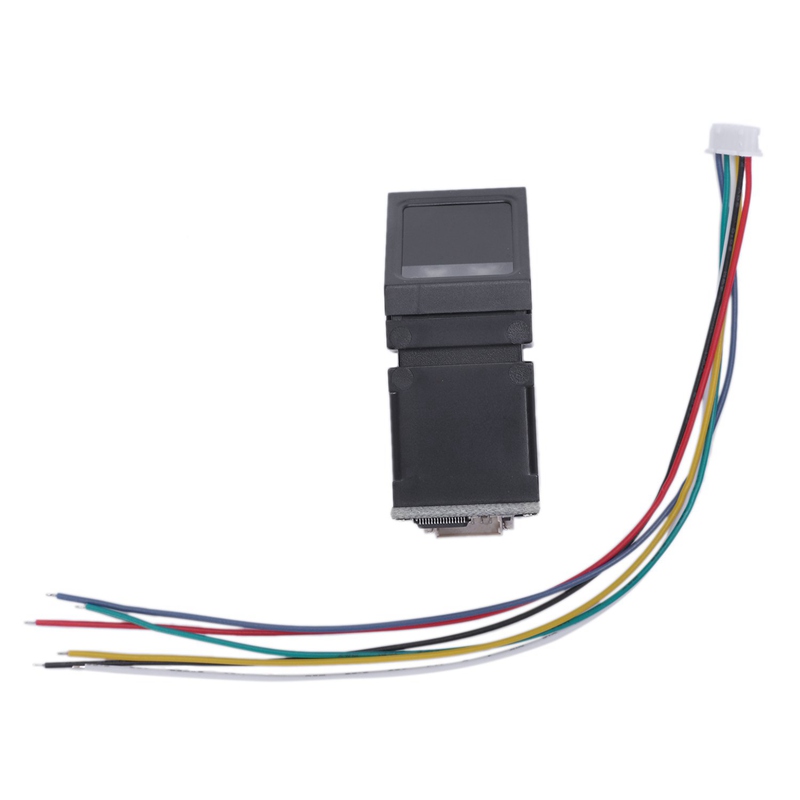

1*Fingerprint Reader Module
1*power cable
