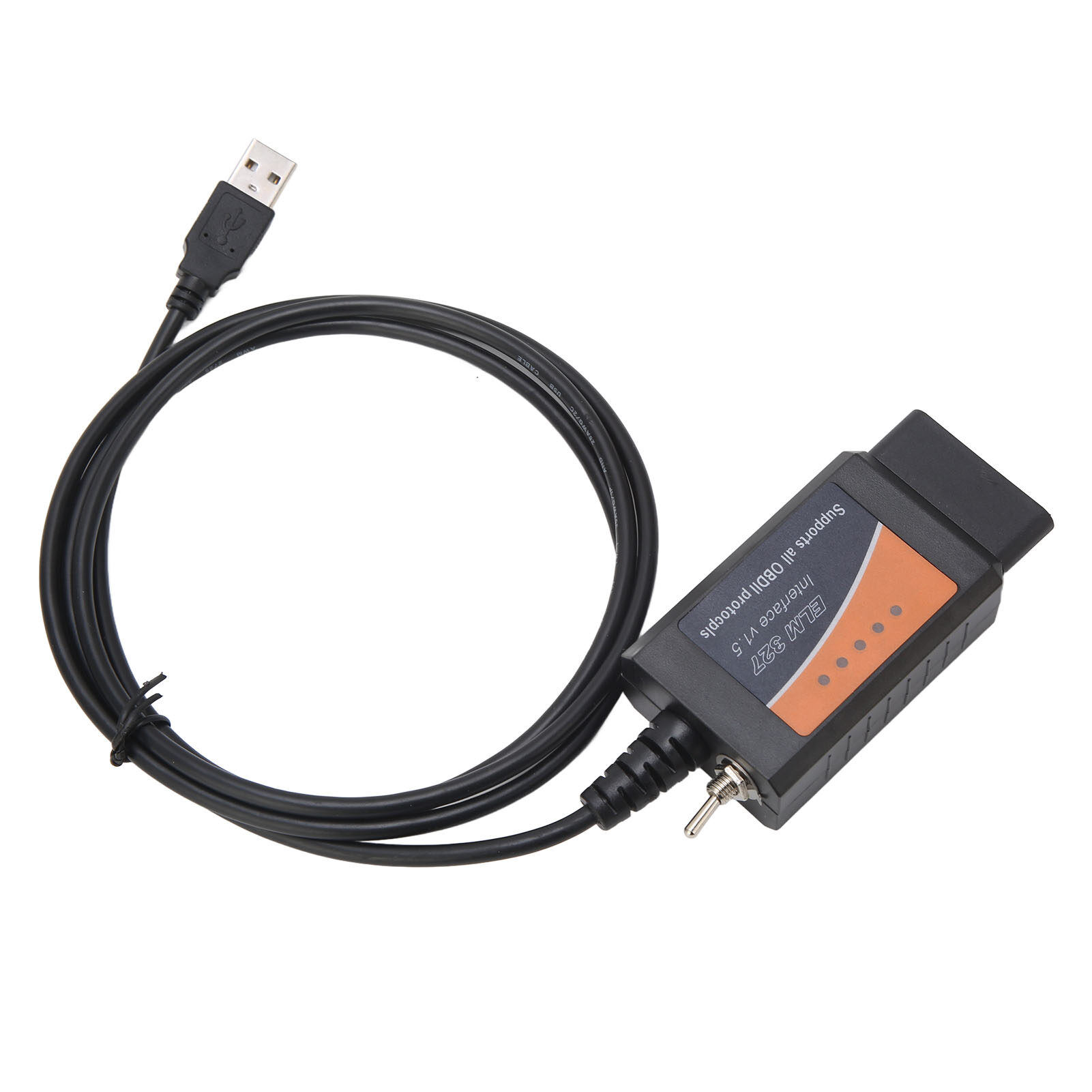

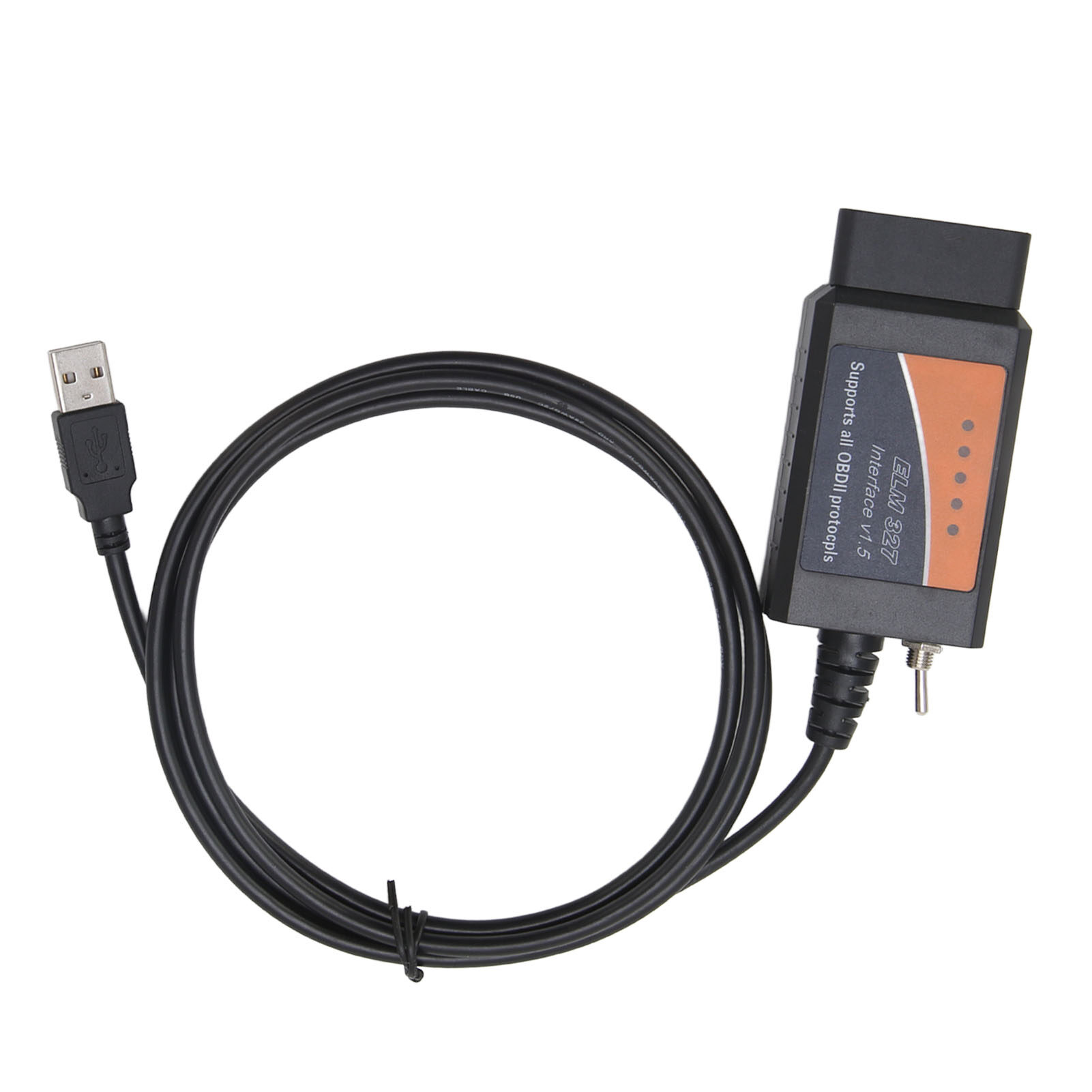

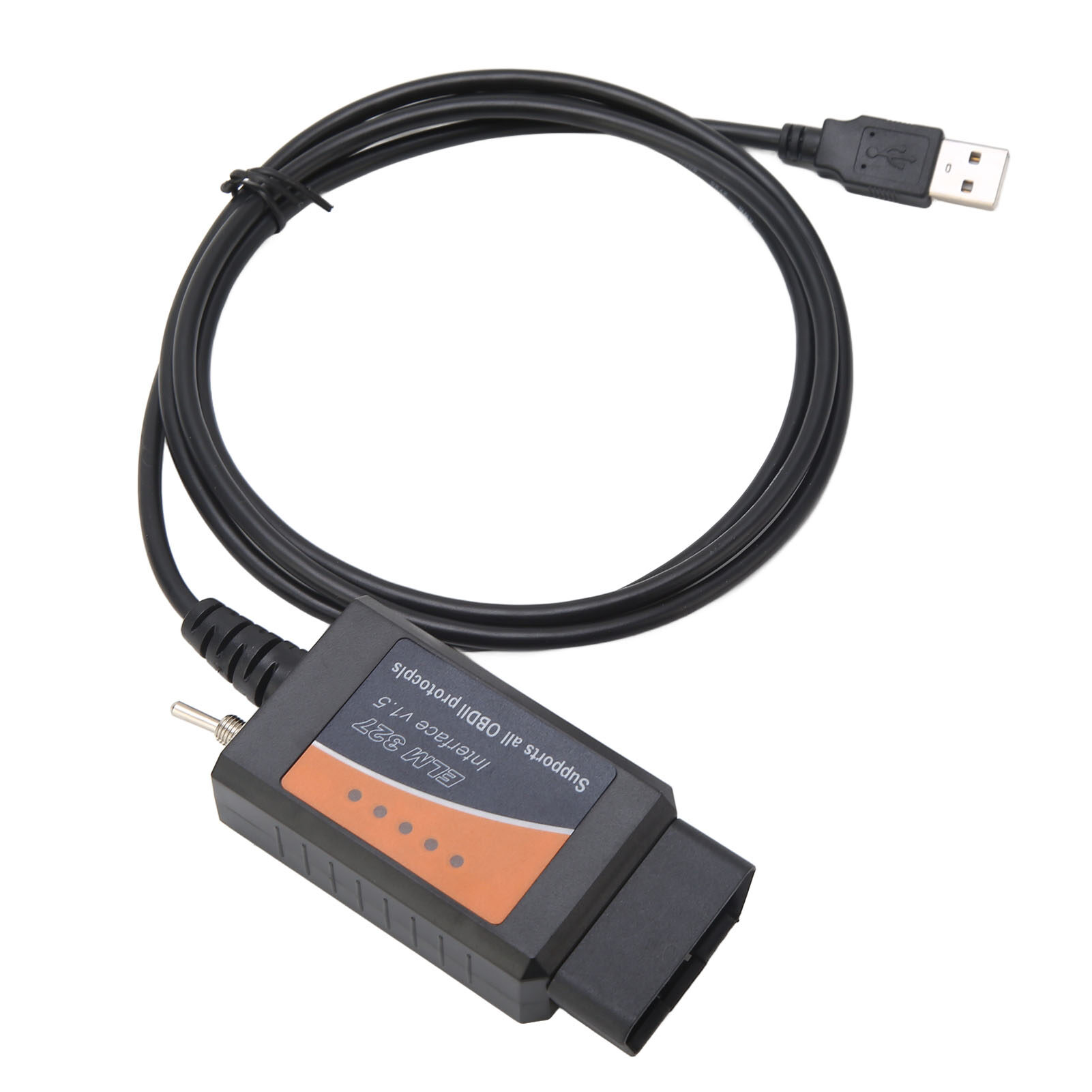

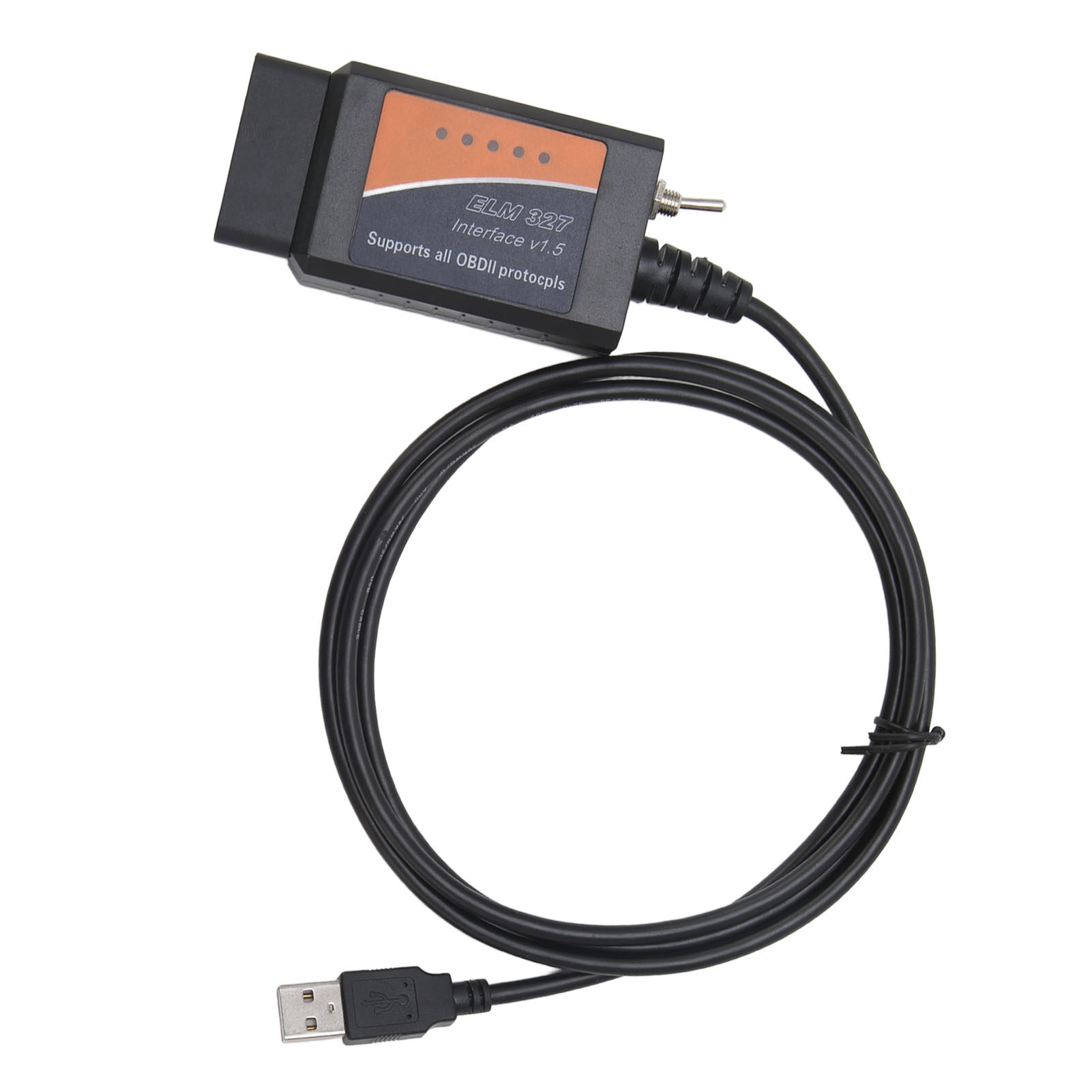

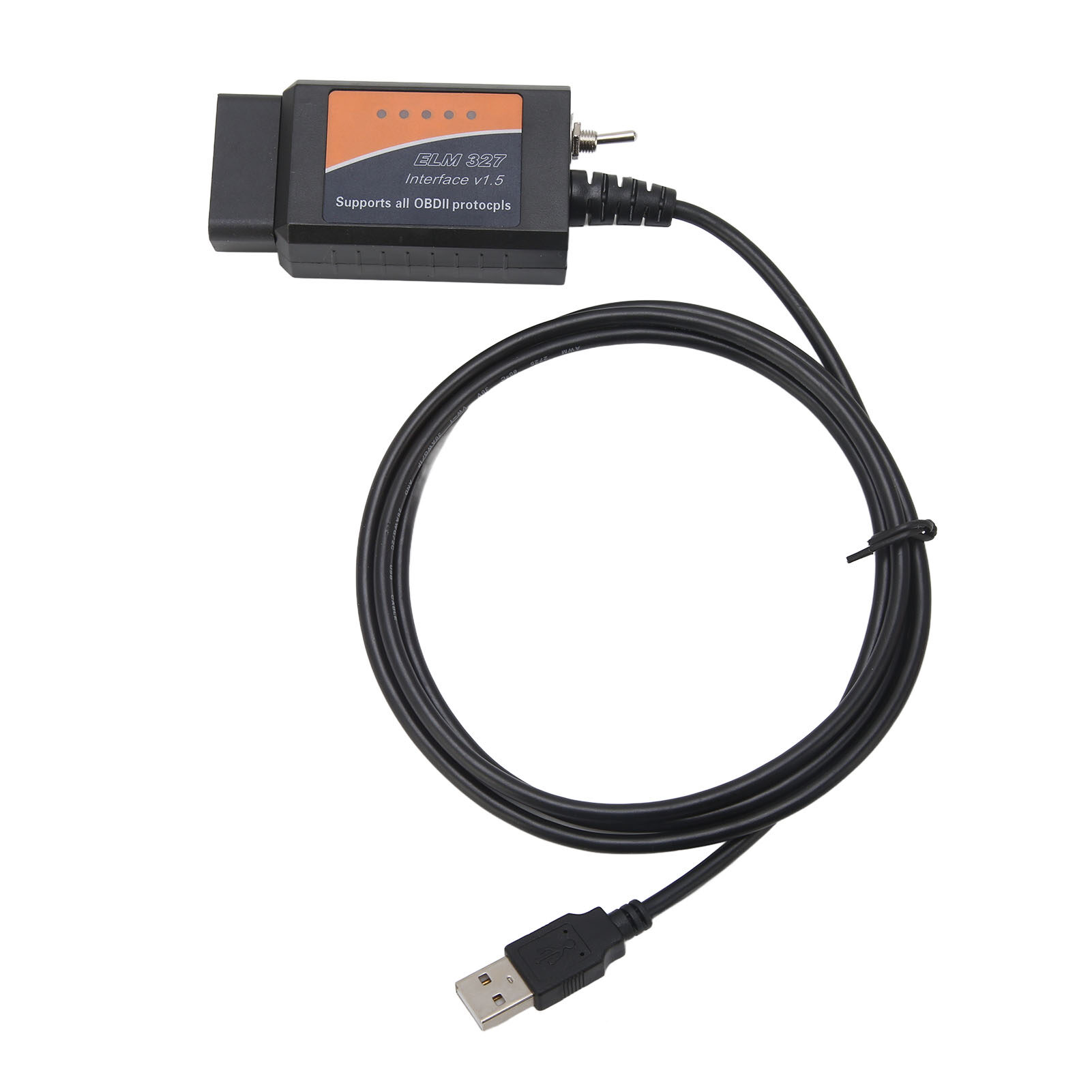

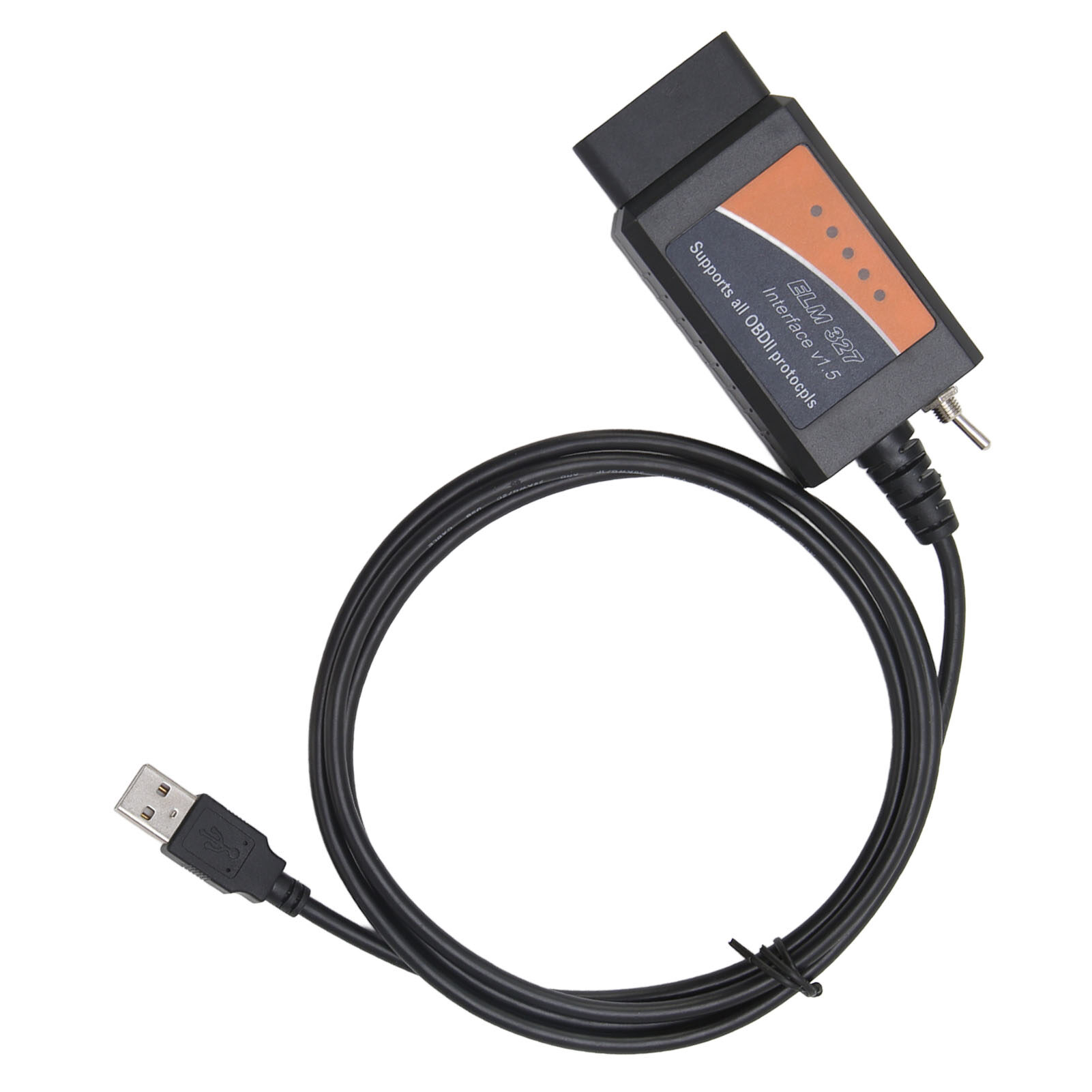

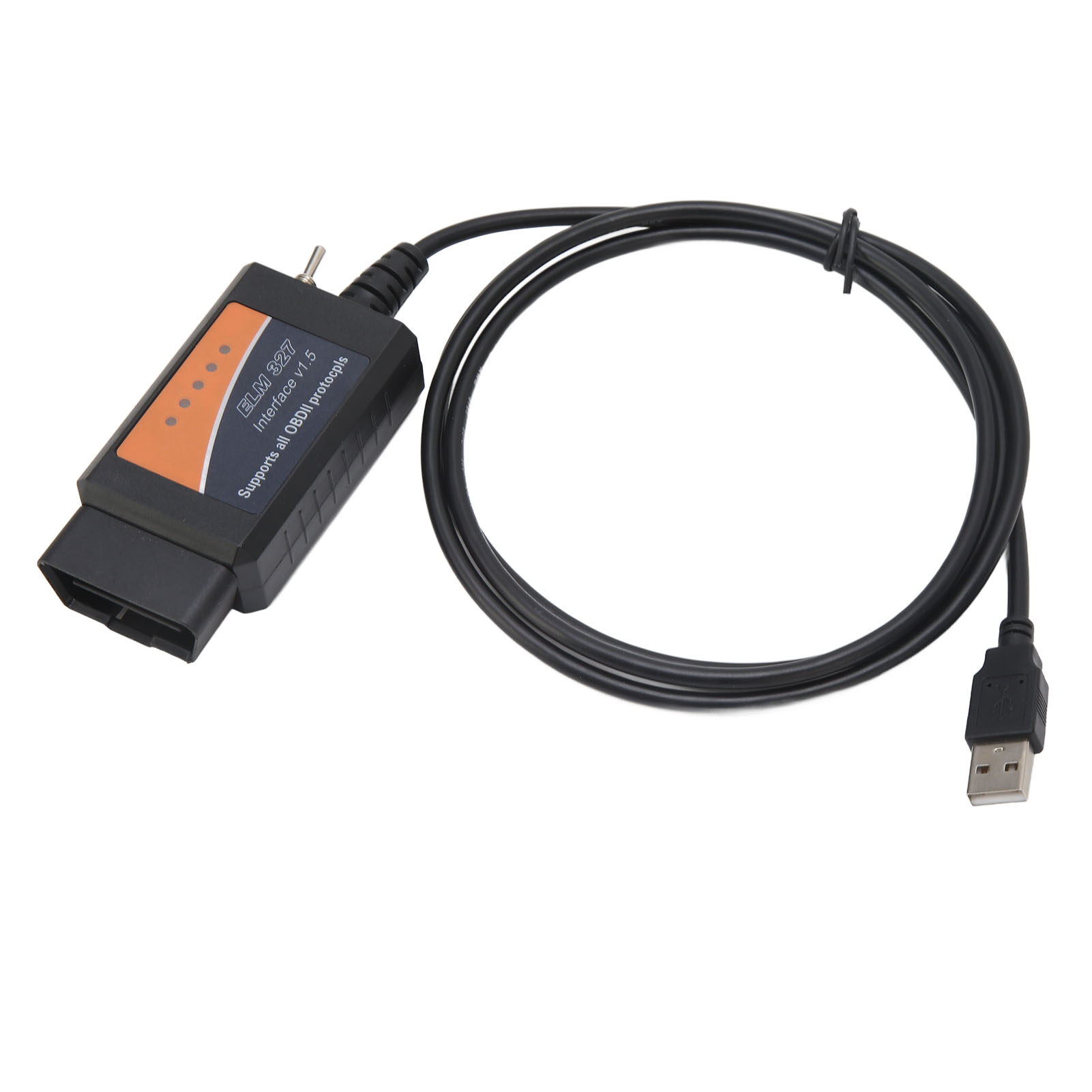

OBD2 USB Adapter for ELM327 Code Reader Scanner Diagnostic Cable for FORScan FoCCCus

Feature:

1. Diagnostic Cable: This is a PC based scan tool. Universal diagnostic cable supports all OBD2 protocols and is dispatched with a number of compatible programs.
2. Basic Functions: It can reset fault, trouble codes, parameter ids (PIDs), change car configuration data, run tests, services procedures, program certain models.
3. Protocols: For SAE J1850 PWM, for SAE J1850 VPW, for ISO9141‑2, for ISO14230‑4 KWP, for ISO15765‑4 CAN, for SAE J1939 CAN, for CAN.
4. Ideal Tools: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.
5. Application: Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, and more.

Specification:

Item Type: USB OBD2 Scanner

Material: ABS

4 Reasons to Get Plastic USB for ELM327:
1: Latest ELM327 includes PIC25K80 and CH340T.
2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.
3: Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, and more.
4: Support for Windows XP and WIN7 32bite.

OBDII Protocols:
for SAE J1850 PWM (41.6Kbaud)
for SAE J1850 VPW (10.4Kbaud)
for ISO9141-2 (5 baud init, 10.4Kbaud)
for ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
for ISO14230-4 KWP (fast init, 10.4 Kbaud)
for ISO15765-4 CAN (11bit ID, 500 Kbaud)
for ISO15765-4 CAN (29bit ID, 500 Kbaud)
for ISO15765-4 CAN (11bit ID, 250 Kbaud)
for ISO15765-4 CAN (29bit ID, 250 Kbaud)
for SAE J1939 CAN (29bit ID, 250 Kbaud)
for CAN (11bit ID, 125 Kbaud)
for CAN (11bit ID, 50 Kbaud)

Basic Features:
Reset fault, trouble codes,  parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models

Pin Configurations:
Switch position one: HS CAN - Occupies pins 6 and 14
Switch position two: MS CAN - Occupies pins 3 and 11

Supported Software:
For FORScan
For Elmconfig
For FoCCCus
For FF2
and more

Supported Vehicles:
Many vehicles that can be addressed using an for ELM via an OBDII connector.

Package List:

1 x USB OBD Cable

1 x CD
