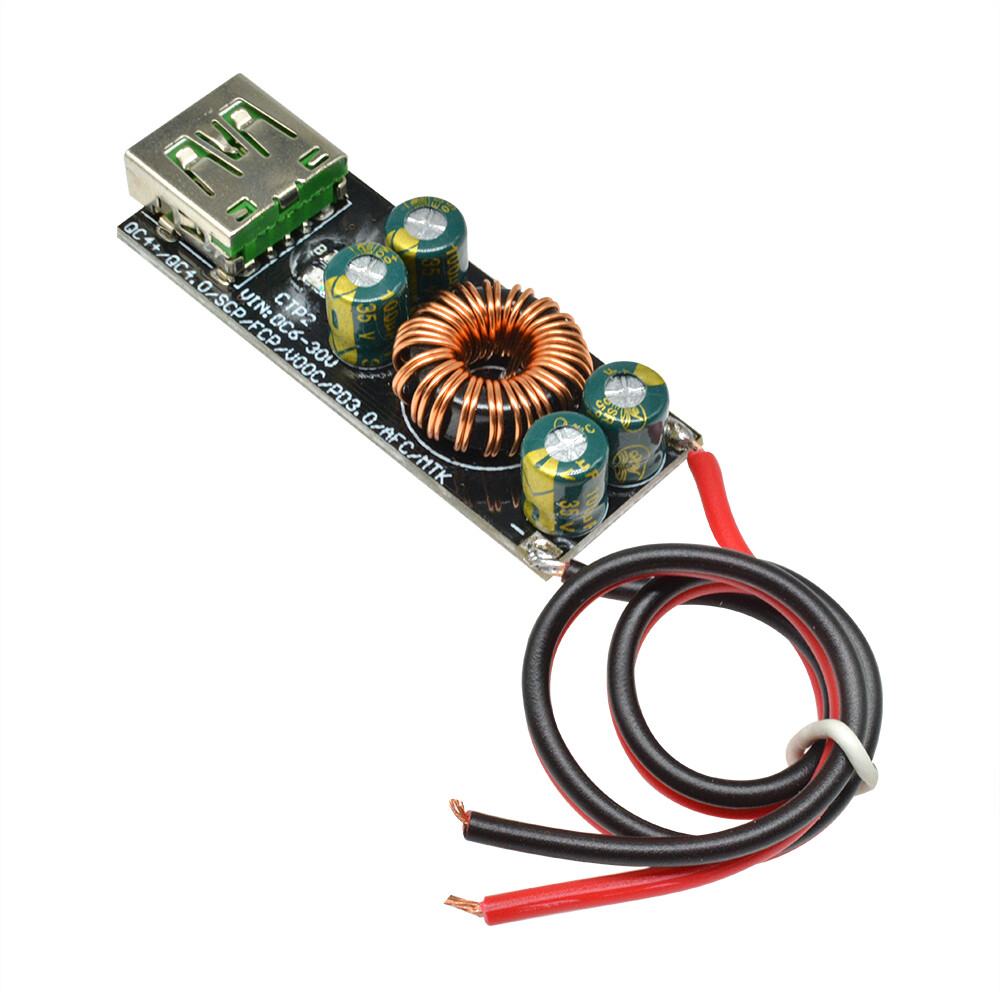

QC4.0 QC3.0 Mobile Phone Fast Charging Board Charge 6-35V Step Down Buck Module

Application:

• 1 Electronic enthusiasts, mobile phone maintenance personnel, electronic industrial staff DIY fully compatible mobile phone charging module.
• 2. Outside occasions, long-term power outages, etc, use battery, solar panels and other DC power supply to flash all brands of cell phones.

Feature:

• Suitable for Qualcomm QC4 + / QC4.0 / QC3.0, Huawei SCP / FCP, OPPO VOOC, Apple 2.4A, Samsung AFC, a plus DASH, VIVO 9V2A dual motor charger, MediaTek PE2.0

• Reminder: Some similar fast-filling boards in the market use the IP6518 solution, does not support QC4.0, VOOC, DASH, and is not a full-service fast charge. And IP6518 output power is limited, so Huawei's super fast charge SCP compatibility is not good.

• High efficiency:
• 1. With external MOS tube, the conversion loss is much lower than the built-in MOS of IP6518 scheme.
• 2. Double-wire and + iron-silicon-aluminum magnetic ring is used, which is more efficient than the chip inductor and low in heat at the same power.
• 3. Input and output are double parallel low resistance electrolytic capacitors, with 6 1206 chip ceramic capacitors! Only for higher performance! Measured map: Perfect implementation of Huawei Super Fast Charge 5V4. 5A (SCP)

Attention:

• Type-C port is used for output charging! Use the C-to-C / Type-C male to male double-headed data cable to charge your cellphone or laptop.
• OPPO and a plus mobile phone charging with USB port. The QC4 + / QC4.0 / PD3.0 protocol uses the type-C port.
• If the power supply voltage is higher than 21volt, the C port PD protocol supports up to 20V 3A output, and the module is small in size. When loading the notebook, please ensure good ventilation and heat dissipation. If the USB port and the Type-C port are plugged into the cellphone at the same time, the dual port is 5V output.
• Professional car charger / high efficiency DC-DC rarely use chip inductors, most of them are made of iron silicon aluminum magnetic ring. Because of the low cost of the chip inductor, the heat is serious!

Package Included:

• 1 * DC-DC 6-35V Step Down Buck Module Mobile Phone Fast Charging Board QC4.0 QC3.0 Charge
