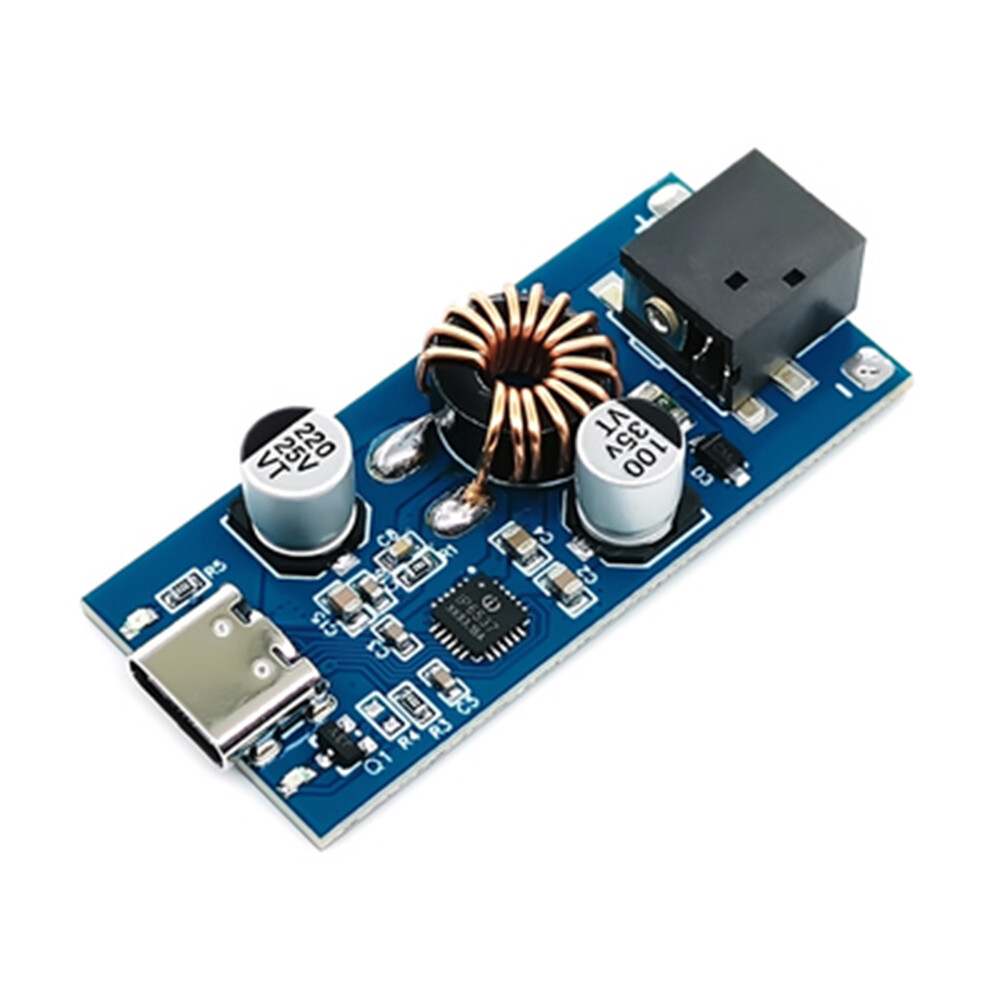

Ziqqucu 30W bảng sạc nhanh sạc hỗ trợ giao thức pd3.0/PPS/QC3 DC bước xuống DIY sửa đổi mô-đun

Features:
1. All adopt high frequency low internal resistance long life capacitors, long life

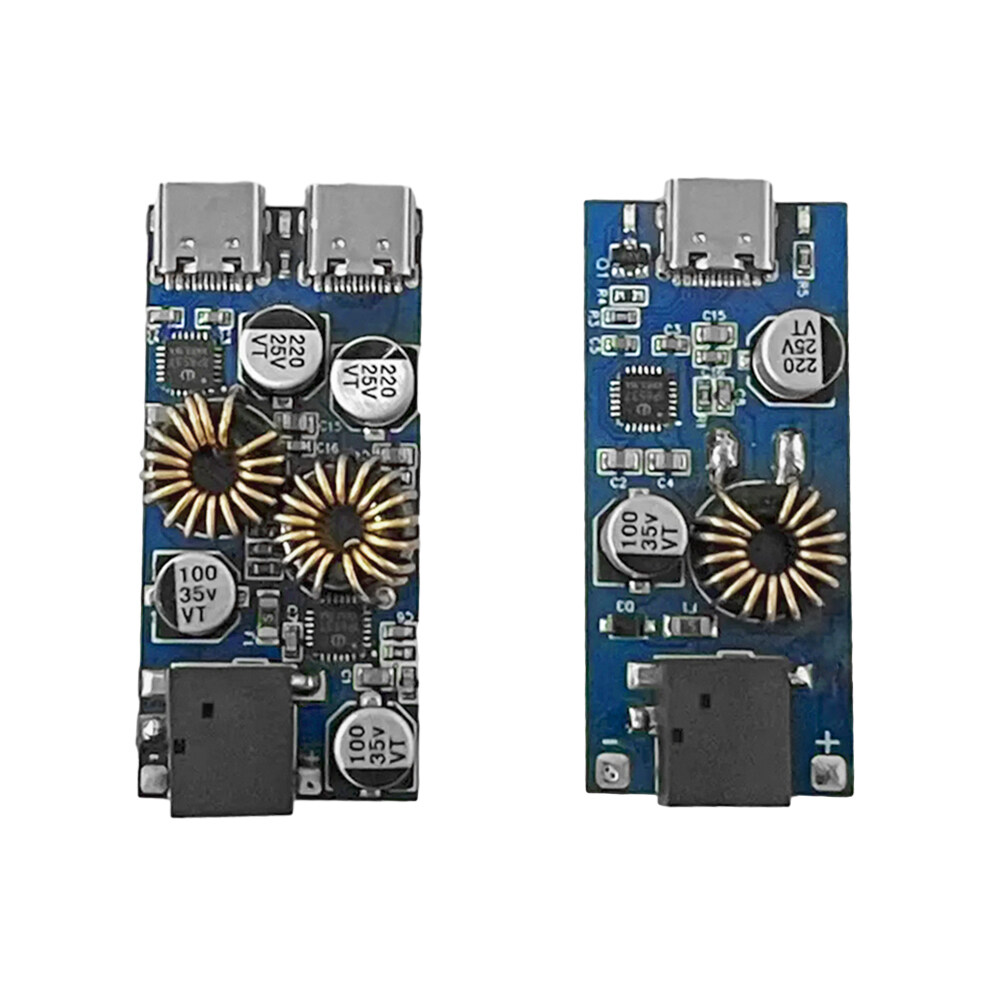

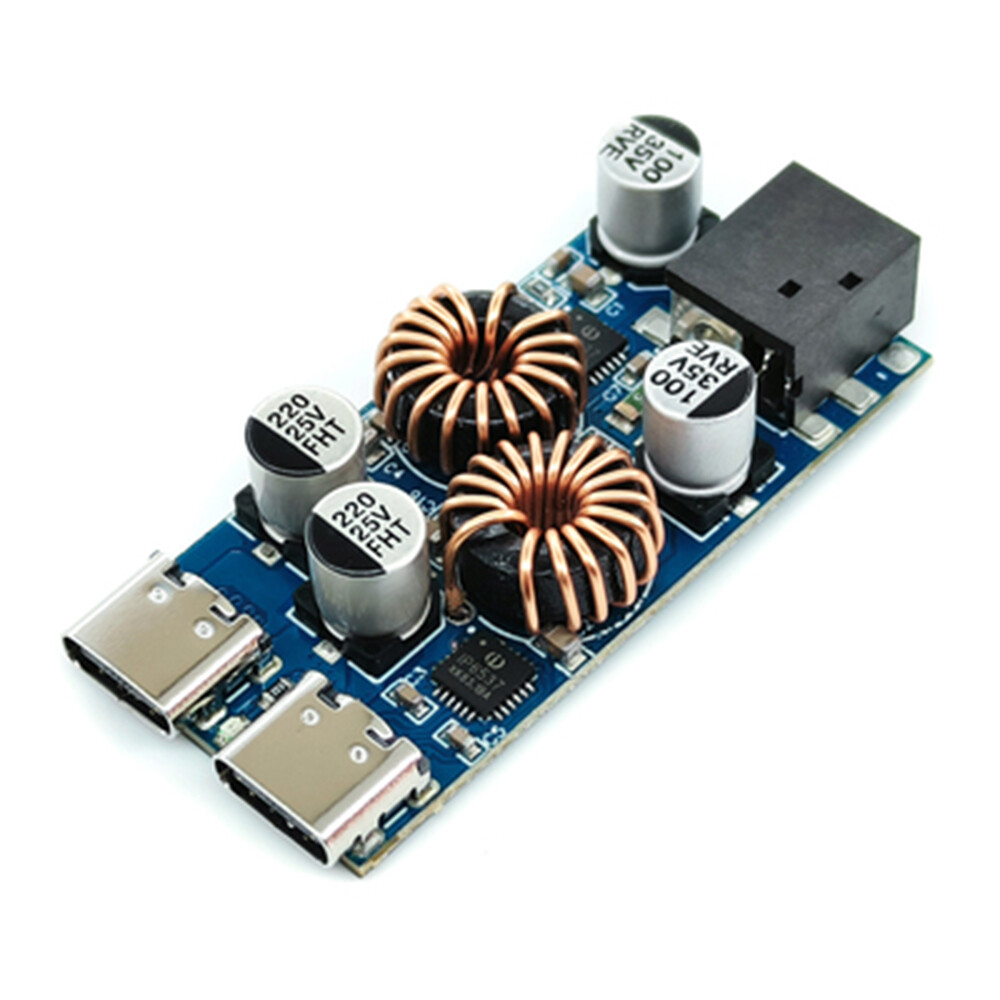

2. Dual Type-C ports can support fast charging at the same time
3. High-quality workmanship and guaranteed technology

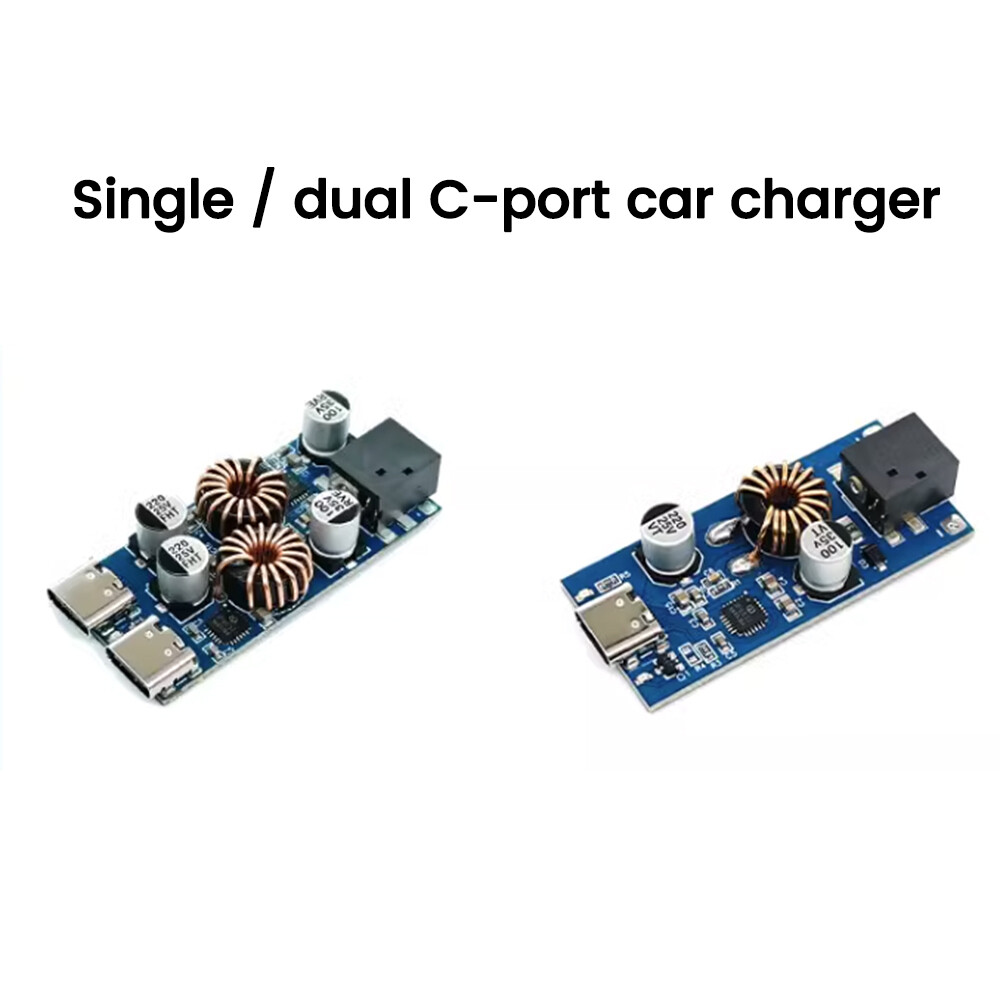

4. The product is suitable for car chargers and cannot be used as a mobile power motherboard module
5. Support multiple protocols, strong compatibility
Product parameters:

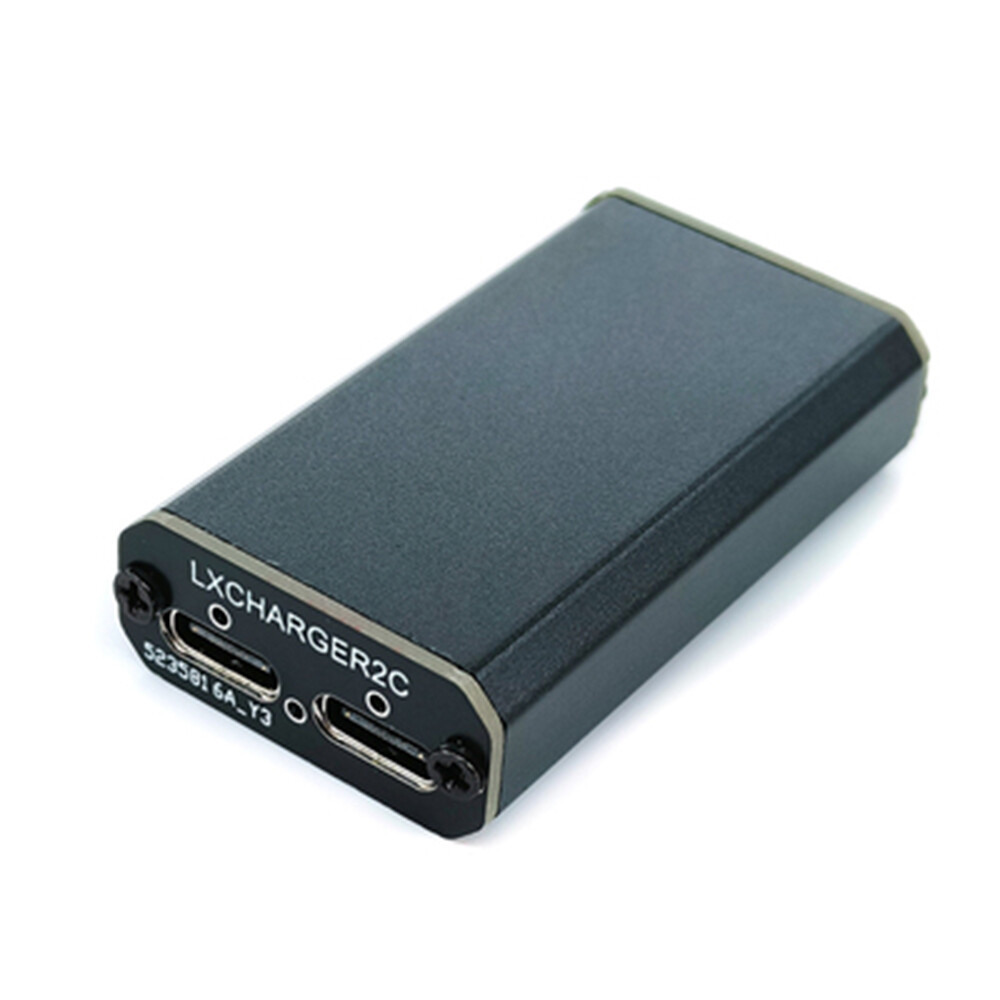

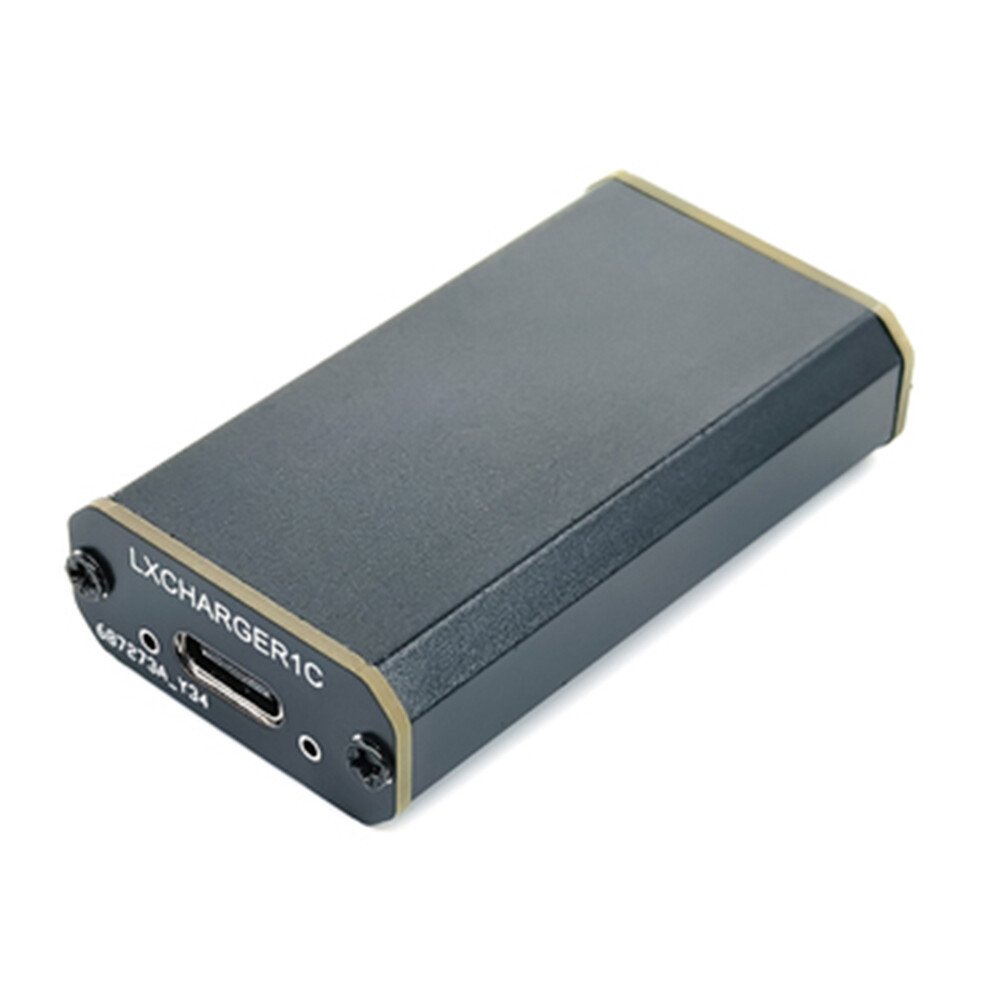

Optional aluminum alloy shell
Input range: 7.1V to 32V
All use high-frequency low internal resistance long-life capacitors
DC5521 input interface, or welding wire input
Support BC1.2, Apple, Samsung protocols
Support Qualcomm QC2.0 and QC3.0
Support MTK PE+1.1 and MTK PE+2.0
Support Samsung fast charging protocol AFC 9v, 12V
Support Spreadtrum fast charging protocol SFCP
Support Huawei fast charging protocol FCP (not support Huawei scp)
Output voltage range: 3V to 20v, automatically adjusted according to the fast charging protocol
Support the PD protocol adopted by Apple.
Broadcast package: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/2A; PPS: 3.3V-5.9V/3A,, 3.3V-11V/3A
Dual Type-C ports can support fast charging at the same time
Input port: DC5521 by default

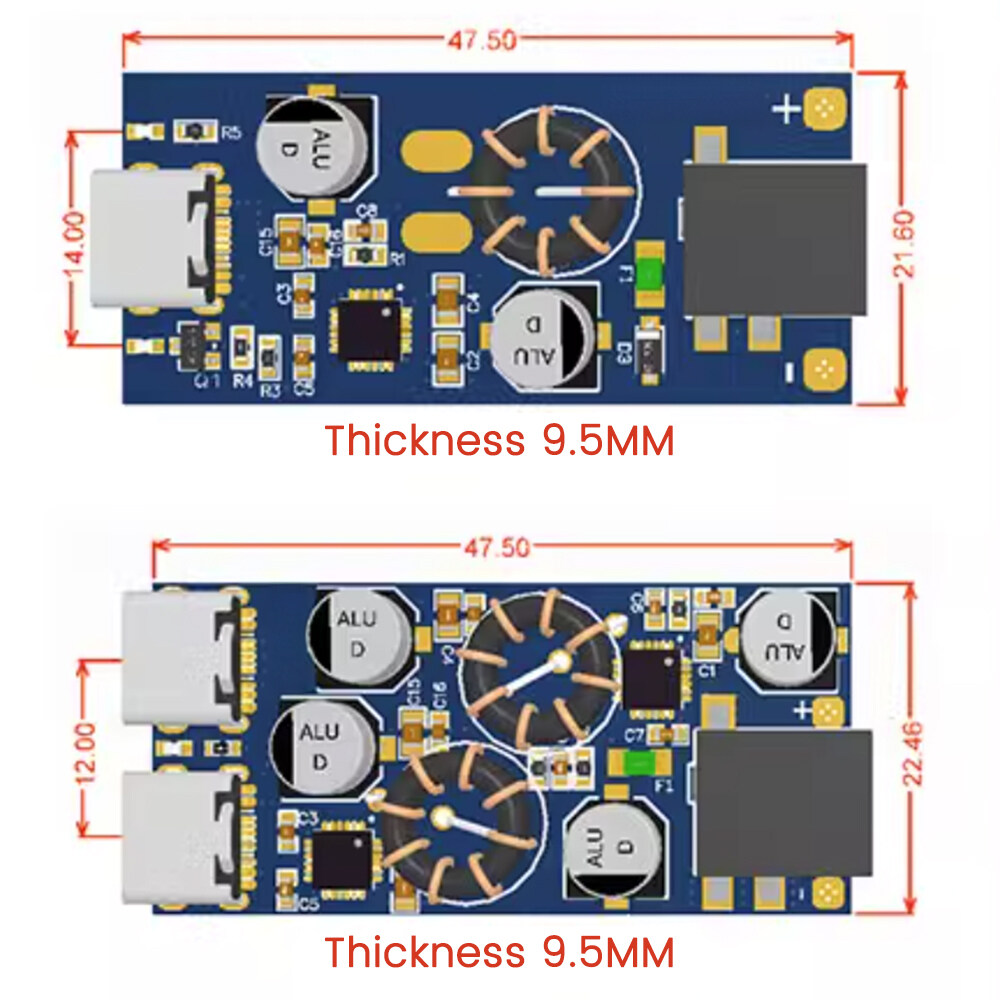

Module size: 47.5mm*21.6mm*9.5mm
Aluminum shell size: 12.2*28.5*52MM (including baffle)
Note: The interface is a patch, which is not solid with a plug-in. If you buy a bare board, it is recommended to strengthen the interface if you will receive an external force to peel it off. The board has reserved input welding wire points.
Product List:

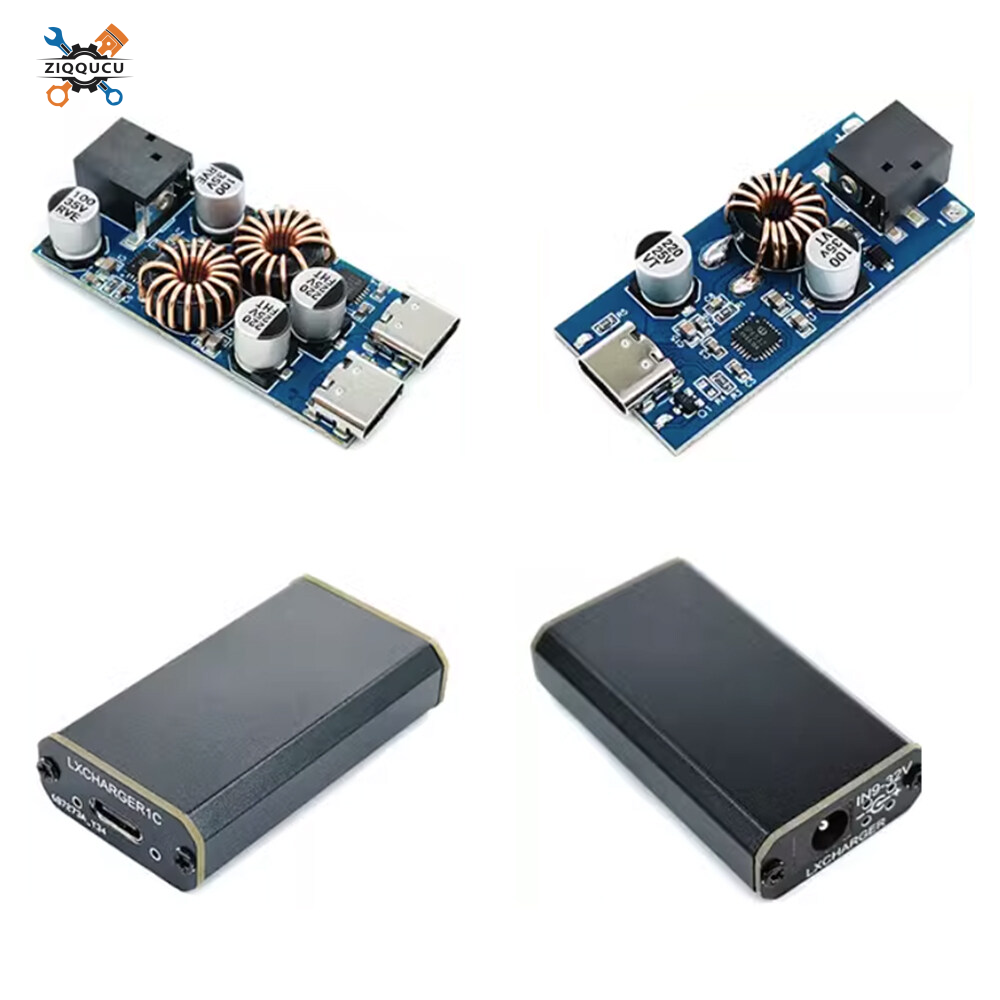

1X charging module (without case/with case optional)
Kind tips:
◆The product in this link is a car charger and cannot be used as a mobile power motherboard
◆When the module is not marked as buck-boost, it defaults to buck type. The basic ones we sell are buck-type fast charging, that is, the input voltage must be greater than the output voltage. So please choose a suitable power supply.
◆Different models of mobile phones have different support for the fast charging protocol, so you need to have a certain understanding of the protocol when choosing a module. For example, the PD protocol must be supported by the c port, and the standard usb port cannot. Oppo's vooc and Huawei's scp must be high-current usb interfaces. See the parameter introduction for specific protocols.
◆The super fast charging of mobile phones is basically a private agreement, and it is rarely authorized externally. That is to say, unless the charging head produced by the original mobile phone factory, third-party ones are not allowed to be used. For example, if Xiaomi mobile phones use the QC protocol, the power will be reduced. It is limited to more than ten or twenty watts. If you want higher power, you need to use the Xiaomi ChargeTurbo fast charging protocol, and this protocol has not yet been authorized externally. The situation is similar for Huawei and other mobile phone manufacturers. Therefore, the marked power of the module is only the maximum power that the module can provide. It does not mean that the mobile phone can have this charging power when it is plugged in. The power of different devices is different.
