PEACEFAIR PZEM-017 DC Voltage Current Power Energy Consumption Meter Communication Module

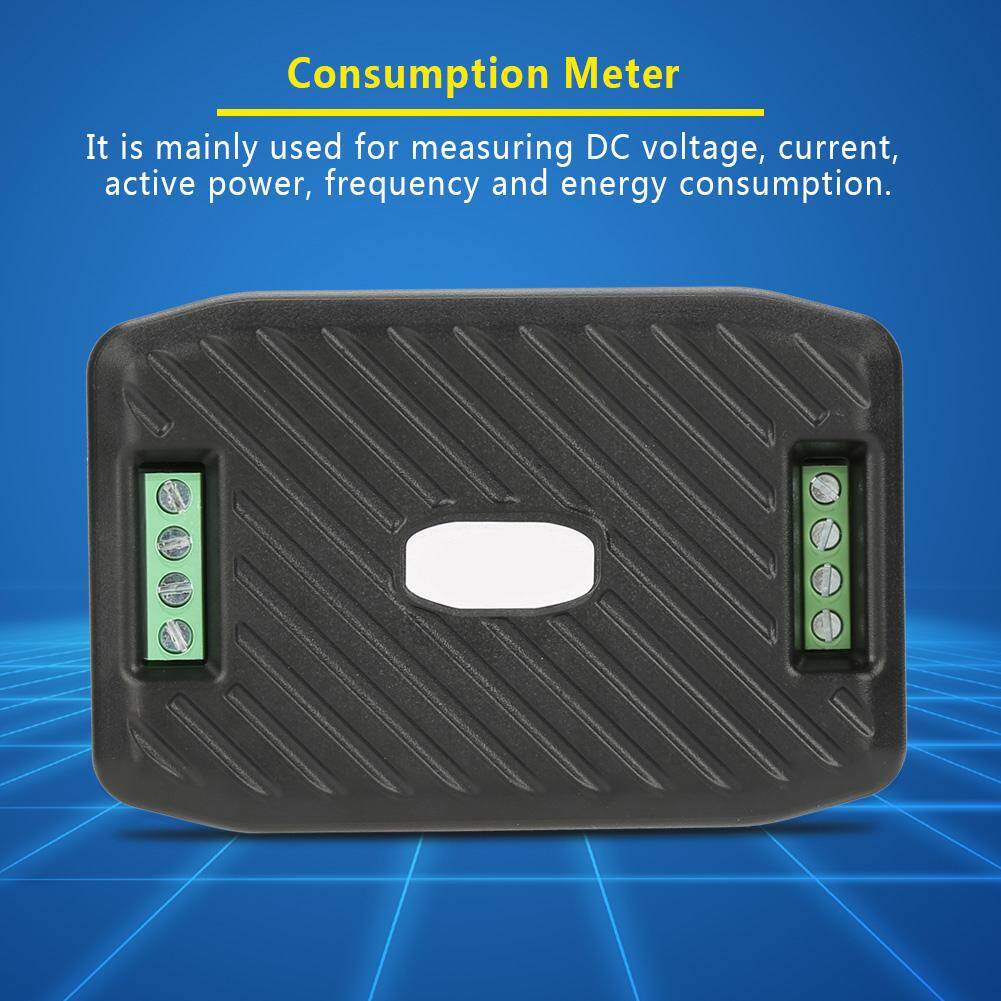

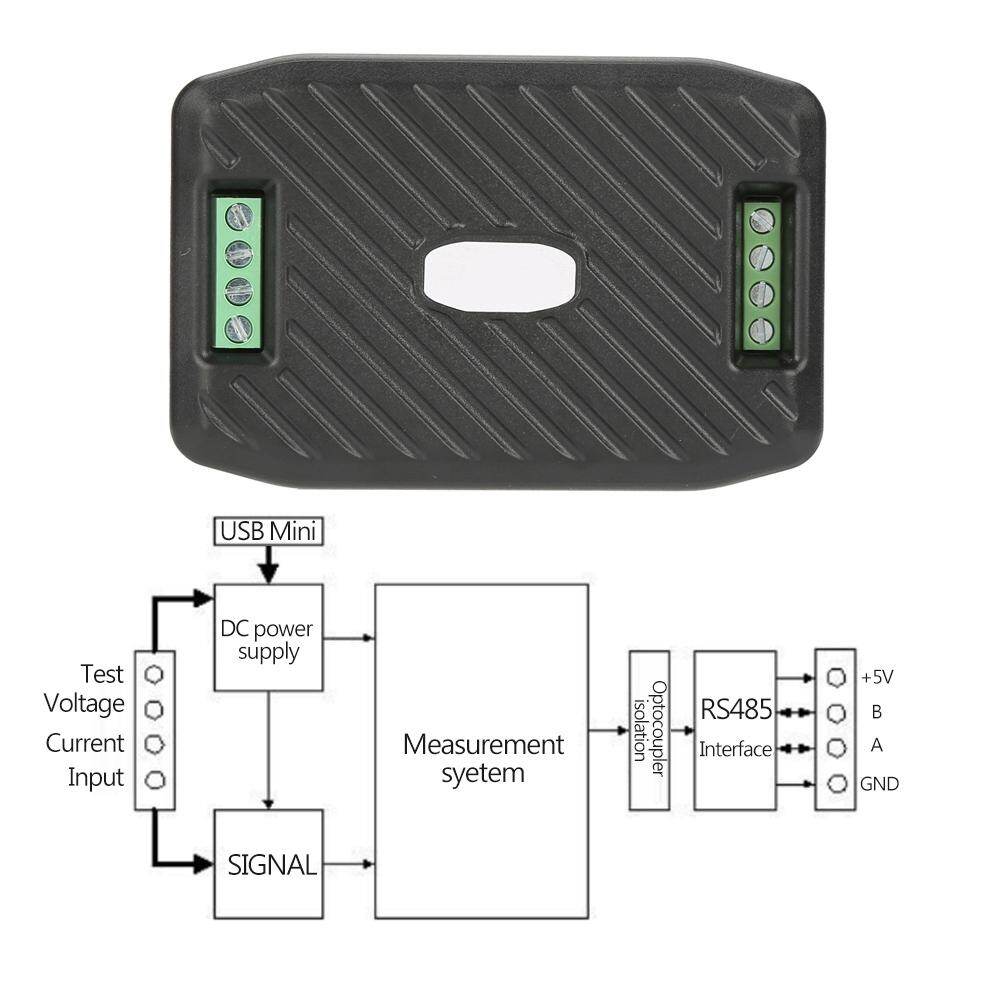

This module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read through the RS485 interface.

Features:

• It is mainly used for measuring DC voltage, current, active power, frequency and energy consumption.

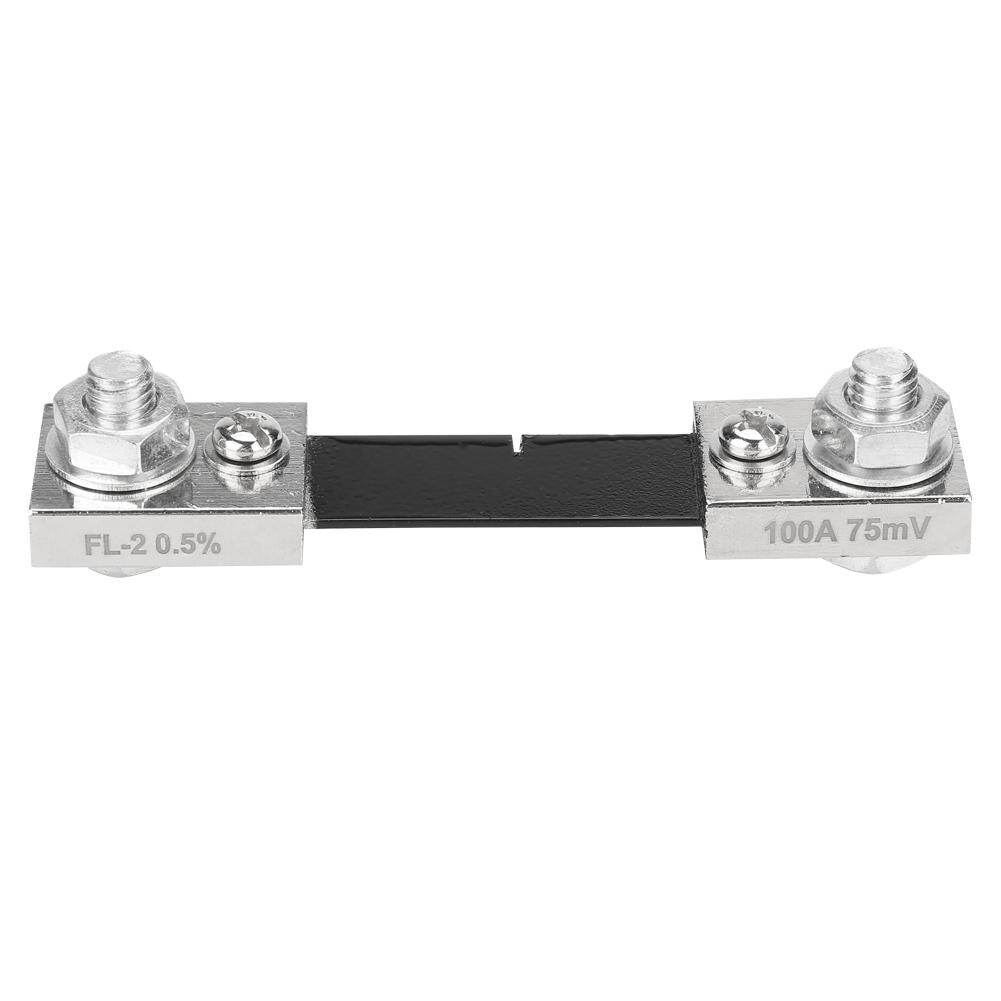

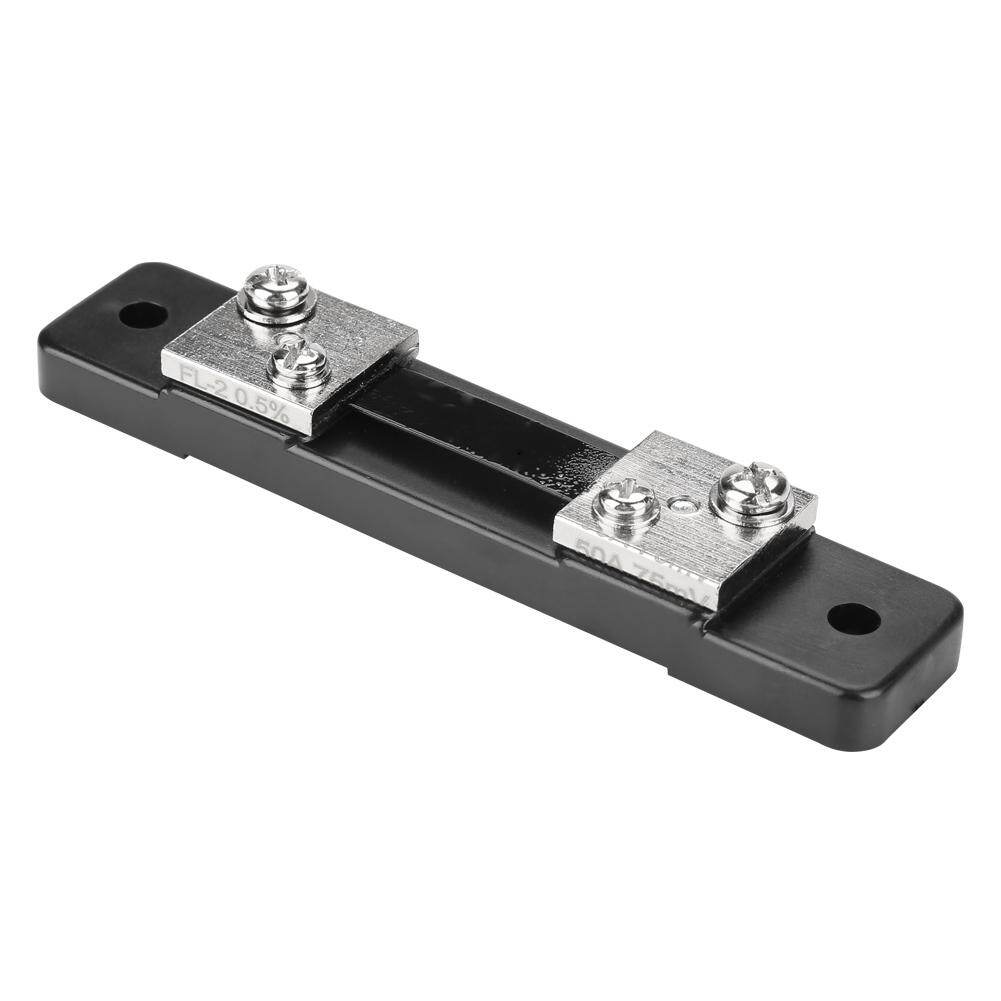

• The current measure range is 50A, 100A, 200A, 300A depend on the external shunt specification.
• There are 10 different kits to choose, enough to meet your various need.

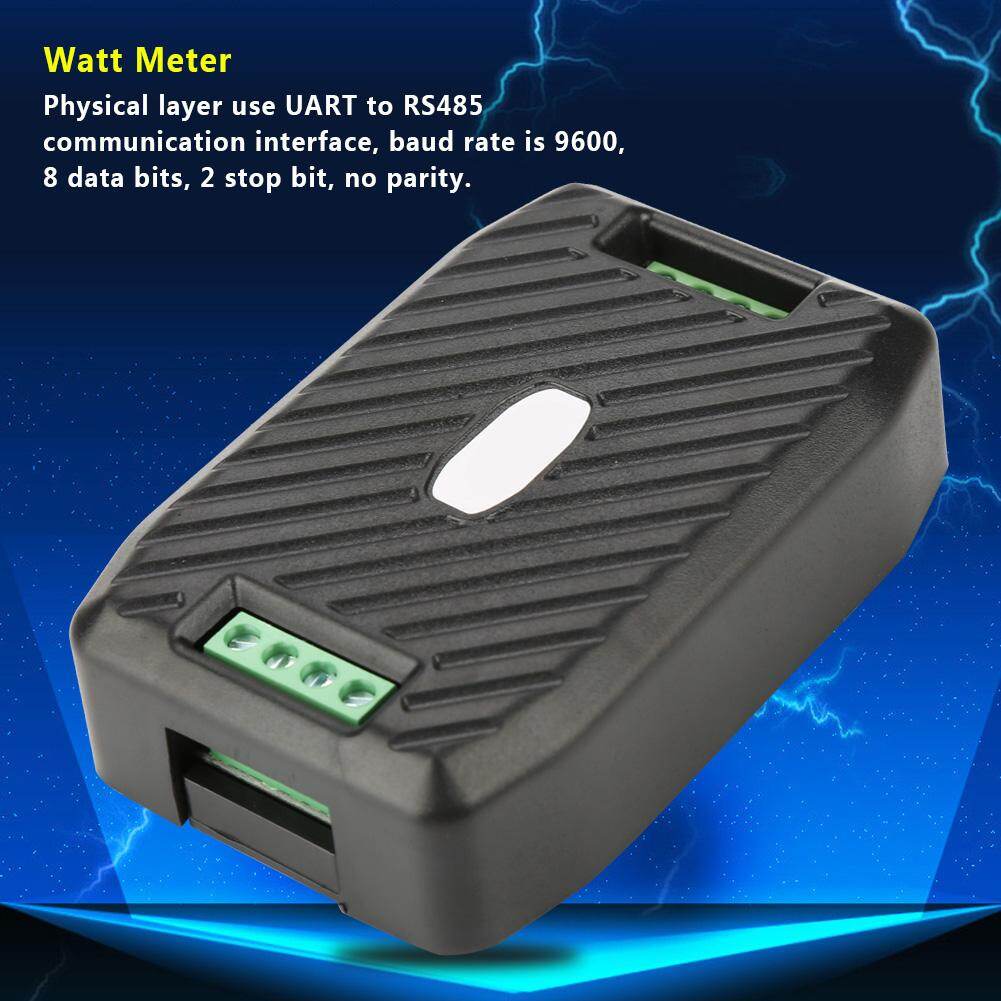

• Physical layer use UART to RS485 communication interface, baud rate is 9600, 8 data bits, 2 stop bit, no parity.
• The application layer use the ModbusRTU protocol to communicate, it only supports function codes such as 0x03, 0x04,0x06, 0x41, 0x42, etc.
• Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm.

Specification:
Brand: PEACEFAIR
Model: PZEM-017
Voltage:

• Measuring Range: 0.05-300V (When the test voltage is ＜7V, please use the independent power supply mode)
• Resolution: 0.01V
• Measurement Accuracy: 1%

Current:

• Measuring Range: 0.02-300A (Can be matched with 50A, 100A, 200A, 300A four kinds of shunt)
• Resolution: 0.01A
• Measurement Accuracy: 1%

Power:

• Measuring Range: 0.2-90kW
• Resolution: 0.1W
• Measurement Accuracy: 1%

Energy Consumption:

• Measuring Range: 0-9999kWh
• Resolution: 1Wh
• Measurement Accuracy: 1%

Reset Energy: Use Software to Reset
Over Voltage Alarm:

• Default High Voltage Threshold: 300V
• Default Low Voltage Threshold: 7V

Communication Interface: RS485 Interface
Working Temperature: -20~60℃

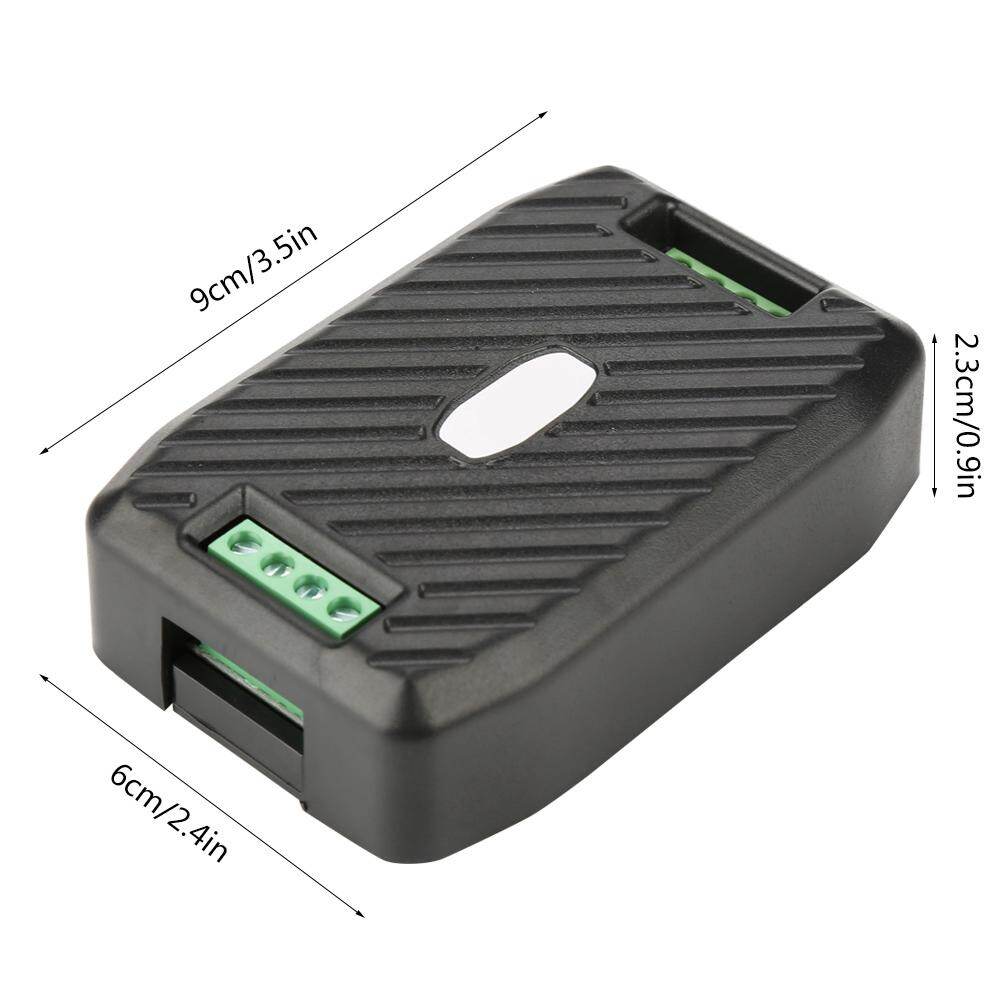

Product Size: Approx. 9*6*2.3cm/3.5*2.4*0.9inch
Weight: Approx. 77g~287g / 2.7oz~10.1oz

Register address	Description	Resolution
0x0000	Voltage value	1LSB correspond to 0.01V
0x0001	Current value	1LSB correspond to 0.01A
0x0002	Power value low 16 bits	1LSB correspond to 0.1W
0x0003	Power value high 16 bits
0x0004	Energy value low 16 bits	1LSB correspond to 1Wh
0x0005	Energy value high 16 bits
0x0006	High voltage alarm status	0xFFFF is alarm,0x0000 is not alarm
0x0007	Low voltage alarm status	0xFFFF is alarm,0x0000 is not alarm

Register address	Description	Resolution
0x0000	High voltage alarm threshold(5~350V), default is 300V	1LSB correspond to 0.01V
0x0001	Low voltage alarm threshold（1~350V）, default is 7V	1LSB correspond to 0.01V
0x0002	Modbus-RTU address	The range is 0x0001~0x00F7
0x0003	The current range	0x0000: 100A 0x0001: 50A 0x0002: 200A 0x0003: 300A

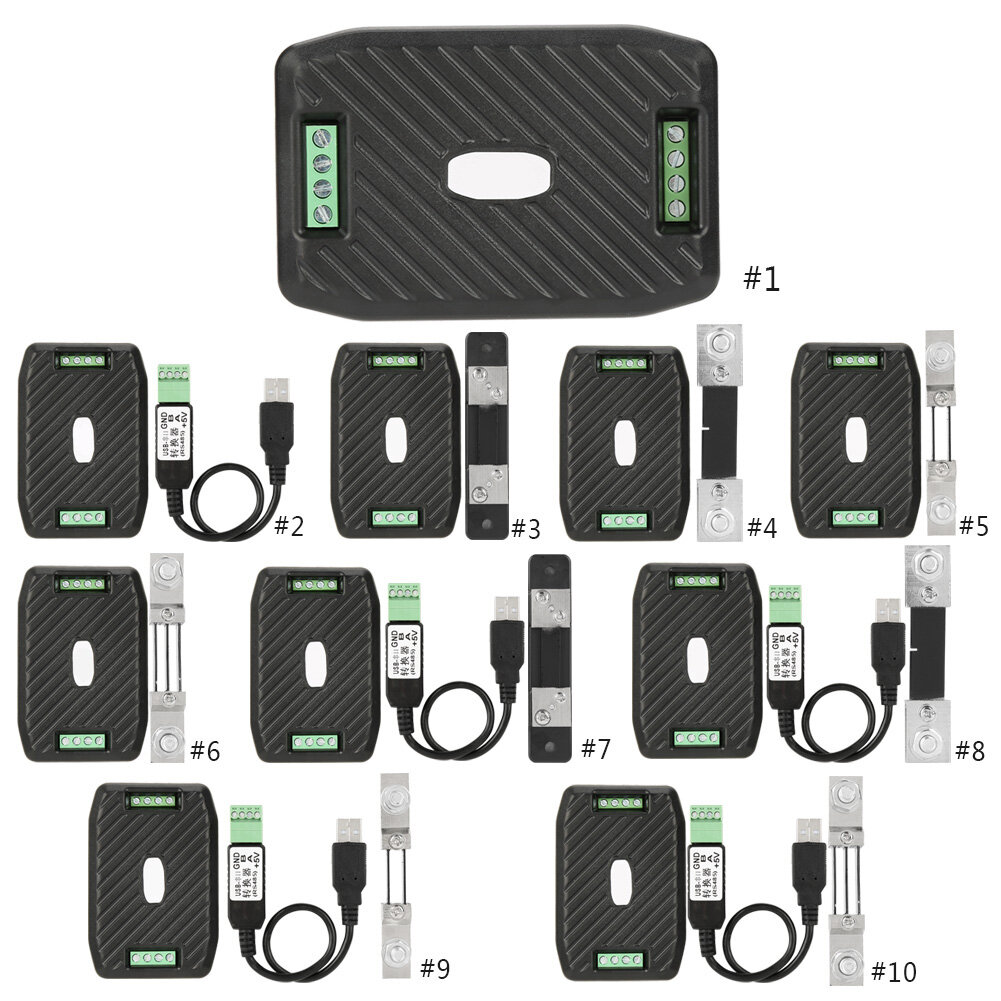

Optional Kit
#1	1 x DC Consumption Meter

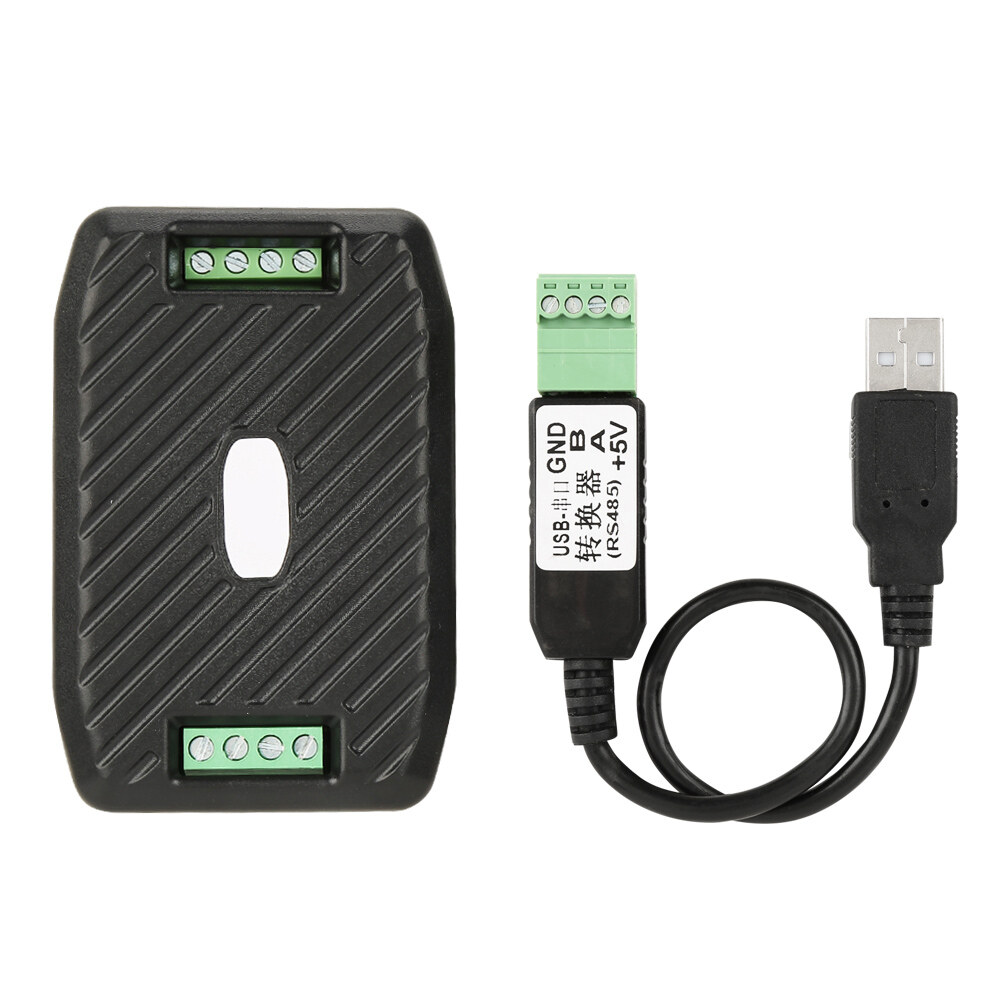

#2	1 x DC Consumption Meter 1 x RS485 to USB Cable
#3	1 x DC Consumption Meter 1 x 50A Shunt
#4	1 x DC Consumption Meter 1 x 100A Shunt
#5	1 x DC Consumption Meter 1 x 200A Shunt
#6	1 x DC Consumption Meter 1 x 300A Shunt
#7	1 x DC Consumption Meter 1 x RS485 to USB Cable 1 x 50A Shunt
#8	1 x DC Consumption Meter 1 x RS485 to USB Cable 1 x 100A Shunt
#9	1 x DC Consumption Meter 1 x RS485 to USB Cable 1 x 200A Shunt
#10	1 x DC Consumption Meter 1 x RS485 to USB Cable 1 x 300A Shunt

Note:

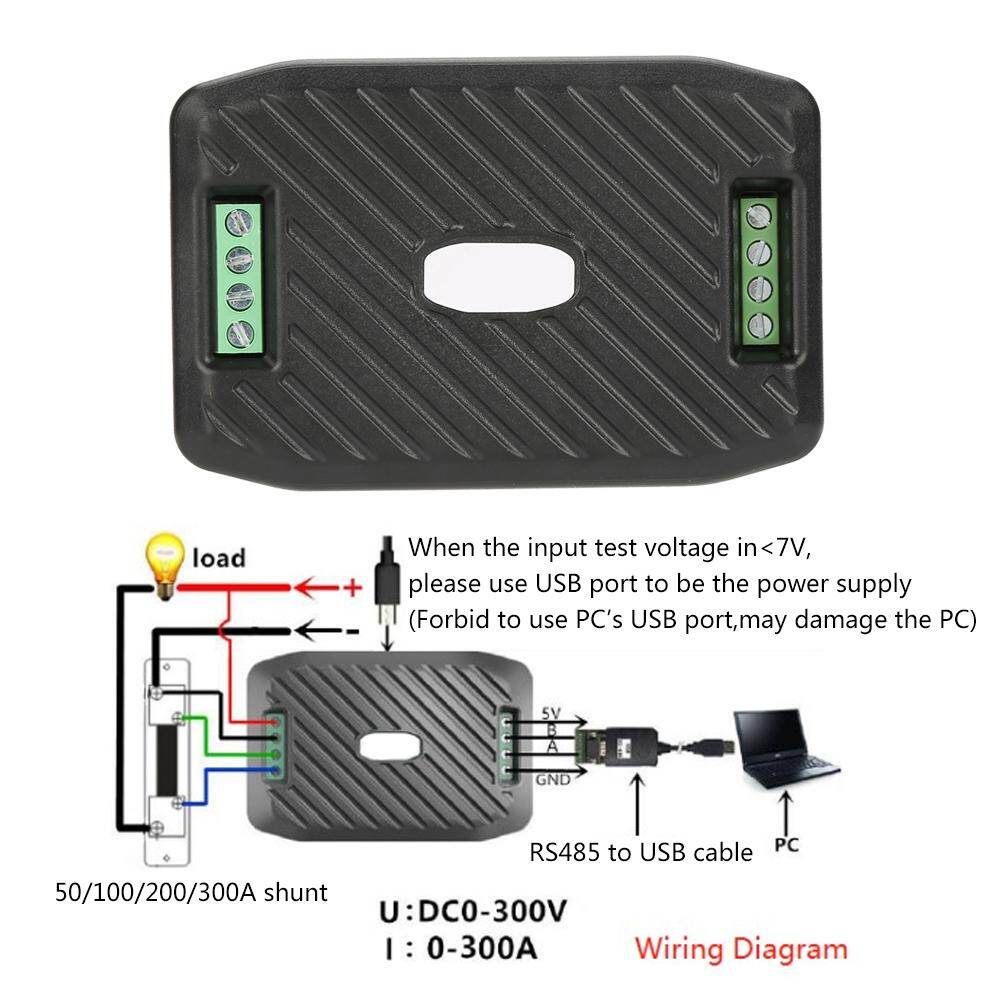

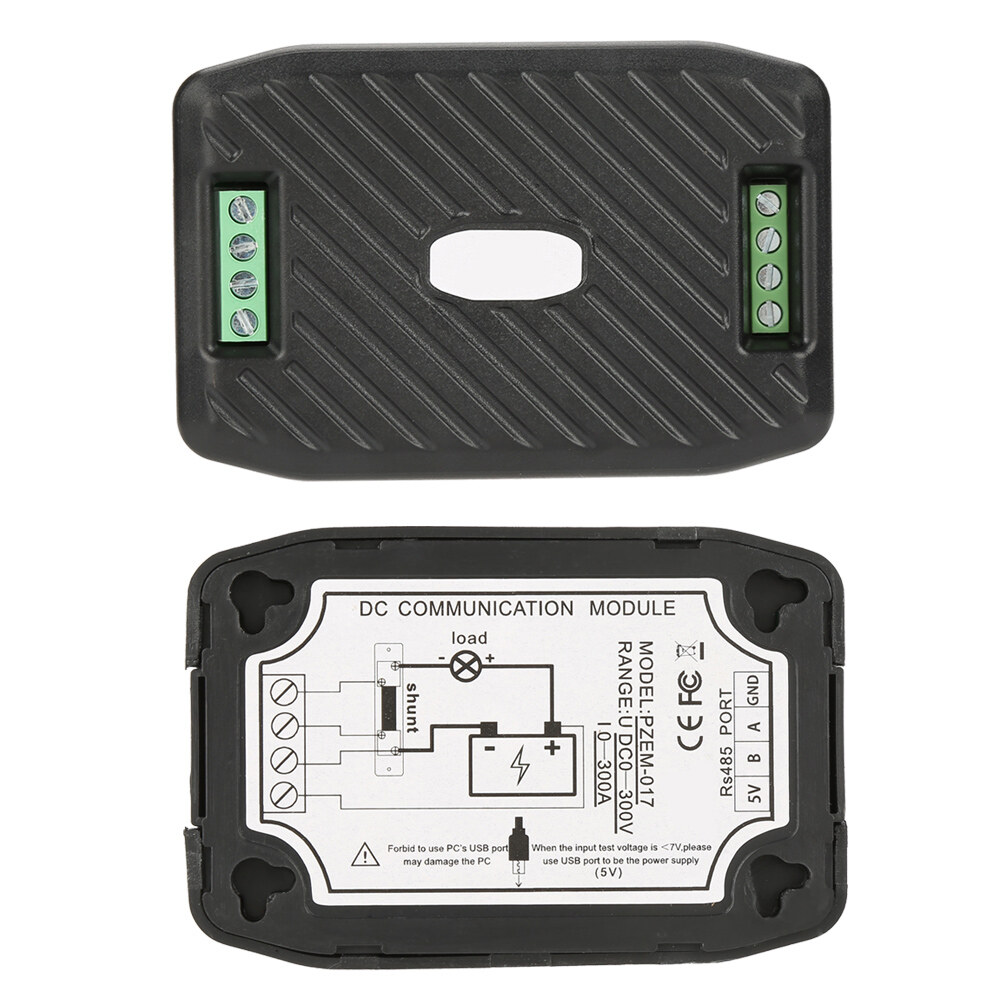

1. RS485 interface is passive output, need external connect 5V power supply and the external power supply should ＞100mA.
2. When the input test voltage is less than 7V, it must supply 5V independent work voltage through USB port.
3. Do NOT use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC.
