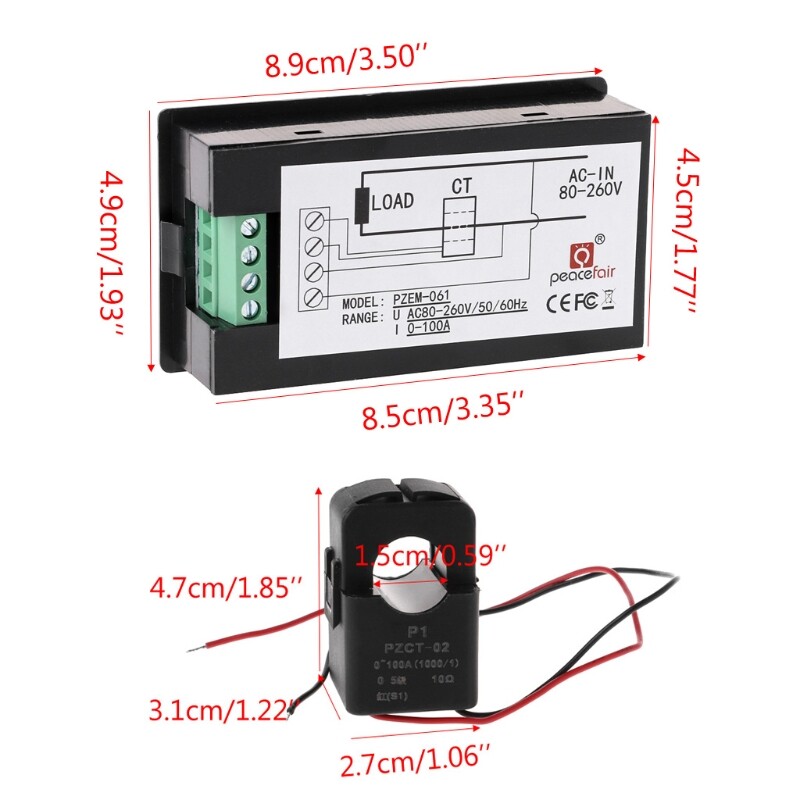

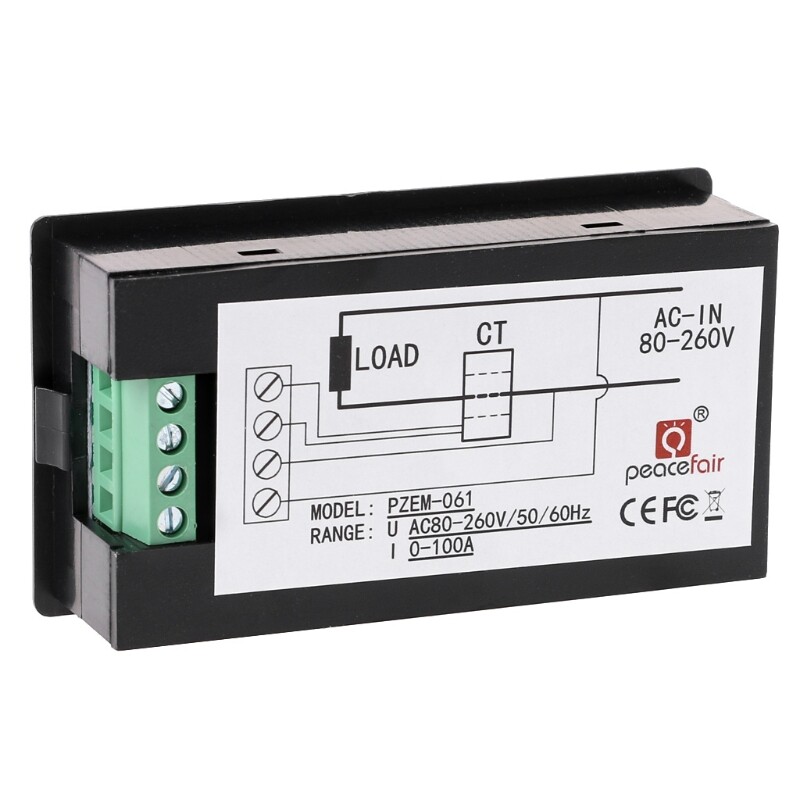

AC 80-260V 100A Voltage Current Watt Power Energy Meter PZEM-061 with Split CT

Digital AC 80-260V 100A 4IN1 voltage current power energy Voltmeter Ammeter Watt Power Meter With Split CT

Features:
1. Voltage test range: AC 80~260V; Current test range: 0~100A; Power test range: 0~22kW; Energy test range: 0~9999kWh.

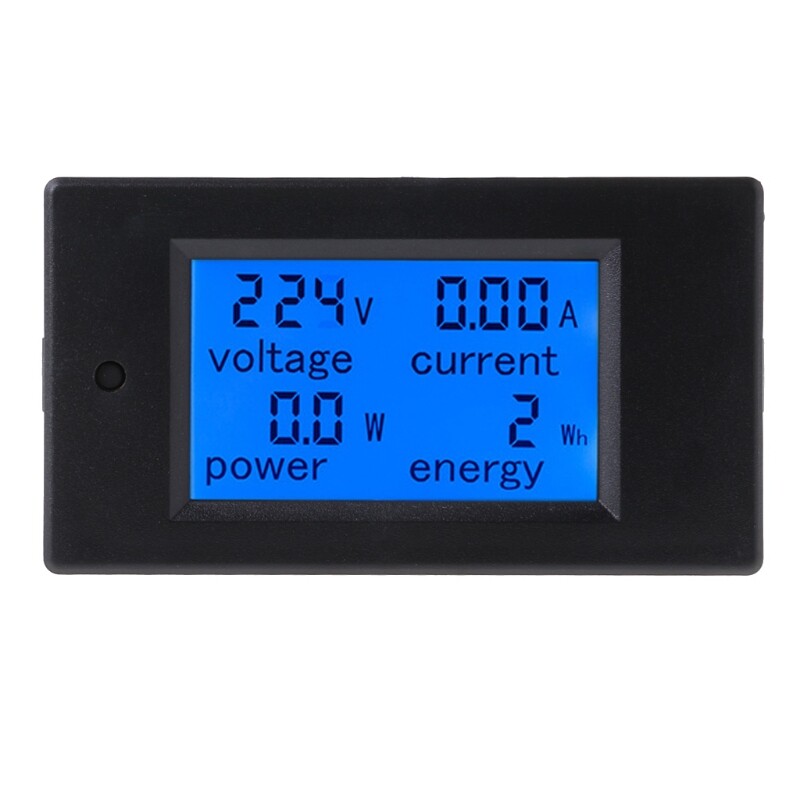

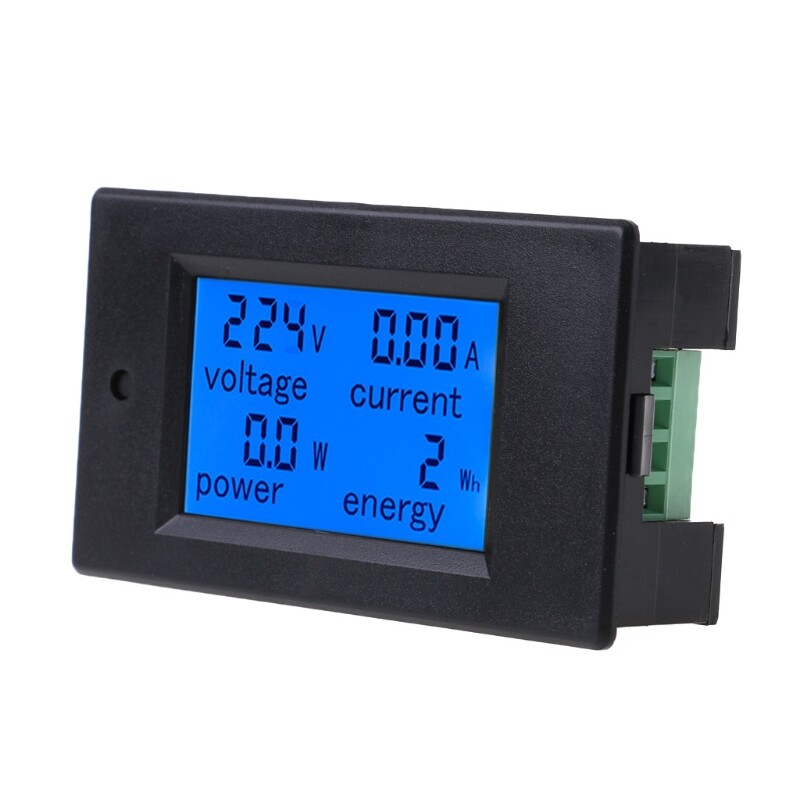

2. It is a compact, lightweight and functional multi-meter, with large-screen LCD display, can display voltage, current, active power and energy at the same time. It does not control or effect the load in any way.
3. Perfect to work with a generator or solar panel setup, also great to monitor accumulated energy usage on devices that cycle on and off(refrigerator, dehumidifier, washing machine, wall a/c unit) and the phantom load(cable modem, router, DVR).
4. Multifunctional: the accumulated energy can be reset by button; Store data when power off; Voltage alarm function (over voltage alarm threshold, backlight and voltage will flash to alarm).
5. The blue backlight can be turned on/off by the front accessible recessed switch located on the right side bezel.

Specifications:
Working/Test Voltage: AC 80~260V
Measuring Accuracy: 1.0 grade
Rated Power: 100A/22000W
Operating Frequency: 45~65Hz
Measurement Speed: 2 times/s
Store Energy data when power off. Can be reset to 0
The blue backlight can be turned on/off manually

Test Range and Display Format:
1. Active Power Test Range: 0~22kW
2. Energy Test Range: 0~9999kWh
3. Voltage Test Range: AC 80~260V
4. Current Test Range: 0~100A

Matters Need Attention:
1. This module is only suitable for 80~260V AC power.
2. Applied load should not exceed the rated power.

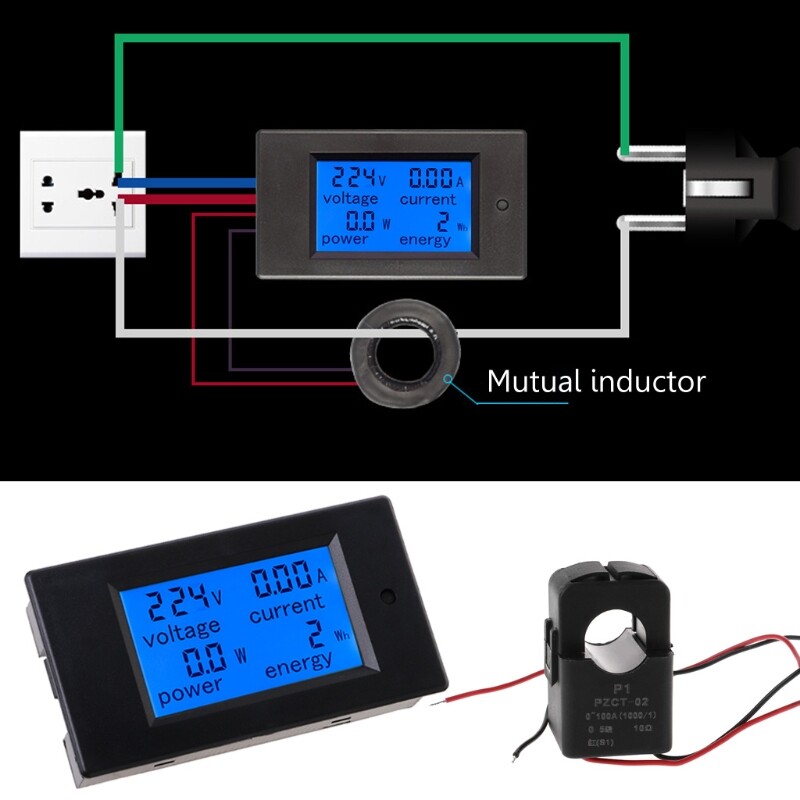

3. Wiring order cannot be wrong.
4. This module is suitable for indoor, please do not use outdoor.

Packing Included:

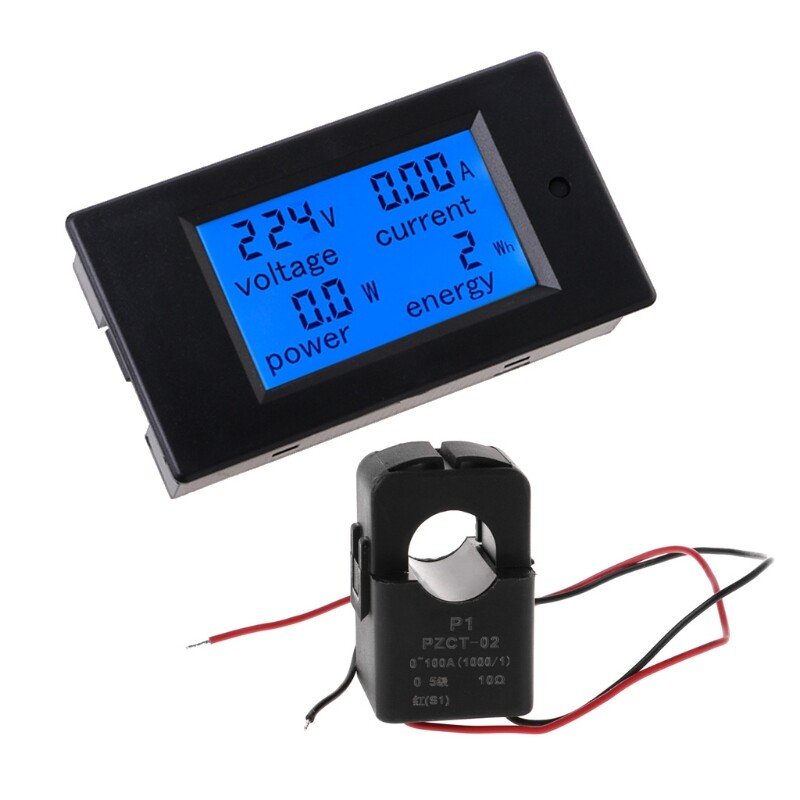

1x AC 80~260V 100A Power Multimeter

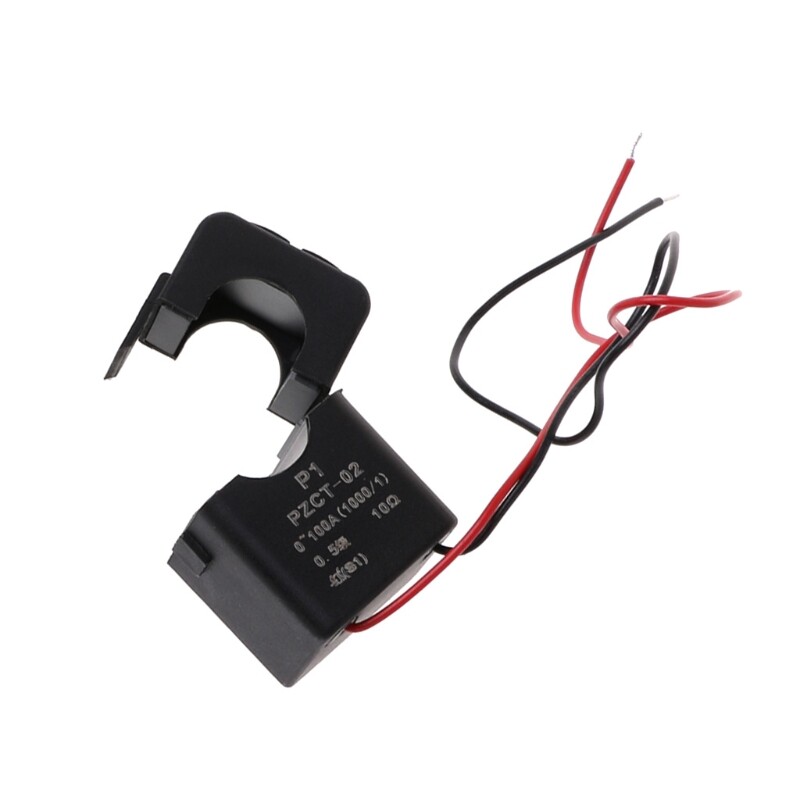

1x AC 100A Open-Close Split Current Transformer
