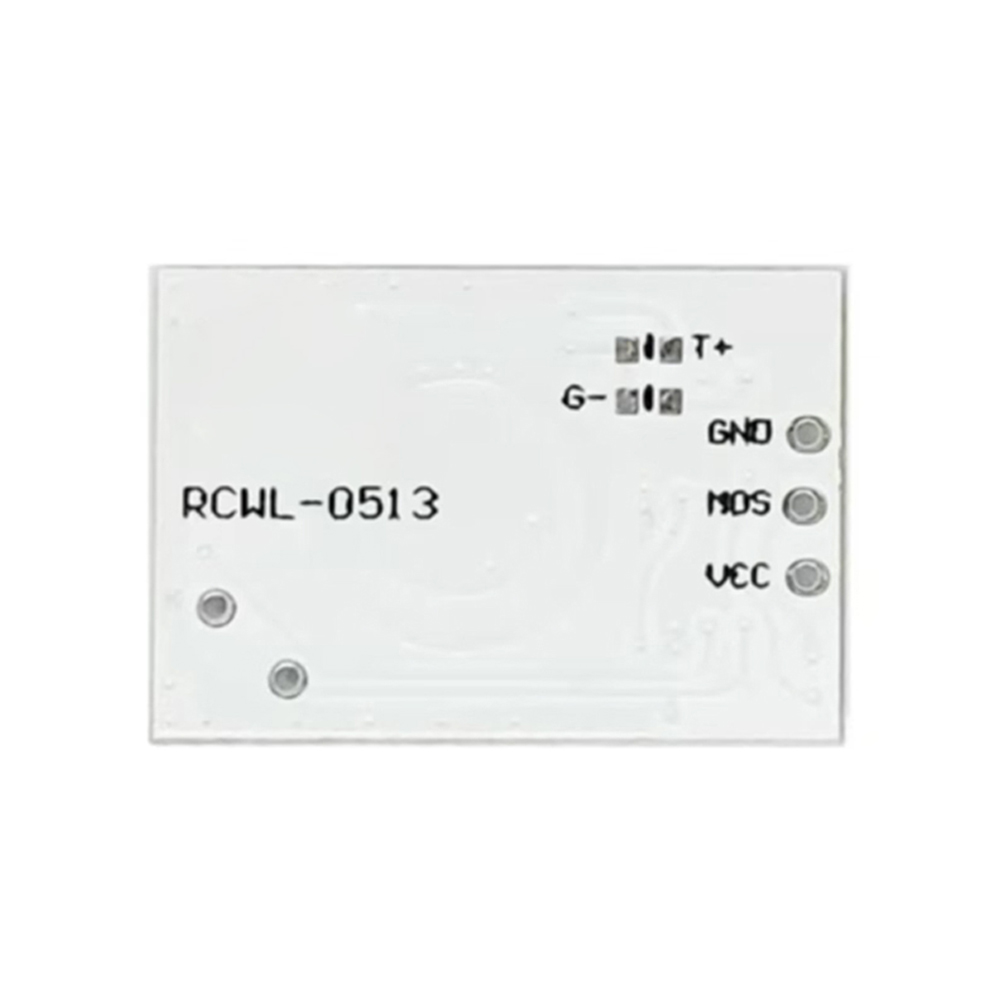

PANTHON RCWL-0513 Microwave Radar Sensor Human Sensor Body Sensor Module Induction Switch Module

Features:
1.Using lead-free process
2.Adjustable sensing distance and repeated triggering time
3.Widely used in corridor lights, induction lights, solar lights, UV disinfection lights, bathroom induction lights, human movement sensing, etc
4.Microwave induction module specifically designed to detect object movement
5.This module has the characteristics of high sensitivity, strong reliability, large sensing angle, and wide working voltage

Product Overview
RCWL-0513 is a microwave induction module that uses Doppler radar technology to detect object movement.

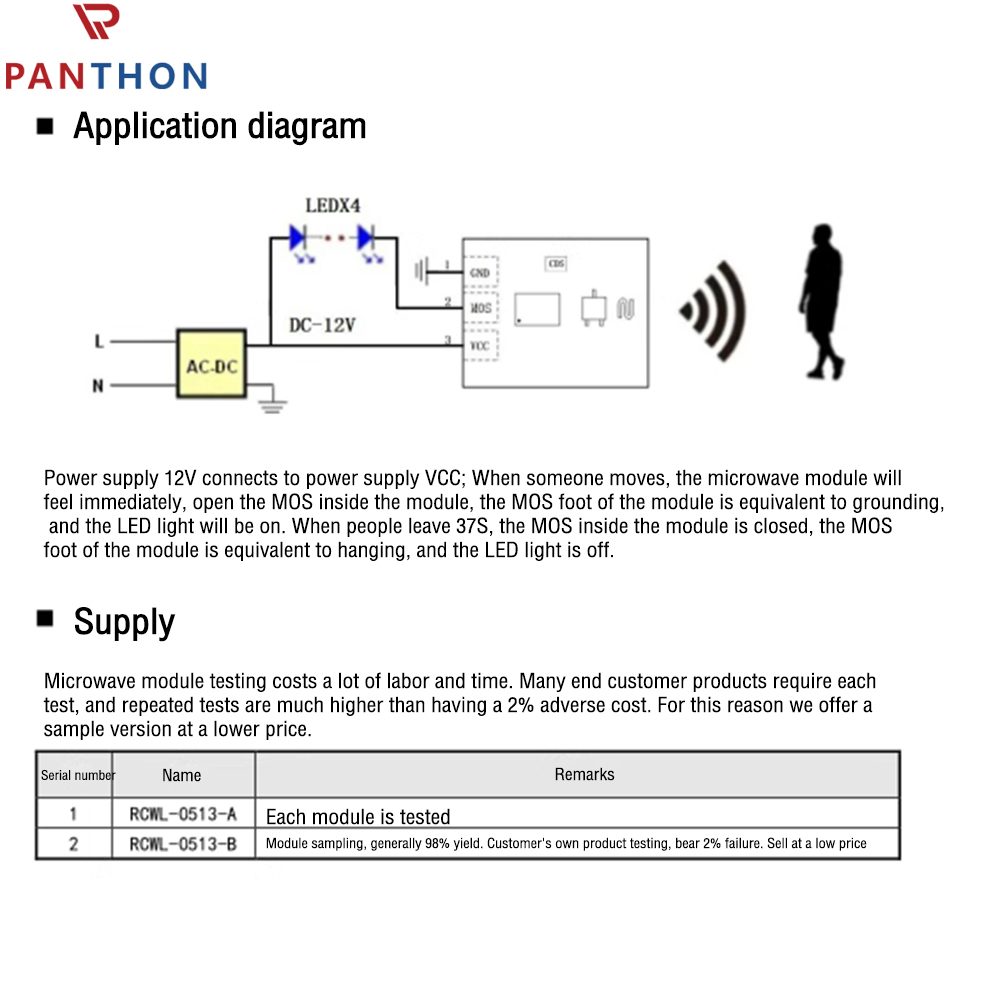

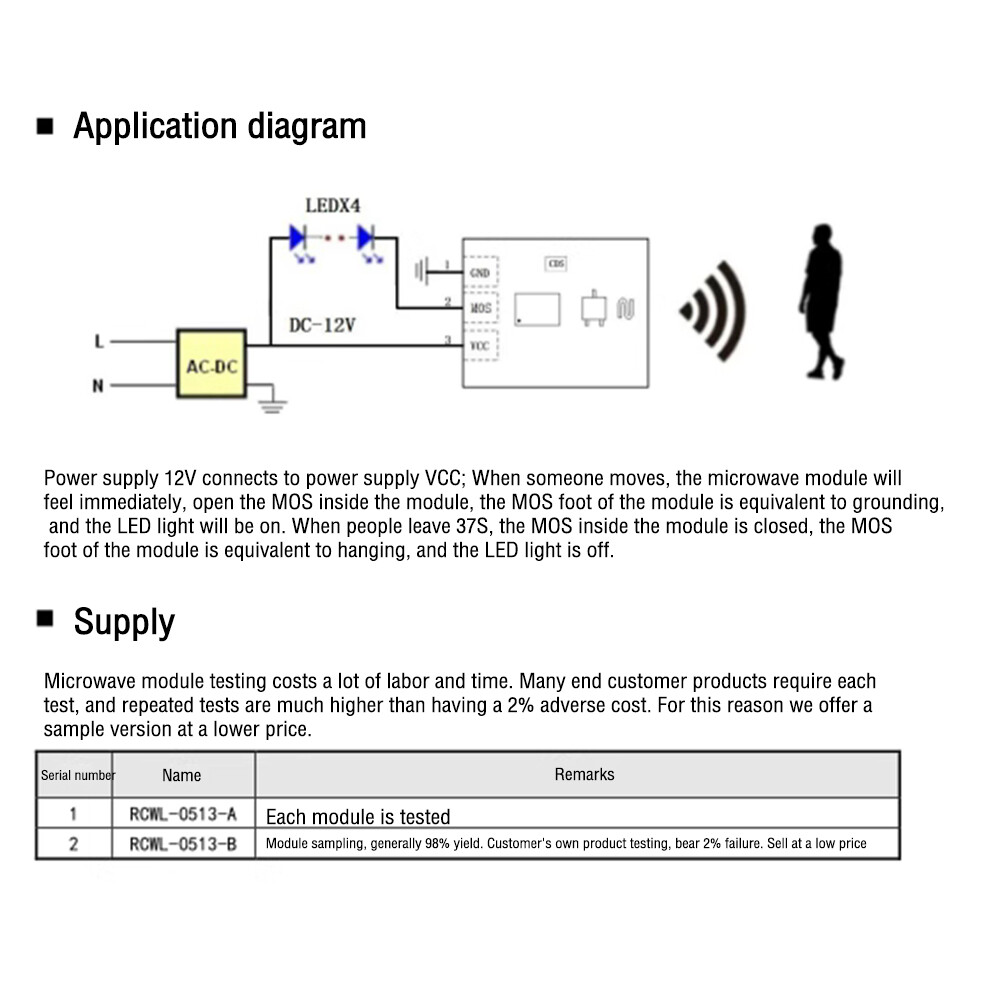

Adopting 3G microwave signal detection and built-in MOS (3A), it can directly drive external LED lights or loads, with an input voltage of up to 30V.
Microwave induction is a new type of dead angle free induction mode based on the principle of Doppler radar.
Compared with infrared induction, microwave induction has a longer distance, wider angle, no dead zone, and can penetrate glass and thin wooden boards; Not affected by environment, temperature, dust, etc
Sound; At 37 degrees, the sensing distance will not be shortened. Widely used in various occasions such as human body induction lighting and anti-theft alarms!
Main features of the product

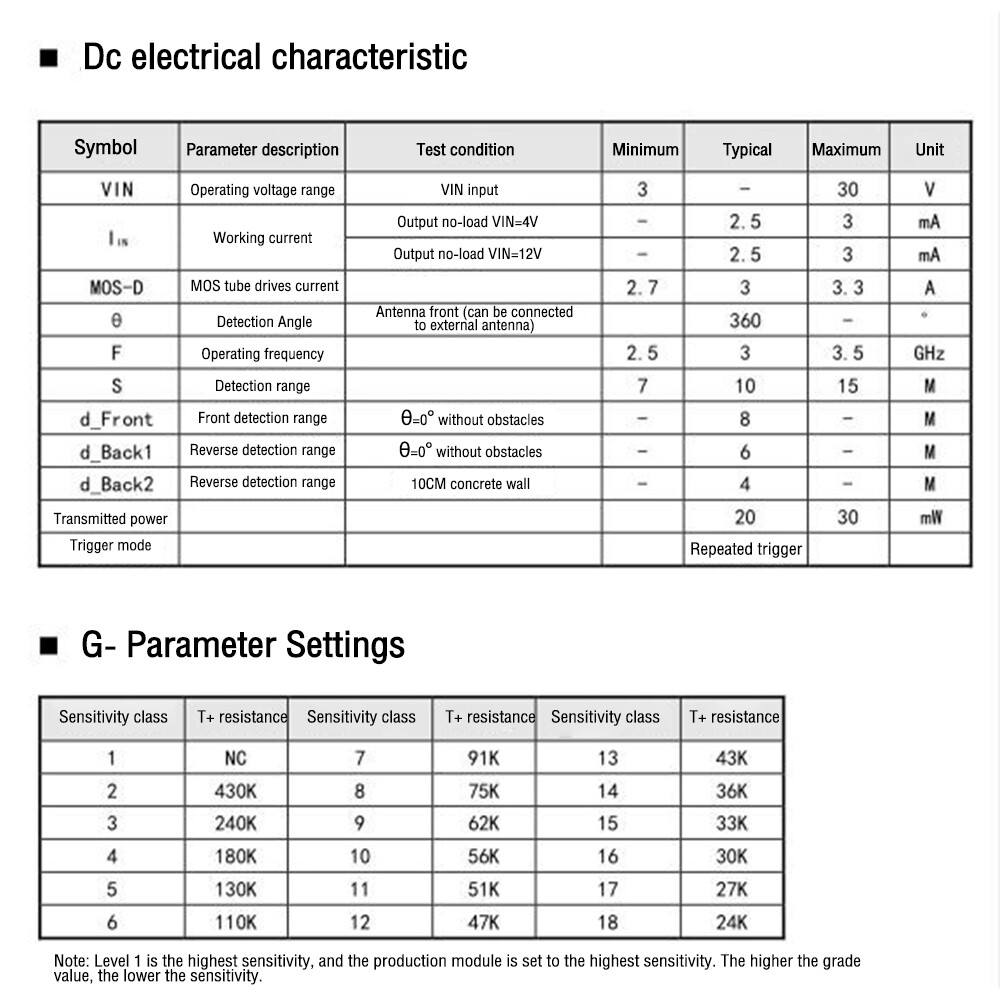

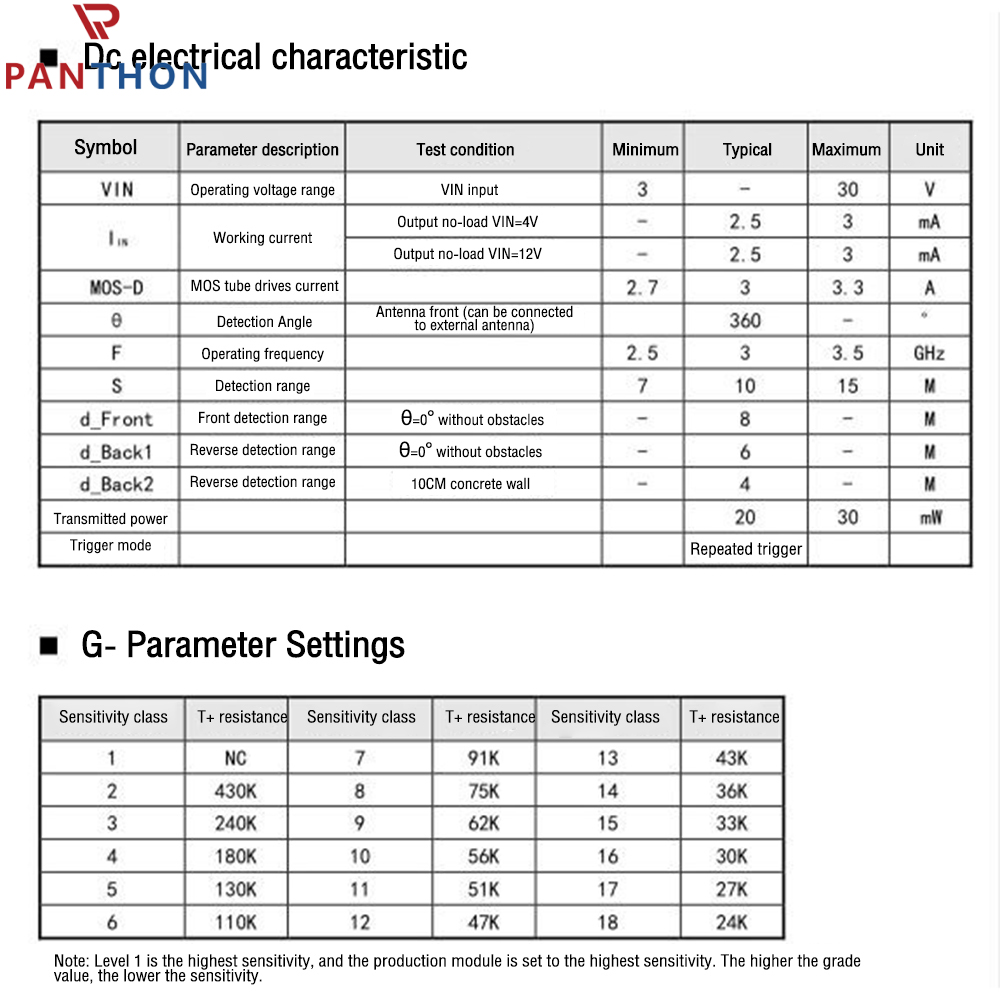

Parameter:

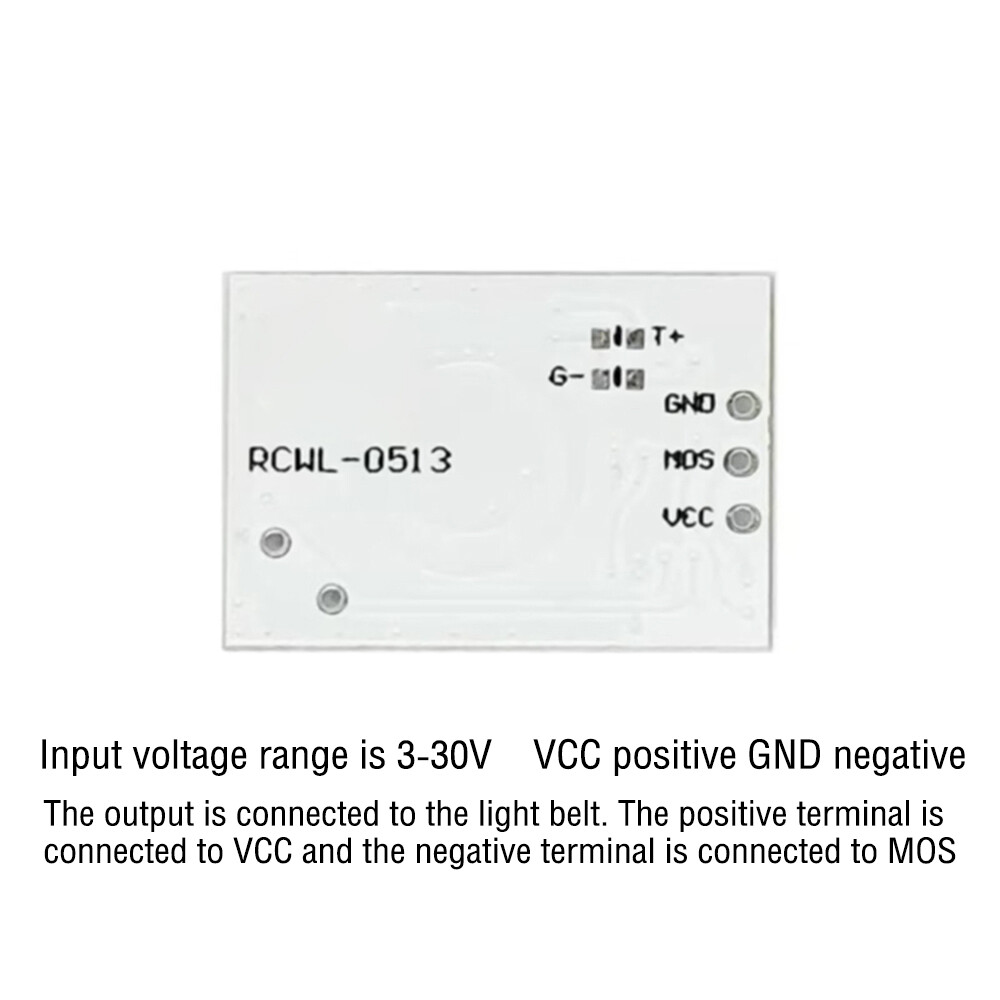

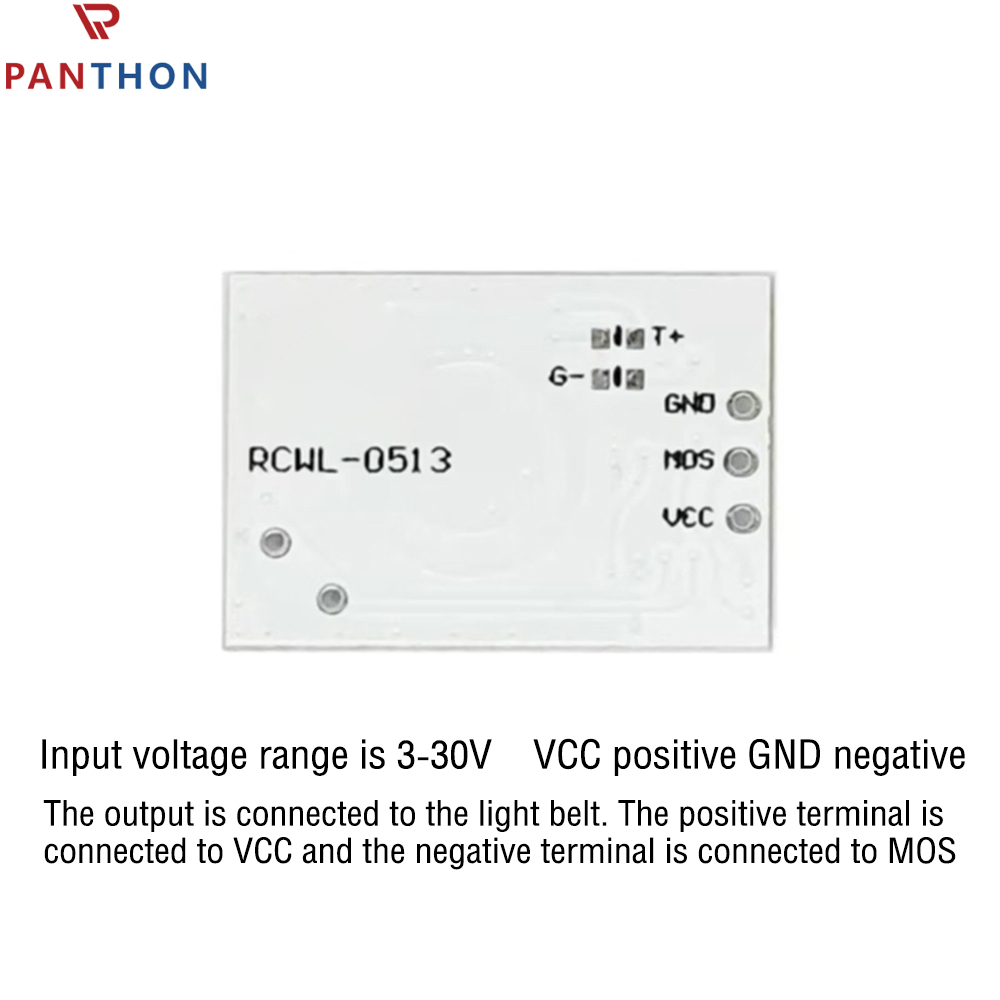

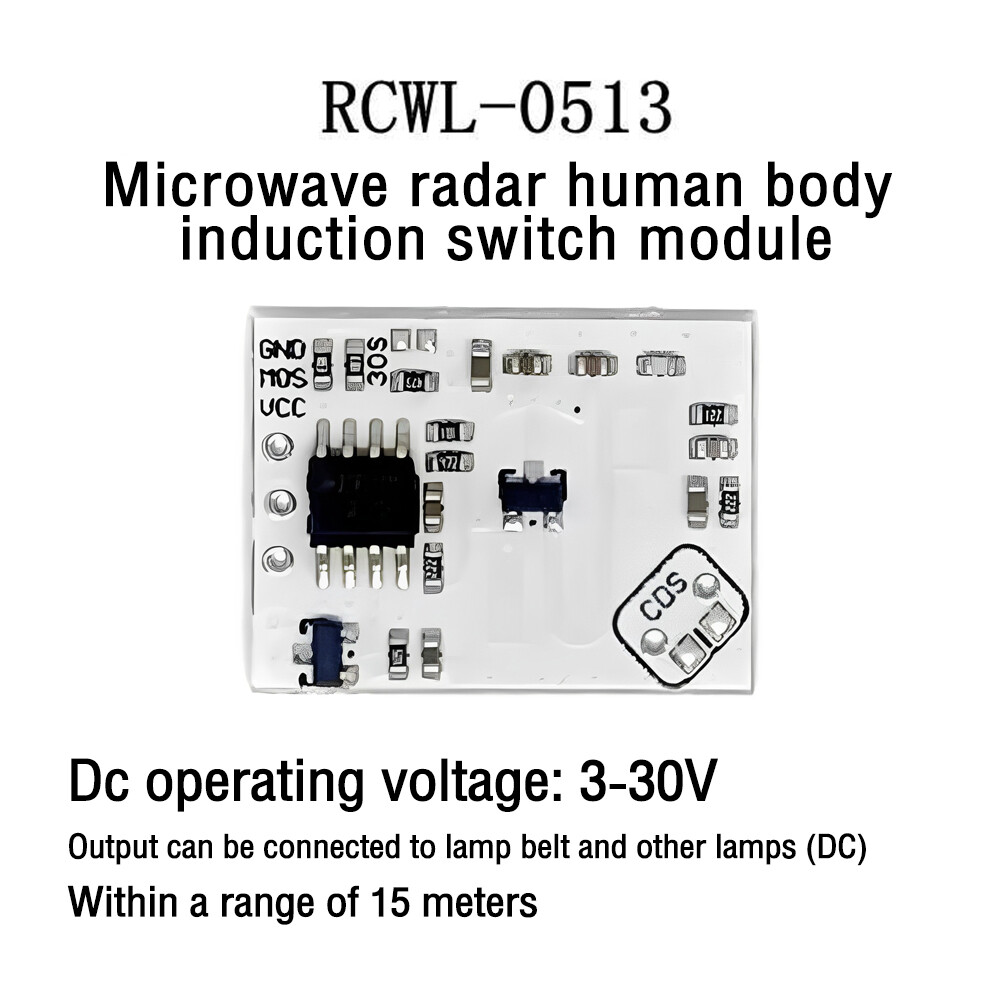

Working voltage: 3-30V
Working current: 2.5mA
Working frequency: 3GHz
Built in 3AMOS

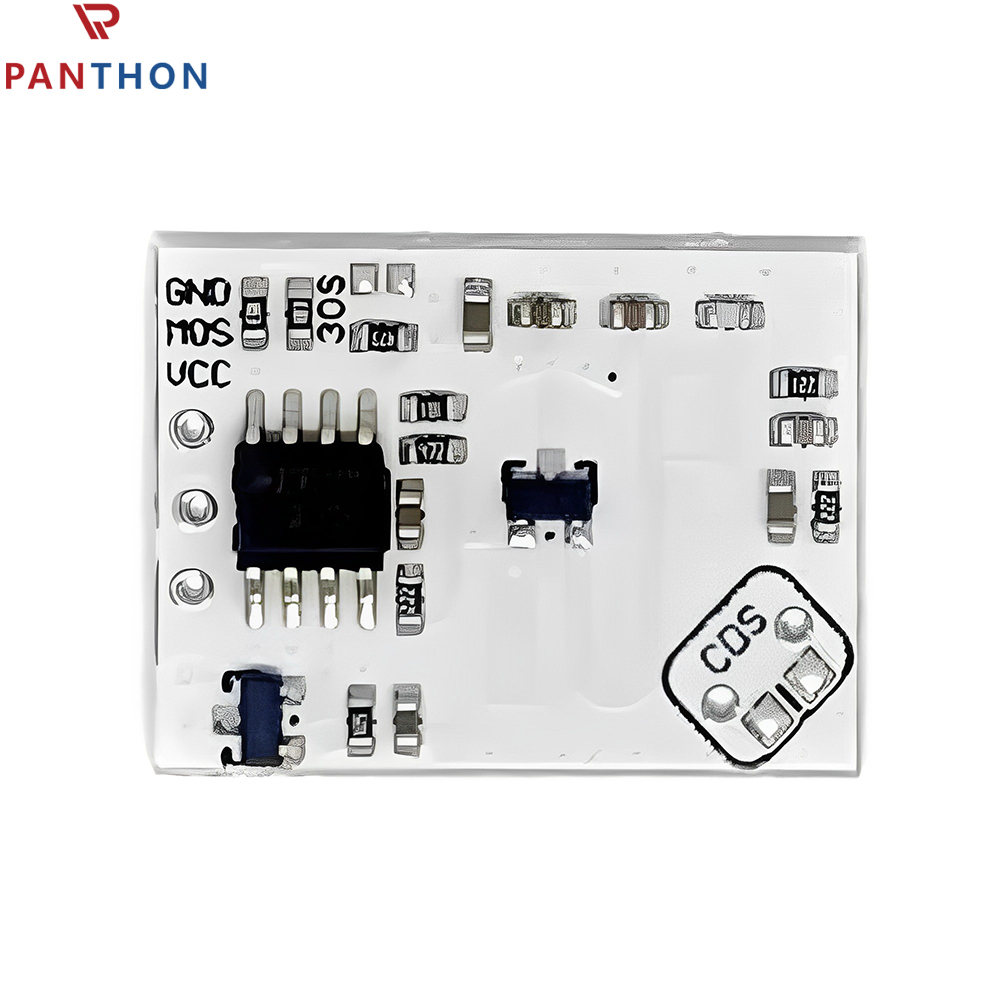

Reserved patch and inline CDS interface
Typical sensing range
Adjustable sensing distance
Lead-free process

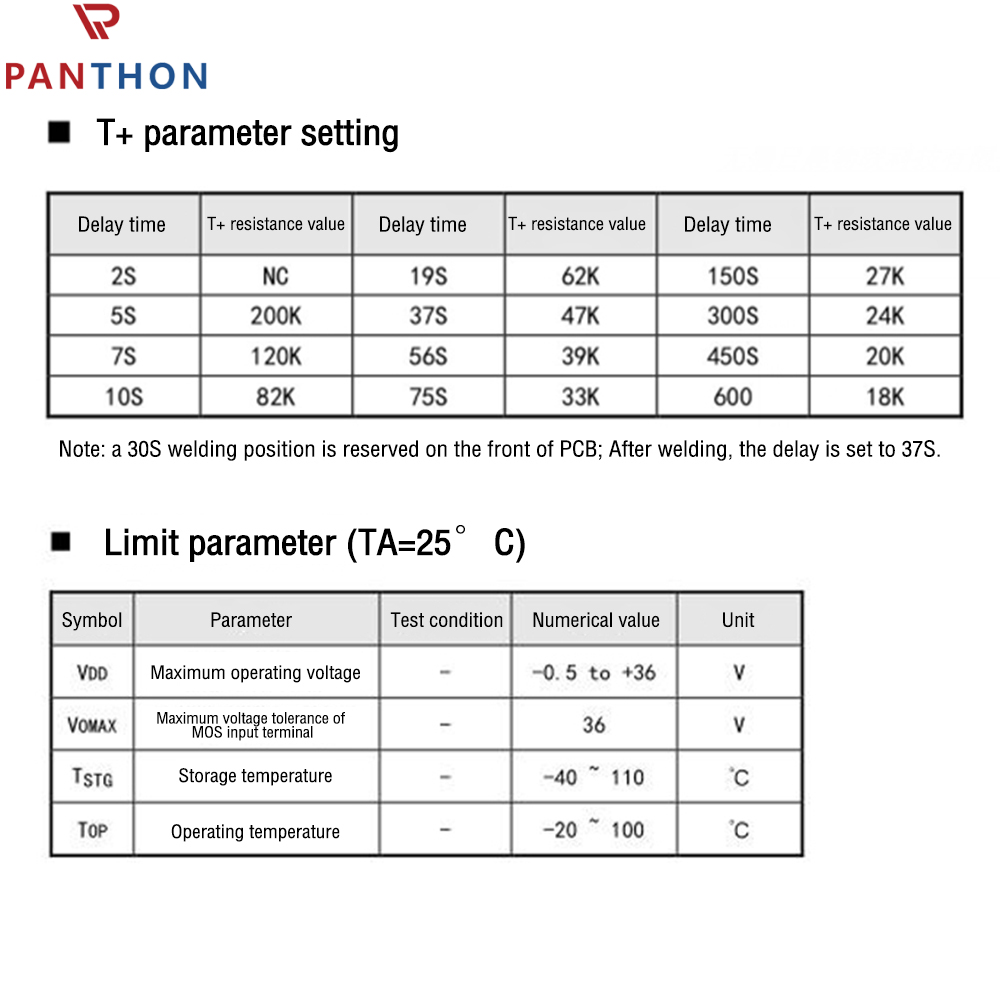

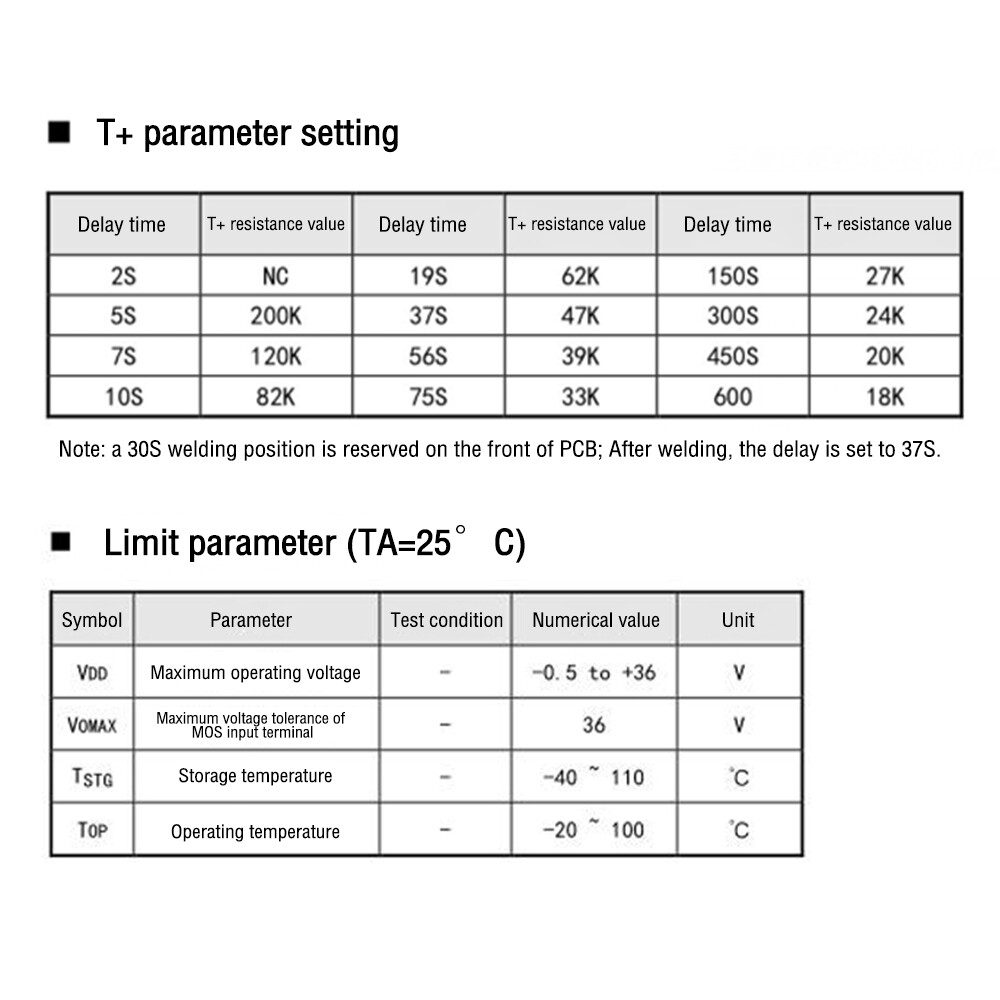

Adjustable repeat trigger time
Within a typical sensing range of 15 meters
Corridor light, induction light, solar light
UV disinfection lamp, bathroom induction lamp
Human motion sensing

Package include:
Module X1
