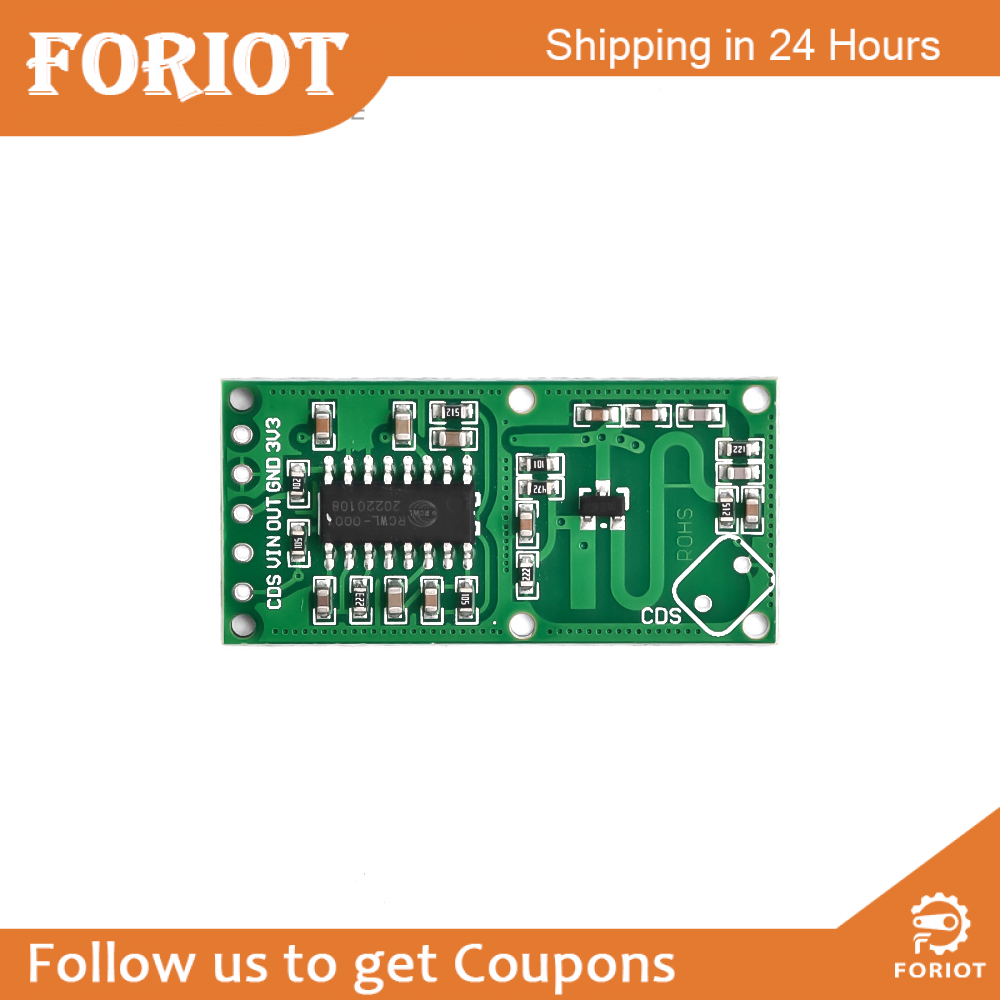

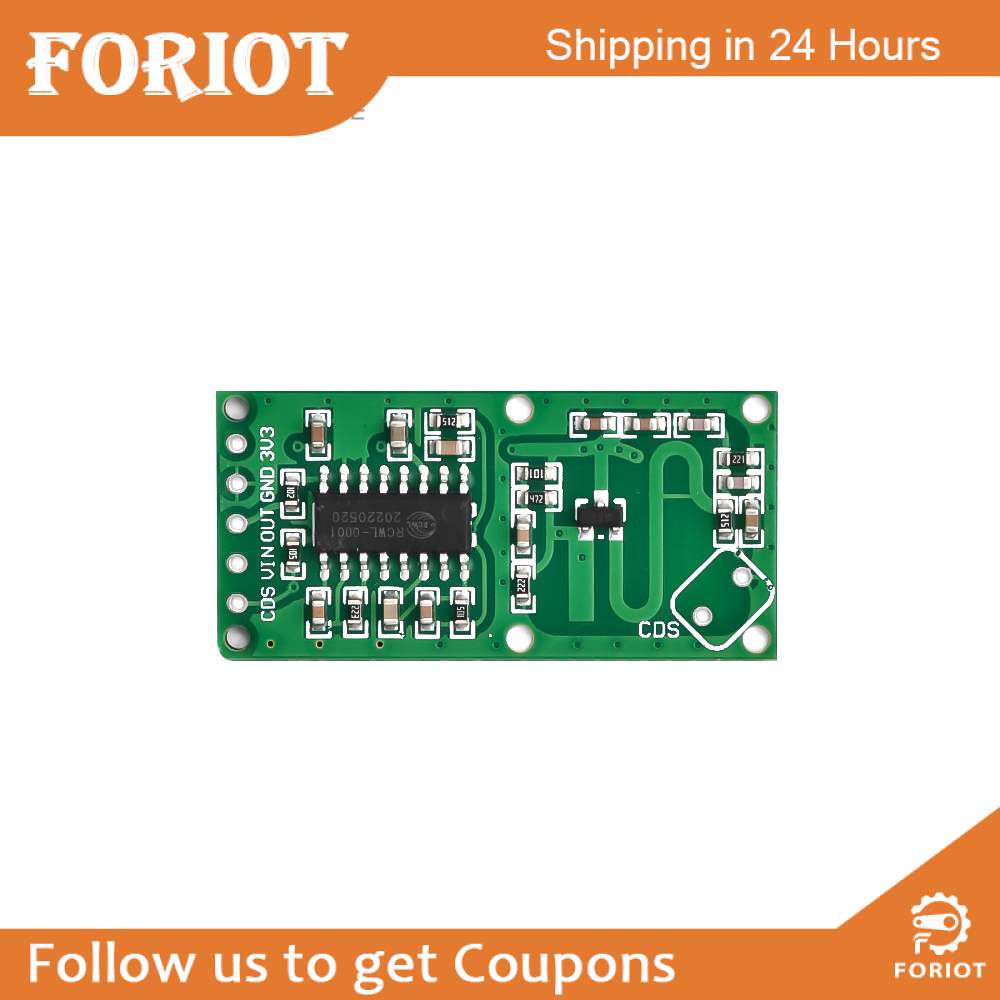

Foriot Mô-đun Cảm Biến Chuyển Động Radar Vi Sóng Mô-đun Công Tắc Thông Minh Mô-đun Cảm Ứng Cơ Thể Người Khoảng Cách Phát Hiện 6-12M 4-28V

Features:

1.Use high-quality materials, durable

2.High sensitivity and long sensing distance

3.Delicate and compact appearance

4.Wide range of power supply voltage

5.Widely used in various occasions such as human body sensing lighting and anti-theft alarm

Parameters:

Wide voltage working range: 4-28V

Compared with traditional infrared induction PIR, it has penetration detection capability

Blocking time, distance adjustable

Output 3.3V power supply

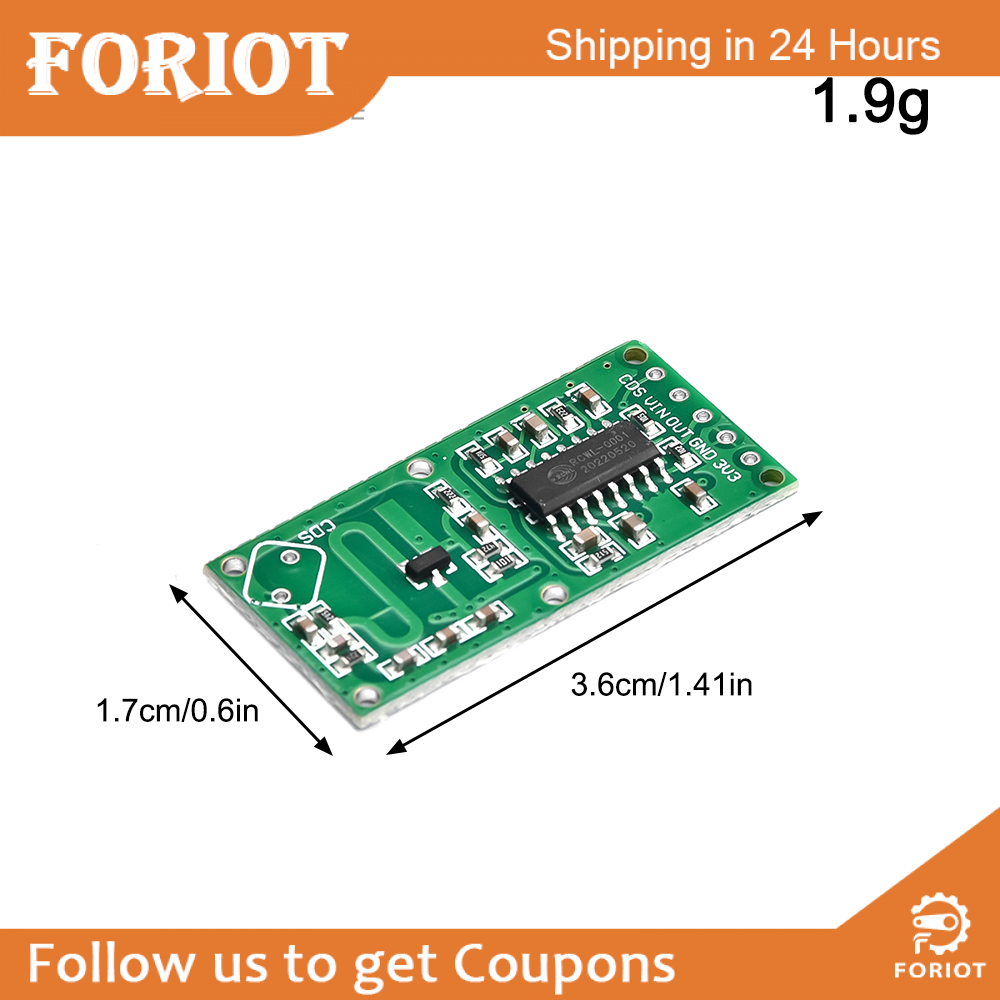

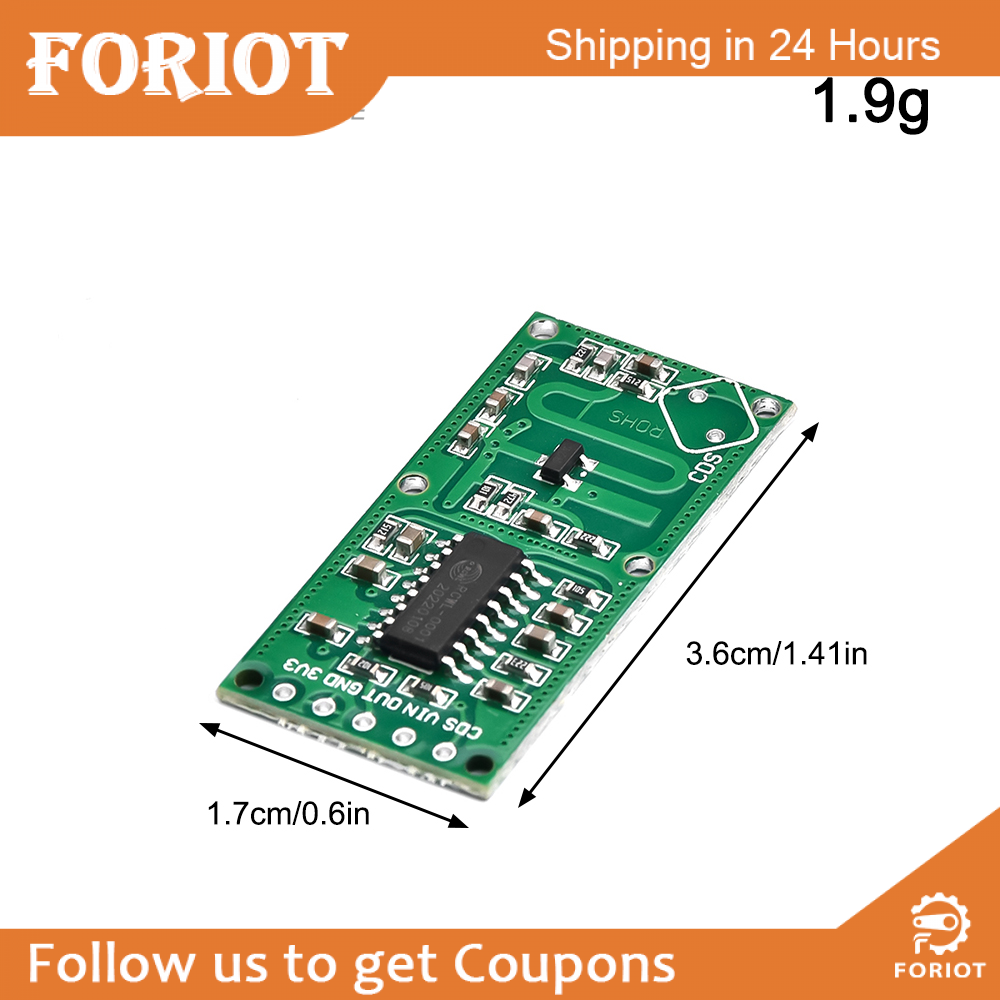

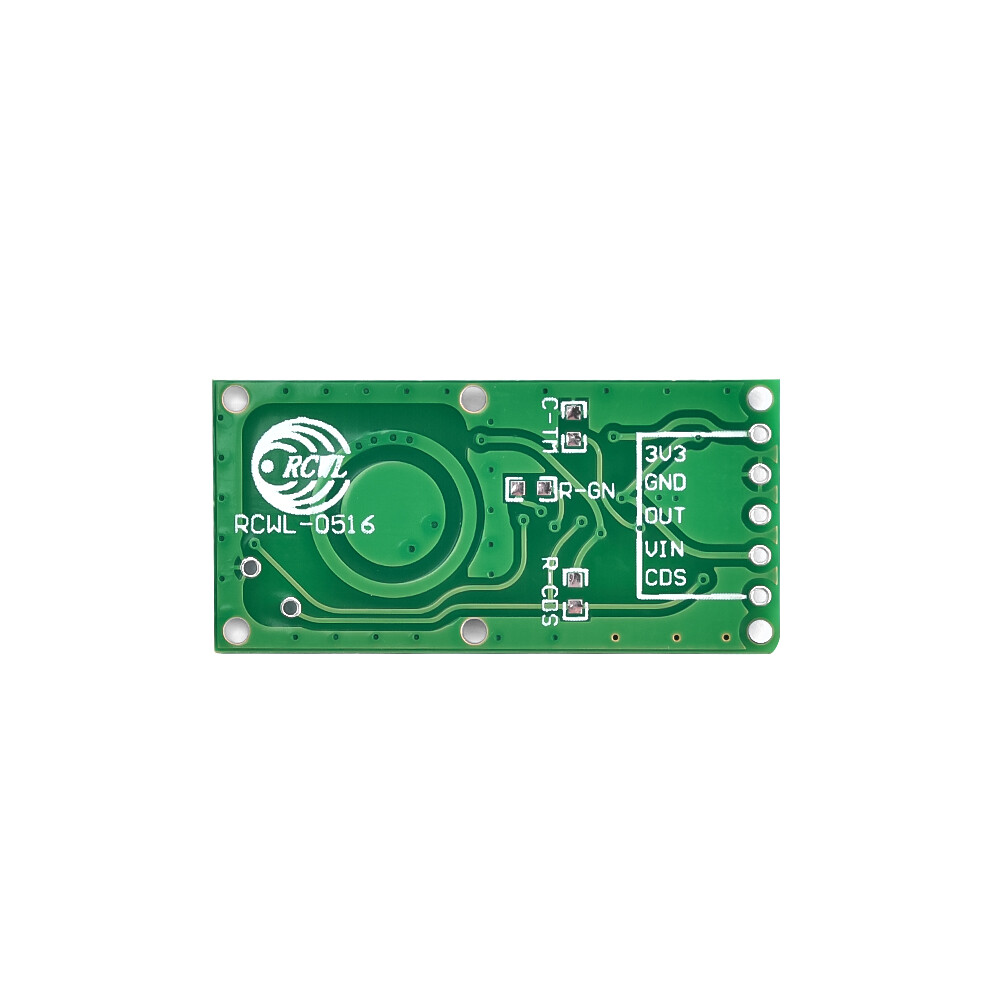

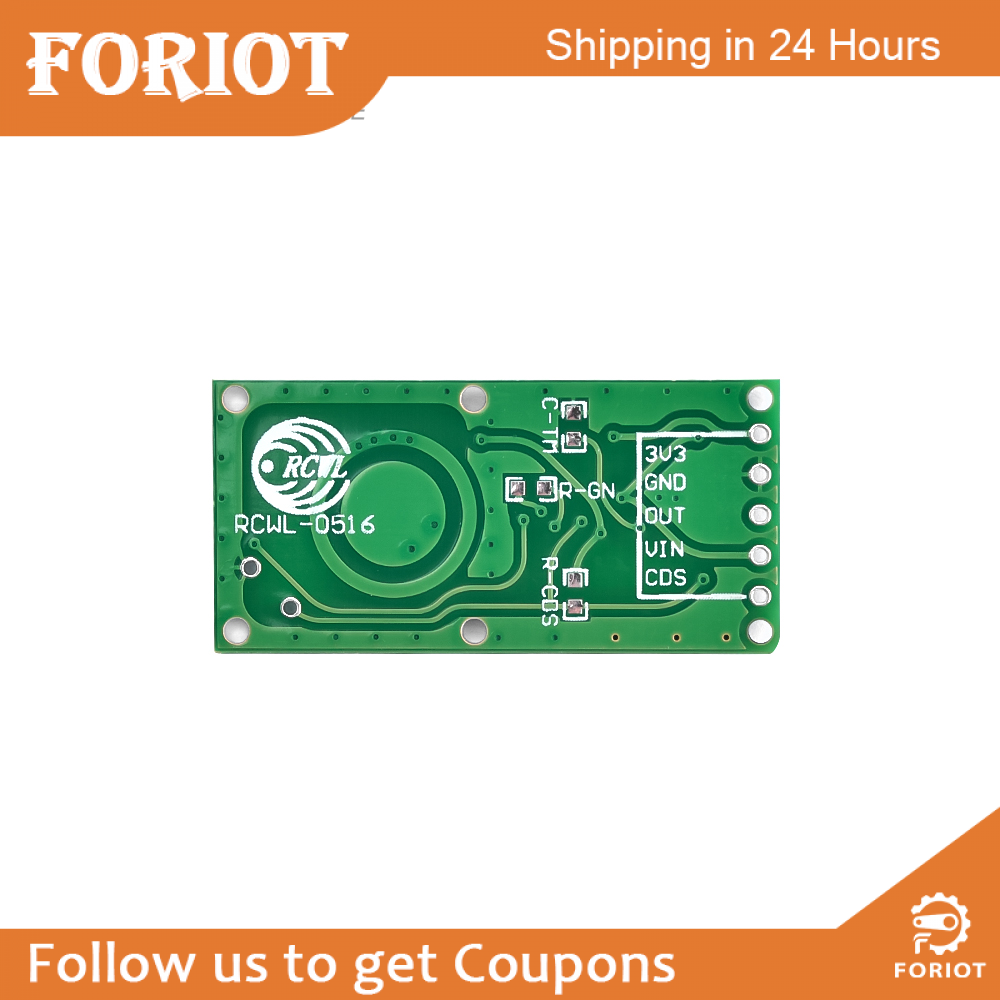

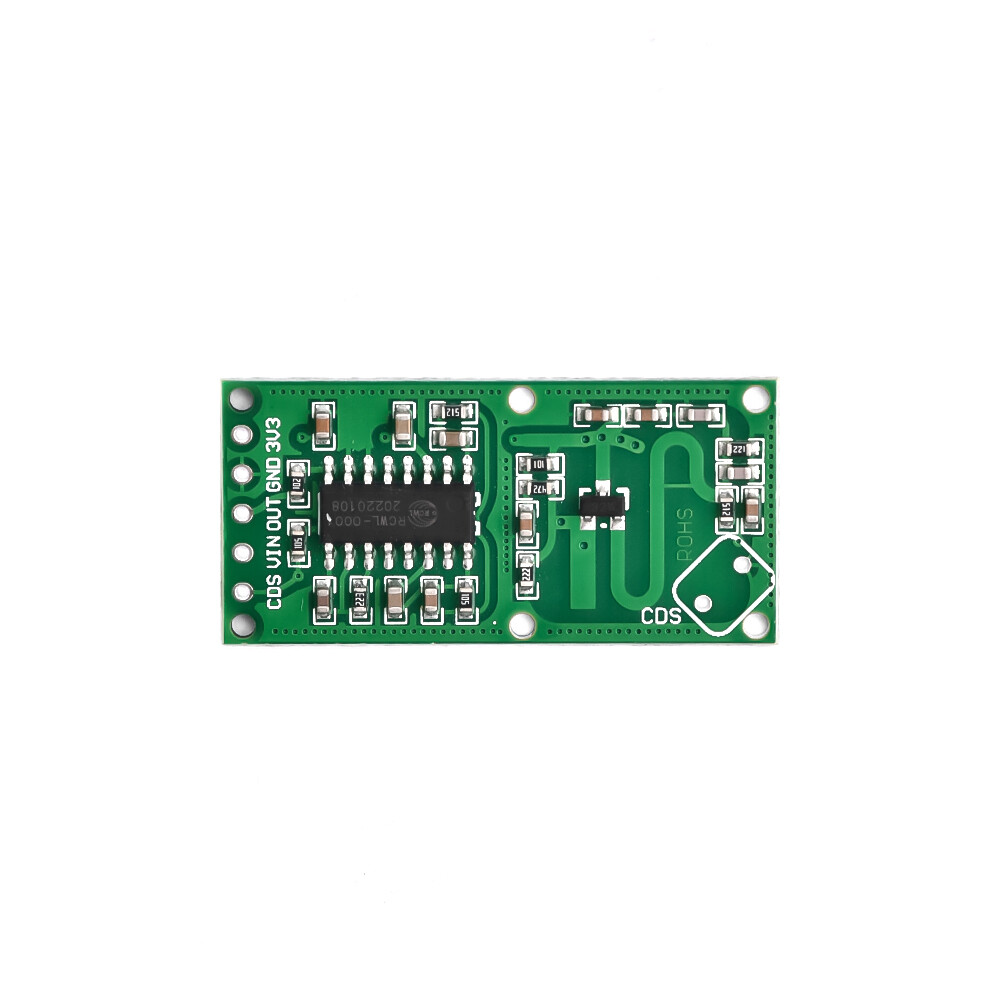

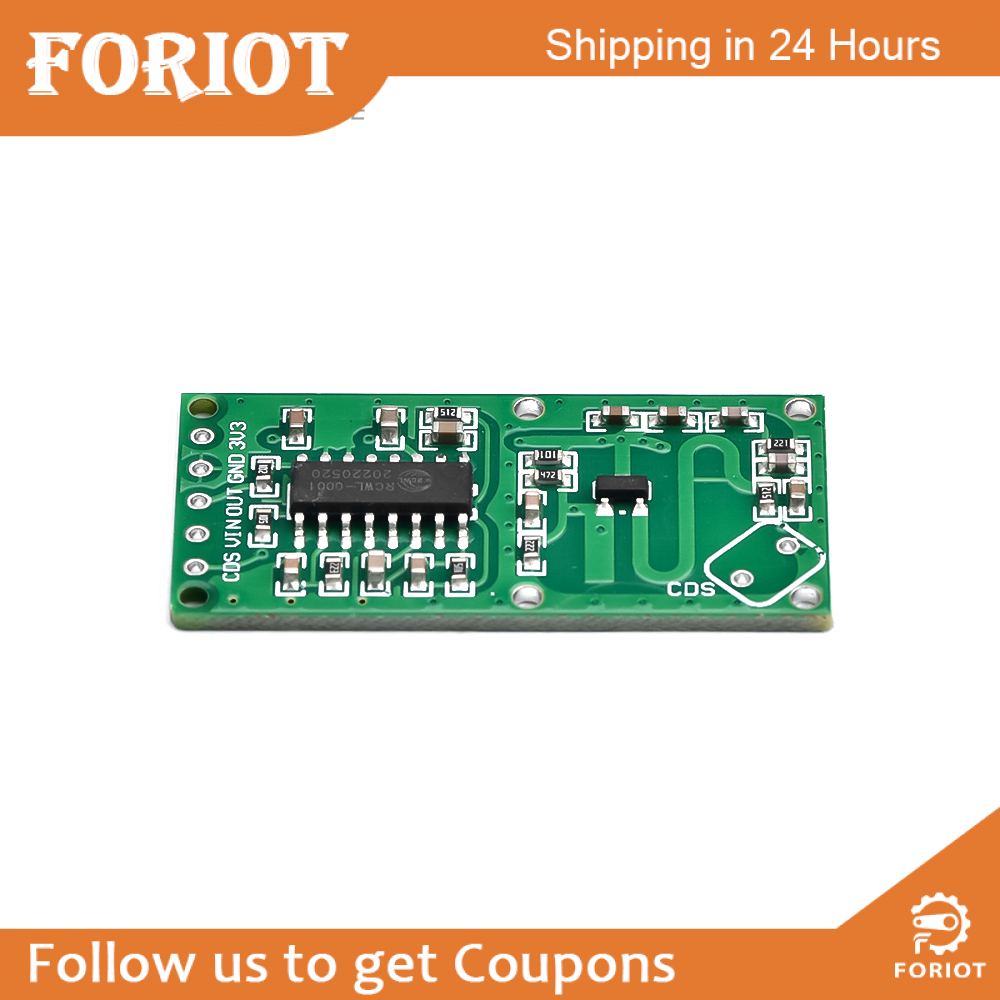

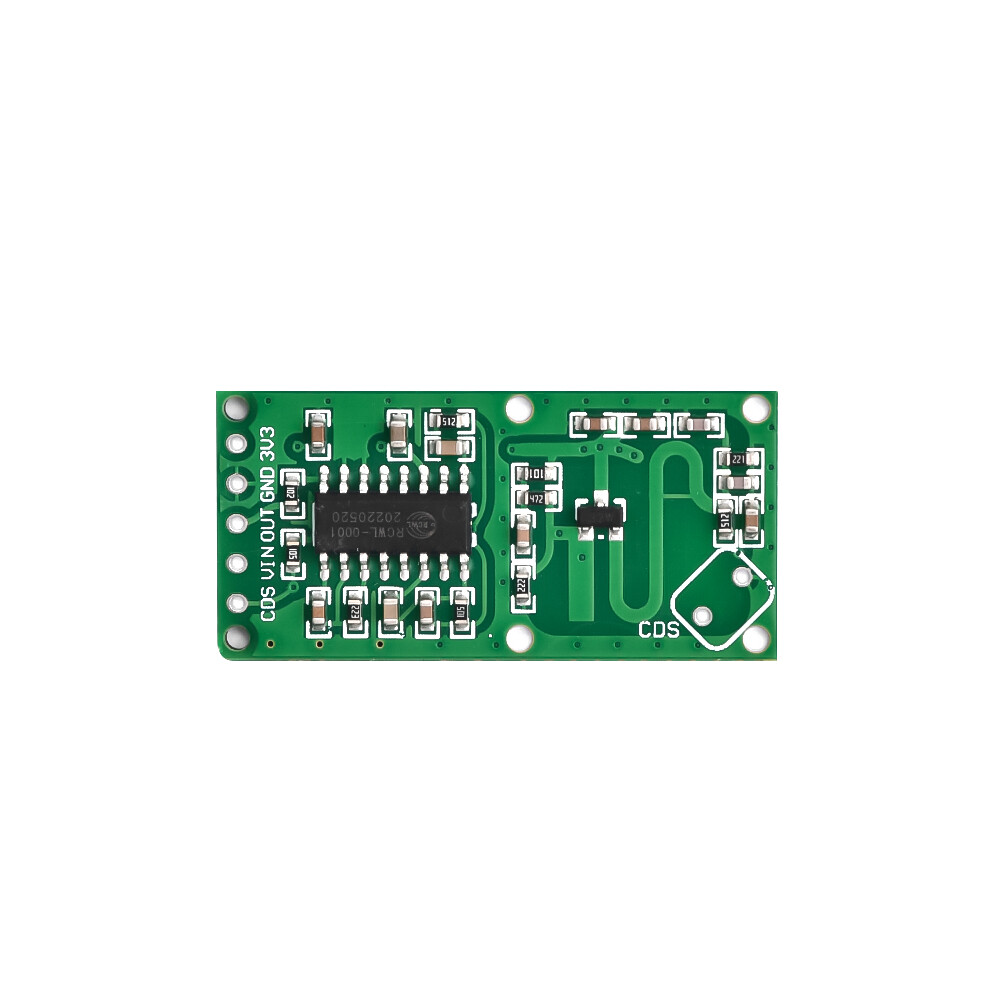

Pin definition:

3V3: 3V3 power output

GND: ground

OUT: control output, high level of moving object output is detected

VIN: Input voltage, 4-28V

CDS: enable control chip, lower than 0.7V, OUT always outputs low level

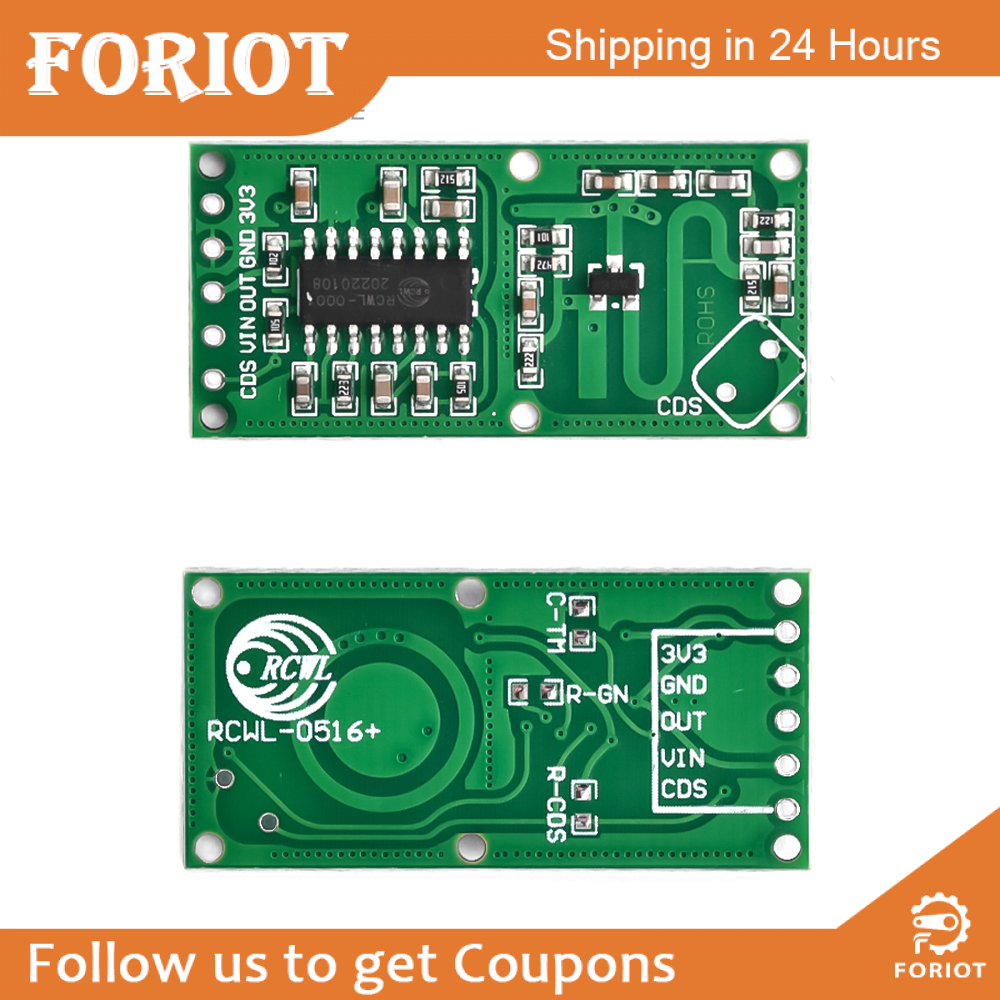

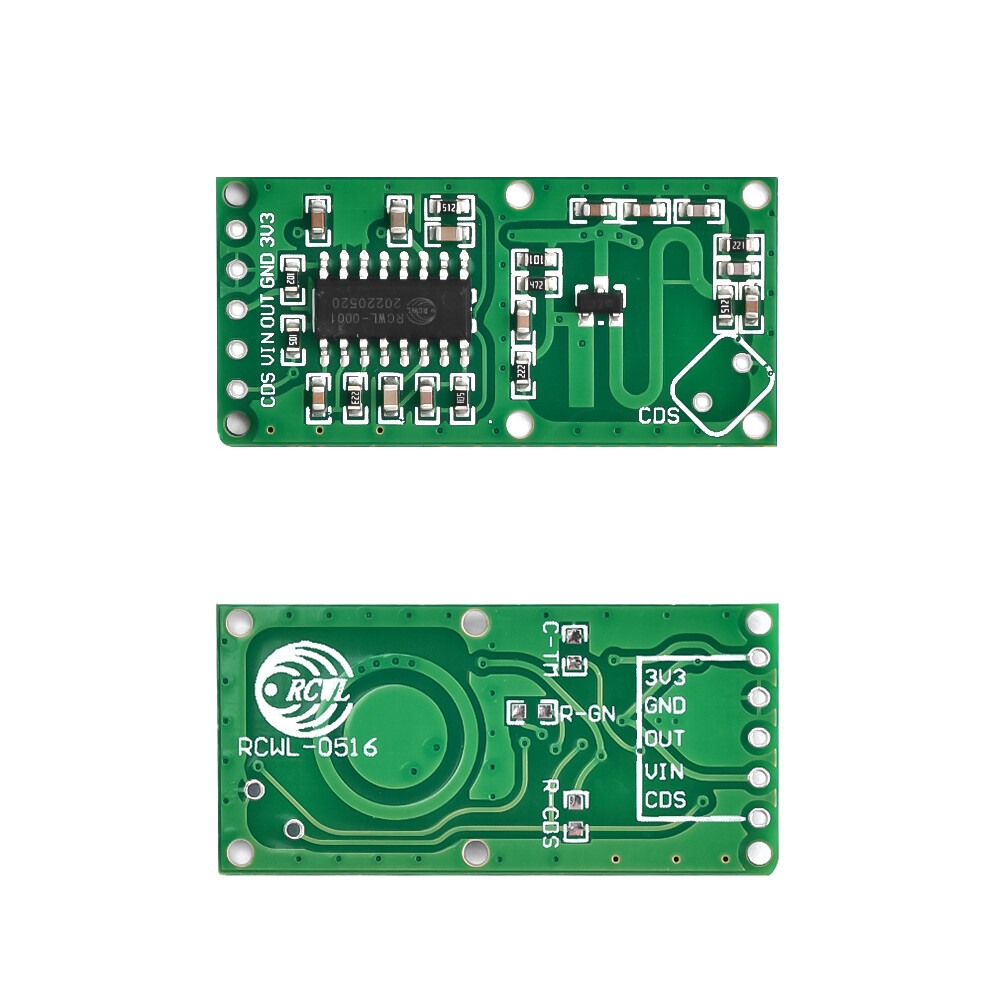

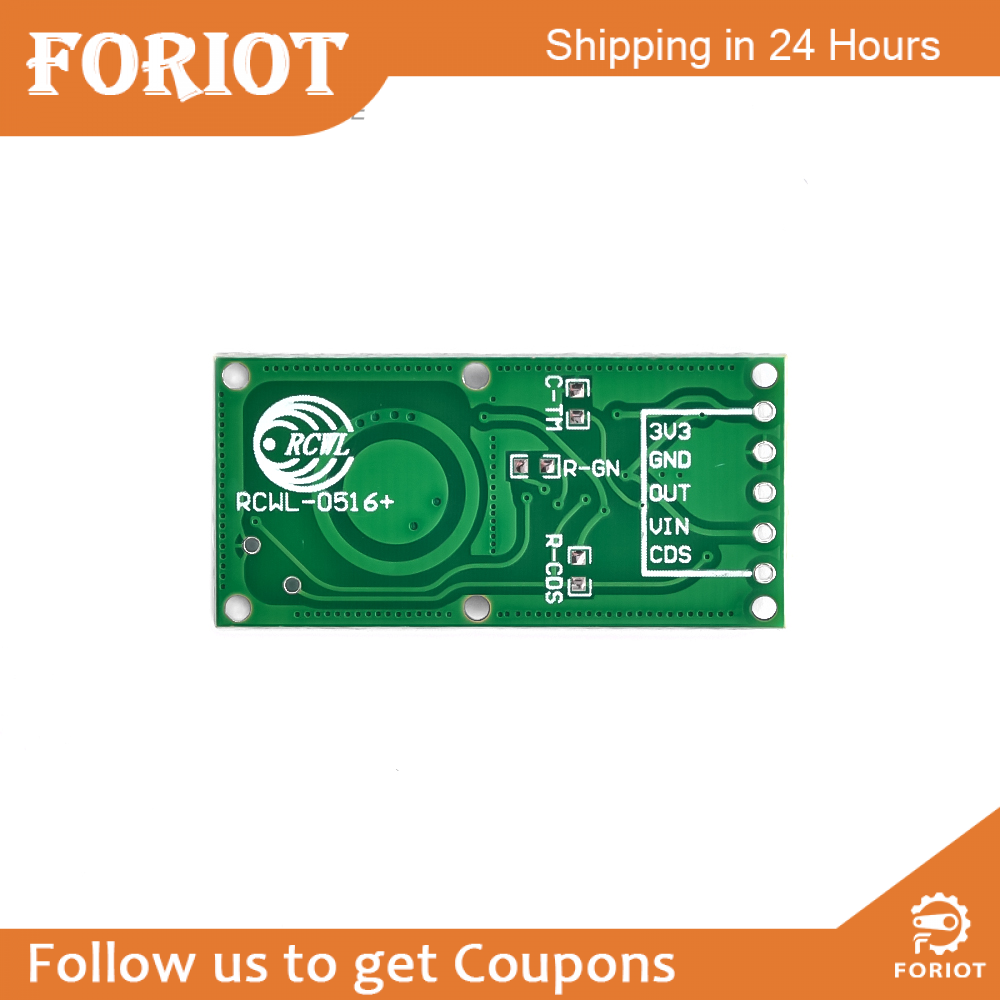

Description of adjustment part:

1: C-TM

Adjust the repeated trigger time. The default trigger time is 2S. Increasing the capacitance will increase the repetition trigger time. The actual repetition trigger time can be calculated as follows:

Paste capacitance at C-TM, test the frequency f of pin 3 of 91 96, and repeat trigger time T=(1/f) * 32768

2: R-GN

The detection distance is adjusted and the resistance is connected to reduce the detection distance. Not connected. The detection distance is about 7M. Connect a 1M resistor. The detection distance is about 5M. The customer can adjust according to the actual situation.

3: R-CDS

The internal VC is connected in parallel with the internal 1M resistor to the CDS pin (i.e., pin 9 of 9196) through the R-CDS. The CDS is connected with a photosensitive resistor, which can turn off the module detection function at night. The R-CDS value can be set according to the actual required ambient brightness.

Package include：

Radar induction module * 1
