PANTHON Micro USB/Type-C 5V Timer Relay Time Delay Relay DC 6-30V Delay Controller Board Trigger Delay Switching Relay Module with LCD Display

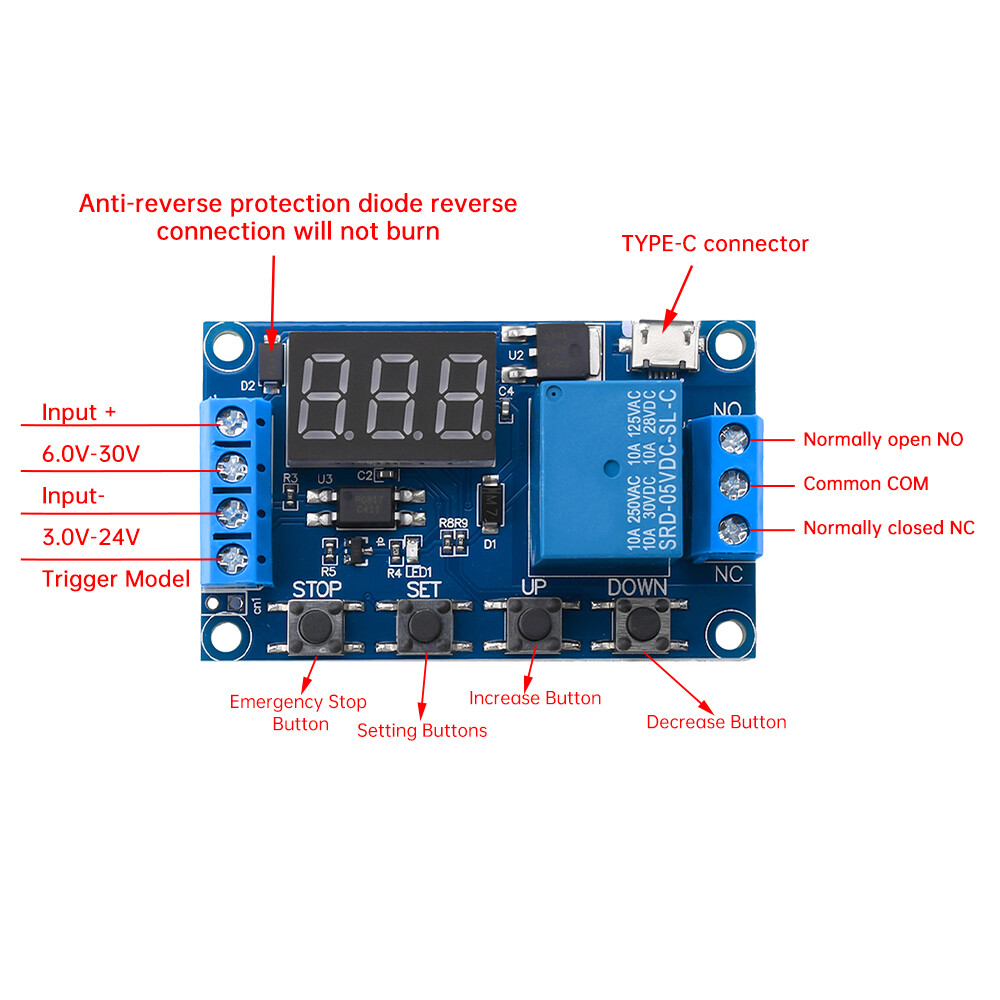

Features: 1.Wide voltage power supply (6~30V) supports micro USB 5.0V power supply or TYPE-C interface power supply. Two interfaces can be selected; 2.The interface is clear and simple, with powerful functions; 3.With one button emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn; 4.You can set different OP, CL, and LOP parameters, which are independent of each other and saved separately; 5.All set parameters are automatically saved after power down

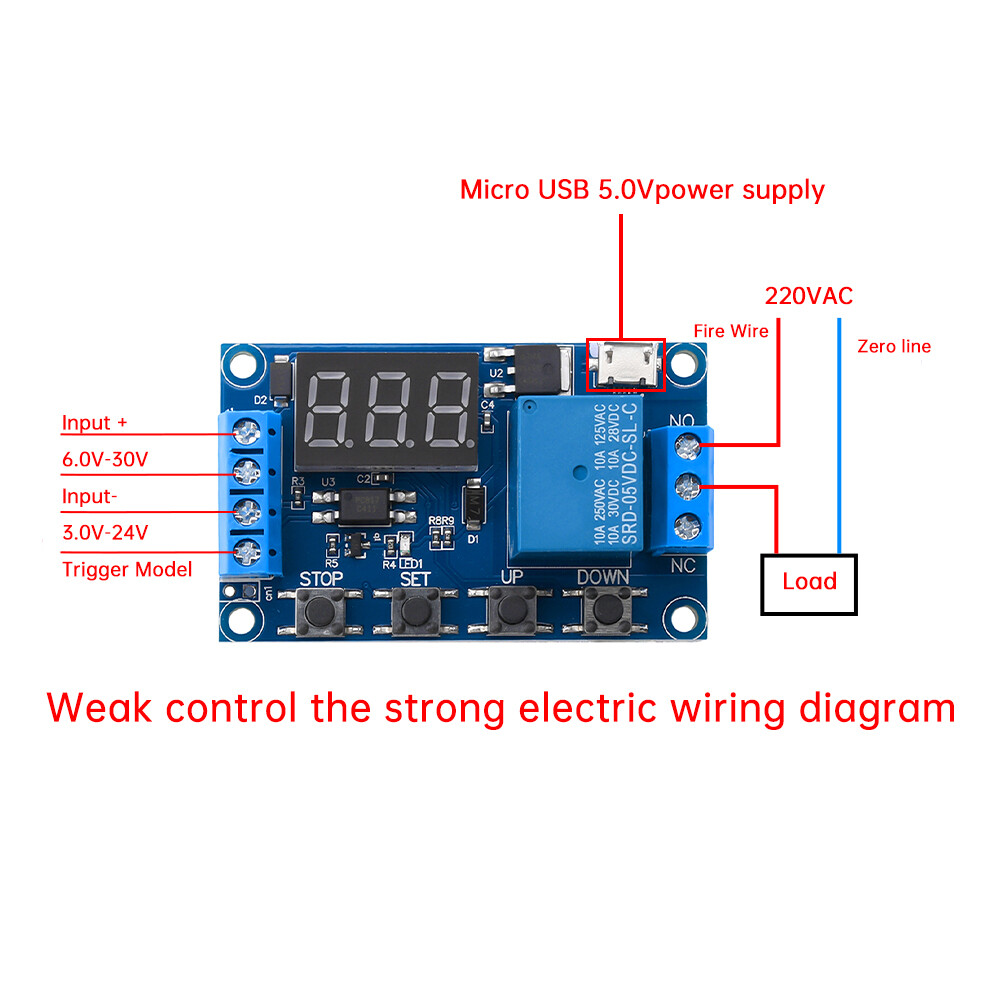

Parameters: Style 1: USB interface: 1: Working voltage: 6-30V, supporting microUSB data 5.0V power supply Trigger source: High level (3.0V-24V), with optocoupler isolation, which can improve the anti-interference ability of the system (customers can also short common points). Output function: It can control DC 30VDC 5A or 5A 220VAC equipment. 4: Static current: 20 mA; Working current: 50mA 5. Service life: over 100000 times; Working temperature: - 40-85 ℃; Dimensions: 6: Optocoupler isolation, enhanced anti-interference ability, industrial grade motherboard. Special note: The relay output is a passive contact, just a switch.

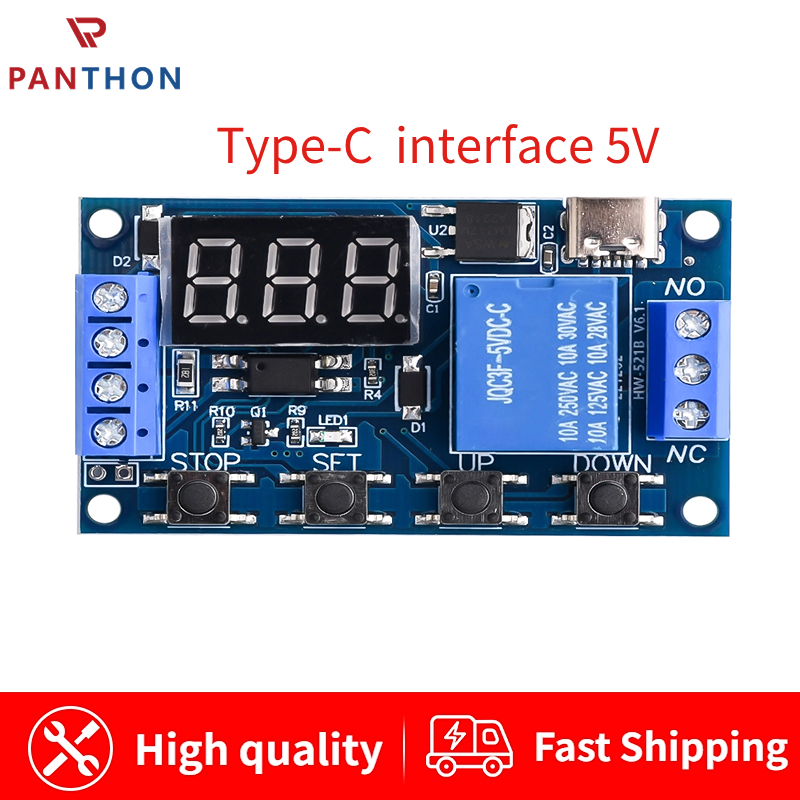

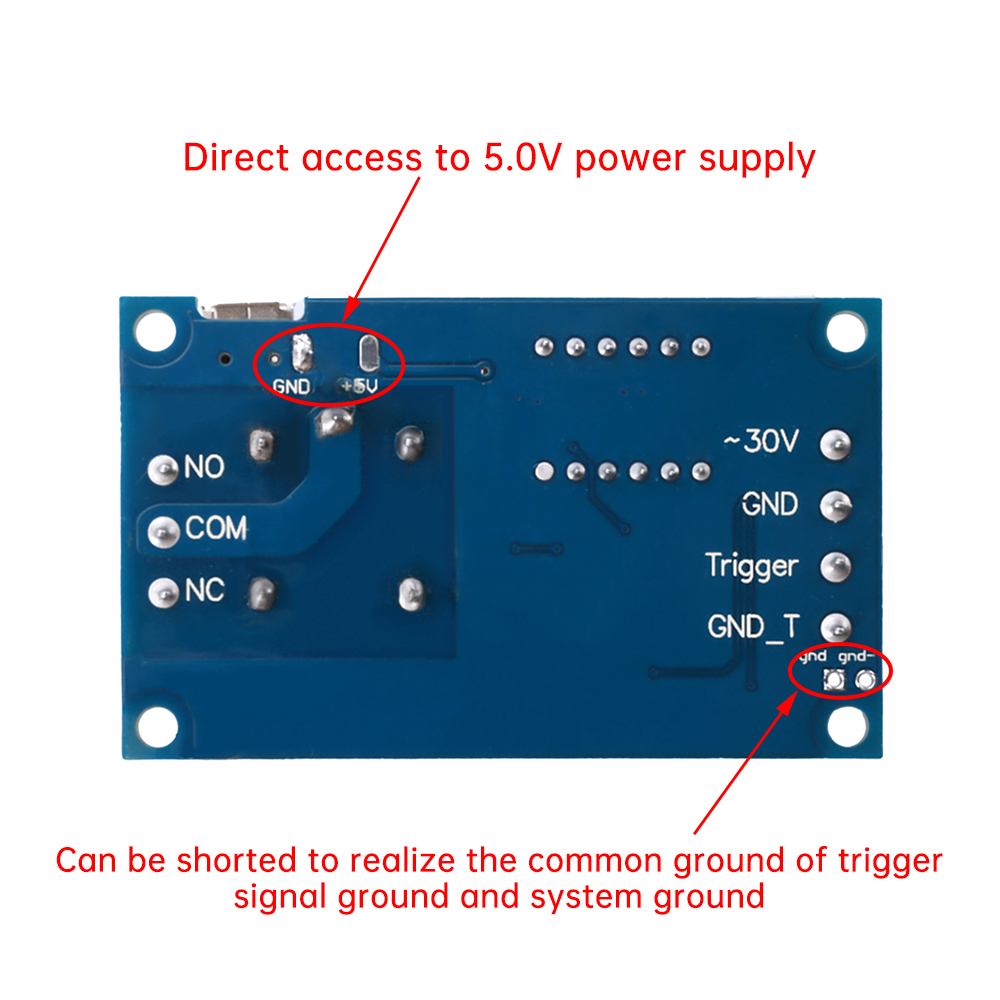

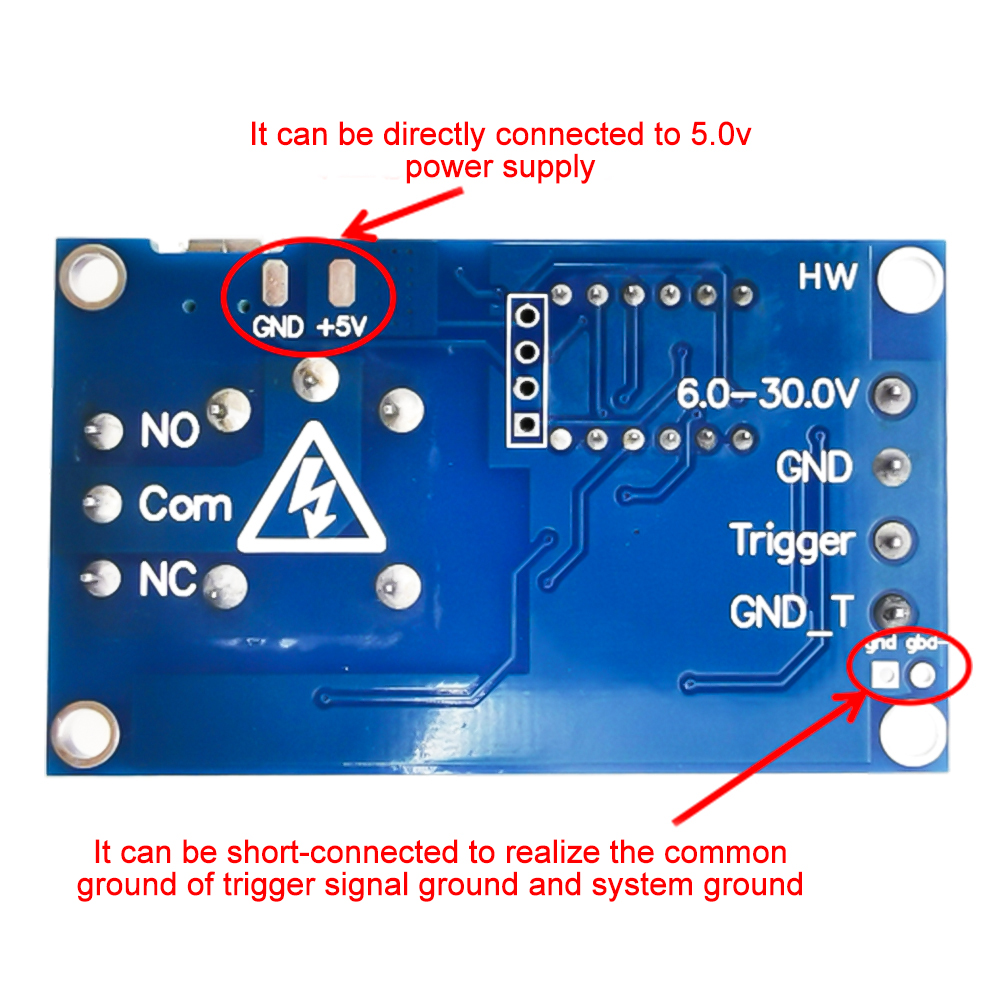

Style 2: TYPE-C interface: Working voltage: 6-30V Support: TYPE-C 5.0V power supply Trigger signal source: High level trigger (3.0V-24V) signal ground and system ground are not in common to improve the anti-interference ability of the system (it can also be shorted to common ground by itself) Output capacity: It can control equipment within 30V5A DC or 220V5A AC Static current: 20mA Working current: 50mA Service life: more than 100000 times; Working temperature: - 40-85 ℃; With optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters for permanent power failure Memory.

Package include: 1X relay switch module
