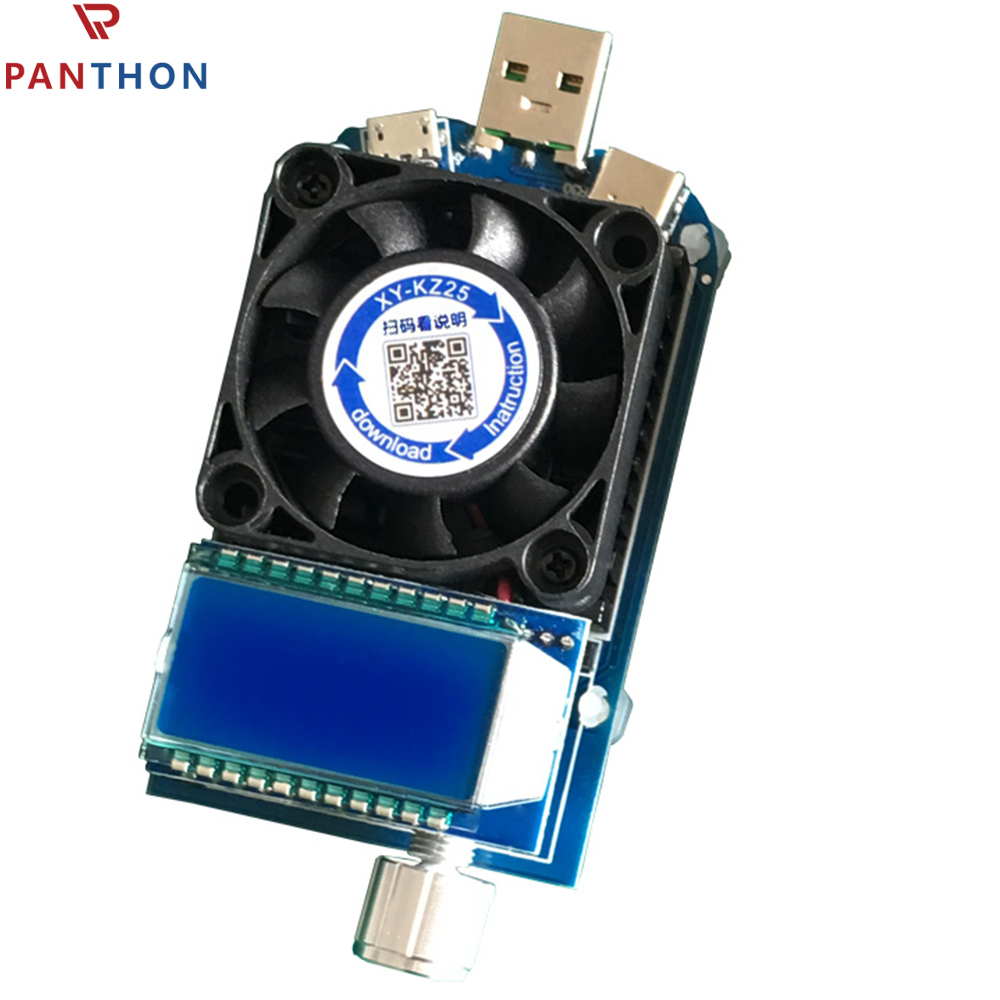

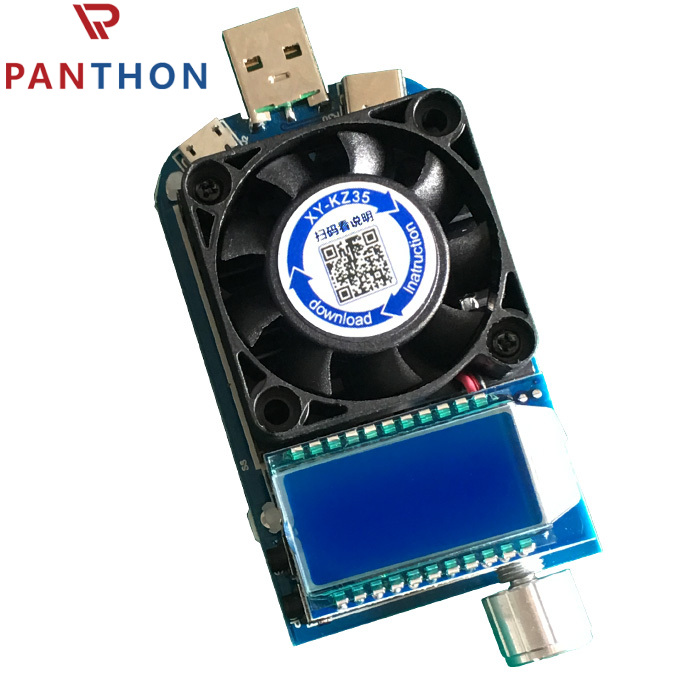

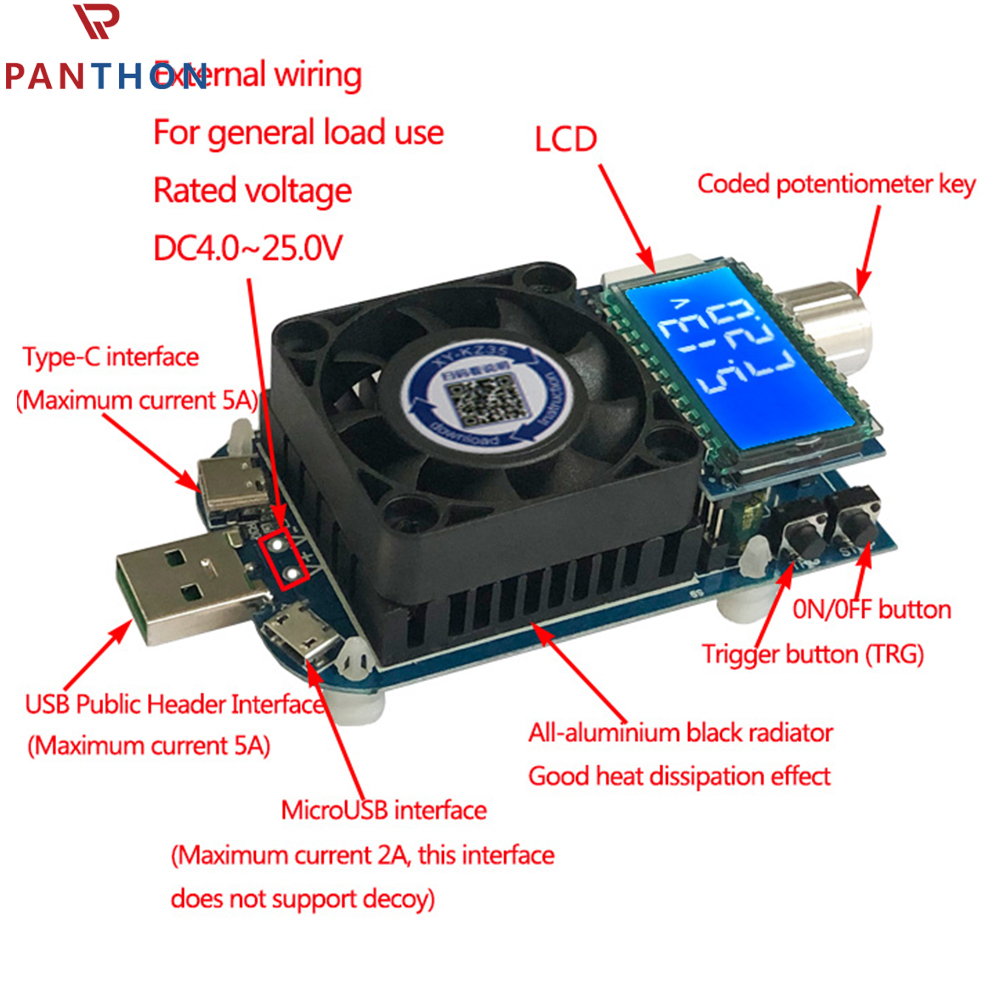

PANTHON Electronic USB Load Tester Adjustable Discharge Resistor Module 35W Test and Trigger QC2.0 QC3.0 AFC FCP with Cooling Fan

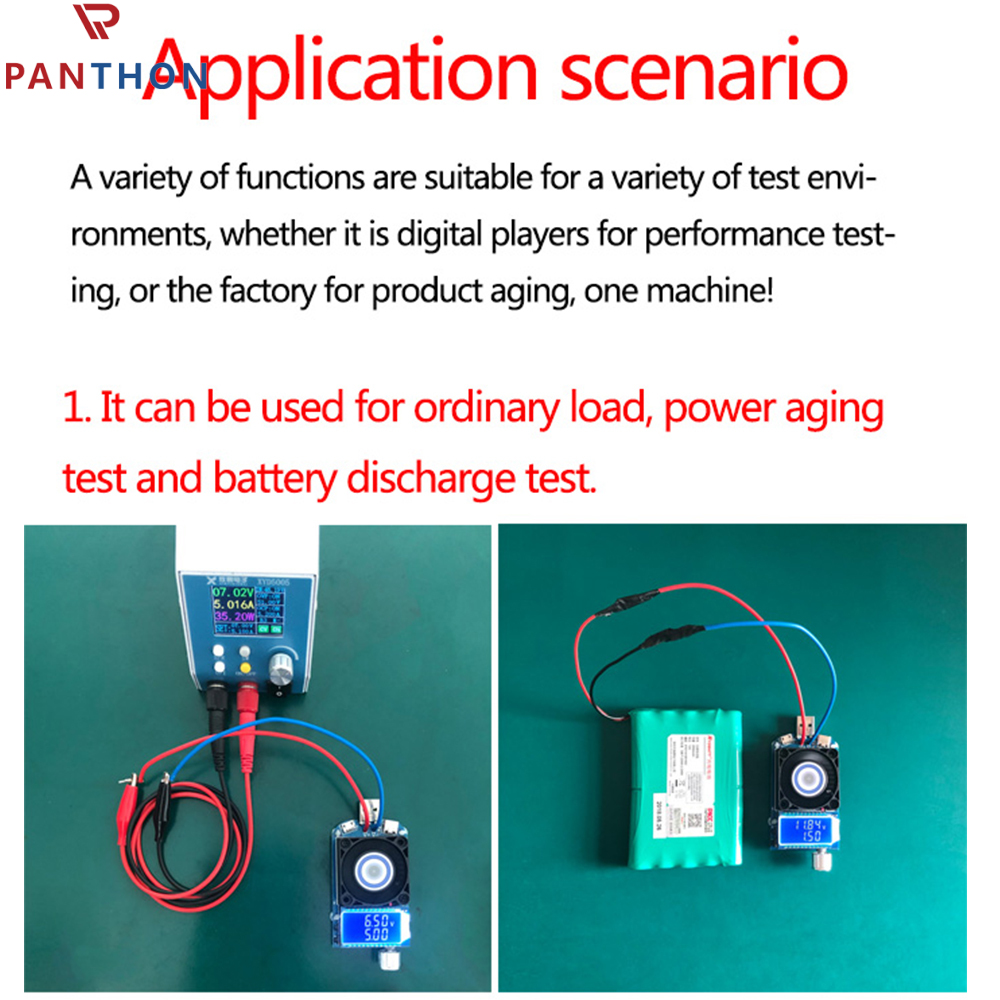

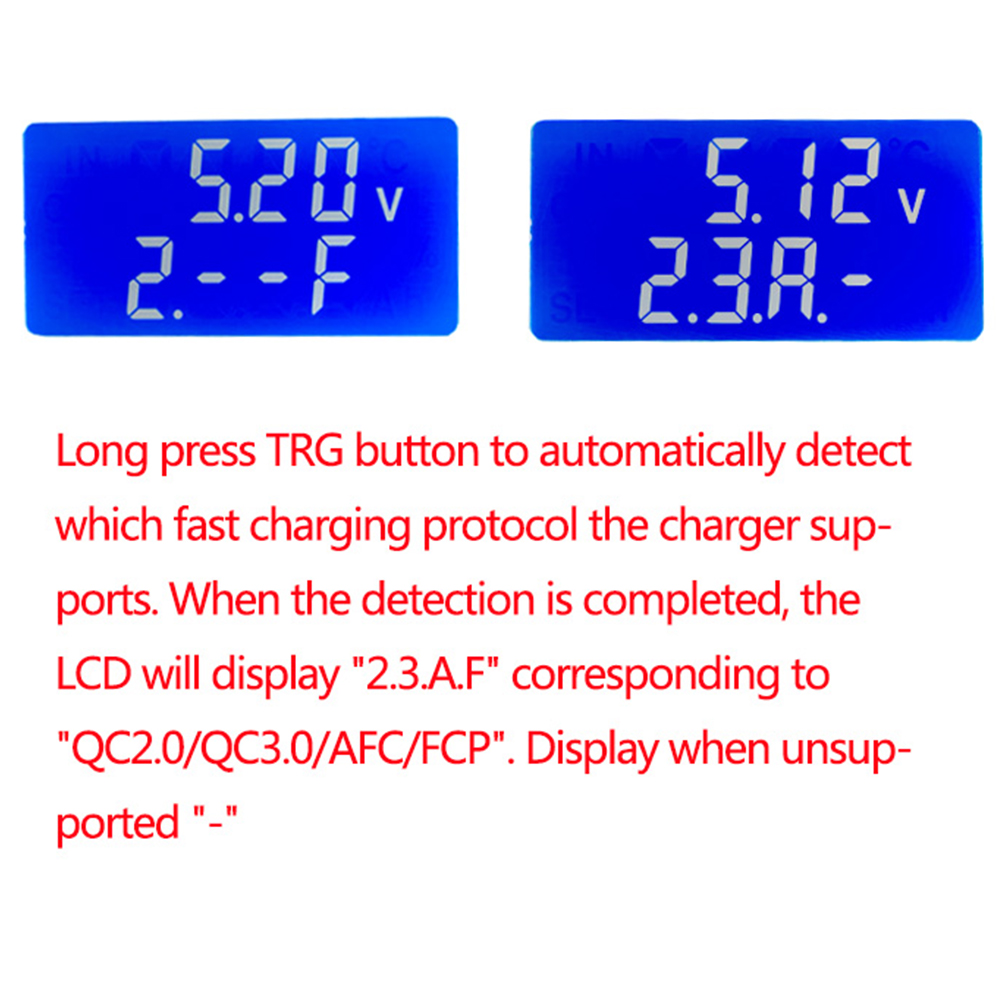

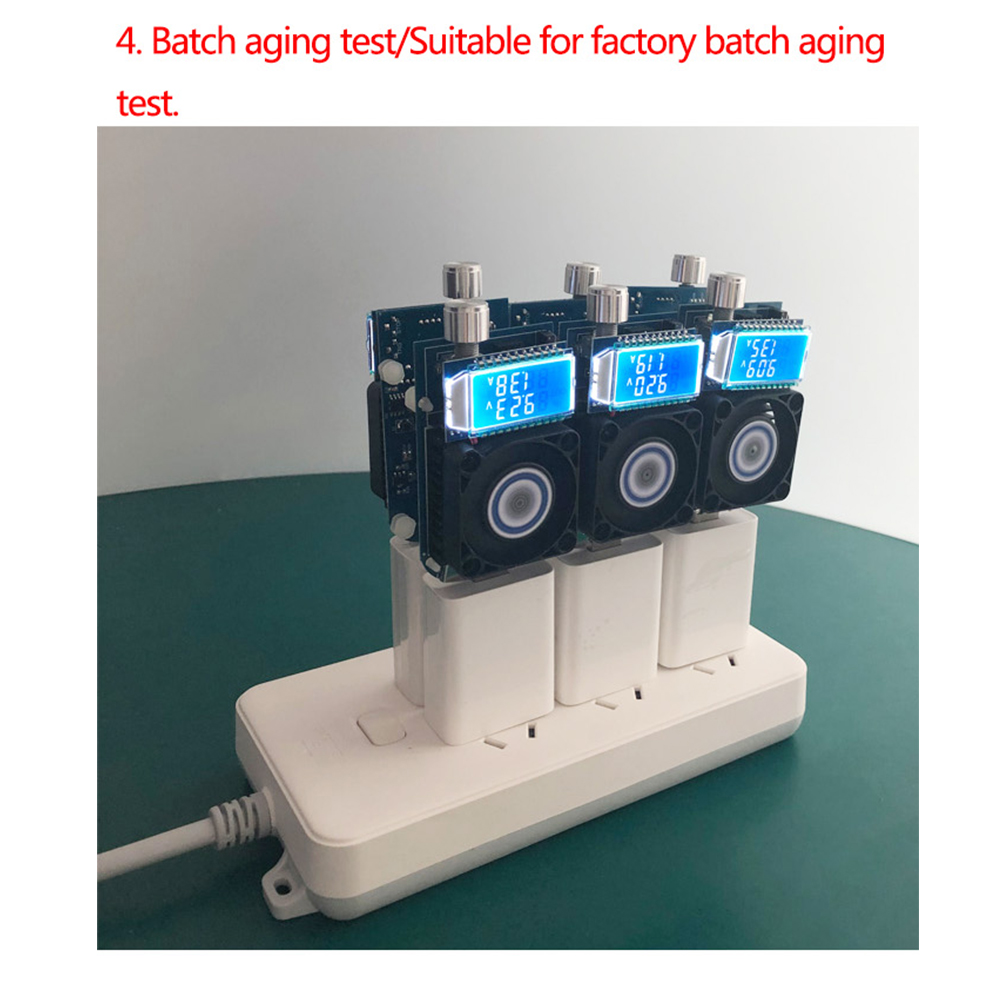

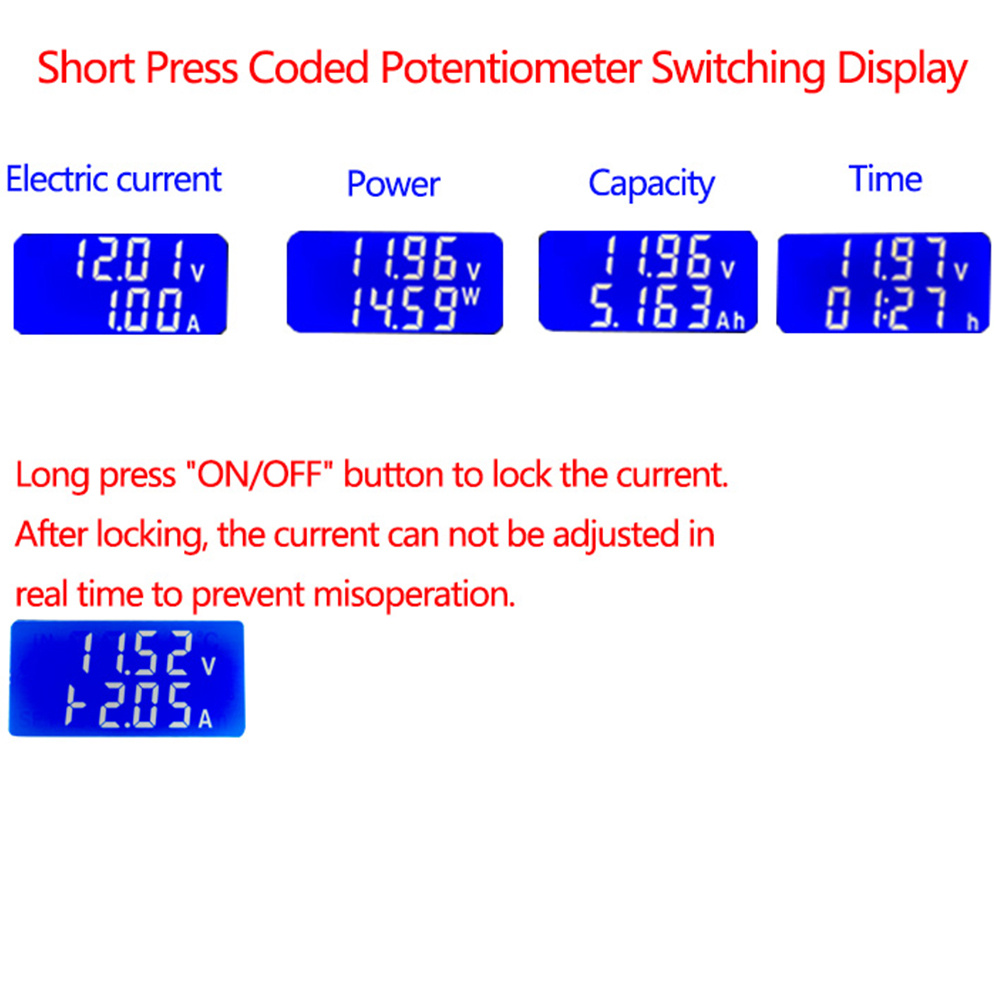

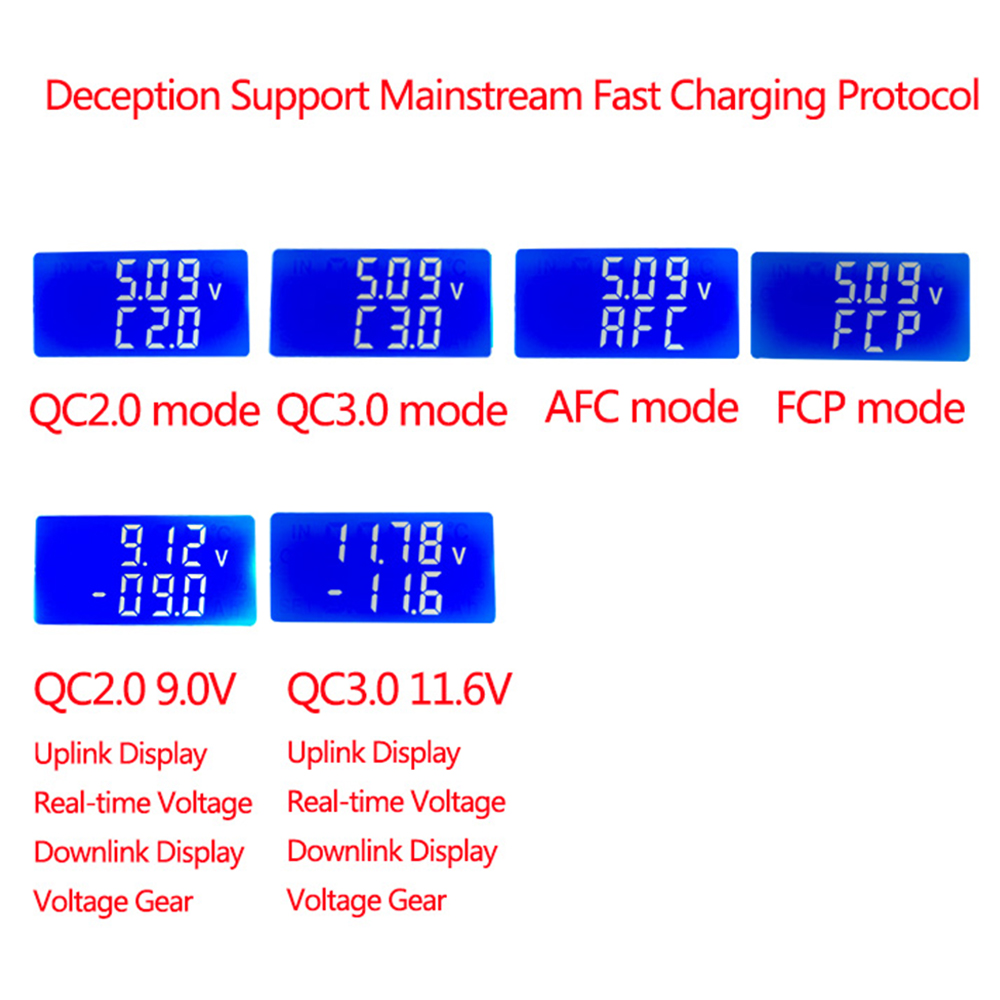

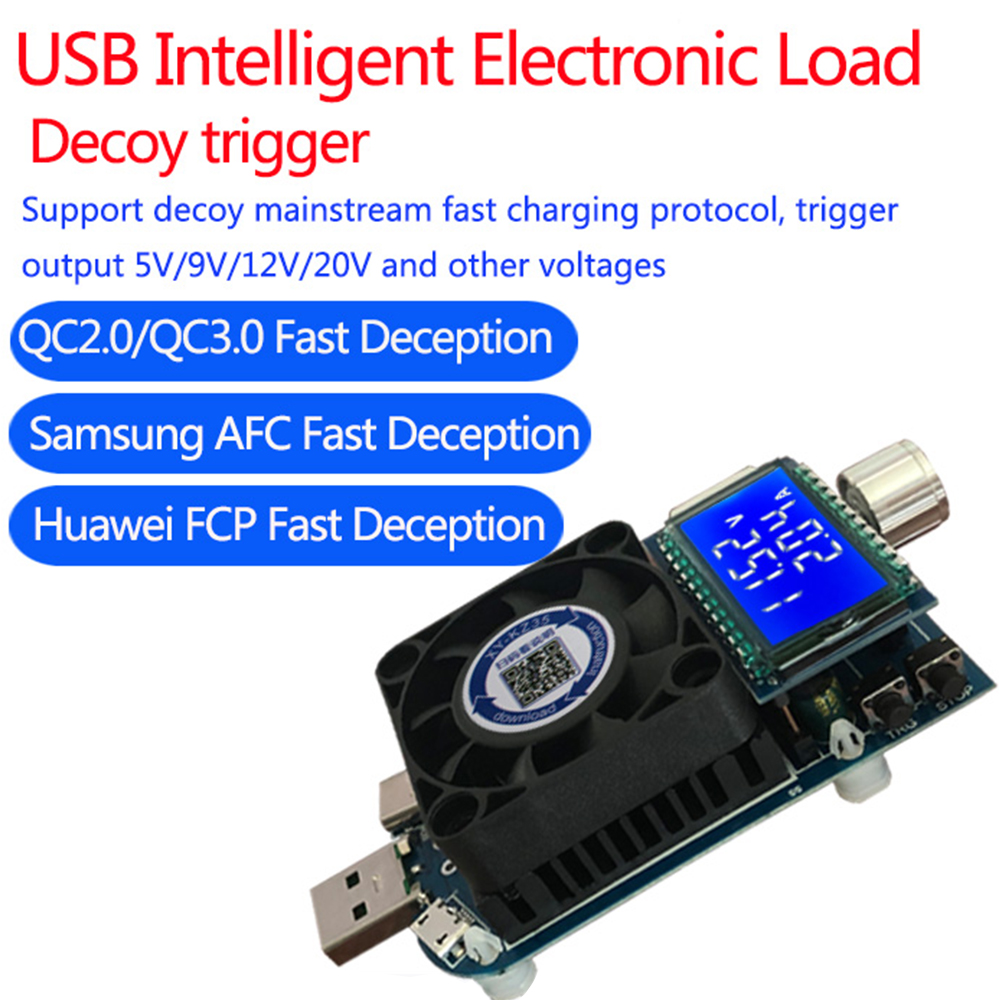

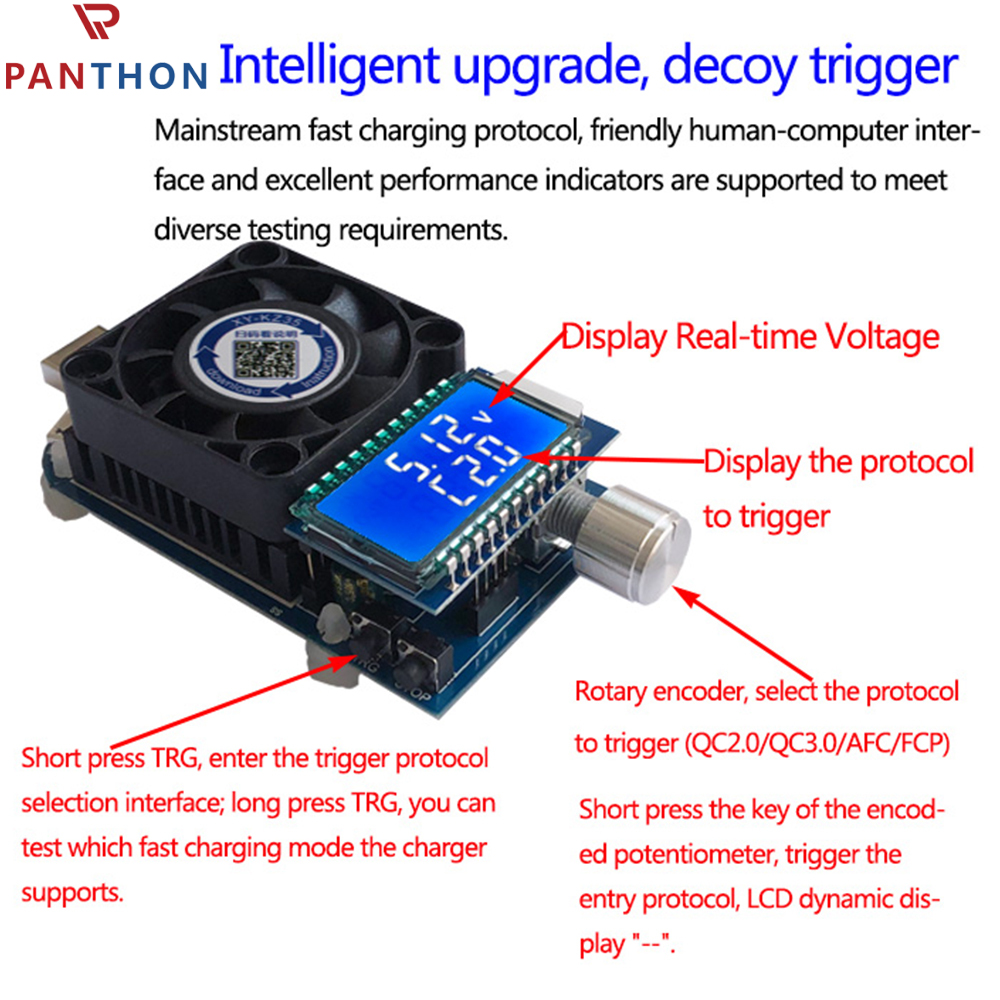

Features: 1.Good heat dissipation effect, using intelligent temperature controlled fans and all aluminum heat dissipation fins 2.USB intelligent electronic load can be used as a regular electronic load or as a USB electronic load. It can deceive and support the QC2.0/Q C3.0/AFC/FCP fast charging protocol, trigger and output various voltages such as 5V/9V/12V/20V 3.Adopting LCD display, friendly human-computer interaction interface, and excellent performance indicators to meet diverse testing needs 4.The product is equipped with reverse protection, and reverse connection does not burn 5.Multiple functions are suitable for a variety of testing environments, whether it's performance testing by digital players or product aging by factories, all in one machine!

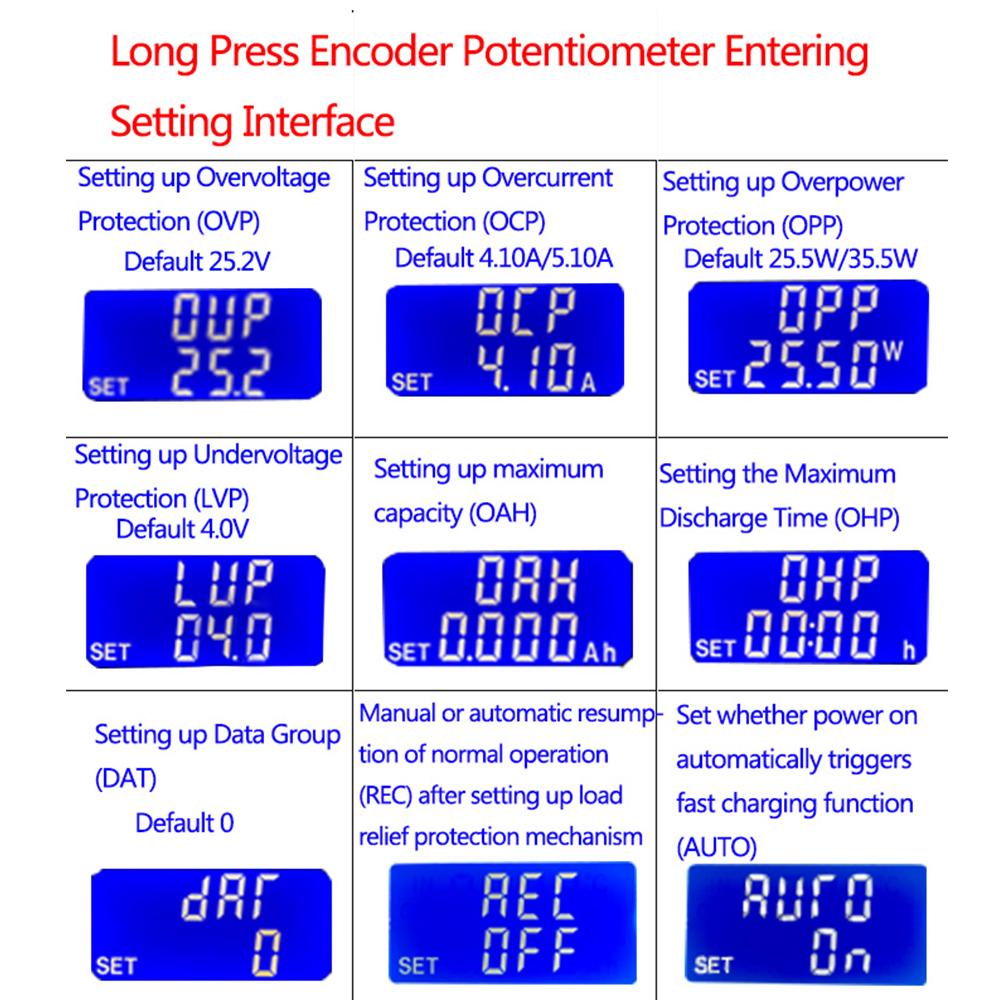

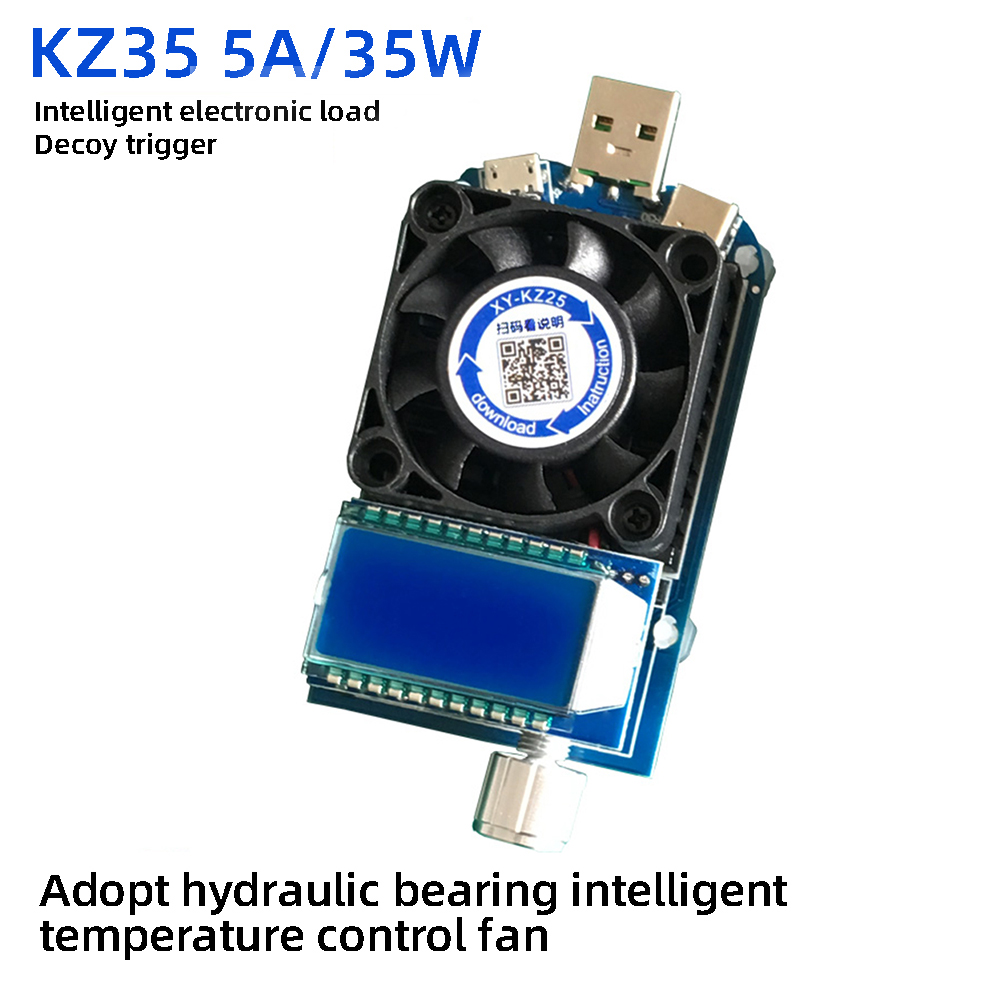

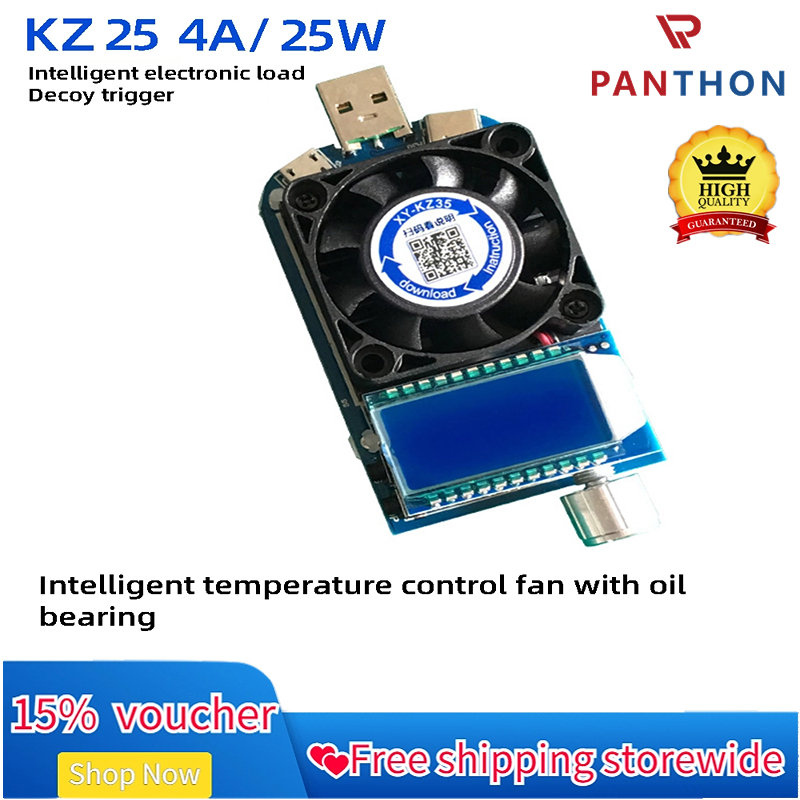

Parameters: Rated working voltage: DC4.0-25.0V (with anti reverse connection protection, reverse connection does not burn) Maximum discharge power: KZ25:25W/KZ35:35W Rated working current: KZ25:0.03-4.00A (starting from 0.22A when the fan starts) KZ35: 0.03-5.00A (starting from 0.22A when the fan starts) Maximum fan speed: KZ25: Oil bearing air 5800 ± 10% RPM KZ35: Hydraulic bearing fan 8000 ± 10% RPM Quick charging trigger mode: QC2.0 5V, 9V, 12V, 20V, QC3.0, AFC9V, FCP Constant current accuracy: ± (1%+3 words) Voltage accuracy: ± (0.5%+3 words) Heat dissipation method: intelligent temperature controlled fan+all aluminum heat dissipation fins Working environment temperature: -20 ℃ -40 ℃ Expansion interface: Micro USB interface, Type-C interface Overvoltage protection (OVP): default 25.2V (can be set by oneself) Overcurrent protection (OCP): KZ25: Default 4.10A (customizable) KZ35: Default 5.10A (customizable) Overpower protection (OPP): KZ25: Default 25.5W (customizable) KZ35: default 35.5W (customizable) Under voltage protection (LVP): default 4.0V (can be set by oneself) Over temperature protection (OTP): defaults to around 80 ° C (cannot be set) Application suggestion: It is recommended to use KZ35 for batch aging in factories

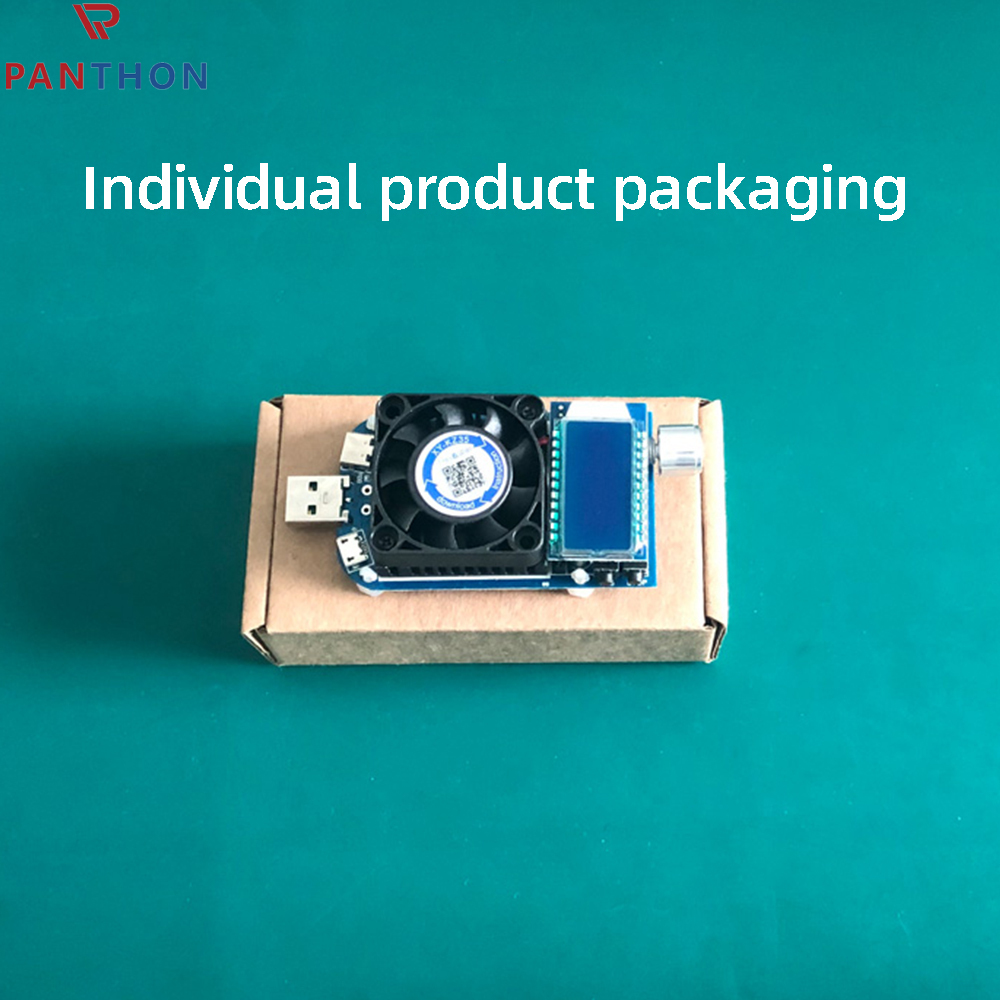

Package include: Electronic load * 1
