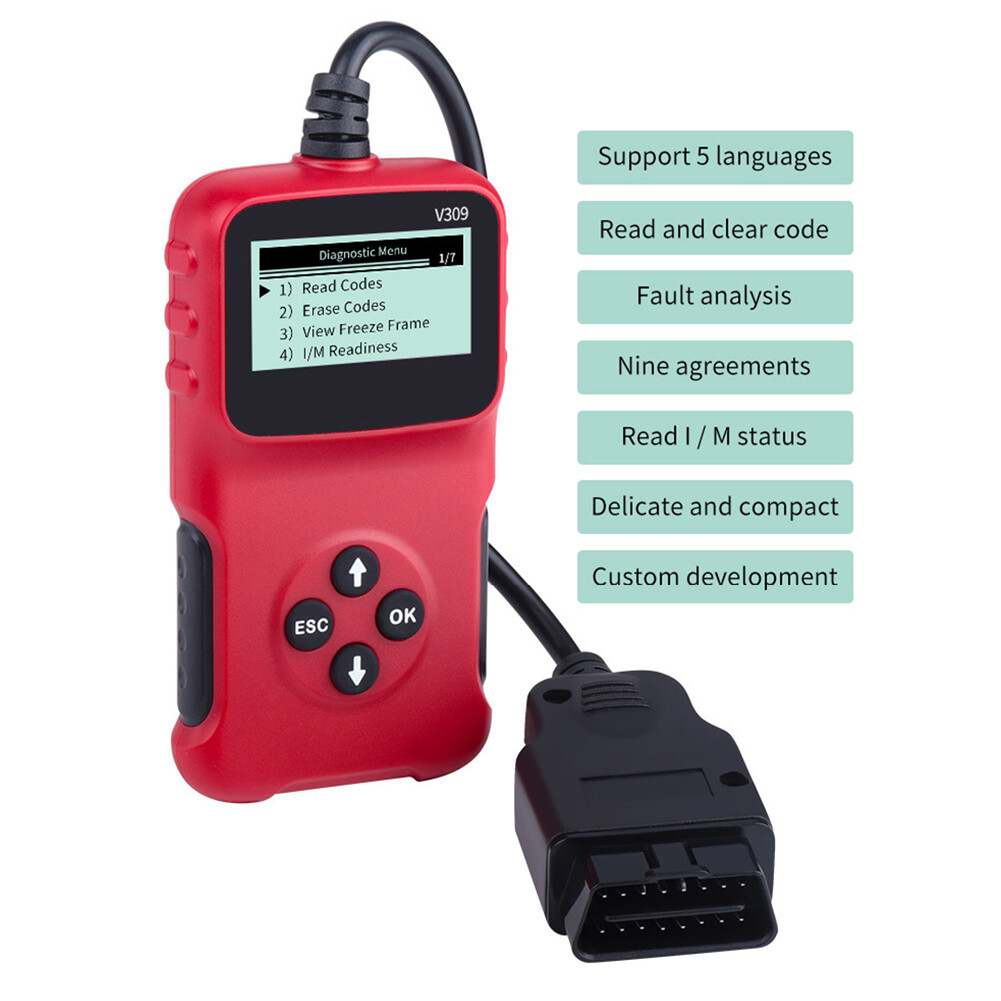

V309 Car Fault Detector Elm327 Obd2 Car Diagnostic Tool Code Reading Card

Description:

Product name: V309 automobile fault detector

Product model: obd code reader

Product Type: V309

Working voltage: 9-16V

Working current: 80mA

Operating environment: -30~70°C

Storage temperature: -30~80°C

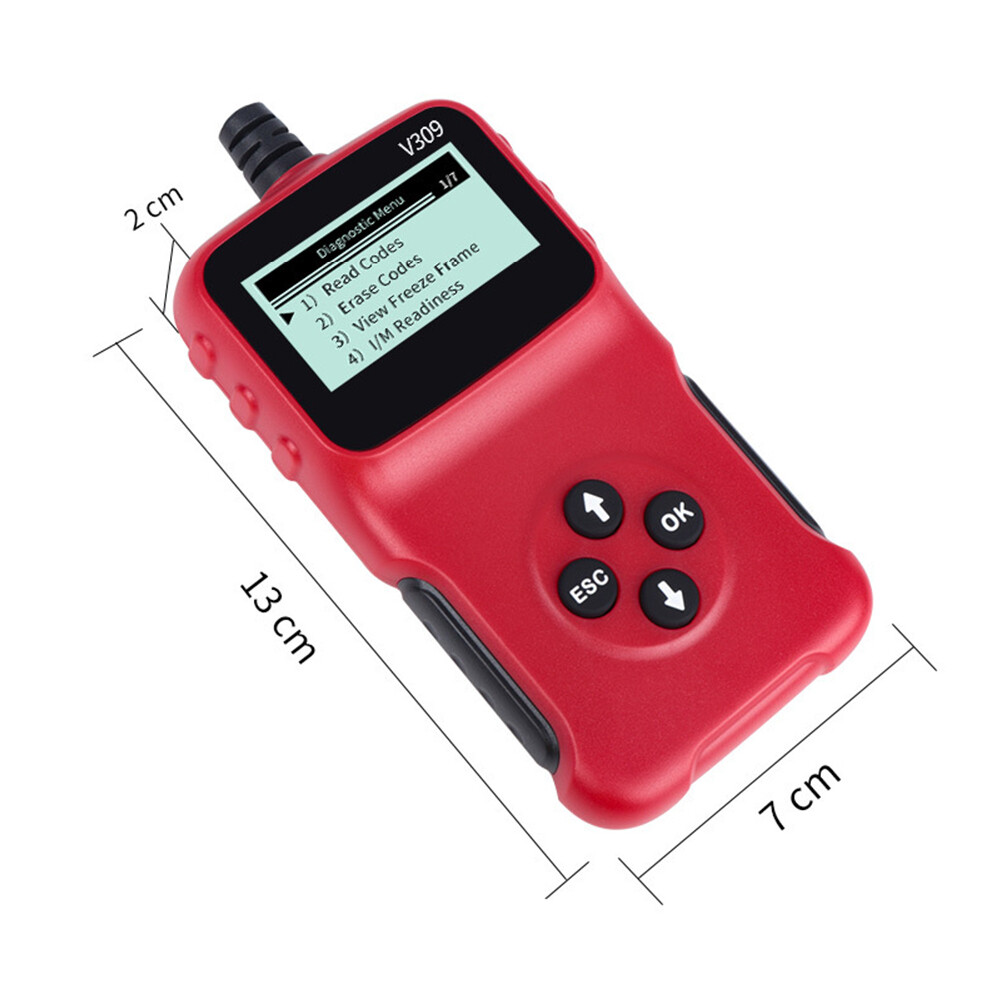

Product size: 13*7* 2cm

Product weight: 220g

SAE J1850 PWM (41.6 Kbaud)

SAE 1850 VPW (10.4 Kbaud)

Protocol:

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (fast init, 10.4 Kbaud)

ISO 15765-4 CAN (11bit ID, 500 Kbaud)

ISO 15765-4 CAN (29bit ID, 500 Kbaud)

ISO 15765-4 CAN (11bit ID, 250 Kbaud)

ISO 15765-4 CAN (29bit ID, 250 Kbaud)

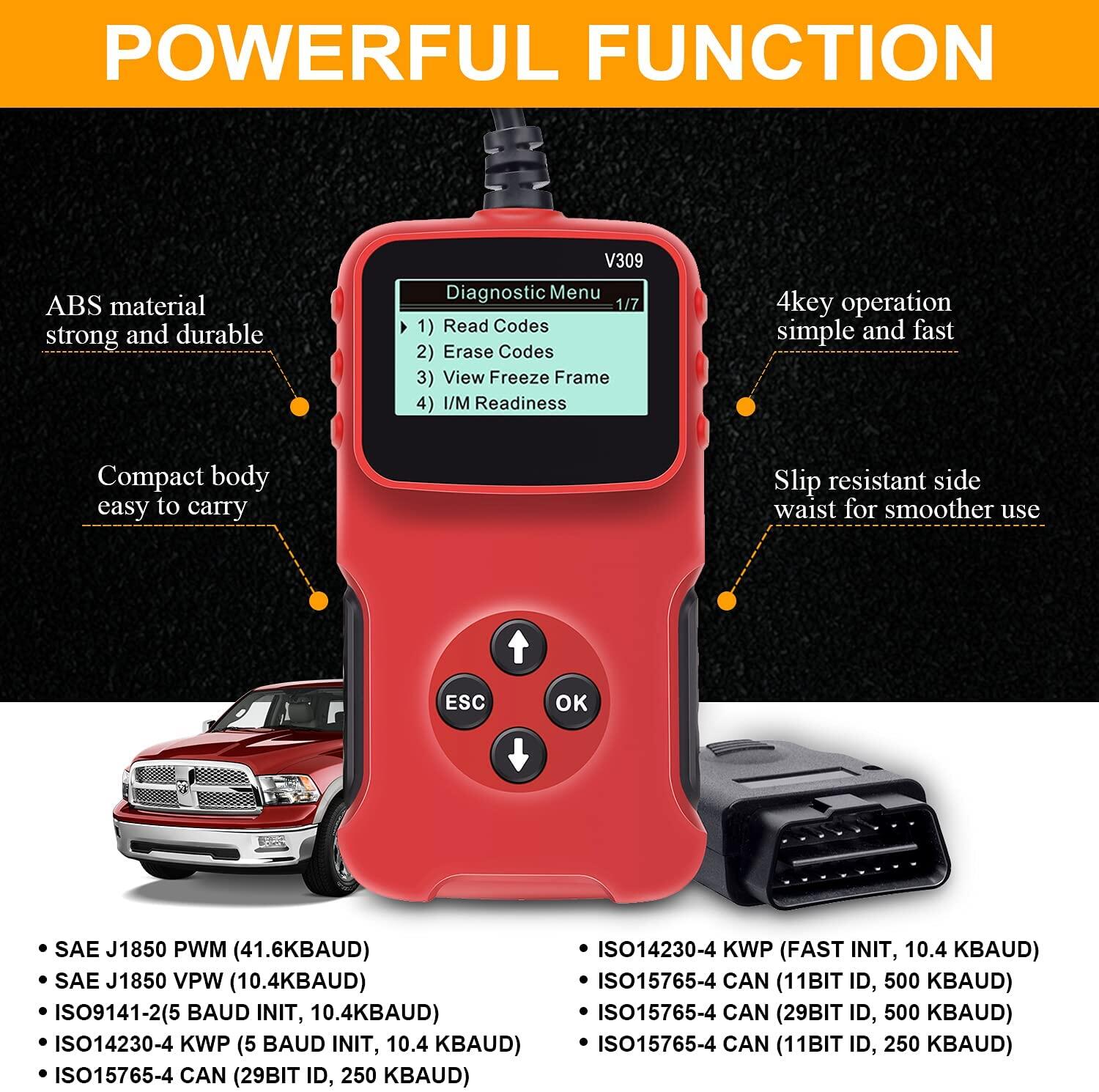

Product features:

1. ABS material, strong and durable

2. Compact body, more convenient to carry

3. 4-key operation, simple and fast

4. Non-slip side waist for smoother use

5. Regardless of diesel and gasoline vehicles, this product can be used in support of conventional car 9 protocol.

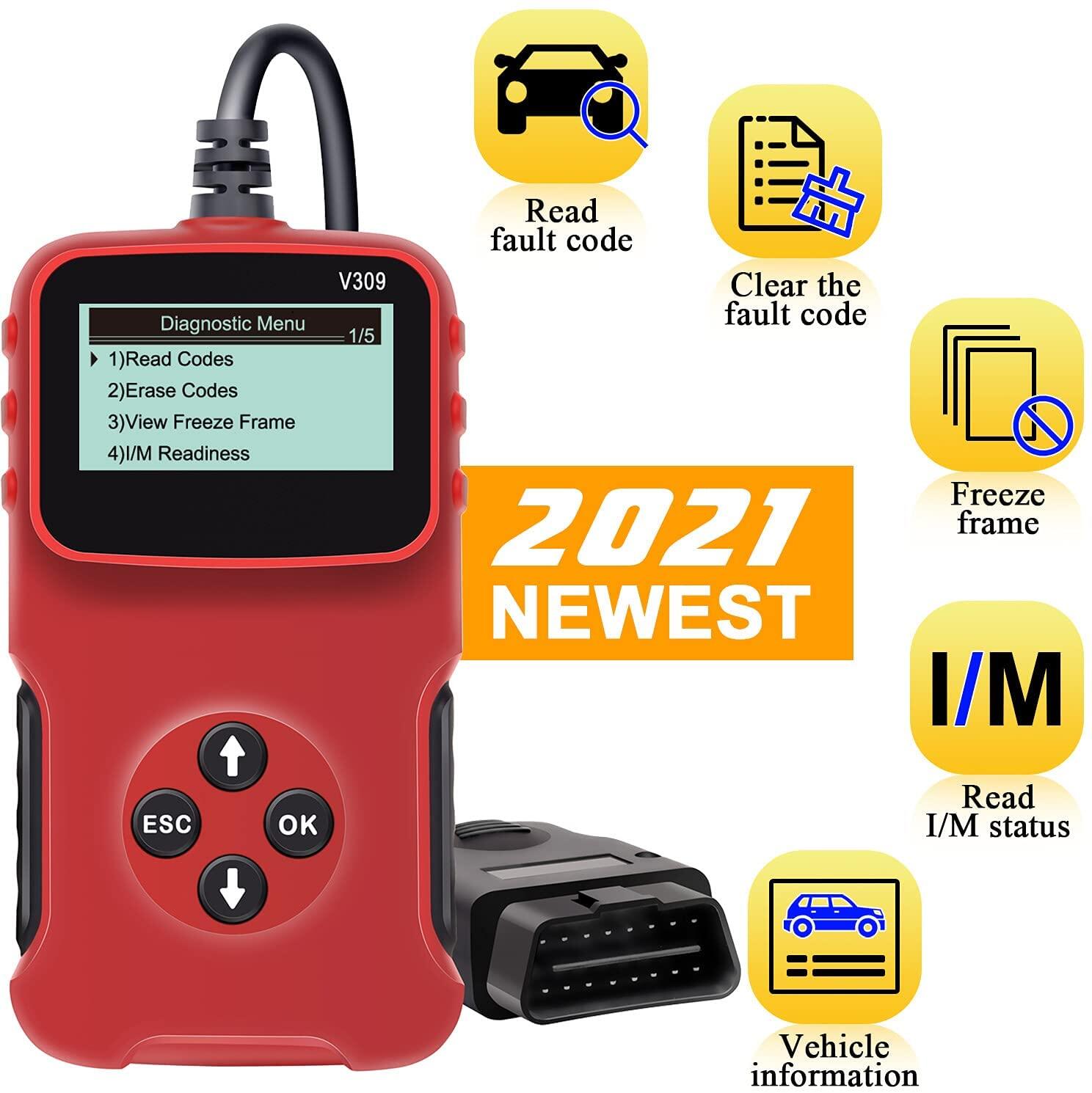

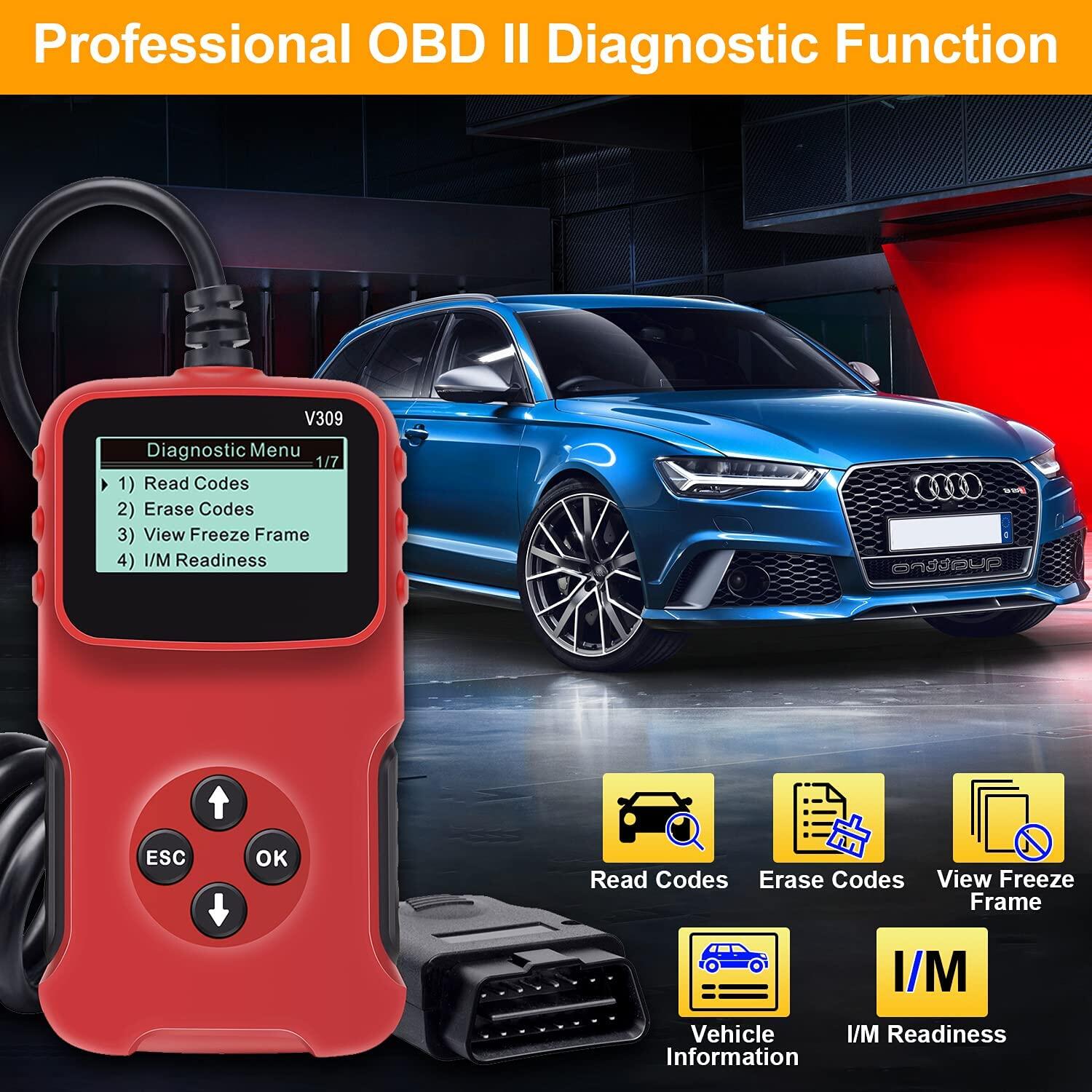

Function Features:

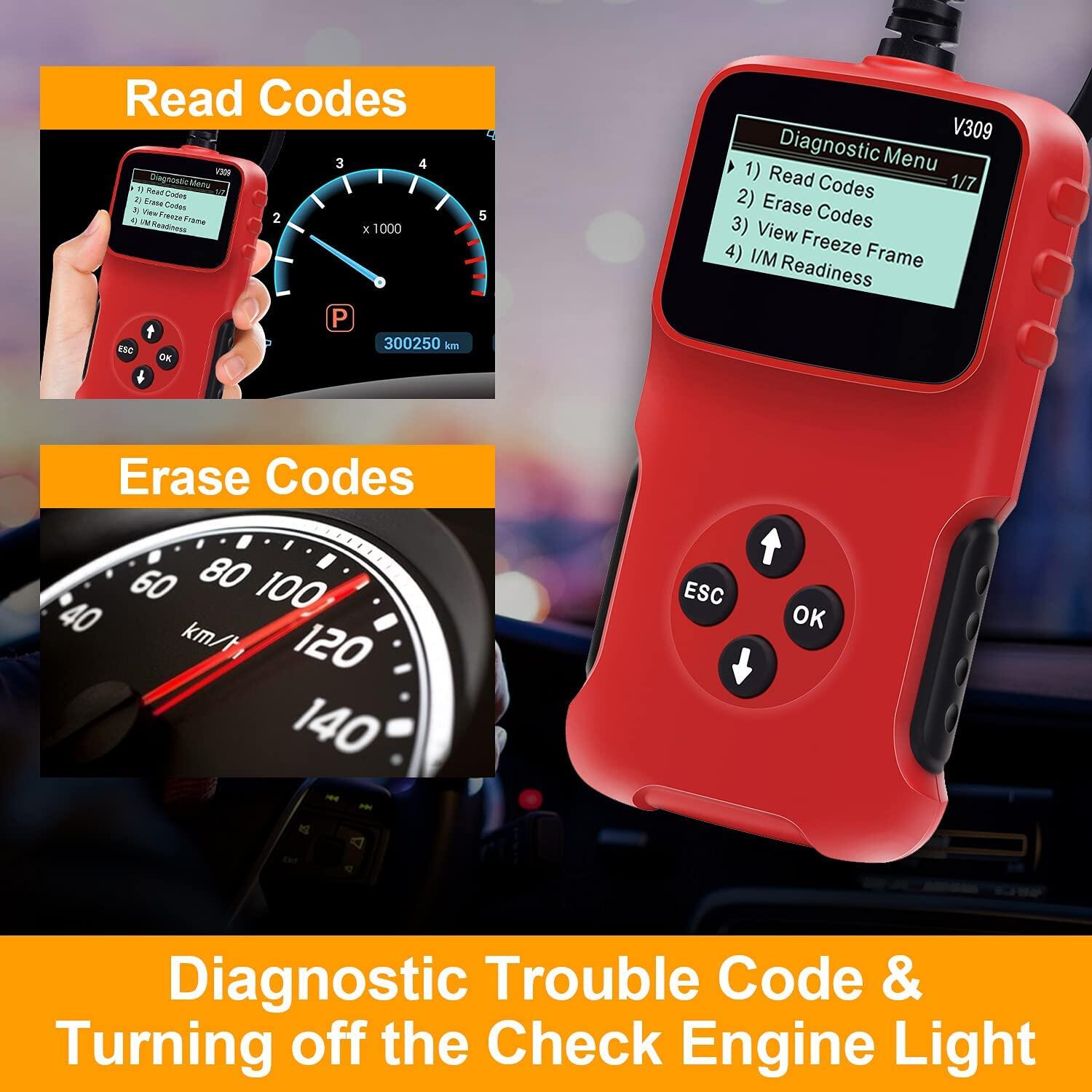

1. Car fault diagnosis

2. Fault code clear

3. View freeze frame data

4. Read I/M status

5. Support five mainstream languages

6. Compact appearance, more convenient to carry

Introduction:

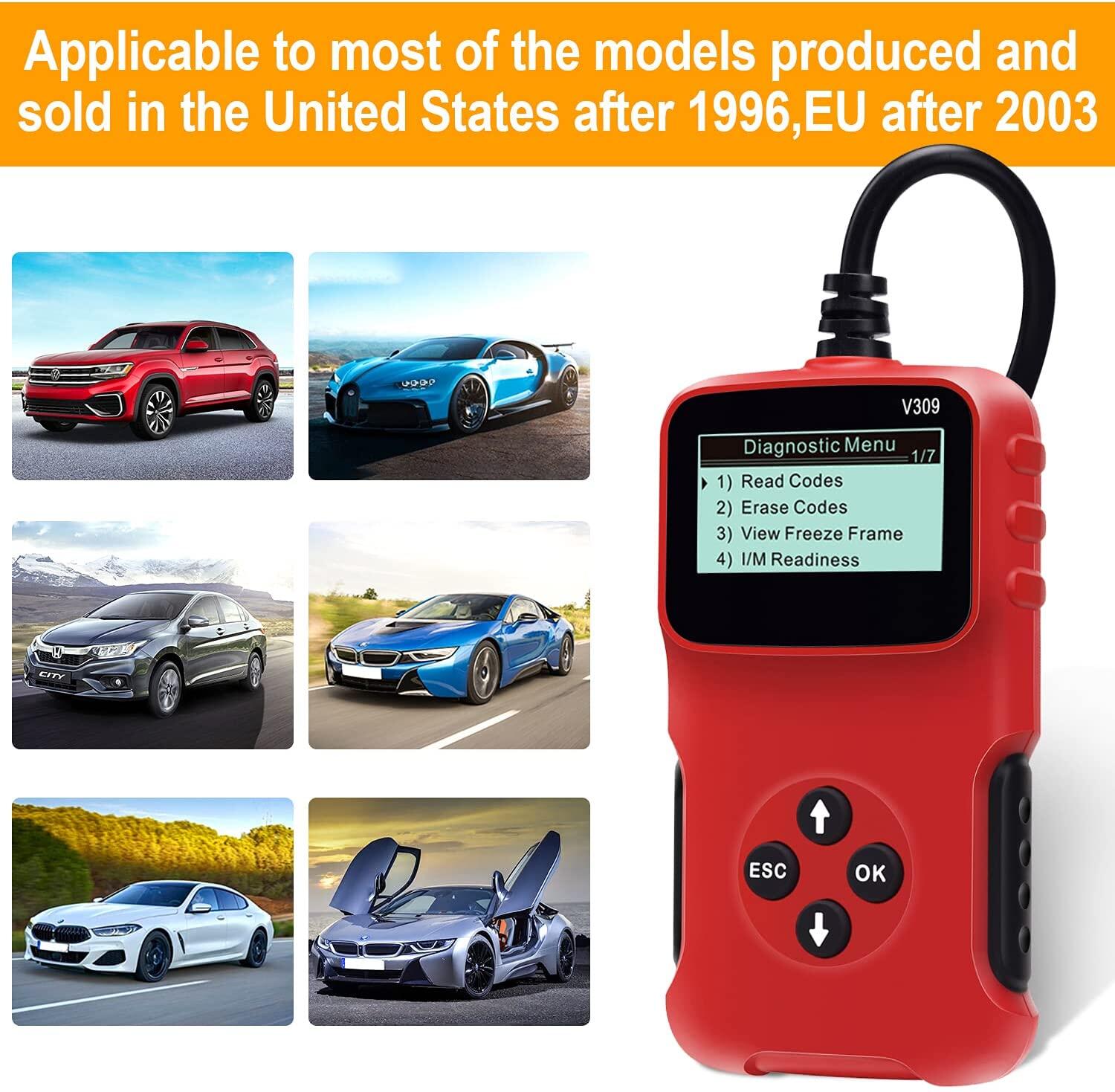

Wide Compatibility: OBD2 code scanner is compatible with all OBDII-Compliant vehicles, passenger cars or light trucks, post 1996 in US, post 2000 for EU-based and Asian cars. Not compatible with new energy vehicles, hybrid vehicles, vehicles that do not comply with OBD2 agreement.

Freeze Frame Date For Accurate Diagnosis: It can check engine code reader comes with viewing freeze frame function that enables you to retrieve data recorded in the ECU of the condition under which the fault occurs to figure out why the check engine light is on and cut down test drive cycle verification time.

I/M Readiness Function: Our car diagnostic scanner tool comes with I/M Readiness function to check the operations of the Emission System on OBD2 compliant vehicles.It includes vehicle-specific number of monitors like misfire monitor, fuel system monitor,Comprehensive component monitor, Oxygen sensor heater monitor,EVAP system and etc.This scan tool to help get your vehicle ready to pass the annual smog check.

Packing list:

Car Fault Detector*1

Note:

The color deviation is subject to actual system configuration and slight dimension difference is allowed due to manual measurement.
