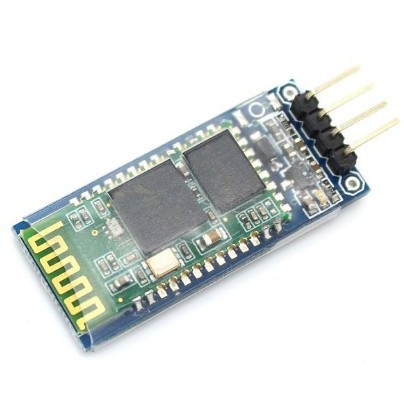

Mô-đun bluetooth HC06 (6B8.1)

Module HC06 active in Slave mode. You need to set connection from Smartphone, Laptop to find the search module after pair with PIN code is 1234. After pair Pair you have a 1 port Serial hđ at Baudrate 9600 Phát lại Bluetooth HC-06 đã tạo chân giúp kết nối dễ dàng để thực hiện thí nghiệm, thiết kế module để có thể hoạt động từ điện áp 3,3 ~ 5VDC. When connected with computer, HC-06 used as a virtual port 1 port, the transfer with virtual virtual will be same as communication data online with UART on module. Save the changing when Baudrate for COM virtual does not change the UART baudrate, baudrate UART can only be changed with AT command on module. Mô-đun HC-06 được thiết lập mặc định là Slave cannot be changed, can only can be only with bluetooth devices in master as smart phone, HC-05 master, ... two bluetooth module set as Slave could not be interface with nhau. Digital Information: Voltage apply: 3.3 ~ 5VDC. Voltage apply: TTL 3,3VDC and 5VDC compatible. Baudrate UART can be selected: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Dynamic frequency frequency: Bluetooth 2.4GHz Sử dụng chip Bluetooth chính thống của CSR, tiêu chuẩn giao thức bluetooth V2.0. Line line when working: when Pairing 30 mA, after pair pair common transport 8 mA Main module size: 28 mm x 15 mm x 2.35 mm Default settings: Tốc độ truyền: 9600, N, 8, 1. Mã ghép nối: 1234.
