Mainboard GIGABYTE Z590 AORUS MASTER

Name: Mainboard GIGABYTE Z590 AORUS MASTER
Brand: Gigabyte
SKU: 281356

Tìm thấy 3 nơi bán khác, giá từ 10.950.000 ₫

10.950.000 ₫

Đến nơi bán

So sánh giá

Tìm thấy 3 nơi bán khác, giá từ 10.950.000 ₫

Mainboard gigabyte z590 aorus master

10.950.000 ₫

Đến nơi bán

Mô tả sản phẩm

Socket: LGA1200 hỗ trợ CPU thế hệ 10 và thế hệ 11

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: PCI Express x16 slot

Khe cắm ổ cứng: M.2 connector, 6 x SATA 6Gb/s connectors

Thông số kỹ thuật

mainboard-gigabyte.html">Mainboard GIGABYTE Z590 AORUS MASTER

Loại sản phẩm
Bo mạch chủ

CPU hỗ trợ

11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*

* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU

Chipset

Intel® Z590 Express Chipset

RAM hỗ trợ

11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Cổng xuất hình onboard

Integrated Graphics Processor-Intel® HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Âm Thanh
Realtek® ALC1220-VB codec
* The front panel line out jack supports DSD audio.
ESS ES9118 DAC chip
Support for DTS: X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit)

Wireless
Intel® Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)

Đa Card màn hình
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
* Supported by 11th Generation processors only.

Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready

USB

Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:
8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Cổng kết nối (I/O bên trong)
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x Clear CMOS jumper
2 x BIOS switches
Voltage Measurement Points

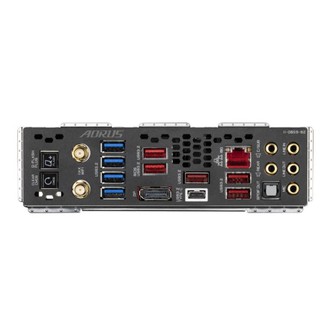

Cổng kết nối (I/O Phía sau)
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

BIOS
2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Các tính năng độc đáo

Support for APP Center

* Các ứng dụng có sẵn trong Trung tâm APP có thể thay đổi theo mô hình bo mạch chủ. Các chức năng được hỗ trợ của từng ứng dụng cũng có thể khác nhau tùy thuộc vào thông số kỹ thuật của bo mạch chủ.

@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Kích cỡ
ATX Form Factor; 30.5cm x 24.4cm
