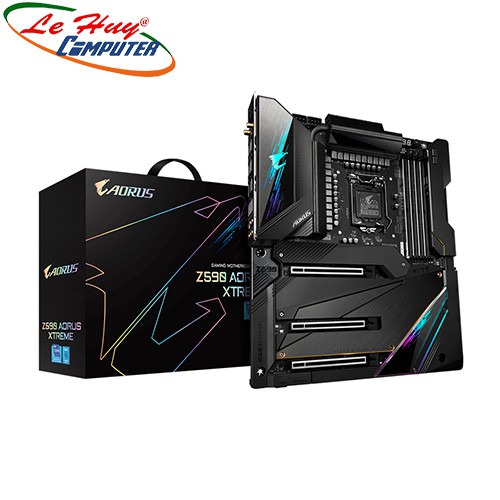

Mainboard GIGABYTE Z590 AORUS XTREME

• Chipset: Intel Z590
• Socket: LGA1200
• Kích thước: E-ATX
• Số khe RAM: 4

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	Z590 AORUS XTREME
CPU hỗ trợ	Intel
Chipset	Z590
RAM hỗ trợ	4 x DDR4 DIMM, tối đa 128GB Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1. 1 x 24-pin ATX main power connector 2. 2 x 8-pin ATX 12V power connectors 3. 1 x CPU fan header 4. 1 x water cooling CPU fan header 5. 6 x system fan headers 6. 2 x system fan/water cooling pump headers 7. 1 x noise detection header 8. 2 x integrated extension cable headers for addressable and RGB LED strips 9. 6 x SATA 6Gb/s connectors 10. 3 x M.2 Socket 3 connectors 11. 1 x front panel header 12. 1 x front panel audio header 13. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 14. 1 x USB 3.2 Gen 1 header 15. 1 x USB 2.0/1.1 headers 16. 2 x temperature sensor headers 17. 1 x power button 18. 1 x reset button 19. 1 x OC Ignition button 20. 2 x BIOS switches 21. Voltage Measurement Points
Cổng kết nối (Back Panel)	1. 1 x Q-Flash Plus button 2. 1 x Clear CMOS button 3. 2 x SMA antenna connectors (2T2R) 4. 2 x Thunderbolt™ 4 connector (USB Type-C® port, with USB 3.2 Gen 2 support) 5. 8 x USB 3.2 Gen 2 Type-A ports (red) 6. 1 x HDMI port 7. 2 x RJ-45 port 8. 1 x optical S/PDIF Out connector 9. 5 x audio jacks
LAN / Wireless	LAN: 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2 Intel® Wi-Fi 6 AX201: WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ	E-ATX Form Factor 30.5 cm x 27cm

Giá Mainboard GIGABYTE Z590 AORUS XTREME mới nhất

1. Mainboard GIGABYTE Z590 AORUS XTREME bán tại Lazada giá 23.500.000₫
2. Bo mạch chủ - Mainboard GIGABYTE Z590 AORUS XTREME bán tại Shopee giá 23.500.000₫
3. Mainboard GIGABYTE Z590 AORUS XTREME bán tại An Phát giá 23.099.000₫
4. Mainboard Gigabyte Z590 AORUS XTREME (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4) bán tại Phúc Anh giá 23.599.000₫
5. Mainboard Gigabyte Z590 AORUS XTREME (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4) bán tại HanoiComputer giá 23.599.000₫
6. Gigabyte Z590 AORUS XTREME (Rev 1.0) - Socket 1200 bán tại Tân Doanh giá 23.650.000₫
