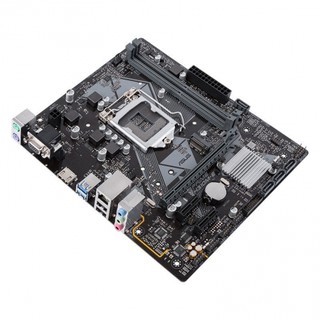

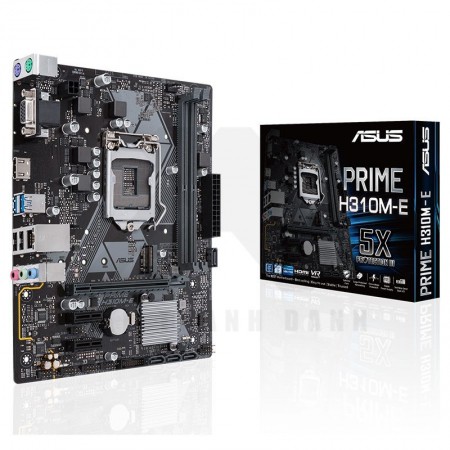

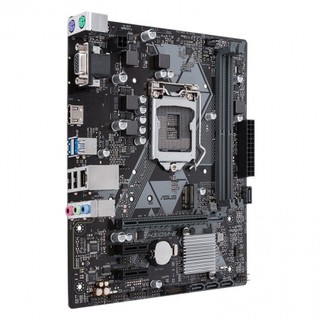

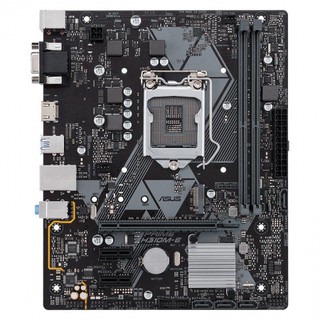

Mainboard Asus H310M-E Prime

THÔNG SỐ KỸ THUẬT CPU hỗ trợ: Intel® Socket 1151 for 8th Generation Core™ Processors Chipset / Socket: Intel® B310 Bộ nhớ (RAM): • 2 x DDR4 memory slots, support up to 32GB • Supports DDR4 2400/ 2133 MHz (by JEDEC) • Supports DDR4 2400/ 2133 (by XMP OC) • Supports Dual-Channel mode • Supports non-ECC, un-buffered memory • Supports Intel® Extreme Memory Profile (XMP) Công nghệ đa GPU • Không hỗ trợ Khe cắm mở rộng • 1 x PCI Express 3.0 x16 Slots • 2 x PCI Express 3.0 x1 Slots LAN / Wireless • RTL8111H Gigabit LAN controller Âm thanh • Realtek® ALC887 Codec Cổng kết nối (Internal) • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) • 1 x COM port(s) connector(s) • 4 x SATA 6Gb/s connector(s) • 1 x CPU Fan connector(s) (1 x 4 -pin) • 1 x Chassis Fan connector(s) (1 x 4 -pin) • 1 x S/PDIF out header(s) • 1 x 24-pin EATX Power connector(s) • 1 x 4-pin ATX 12V Power connector(s) • 1 x Front panel audio connector(s) (AAFP) • 1 x Clear CMOS jumper(s) • 1 x System panel connector • 1 x Speaker connector Cổng kết nối (Back Panel) • 1 x PS/2 keyboard (purple) • 1 x PS/2 mouse (green) • 1 x D-Sub • 1 x HDMI • 1 x LAN (RJ45) port(s) • 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps • 2 x USB 2.0 • 3 x Audio jack(s) Công nghệ độc quyền • ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 4 Phase digital power design • ASUS OptiMem： - Optimem (Improved DDR4 stability) • ASUS EPU : - EPU • ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer • ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert • ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode • ASUS Q-Design : - ASUS Q-DIMM • M.2 Onboard (The latest transfer technologies with up to 10Gb/s data transfer speeds) Phụ kiện đi kèm • User's manual • I/O Shield • 2 x SATA 6Gb/s cable(s) • 1 x M.2 Anchor • 1 x Supporting DVD Hệ điều hành khuyến nghị: • Windows® 10 64-bit Chuẩn kích cỡ: • mATX Form Factor
