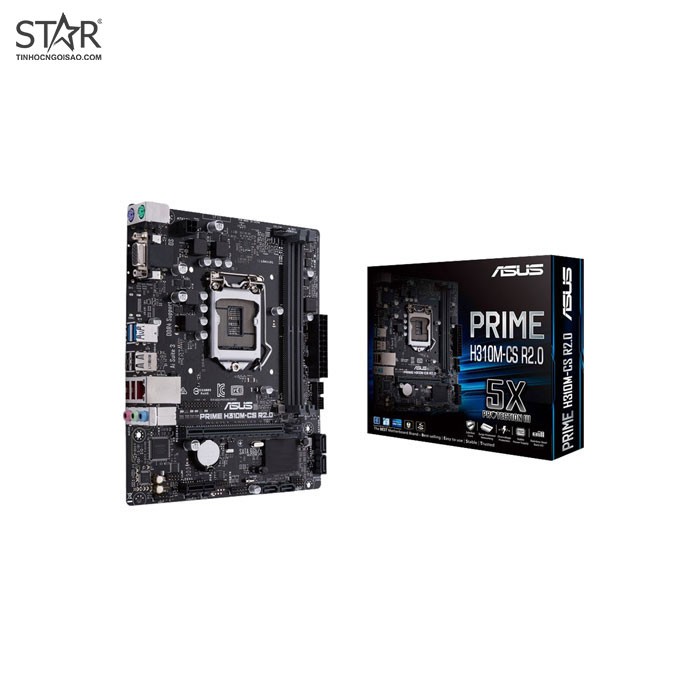

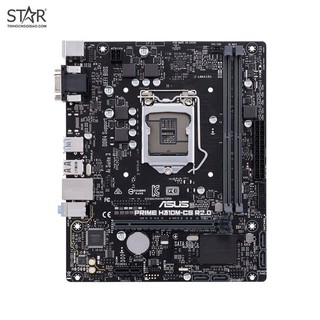

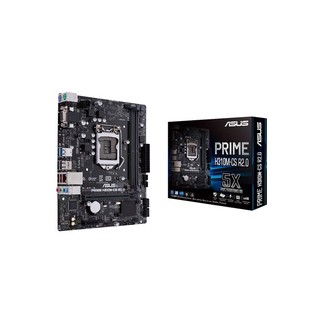

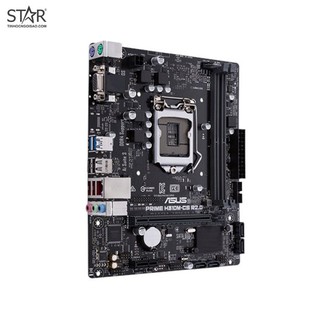

Bo mạch chủ - Mainboard Asus Prime H310M-CS R2.0

Tên gọi ASUS PRIME H310M-CS R2.0 CPU hỗ trợ Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Chipset / Socket H310 Bộ nhớ (RAM) -2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Công nghệ đa GPU – Integrated Graphics Processor- Intel® HD Graphics support – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Khe cắm mở rộng – 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) – 2 x PCIe 2.0 x1 LAN – Realtek® RTL8111H, 1 x Gigabit LAN Âm thanh – Realtek® ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Front Panel Jack-retasking Cổng kết nối (Internal) – 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 – — Gen 1 port(s) (19-pin) – 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) – 1 x LPT header – 1 x COM port(s) connector(s) – 4 x SATA 6Gb/s connector(s) – 1 x CPU Fan connector(s) (1 x 4 -pin) – 1 x Chassis Fan connector(s) (1 x 4 -pin) – 1 x 24-pin EATX Power connector(s) – 1 x 4-pin ATX 12V Power connector(s) – 1 x Front panel audio connector(s) (AAFP) – 1 x Clear CMOS jumper(s) – 1 x 14-1 pin TPM connector – 1 x System panel connector – 1 x Chassis intrusion header – 1 x Speaker connector Cổng kết nối (Back Panel) – 1 x PS/2 keyboard (purple) – 1 x PS/2 mouse (green) – 1 x D-Sub – 1 x LAN (RJ45) port(s) – 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps – 2 x USB 2.0 – 3 x Audio jack(s) Phụ kiện đi kèm – Hướng dẫn sử dụng – 2 x cáp SATA 6Gb / s – I/O Shield – 1 x DVD hỗ trợ Hệ điều hành khuyến nghị – Microsoft® Windows® 10 64-bit Chuẩn kích cỡ Dạng thiết kế mATX 8.4 inch x 7.0 inch ( 21.34 cm x 17.78 cm )
