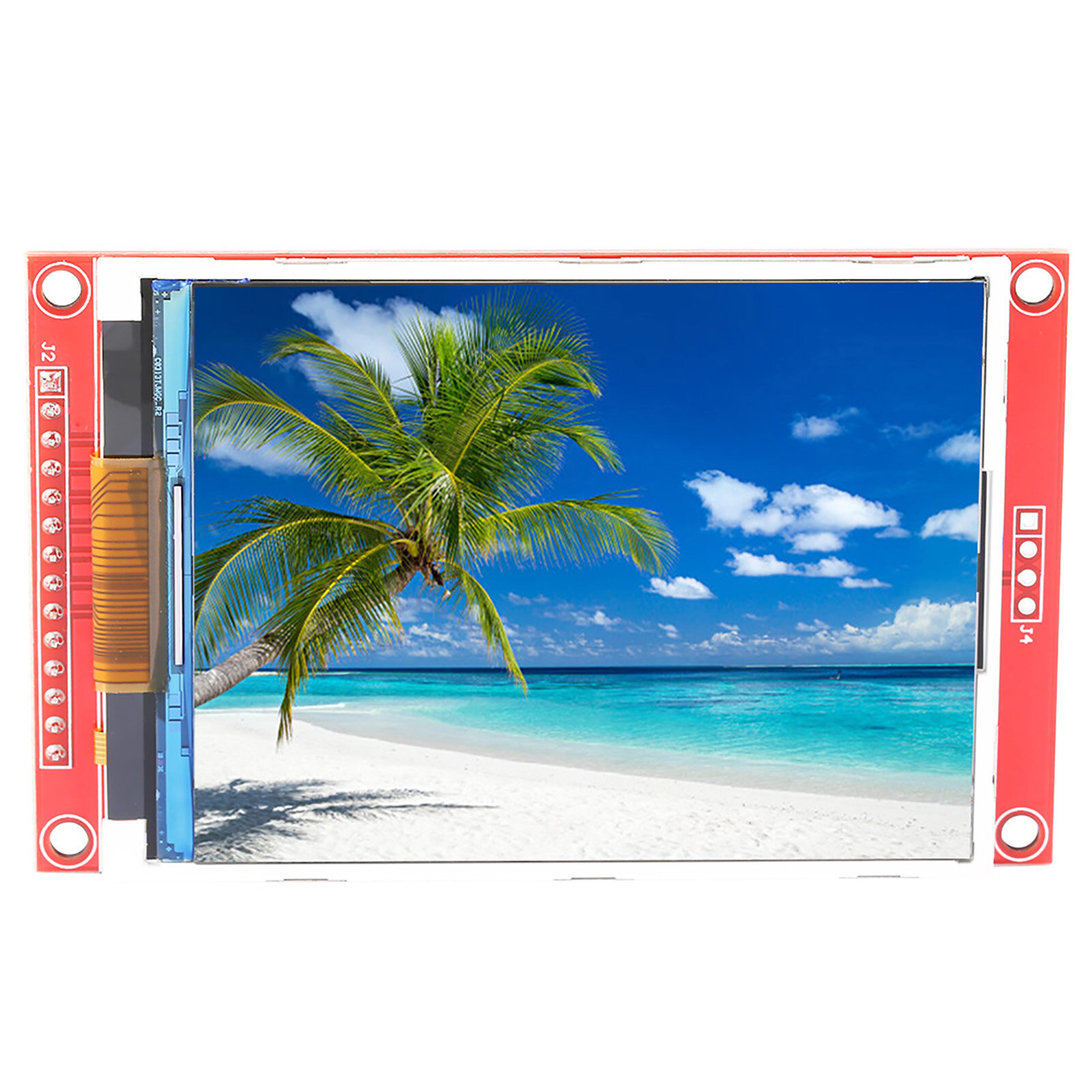

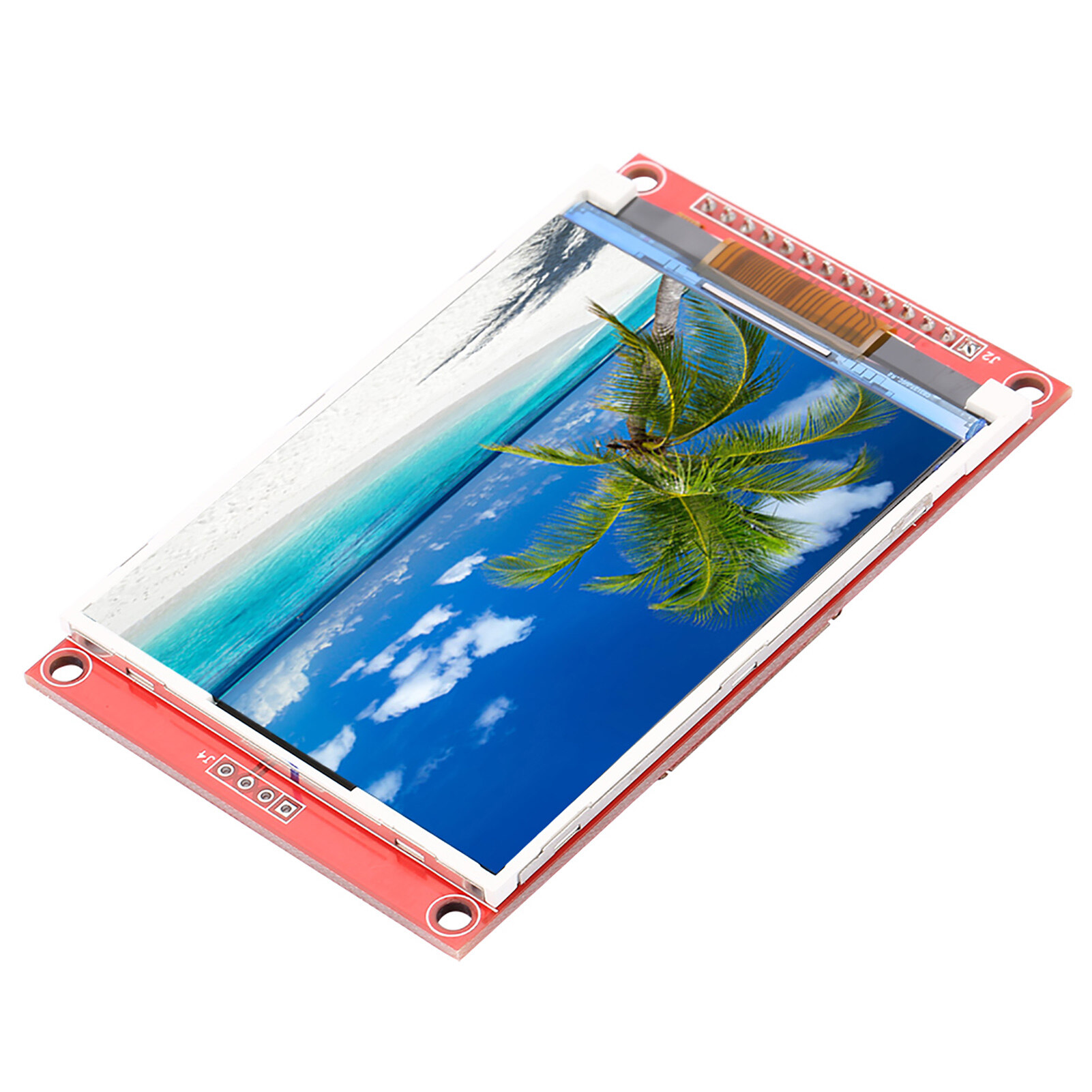

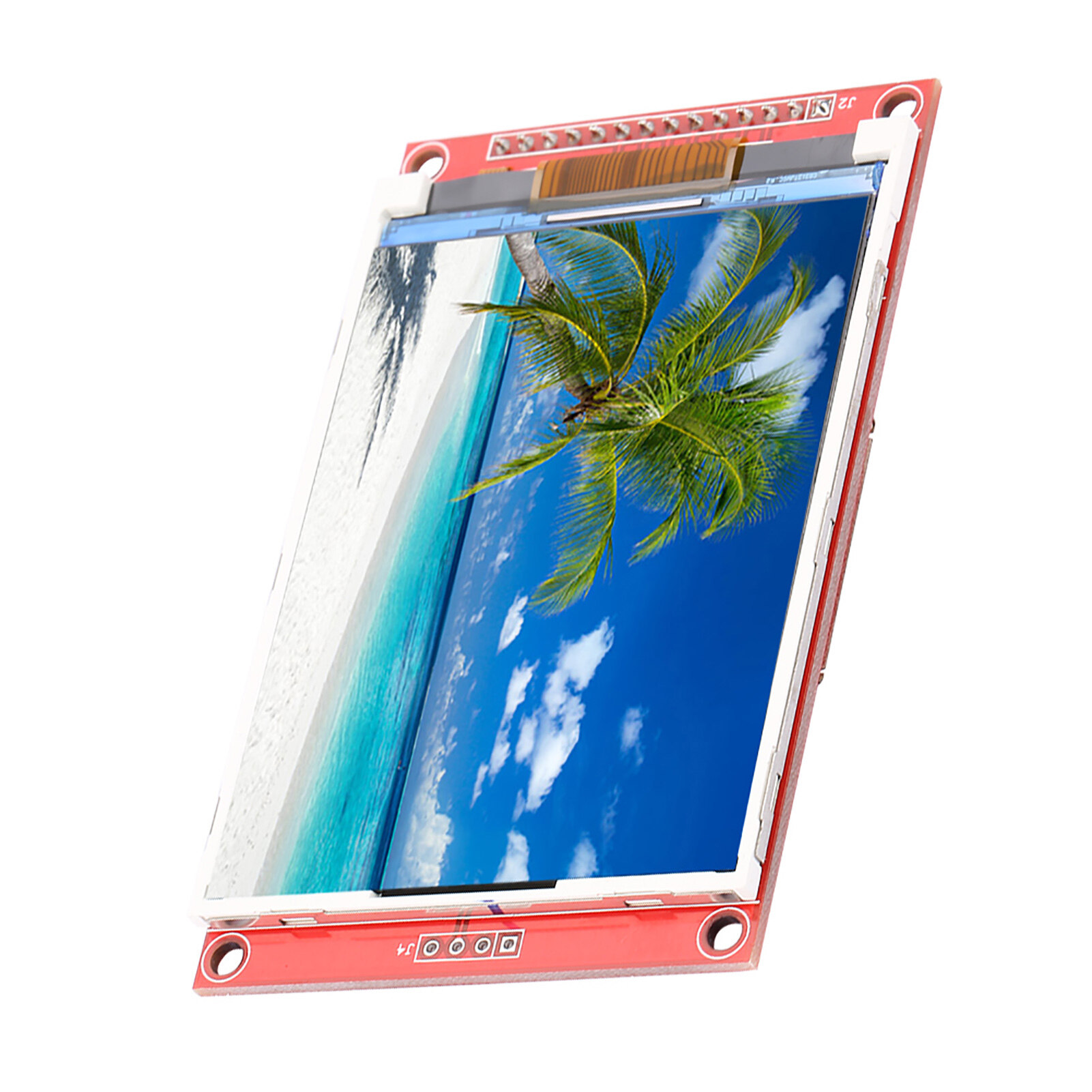

Lcd Controller Board Kit 3.2Inch Useful Stable Practical Lcd Tft Display Module for 4-Wire Spi Interface 240x320 3.3V -5V Ili9341

1. 3.2 inch color screen, support 65K color display, and the display is colorful
2. 320X240 HD resolution, with touch function(optional)
3. Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display

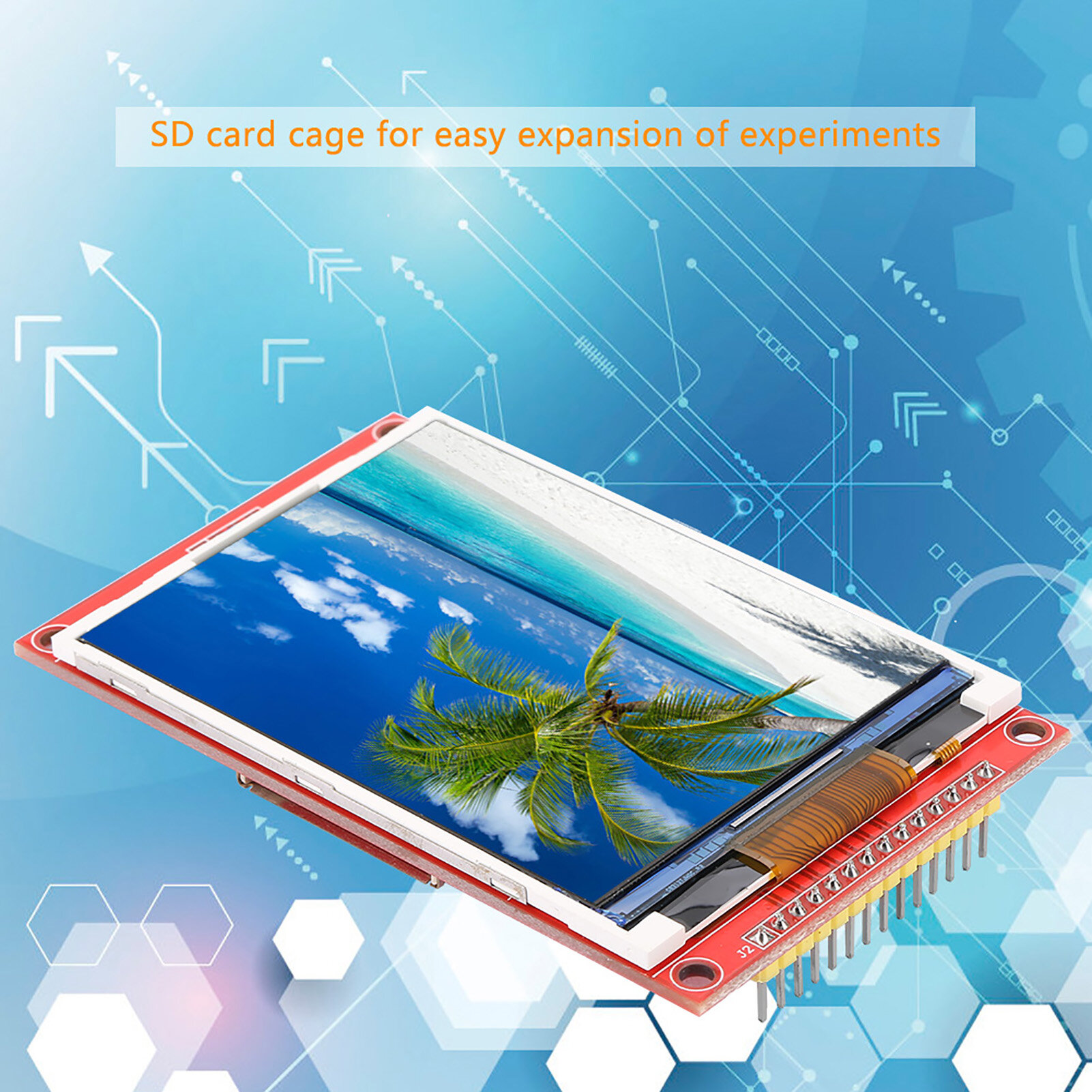

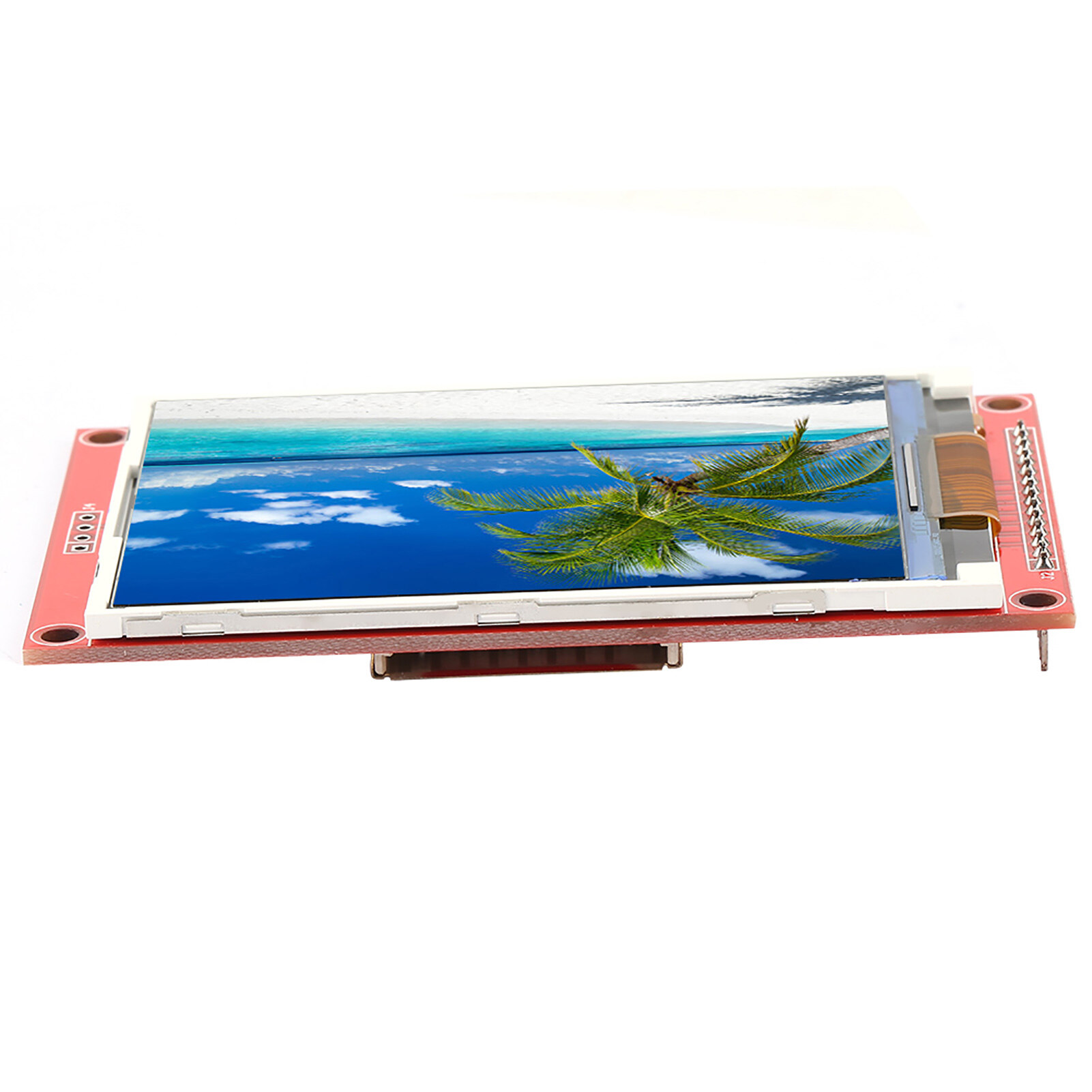

4. Memory card card cage for easy expansion of experiments
5. Provides a rich sample program

Specification:
Features:
3.2 inch color screen, support65K color display, and the display is colorful
320X240 HDresolution, withtouch function(optional)
Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display
Memory card cage for easy expansion of experiments
Provides a rich sample program
Military technology standard, long - term stable work
Provide underlying driver technical support
Specification:
Size: 3.2 inch
Type: with touch function, no touch function (optional)
Driver chip: ILI9341
Resolution: 320*240 (Pixel)
Module interface: 4-wire SPI interface
Effective display area: 48.6x64.8(mm)
Module PCB plate size: 55.04x89.3(mm)
VCC power supply voltage: 3.3v ~5V
Logical IO port voltage: 3.3v (TTL)
The power consumption: Approx. 90mA
Weight: Approx.42g/1.5oz

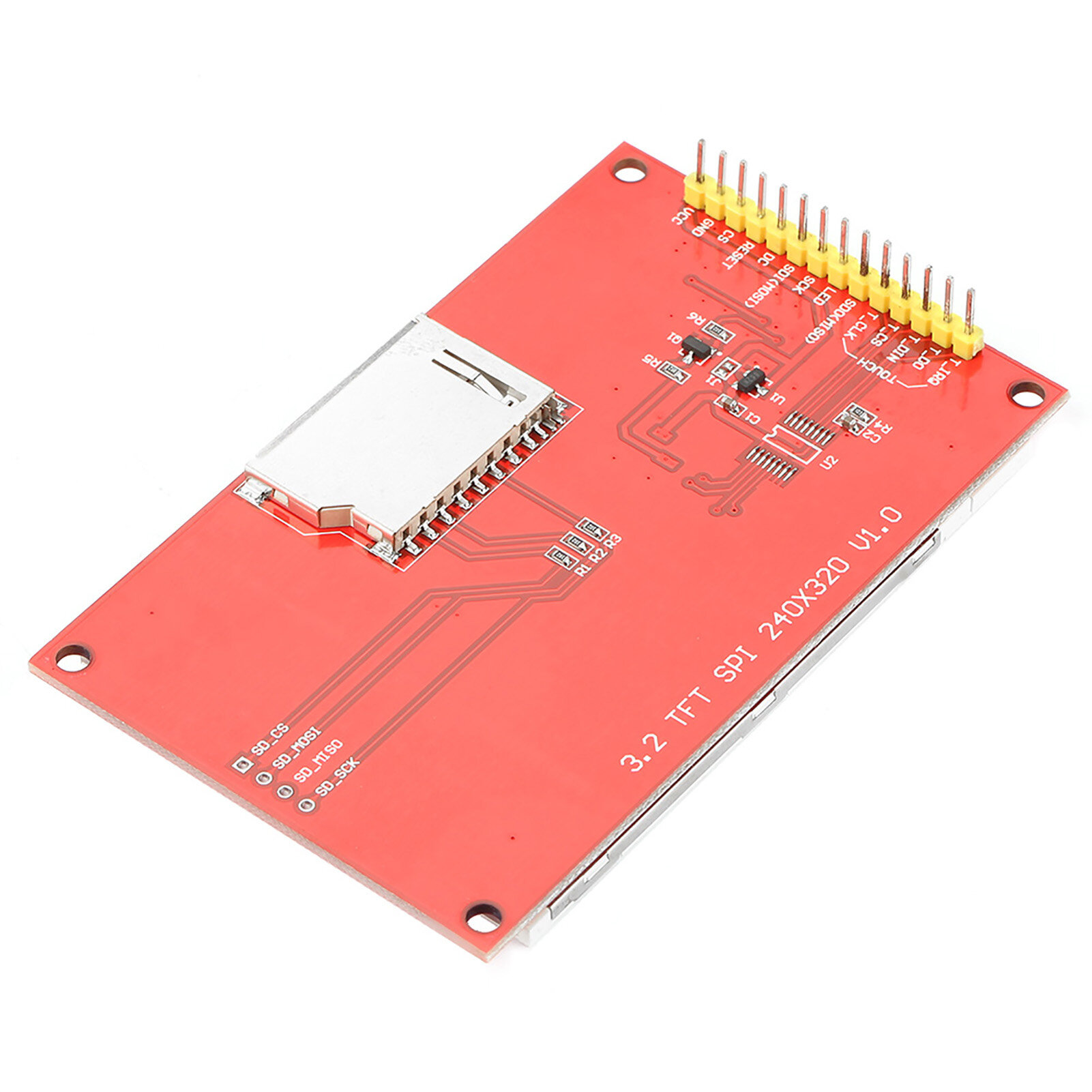

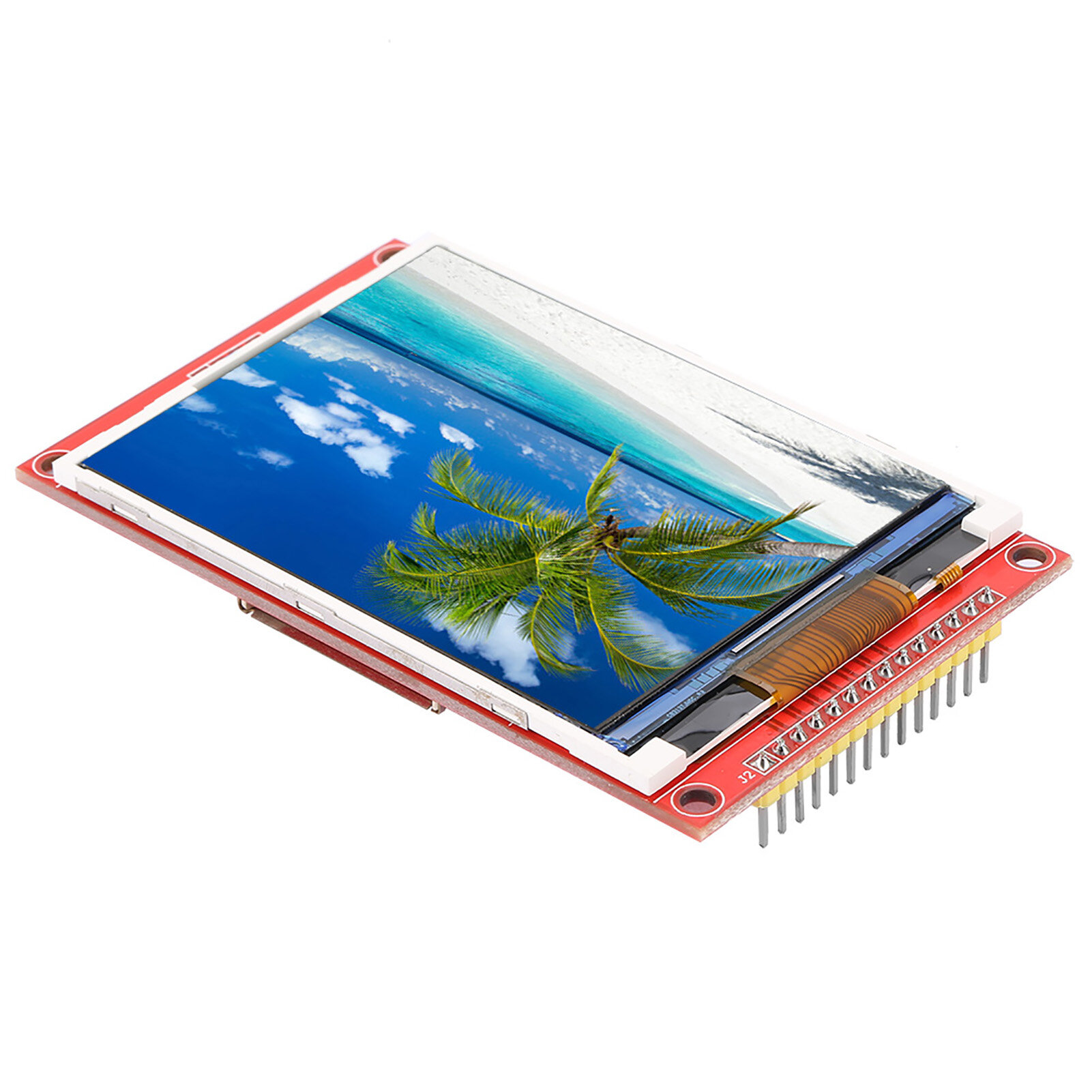

Interface definition:
serial number label Pin description
1 VCC power input(3.3V~5V)
2GNDPower Ground
3 CS LCD Chip Selection
4 RESET LCD reset
5 DC LCD Bus command/data selection
6 SDI(MOSI) LCD SPI Displays bus data input
7 SCK LCD SPI Displays bus clock signal
8 LED LCD Backlight control (high level lighting)
9 SDO(MISO) LCD SPI Displays bus data output
10 T_CLK Touch panel SPI bus clock signal
11 T_CS Touch panel SPI busChip Selection
12 T_DIN Touch panel SPI bus data input
13 T_DO Touch panel SPI bus data output
14 T_IRQ Touch panel interrupts IRQ signal
Package list:
1 x LCD Display Module
Note:

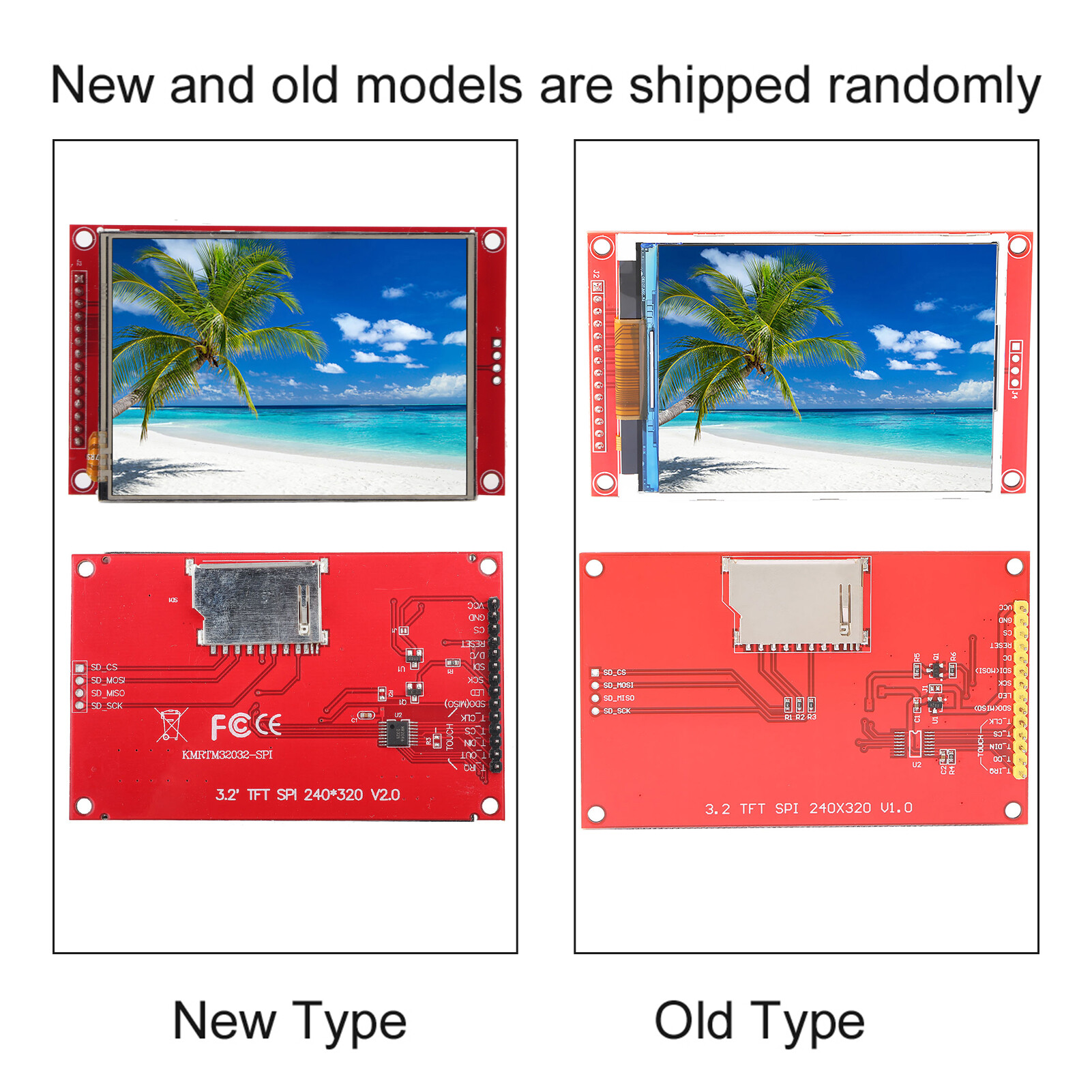

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
