FocusAi LCD Screen Module 3.5inch TFT Display Module SPI Serial 240*320 HD Electronic Accessories Electronic Screen Driver Accessories

Features:

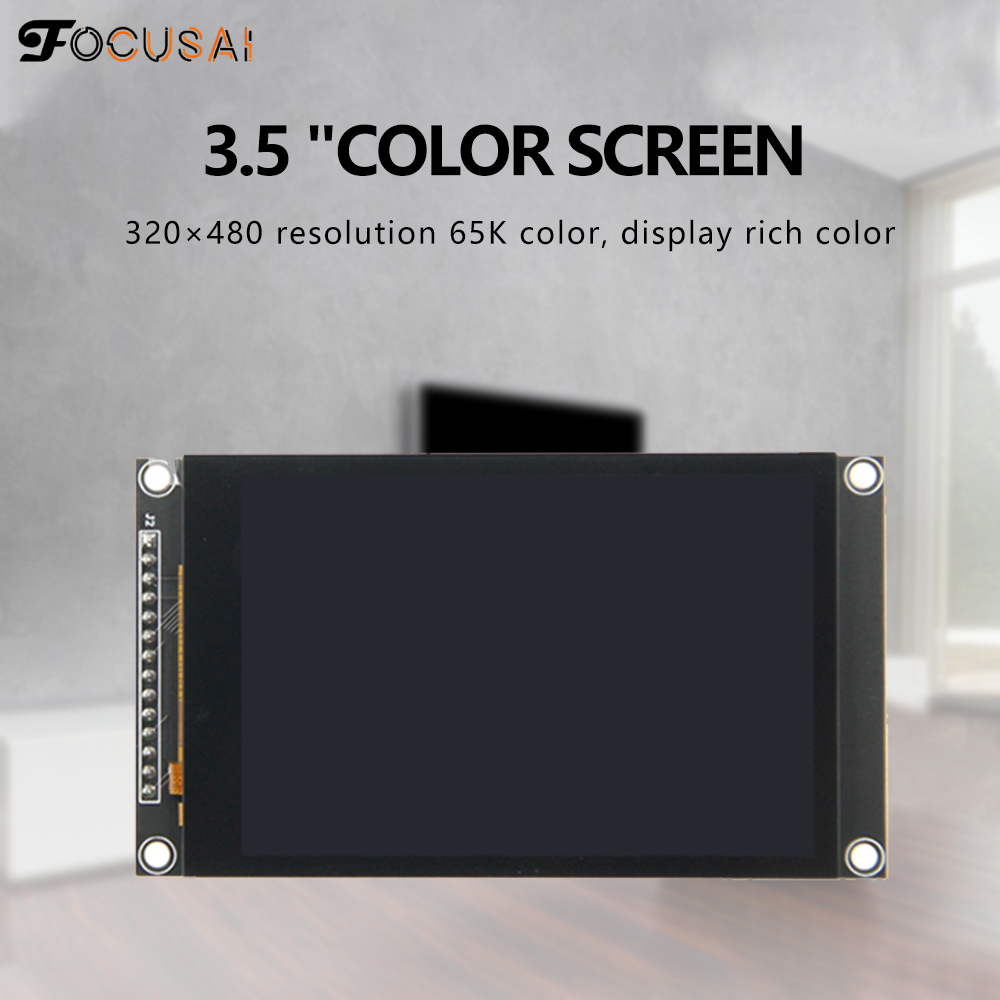

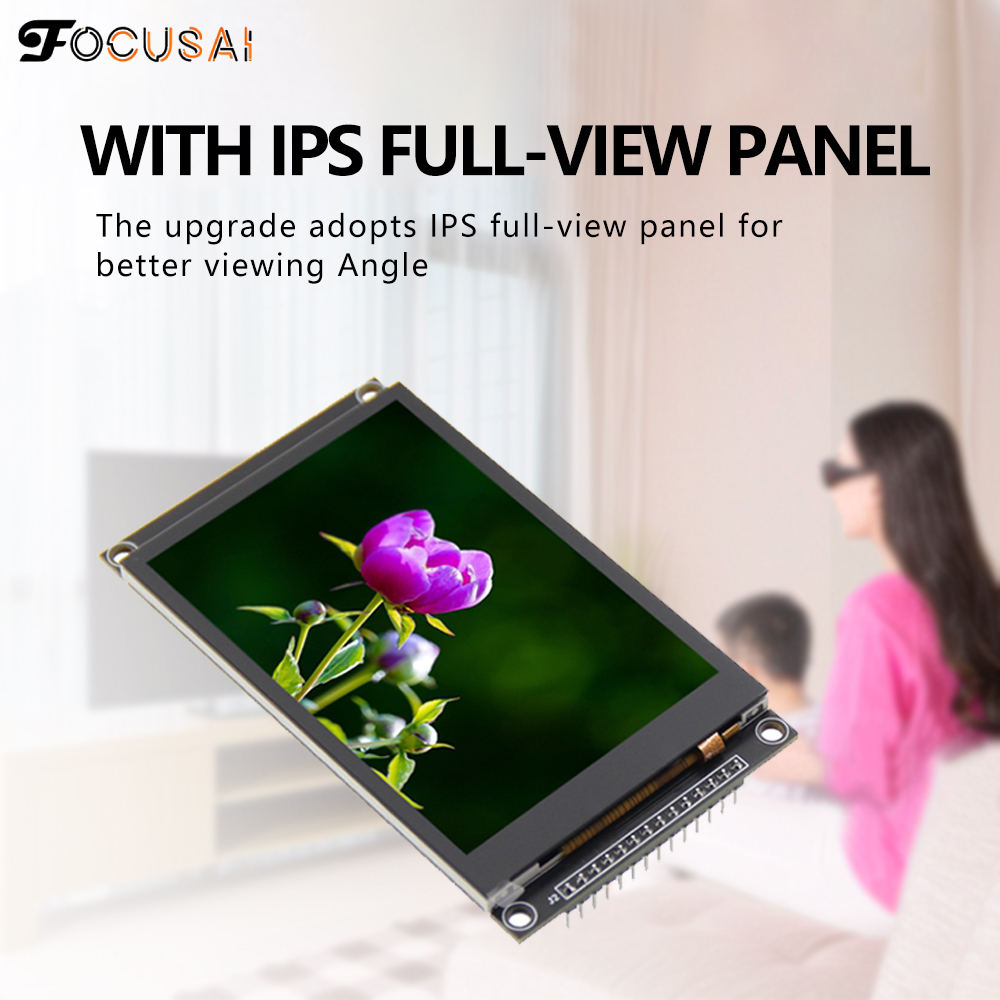

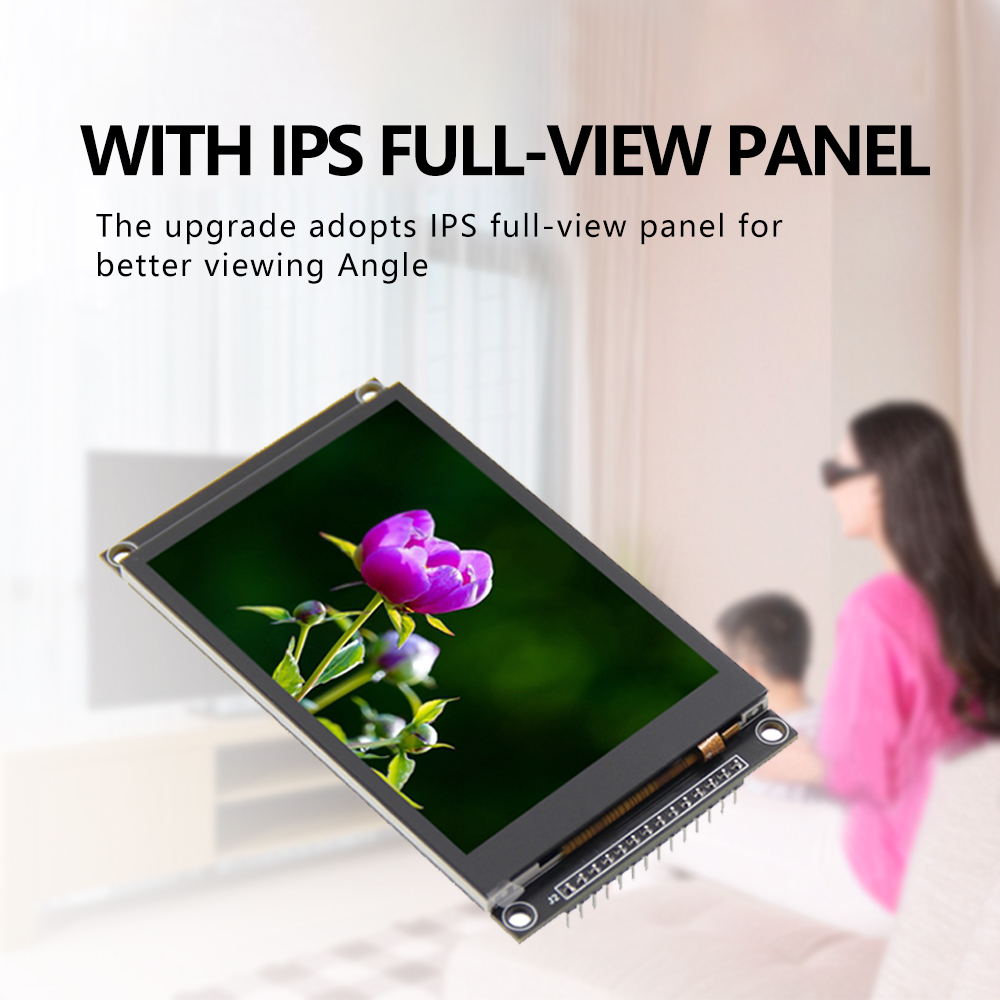

1.3.5-inch color screen, upgraded IPS full view panel, excellent viewing angle
2.320X480 resolution 65K colors, optional capacitive touch function

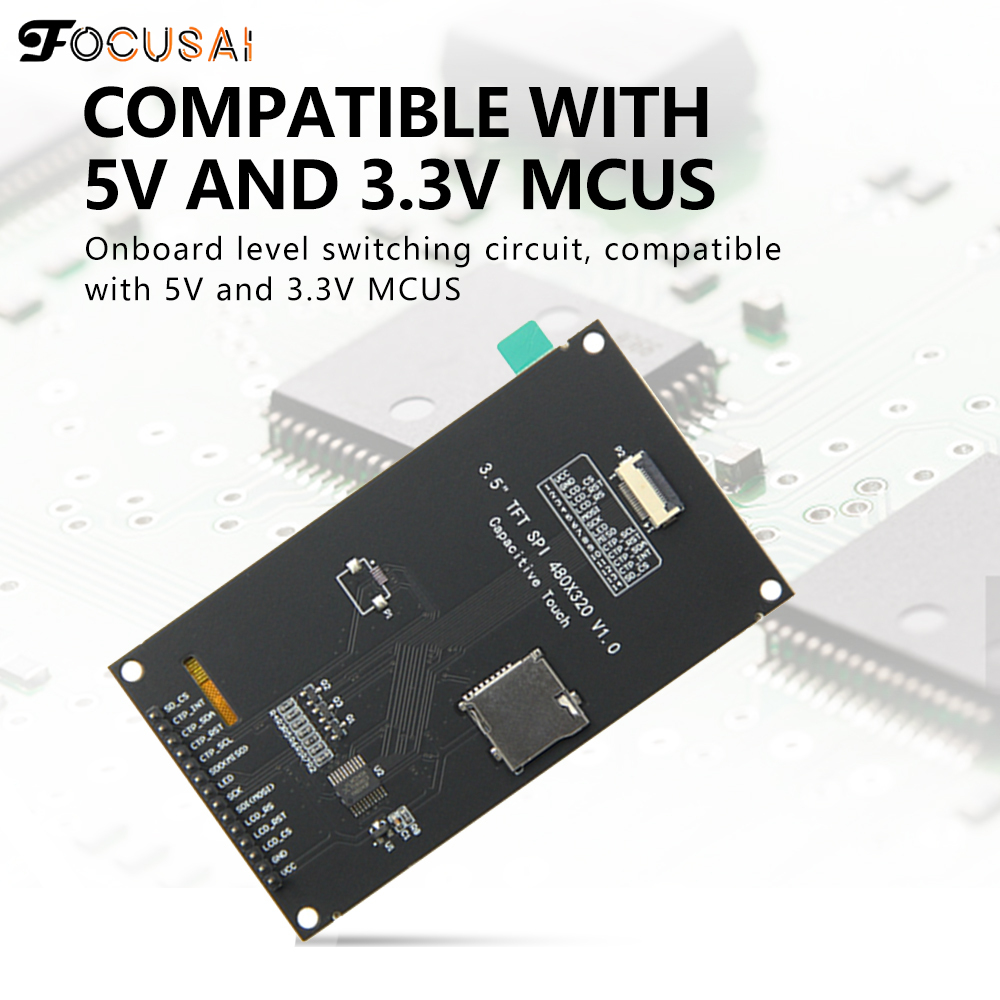

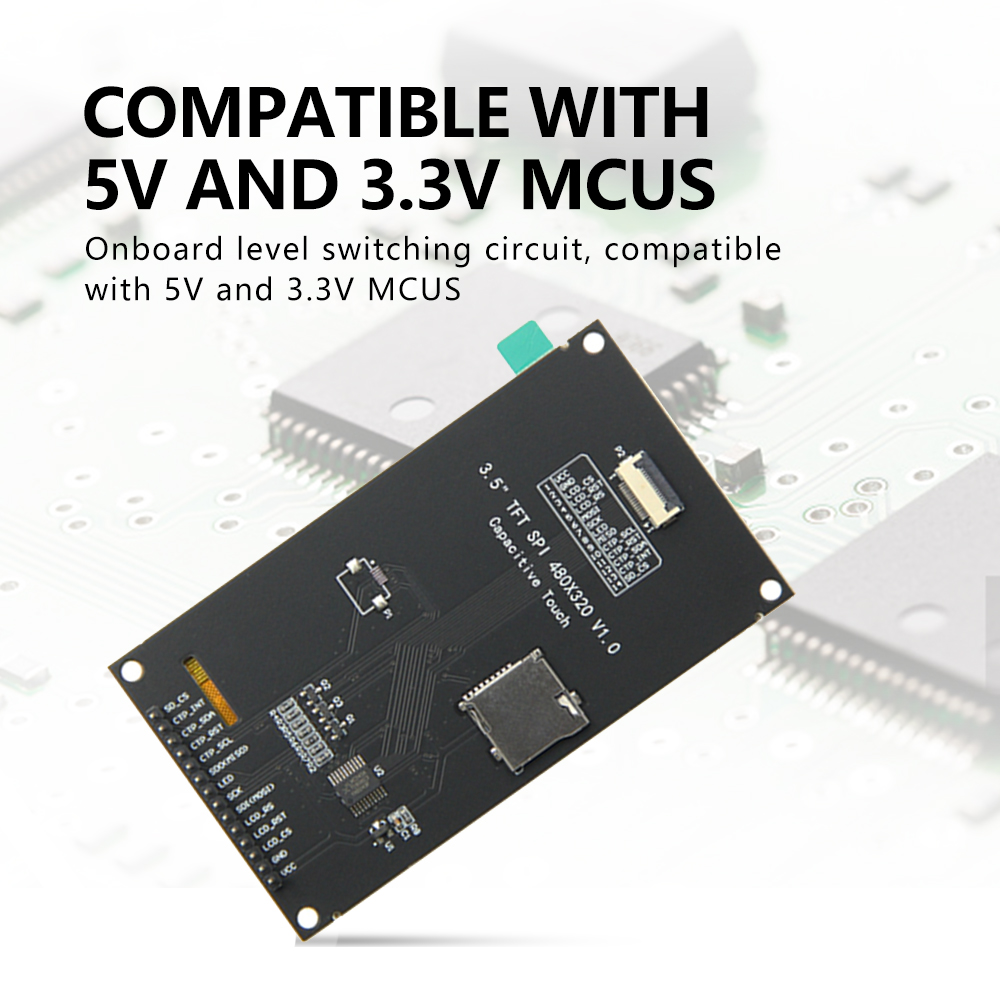

3.Onboard level conversion chip, compatible with 5V/3.3V microcontroller
4.It can be directly connected to a 5V microcontroller (example for Arduino UNO/Mega2560)

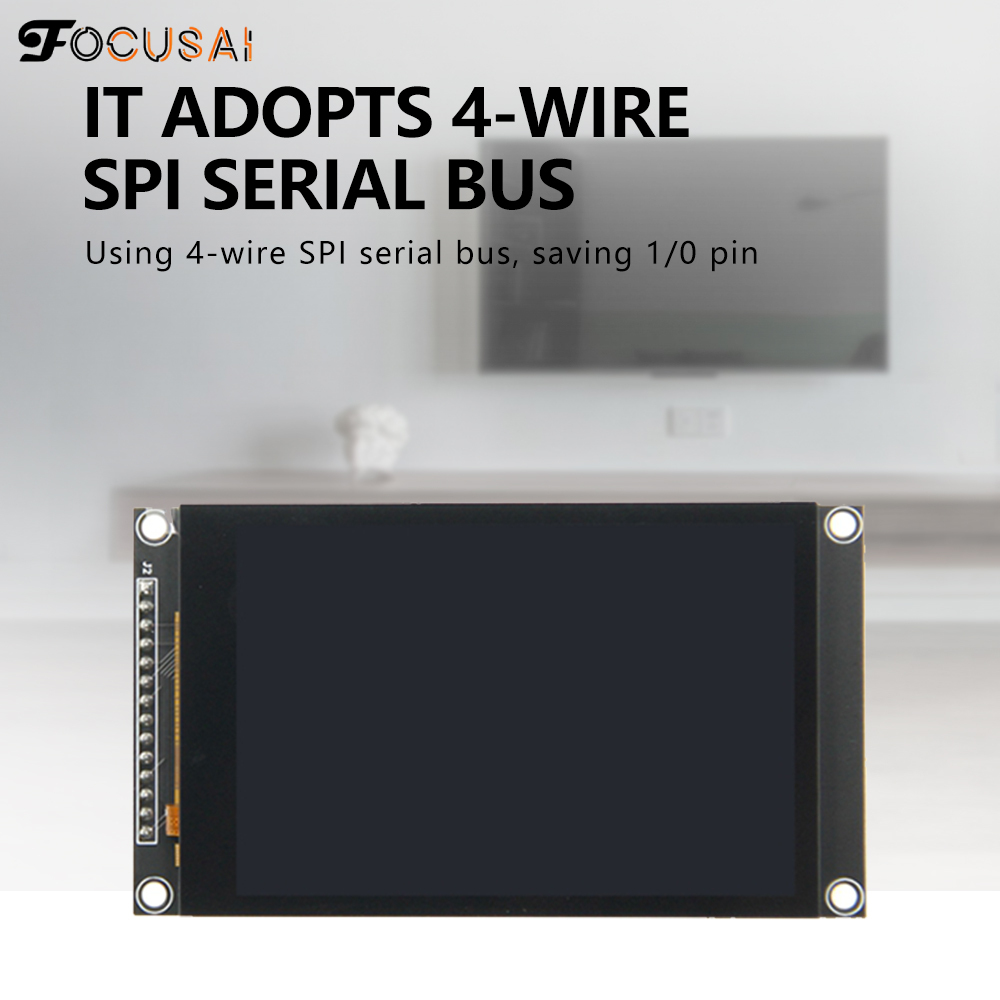

5.Adopting a 4W-SPI serial bus, it only requires a few IOs to light up the display
6.Equipped with Micro TF card slot for easy storage expansion

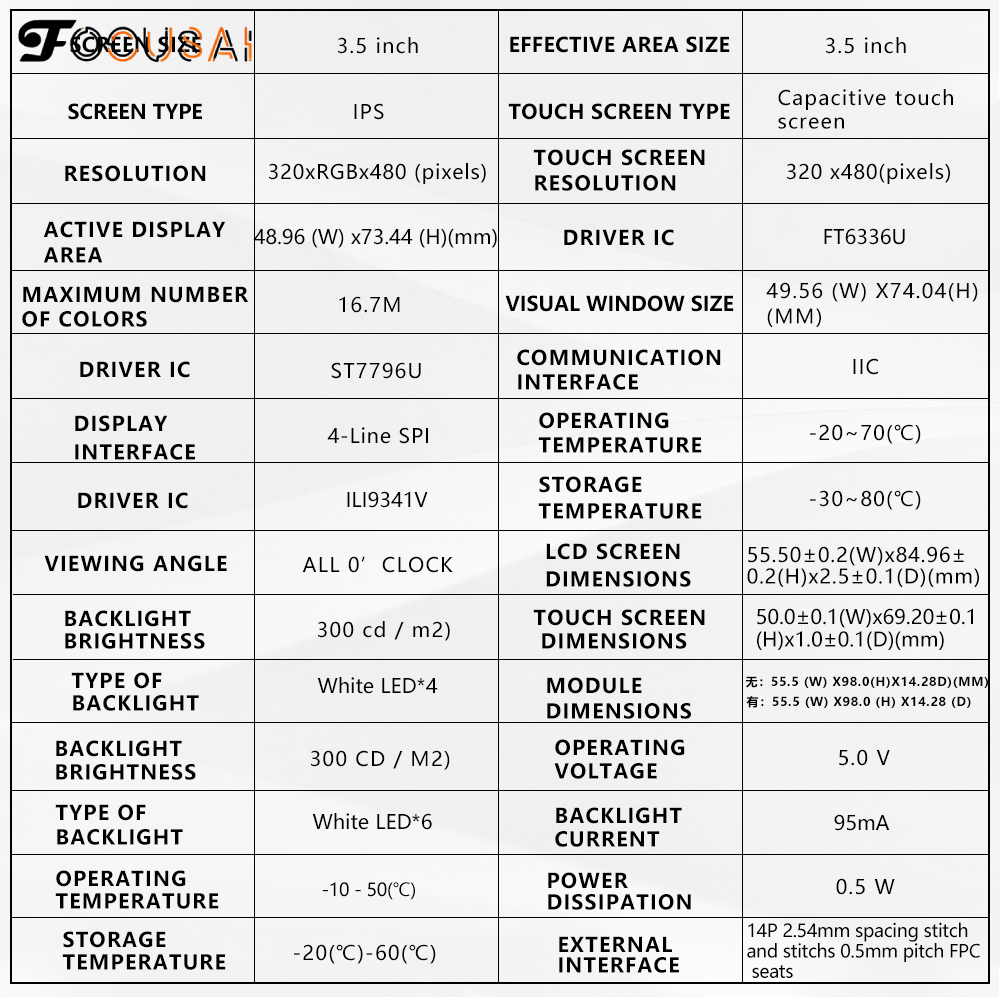

Parameter:

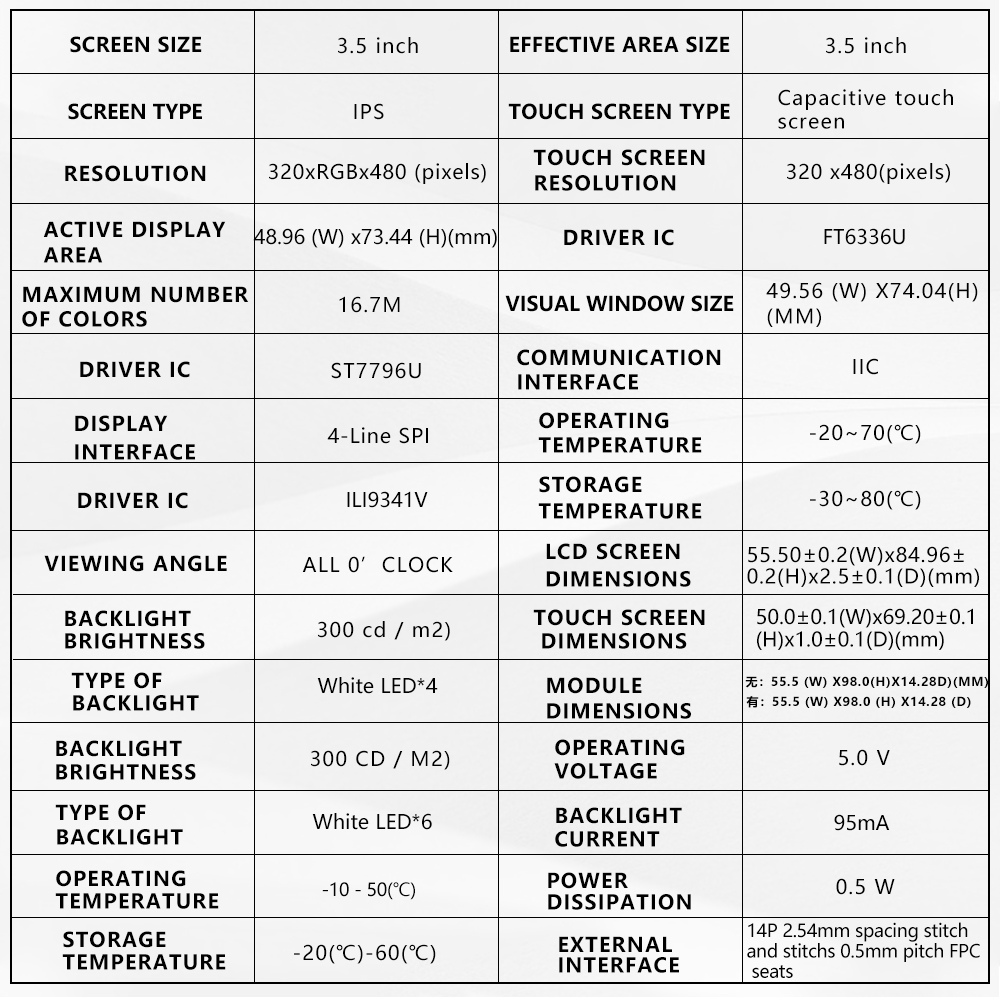

LCD screen parameters:
Screen size: 3.5 inches
Screen type: IPS
Resolution: 320xRGBx480 (pixels)
Effective display area: 48.96 (W) x 73.44 (H) (mm)
Drive IC: ST7796U
Display interface: 4-Line SPI
Pixel size: 0.153 (H) x 0.153 (V) (mm)
Visual angle: ALL 0 'CLOCK
Backlight brightness: (typical value) 300 (cd/m2)
Backlight type: White LED * 6
Working temperature: -10~50 (℃)
Storage temperature: -20~60 (℃)
Touch screen parameters:
Effective area size: 3.5 inches
Touch screen type: capacitive touch screen
Touch screen resolution: 320x480 (pixels)
Drive IC: FT6336U
Visual window size: 49.56 (w) x 74.04 (H) (mm)
Communication interface: IIC
Structural material: G+F
Working temperature: -20~70 (℃)
Storage temperature: -30~80 (℃)
Electrical parameters
Working voltage: 5.0 V
Backlight current: 95 mA
Power consumption: 0.5 W

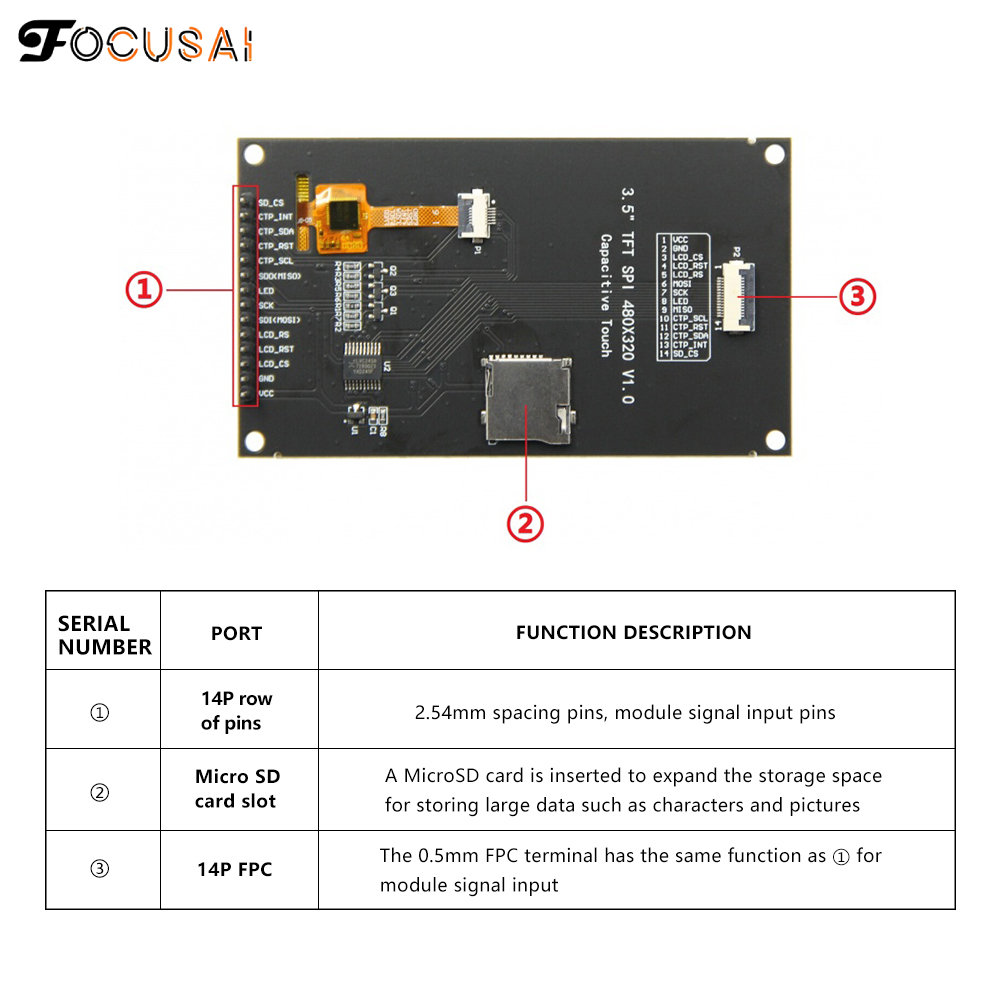

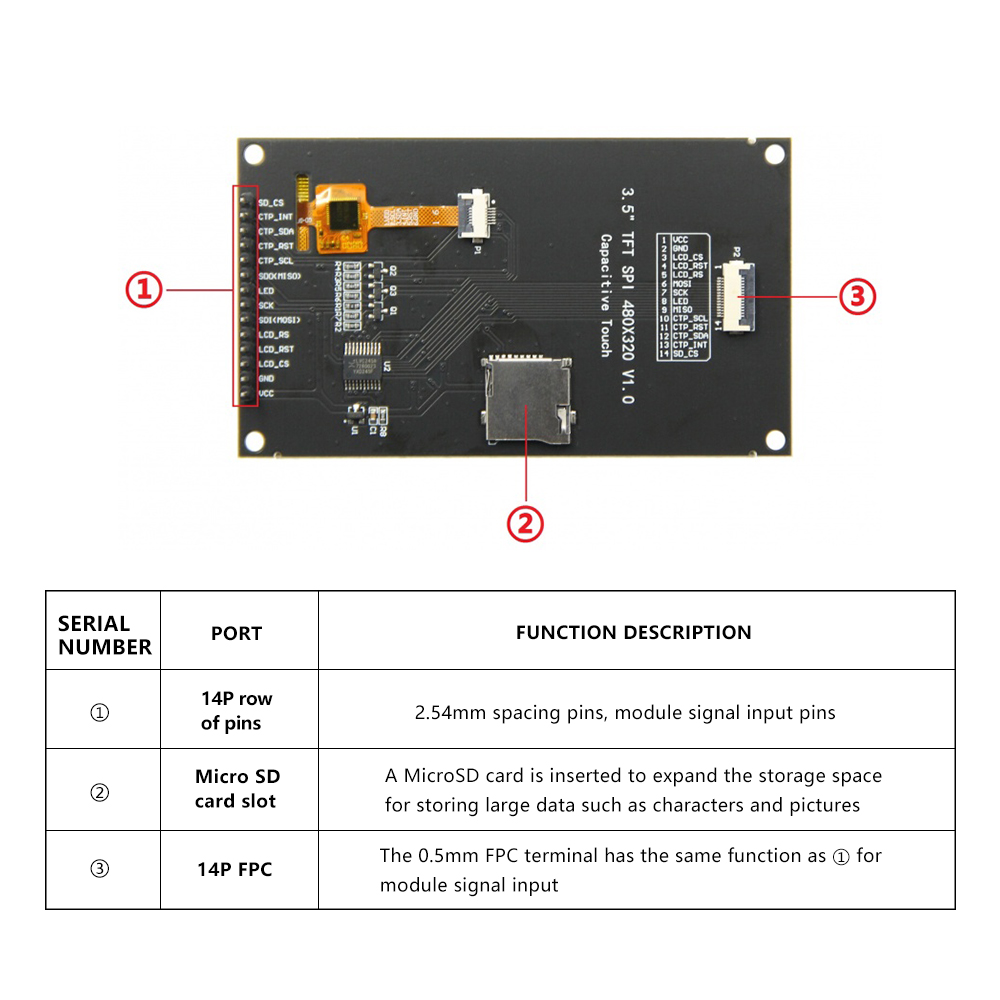

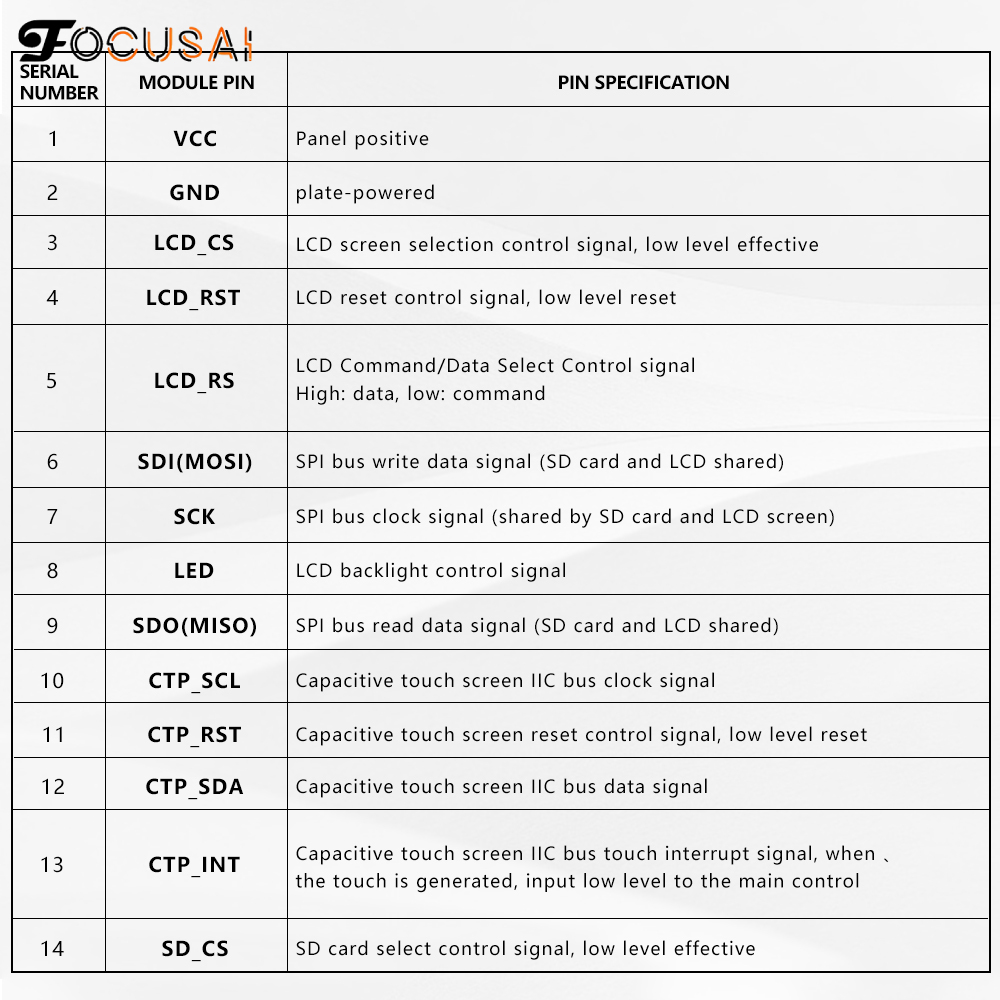

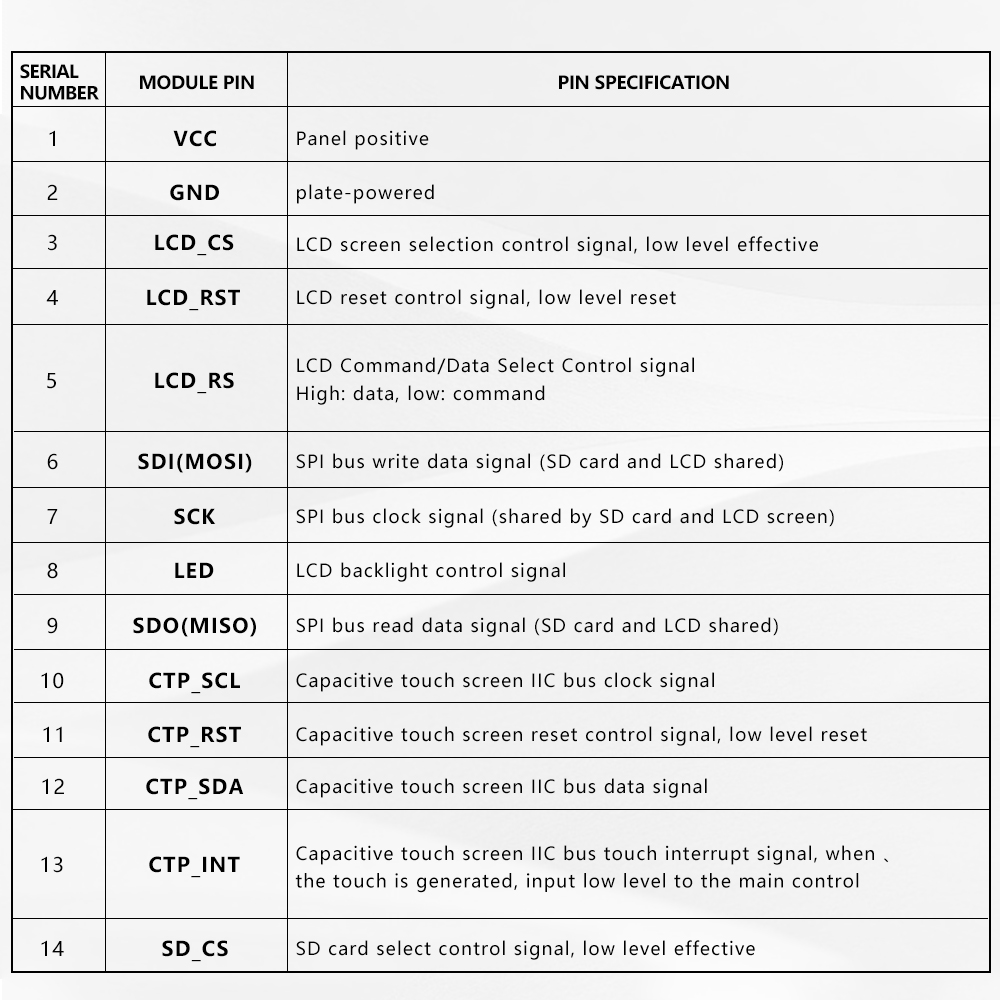

External interface: 14P 2.54mm pin and 0.5mm FPC

Package include:
Paper box packaging
Display module * 1+
FPC 0.5 reverse 30cm line x1
