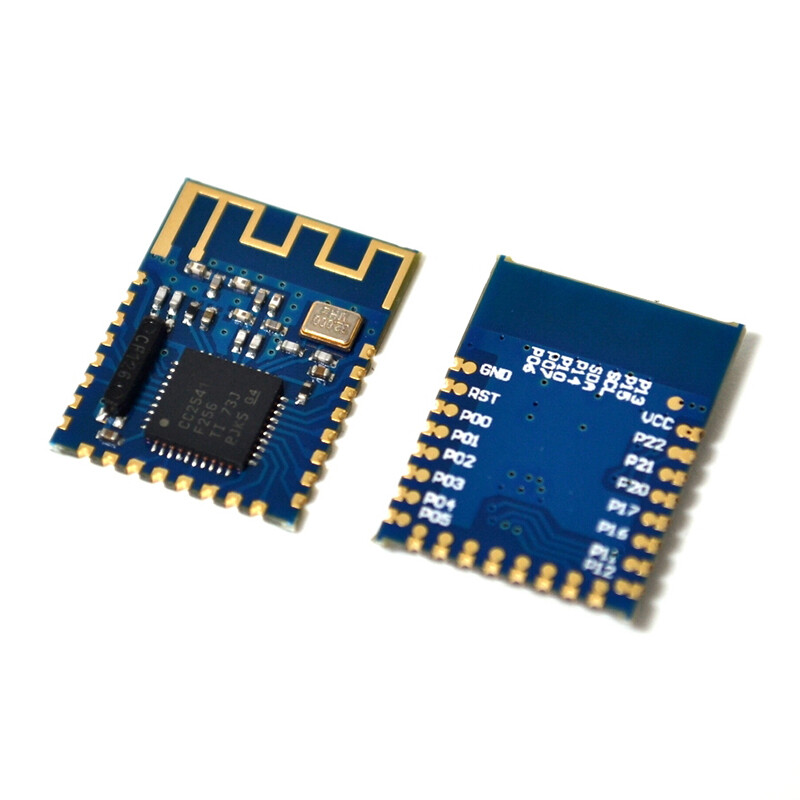

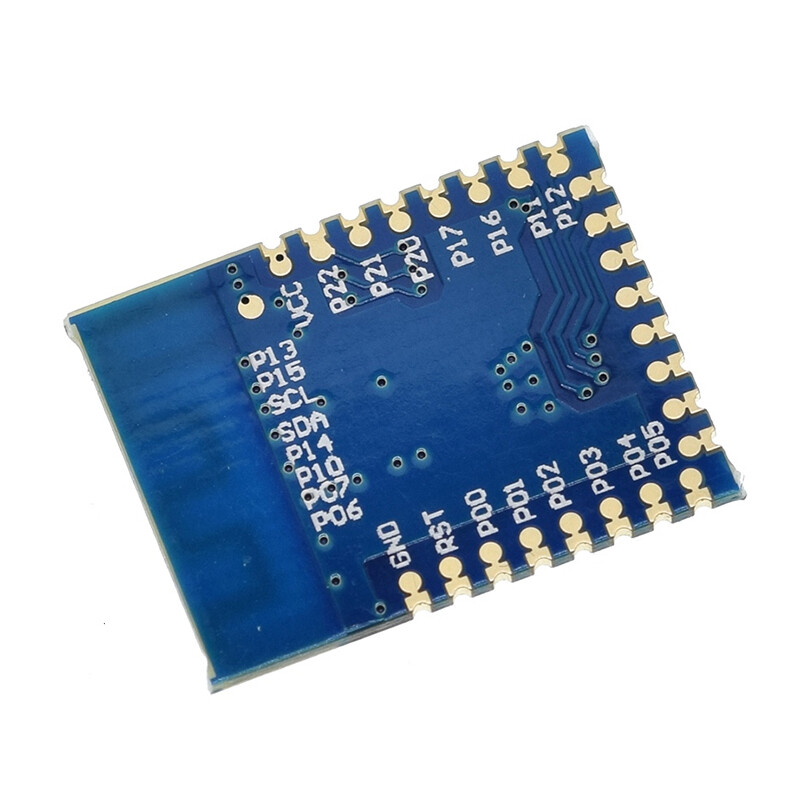

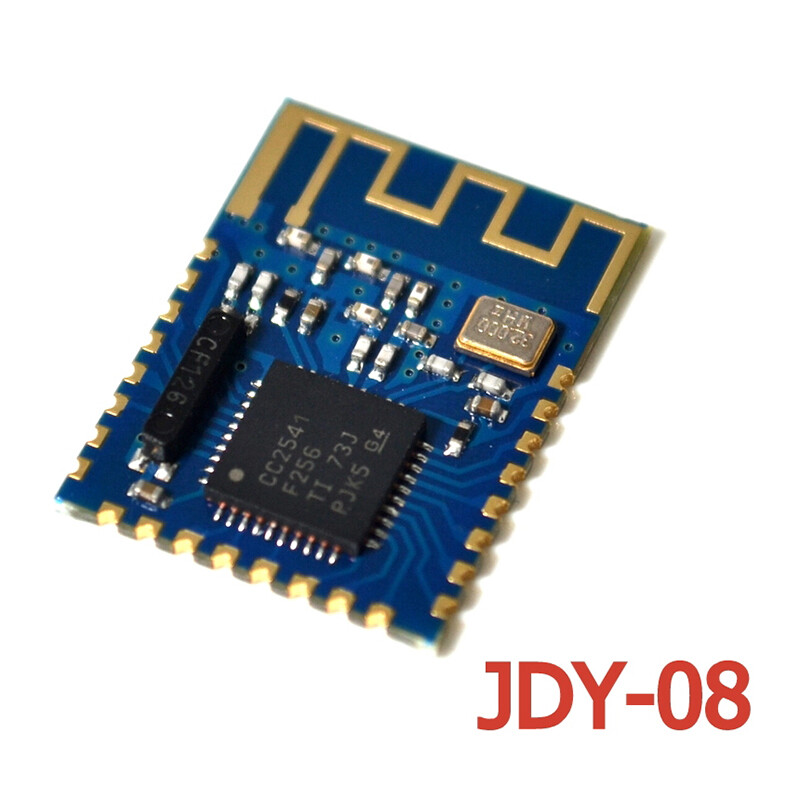

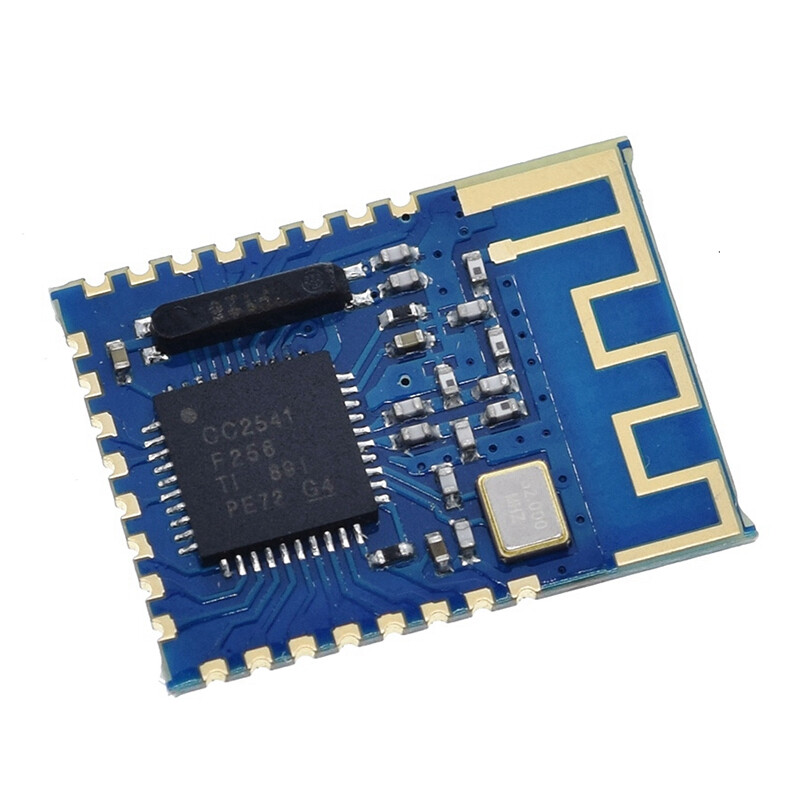

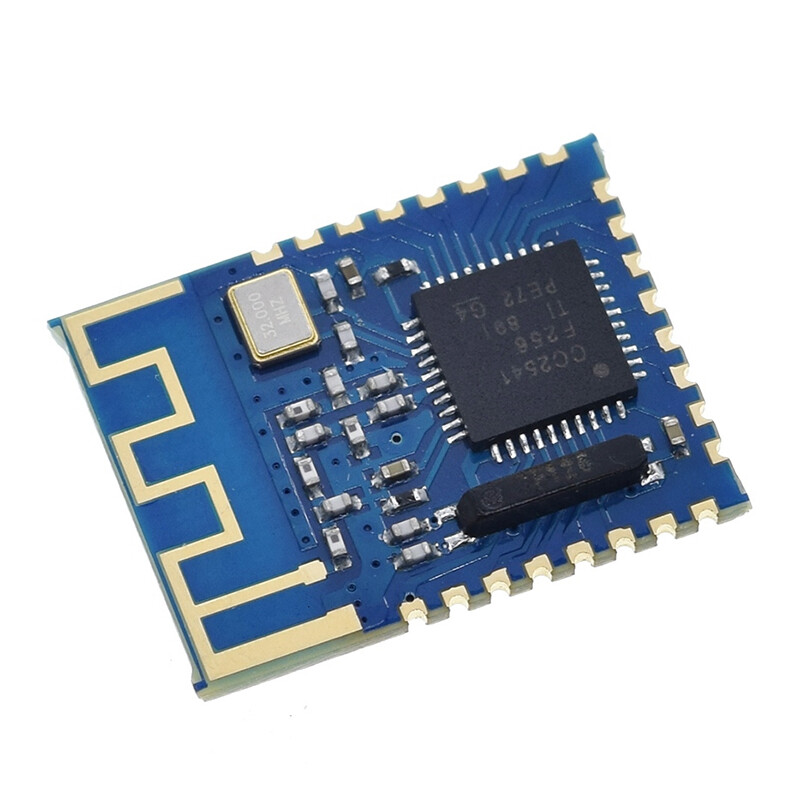

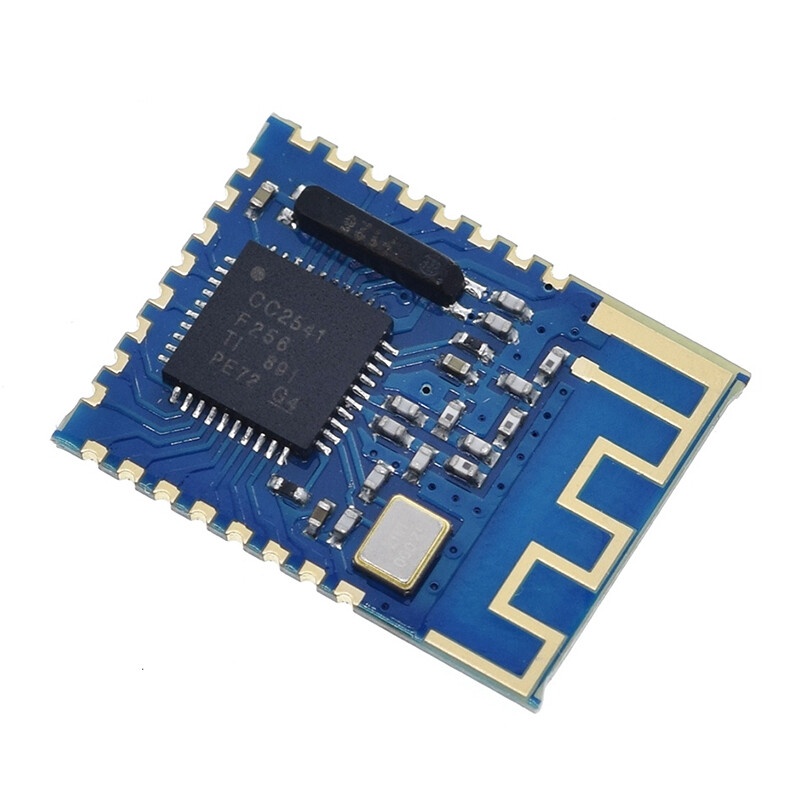

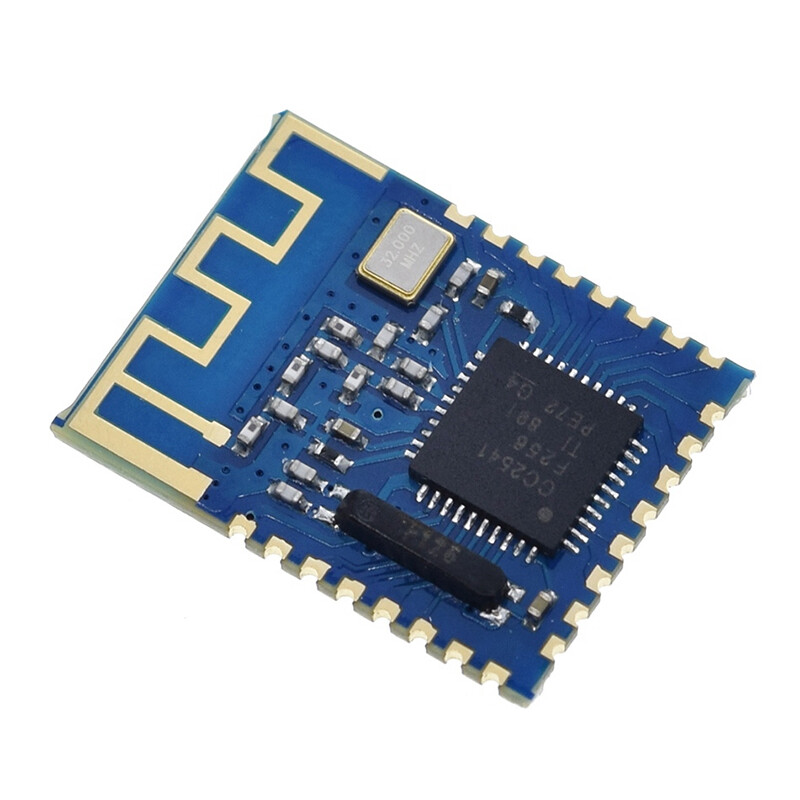

JDY-08 HM-11 BLE CC2541 Bluetooth 4.0 wireless module module serial port compatible

Update to version 3.382

Bluetooth main chip model: CC2541

Product introduction:
The JDY-08 transparent transmission module is based on the Bluetooth 4.0 protocol standard, the working frequency band is 2.4GHZ range, the modulation mode is GFSK, the transmission power is 0db, and the transmission distance is 80 meters. It is designed with TICC2541 chip and supports users to modify the device name and service through AT commands. UUID, transmit power, pairing password and other commands are convenient and flexible to use.

Function introduction
1: Microxin transparent transmission (supports AirSync protocol, applied to microxinH5 or manufacturer server communication, including long packet data analysis and sending)
2: Micro-xin control mode (motor speed control, LED light switch control)
3: APP transparent transmission (supports Android and IOS data transparent transmission)
4: iBeacon mode (support Weixin Shake Yi Shake protocol and Apple iBeacon protocol)
5: Sensor mode (many sensor data acquisition applications such as temperature and humidity)
6: Host transparent transmission mode (data transparent transmission between application modules, communication between host and slave)
7: Host observer mode (application sensor, indoor positioning)
8: PWM mode (used in motor speed control, LED light brightness adjustment)
9: IO mode (applied to mobile phone control relay or LED on and off)
10: Indoor room location application (application to collect iBeacon data to achieve range positioning)
11: RTC mode
12: RTC alarm mode: you can set the RTC alarm time to control the IO port, support two alarm time settings

More details can feel free to contact us, thanks ^^
