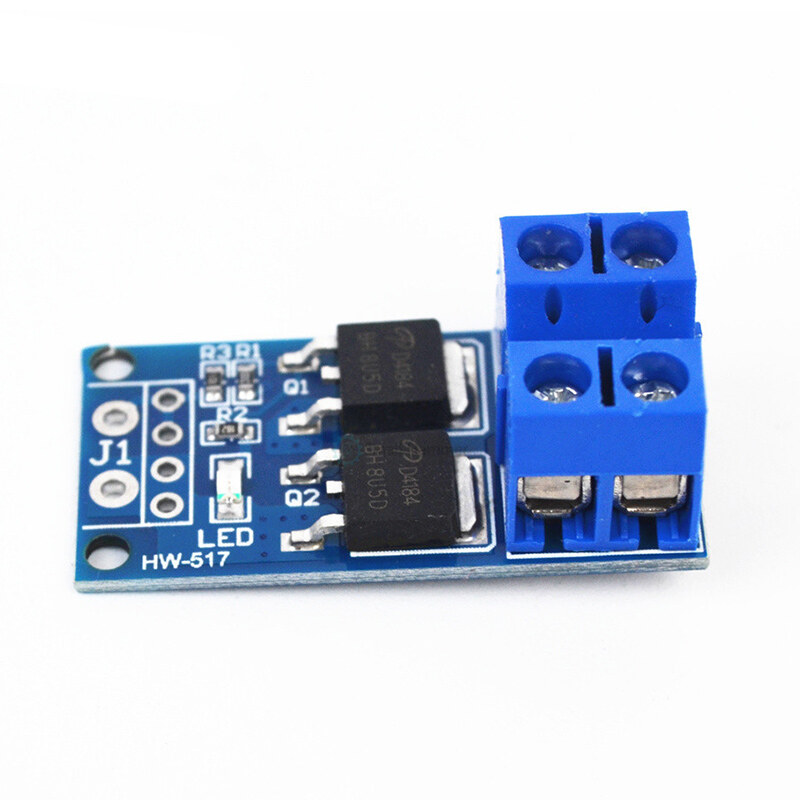

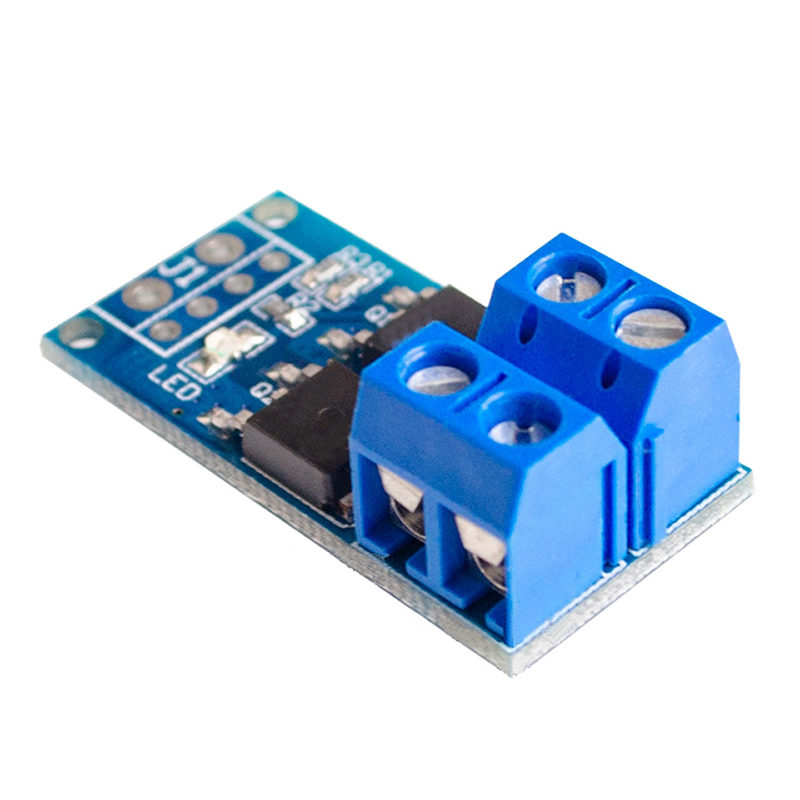

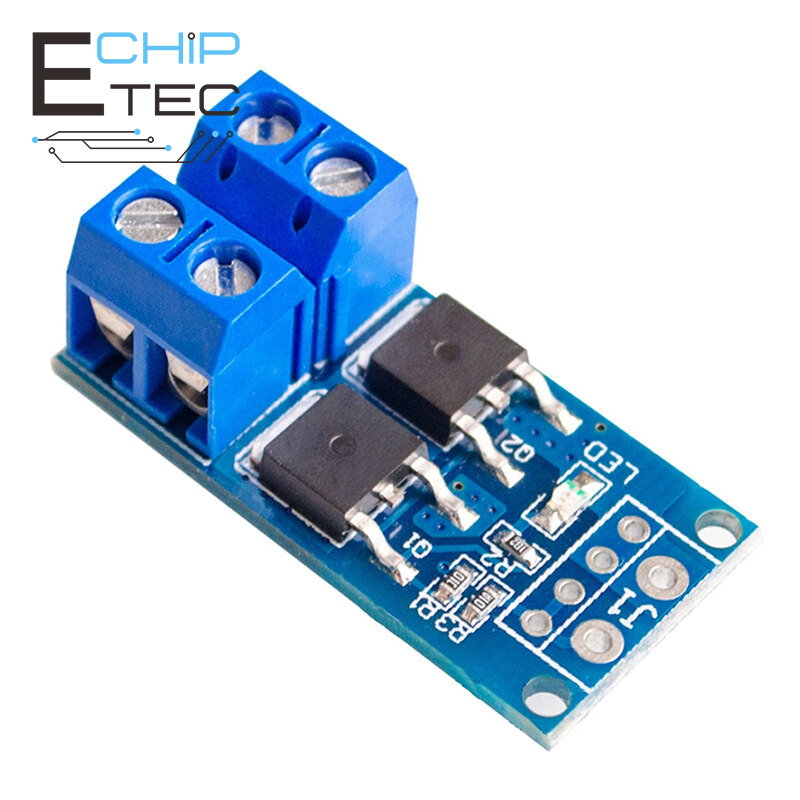

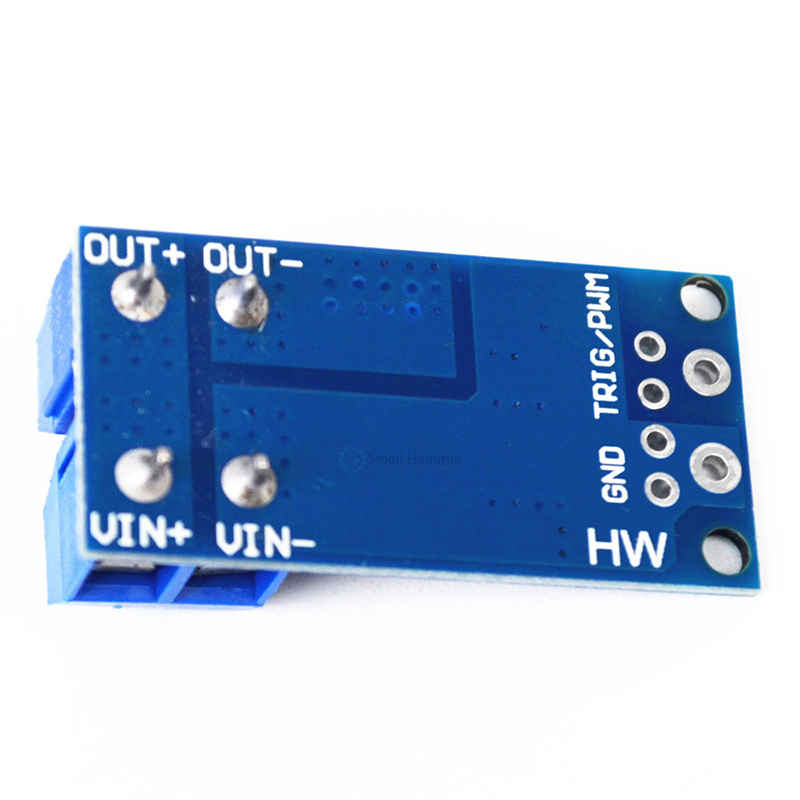

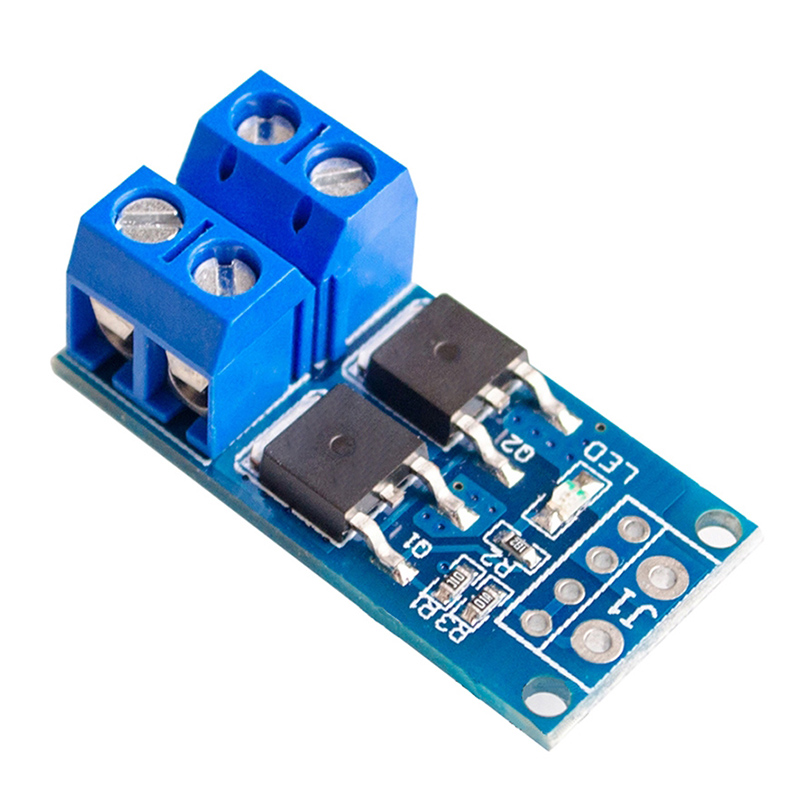

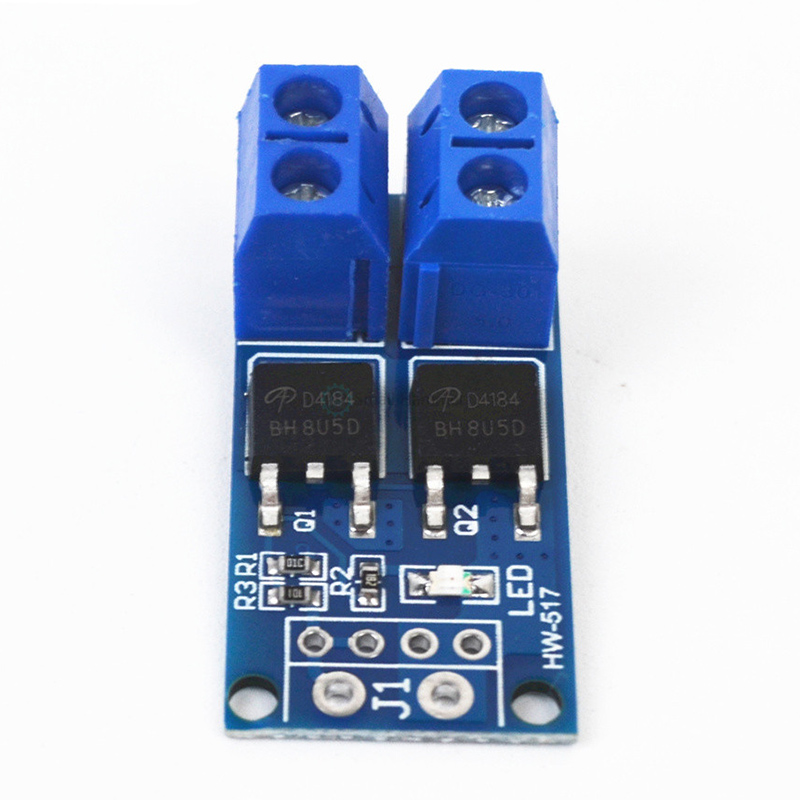

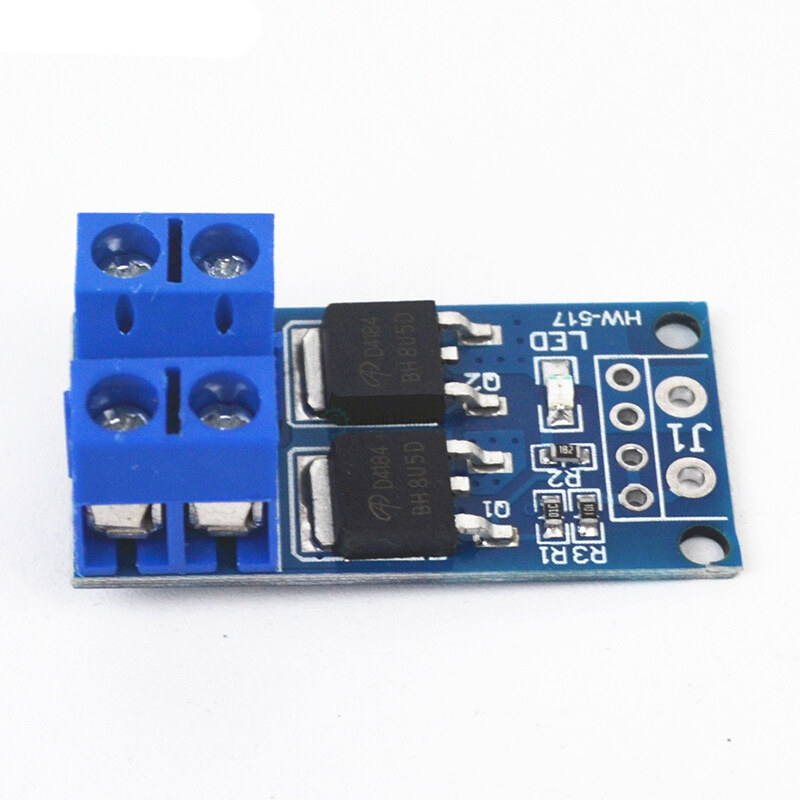

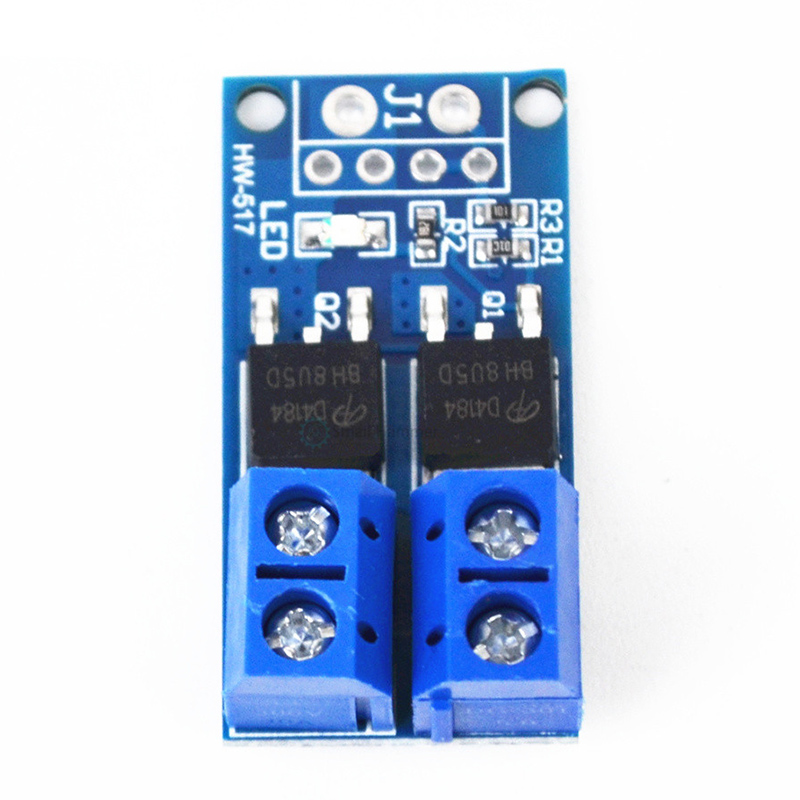

High-power MOS tube field effect switch drive switch trigger module PWM adjustable electronic switch control board

High power MOS tube field effect tube trigger switch drive module PWM adjustment electronic switch control board

Module highlights:
1. Use YUAN to install imported dual MOS active output, lower internal resistance, higher current, strong power, 15A, 400W at room temperature, which meets the use of most equipment;
2. Wide voltage, PWM support;
3. Easy to realize high power equipment control.

Product and application parameters:
1: working voltage: DC 5v-36v;
2: trigger signal source: high and low level digital (DC3.3V-20V), can be connected to the MCU IO port, PLC interface, DC power supply, etc., can be connected to the PWM signal, signal frequency 0- 20KHZ. Support.
3: Output capacity: DC 5v-36v, 15A constant current at room temperature, power 400W! Under additional heat dissipation conditions, Z large current can reach 30A.
4: Application: The output terminal can control high-power equipment, motors, bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc., and can insert PWM to control motor speed, lamp brightness, etc.
5: service life: unlimited conversion; Working temperature: -40-85 ℃; Size: 3.4*1.7*1.2cm
