Dscription:

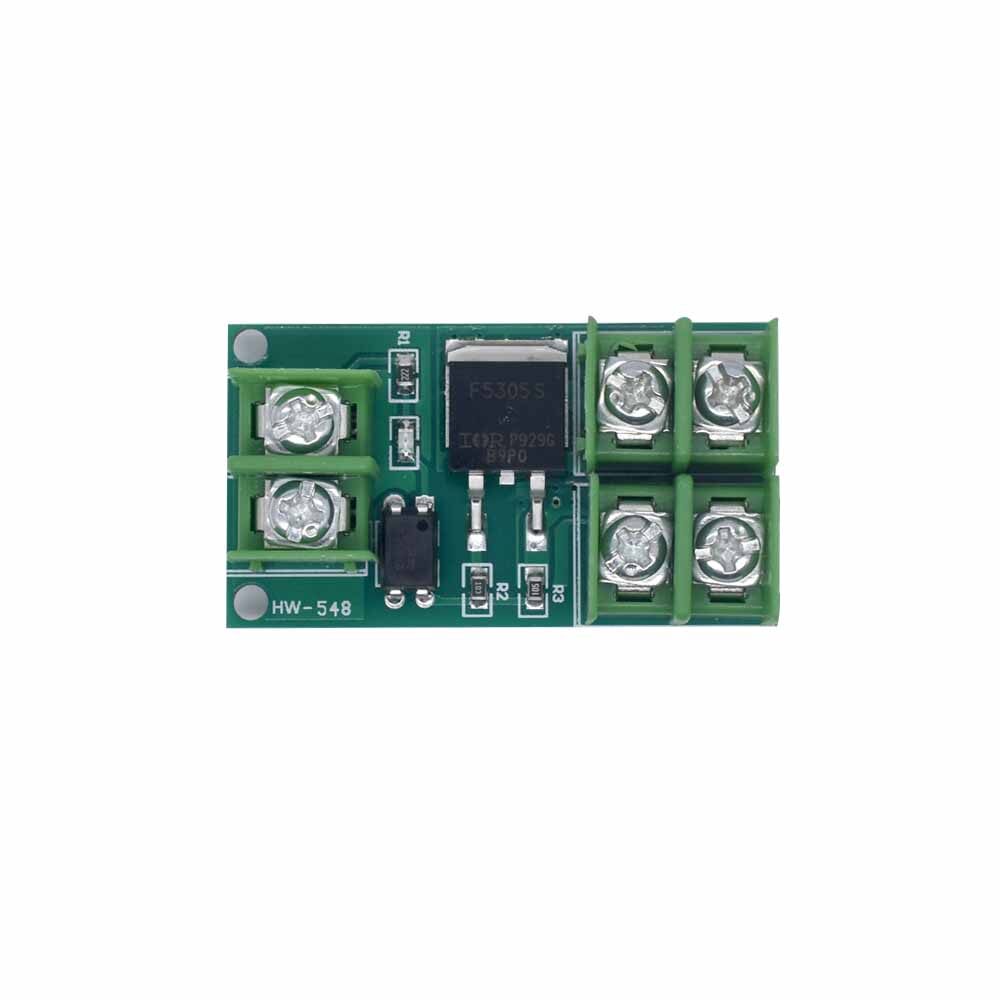

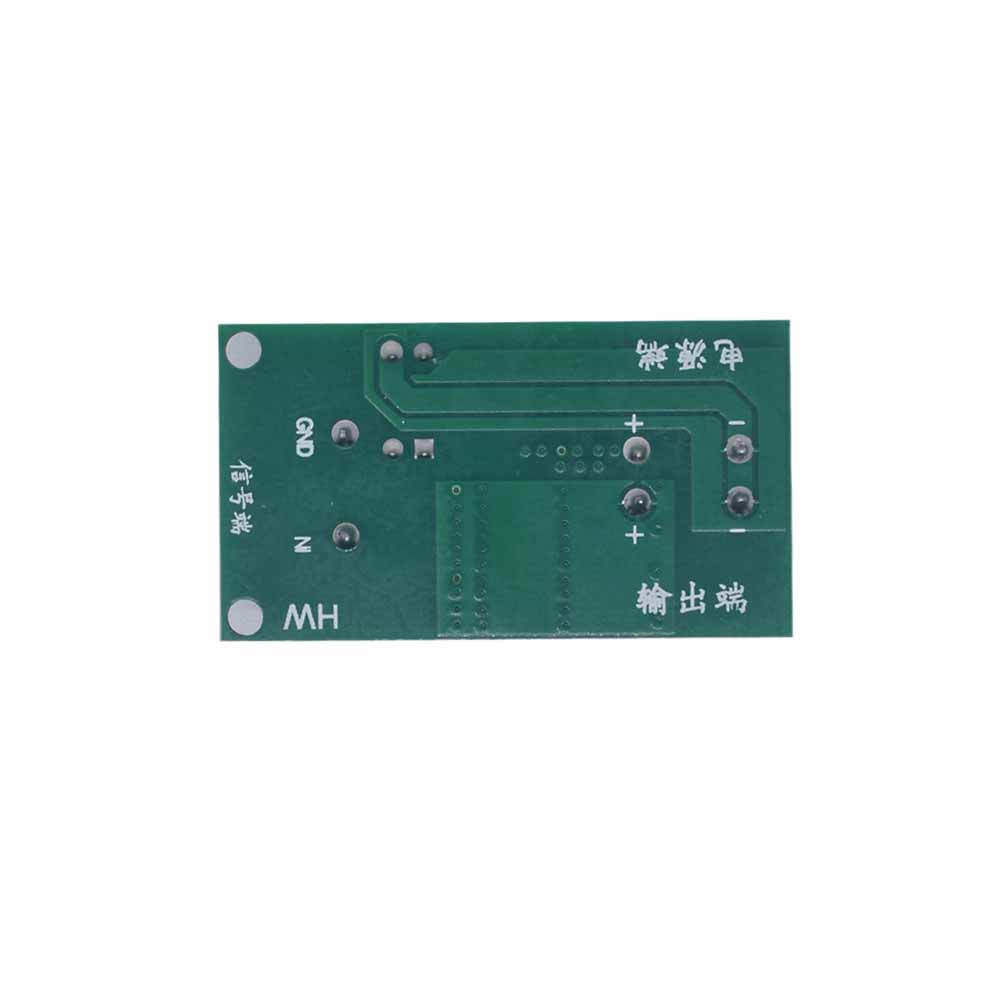

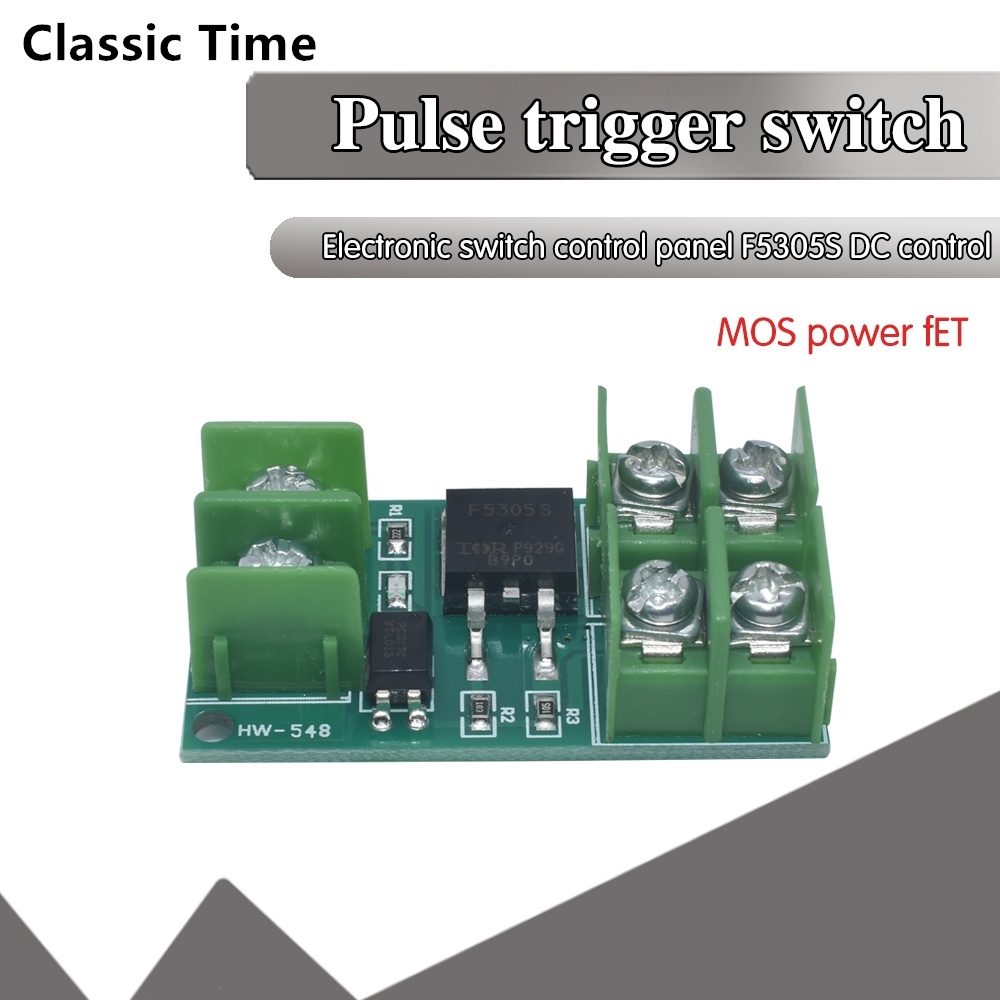

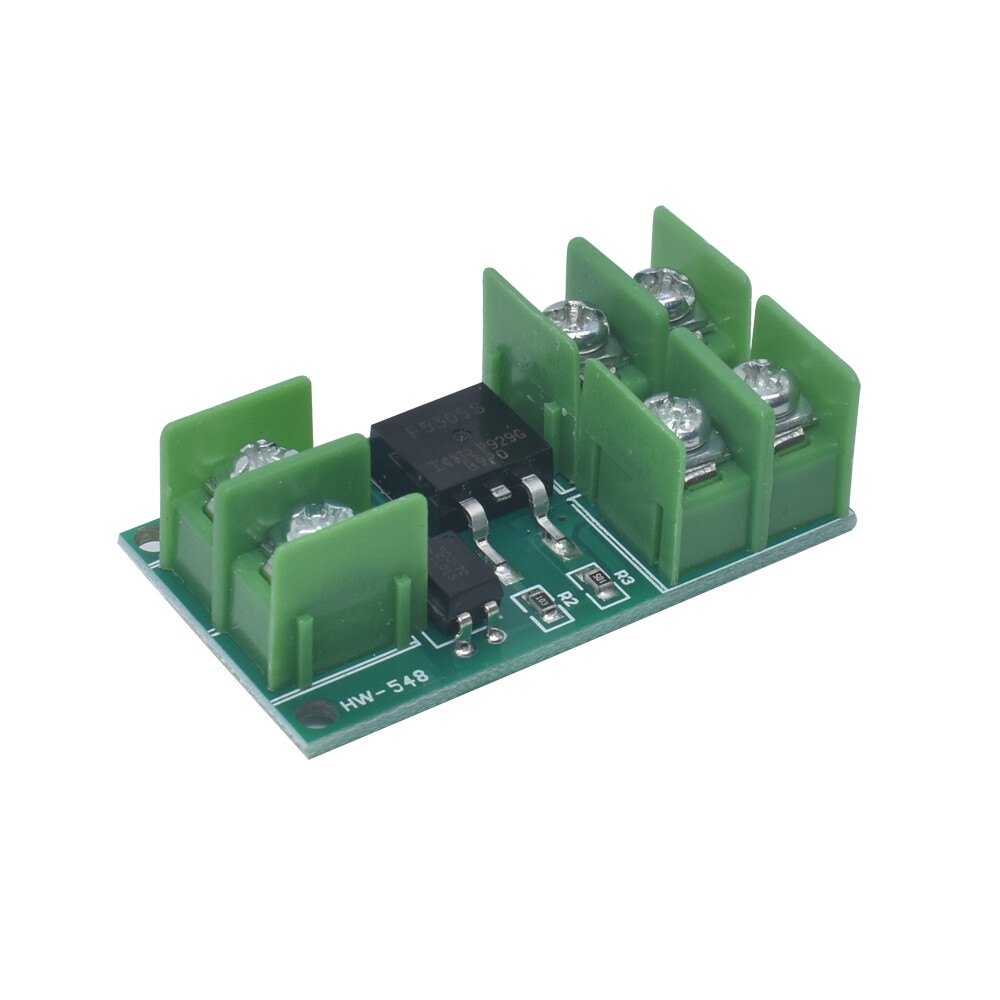

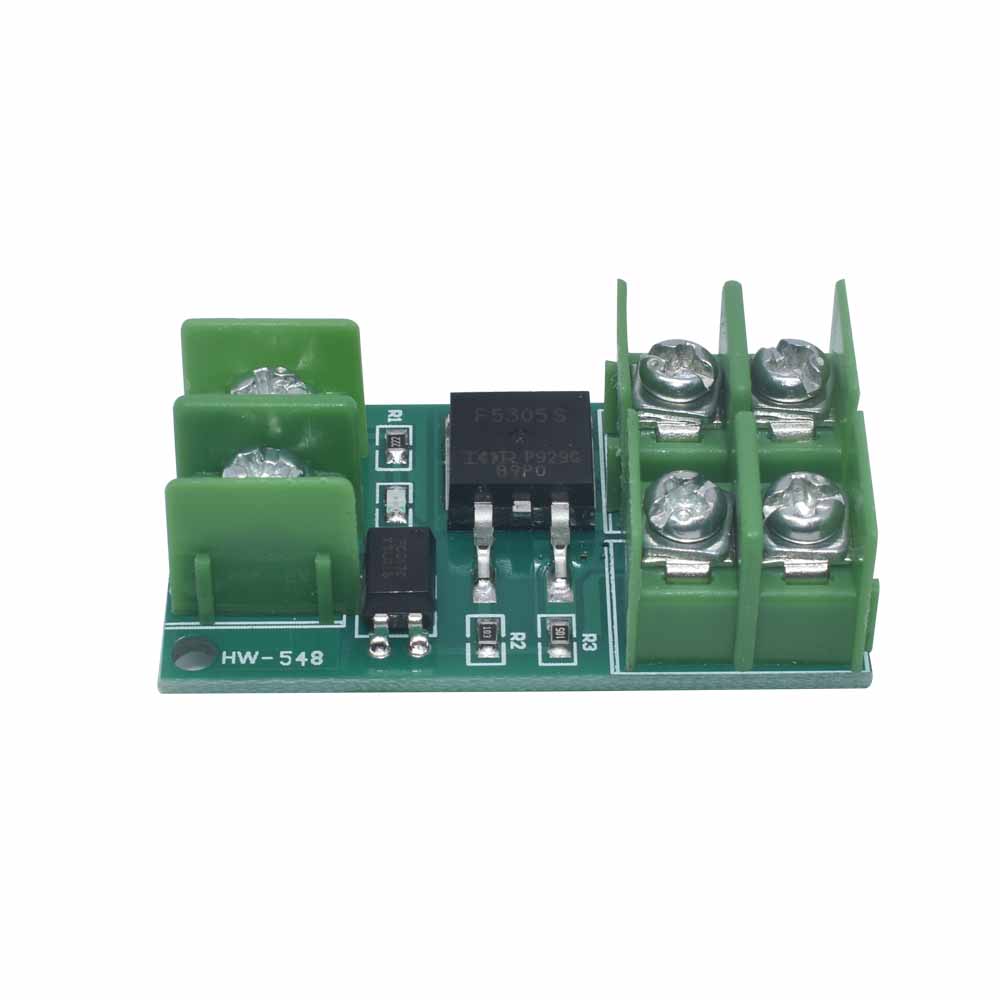

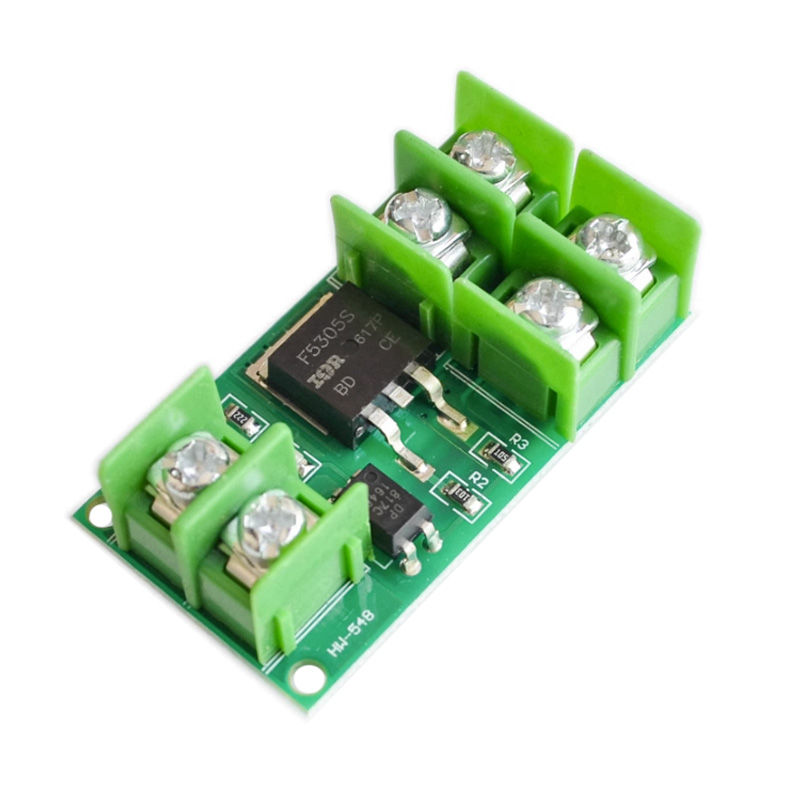

FET modules, input and output is fully isolated. The signal triggers the end: the digital high-low.IO ports can be connected microcontroller, PLC interfaces, DC power supplies. The input voltage: 3V-20V; Current: 5mA or so. You can control the power output of the equipment, motors, light bulbs, LED lights, DC motors, miniature pumps, solenoid valves, etc. Output controlled voltage: 5V-36V. Current: less than 5A, if the current is more than 5A, heat sank is needed
------the maximum should be less than 20A. The original F5305S power FET can enter PWM, control the motor speed, the lamp brightness.
Overall Size : 46 x 25 x 18mm(L*W*H) Weight : 15g
Package:
1 x DC 5V-36V Trigger Switch MOS Field Effect Module Driver for LED Motor Pump
