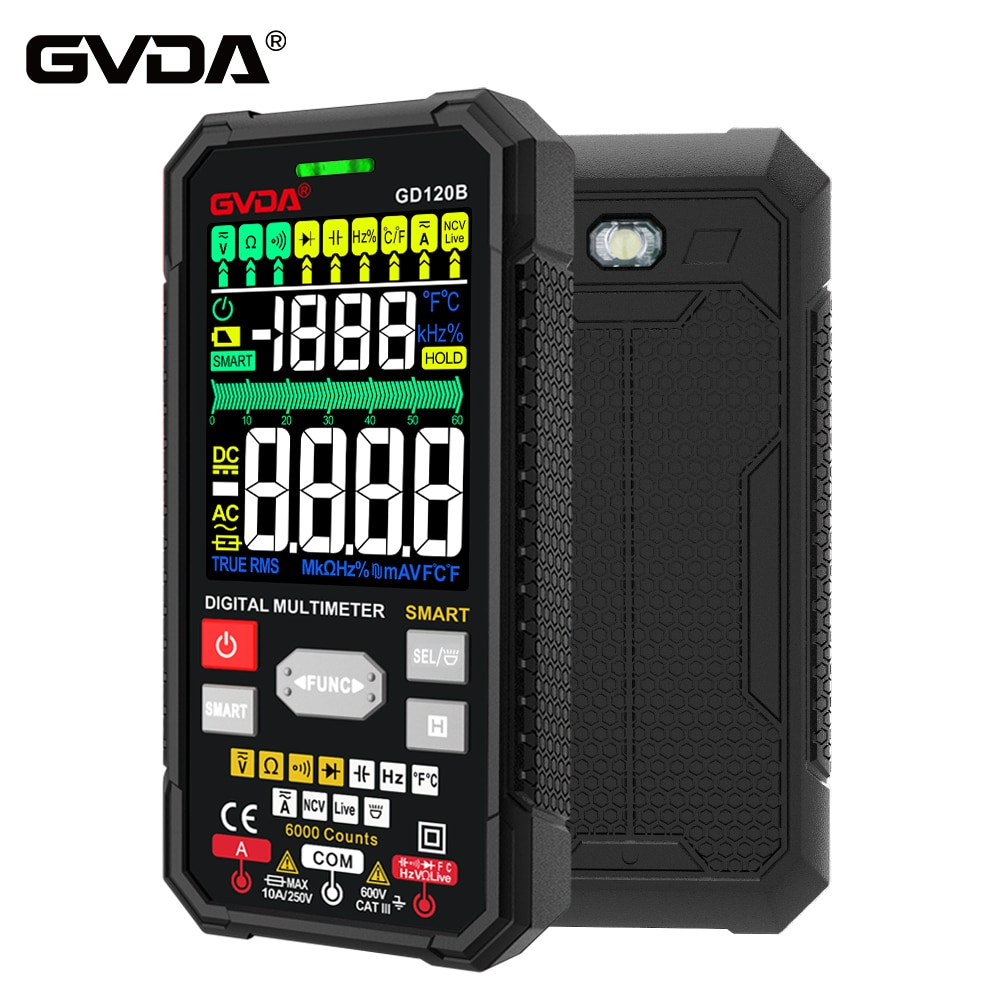

GVDA Smart Multimeter Auto Range True RMS NCV DC AC Tester Automatic Voltmeter Temperature Measure Digital Multi-Meter

• Origin:Mainland
• DIY Supplies:ELECTRICAL
• AC :6V,60V,600V
• Display Type:Digital display
• DC :600mV,6V,60V,600V
• AC :600mA,6A,10A
• Measu Resistance Range:600Ω,6KΩ,60KΩ,600KΩ,6MΩ,60 MΩ
• Certification:CE
• DC :600mA,6A,10A
• Measu Capacitance Range:6nF,60nF,600nF,6uF,60uF,600uF,6mF,60mF
• Model Number:GD120B
• Is Smart Device:NO

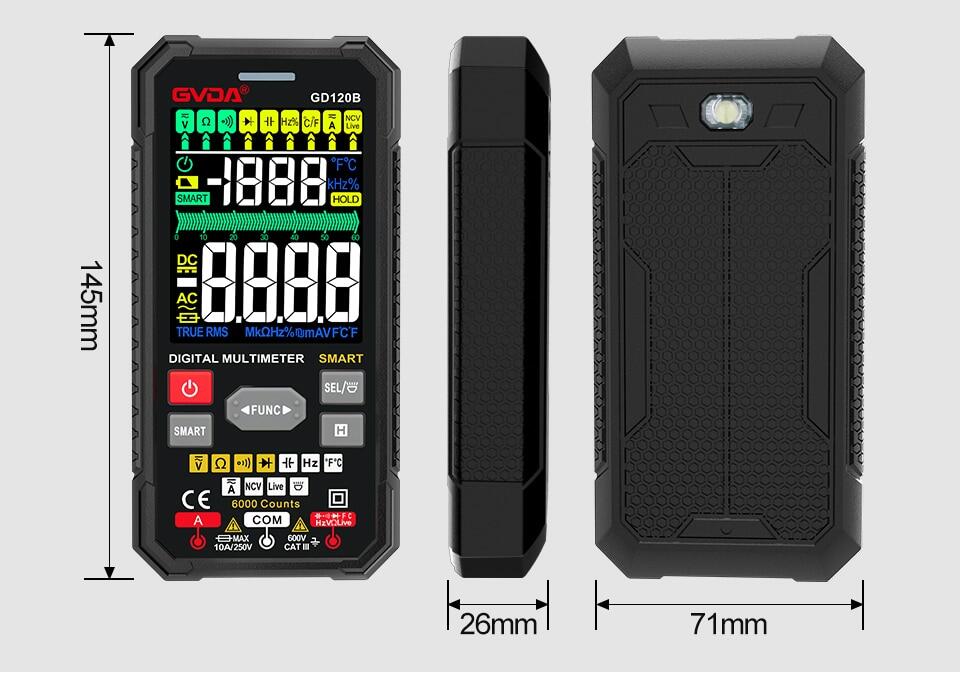

• Dimensions:71*145*26mm
• Operating Temperature:0 - 40 ℃
• Fuse protection:F10A/250V
• Display:6000 counts
• Temperature measurement:yes
• Smart (AUTO) measurement:yes
• DC AC measurement:yes
• AC DC measurement:yes
• Frequency measurement:yes
• Capacitance measurement:yes
• Continuity measurement:yes
• Diode measurement:yes
• Live wire detecting:yes
• Non-contact AC detection:yes
• True RMS:yes
• Power requirement:4 x 1.5V AAA batteries(not include)
• Package weight:400g
• Package size:100*180*61mm
• Product size:71*145*26mm

GVDA Smart Multimeter Auto Range True RMS NCV DC AC Tester Automatic Voltmeter Temperature Measure Digital Multi-meter

This meter is an intelligent true RMS digital multimeter. It has intelligent and professional measurement ftion. Full ftion, with gear display, analog bar multiple display.It has a sampling speed of 3 times per second.

1) HD Colour LCD Display

2) Maximum display: Maximum 6000 Counts display

3) Non-contact AC detection

4) Sampling Rate: About 3 times per second

5) Over range display: the highest position shows "OL"

6) Low display: low battery indication

7) Working environment: (0-40)°C,relative humidity ＜80%

8) Power Supply: 4x1.5V Batteries ( NOT include)

9) Input jack indicator

10)It is stable performance, high precision, high reliability clear readings, and overload protection.

1,DC : 600mV,6V,60V,600V,±(0.5% +3)

2,AC : 6V,60V,600V,±(0.8% +3)

3,Resistance:600Ω,6KΩ,60KΩ,600KΩ,6MΩ,±(1.0%+5);60 MΩ, ±(1.5%+10)

4,AC/DC : 600mA,6A,10A,±(1.2%+3)

5,Capacitance: 6nF,60nF,600nF,6uF,60uF,600uF,±(4.0%+5);6mF,60mF,±(5.0%+5)

6,Frequency: 6Hz,60Hz,600Hz,6KHz,60KHz,600KHz,6MHz,10MHz, ±(1.0%+3);1.0~99.0%,±(1.0%+3)

7,Temperature:-40℃~ 0℃,±3℃; 0℃ ~ 1000℃, 2.0% or ±2℃

8,Temperature unit:C/F

9,MAX. between terminals and earth ground：DC/AC 600V

10,Fuse protection: F10A/250V fuse

11,Sampling rate:approx. 3 times/second.

12,Display: 6000 counts

13,Over range indication: “OL”

14,Low battery indication: yes

15,Input polarity indication: display “-”

16,Smart (AUTO) measurement: yes

17,True RMS: yes

18,Diode measurement: yes

19,Capacitance measurement: yes

20,Live wire detecting: yes

21,Frequency measurement: yes

22,Non-contact AC detection: yes

23,Power requirement: 4 x 1.5V AAA batteries(not include)

24,Package weight:400g

25,Package size:100*180*61mm

26,Product size:71*145*26mm

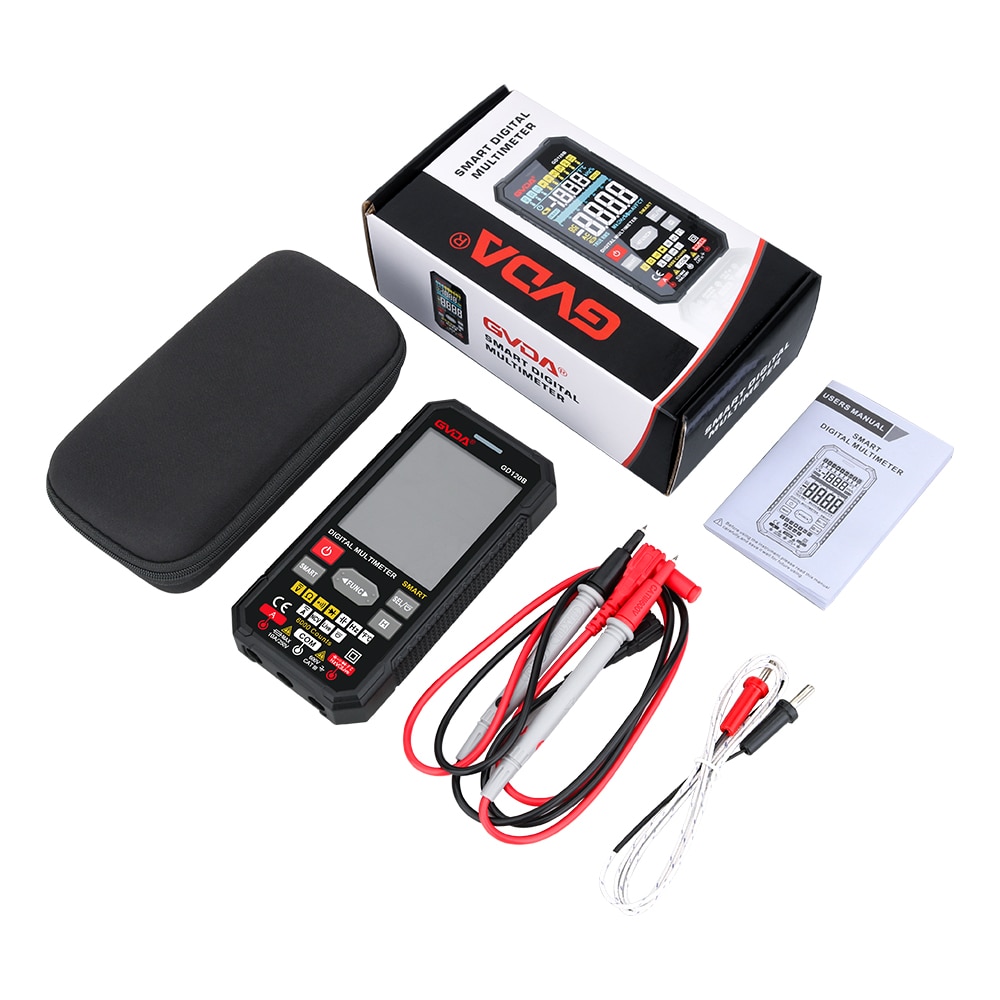

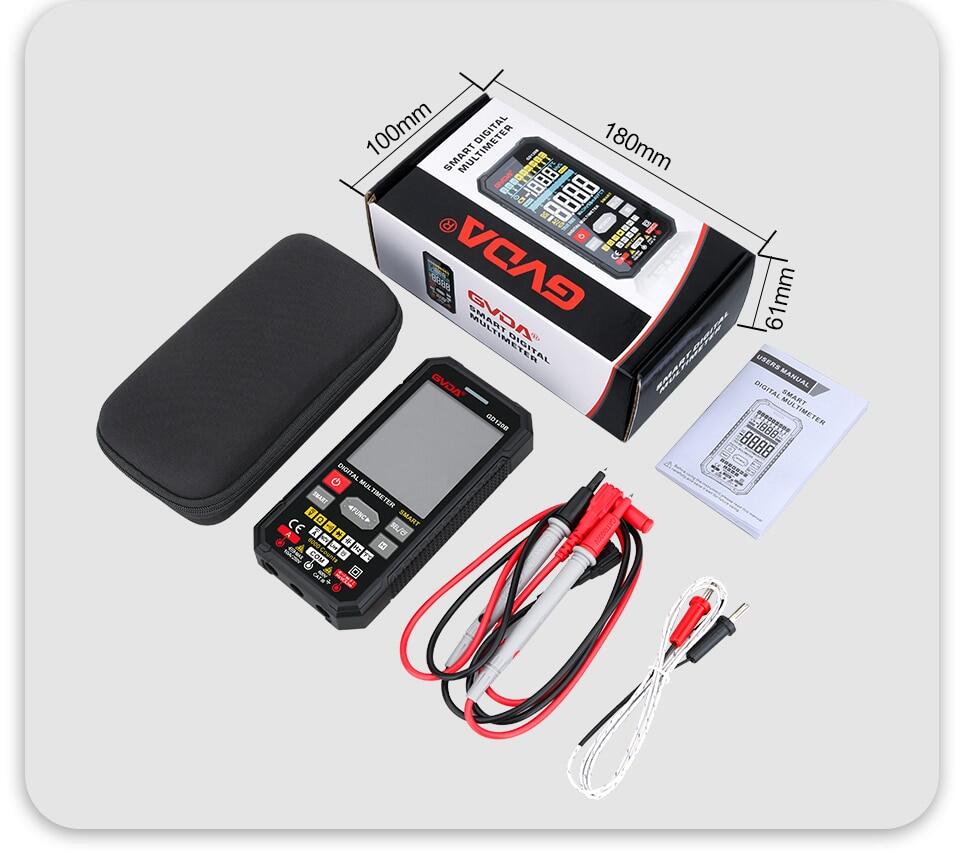

Package contents:

1pc Multimeter

1pc Pen cable

1pc Cloth bag

1pc Thermocouple probe

1pc Box

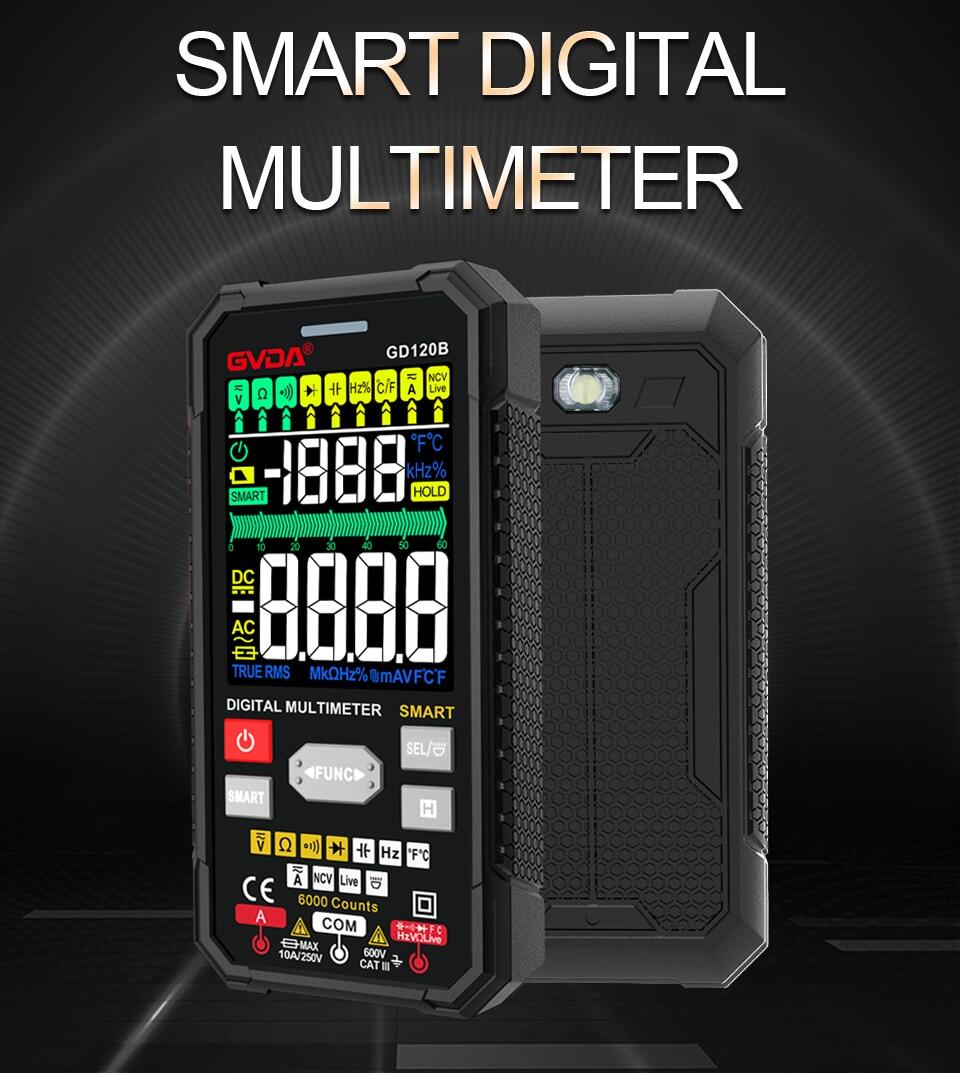

Smart digital multimeter, urate measurements

Multiple Ftions

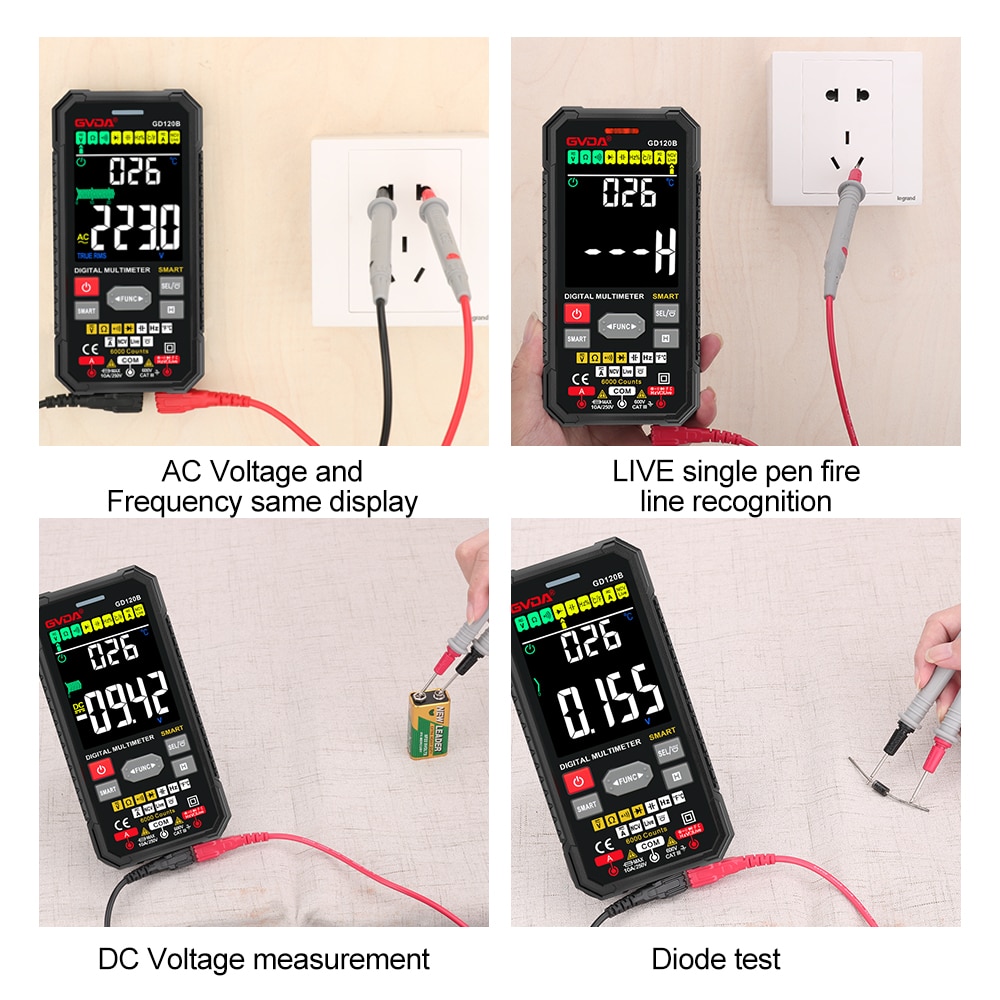

It can be used to test , ,continuity, capacitance, frequency, resistance, diode, temperature, NCV, and live wire.

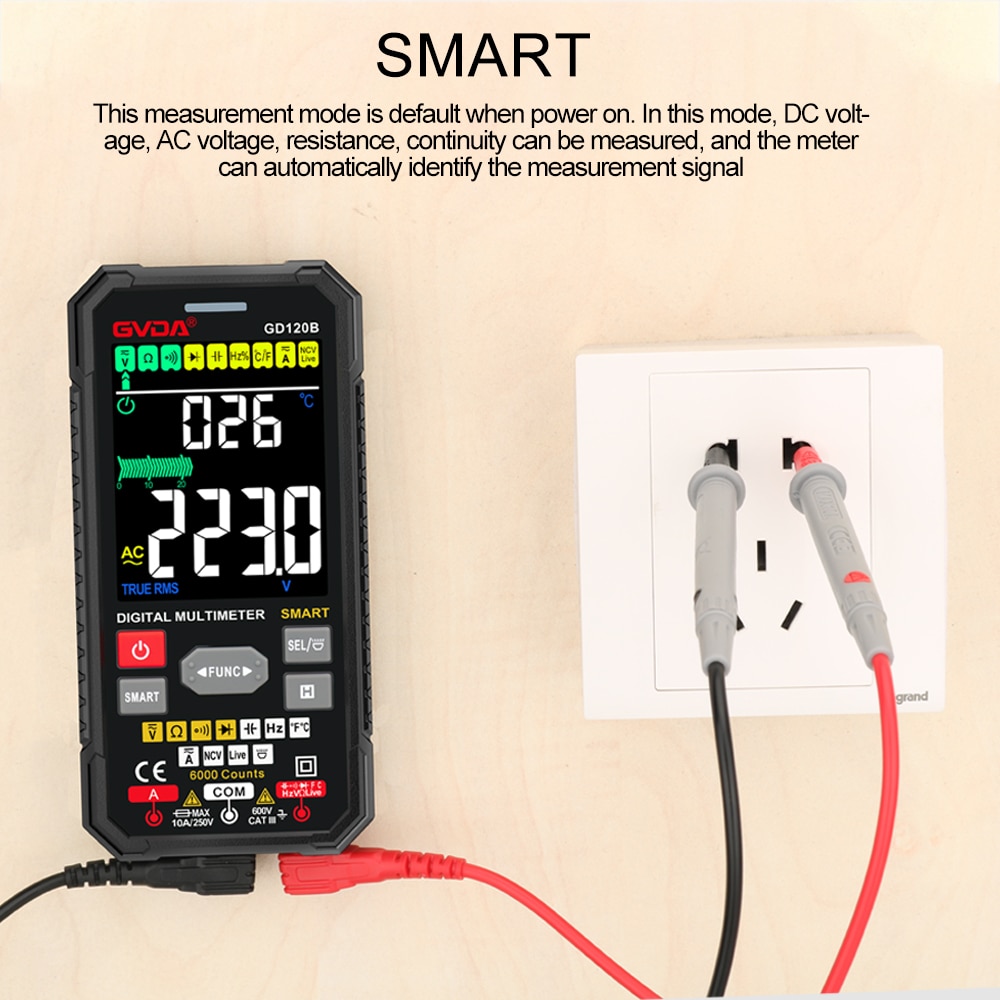

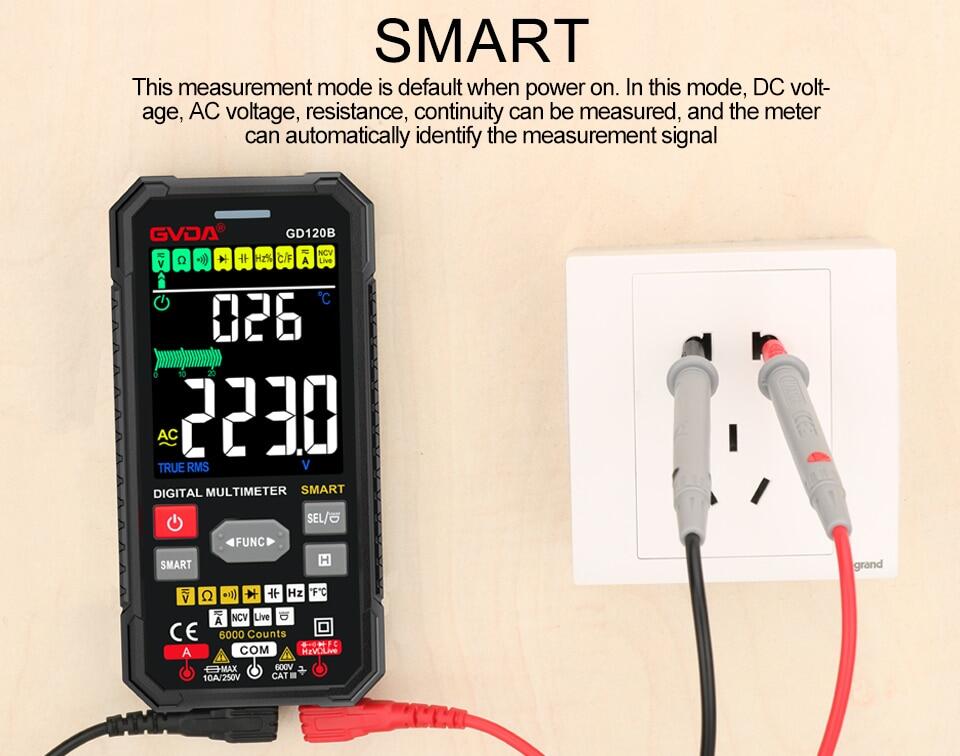

Smart (AUTO) measurement

This measurement mode is default when power on. In this mode, DC , AC , resistance, continuity can be measured, and the meter can automatically identify the measurement signal.

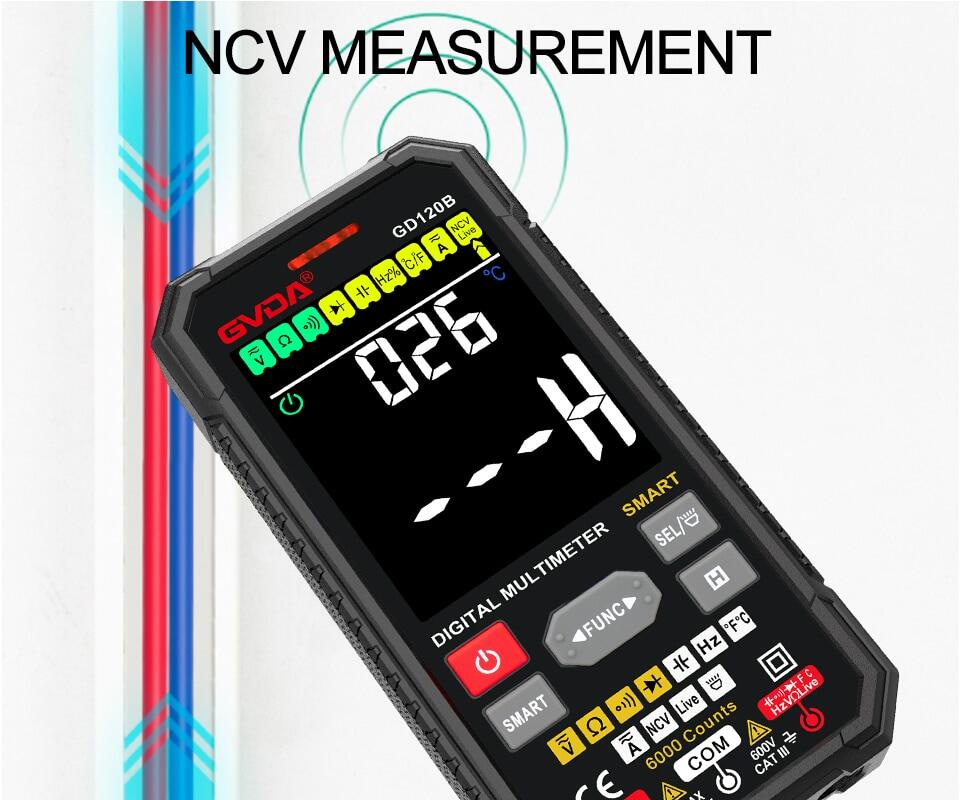

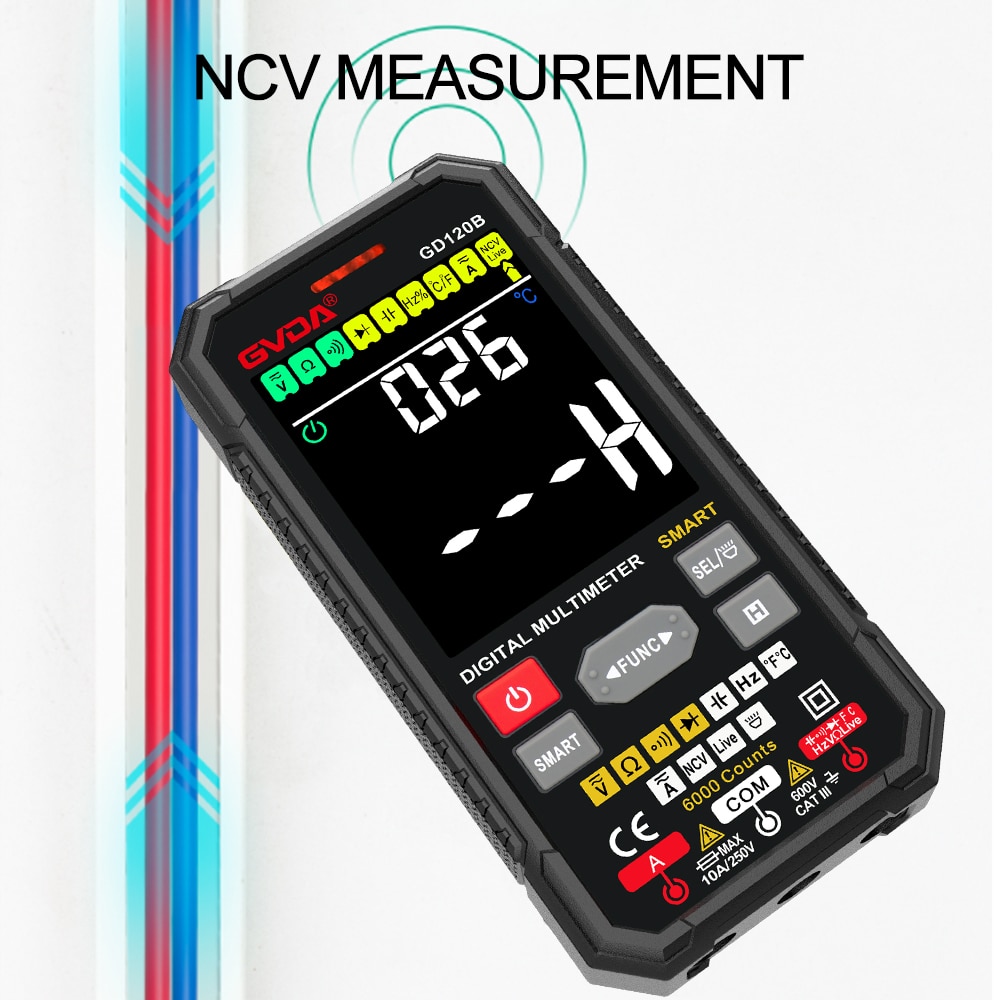

NCV Detection

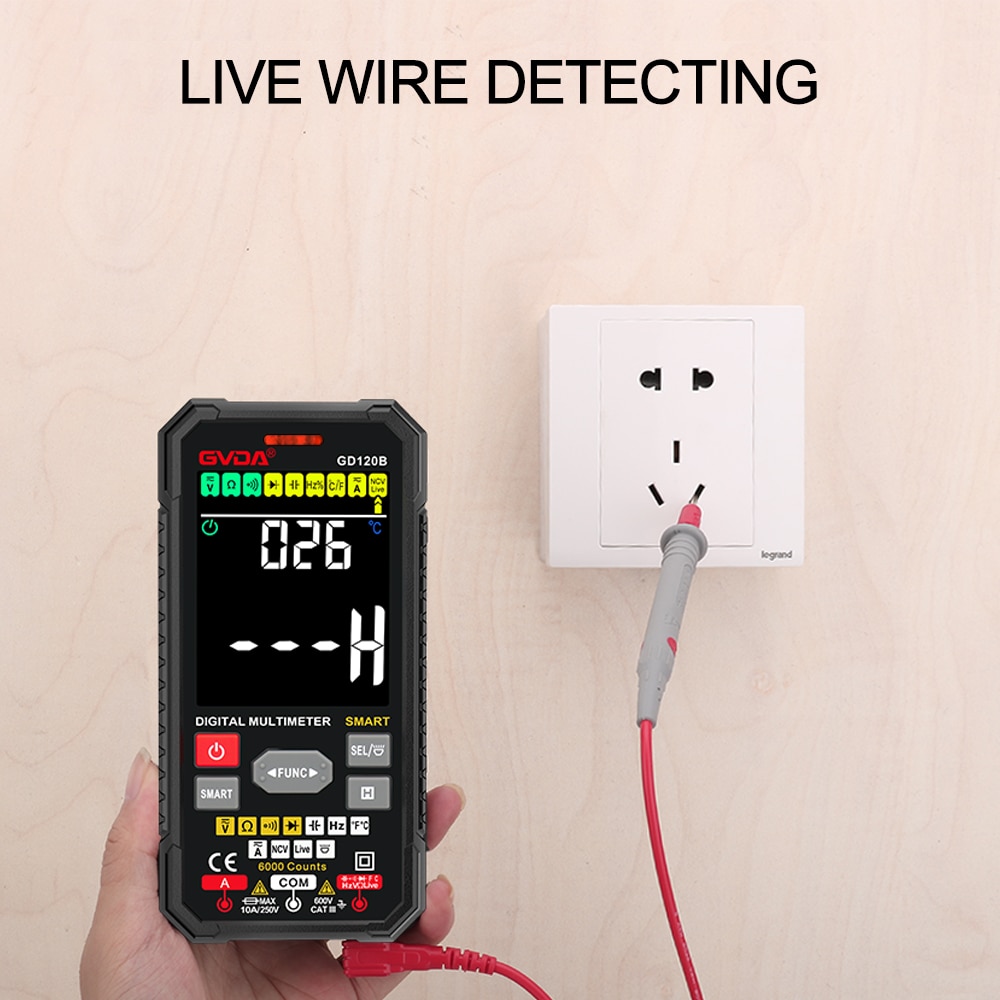

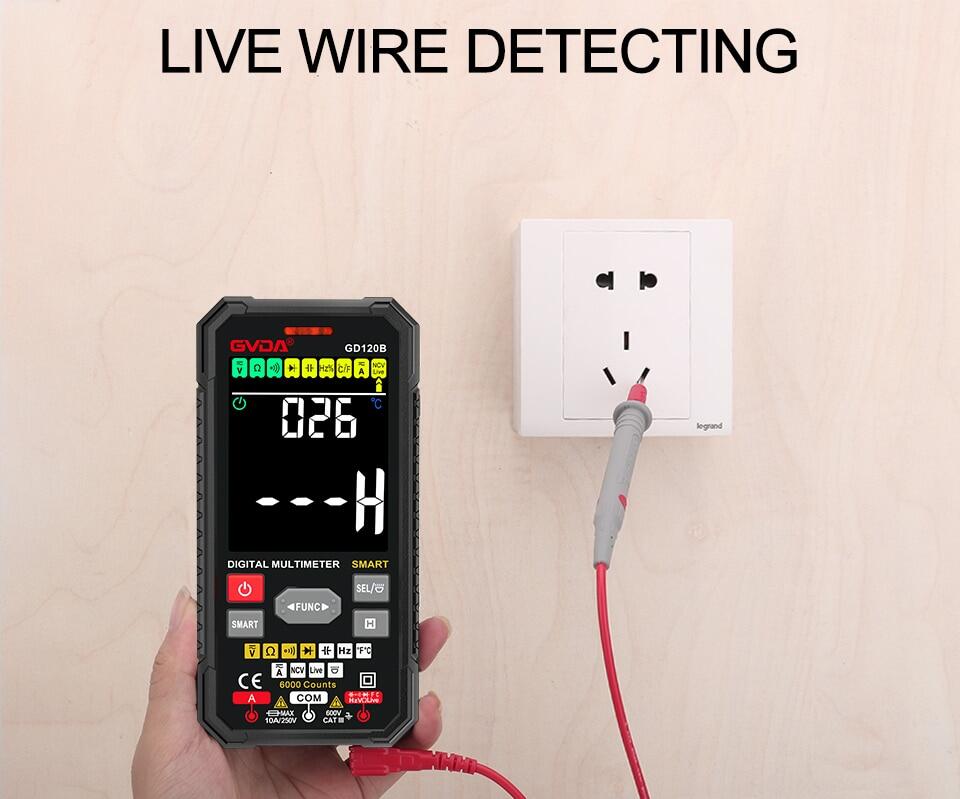

Detects Live Wires

HD color display

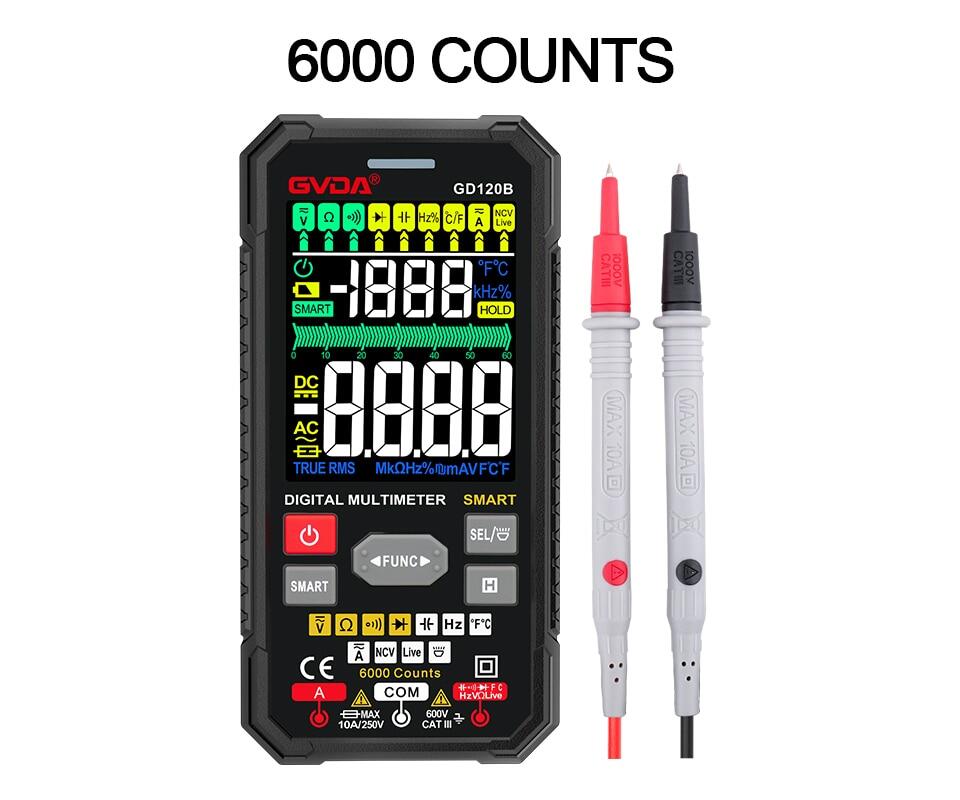

6000 counts True-RMS Meter, urate measurements

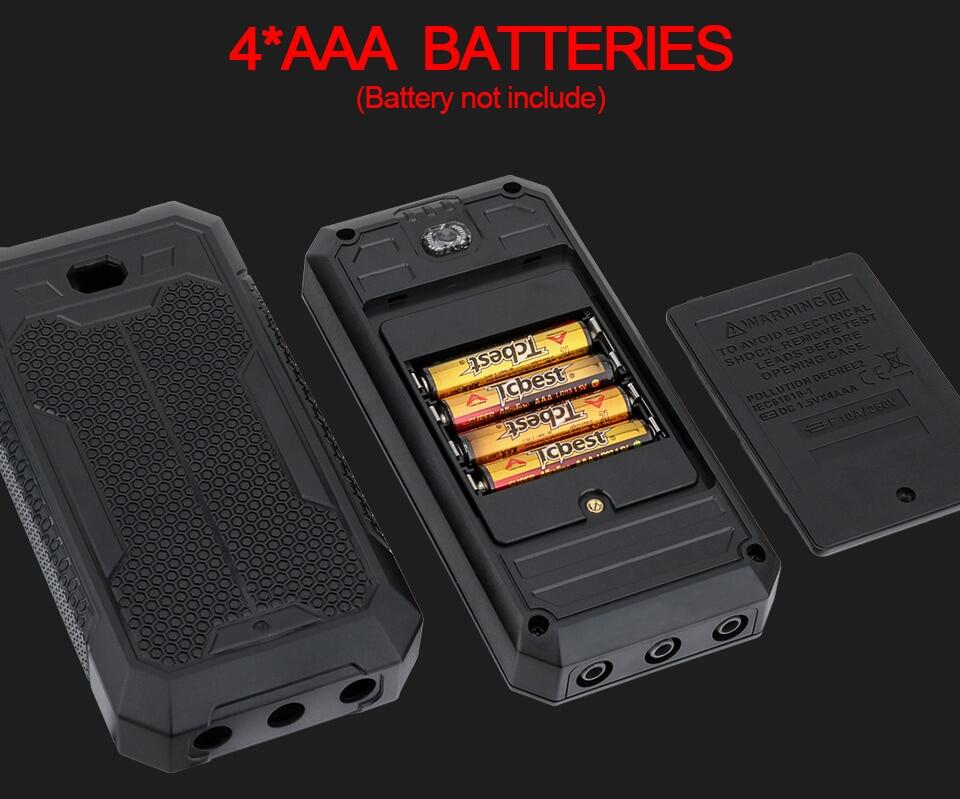

Power requirement: 4 x 1.5V AAA batteries(not include)

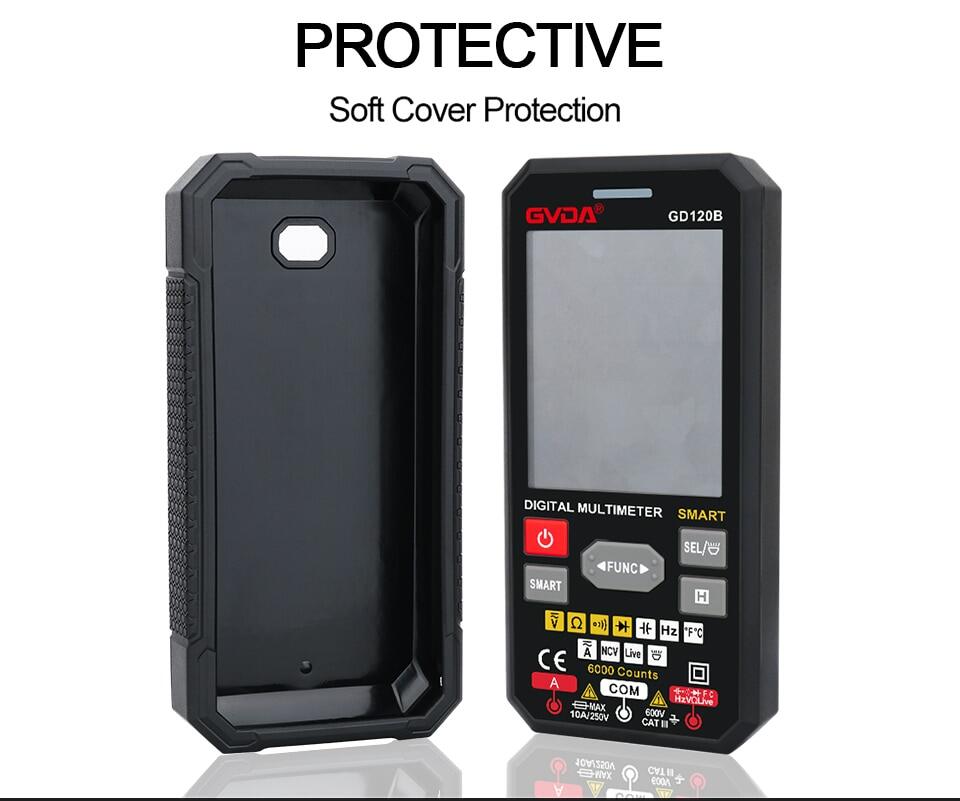

Soft protective cover

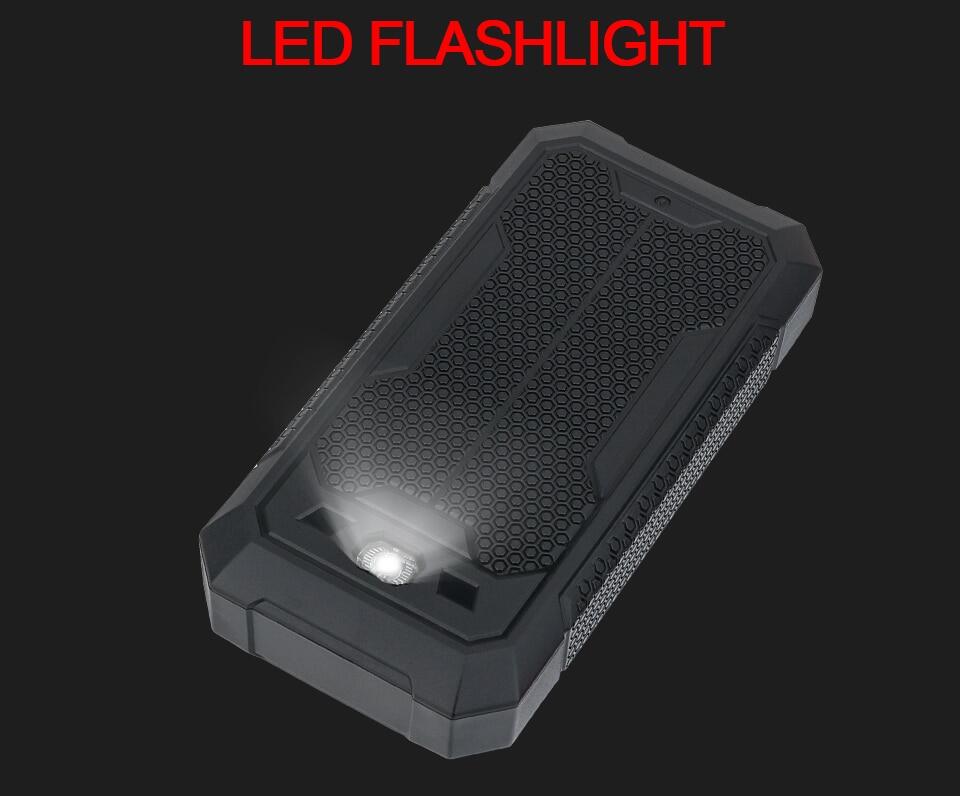

LED Flashing light

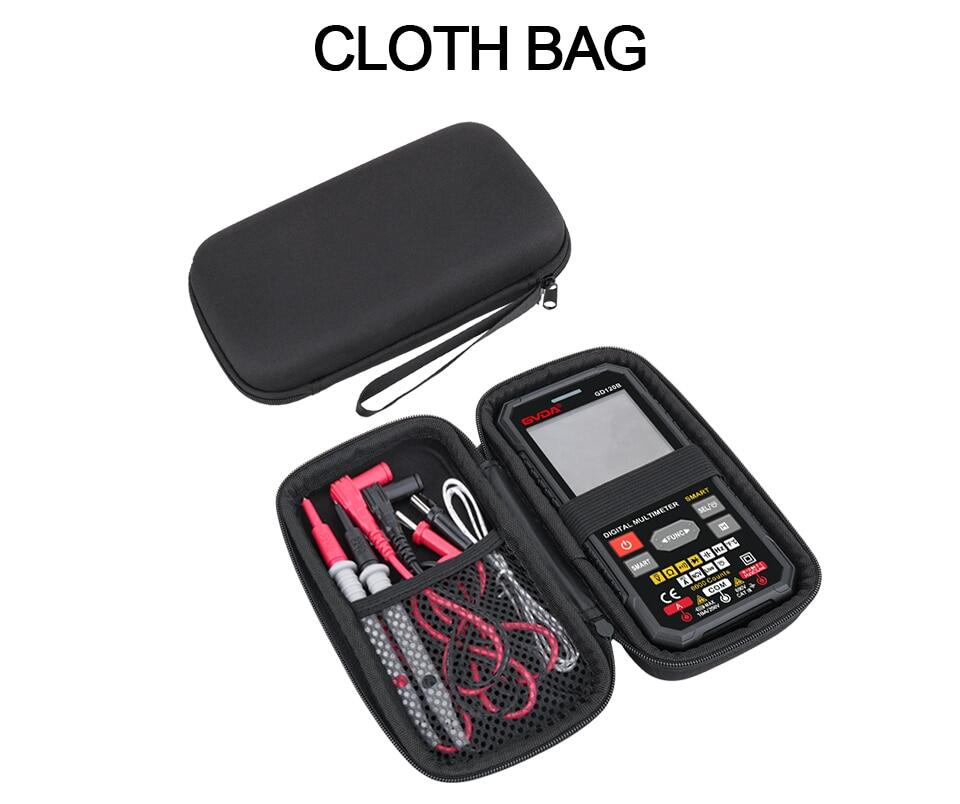

Cloth bag, convenient and protective

Multiple Ftions

It can be used to test , ,continuity, capacitance, frequency, resistance, diode, temperature, NCV, and live wire.

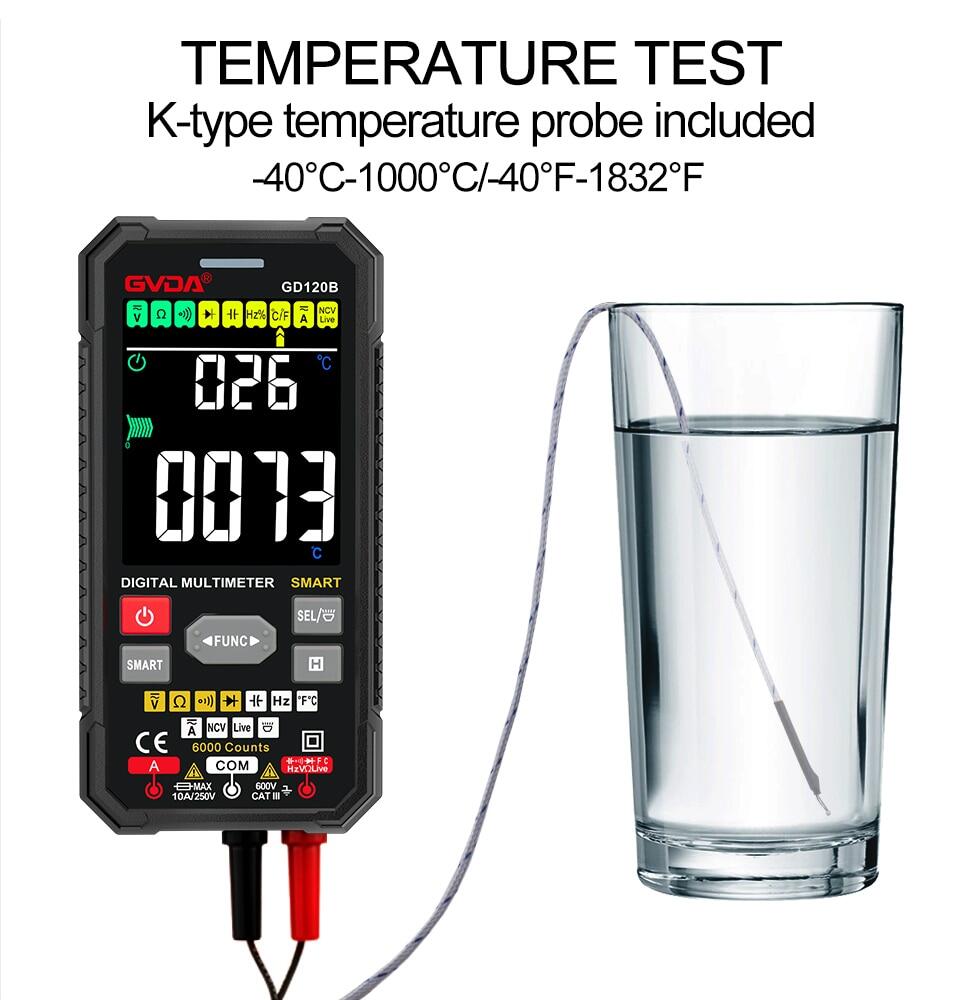

Temperature Measurement

It also has real-time temperature display, -40℃~1000℃
