【Ready Stock】HABOTEST AC Digital Clamp Meter True-RMS Multimeter Anto-Ranging Multi Tester Current Clamp with Amp Volt Ohm Diode Capacitance Resistance Continuity NCV Temperature Duty Ratio VFD Tests

This is a dual impedance true RMS digital multimeter integrating a variety of measurements like AC/DC voltage, AC current, frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key.

Features:
CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC current, AC/DC voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.

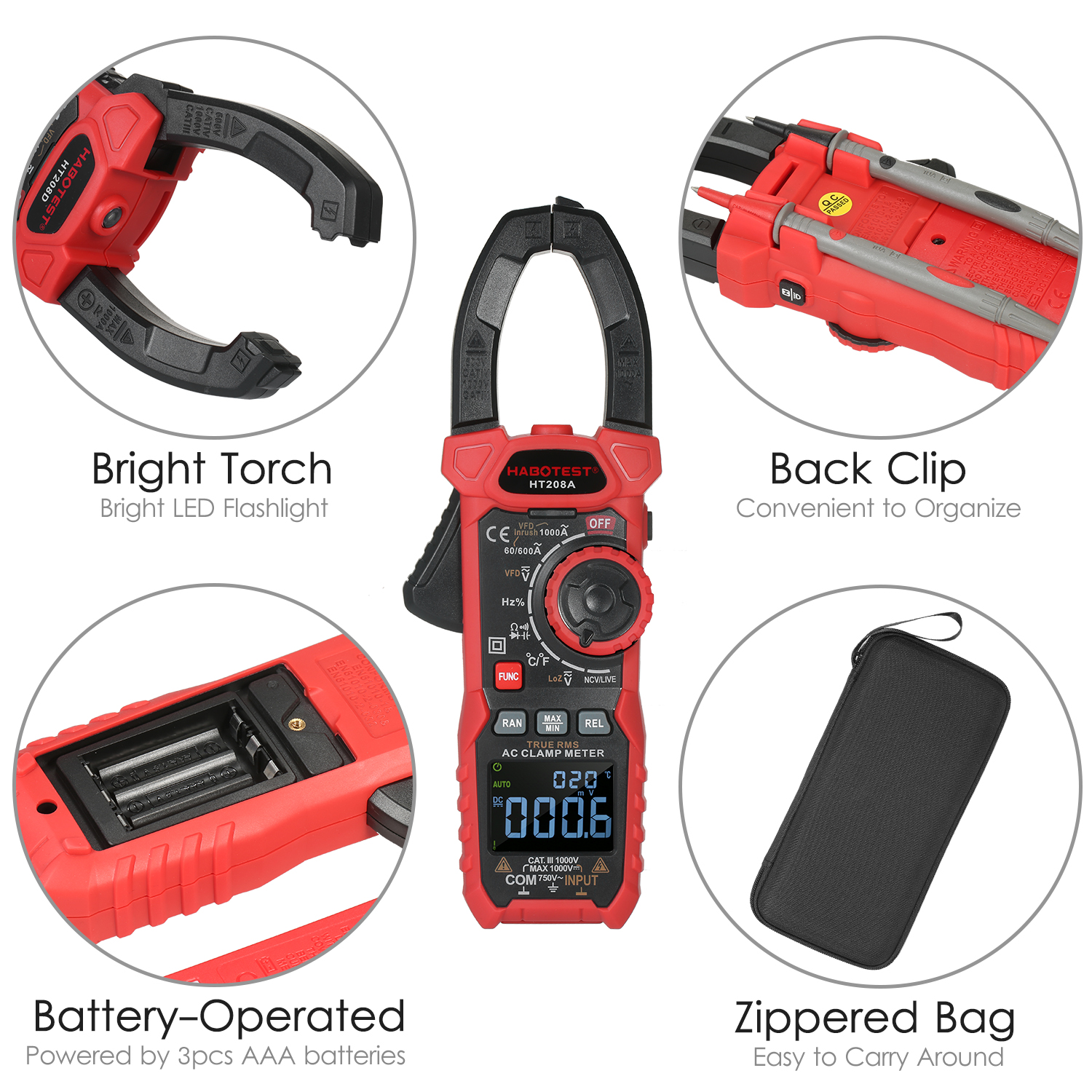

MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.
MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.

Note:
*MUST read the user manual carefully before use for safety.
*Battery not included.

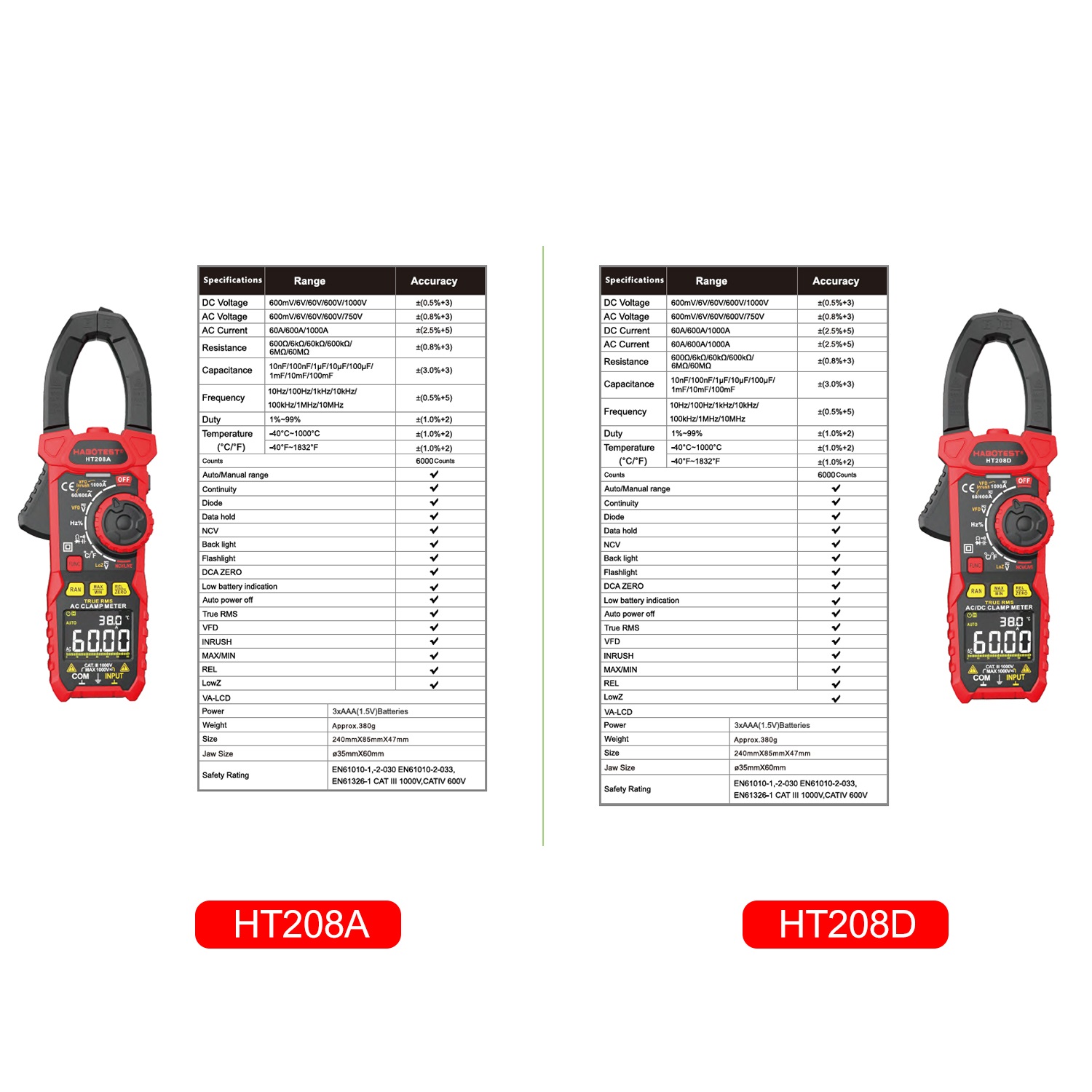

Parameters:

Range	Resolution	Accuracy
AC Current (MAX current: 1000A, True RMS) Frequency range: 0.1~600A: 40Hz~400Hz 600~1000A: 40Hz~60Hz
60A	0.01A	±(2.5%reading+8) VFD: ±(5.0%reading+10) INRUSH: ±(5.0%reading+10)
600A	0.1A
1000A	1A
DC Voltage Input impedance: 10MΩ(LoZ: 300kΩ) Overload protection: AC750V/DC1000V Maximum input voltage: AC750V/DC1000V
600mV	0.1mV	±(0.5%reading+5)
6V	0.001V
60V	0.01V
600V	0.1V
1000V	1V	±(0.8%reading+5)
AC Voltage Input impedance: 10MΩ(LoZ: 300kΩ) Overload protection: AC750V/DC1000V Maximum input voltage: AC750V/DC1000V Frequency range: 40Hz~1kHz, True RMS
600mV	0.1mV	±(0.8%reading+5)
6V	0.001V
60V	0.01V
600V	0.1V
750V	1V	±(1.0%reading+5)
VFD(750V)	0.1V	±(2.0%reading+5)
Resistance Overload protection: 250V
600Ω	0.1Ω	±(1.0%reading+5)
6kΩ	0.001kΩ
60kΩ	0.01kΩ
600kΩ	0.1kΩ
6MΩ	0.001MΩ
60MΩ	0.01MΩ
Diode	It displays the approximate forward voltage value of the diode.	Forward DC current is about 1.5mA; Overload protection: 250V
Continuity		Test Voltage Approx. 1V Overload protection: 250V
Capacitance Overload protection: 250V
10nF	0.001nF	±(4.0%reading+5)
100nF	0.01nF
1000nF	0.1nF
10μF	0.001μF
100μF	0.01μF
1000μF	0.1μF
10mF	0.001mF
100mF	0.01mF	±(5.0%reading+10)
Frequency/Duty Ratio Overload protection: 250V
10Hz	0.001Hz	±(1.0%reading+3)
100Hz	0.01Hz
1000Hz	0.1Hz
10kHz	0.001kHz
100kHz	0.01kHz
1000kHz	0.1kHz
10MHz	0.001MHz	±(3.0%reading+3)
1~99%	0.1%
Temperature *The below precision does not inlcude the error of thermocouple probe.
℃	1℃	±3℃ (-20℃~0℃)
		±1.0% or ±2℃ (0℃~400℃)
		±2.0% (400℃~1000℃)
℉	1℉	±6℉ (-4℉~32℉)
		±1.0% or 4℉ (32℉~752℉)
		±2.0% (752℉~1832℉)

Specifications:
Brand: HABOTEST
Material: ABS
Color: Black and Red
Item Size: 24*8*4.5cm / 9.44*3.14*1.77in
Item Weight: 321g / 11.32oz
Package Size: 27.5*13.5*5.5cm / 10.82*5.31*2.16in
Package Weight: 626g / 22.08oz

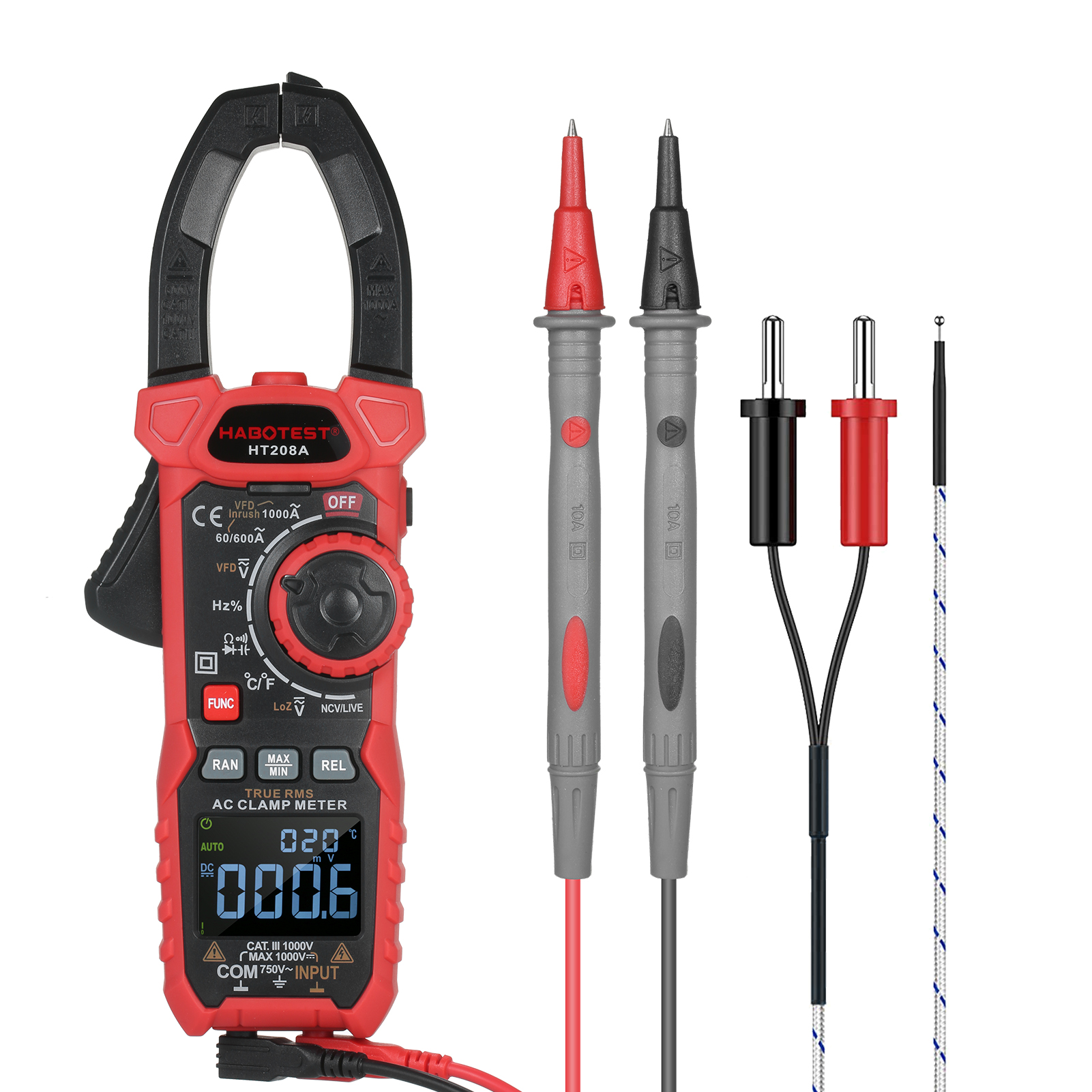

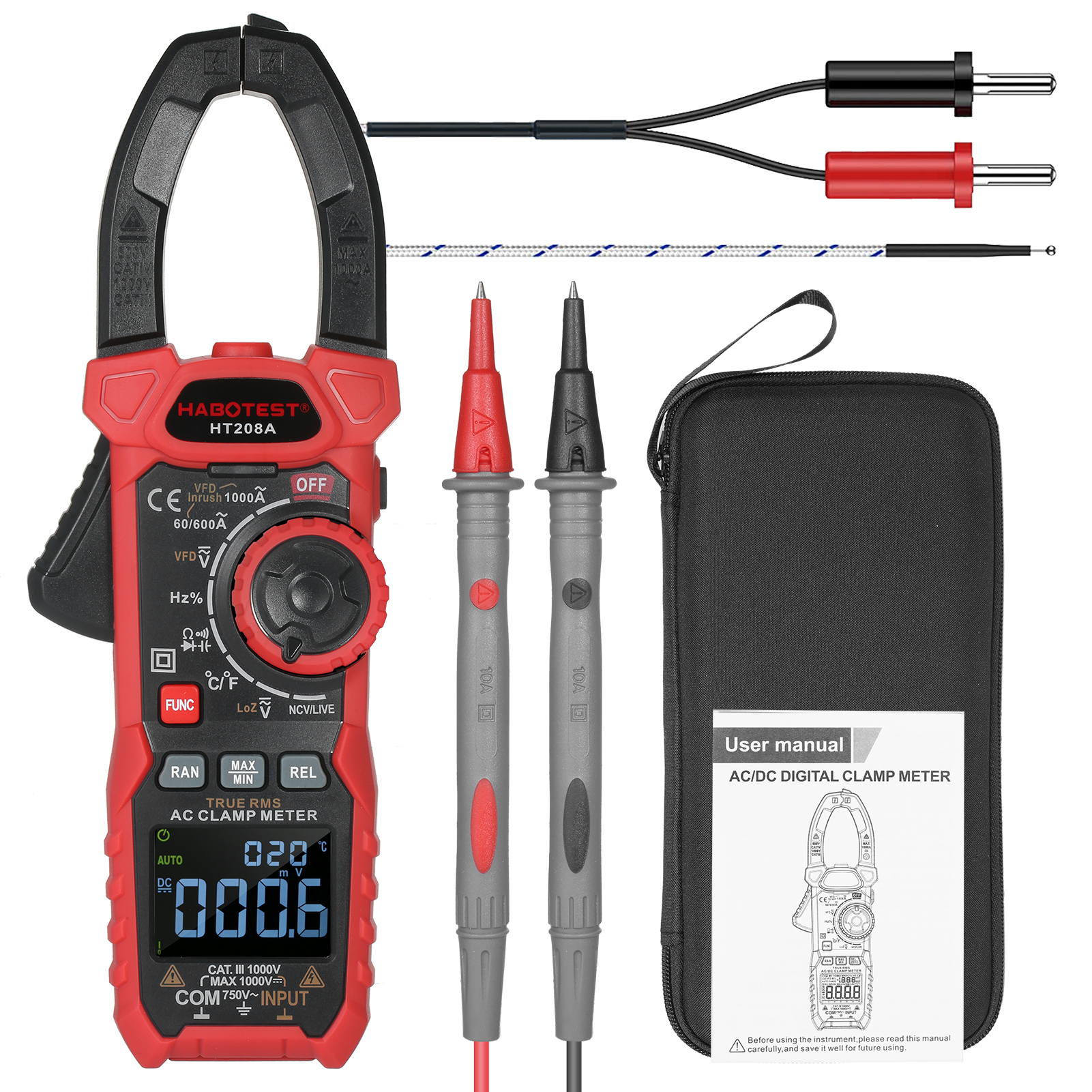

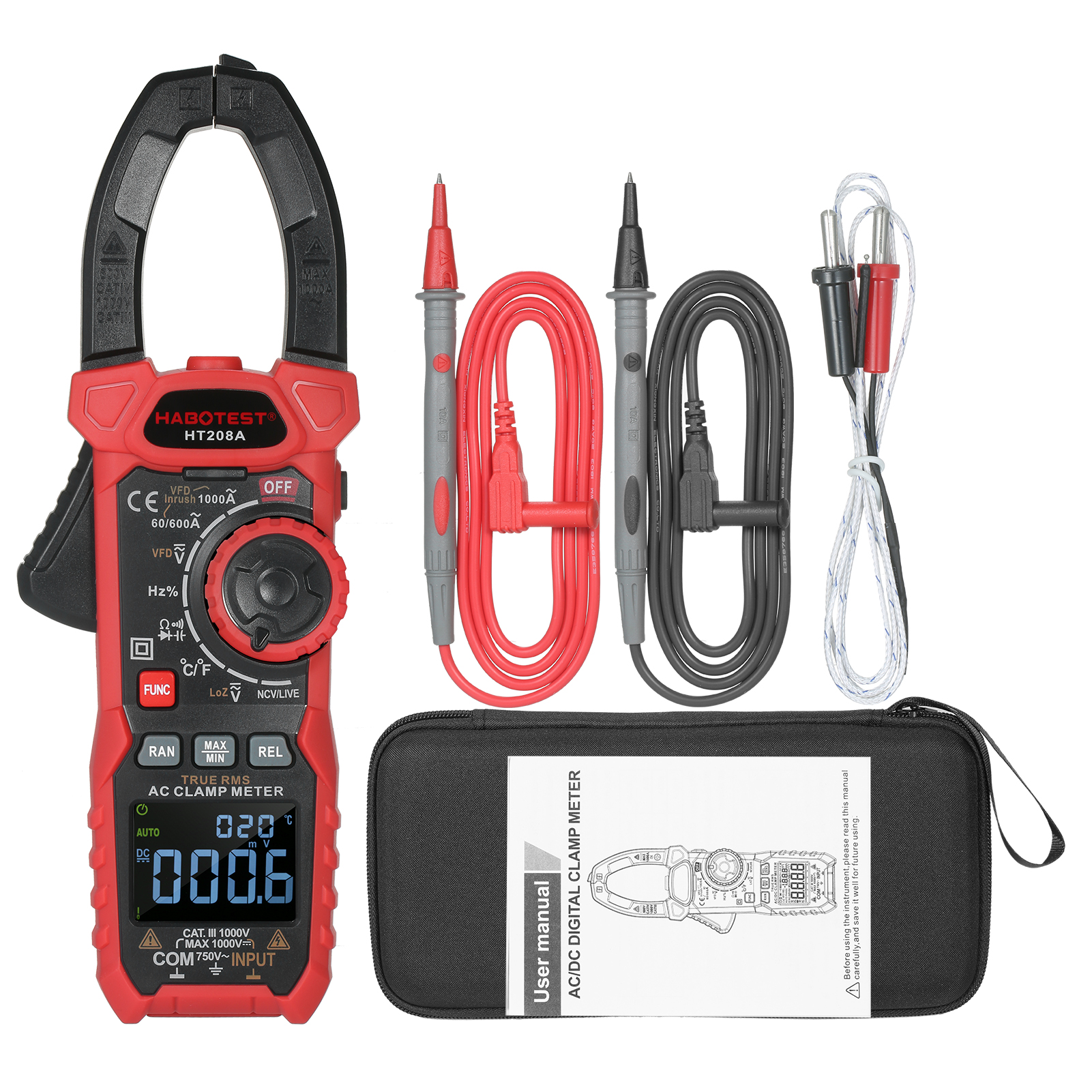

Packing List:
1 * Digital Clamp Meter
1 * Thermocouple
2 * Test Lead
1 * User Manual(English)
