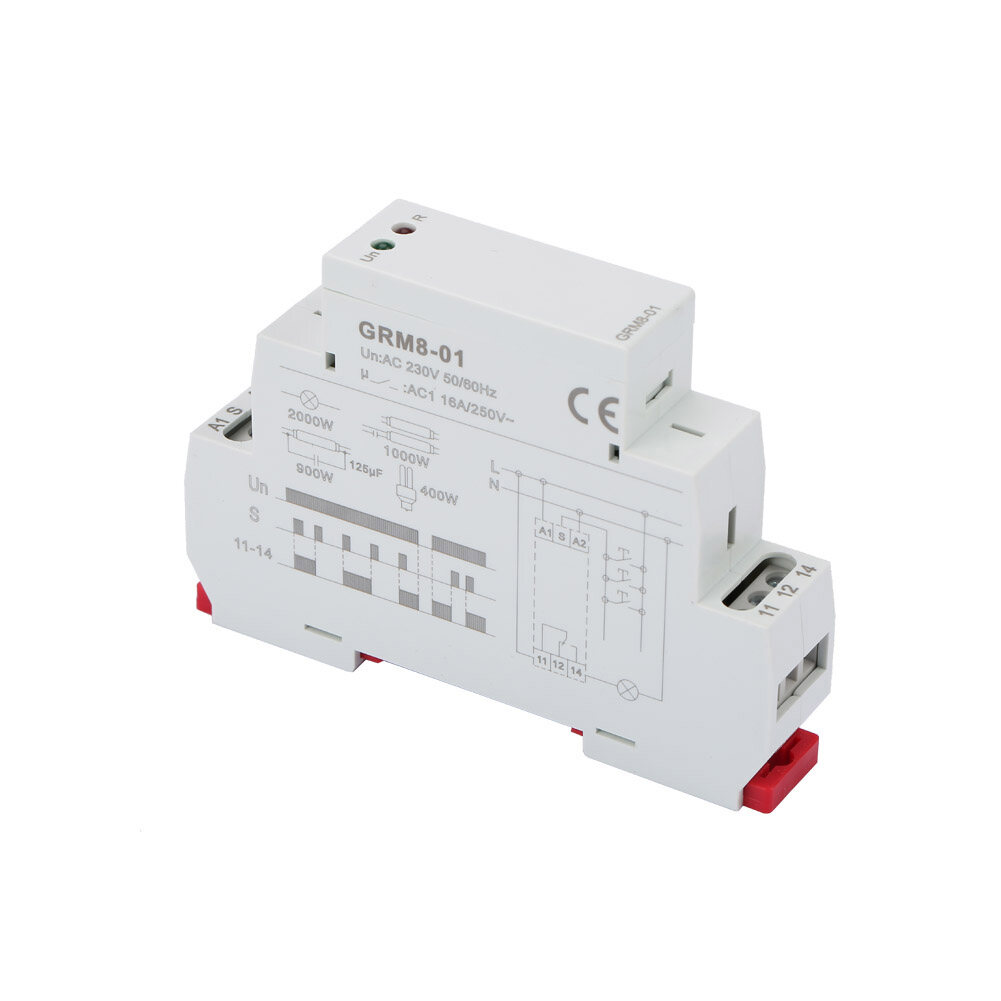

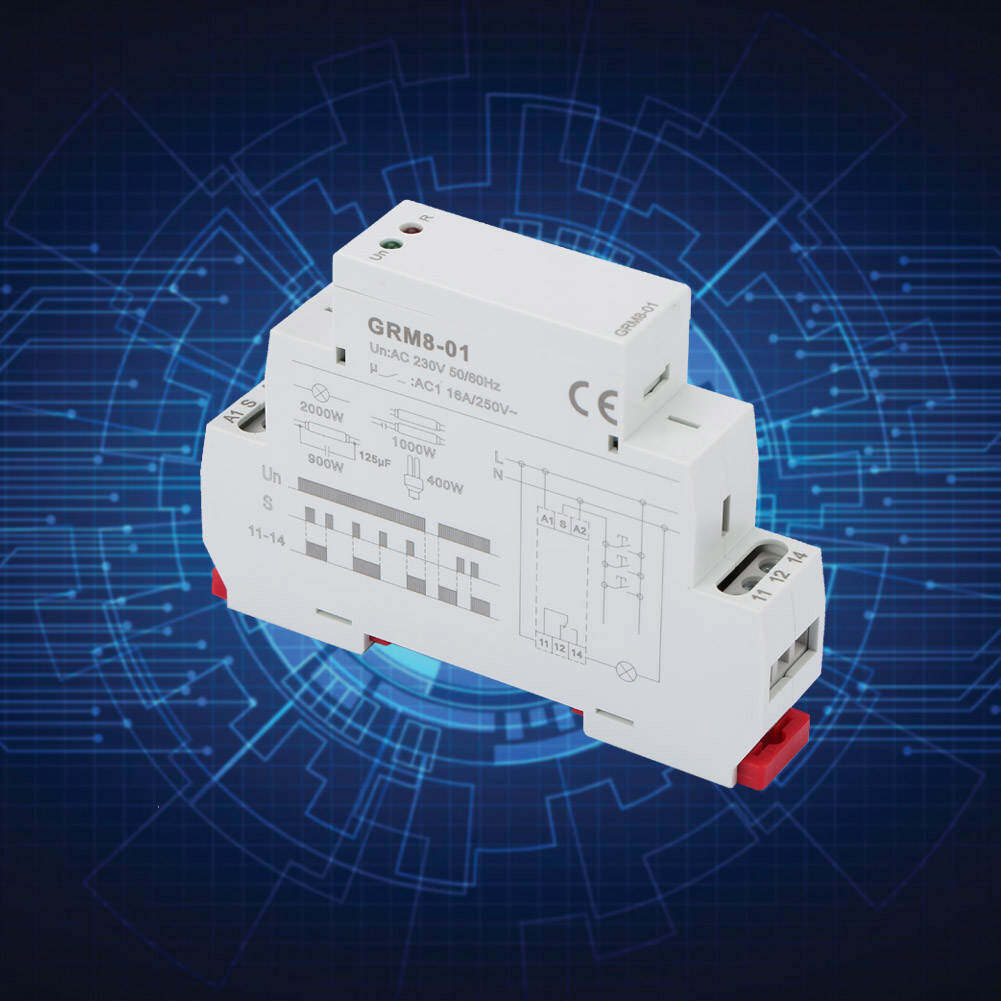

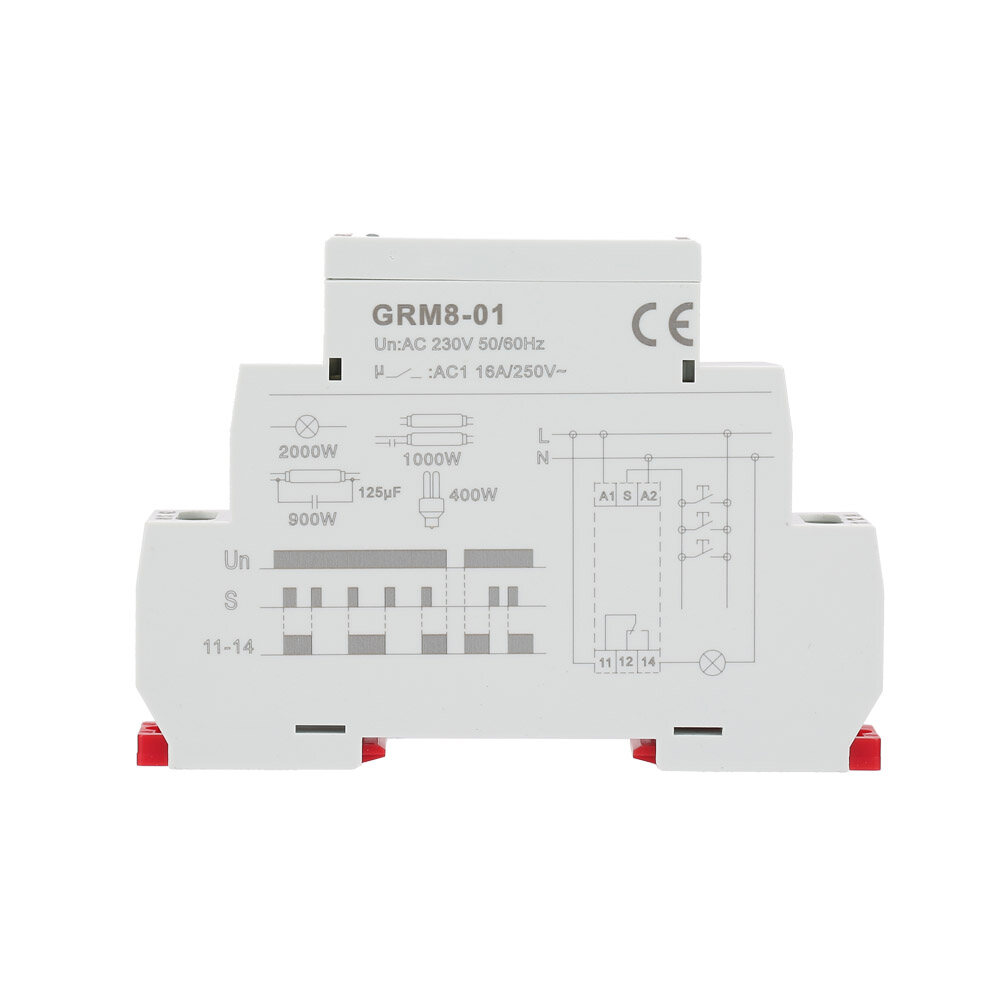

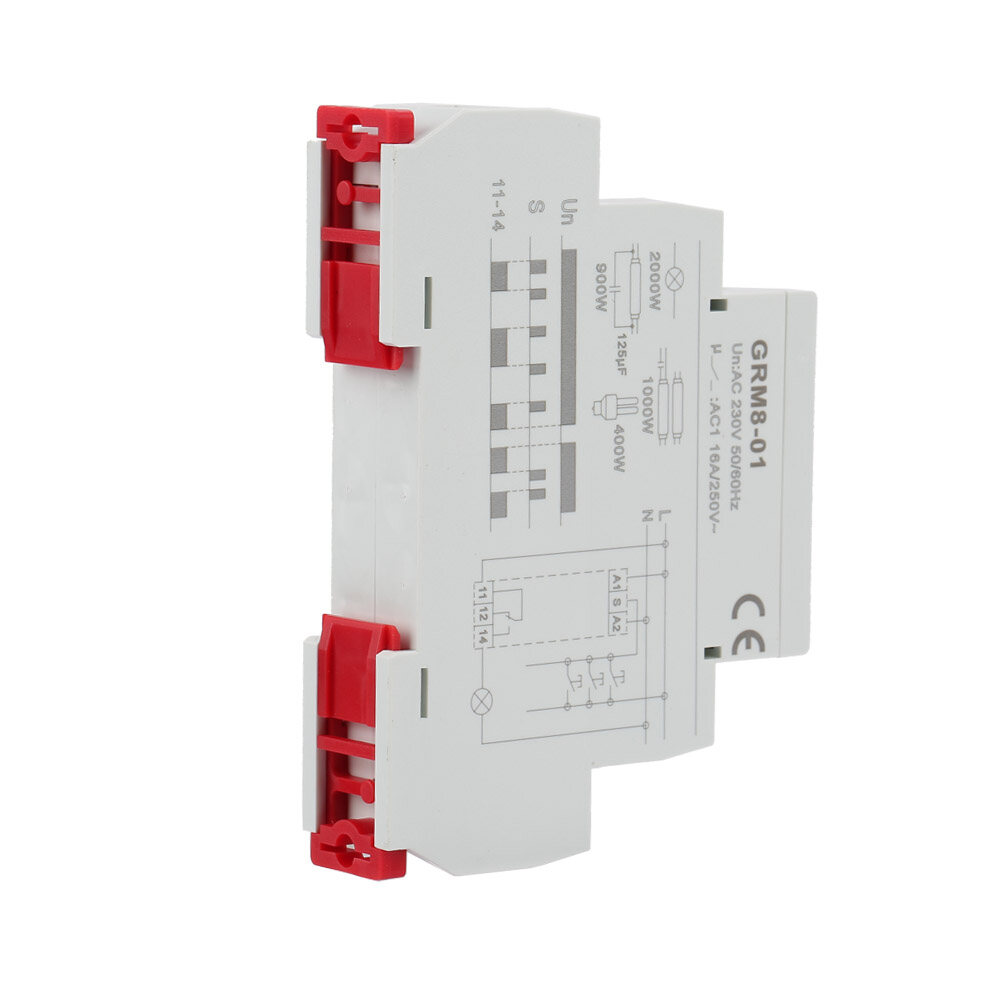

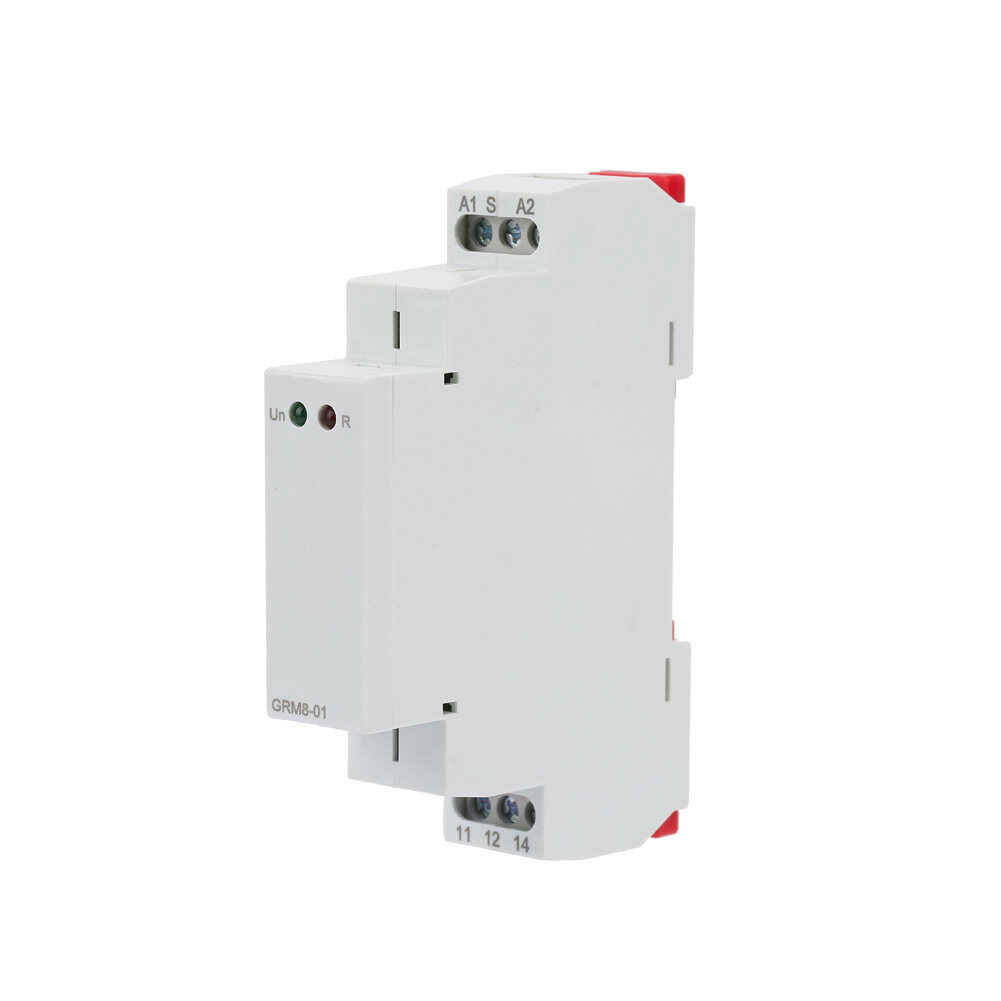

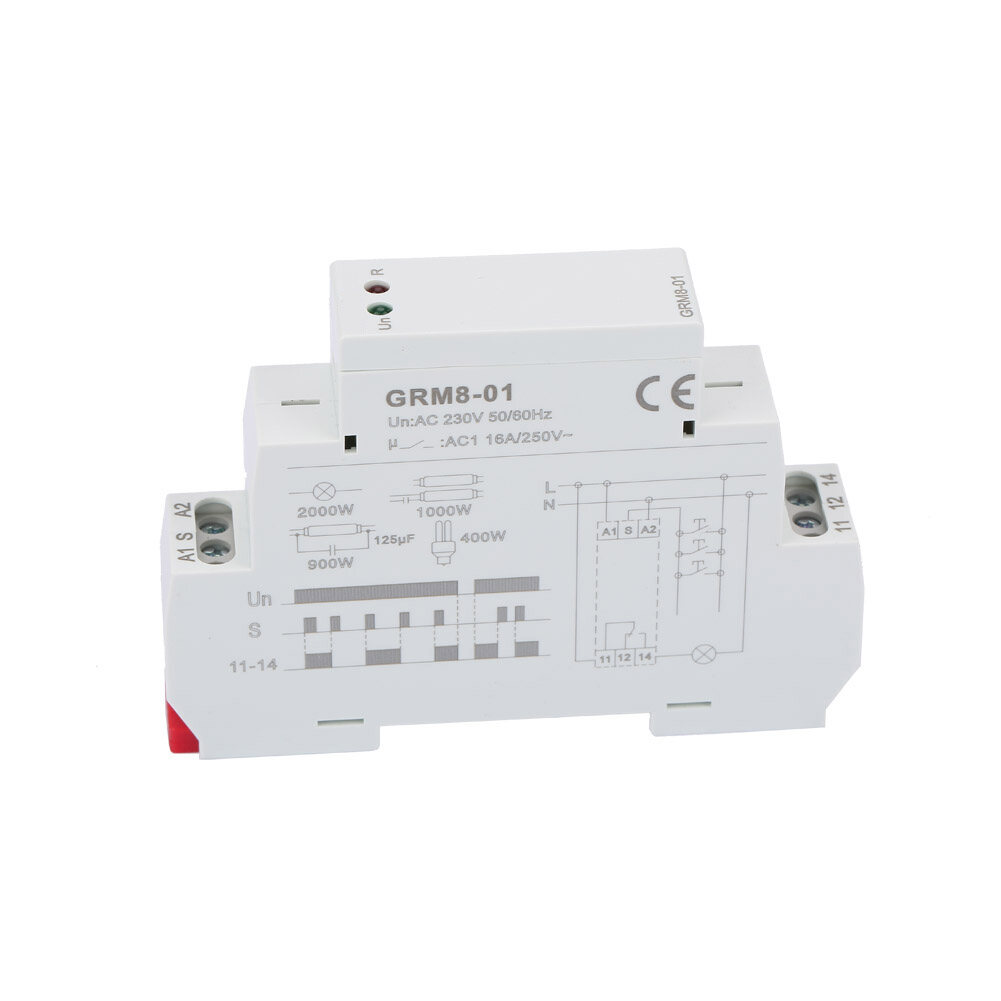

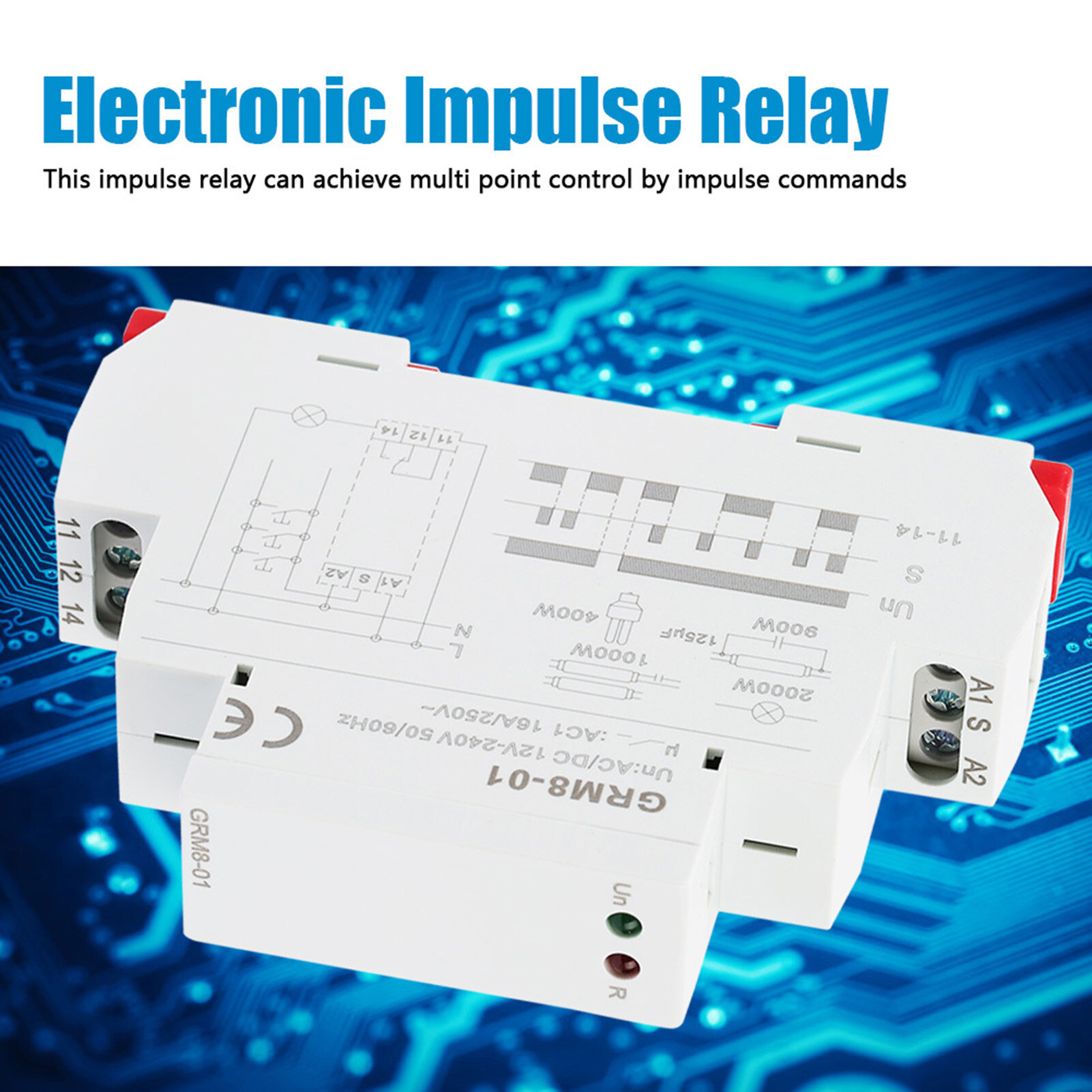

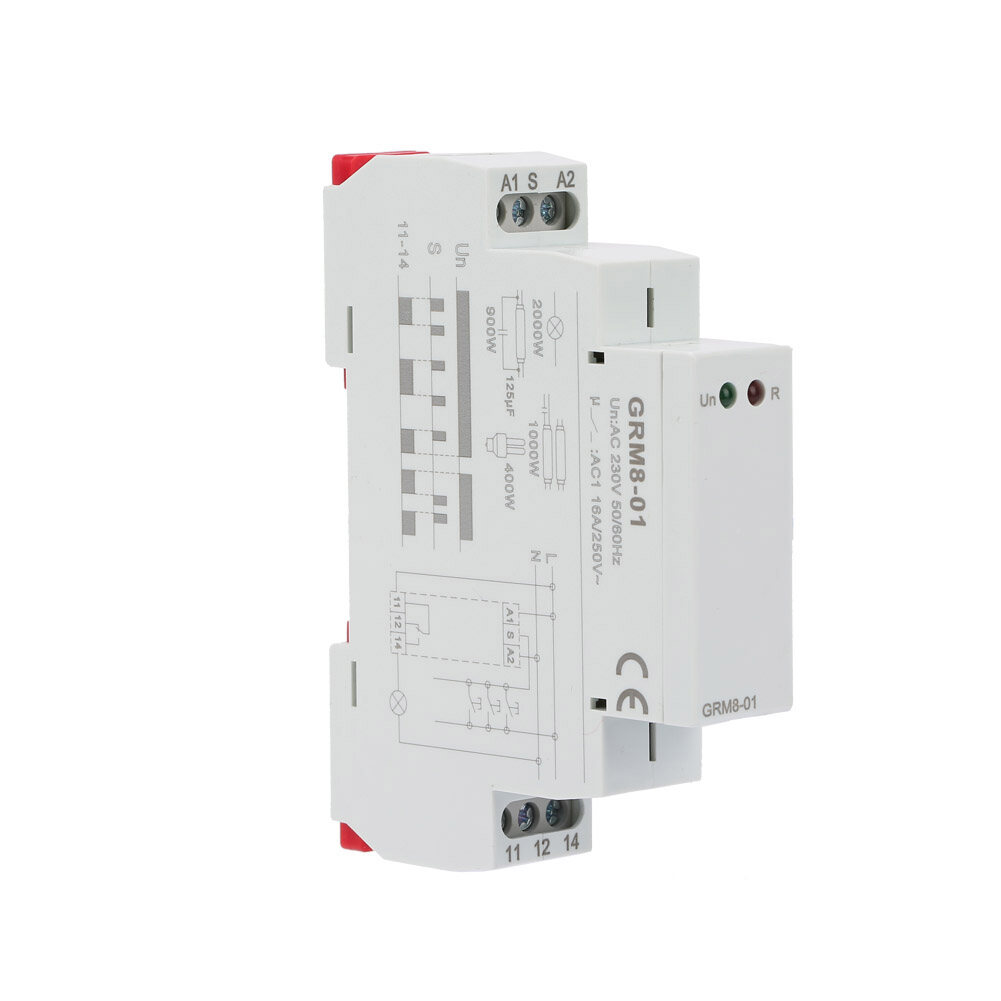

GRM8-01 Electronic Impulse Relay Latching Relay Memory Relay AC Impulse Relay 230V

Features:

1. This impulse relay can achieve multi point control by impulse commands.

2. Relay working status is indicated by LED indicators.

3. With small volume, only 18mm width, 35mm DIN rail mount.

4. Simple structure, easy to wire and mount.

5. Stable performance, long service life.

Specification:

Model: GRM8-01

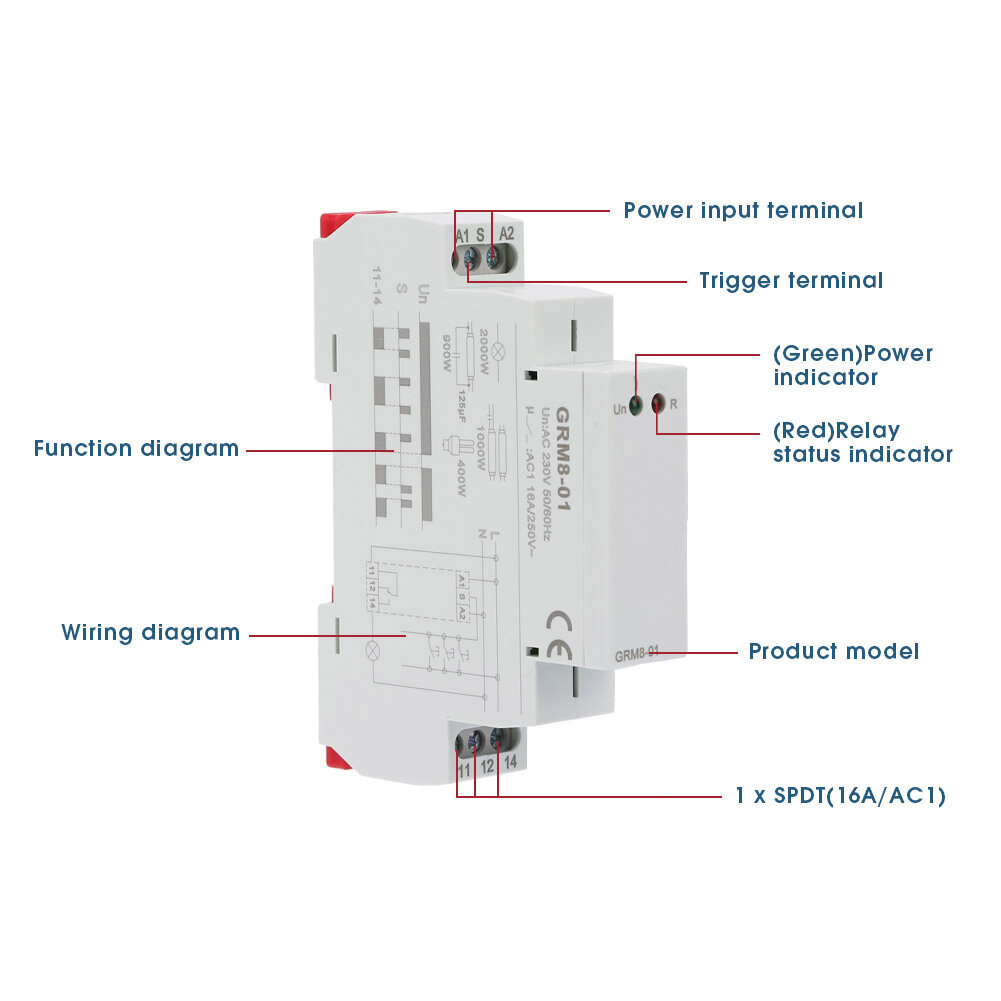

Power terminal: A1-A2

Rated power supply voltage: AC 230V(50-60Hz)

Power consumption: AC max12VA/1.3W

Supply voltage tolerance: -15%; +10%

Power indicator: Green LED

Control terminal: A1-S

Max. connection number of neon lamp: 75pcs(0.68mA/230VAC)

Control signal width: Min. 25mm

Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC

Minimum switching power: 500mW

Output indication: Red LED

Mechanical life: 1x107

Electrical life(resistive load): 1x106

Reset time: Max 200ms

Working temperature: -20℃~55℃

Mounting method: 35mm DIN rail

Mounting altitude: ≤2000m

Wiring capability: 1x2.5mm2 or 2x1.5mm2

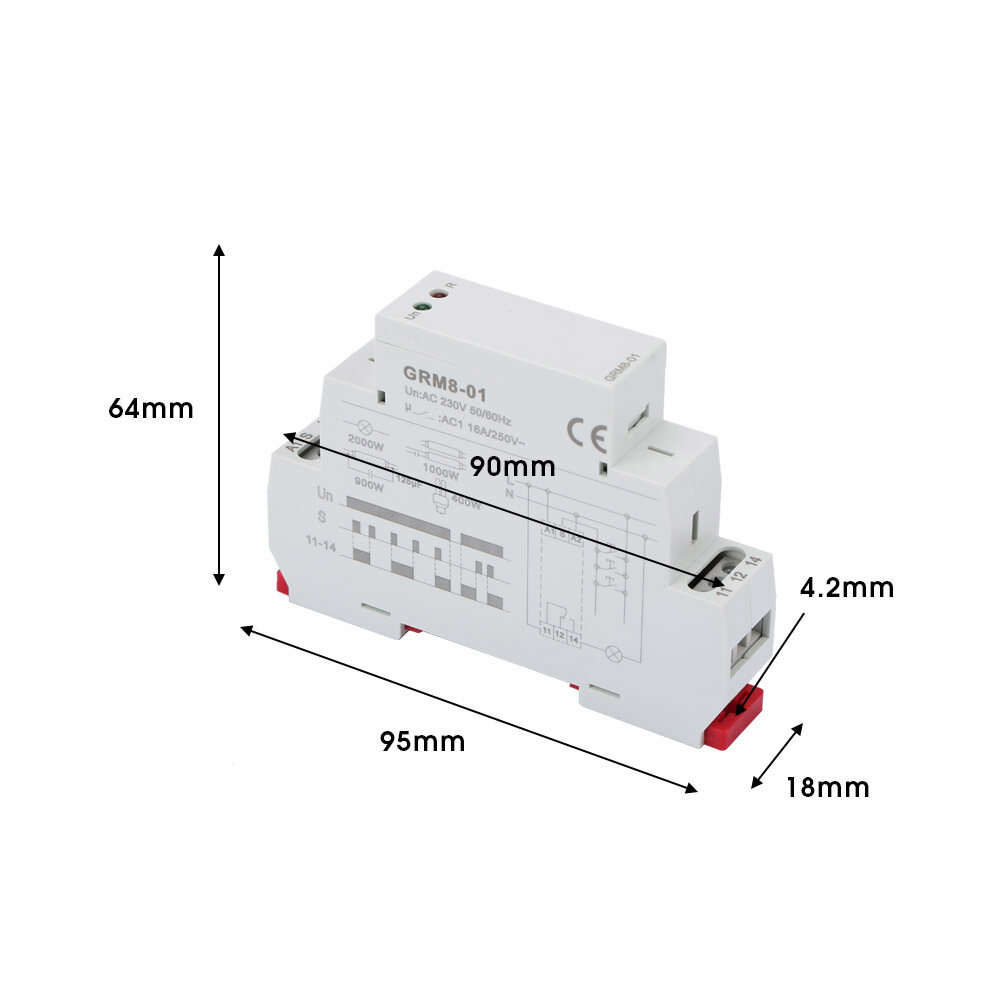

Dimensions: 90*18*64mm / 3.54*0.71*2.52in

Weight: Approx. 72g/2.5oz

Package List:

1 * Electronic Impulse Relay
