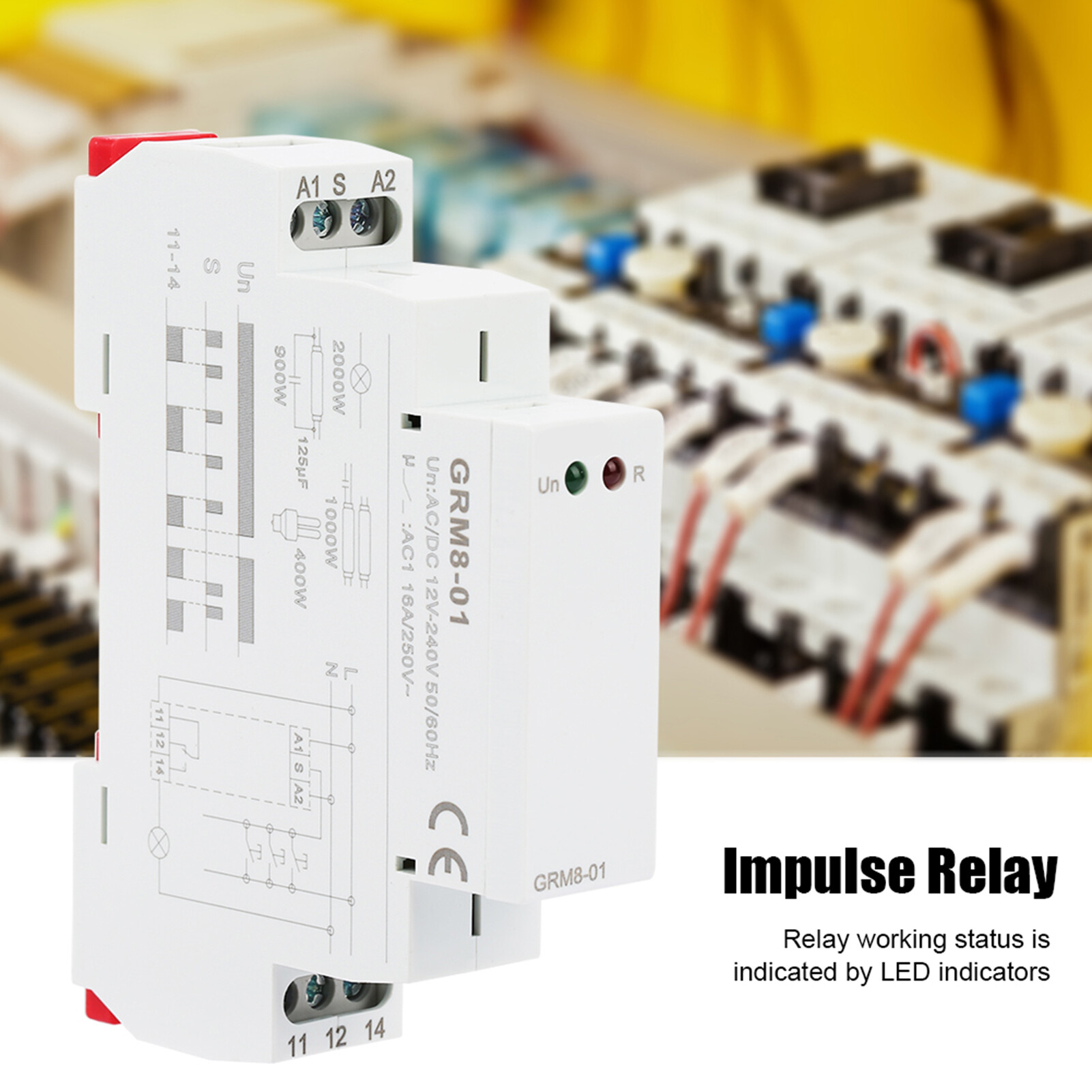

Impulse Relay GRM8-01 AC/DC12-240V Electronic Impulse Relay Latching Relay Memory Relay Can Achieve Multi Point Control by Impulse Commands

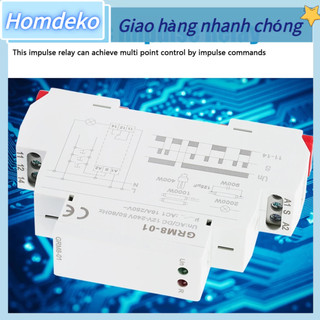

1. This impulse relay can achieve multi point control by impulse commands.
2. Relay working status is indicated by LED indicators.
3. With small volume, only 18mm width, 35mm DIN rail mount.
4. Simple structure, easy to wire and mount.
5. Stable performance, long service life.

Specification:
Features:
1.This impulse relay can achieve multi point control by impulse commands.
2.Relay working status is indicated by LED indicators.
3.With small volume, only 18mm width, 35mm DIN rail mount.
4.Simple structure, easy to wire and mount.
5.Stable performance, long service life.

Specification:

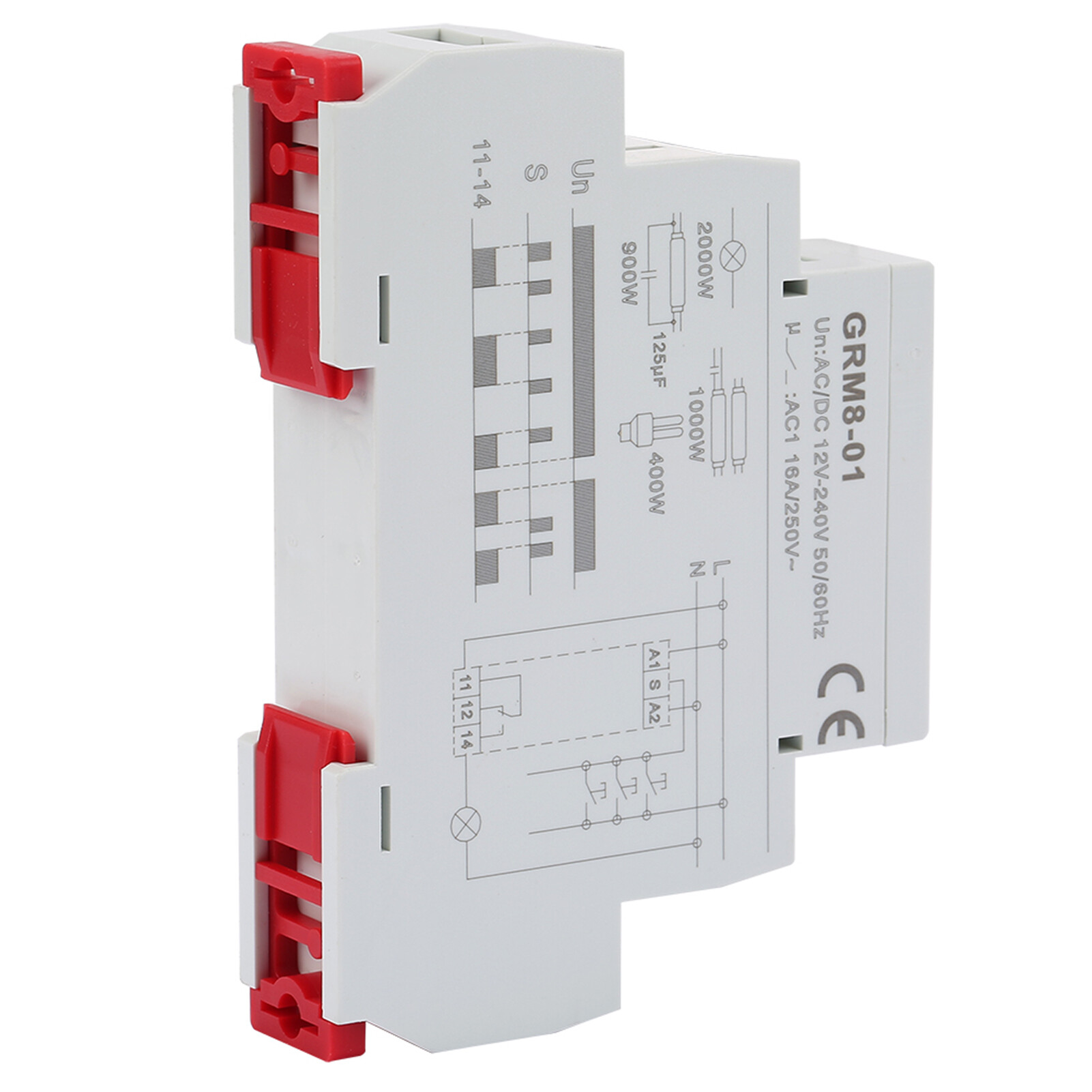

Model: GRM8-01

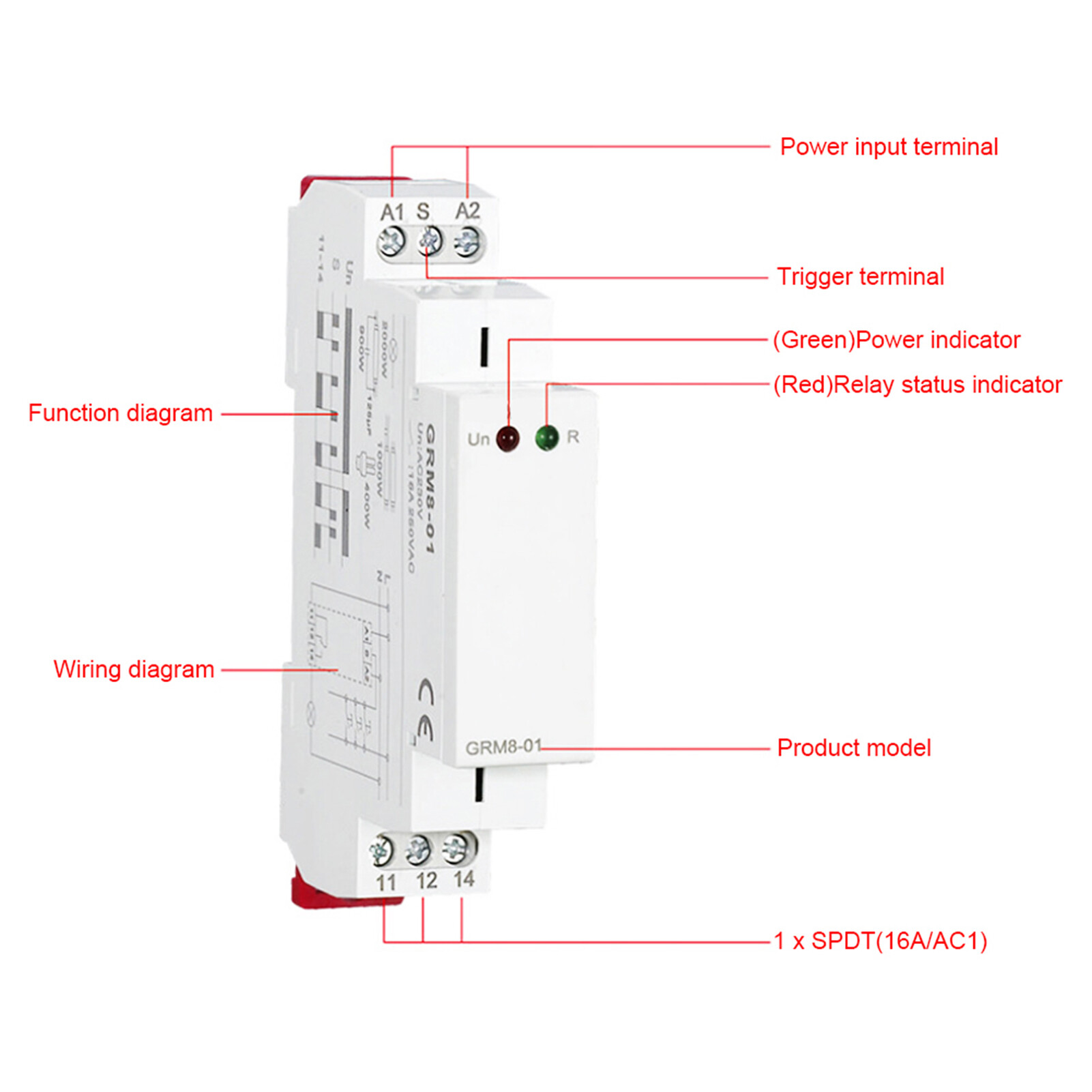

Power terminal: A1-A2
Rated power supply voltage: AC/DC 12-240V (50-60Hz)
Power consumption: AC0.09-3VA/DC0.05-1.2W
Supply voltage tolerance: -15%; +10%

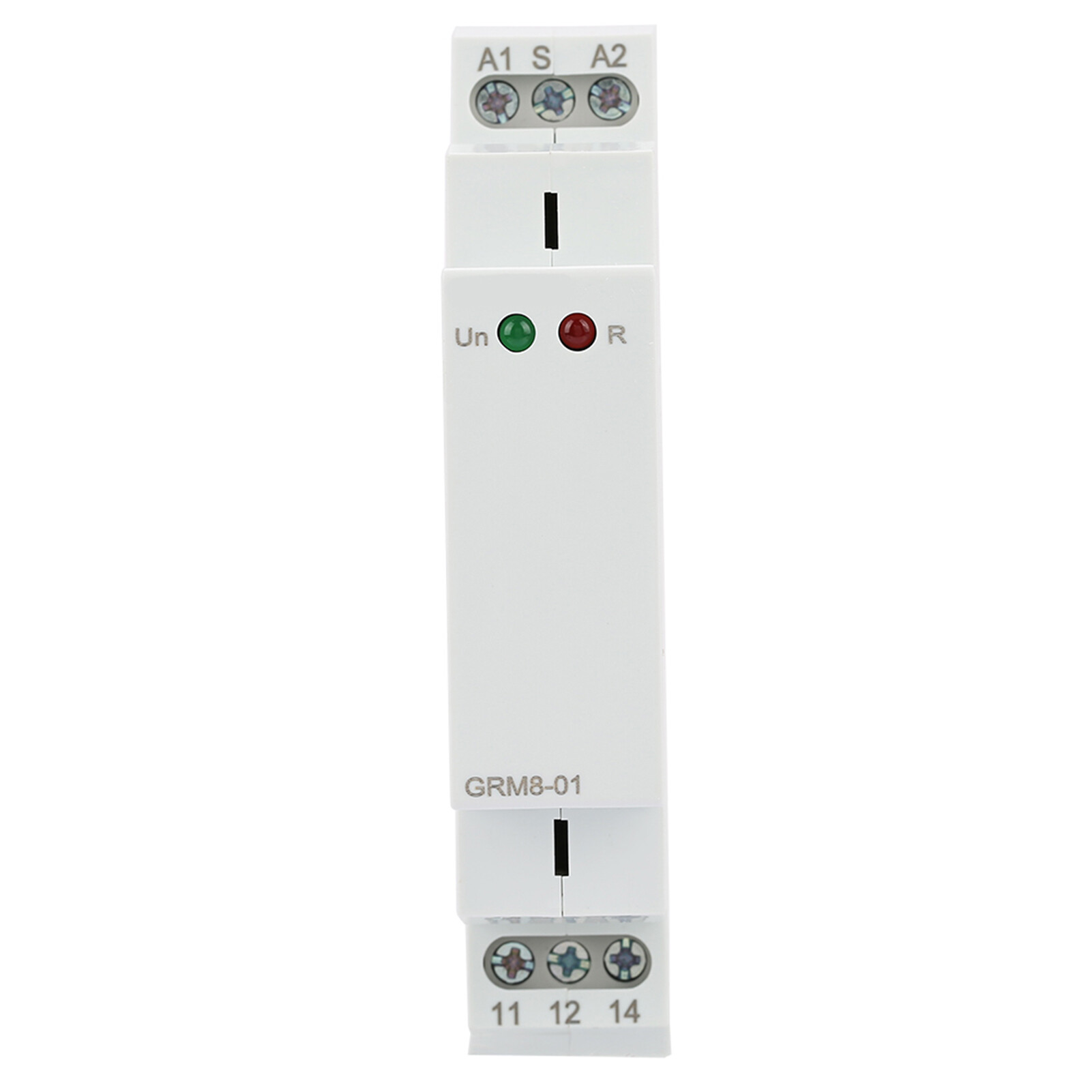

Power indicator: Green LED
Control terminal: A1-S
Control signal width: Min. 25mm
Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Output indication: Red LED
Mechanical life: 1x107
Electrical life(resistive load): 1x106
Reset time: Max 200ms
Working temperature: -20℃~55℃

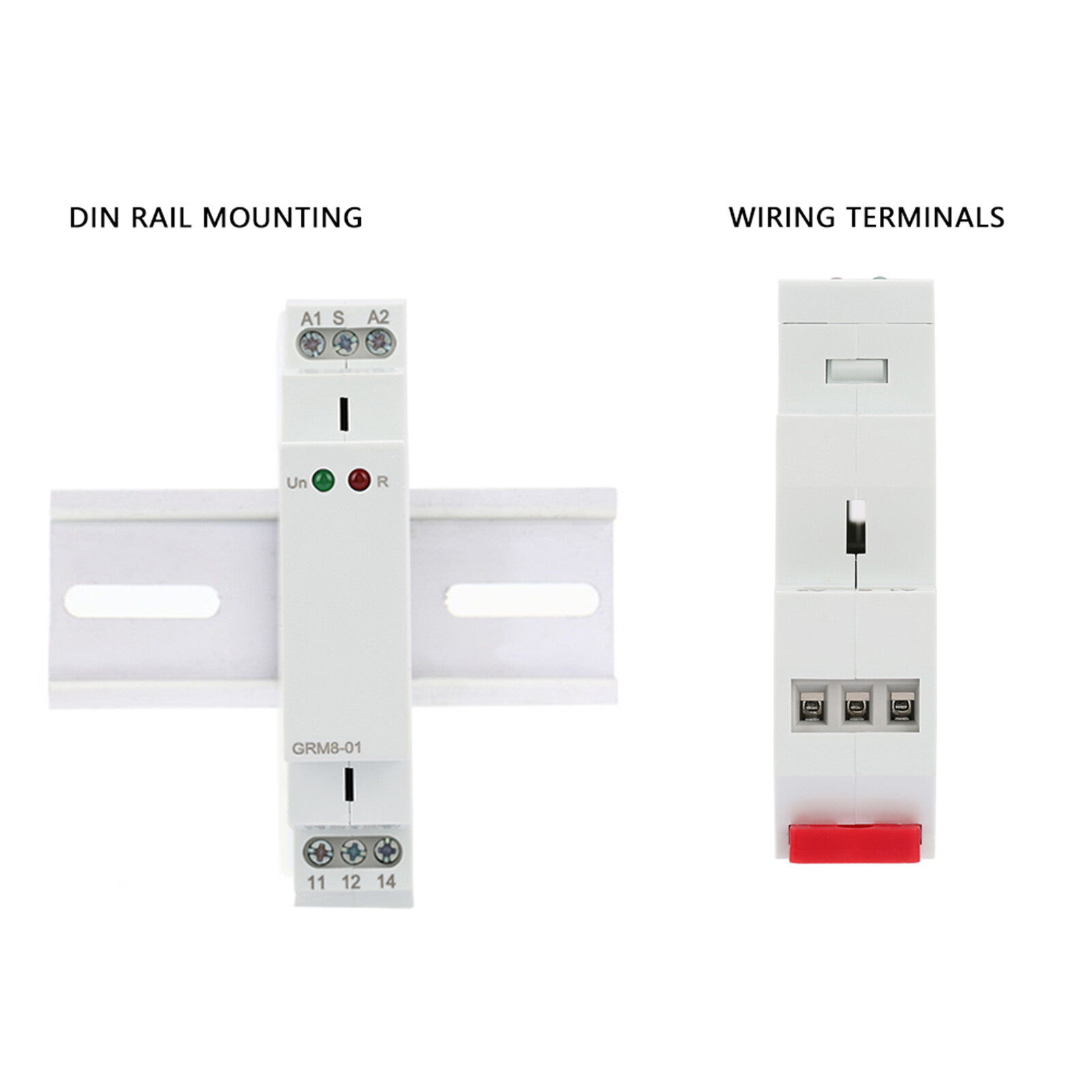

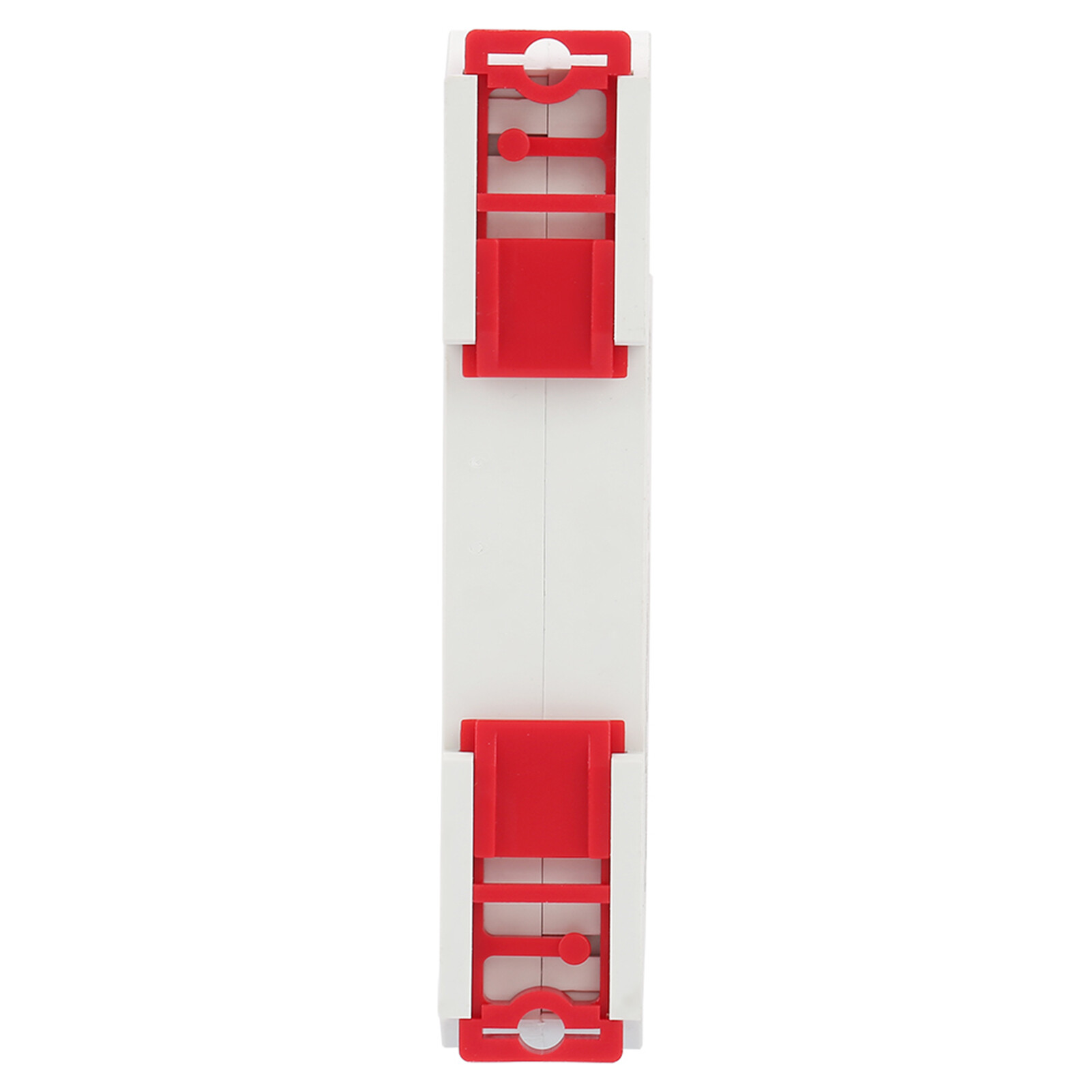

Mounting method: 35mm DIN rail
Mounting altitude:≤2000m
Wiring capability: 1x2.5mm2 or 2x1.5mm2

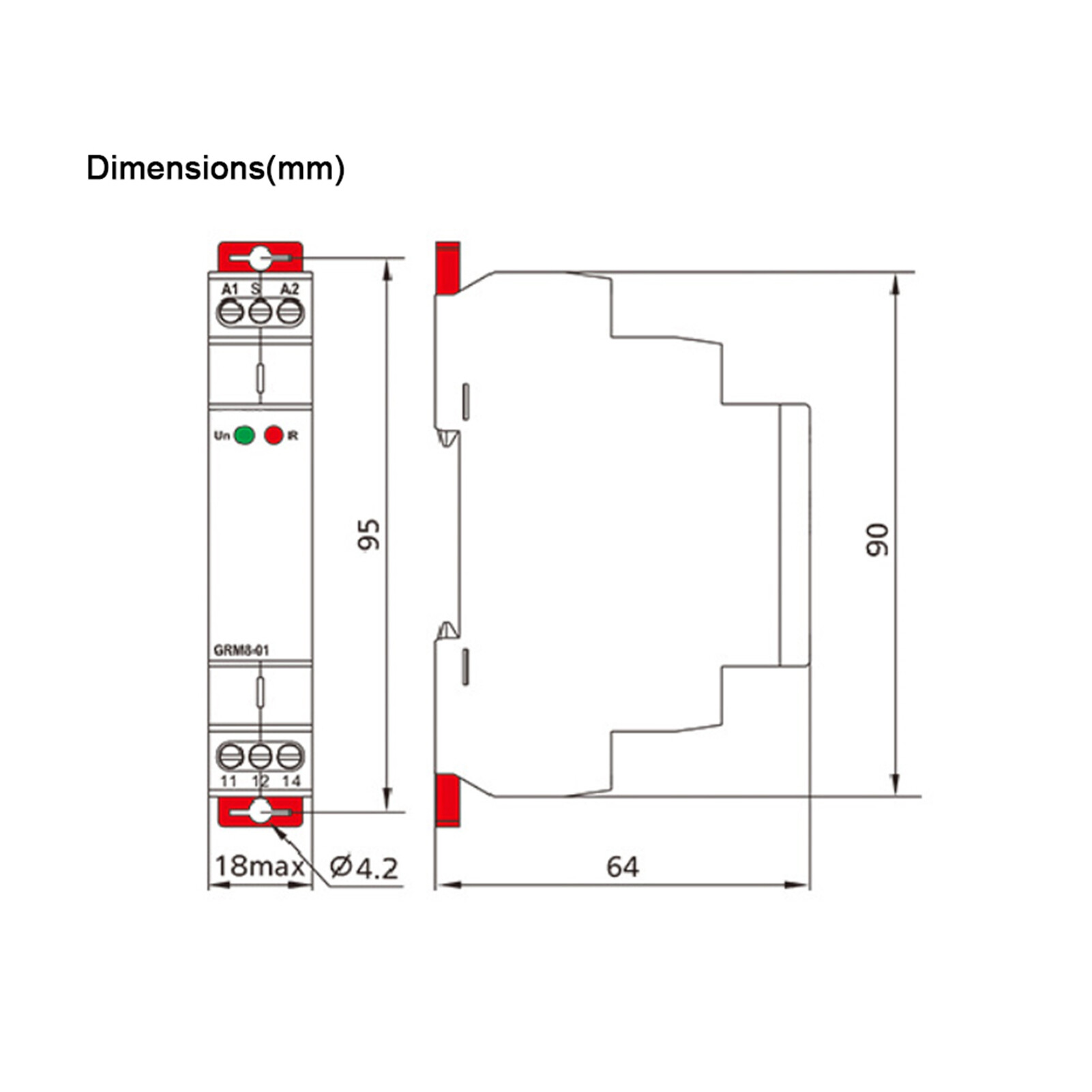

Dimensions: 90*18*64mm / 3.54*0.71*2.52in
Weight: Approx. 73g/2.6oz

Package List:
1 * Electronic Impulse Relay

Note:
1.Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2.Please allow slight error due to manual measurement. Thanks for your understanding.
