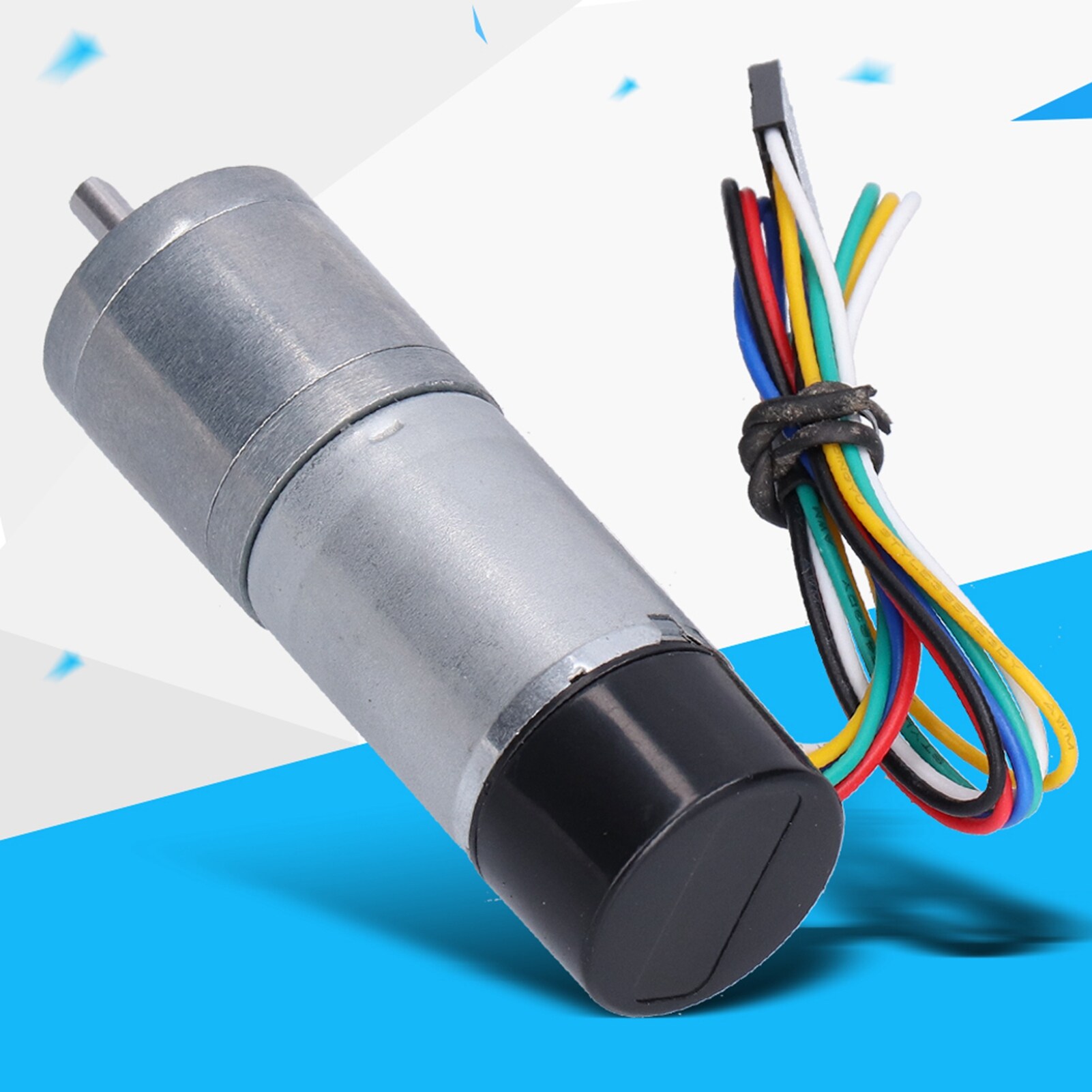

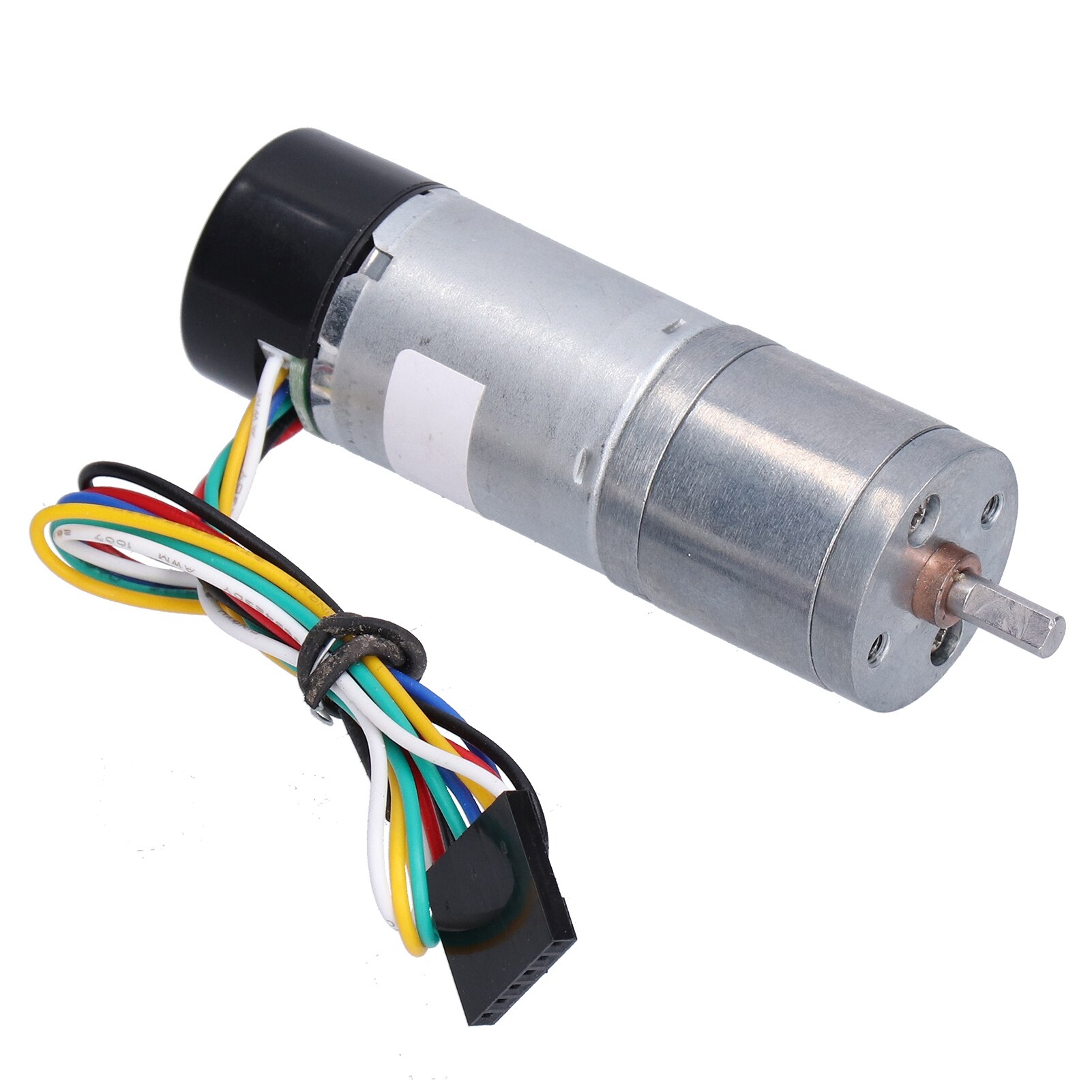

Geared Motor, Encoder Motors Adjustable for Robots for Smart Car for Home Appliances

Feature:

1. Wear Resistant Metal: Using all metal materials, which is more wear resistant and prolong the service life
2. Hall Encoder: Adopt new Hall encoder, 3 layers of high density molecular coatings effectively isolates dust, durable life is 10 times that of ordinary coating
3. More Stable Copper Coil: DC Geared Motor use good quality copper coil, which guarantee more stable operation

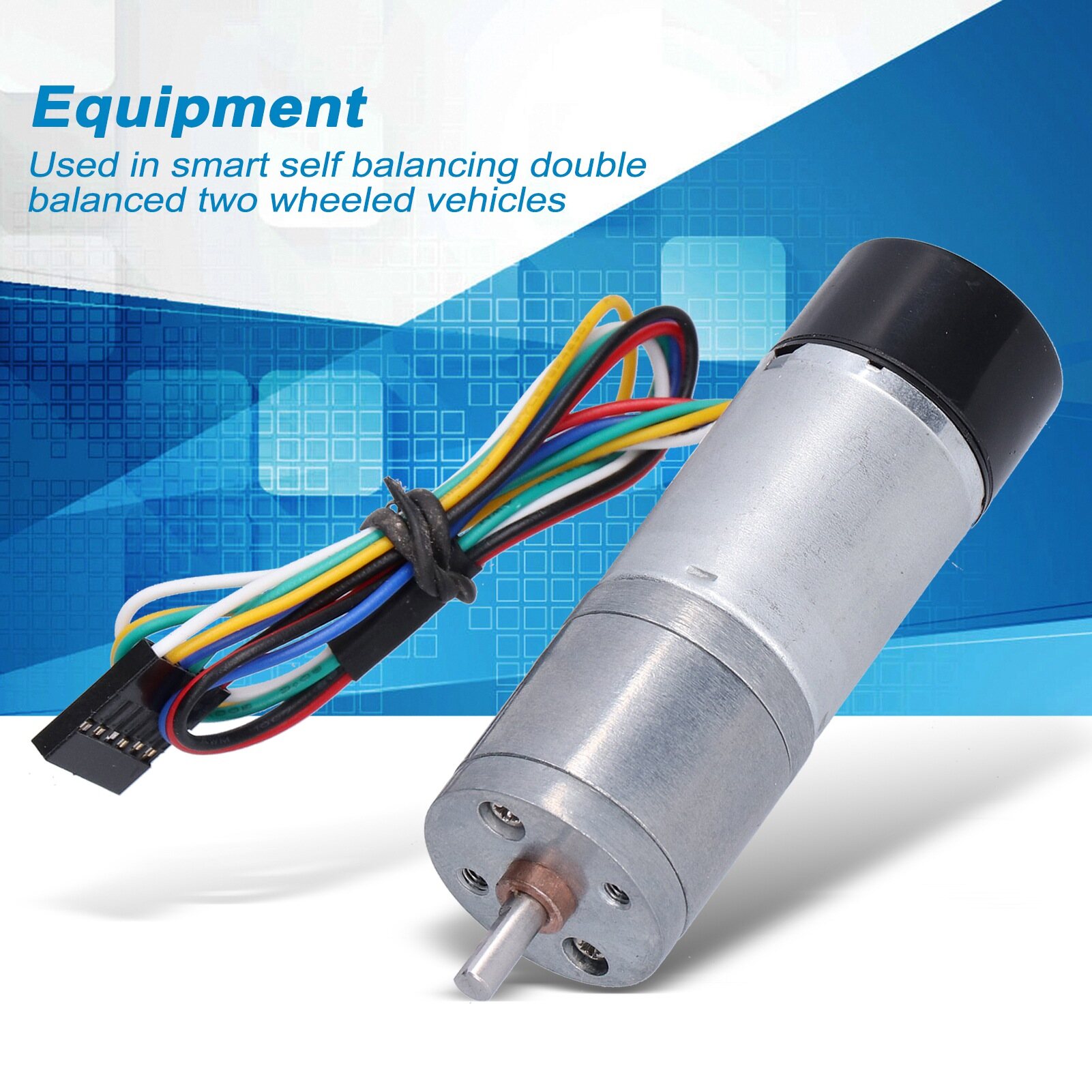

4. Wide Appliances: Used in smart self balancing double balanced two wheeled vehicles, smart home appliances, robots, camera rocker ,electric tape cutting machines, etc.
5. Great Replacement: Great replacement for the rusty or damaged DC geared motor on the machine, sturdy and durable

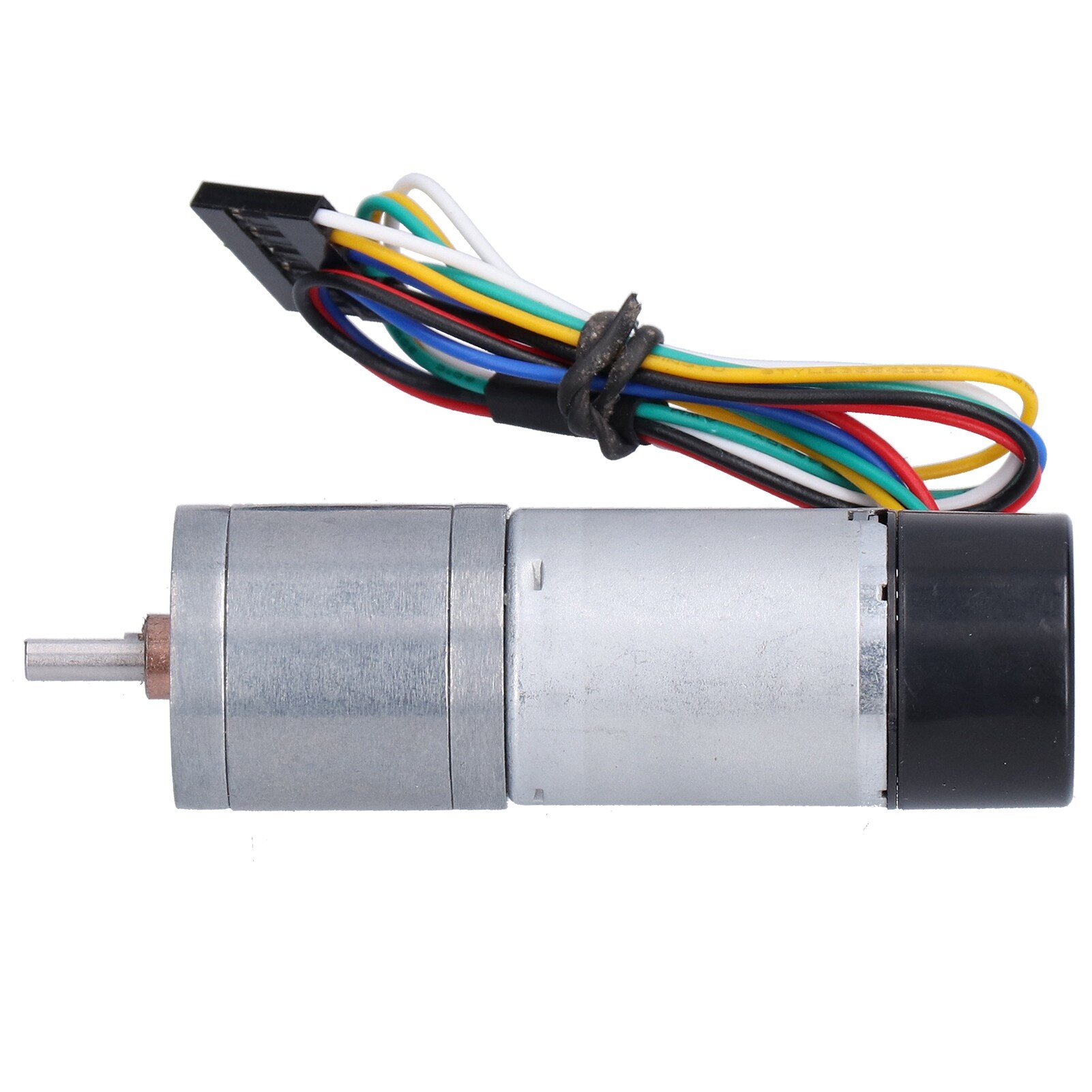

Specification:

Item Type: DC Geared Motor
Material: Zinc alloy, copper, magnet
Uses: Used in intelligent self balancing double balanced two wheeled vehicles, smart home appliances, robots, camera rocker electric tape cutting machines, etc.

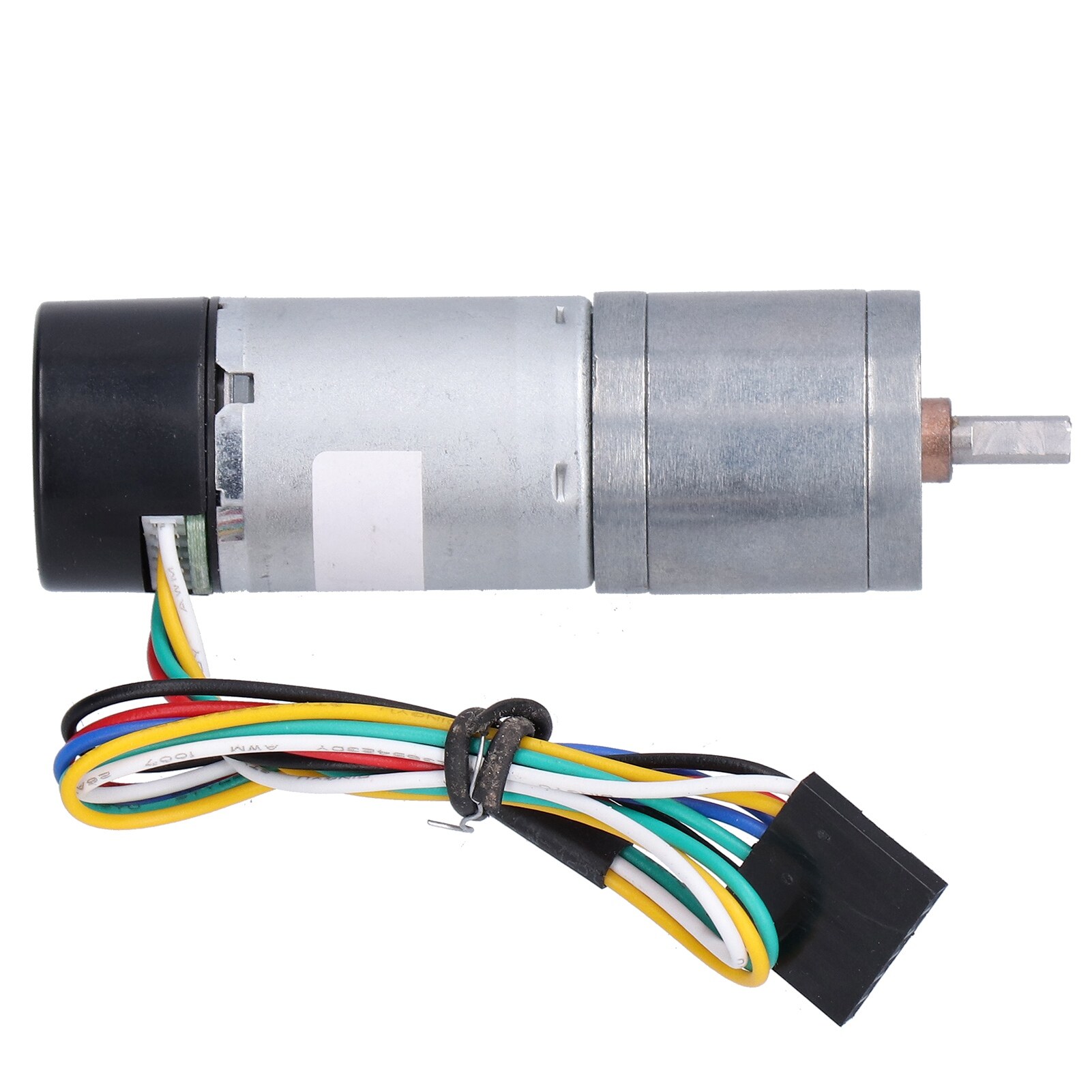

Shaft Type: D type
Output Shaft Size(diameter x length): Approx. 4 x 9.5mm / 0.2 x 0.4in
Motor Diameter: Approx. 25mm / 1in
Whether to Adjust Speed: Yes
Whether CW and CCW: Yes
Cable Length: Approx. 230mm / 9.1in
DC 12V Parameter Table:

Rated voltage	No load		Rated load			Locked rotor		L size（approx.）
	Rotating speed	Current	Rotating speed	Current	Torsion	Current	Torsion
V	r/min	A	r/min	A	Kg.cm	A	Kg.cm
12	1360	0.07	1046	0.3	0.1	1.8	0.4	18mm / 0.71in
	620	0.07	477	0.3	0.2	1.8	0.9	17.5mm / 0.69in
	280	0.07	215	0.3	0.4	1.8	2	19mm / 0.75in
	170	0.07	131	0.3	0.69	1.8	3.3	21mm / 0.8in
	130	0.07	100	0.3	0.9	1.8	4.4	21mm / 0.8in
	77	0.07	59	0.3	1.5	1.8	5.5	23mm / 0.9in
	60	0.07	46	0.3	2	1.8	7.3	23mm / 0.9in
	35	0.07	27	0.3	3.3	prohibit	prohibit	25mm / 1in
	26	0.07	20	0.3	4.4	prohibit	prohibit	25mm / 1in
	12	0.07	9	0.3	9.7	prohibit	prohibit	27mm / 1.1in

DC 24V Parameter Table:

Rated voltage	No load		Rated load			Locked rotor		L size（approx.）
	Rotating speed	Current	Rotating speed	Current	Torsion	Current	Torsion
V	r/min	A	r/min	A	Kg.cm	A	Kg.cm
24	1360	0.04	1046	0.16	0.1	0.6	0.4	18mm / 0.71in
	620	0.04	477	0.16	0.2	0.6	0.9	17.5mm / 0.69in
	280	0.04	215	0.16	0.4	0.6	2	19mm / 0.75in
	170	0.04	131	0.16	0.69	0.6	3.3	21mm / 0.8in
	130	0.04	100	0.16	0.9	0.6	4.4	21mm / 0.8in
	77	0.04	59	0.16	1.5	0.6	5.5	23mm / 0.9in
	60	0.04	46	0.16	2	0.6	7.3	23mm / 0.9in
	35	0.04	27	0.16	3.3	prohibit	prohibit	25mm / 1in
	26	0.04	20	0.16	4.4	prohibit	prohibit	25mm / 1in
	12	0.04	9	0.16	9.7	prohibit	prohibit	27mm / 1.1in

Package List:

1 x DC Geared Motor

How to Use

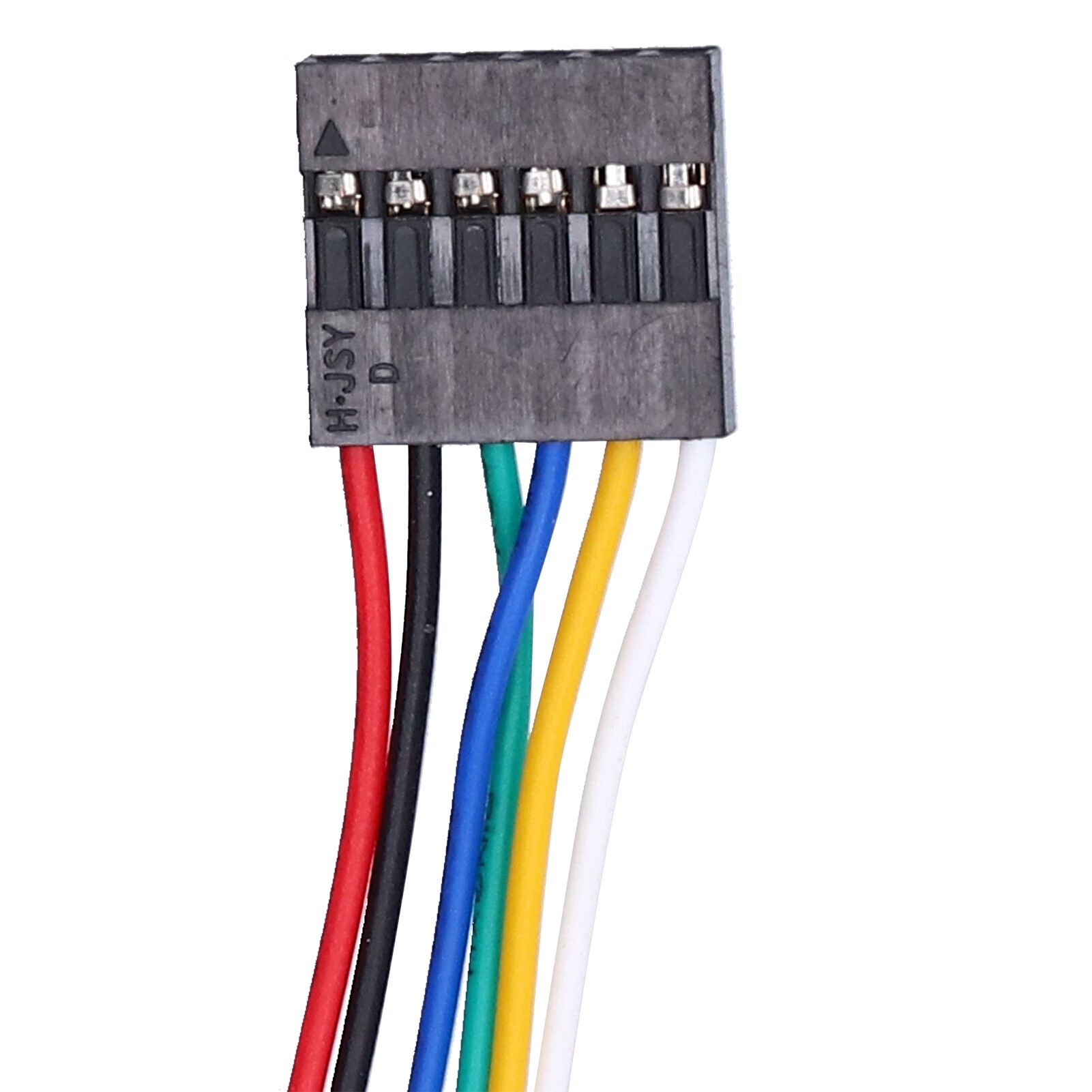

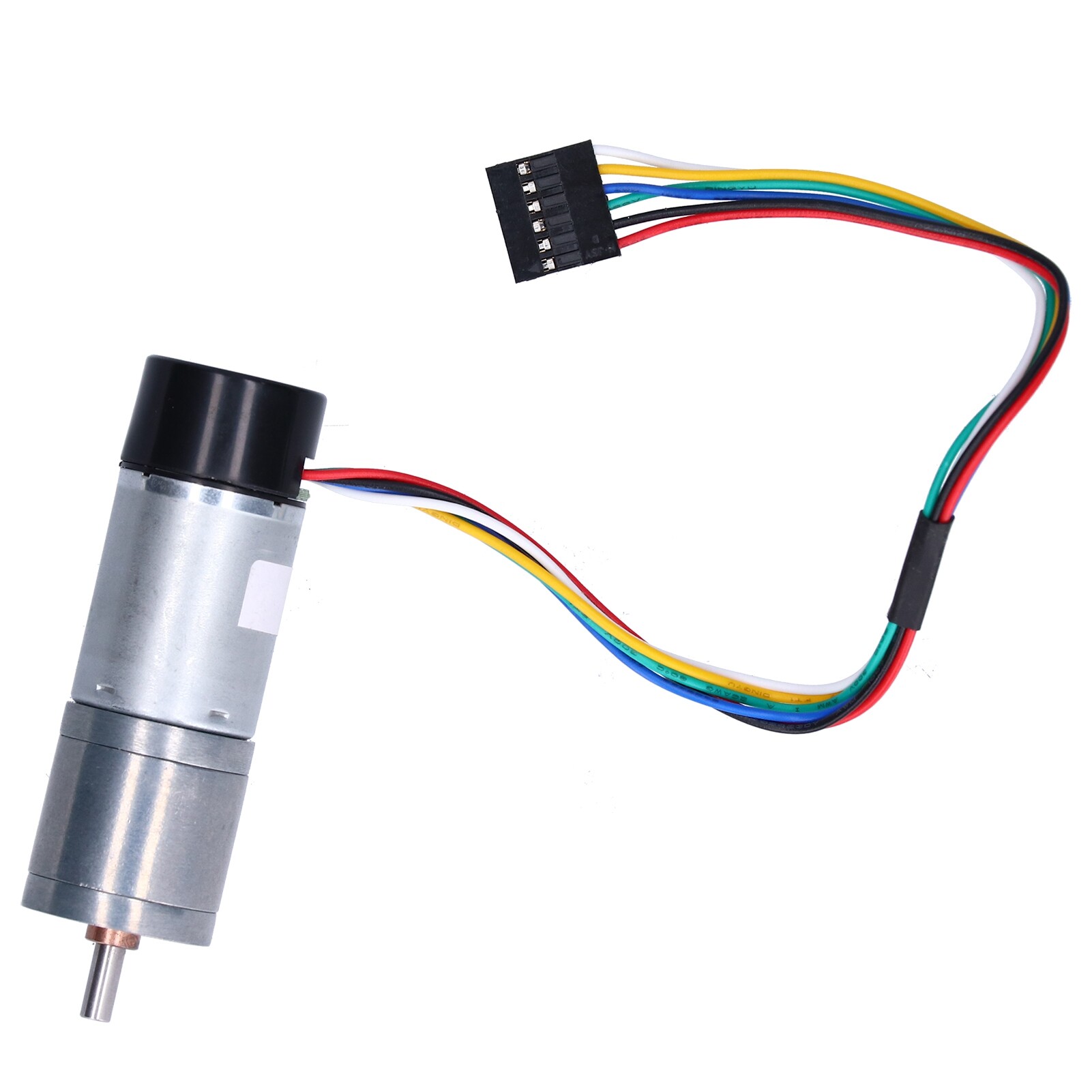

Wiring:

Red:Redconnecttothepositivepoleofthemotor

Black:Blackconnecttothenegativepoleofthemotor

Green:Greenconnecttothesensorgroundlead‑(5‑12V)

Blue:Blueconnecttosensorpower+(5‑12V)

Yellow:SignalAoutputpoint(11pulses)

White:SignalBoutputpoint(11pulses)
