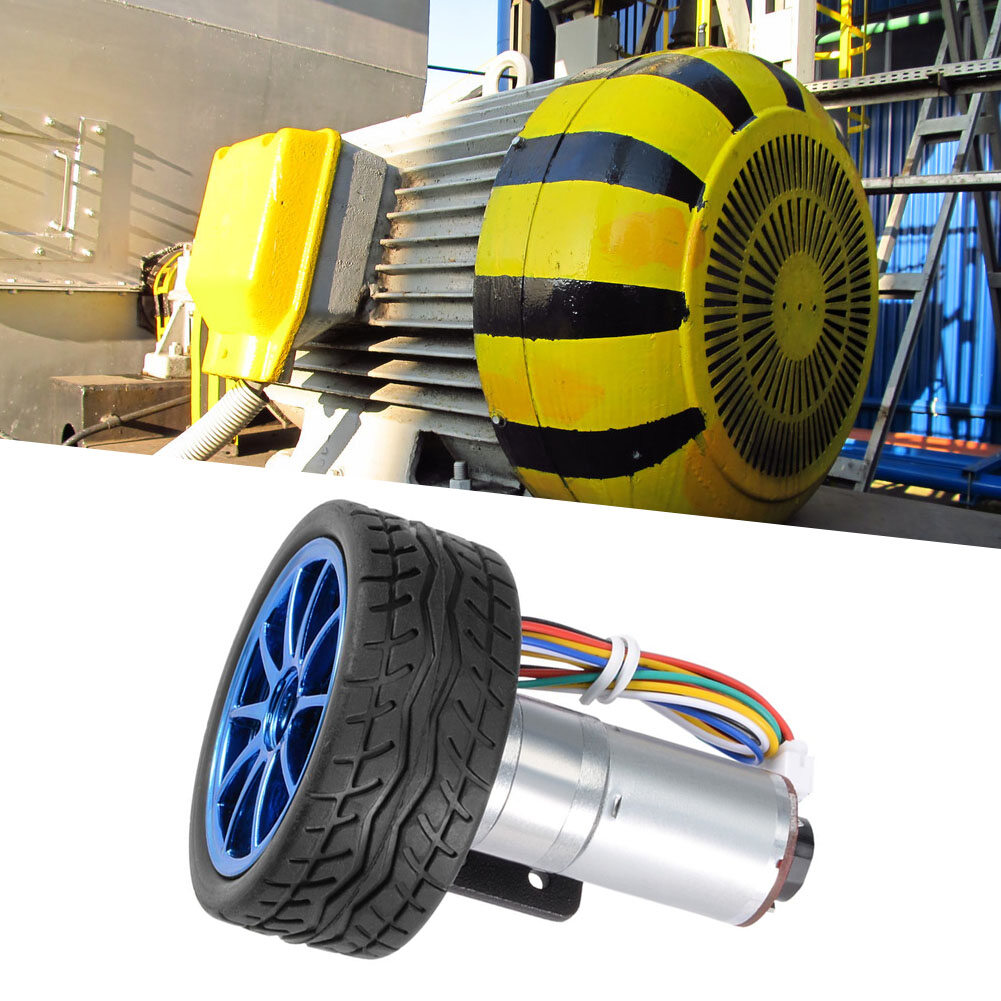

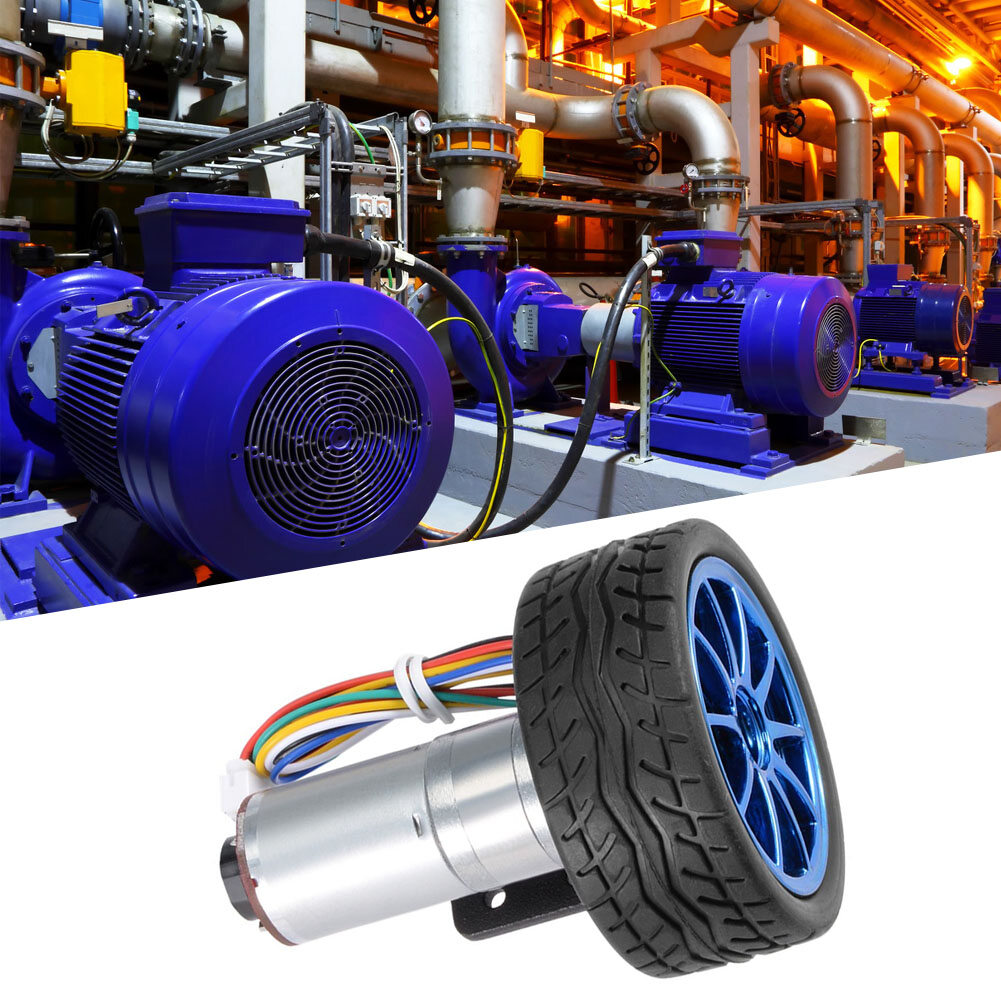

DIY Encoder Gear Motor with Mounting Bracket 65mm Wheel Kit for Smart Car Robot DC12V

Features:

1. It is made of high-accuracy one-time forming rotor high-quality materials with high conductivity, wear resistance and long life.

2. High-quality carbon brushes have good commutation performance, long service life, good electrical and thermal conductivity and good lubrication performance.

3. High-strength magnetic tile has long service life, strong power and greater torsion. It adopts fully enclosed structure to prevent dust from entering the motor. It has simple structure, convenient maintenance and small volume, which can effectively reduce weight, save space and be reliable.

4. The gearbox is made of high-quality metal gears, which has good impact resistance and durability to reduce noise, thus delaying the service life of the gearbox.

5. Suitable for smart car, robots and printers

Specification:

Condition: 100% Brand new

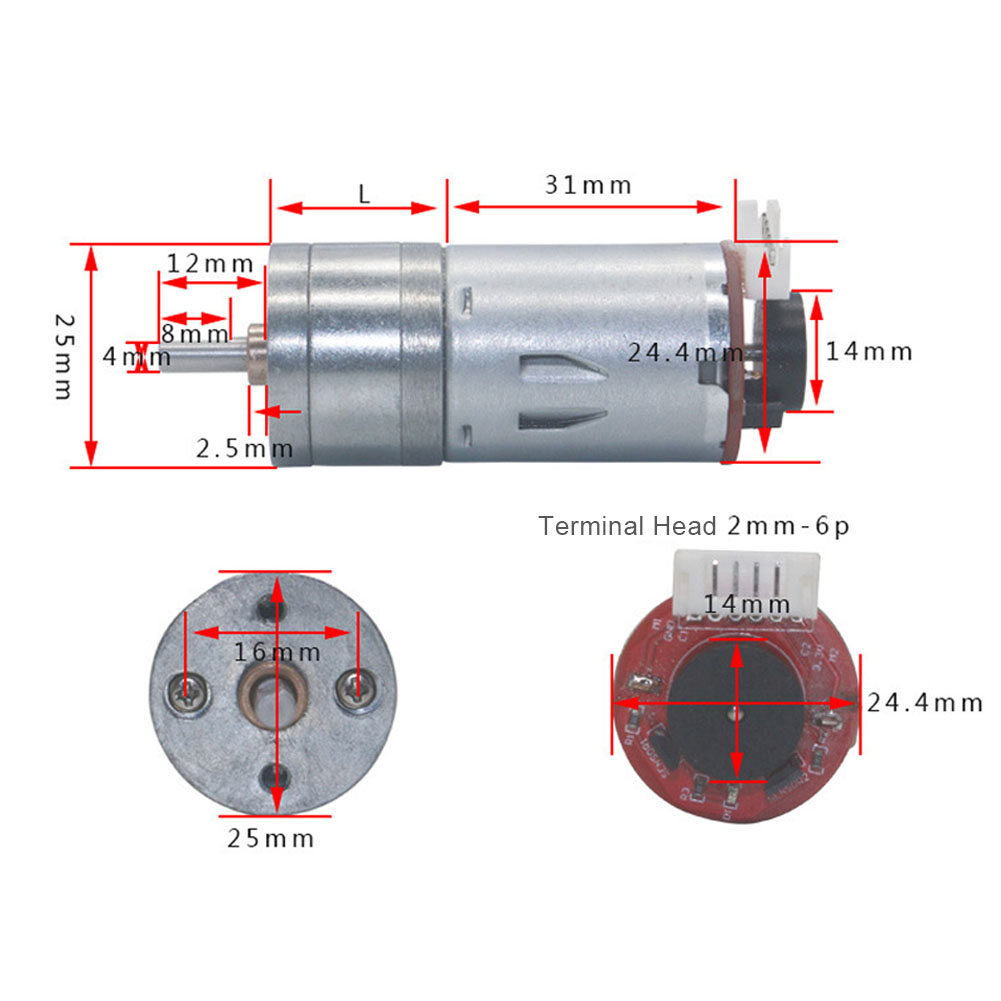

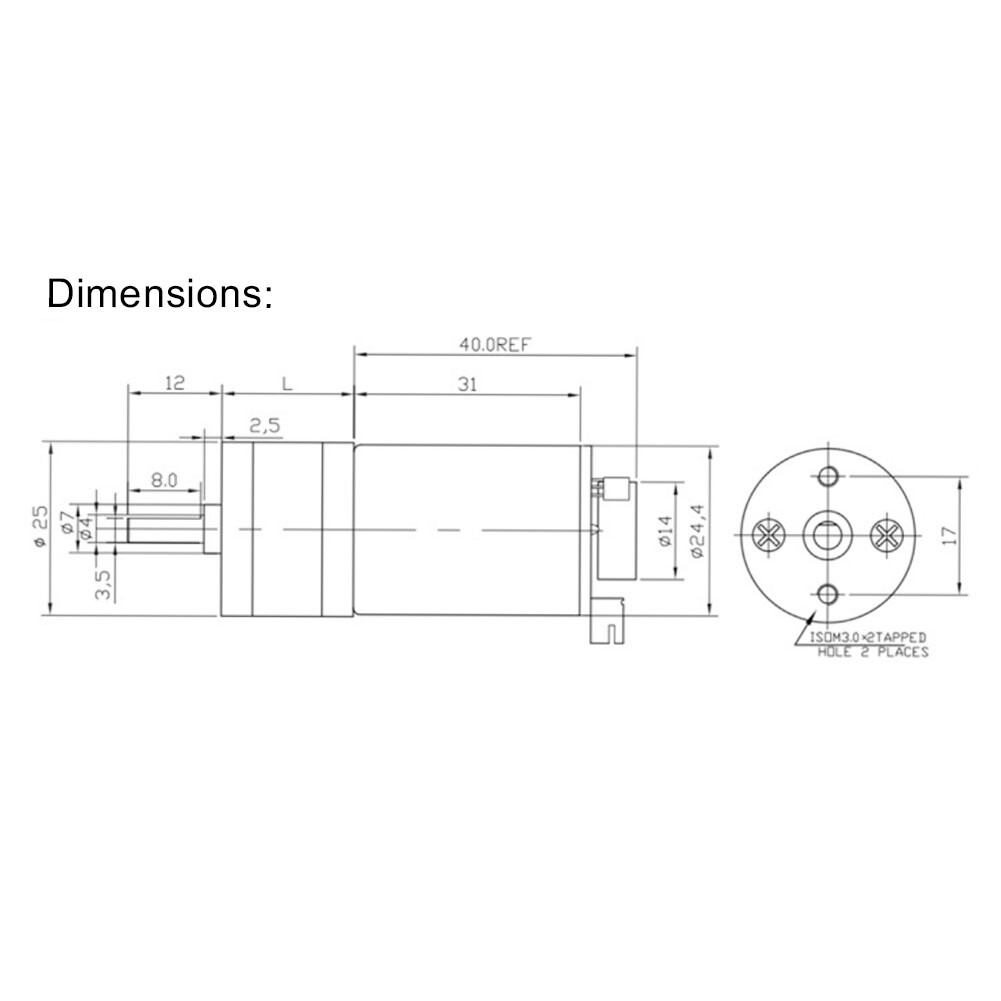

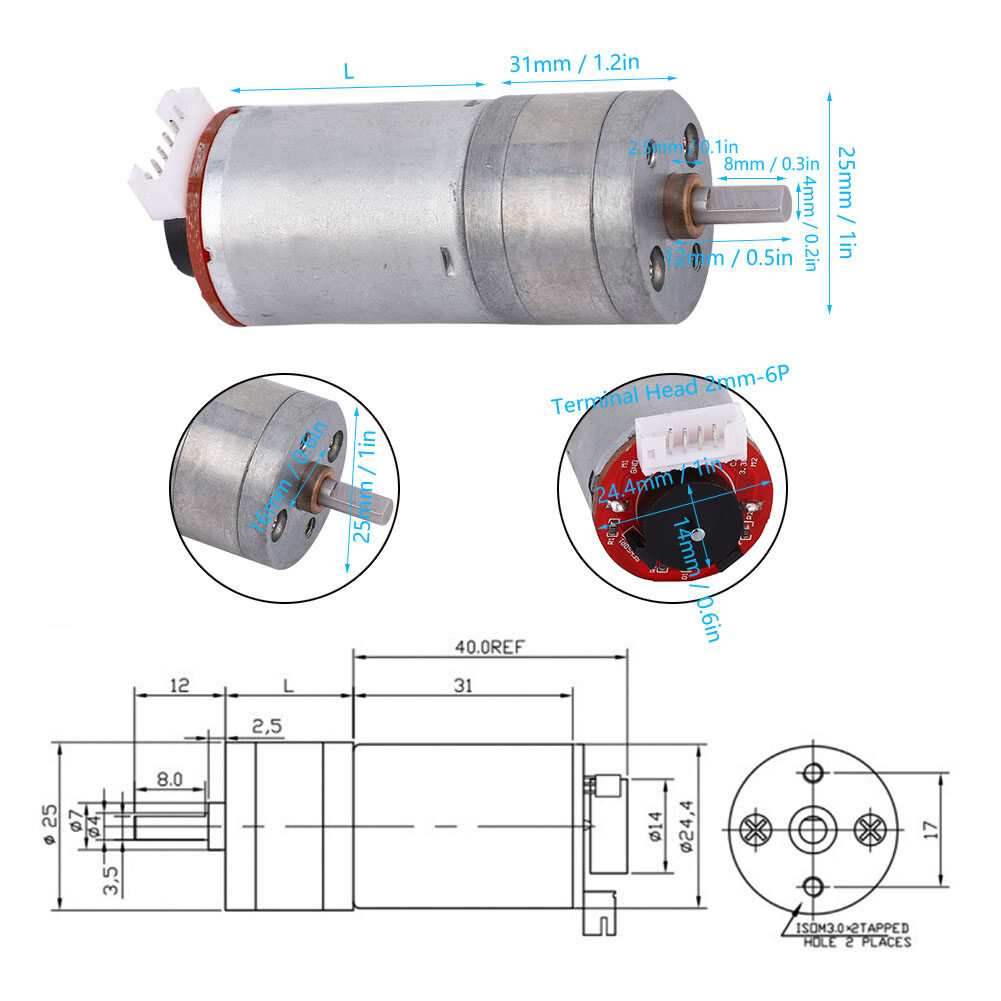

ReductionRatio		No-Load		Rated			Locked-Rotor		L Size
	Rated Voltage	Speed	Current	Speed	Current	Torsion	Torsion	Current
	V	±10%RPM	A	±10%RPM	A	KG.CM	KG.CM	A	MM
4.4	24	1360	0.04	1000	0.16	0.1	0.4	0.6	18
9.6	24	620	0.04	500	0.16	0.2	0.9	0.6	17.5
21.3	24	280	0.04	200	0.16	0.4	2	0.6	19
35.5	24	170	0.04	130	0.16	0.69	3.3	0.6	21
46.8	24	130	0.04	100	0.16	0.9	4.4	0.6	21
78	24	77	0.04	60	0.16	1.5	5.5	0.6	23
103	24	60	0.04	50	0.16	2	7.3	0.6	23
130	24	46	0.04	40	0.16	2.5	9.2	0.6	25
171	24	35	0.04	30	0.16	3.3	Do not block or instantaneous load reversal		25
226	24	26	0.04	20	0.16	4.4			25
377	24	16	0.04	15	0.16	7.3			27
500	24	12	0.04	10	0.16	9.7			27

Optional Style: 1000RPM, 500RPM, 200RPM, 130RPM, 100RPM, 60RPM, 50RPM, 40RPM, 30RPM, 20RPM, 15RPM, 10RPM

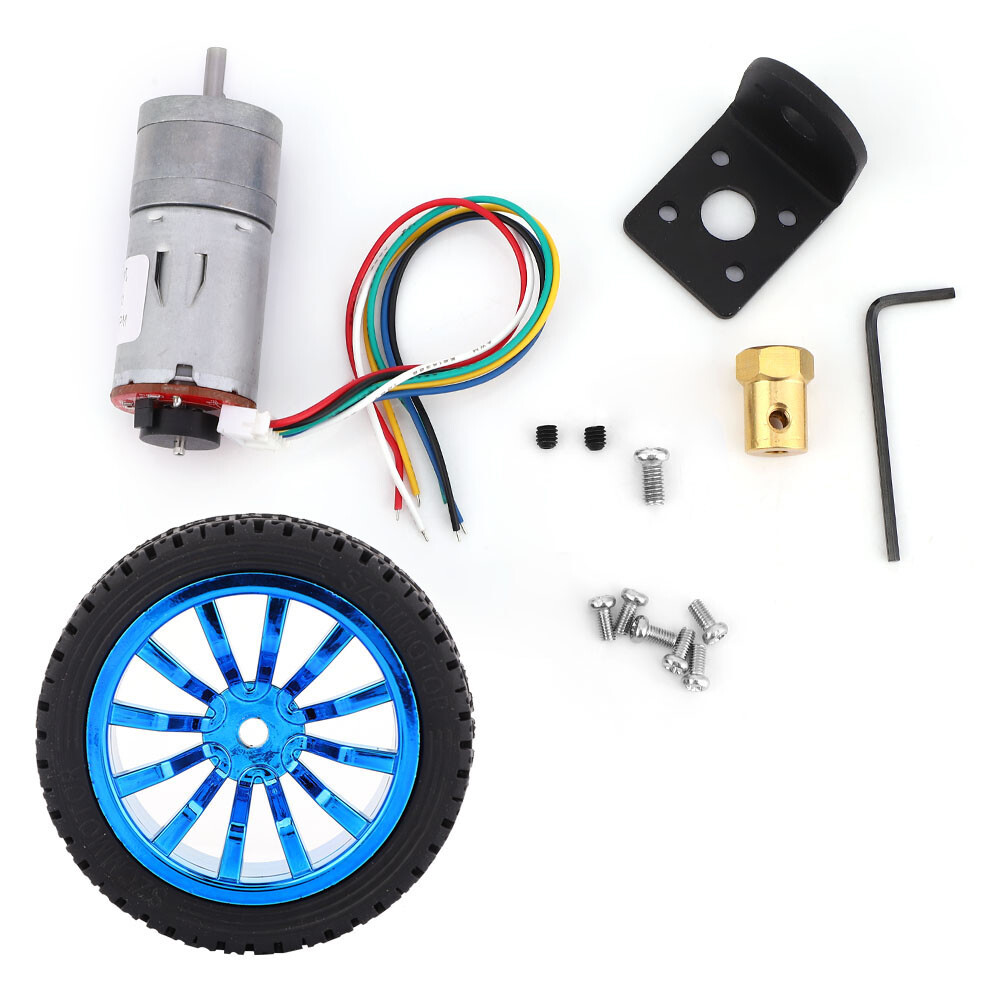

Package List:

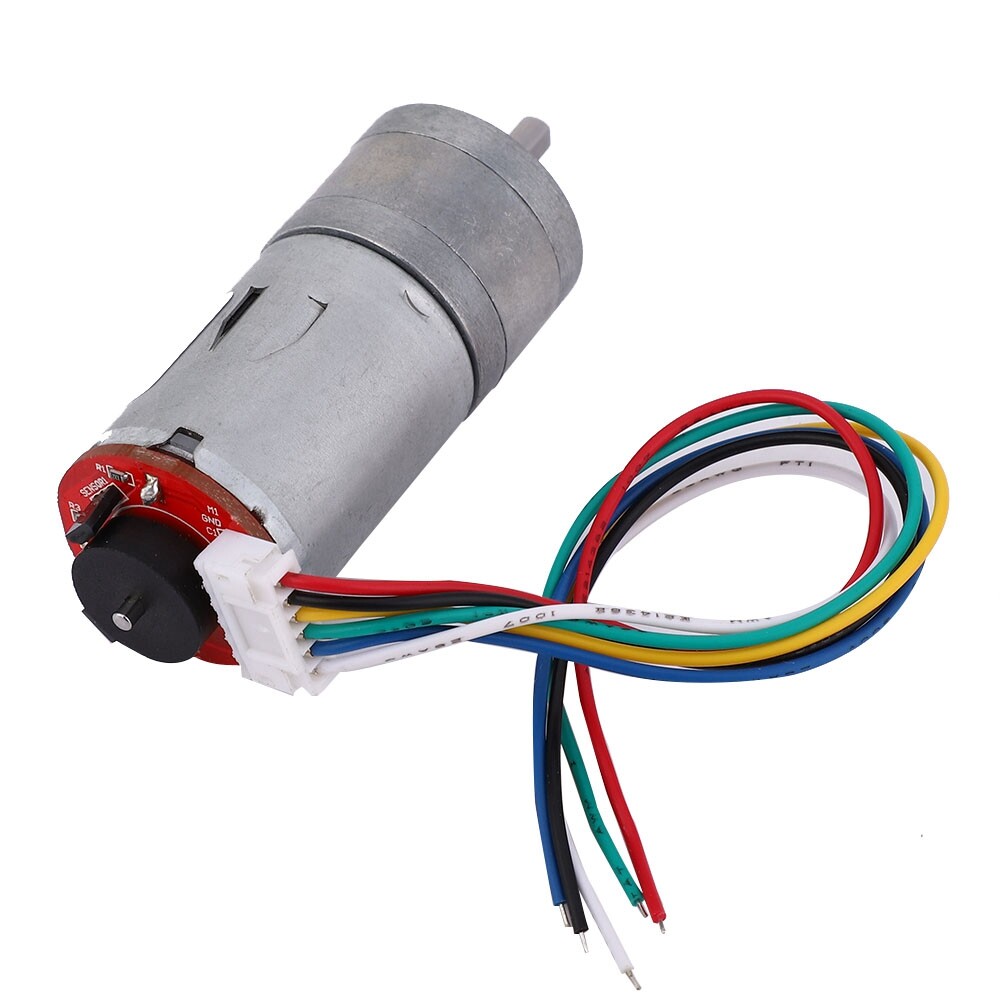

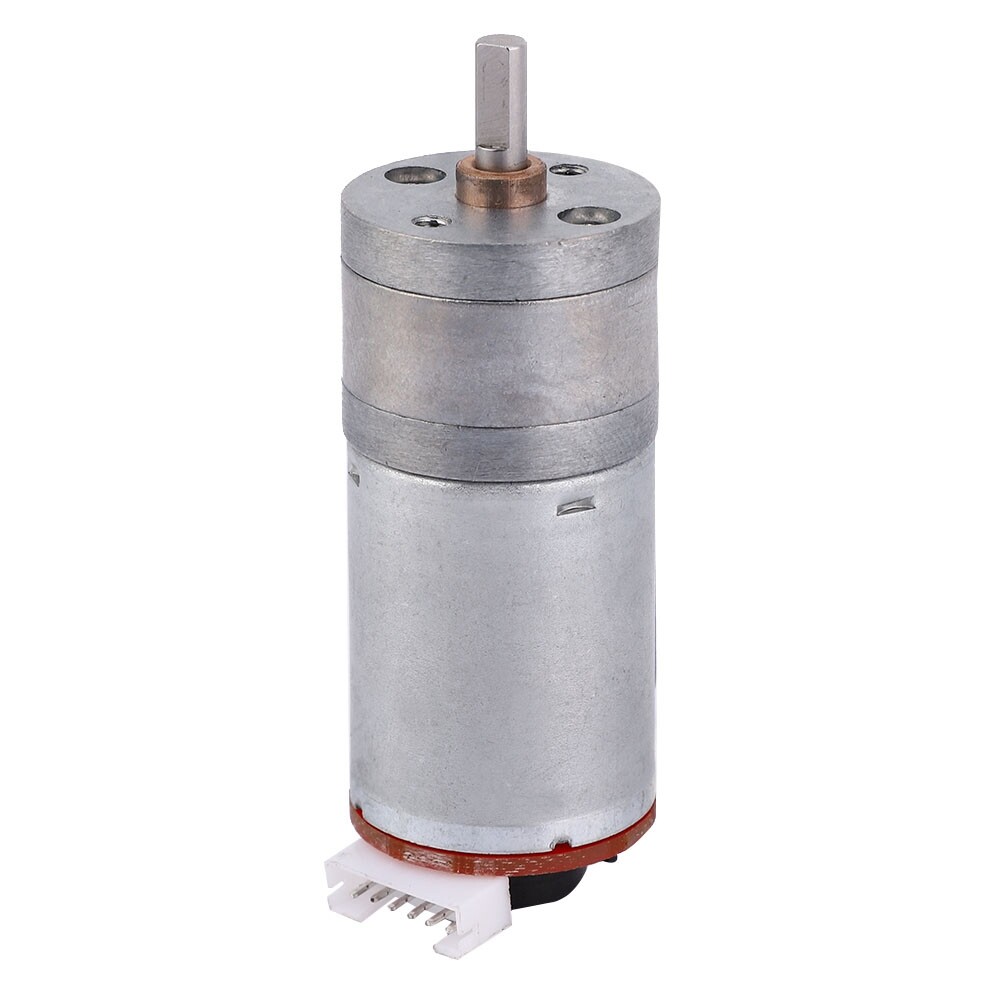

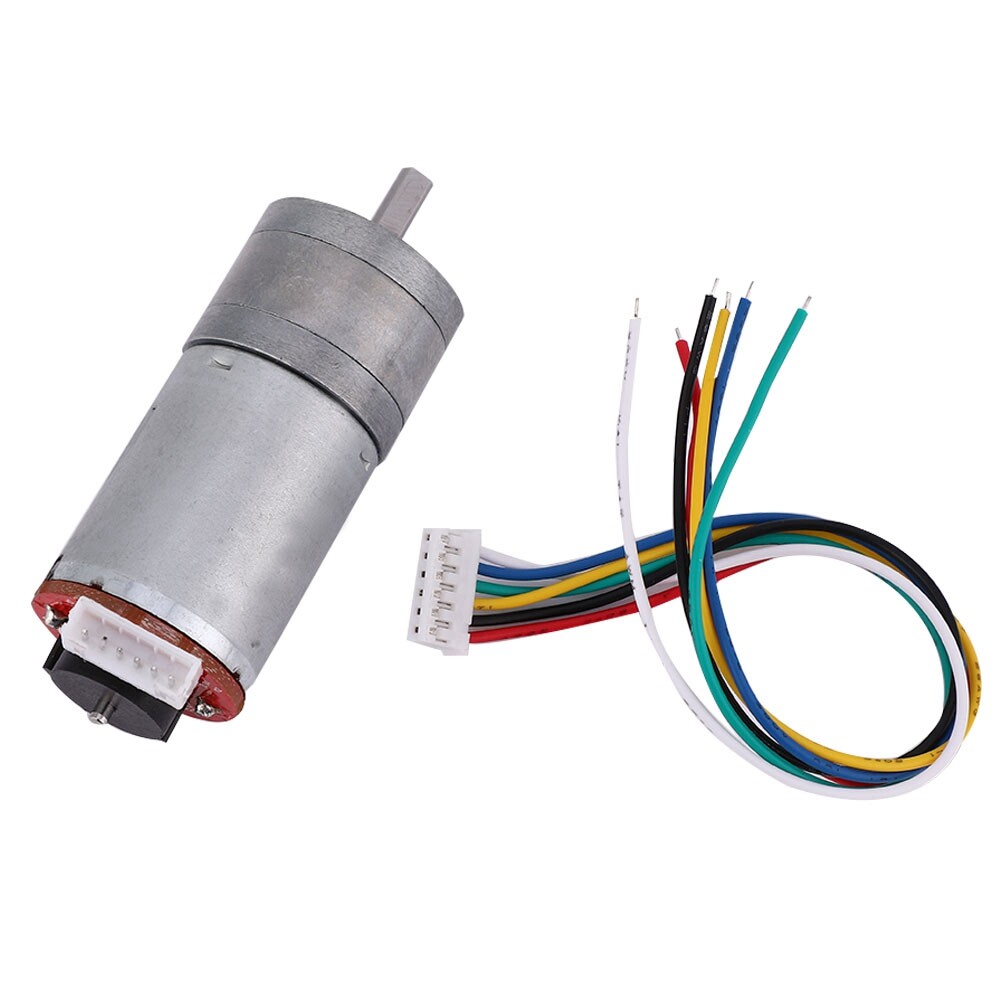

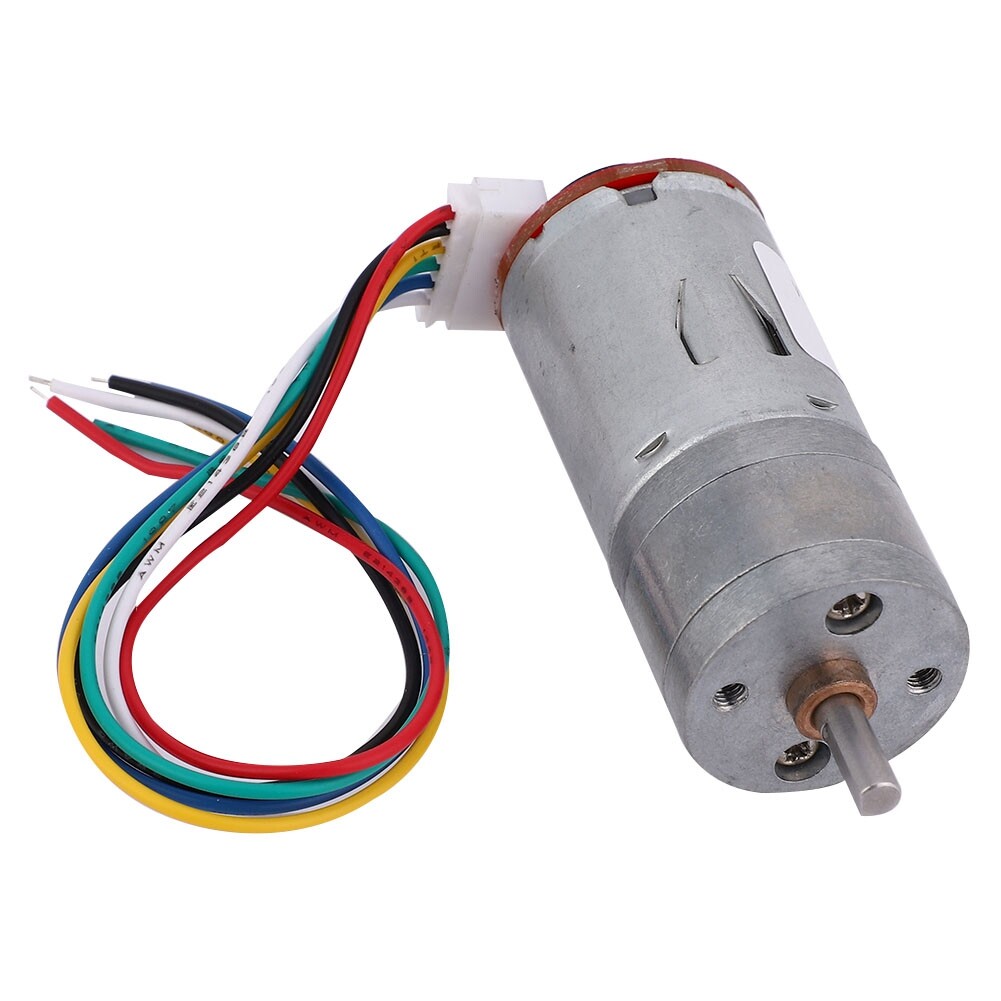

1 x Motor

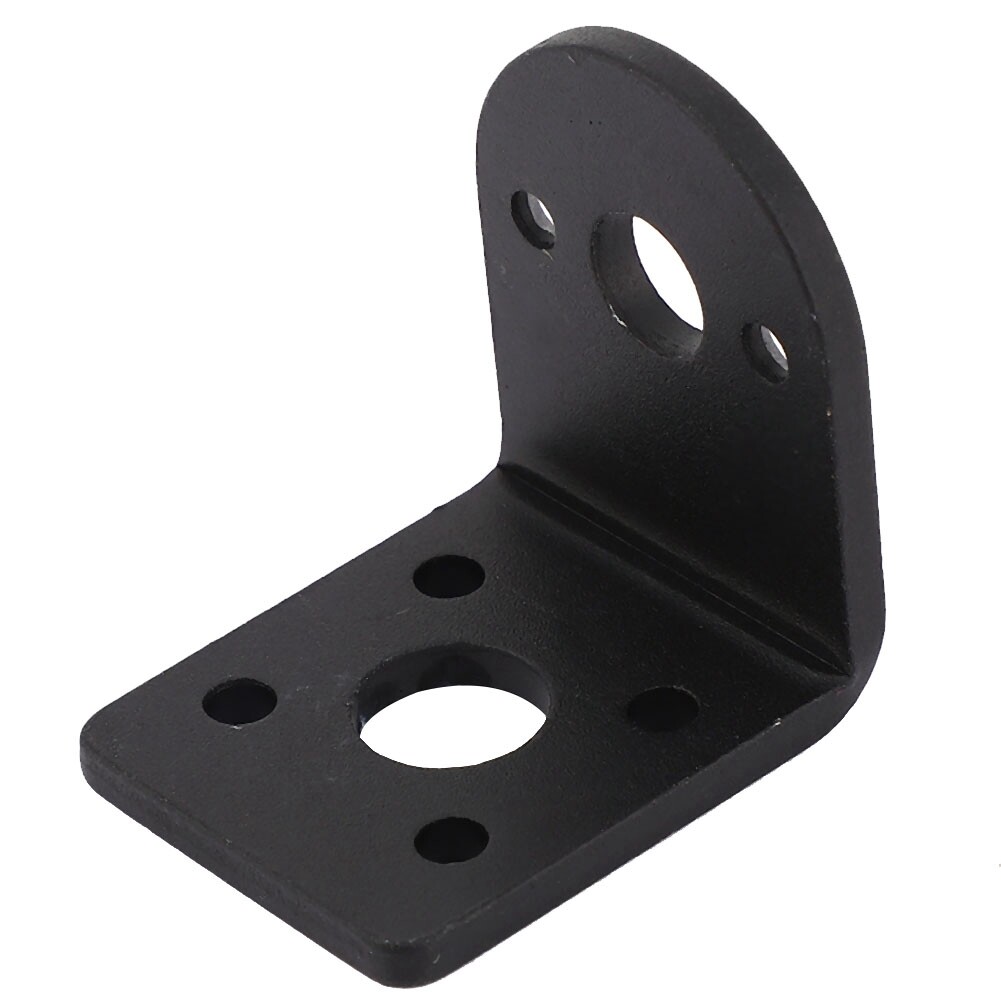

1 x Motor Base

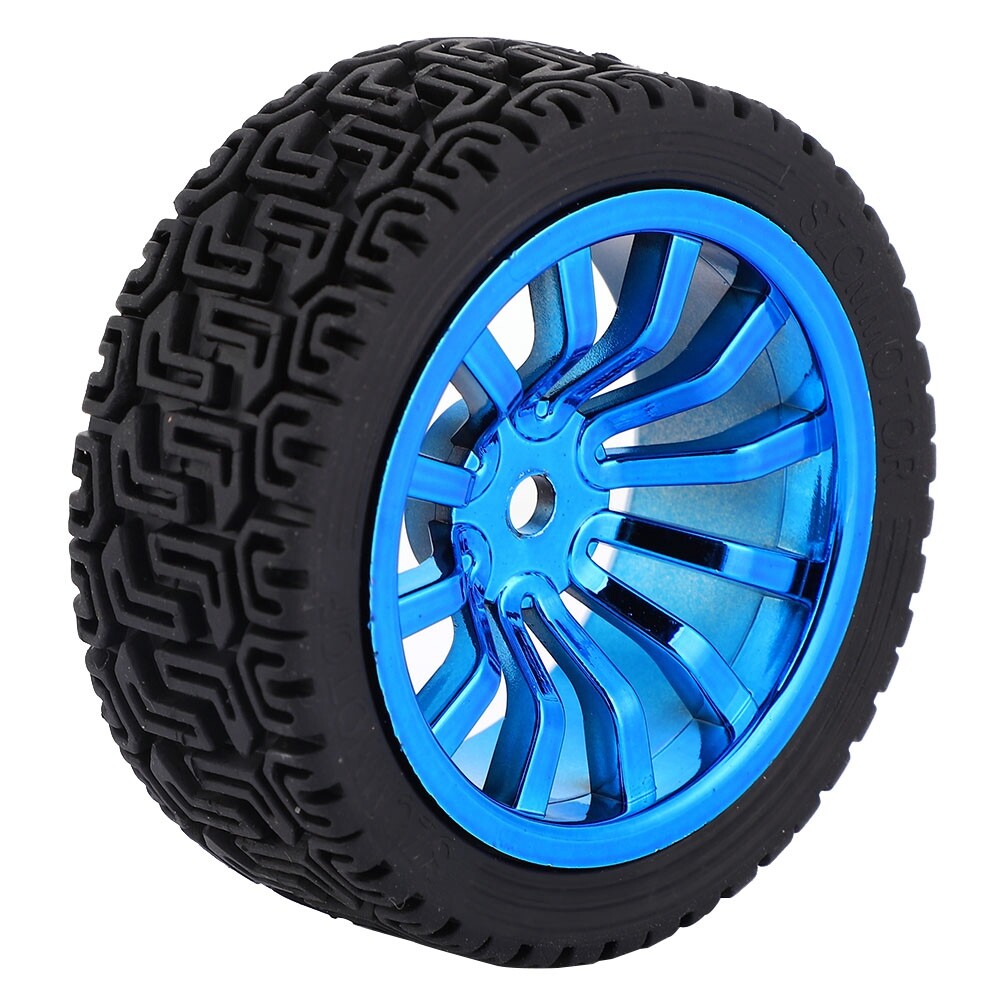

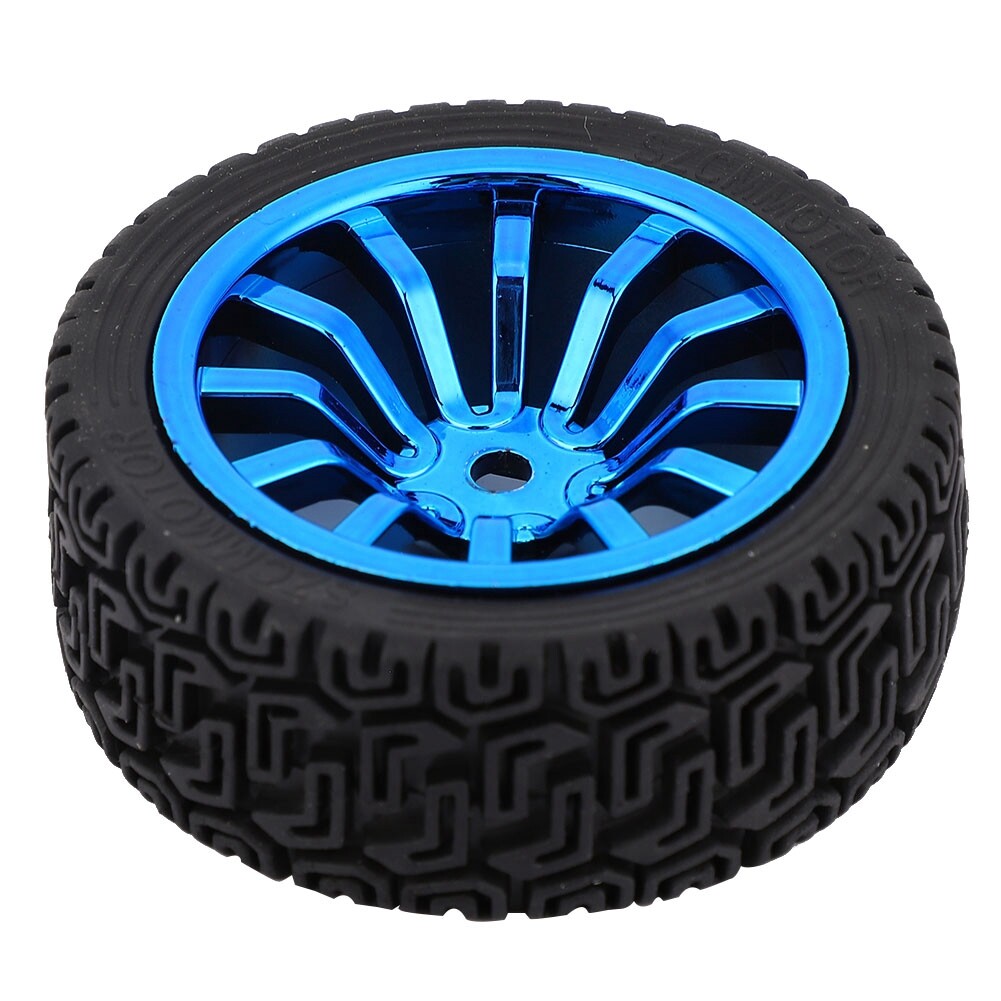

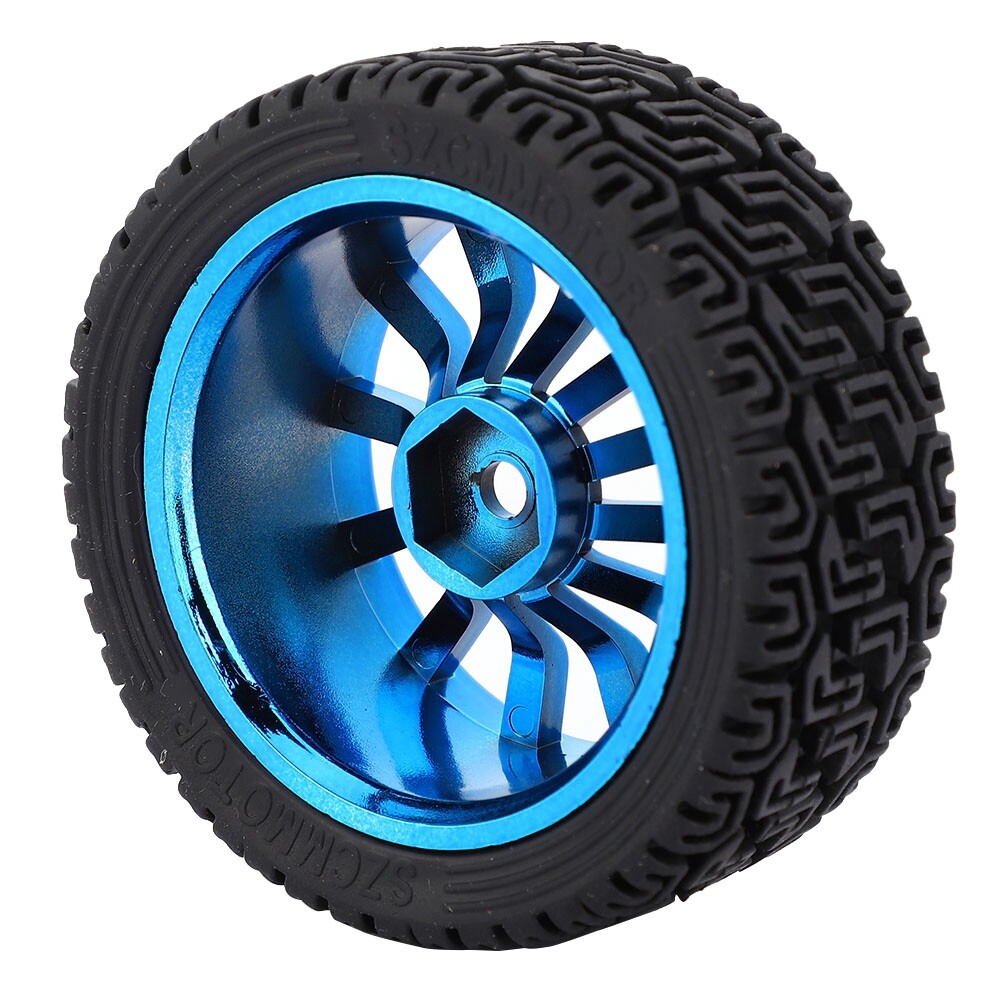

1 x Tire

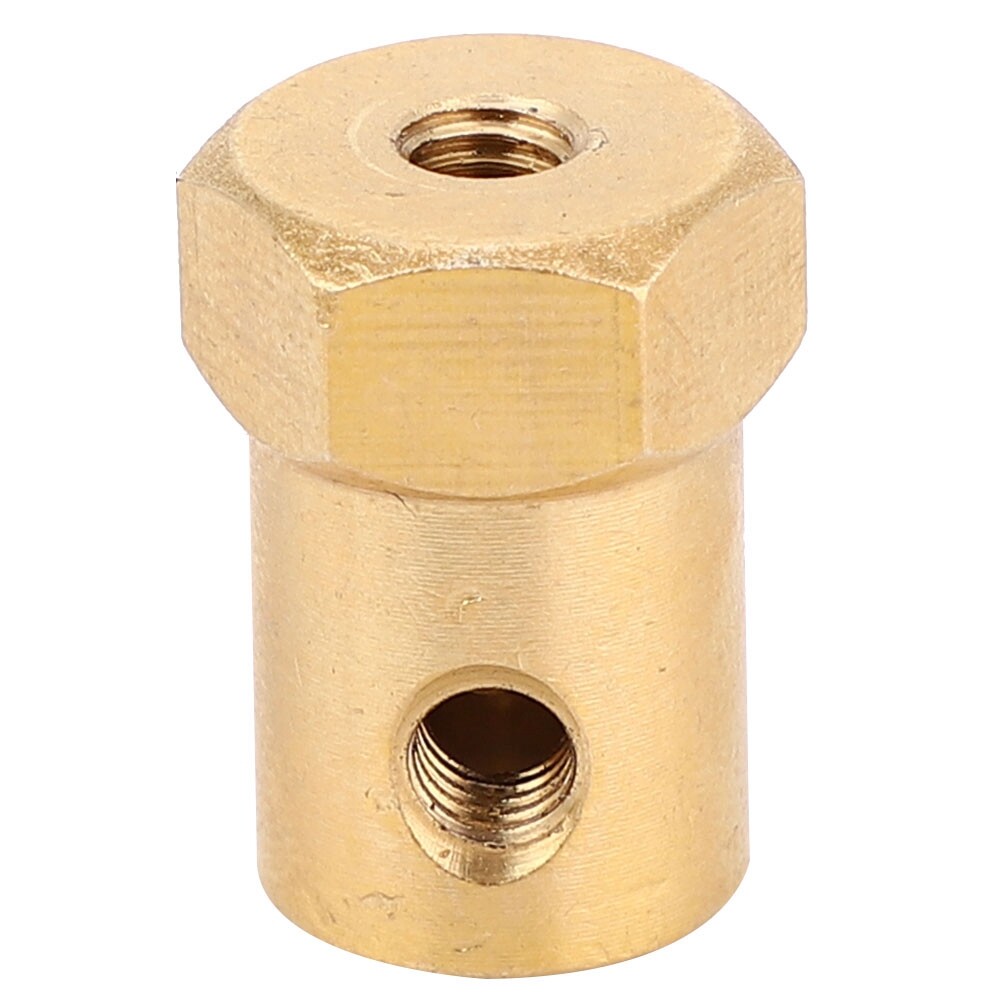

1 x Coupling
1 x Hex Wrench
2 x Coupling Screw
6 x Small Screw
1 x Large Screw
