For Sipeed Lichee Nano F1C100S ARM926EJS 32MB DDR1 Memory Linux Programming Learning Development Board

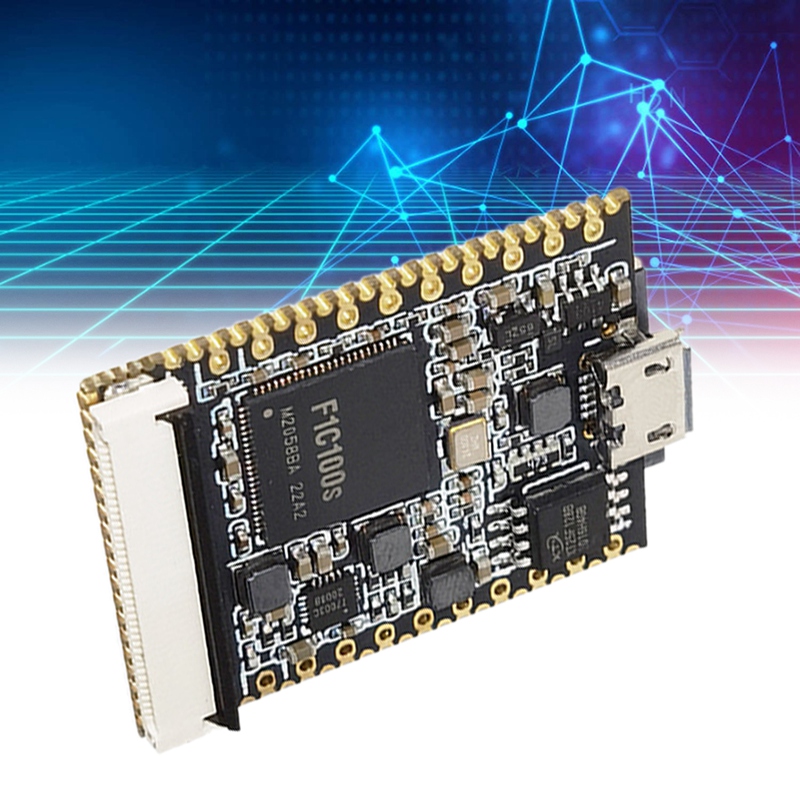

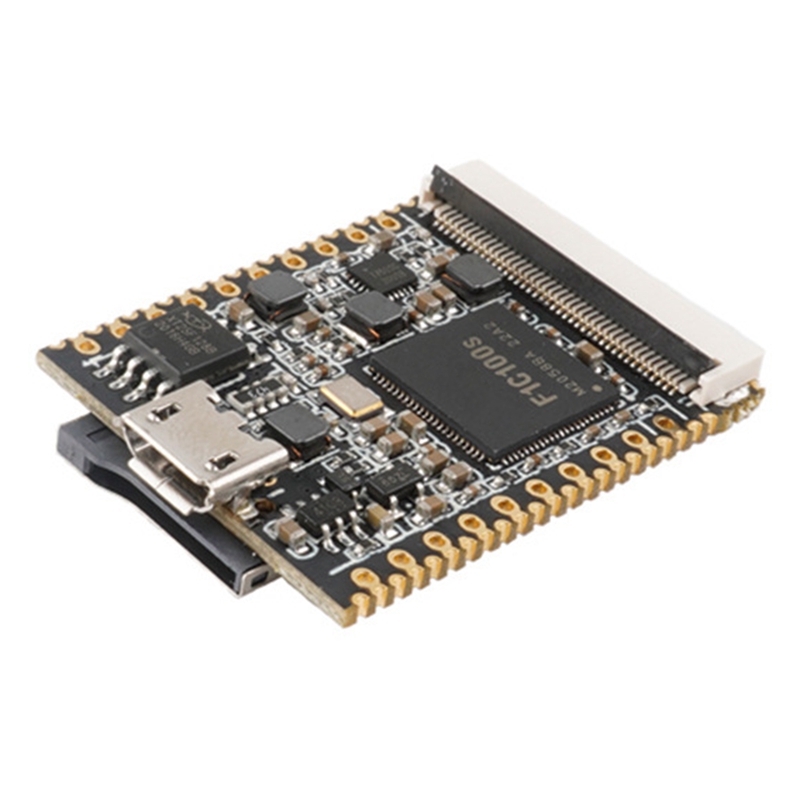

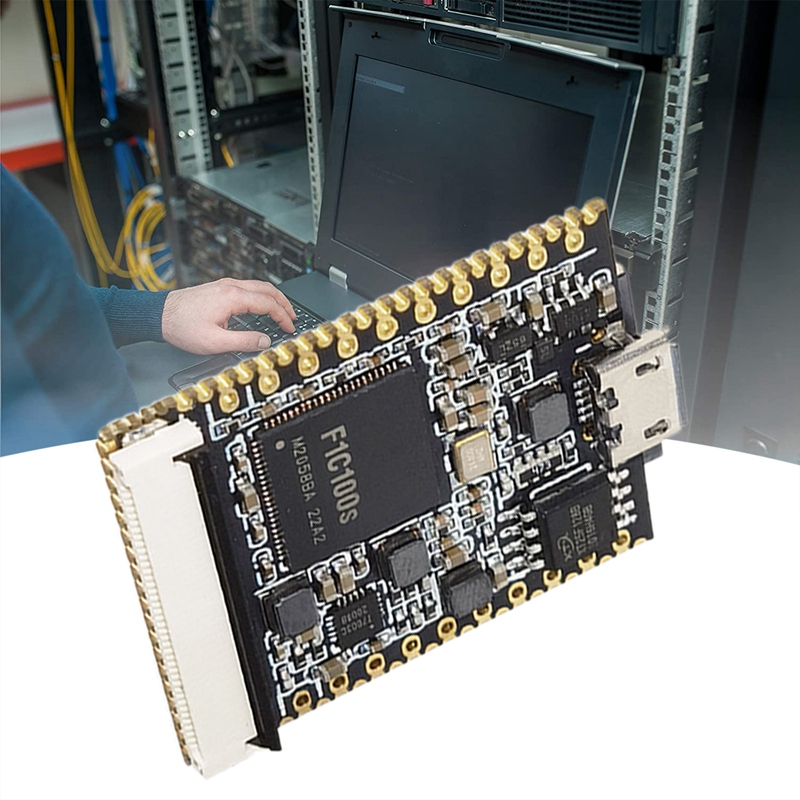

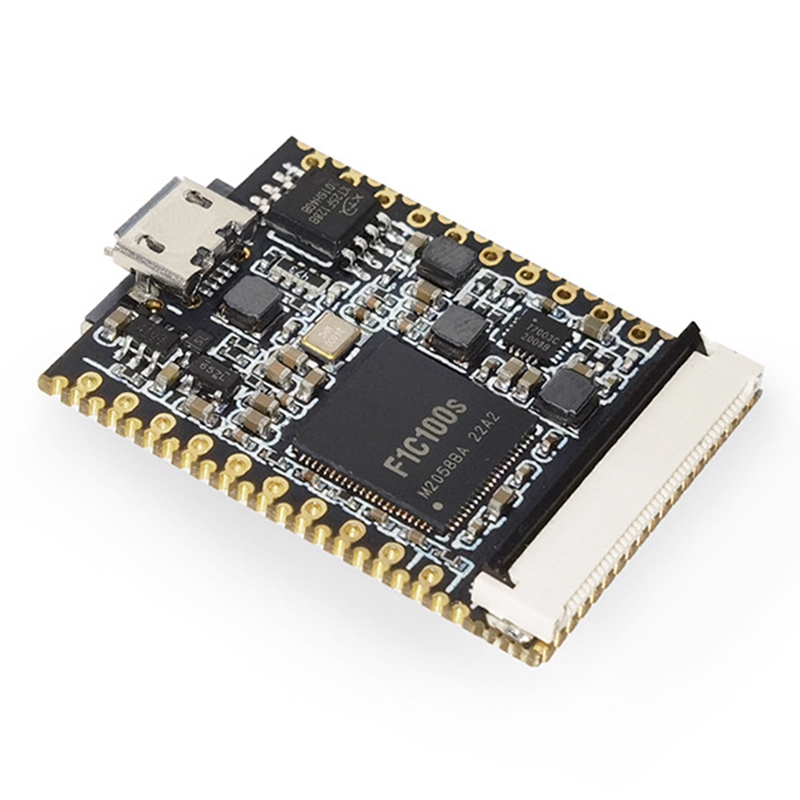

Features: 1. For Lichee Nano is a mini development board designed based on Allwinner's F1C100s (ARM 926EJS core) high-performance SOC chip.

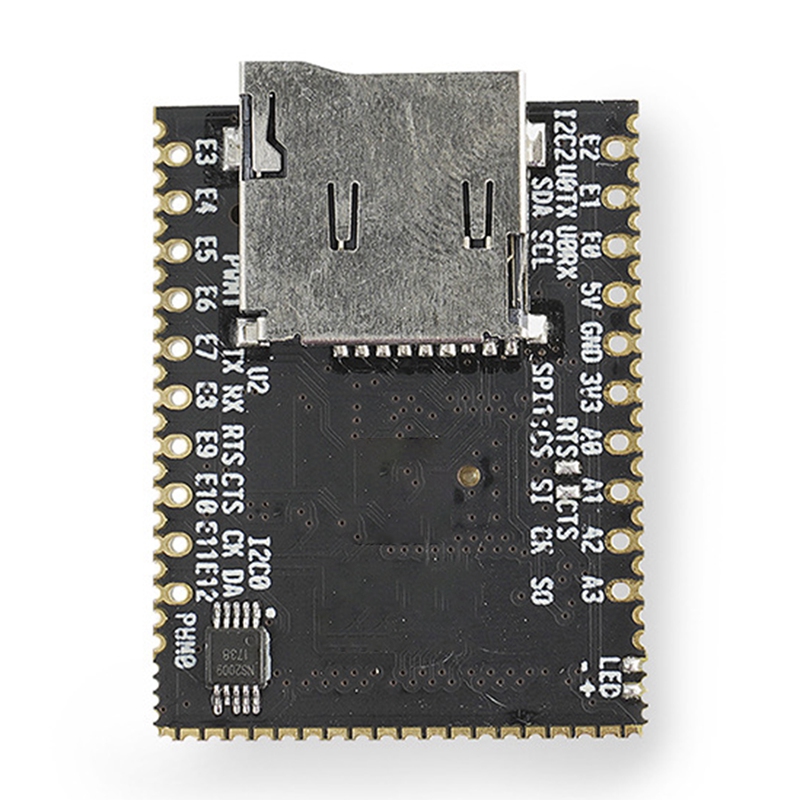

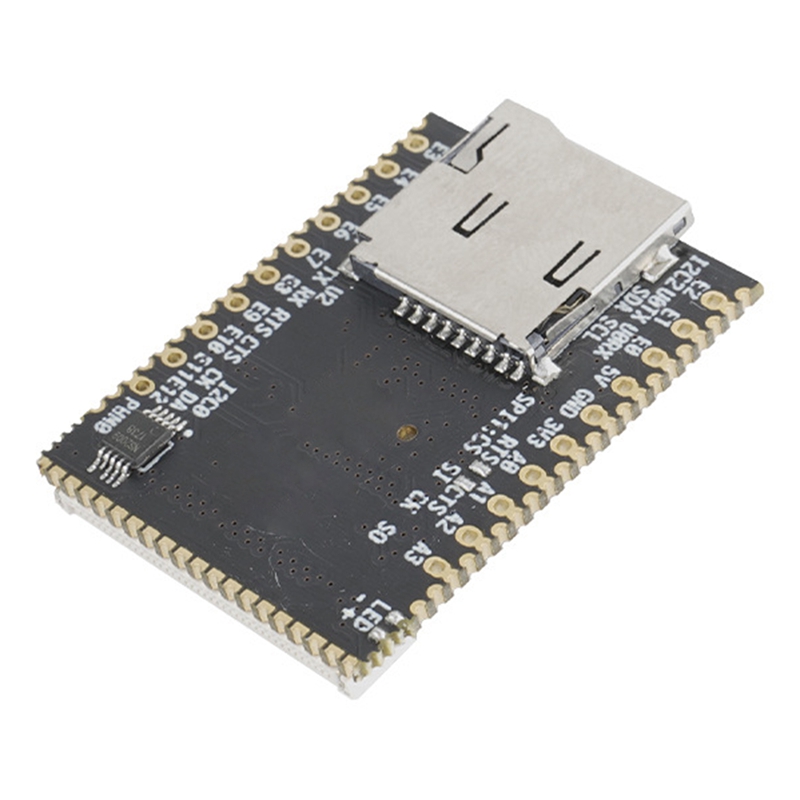

2. The design of the development board is small and exquisite, and all the resources of the chip are extracted, such as onboard USB, Flash, TF card, 40P LCD interface, etc., and all IO resources are extracted, which is convenient for developers to expand and use. It is very suitable for beginners to learn Linux or Commercially used in product development.
3. For Lichee Nano development board The on-board F1C100s chip is very powerful, the chip has built-in 32MB DDR, SDIO, SPI, UART, Speaker, Mic and other interfaces, and supports external 8~32MB SPI Nor Flash
4. Excellent performance in video processing, support 720P video output, support H.264, MJPEG and other high-definition formats decoding.
5. As a high-performance open source hardware that supports multiple operating systems, for Lichee nano is deeply loved by geek players, software engineers, and electronic DY enthusiasts; it is also widely used in commercial applications, especially in complex protocol communications. for Lichee nano can be used in any occasion, or when a complex human-computer interface is required.

Specification:
Product Name: Development Board
Material: PCB
color: Black
Chip: F1C100s
Core: ARM926EJS@900MHz
DDR1: Built-in 32M
SDIO x 1, can be matched with SDIO WIFI+BT module
Speaker x 2+Mic x 1, can be equipped with speakers and microphones
SPI x 2
TWI x 3
UART x 3
OTG USB x 1
Video processing:
H.264 1280 x 720@30fps decoding
MPEG1/2/4 1280 x 720@30fps decoding
MJPEG 1280 x 720@30fps encoding
JPEG encode size up to 8192 x 8192

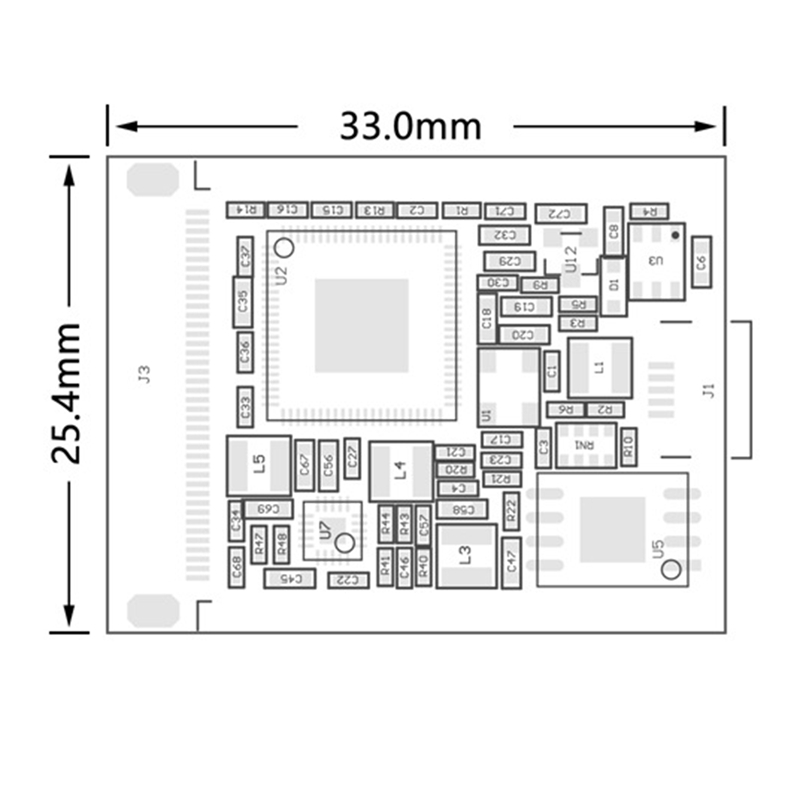

Product size: 25.4 x 33mm
Power supply interface: Micro-USB, 2.54mm pin, 1.27mm stamp hole power supply (3
