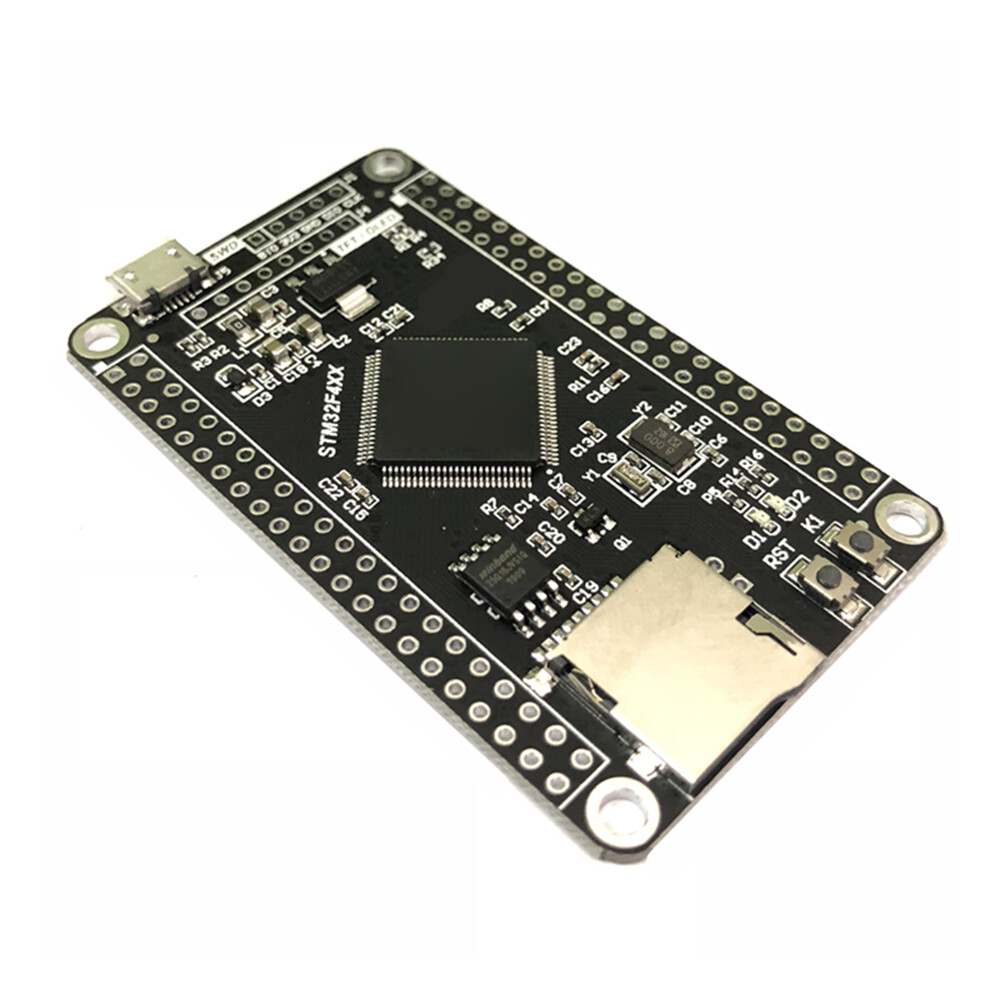

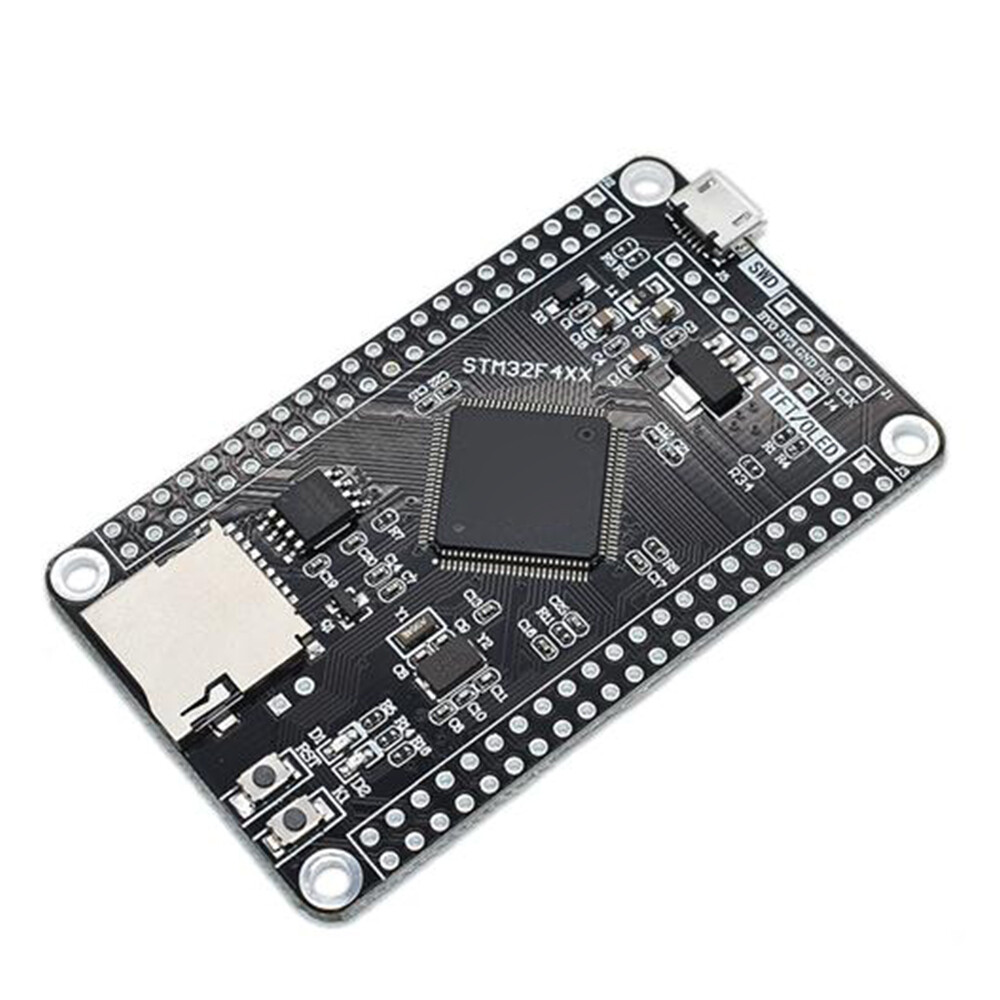

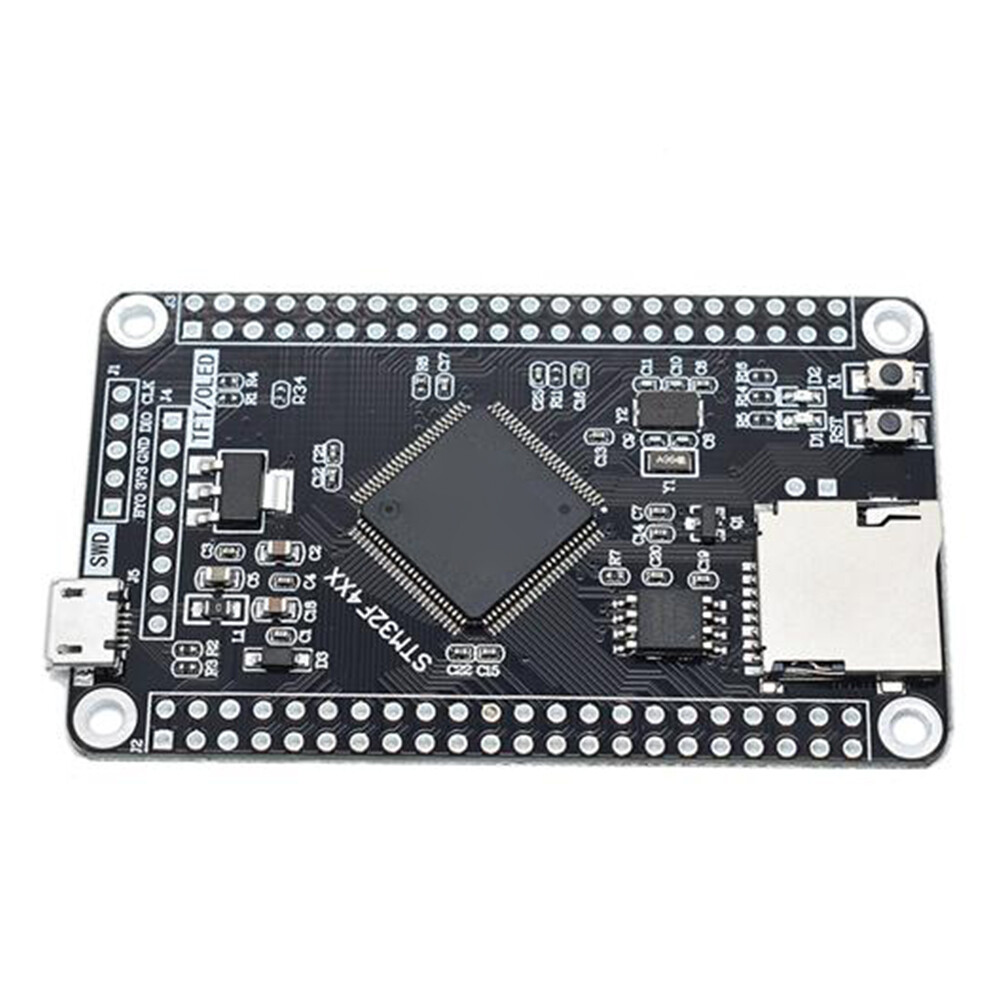

pcbfun STM32F407VET6 STM32 System Core Board STM32F407 Development Board F407 Single Chip Learning Board

Parameters:

USB interface supports download (DFU download, not serial port)

OLED interface - plug and play supports 0.96 inch

Connected to 1.44-inch full-color LCD: OLEDTFT LCD interface

Connected to 1.8 inch full-color LCD data storage: W25Q16

High speed crystal oscillator: 8MHz

Low frequency crystal oscillator: 32.768K

Power+program-controlled LED user and reset button

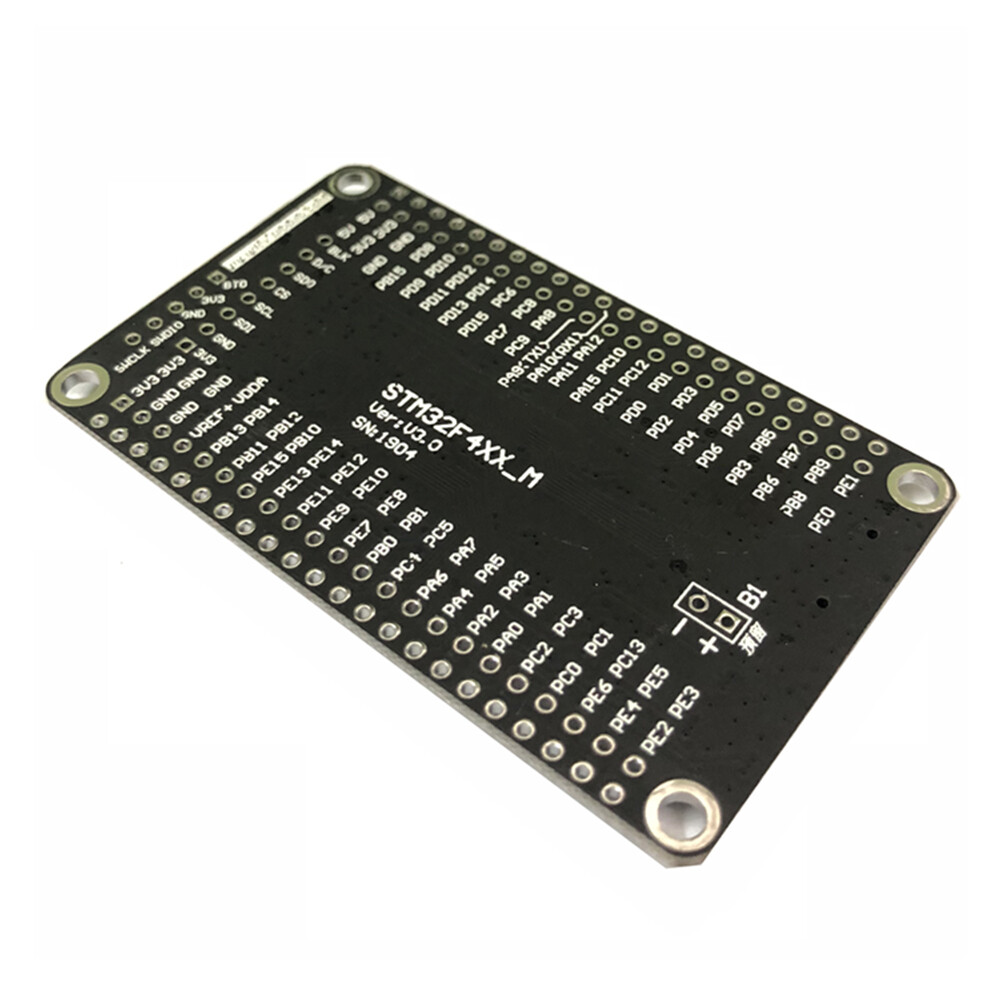

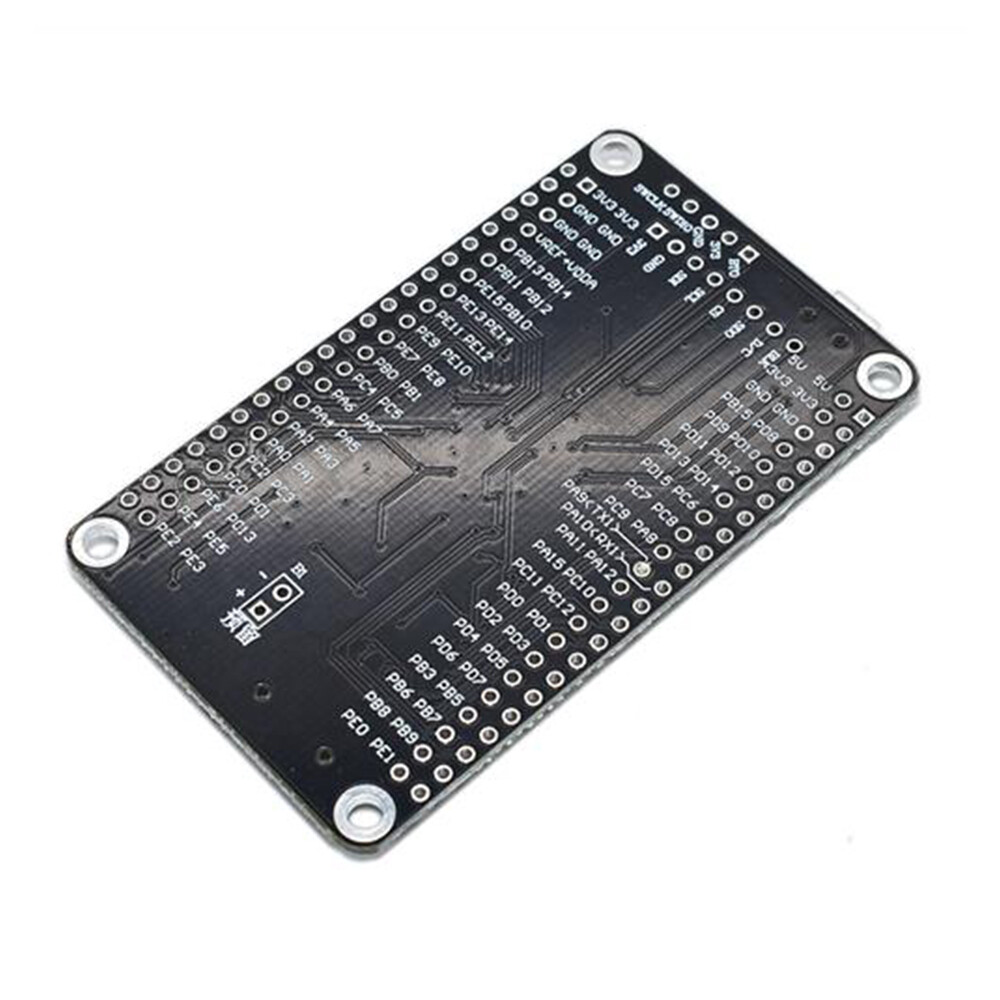

All CPU-I0 leads out 2.54mm integral multiple spacing pins

Core: Cortex-M432-bitRISC

Features: single cycle DSP instruction;

Operating frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz;

Working voltage: 1.8V-3.6V;

Package: LQFP100;

Storage resource: 512kB Flash (VG specification is 1M capacity) 192+4kBSRAM;

Resources: 3 x SPI, 3 x USART, 2 x UART, 2 x l2S, 3 x 12C; 1 x FSMC,1 xSDIO,2xCAN; 1x USB 2.0 FS/HS controller (with dedicated DMA); 1 x USB HS ULPl; (for external USB HS PHY) 1x 10/100, Ethernet MAC; 1 x 8 to 12-bit parallel camera interface; 3xAD (12 bit, 1us, time-sharing 24 channels), 2XDA (12 bit)

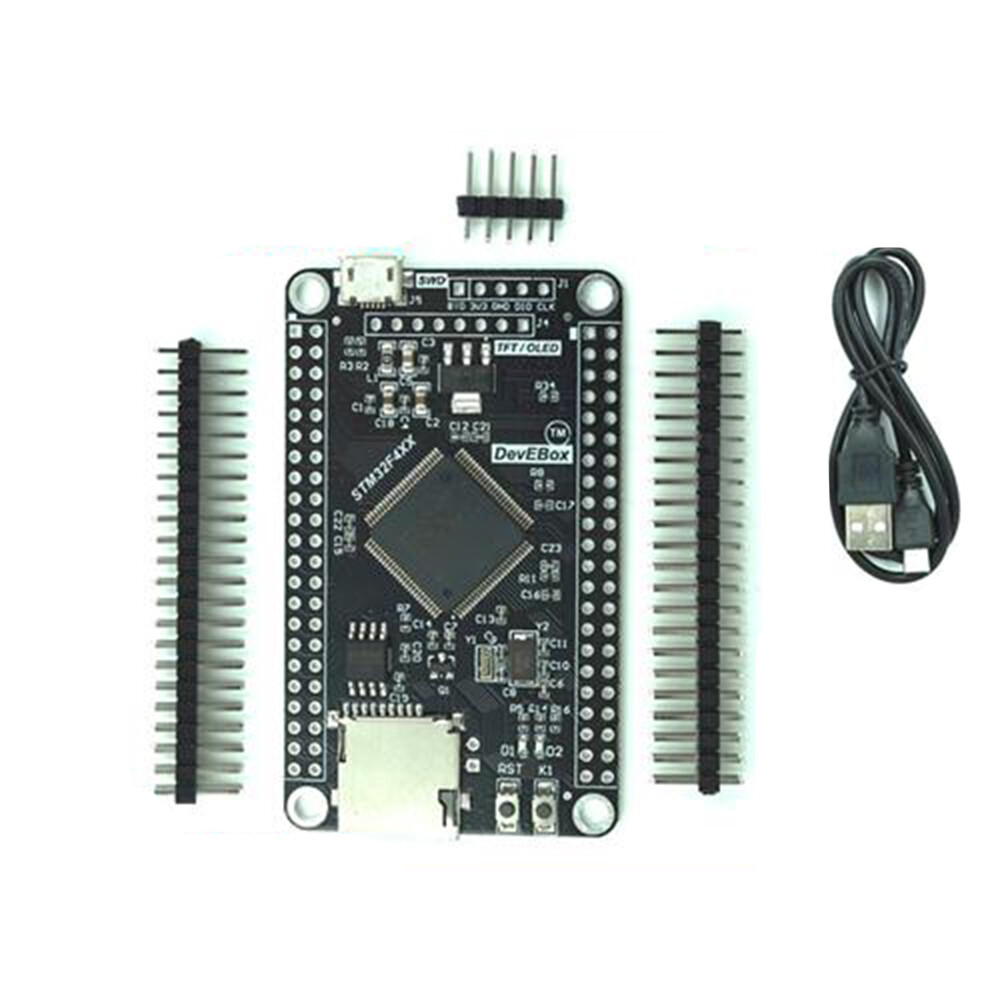

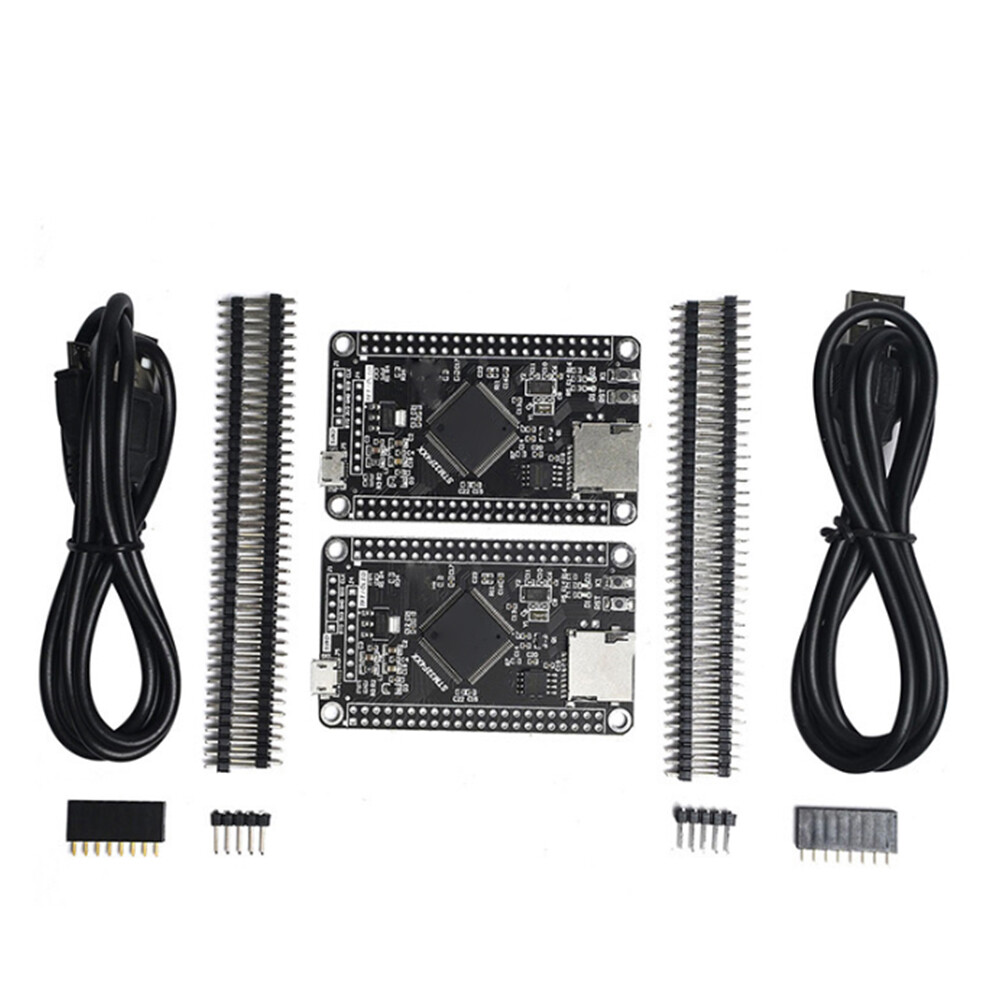

Package include:

1 * module

4 * Row needle

1 * USB cable
