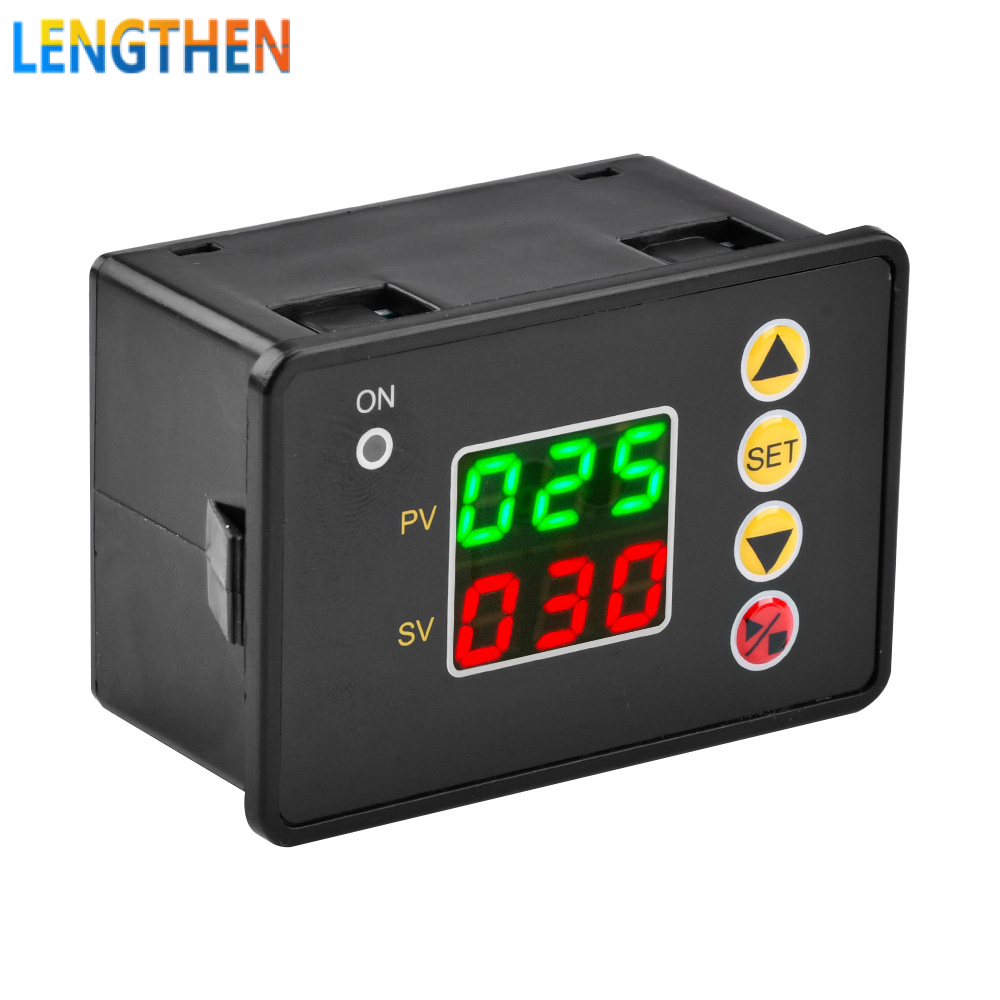

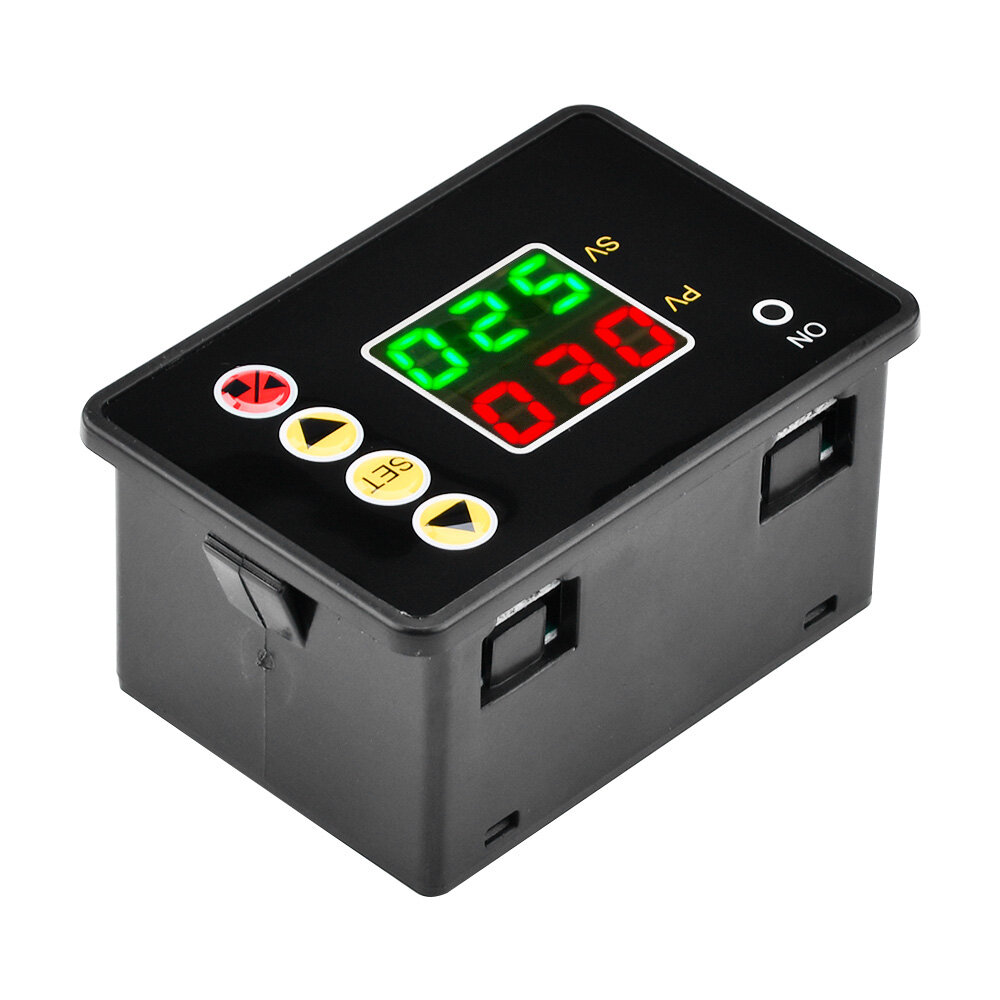

FocusAi Delay Relay Module DC 12V 24V Timer Relay Digital Timer Cycle Delay Switch Module AC 220V Power On-Off Controller

Features:

1.T2310 is a time controlled relay equipped with a circuit of normally open relay

2.According to different operating voltages, it can be divided into three specifications: DC12V, DC24V and ACA110~220V

3.Fixed position on/off timing display setting, independent timing unit, enabling large time span start/stop

4.The setting operation is optimized, and the setting of timed on, timed off and infinite cycle switches is more convenient and intuitive.

5.1~999 times of alternating work and infinite cycle work are set independently to meet the use needs to the greatest extent

Parameters:

Working voltage: DC12V, DC24V, AC110~220V

Bearing power: 240W, 480W, 2200W (subject to the bearing power indicated on the label)

Timing range: 0~999 (seconds, minutes, hours)

Minimum unit: 1sec Error: 20ppn

Timing type: non clock countdown

Scheduled power on: supported

Scheduled shutdown: supported

Infinite loop: support infinite switching loop

Quantitative cycle: supports 1~999 cycles

Shell material: ABS

Independent timing unit: supported

Program trigger: support automatic trigger and manual trigger switching, factory default automatic trigger

Setting lock: supported

Save after power failure: only the last setting is automatically saved,

Relay type: 1-circuit normally open relay

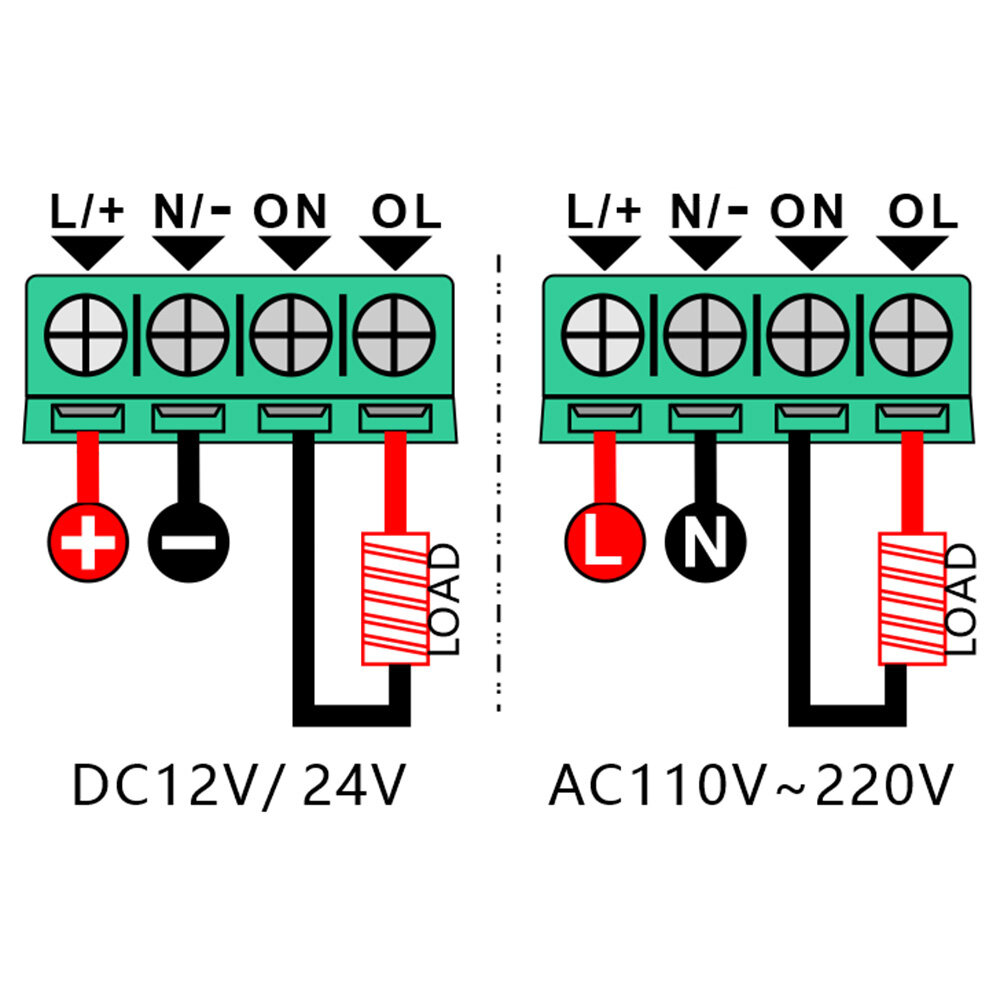

Output type: contact live, active output

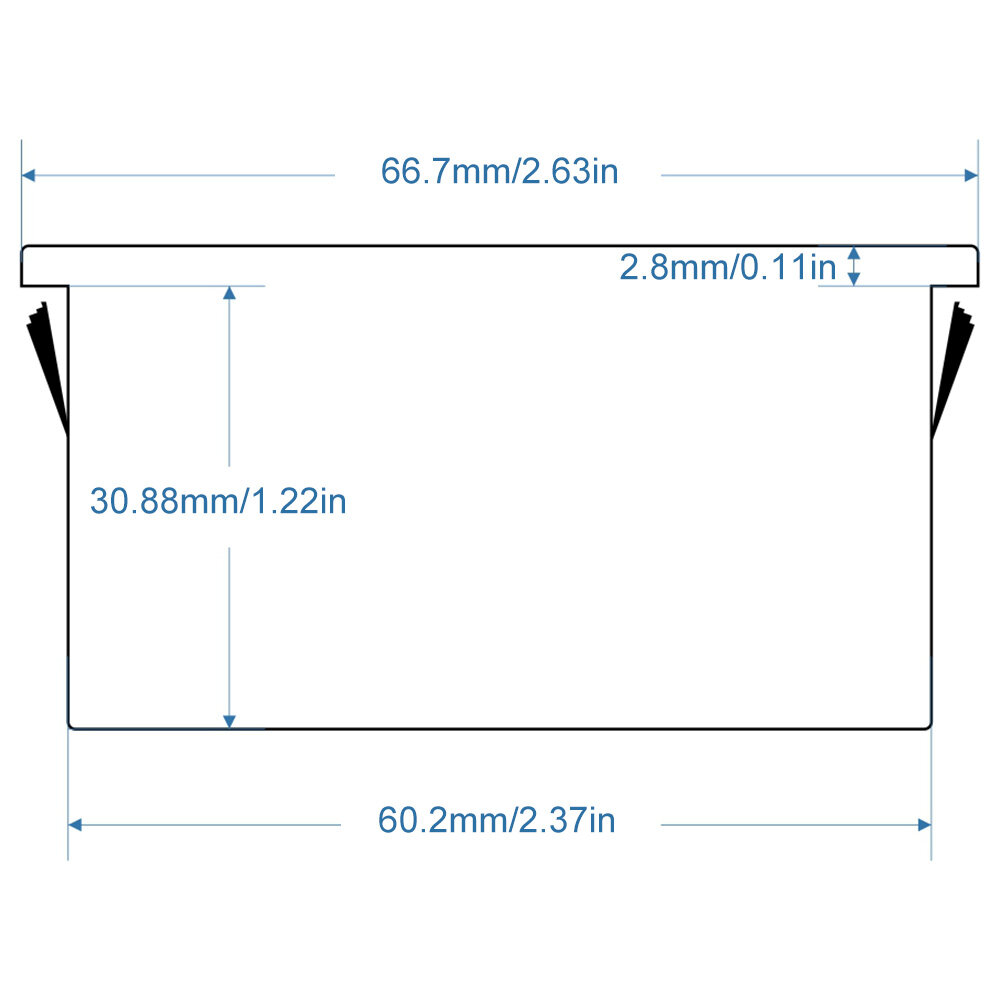

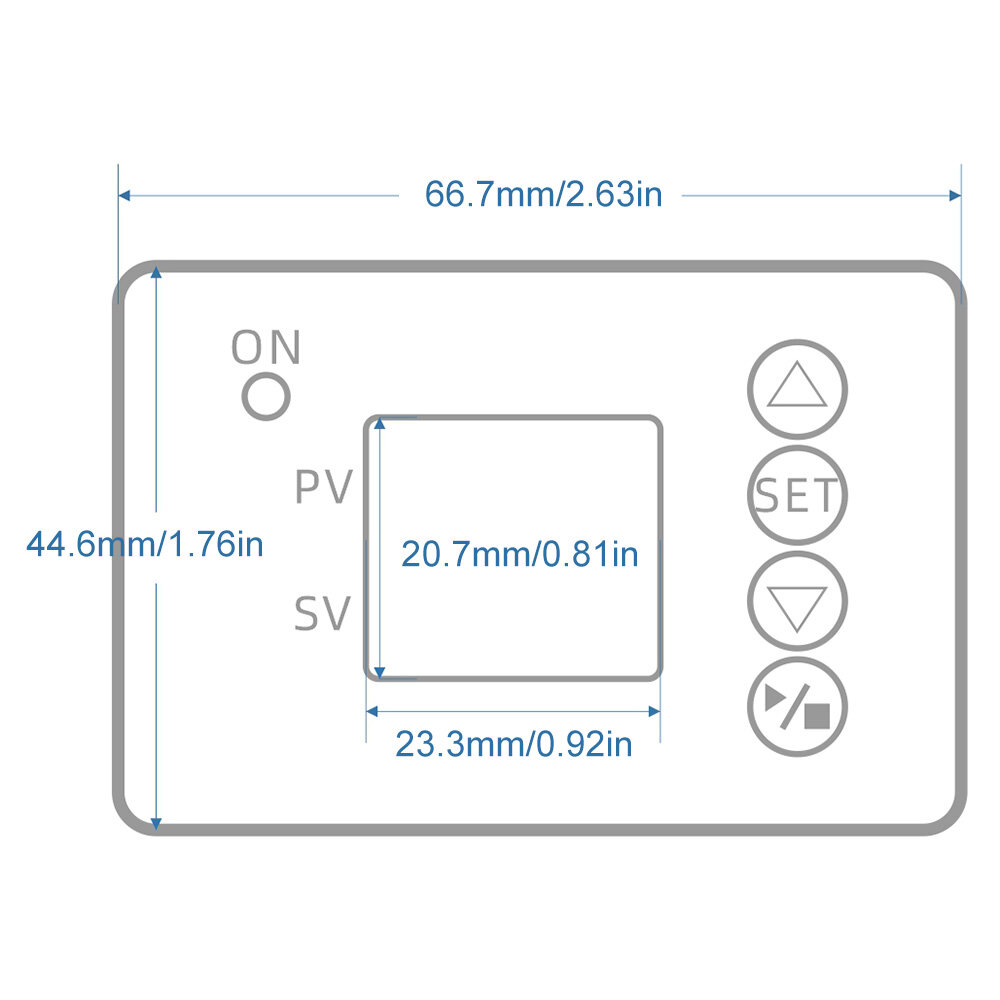

Product size: 67 × forty-five × 34mm

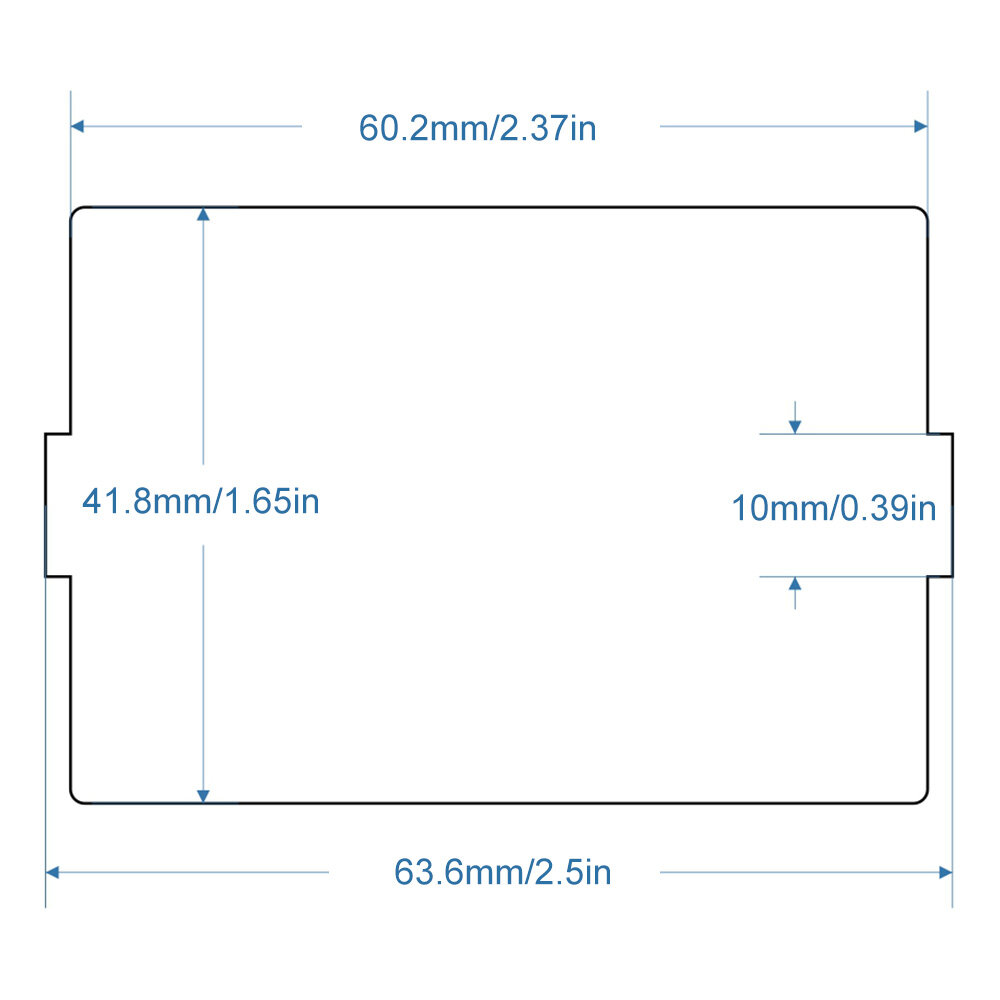

Installation hole size: 63 × 42mm (embedded installation)

Operating voltage=input voltage=output voltage=label voltage

Package include:

Time control relay X1
