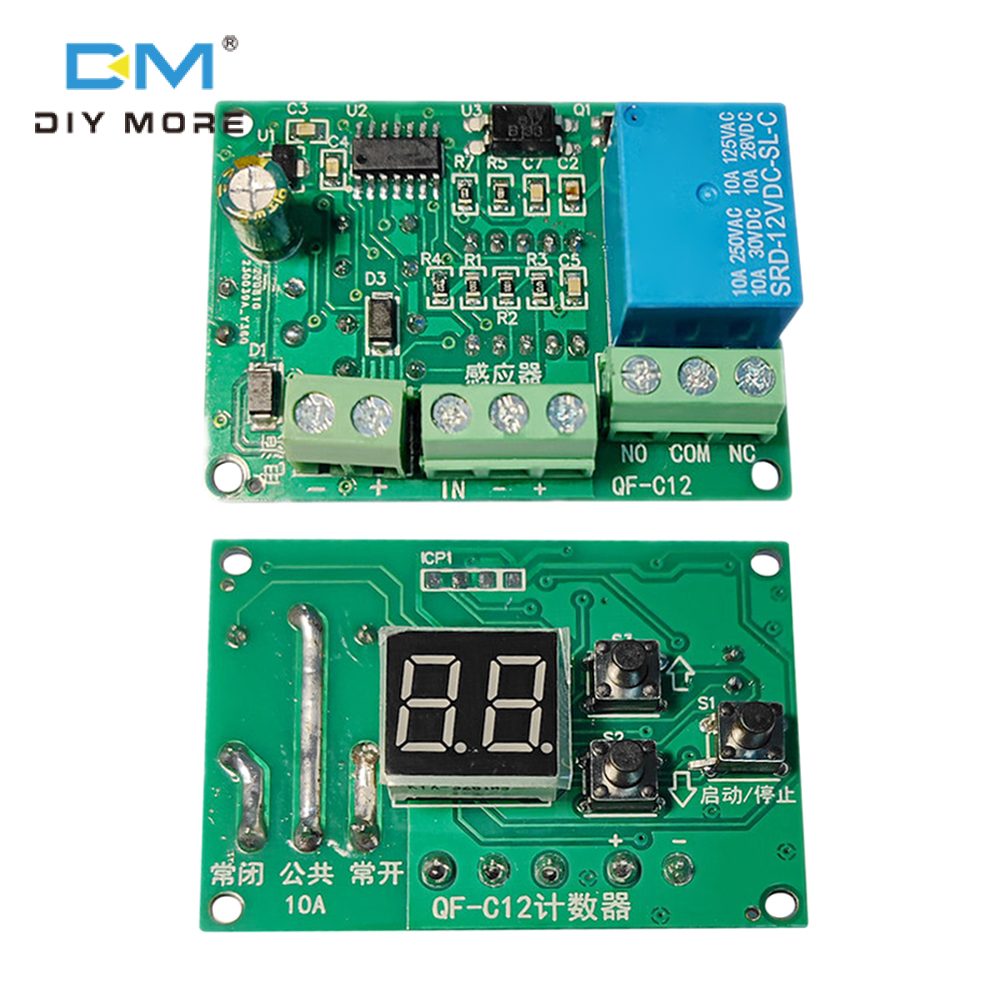

diymore 5V 12V 24V Rơle hẹn giờ lập trình Rơle tác dụng chậm mô-đun chu kỳ hẹn giờ với màn hình LED

Parameters:

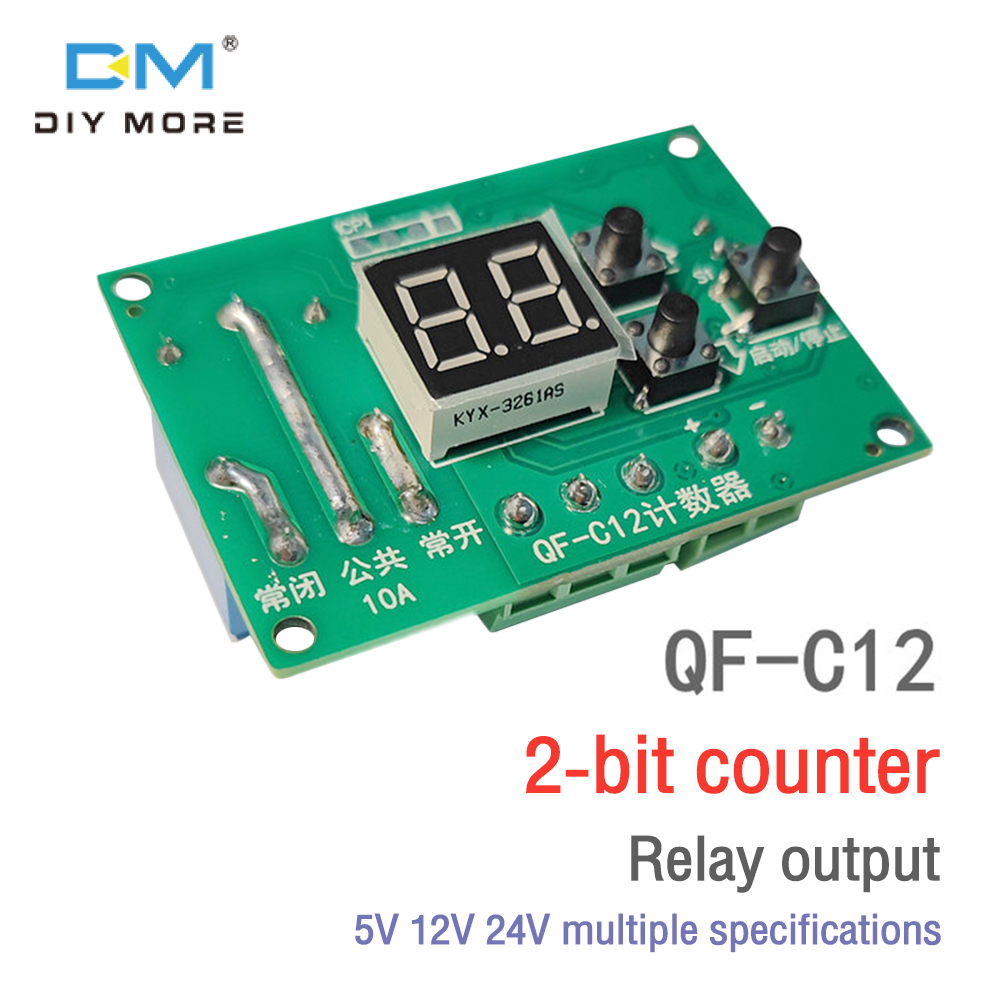

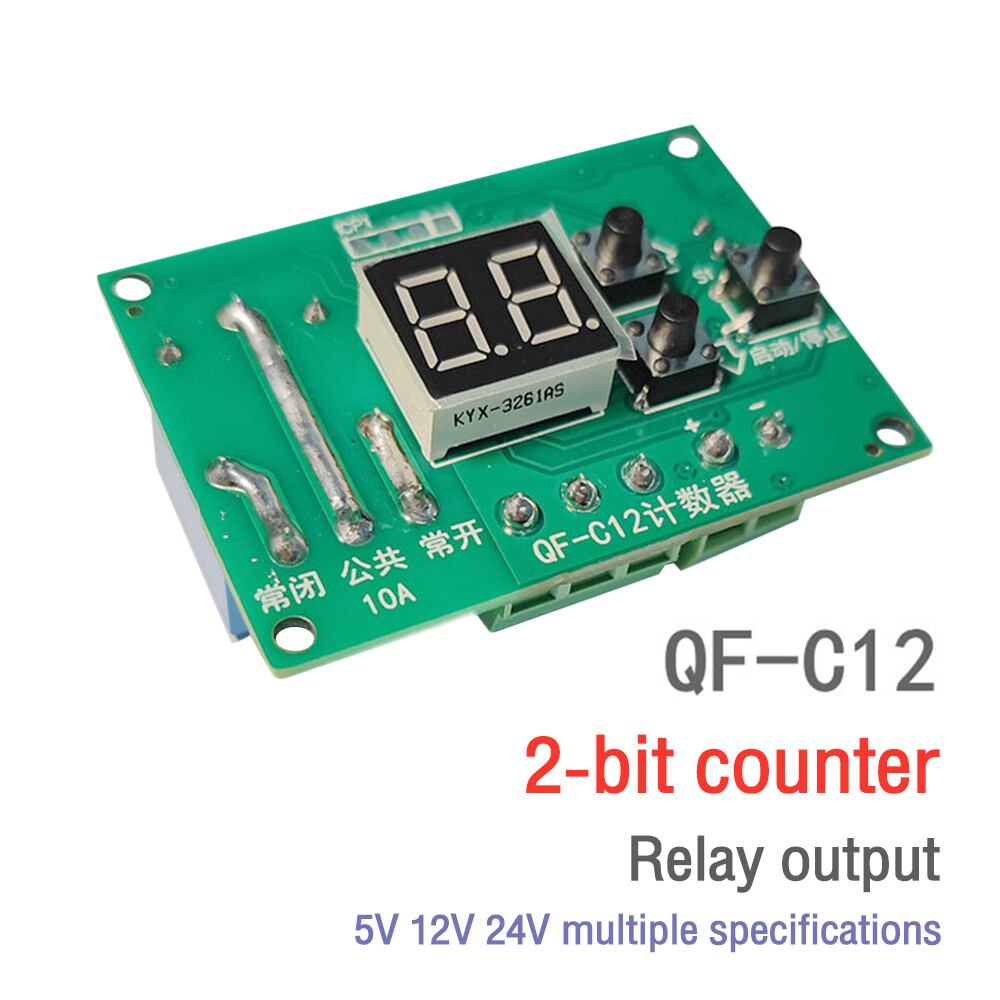

Name: 2 bit counter (relay output type)

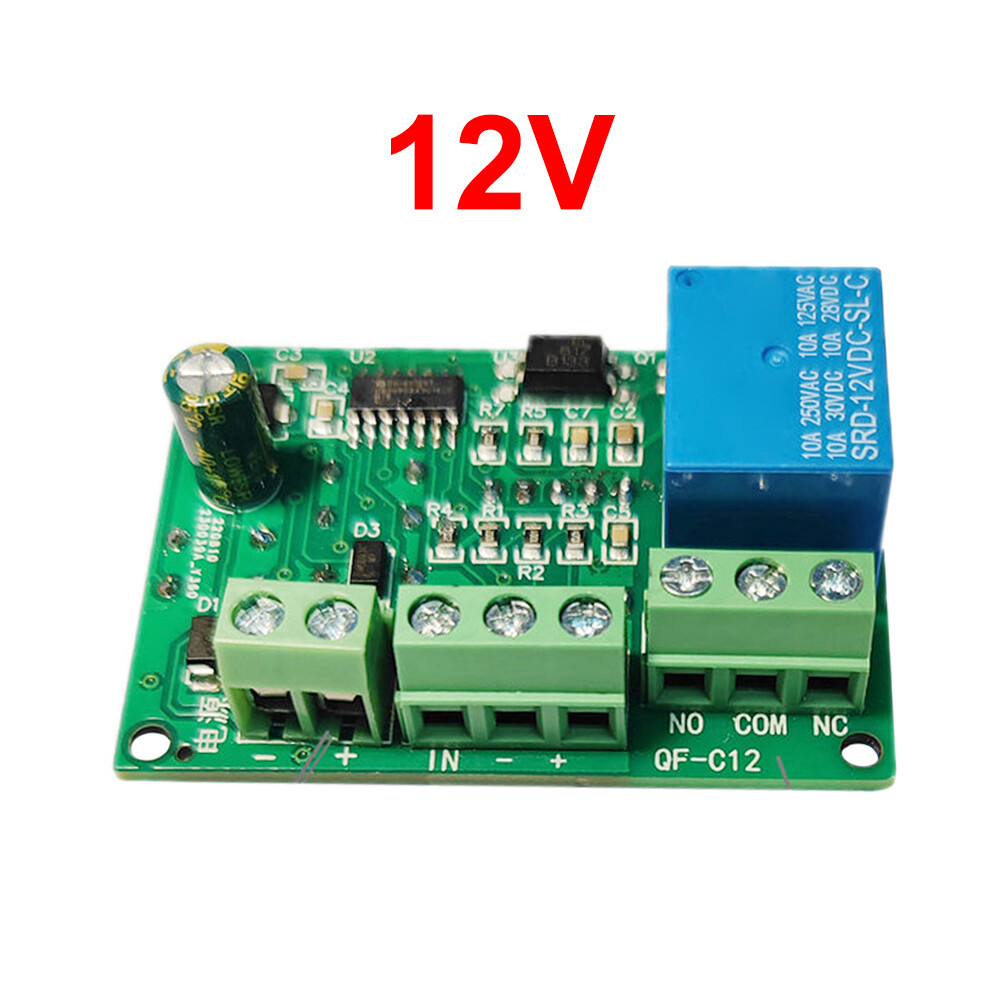

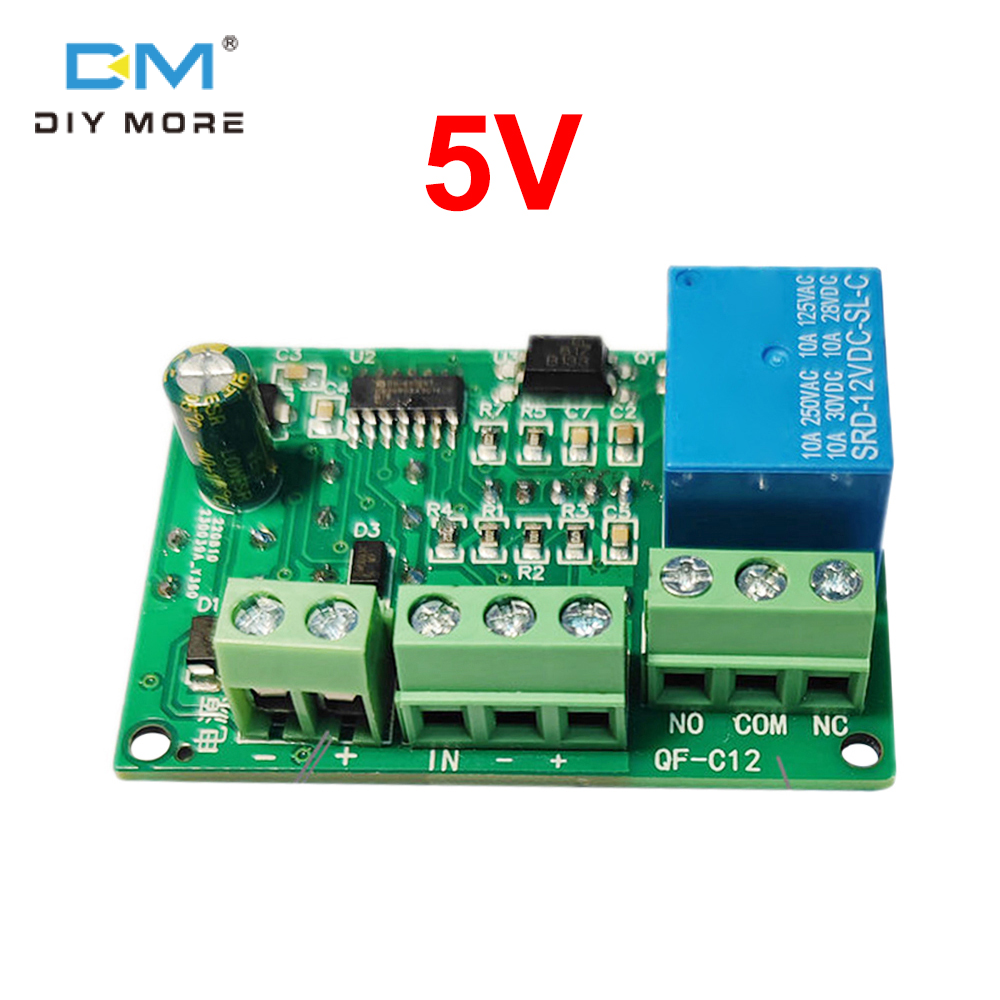

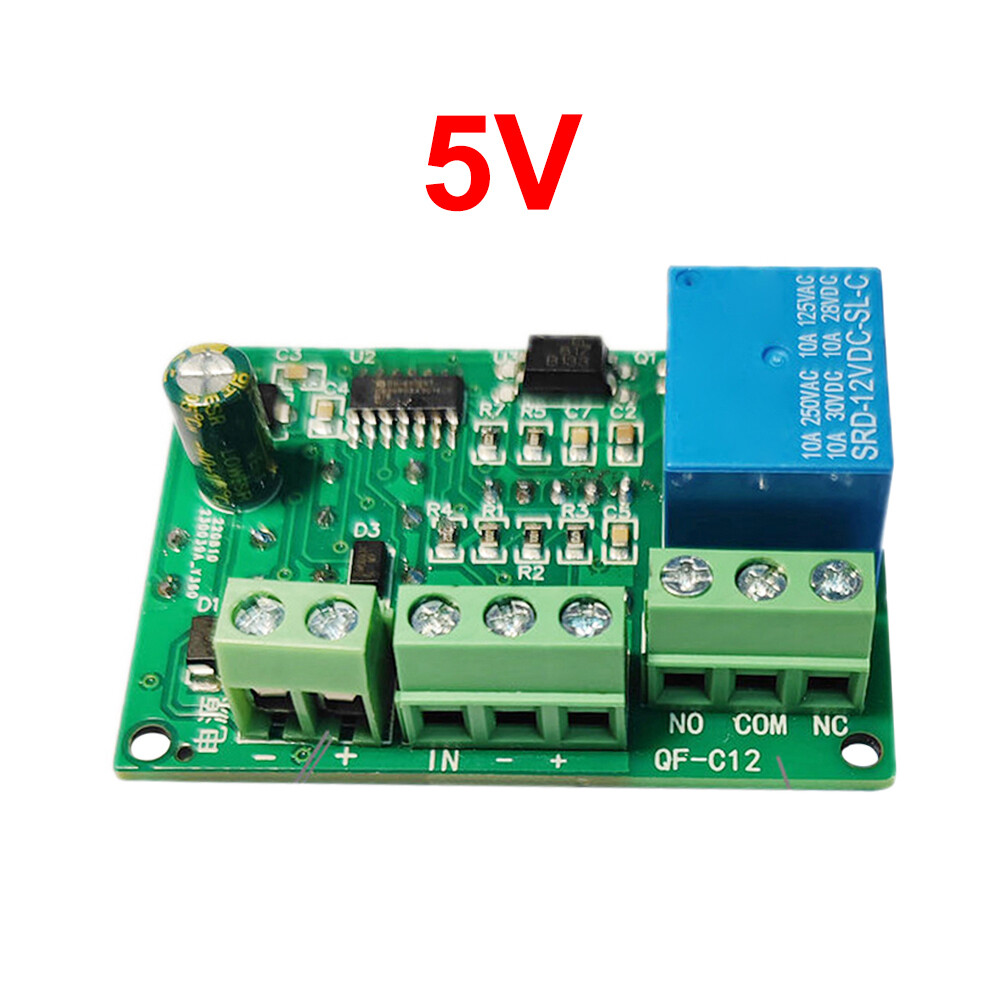

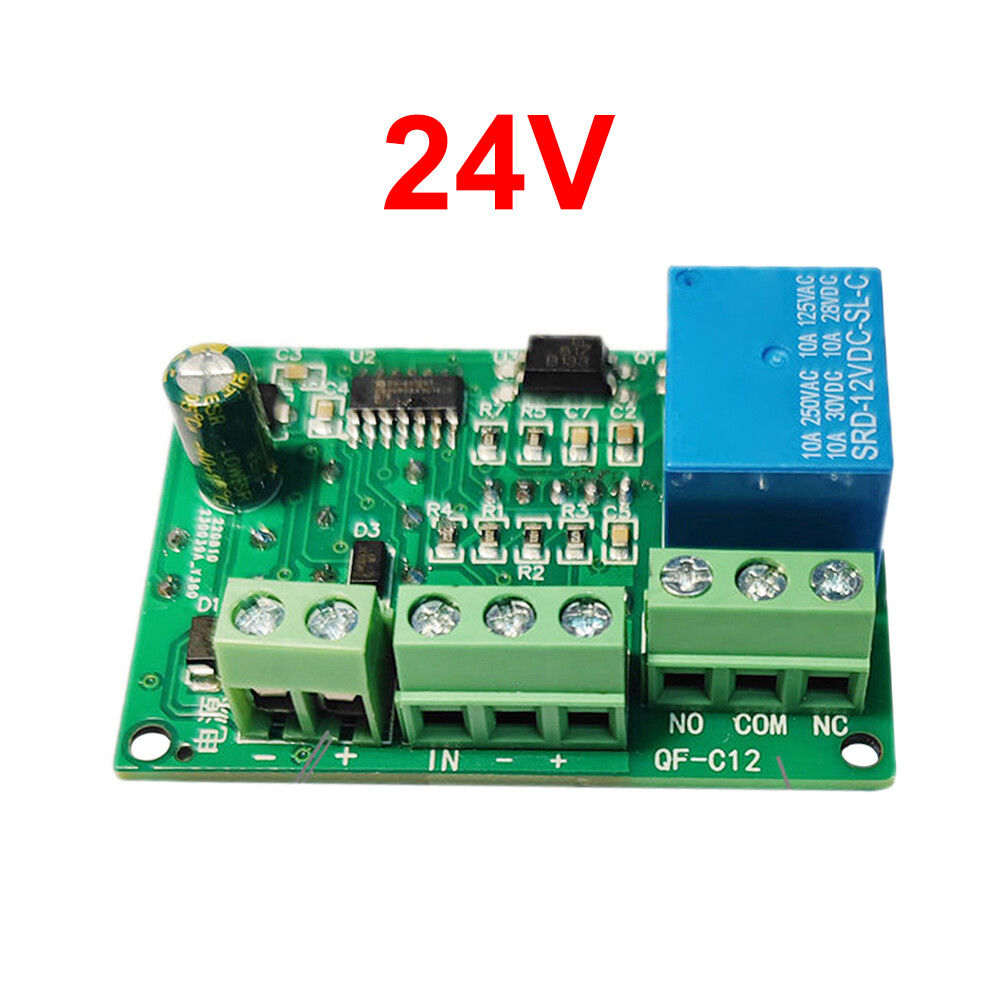

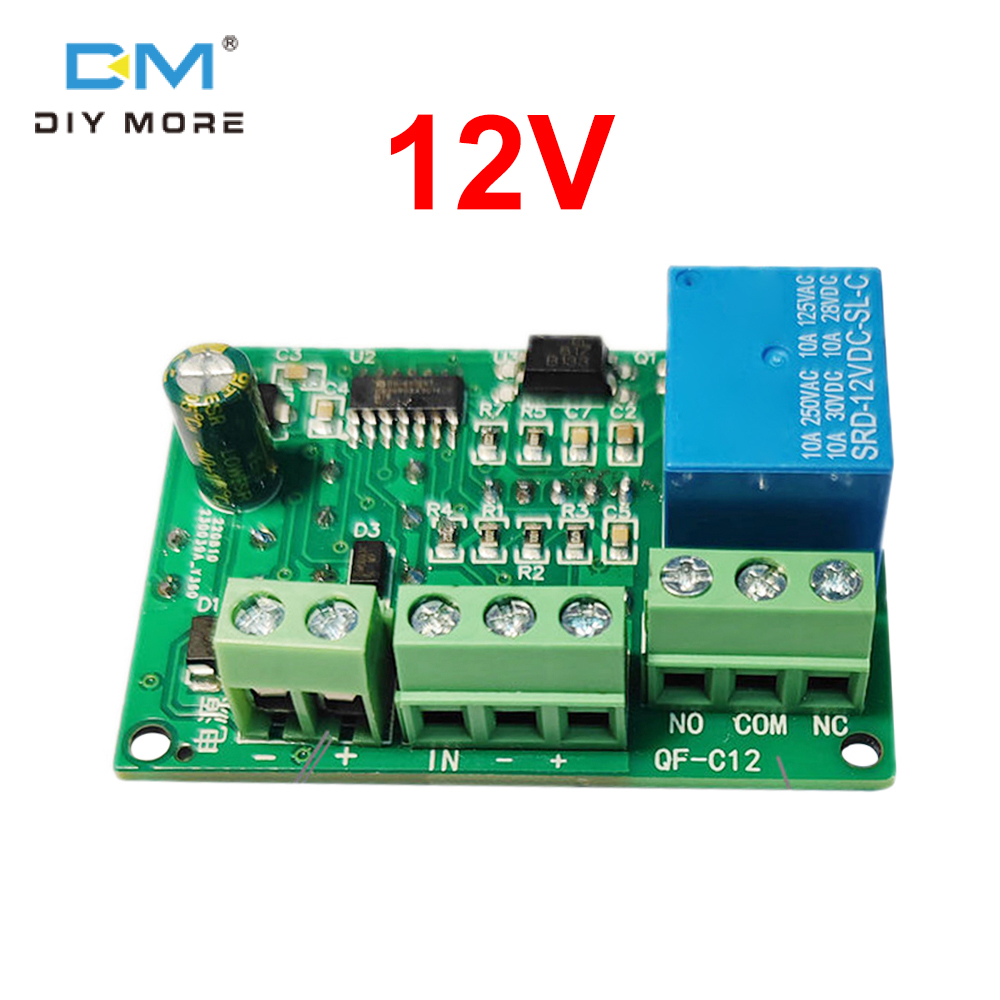

Voltage: Various voltages such as 5V, 12V, 24V are available

Working current: 60mA (12V version), 40mA (24V version), 20mA (5V version)

Signal method: Low level/NPN input, effective at low level (connected to NPN-NO sensor or ordinary button switch)

Response speed: 10mS

Counting speed: 10 times per second

Output method: 10A normally open+normally closed, isolated from the power supply side

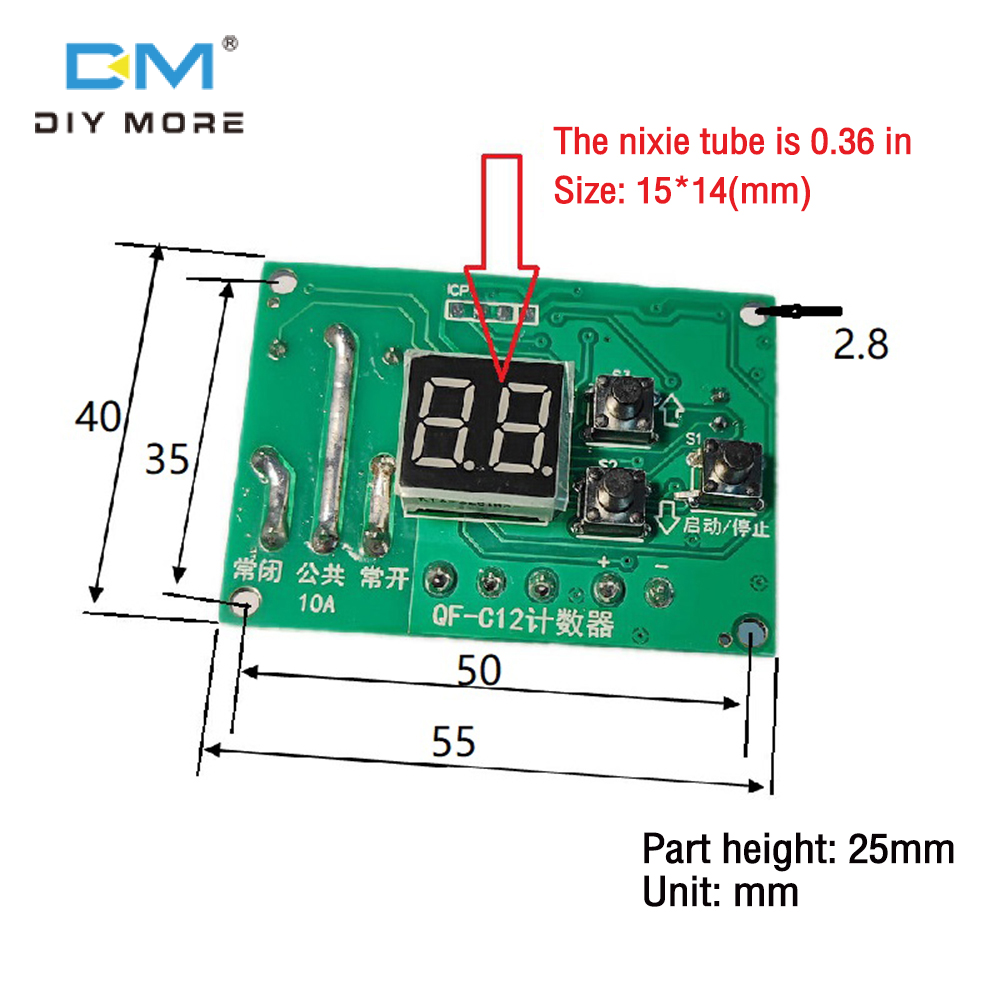

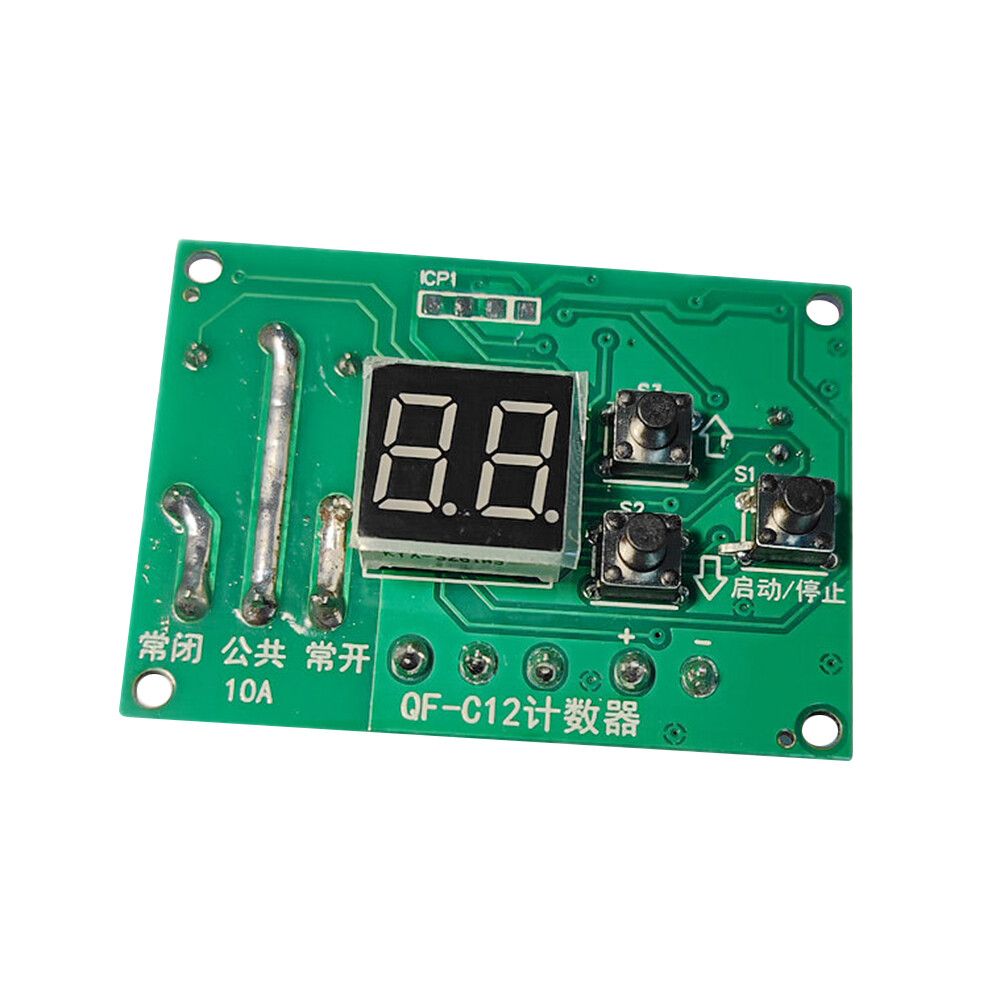

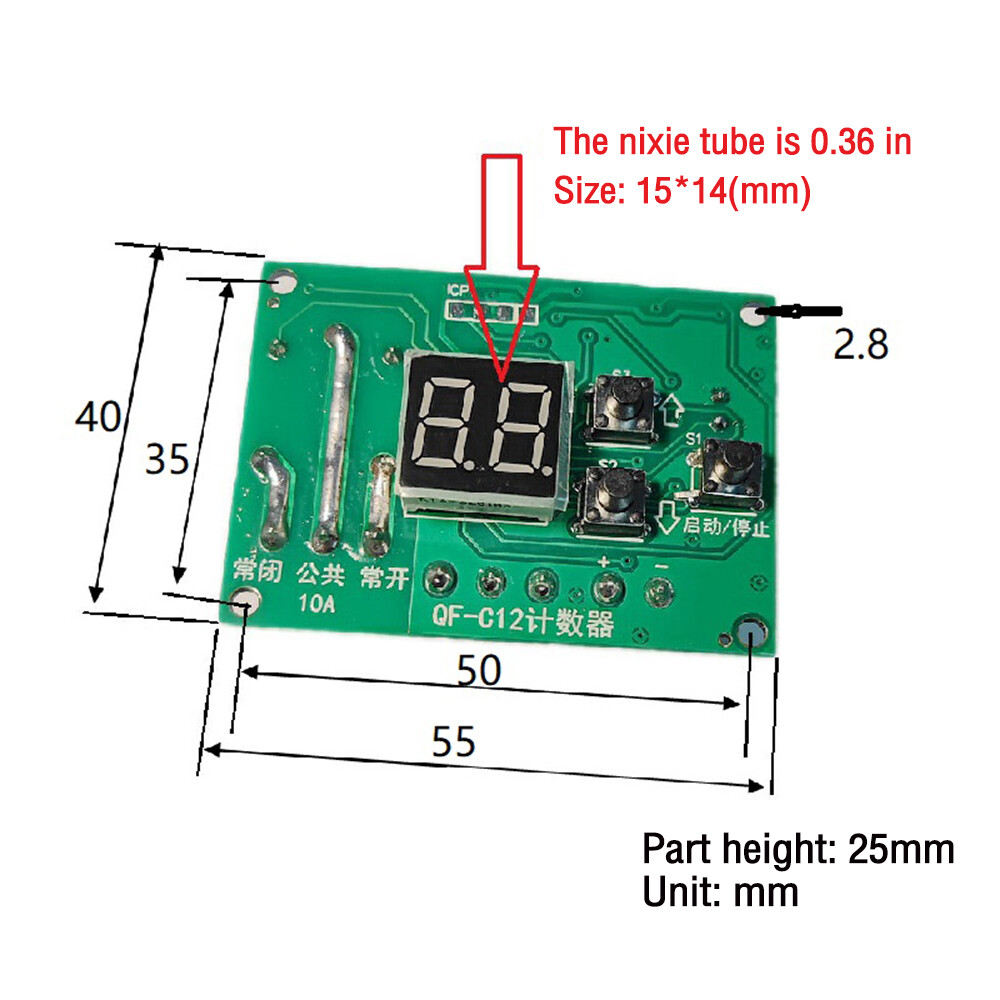

Display: 0.36 inch 2-bit red light

Function Description

When not working, use the<Up>and<Down>keys to set the count, ranging from 1 to 99，

--The set value will take effect immediately and be saved.

--With memory, the last set number of times will be called in the next power on-- Values can only be set in the stopped state.

The<Start/Stop>button is used to start and stop counting. Press once to start the operation, at which point: - the relay is immediately connected；

--Counting will start from 0 and wait for signal input. Each signal input will have a value of+1- when the count reaches the set value, the relay will disconnect.

During the counting process, pressing this key will enter the pause state (the relay is disconnected) and will not respond to the counting.

In the paused state, pressing this key will enter the resume working state (relay resumes connection) and respond to the count.

Long press this key to restore the count to 0

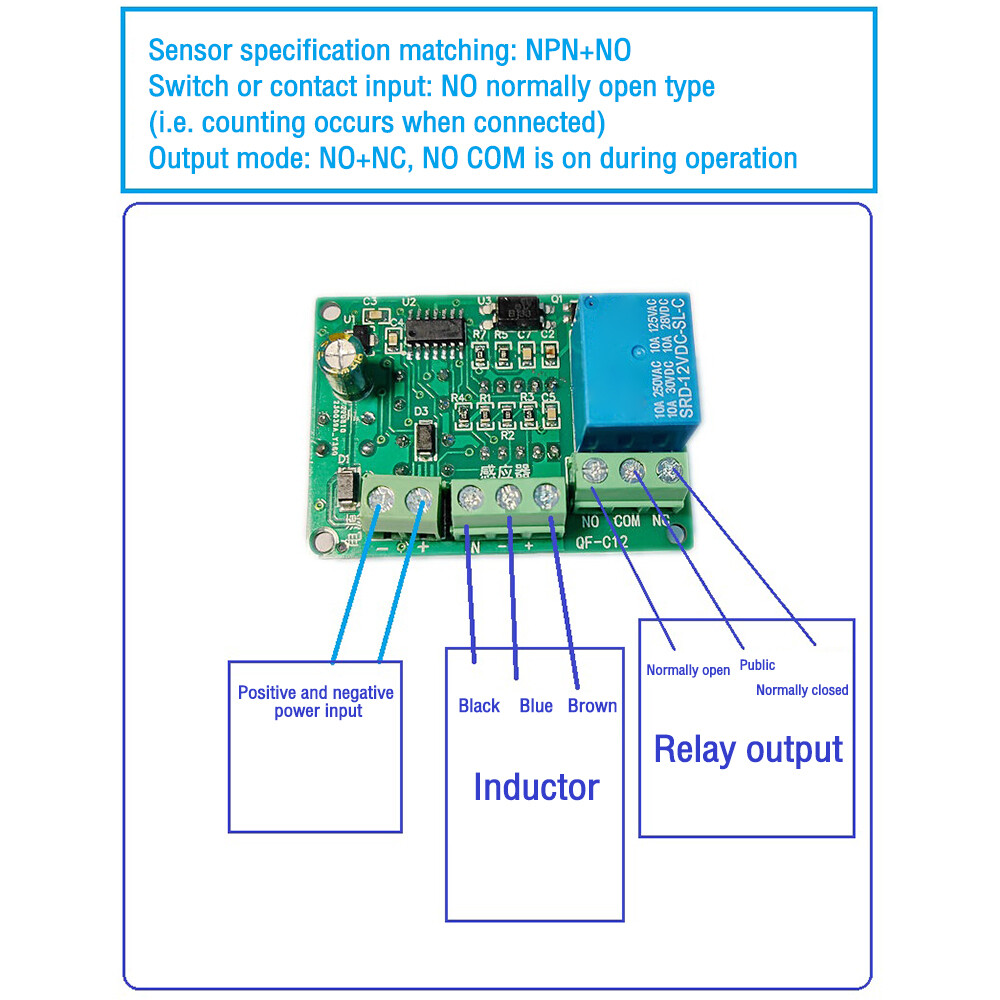

Sensor specification matching: NPN+NO (this product does not include sensors)

Switch or contact input: NO normally open type (i.e. counting occurs when connected)

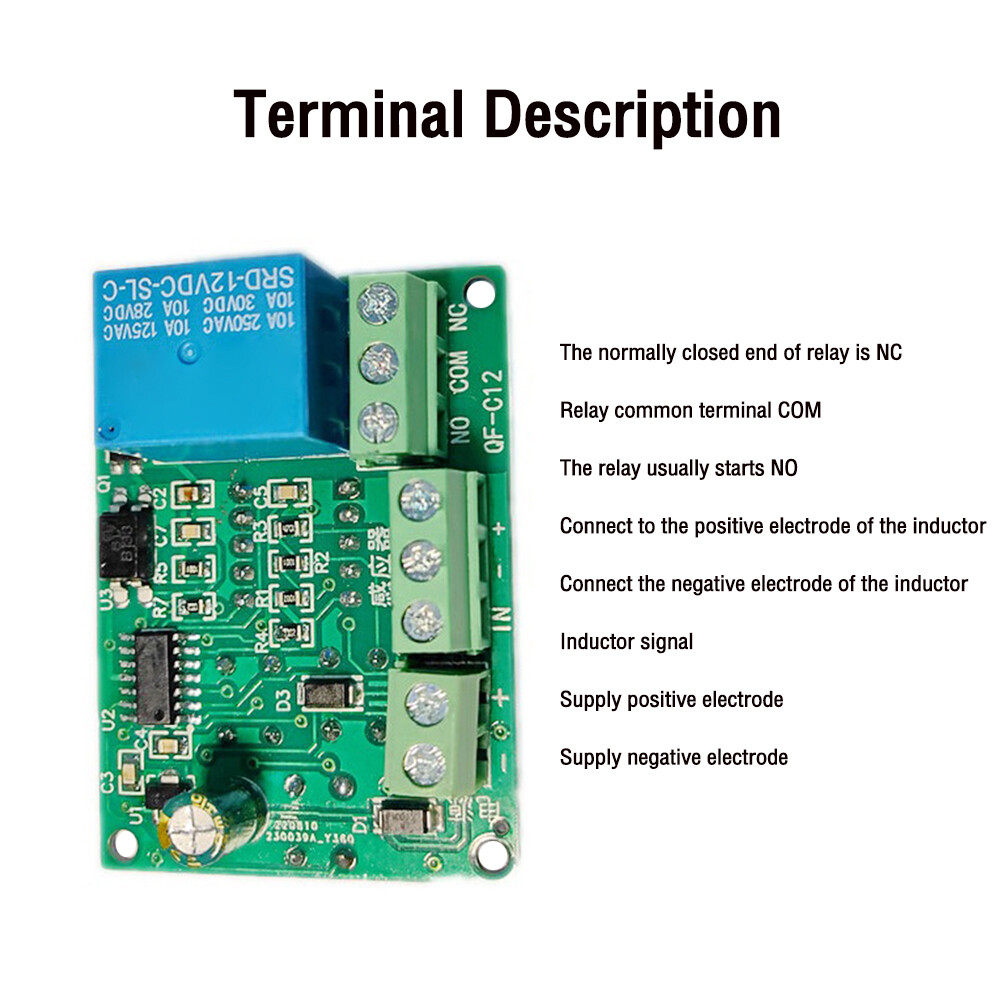

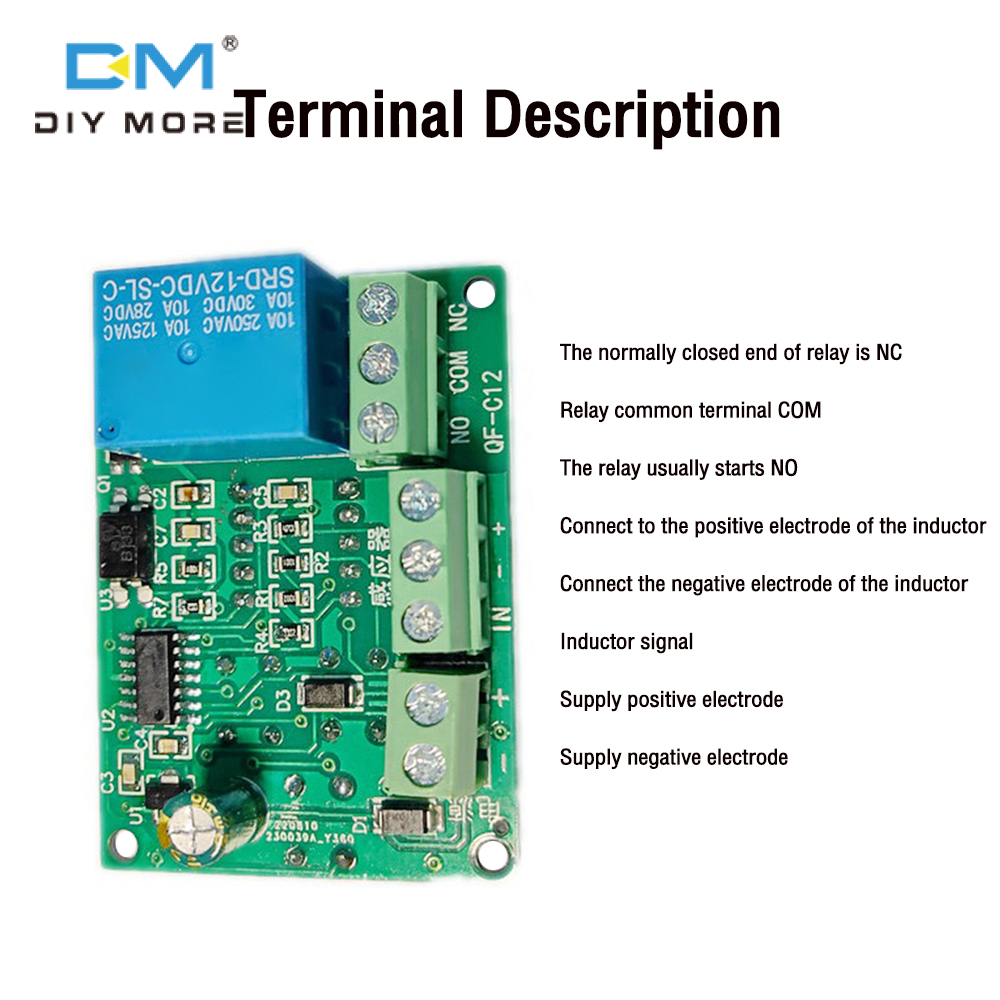

Output mode: NO+NC, NO COM is on during operation

Package include:

1X relay module
