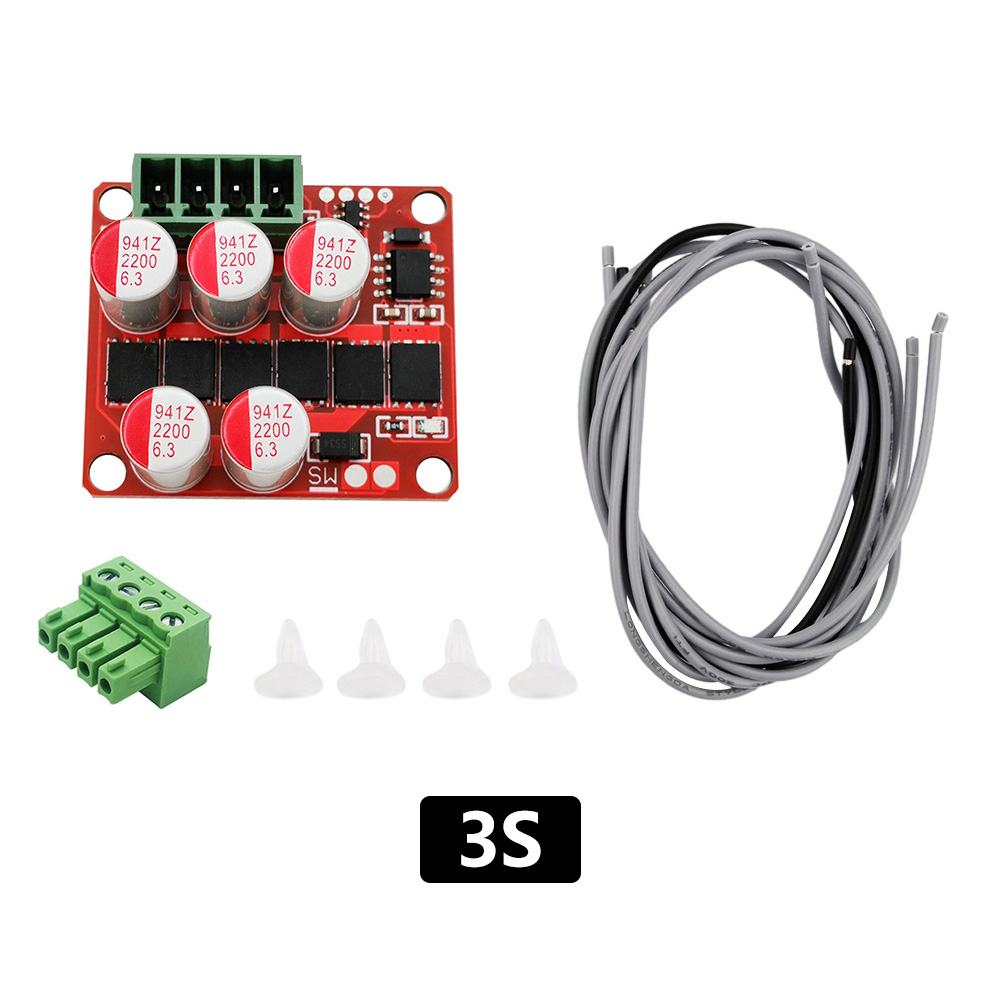

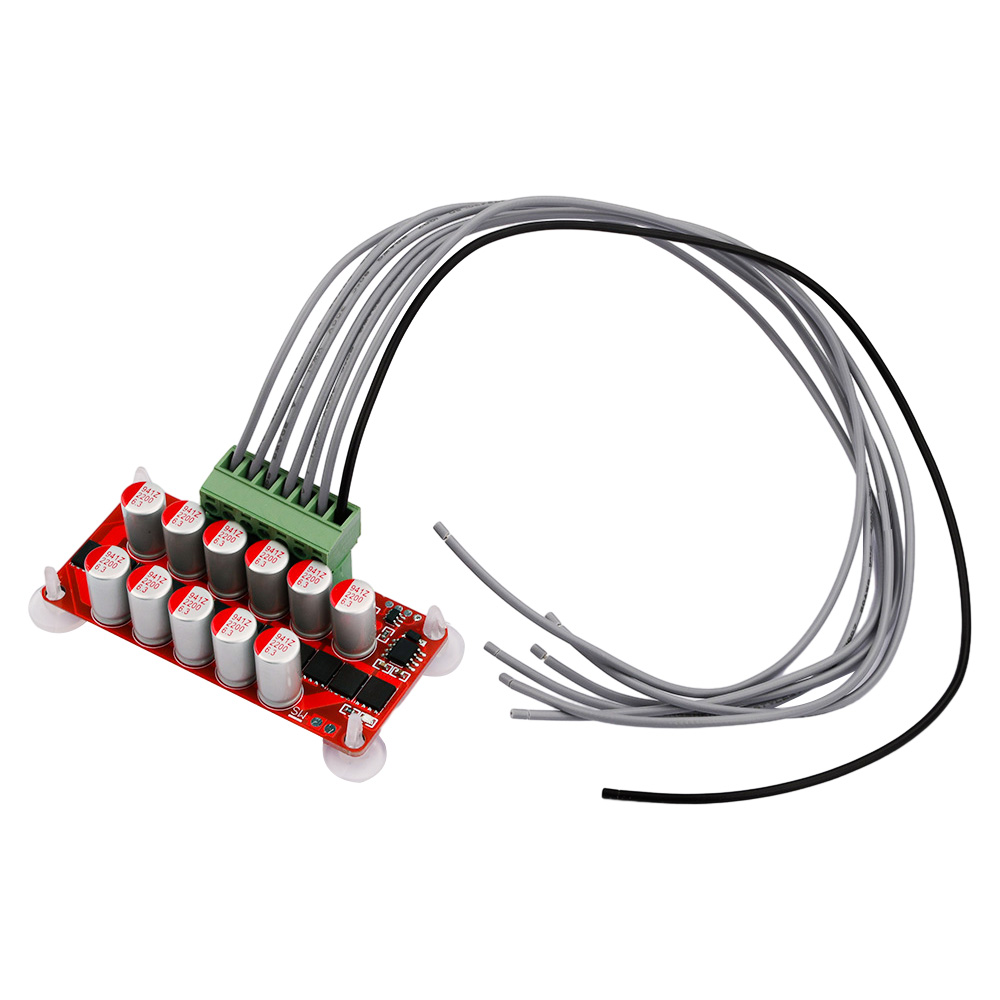

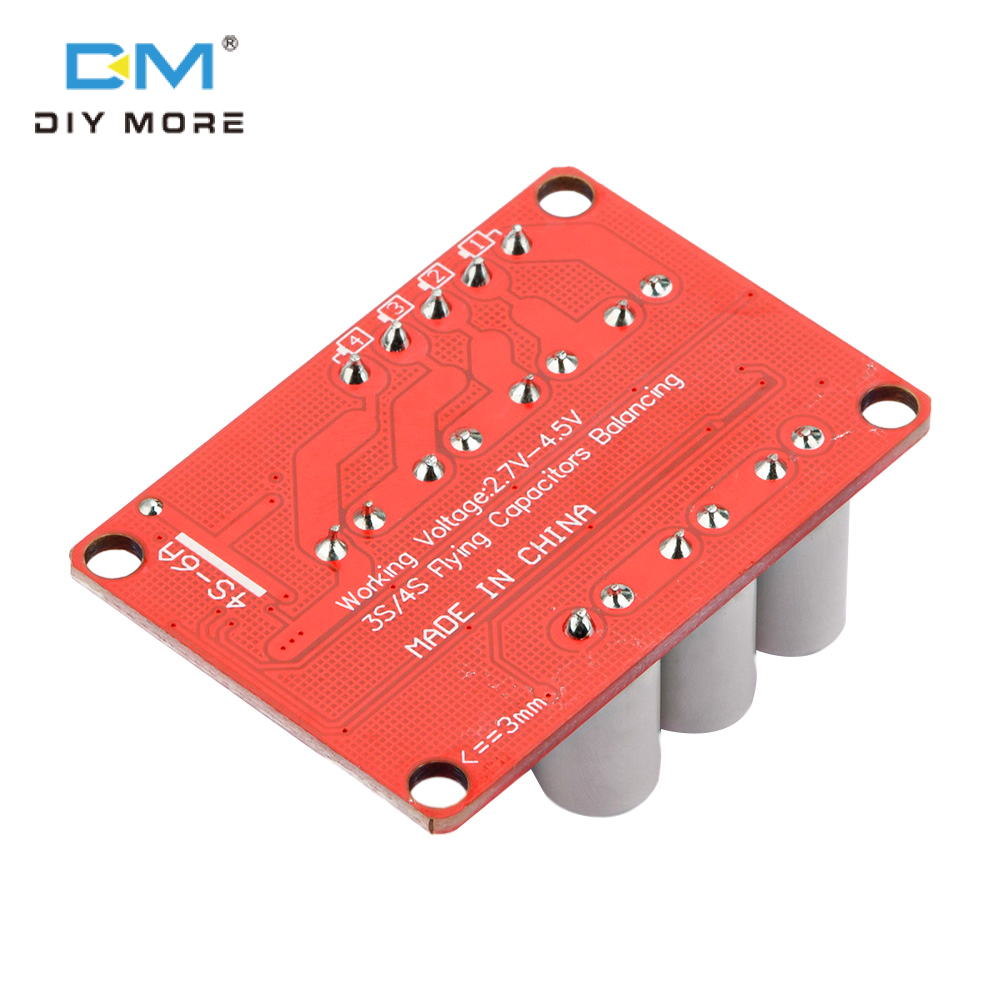

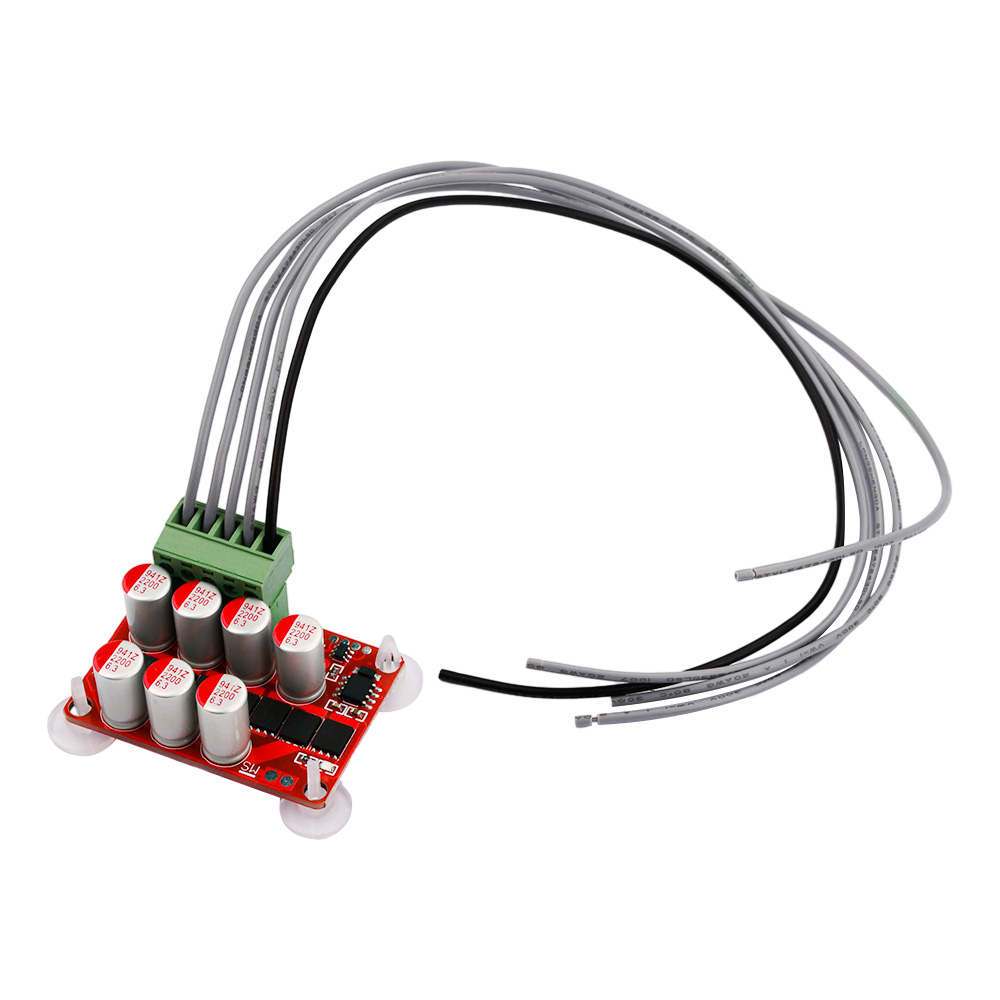

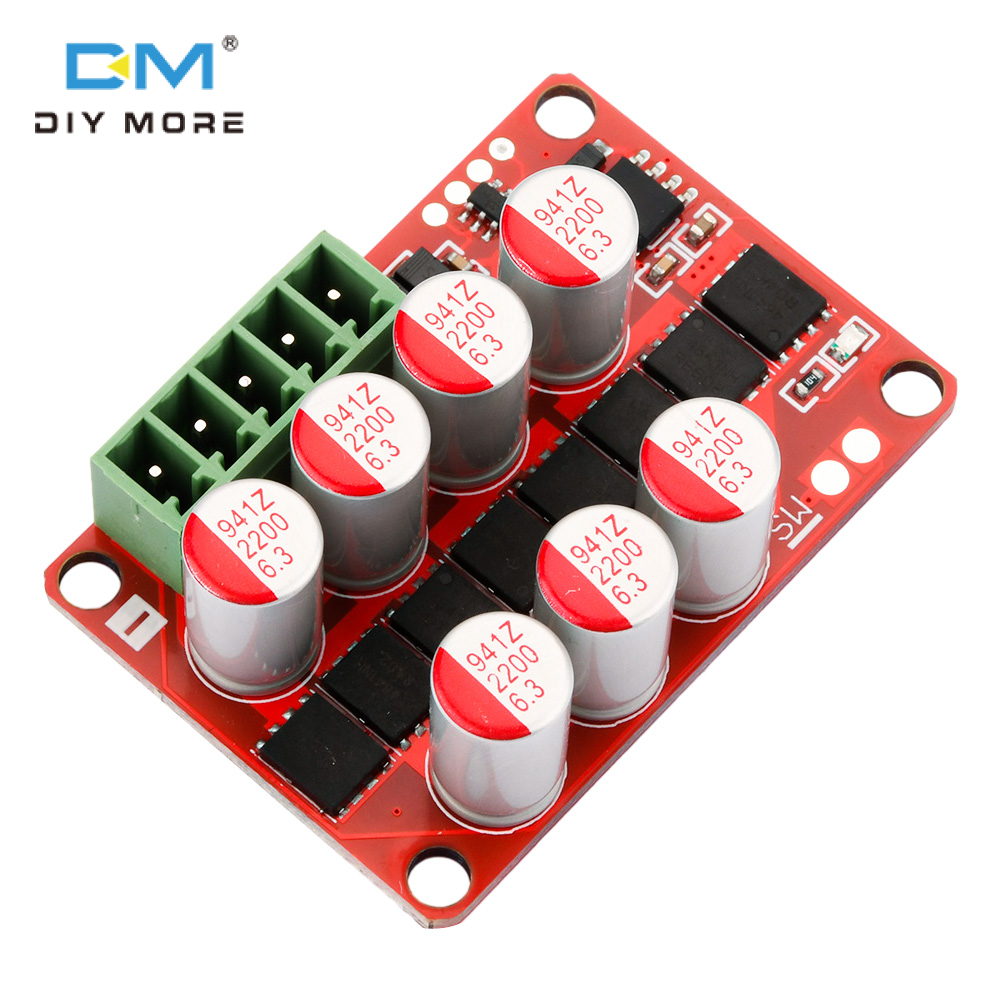

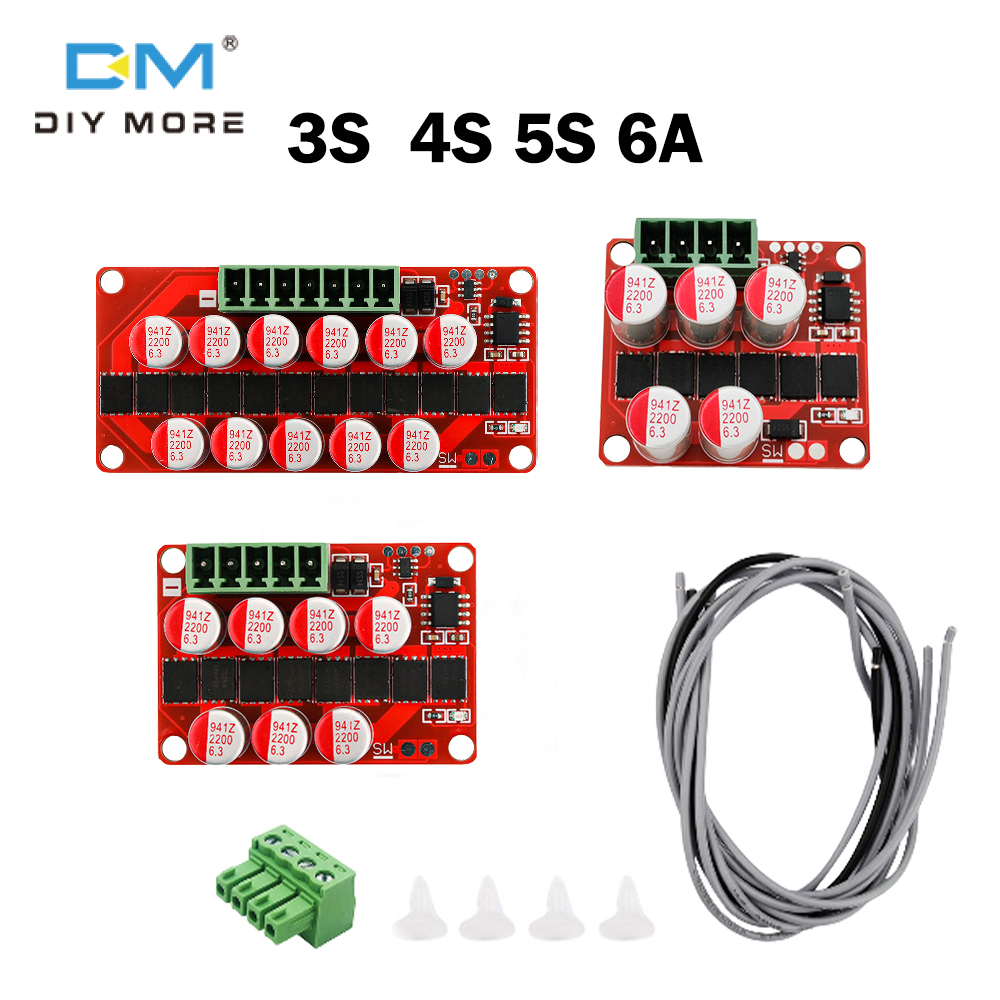

diymore Battery Active Balancer Board 3S 4S 6S 6A Capacitive Active Equalization Board Energy Transfer Board

Parameters:

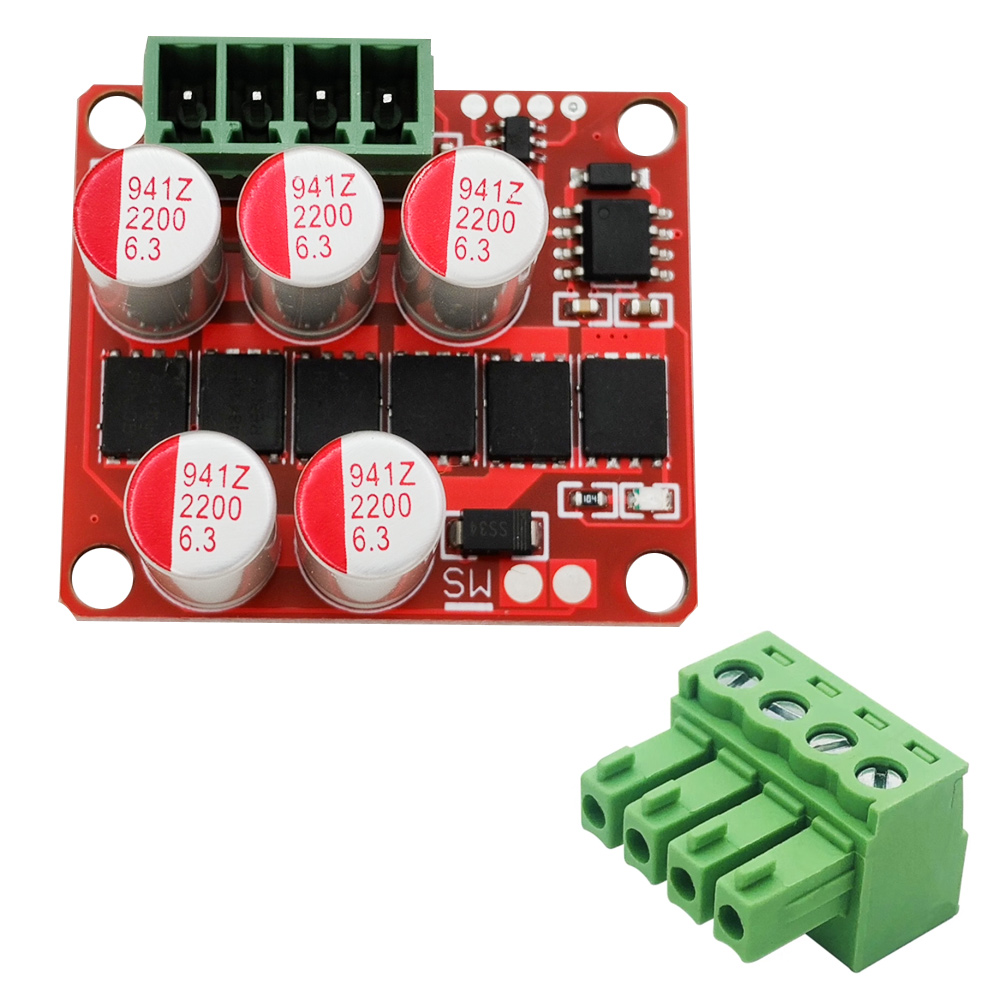

Model and specification: 3S/4S/6S

Balancing method: active balancing of energy transfer

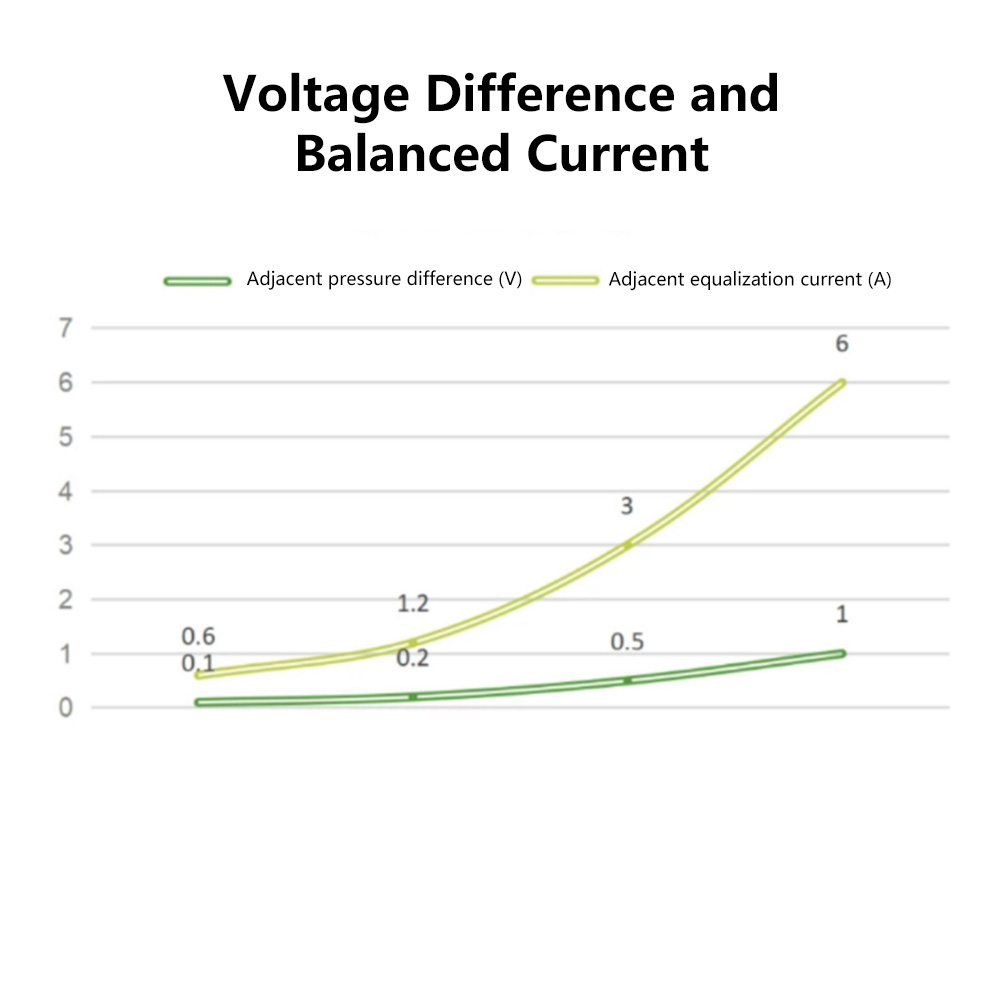

Balanced current: maximum 6A (the greater the voltage difference, the greater the current, and vice versa)

Equalization accuracy: 0.01V

Operating power consumption: 1.5mA-2.5mA

Low voltage protection:<2.5V Automatic shutdown Power consumption: OmA

Suitable batteries: ternary lithium, lithium iron phosphate, lithium titanate

Applicable voltage: monomer 2.5V-4.4V

Product dimensions: illustrated

Cable plug: 15EDG-3.81

Supporting wires: wiring length 30cm, color random

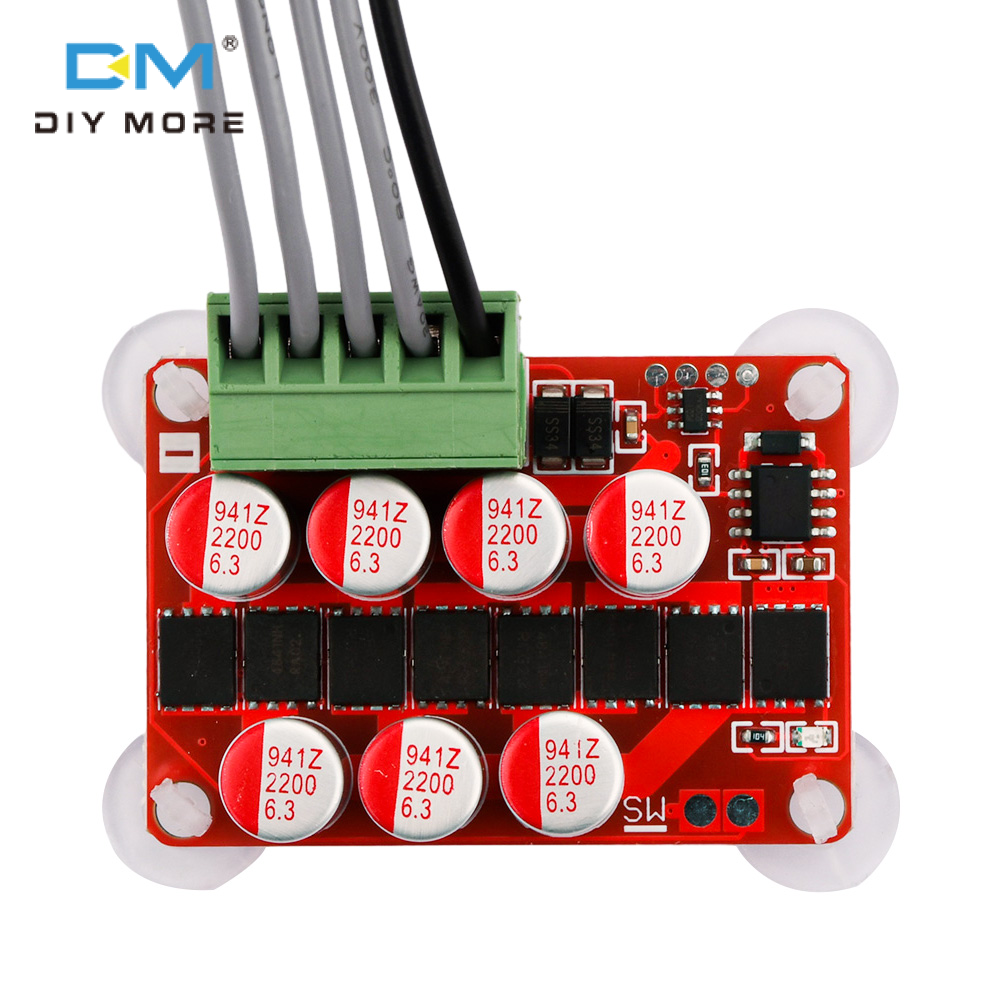

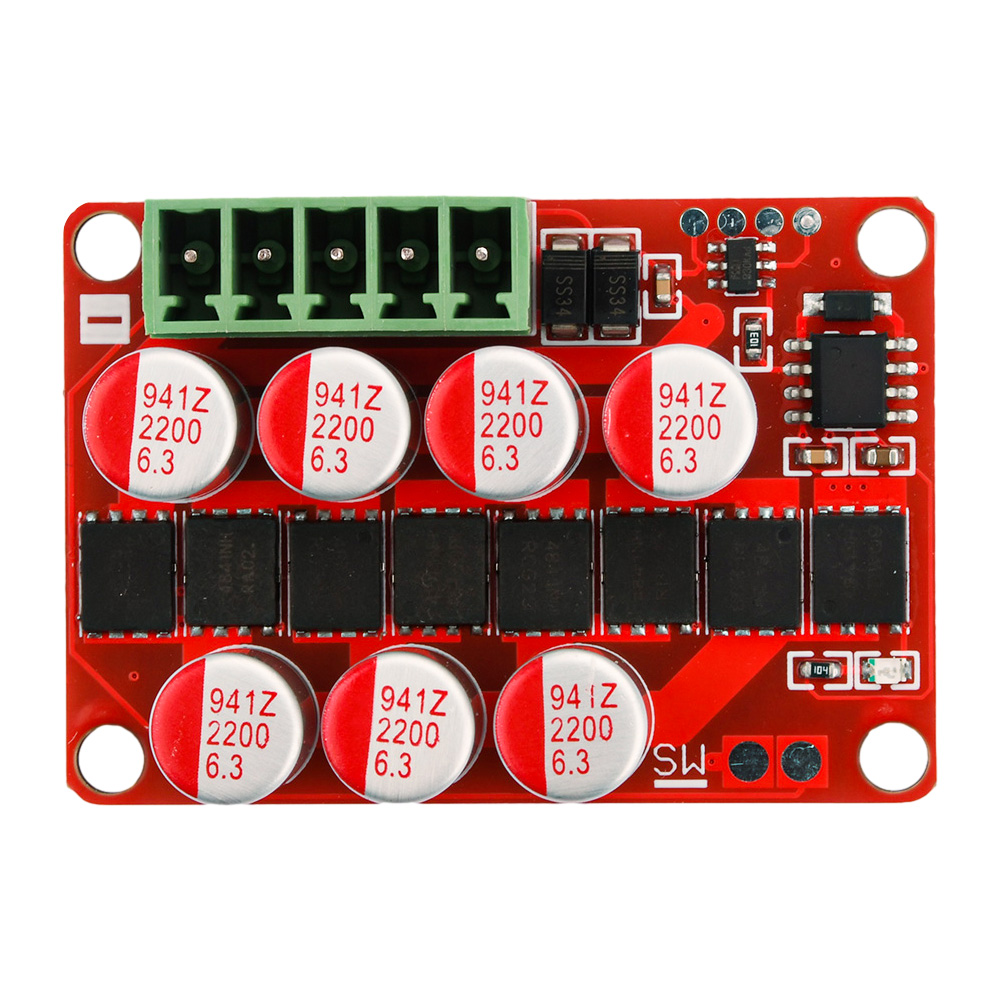

Running indicator light:

Running indicator light, on indicates that the system is running normally, off indicates that the battery voltage is below 2.5V and is in a sleep state or the switch is turned off. The system is completely shut down and the power consumption is 0

Hybrid active balancing:

Adjacent cells transfer energy through capacitors, and then achieve high-precision and efficient balancing effects through high-frequency equivalent parallel connection. The low-power design simplifies complexity, and the circuit does not need to detect the voltage difference between batteries. It is in long-term operation to protect the voltage balance of batteries. The operating power consumption is only 1.5mA-2.5mA, and the single battery voltage is below 2.5V to enter the sleep state. The sleep power consumption is as low as uA

Level to protect the battery from excessive discharge.

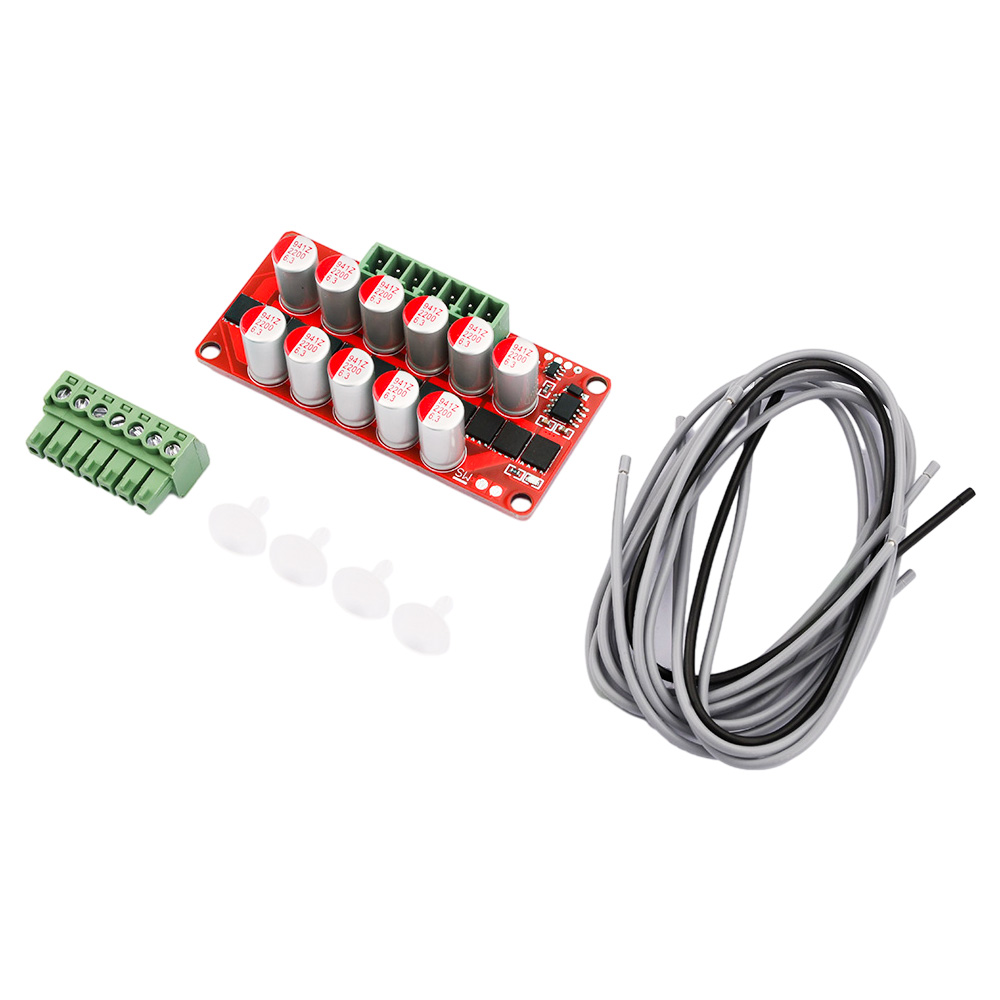

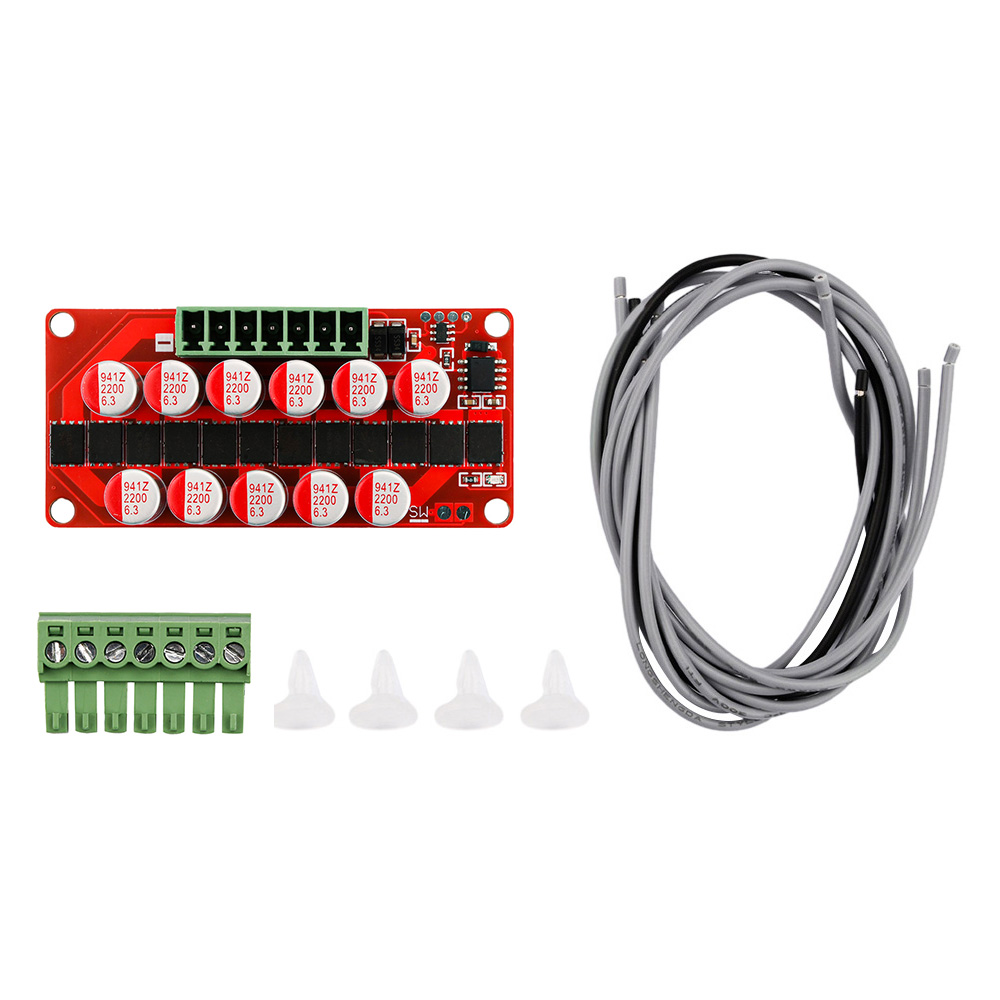

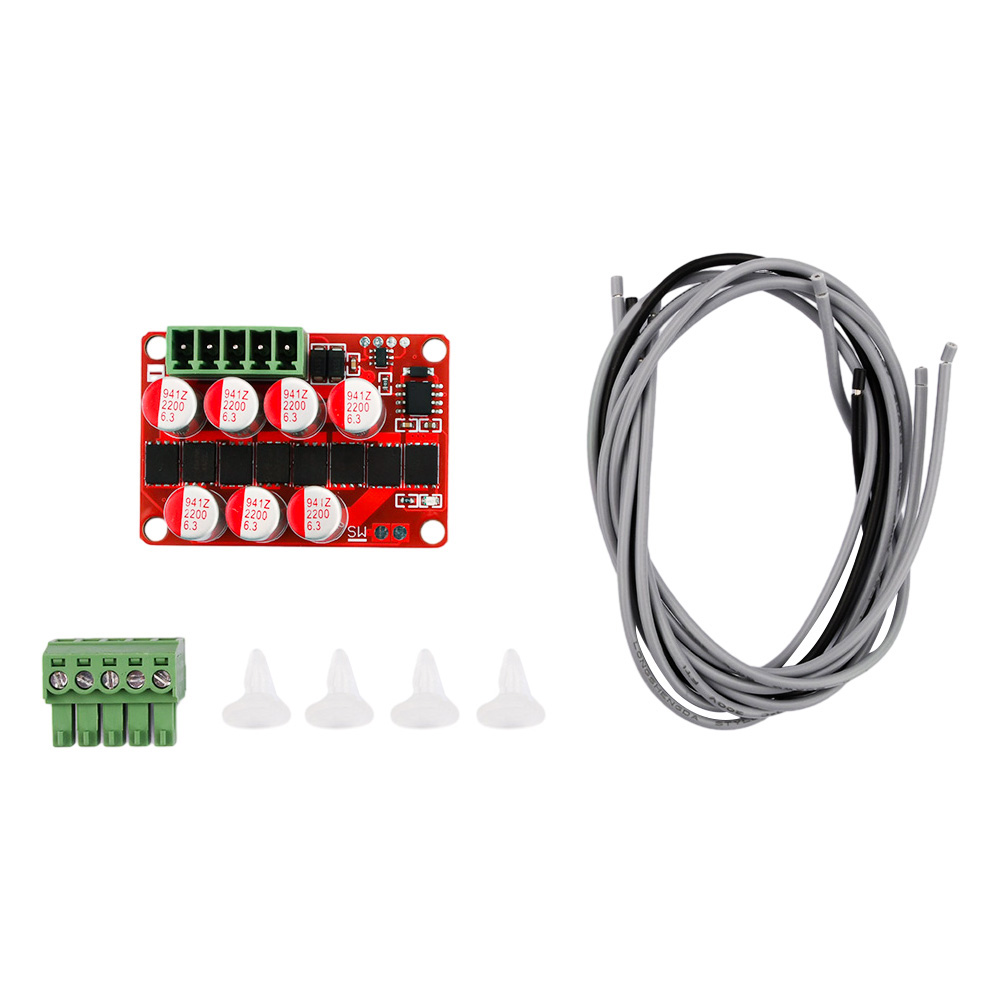

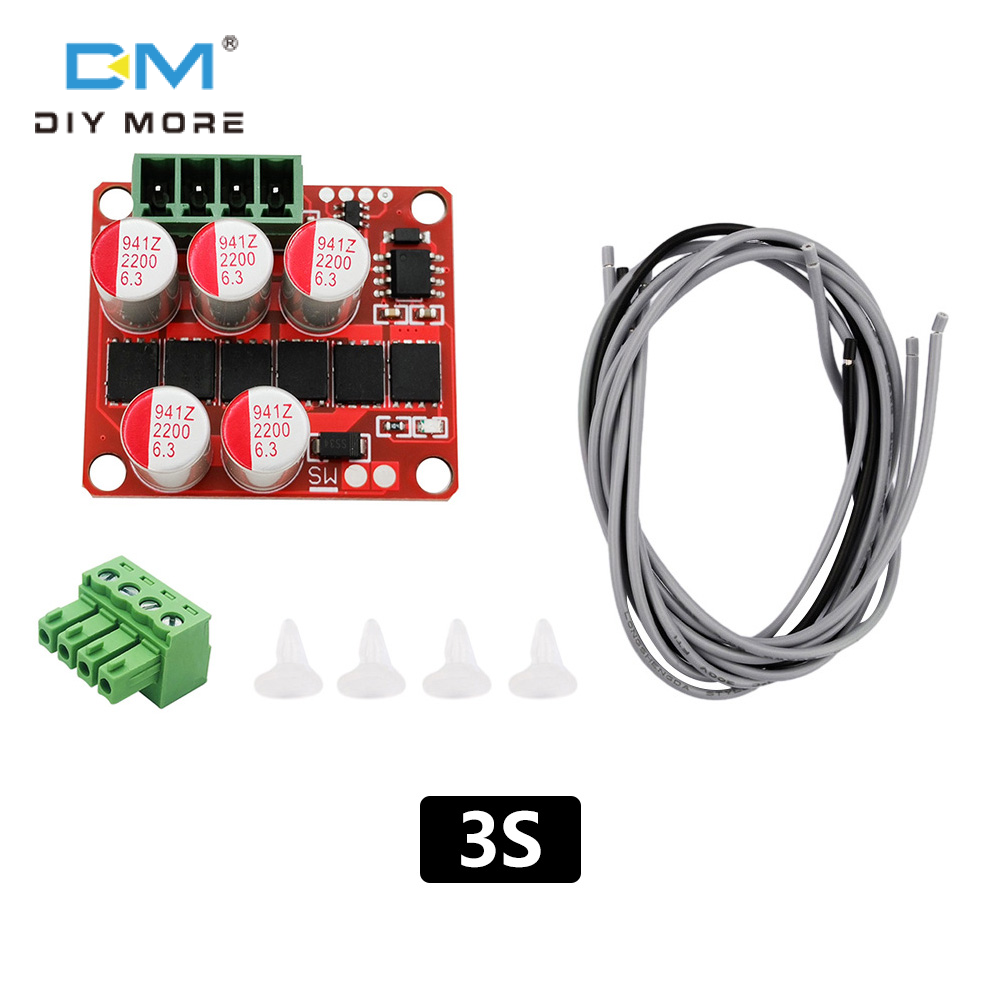

Package include:

1X main circuit board

1X connection plug (1007 18AWG 0.75mm)

Several wires

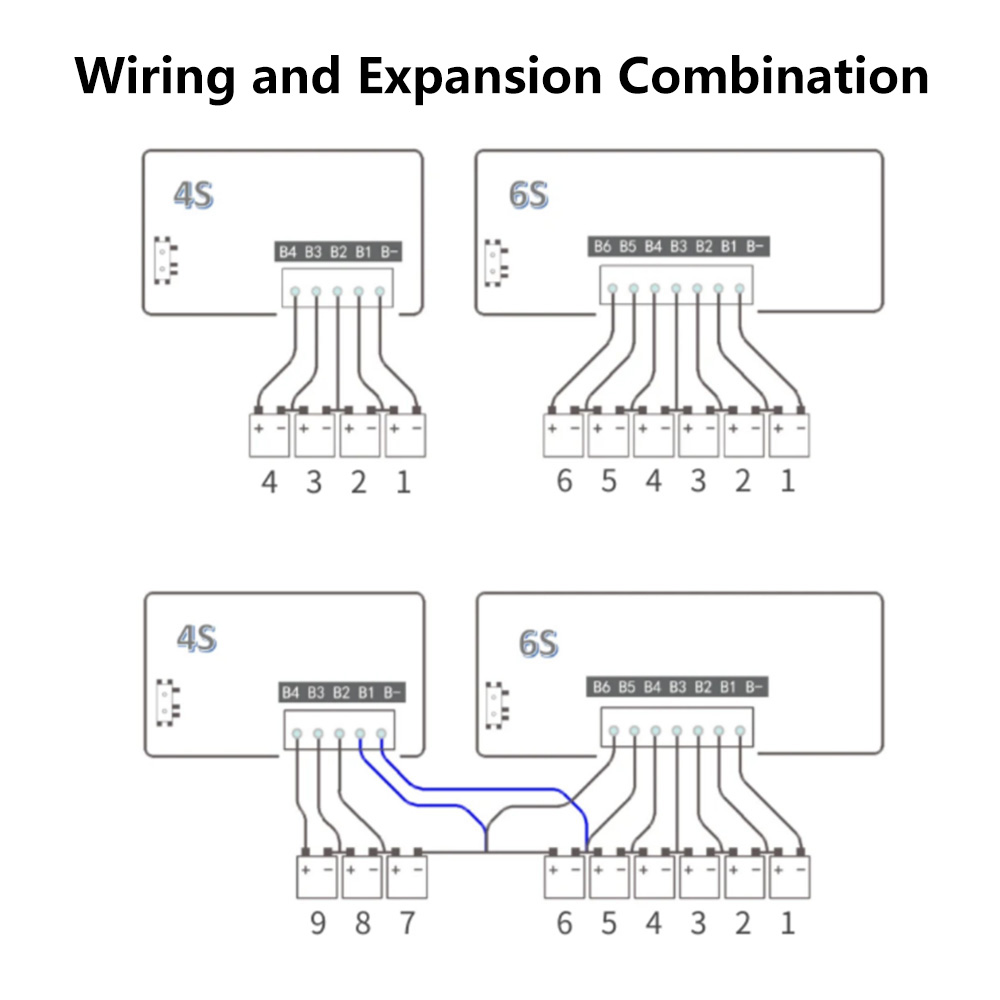

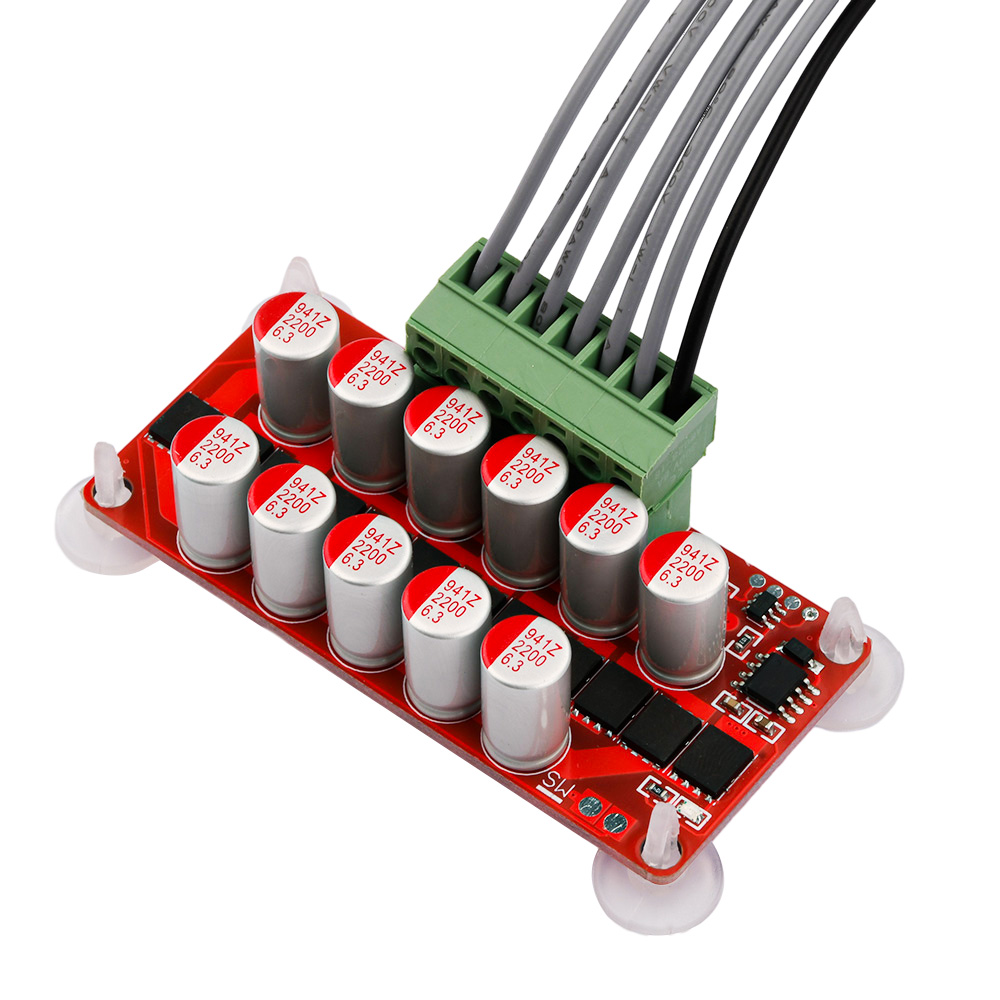

Precautions:

Pay attention to polarity, wire sequence errors or short circuits, which can cause irreversible damage to the components. Please operate carefully and protect the wire circuit and insulation of the wire.
