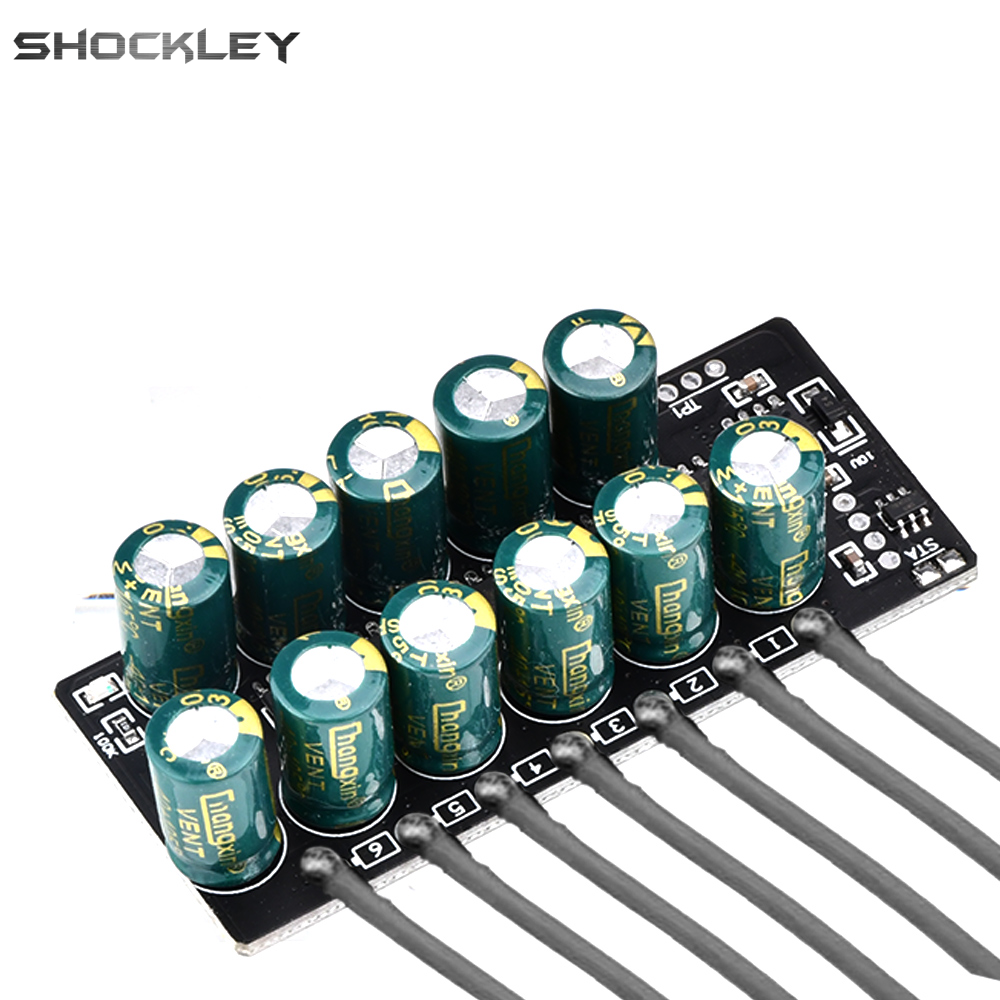

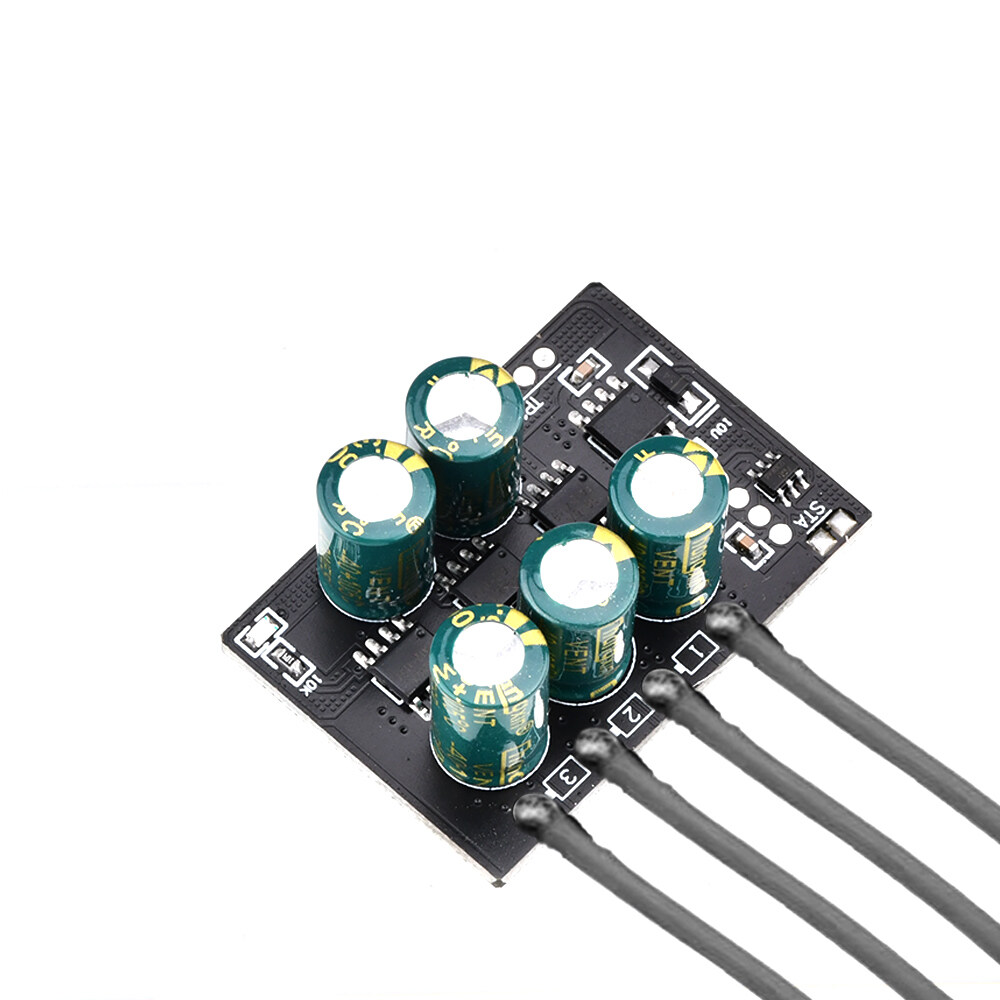

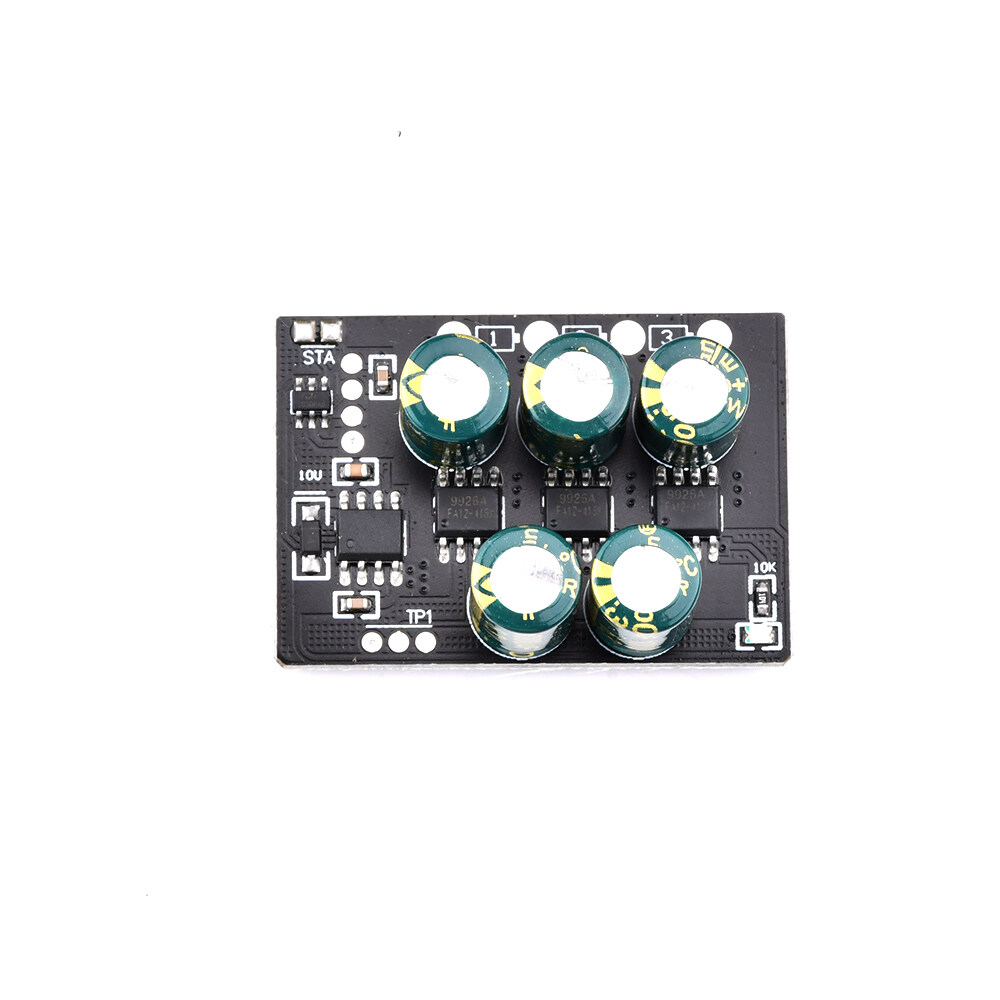

Shockley 3S 4S 6S 7S 2A Active Equalizer Balancer Lifepo4 Lithium Active Battery Energy Transfer Equalization Capacitor

Features:

1.Up to 2A equalizing current, efficient equalizing, low consumption, stable, mature and reliable circuit structure eliminates the risk of similar faults (the equalizing current varies with the voltage difference between batteries)

2.Select low resistance and high frequency ceramic capacitors, and select high-quality components to promote performance and reliability. (The appearance, packaging and parameters of capacitors may vary with different batches)

3.Low heat, high reliability and high precision, suitable for internal battery pack operation or external battery maintenance equalization, with equalization accuracy of 3mV

4.Wiring plug, matched with 22AWG pure copper connector plug (line length 30CM)，

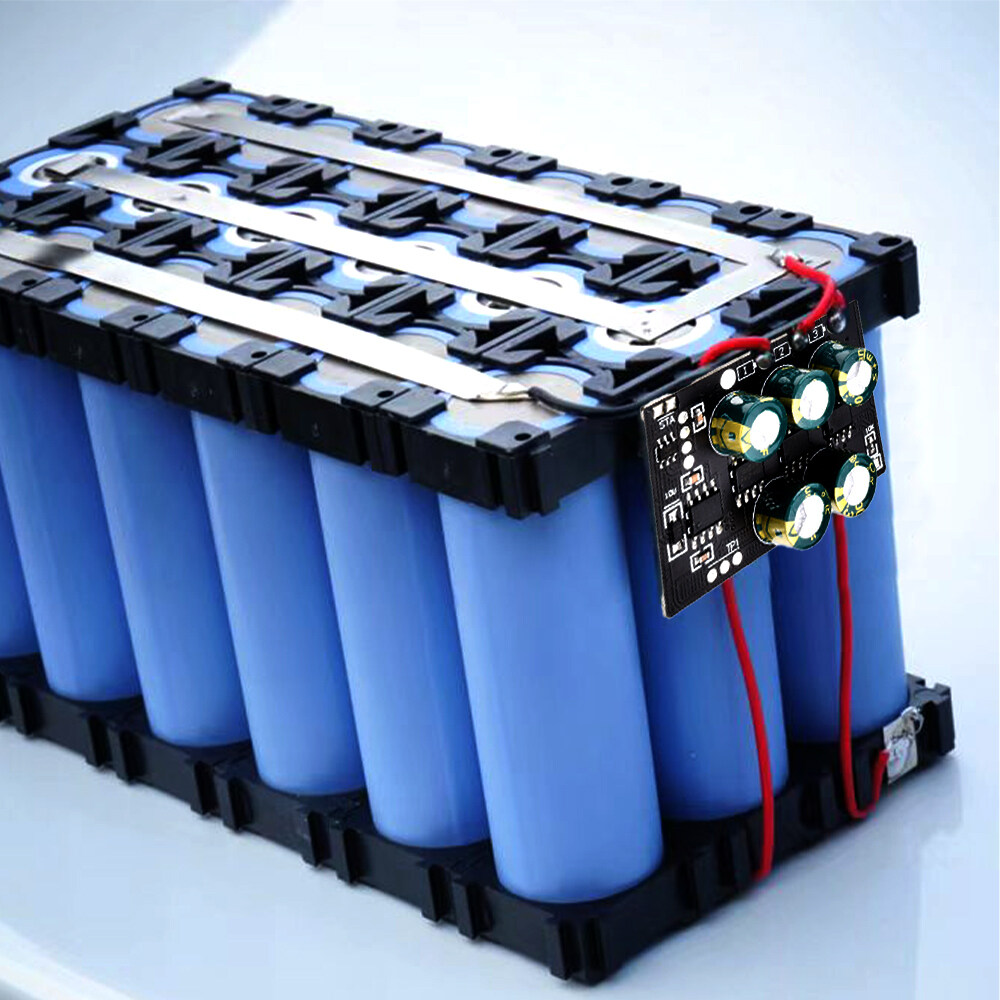

5.The active equalization module of capacitive lithium battery is used for voltage equalization between lithium battery packs, and the independent operation between the module and the protection board does not affect each other. It is applicable to battery pack, maintenance and DIY battery pack.

Parameters:

Product specification: 3S/4S/6S/7S

Suitable for batteries: lithium iron phosphate and lithium ternary

Equalizing current: max. 2A (different from differential pressure, internal resistance, line resistance, etc.)

Equalization accuracy: 3mV

Supporting wire: 22AWG, about 30CM

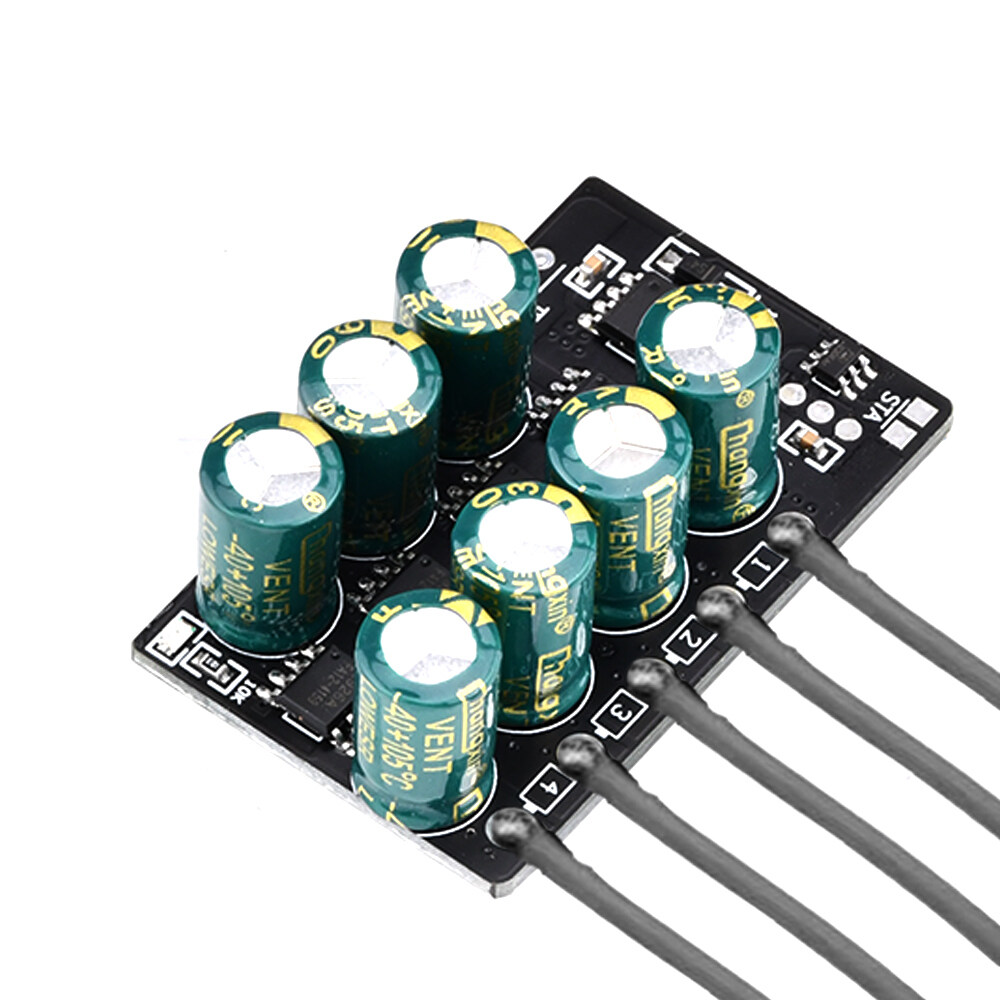

Wiring instructions:

3S wiring: 4

4S wiring: 5

6S wiring: 7

7S wiring: 8

Package include：

Package 1:

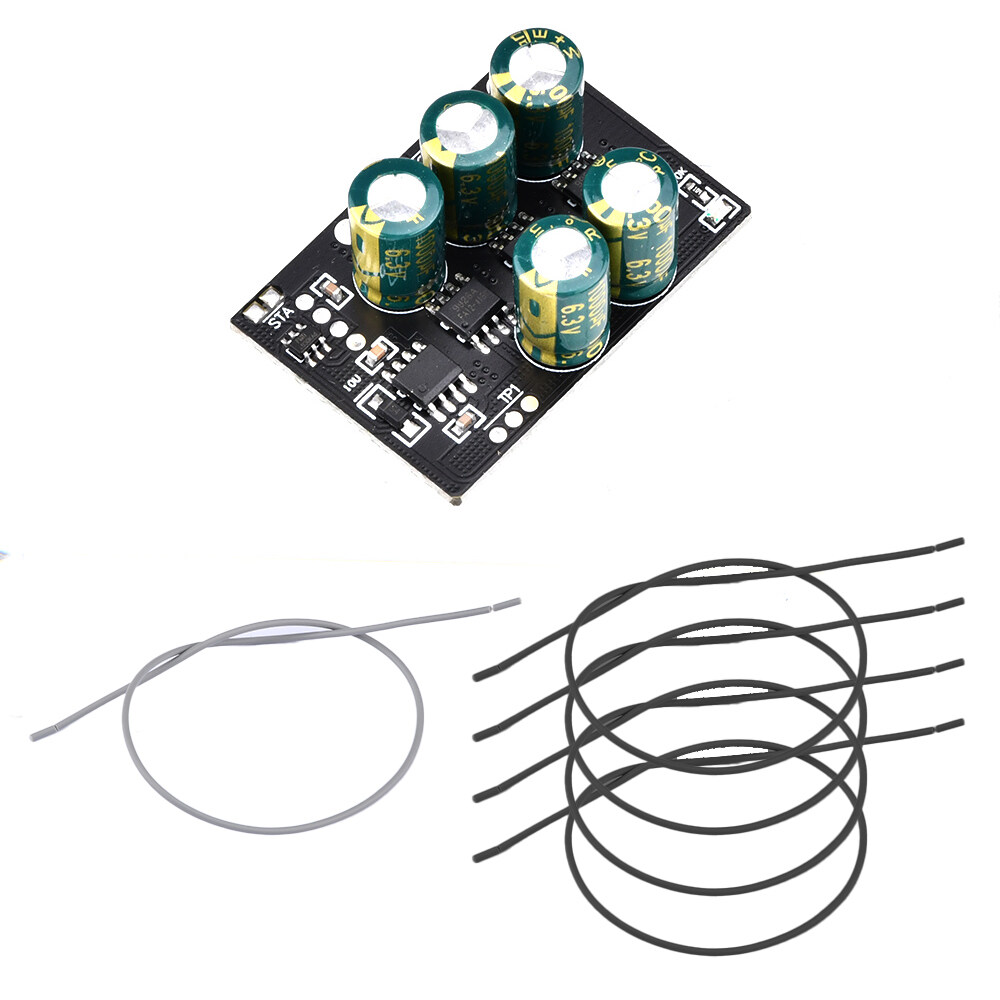

1X3S module circuit body

4X connecting wire 22AWG, about 30CM

Package 2:

1X4S module circuit body

5X connecting wire 22AWG, about 30cm

Package III:

1X6S module circuit body

7X connecting wire 22AWG, about 30CM

Package IV:

1X7S module circuit body

8X connecting wire 22AWG, about 30CM

Common problem:

Q1: Difference between similar products

A1: Resistance passive equalization (advantages: cheap, small, stable, disadvantages: low efficiency, high heat)

Inductive active equalization (advantages: affordable price, small size, disadvantages: poor stability, easy to break, and general accuracy)

Transformer type active equalization (advantages: high accuracy, high stability, disadvantages: large volume, high price)

Capacitive active equalization (advantages: reasonable price, high stability, small heating, high accuracy, high efficiency, disadvantages: relatively high circuit thickness)

Q2: Wiring rules

A2: Starting from 0V (main negative pole) in the clockwise direction, the hanging of 0V (main negative pole) in any state can easily lead to plate burning. Be sure to confirm the wire sequence and wrong order plate burning!

Q3: Consequences of wrong wiring

A3: The result is basically burning the board. “Teacher Fu“ who is too confident will easily capsize, so careful operation is the best policy

Q4: Use principle of wire rod

A4: The specification of supporting wire is 22AWG (0.3m2), and the length is sufficient. The shorter the better.

Q5: Power consumption of the module?

A5: The power consumption of the module is as low as 1.5mA, which is suitable for working for a long time without shutting down. The light is always on. When the battery cell voltage is lower than 2.5V, the module enters the sleep protection mode to prevent excessive battery discharge (the power consumption of the sleep mode is as low as 5uA)

Q6: Equalizing current

A6: The limit current that the equalization module can withstand is 2A, and the current is not so large when the voltage difference is small or the internal resistance of the battery is large or the resistance of the connecting line is large； The equivalent internal resistance of 2A plate is 480 milliohm, {total equalizing current=differential pressure/(battery internal resistance+connecting line resistance+equivalent internal resistance of equalizing plate)}.

Q7: Working temperature

A7: The circuit efficiency is very high, the heat generation is relatively low, and the general temperature is about 30-45 degrees Celsius

Q8: Life of equalizing plate

A8: The product is delivered after rigorous testing. It is not damaged by human factors (such as moisture, water, reverse connection, overpressure, static electricity, etc.). The life of the capacitor is 3-5 years (replace the capacitor when the bulge is found). The life of the chip, resistor and transistor is generally longer than that of human beings.
