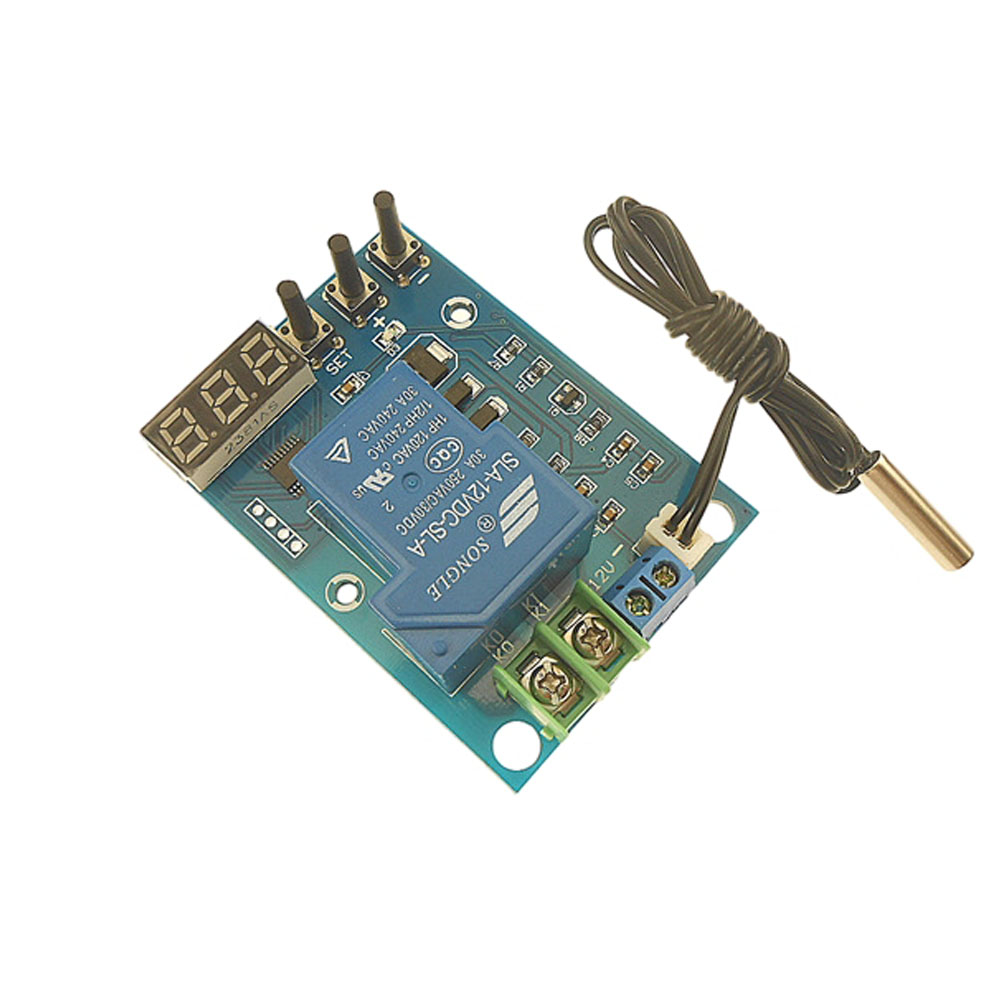

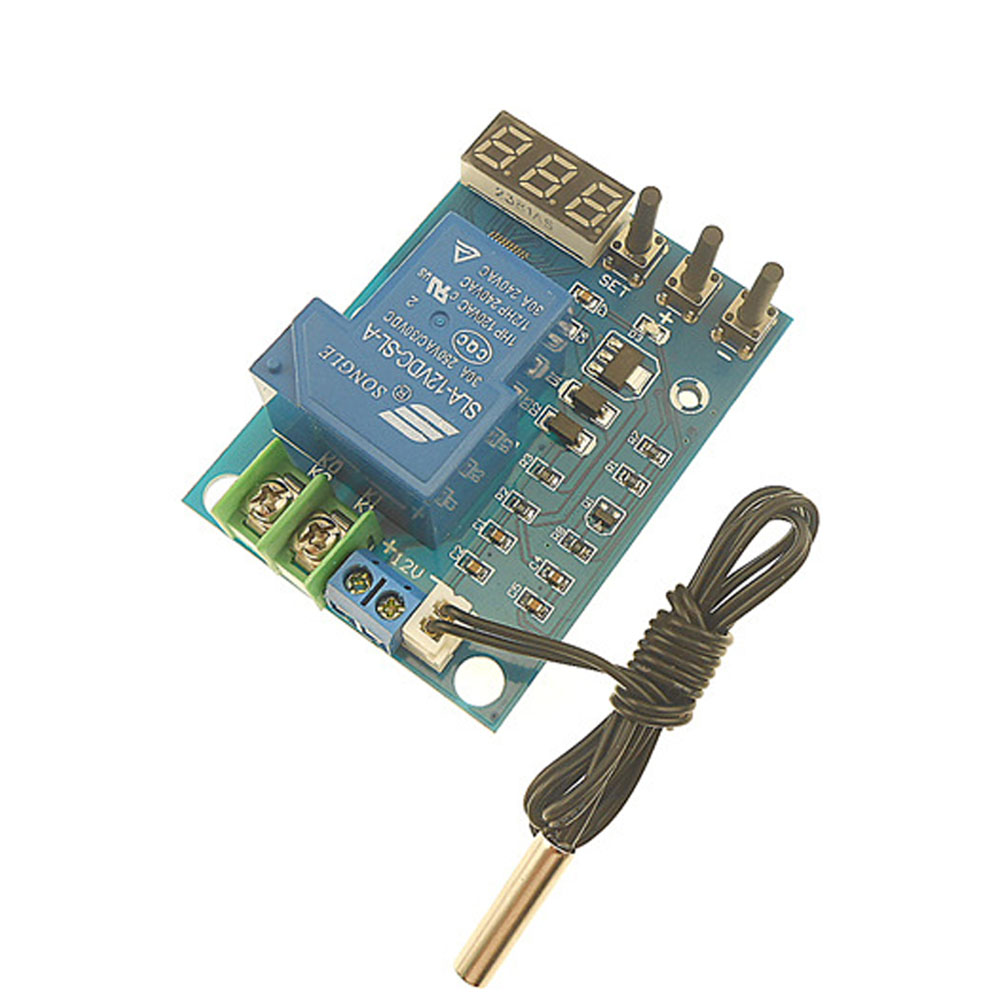

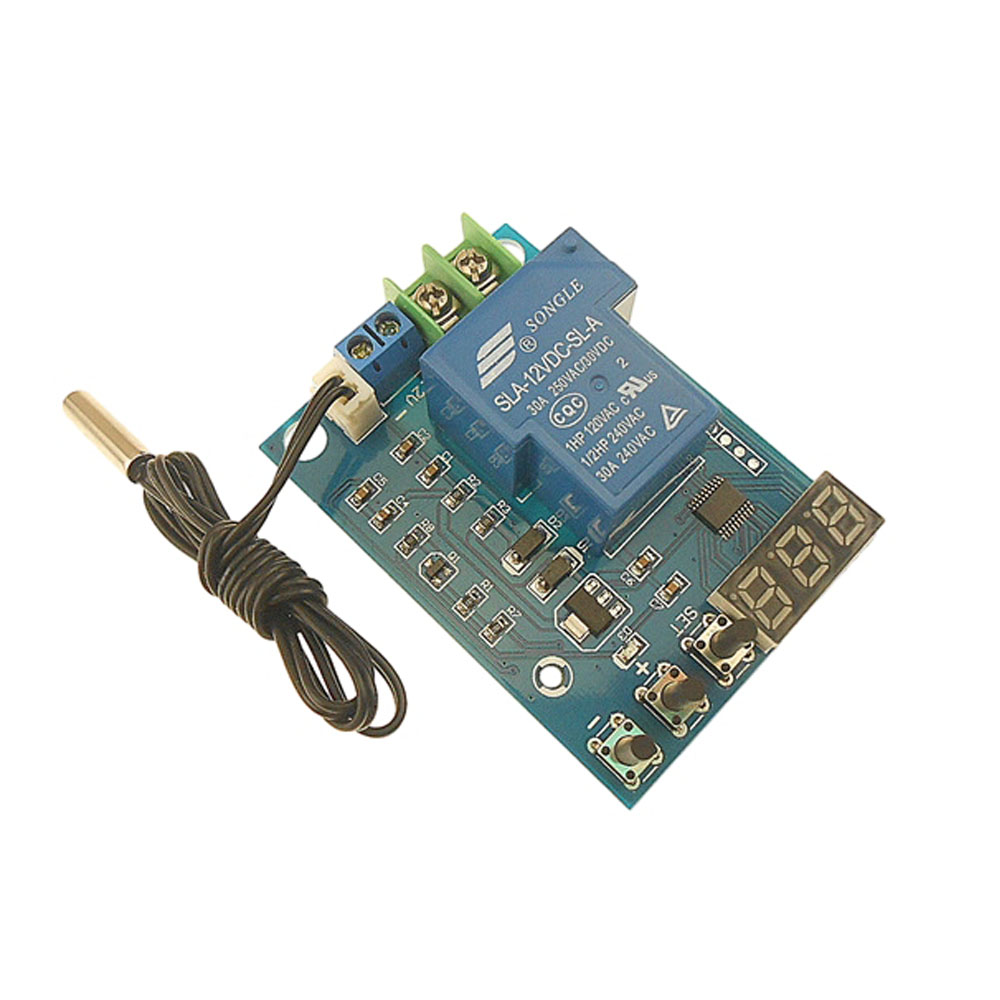

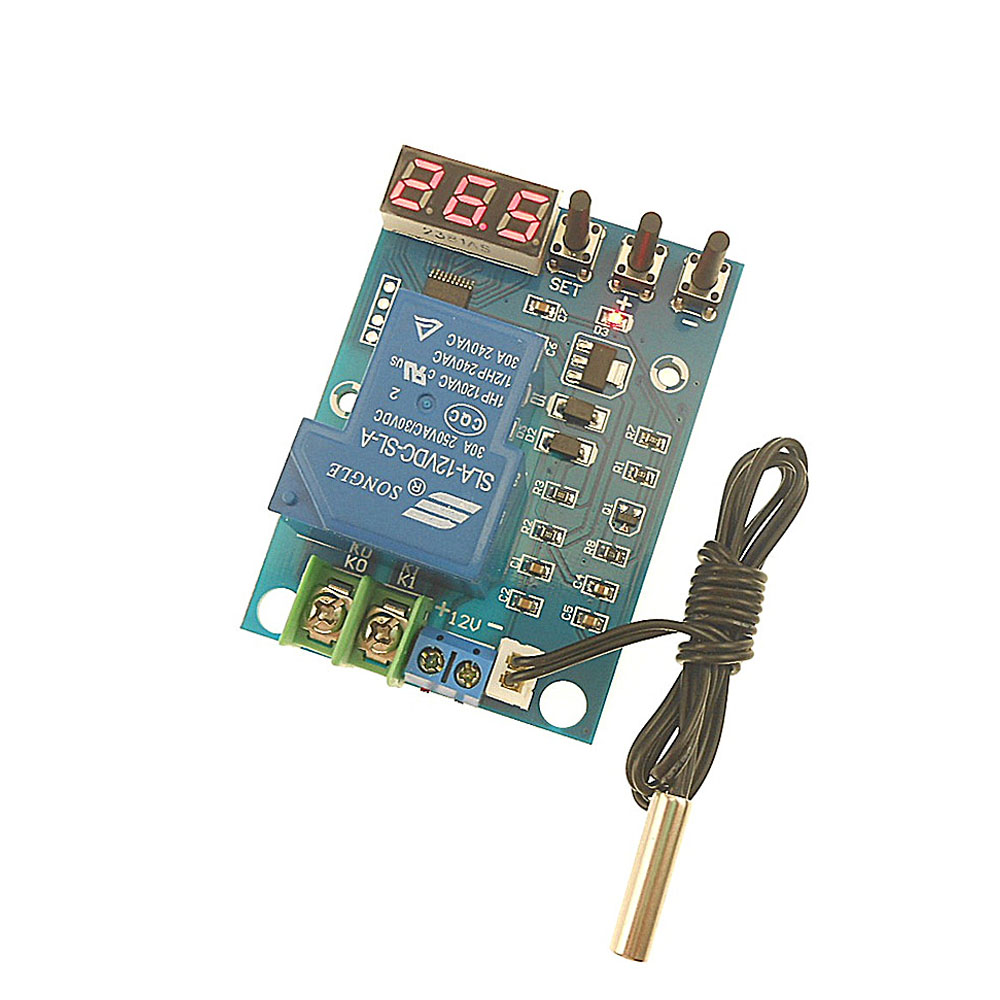

DC12V 30A Thermostat High Precision Temperature Controller Digital Display Temperature Control Board Constant Temperature Switch

Specification:

Product model: YX-WK1201

Input power supply: DC 12V

Output load: 1 way/30A

Return error accuracy: 0.1℃

Refresh frequency: 0.55

High temperature protection: 0~110℃

Control range: -50℃~ 110℃

Measurement accuracy: 0.1℃

Control accuracy: 0.1℃

Environment requirements: -10 to 60℃ Humidity 20% to 85%

Display type: 0.28" three digit digital tube

Resolution: 0.1℃ when -9.9~99.9

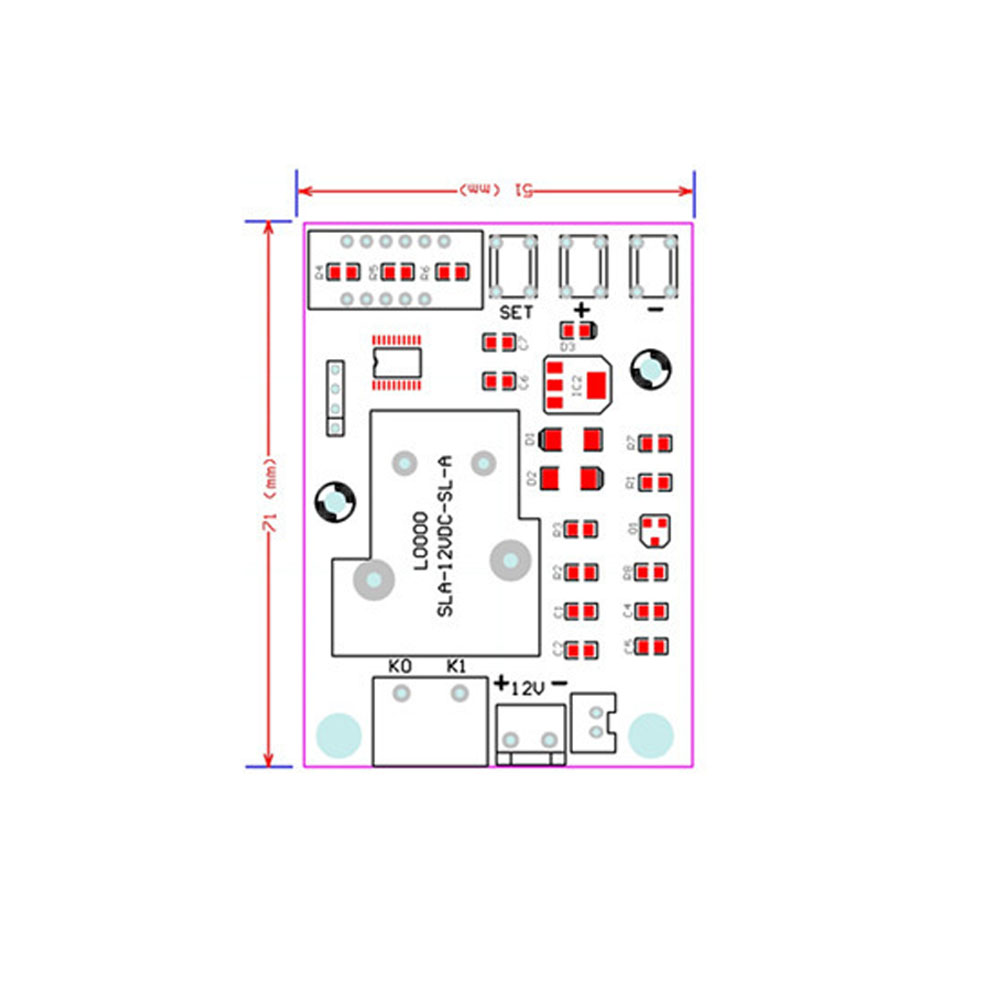

Size: 71mmx51mmx28mm

How to use:

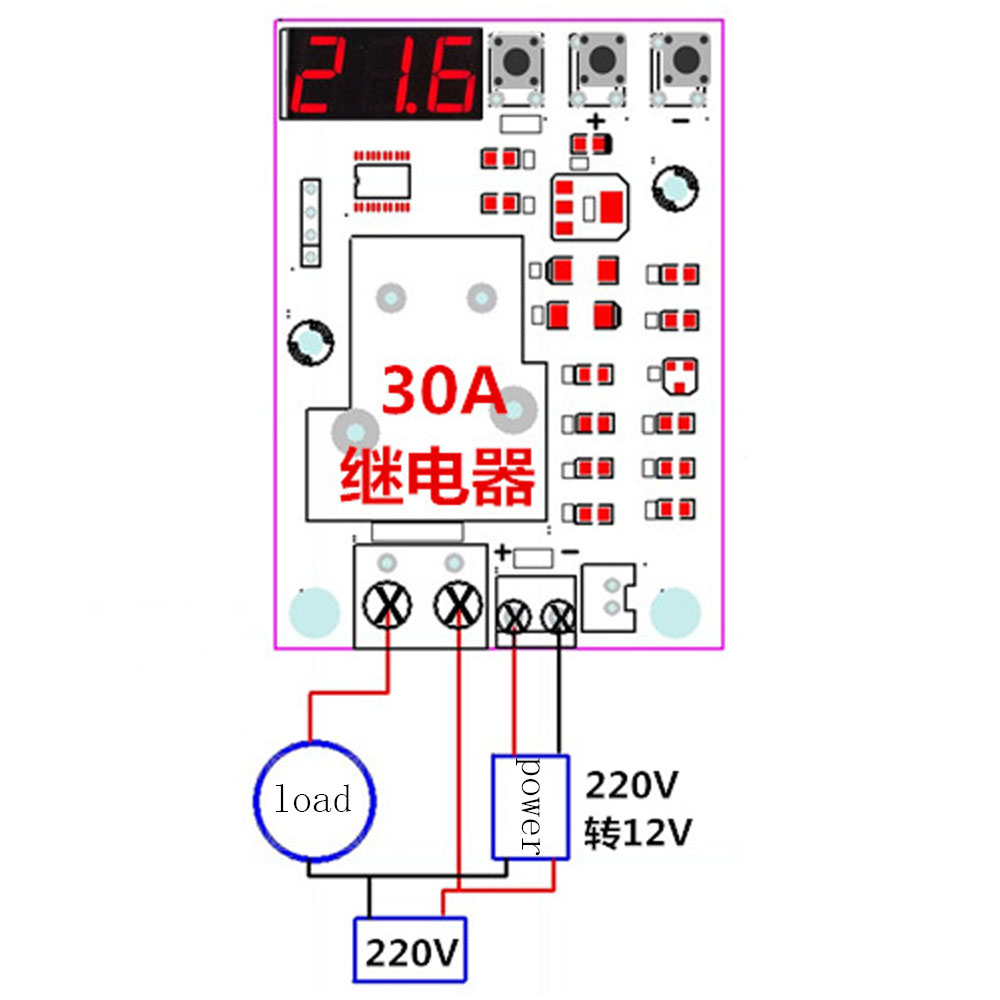

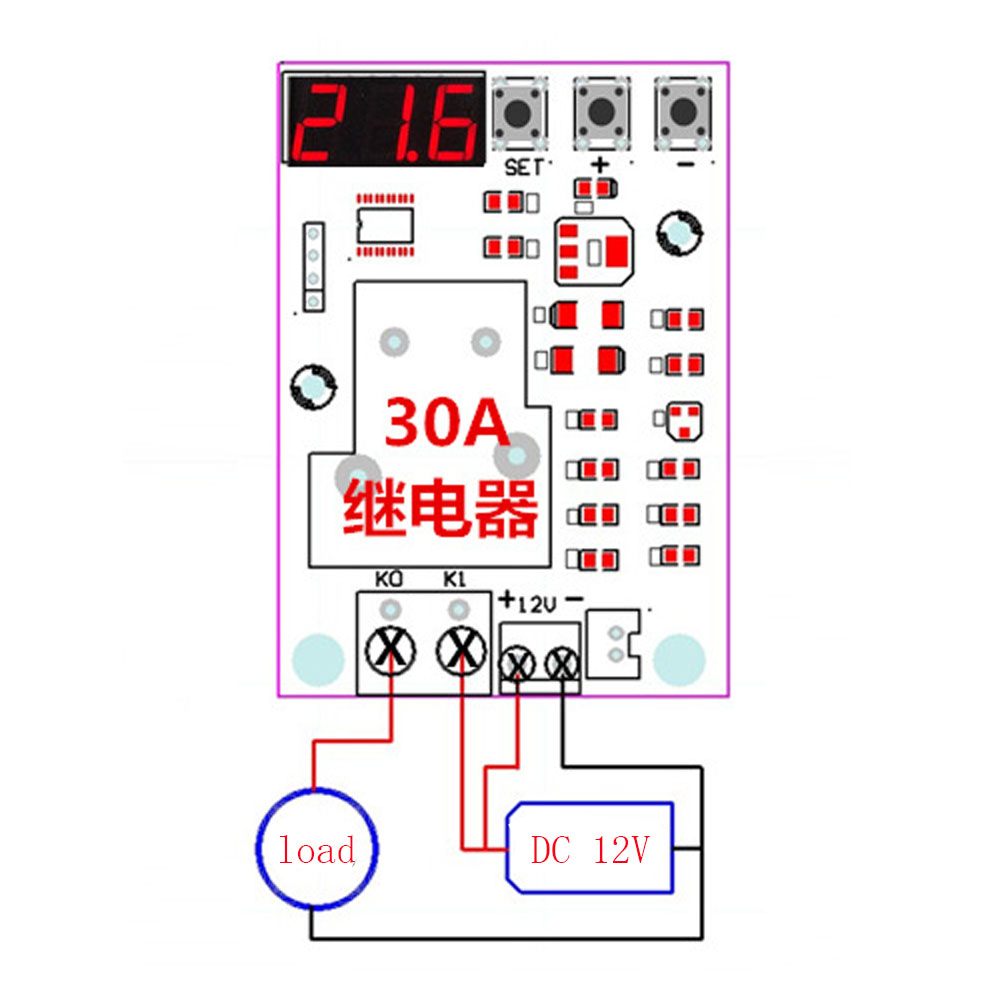

Connect the power supply and load, you can power the controller, then the digital tube is displayed as measuring temperature, press the SET key, the display temperature flashes, press +- to SET the temperature, after setting the set key to confirm return, then the controller will automatically control the relay according to the set temperature on and off.

Indicator nixie status description:

Indicator: Off indicates that the relay is disconnected, steady on indicates that the relay is closed.

Digital tube: Display LL for the sensor open circuit, display HH for out of the measurement range, the controller will

Force disconnect relay, display -- for high temperature protection.

Parameter function description:

Long press the SET key for 5 seconds to enter the main menu setting, press +- to switch the Settings of P0-- P6, long press the SET key or 10 seconds no operation action controller automatically return.

The controller load adopts 30A Songle relay to meet various high-power loads, please ensure that the wiring is correct.

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.

Package Included:

1x Thermostat
